INTRODUCTION
The AP-12TB and AP-16TB are twelve and sixteen zone audio monitoring base stations. As a system utilizing Louroe
speaker/microphones, the units provide an audio monitoring system with two-way talk/listen between the AP-12TB/AP-16TB
and the remote speaker/microphone.
Features for the AP-12TB and AP-16TB include:
"Built in 3” speaker for listening and a built-in microphone for talkback
"Individual RCA outputs for recording into a DVR with multiple audio inputs
"A single selectable RCA output for recording into a VCR or a DVR with only one audio input
"Single RCA audio input for audio playback from a DVR or VCR.
"Switch closure for each zone for activating a camera, etc. when zone switch button is pressed
"Special filtering for enhancing audio playback from a 24hr. time lapse recorder
"Auxiliary microphone jack on rear panel for optional hand-held microphone (hand-held microphone not included
"24 Vdc, 1A power supply included
For two-way talk/listen, AP-12TB and AP-16TB are compatible with Louroe speaker/microphone Models TLI, TLO, TLSP,
TLSP-CM and TLM Series.
For one-way listen (no talkback) all Louroe Microphone Models A, B, C, D, D-V, E, K and L-DT are compatible.
MODEL AP-12TB
AUDIO MONITORING
BASE STATION
MODEL AP-16TB
AUDIO MONITORING
BASE STATION
AP12/16TB 1/08
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
WIRING REQUIREMENTS
West Penn 452 or equivalent
EE
LLOUROEOUROE
LECTRONICSLECTRONICS
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: [phone] / FAX: [phone]
[email protected] / www.louroe.com
AP-12TB / AP-16TB
AUDIO BASE STATIONS
INSTALLATION AND OPERATING INSTRUCTIONS

[1] - Zone Selector Switches Selects zone for monitoring. Press switch of desired zone to listen to
live monitored audio. Pressing any switch also provides a switch
closure for activating a camera, etc. (100mA max)
[2] - Filter-OUT Indicator Lights (green) when audio filter is not in use. Indicates power is “ON”.
[3] - Filter-IN Indicator Lights (amber) when Filter Switch[6] is pressed to “ON” position.
[4] - VCR-IN Indicator Lights (yellow) when VCR Switch[7] is pressed to “ON” position.
[5] - Overload Indicator Current overload indicator. Lights (red) when power short circuit
occurs.
[6] - Filter Switch Used only when audio playback is from a 12 or 24 hr. time lapse
recorder. Press Filter Switch[6] to illuminate red LED for 12/24 hour
mode. This enhances the quality of recorded audio playback. If
playback is from a DVR, filter switch is not used and should be in the
“OUT” position. If no recording device is used, then filter switch must
be in the “OUT” position. Otherwise live audio will be muted. The
green LED illuminates when filter switch is in the “OUT” position.
[7] - VCR Switch Press switch to “ON” (or “IN”) position after connecting DVR/VCR to
unit. (When switch is “OUT”, audio bypasses the and is not
recorded. When switch is “IN”, audio is sent in for recording and
playback. Switch must always be “IN” whenever a recorder is
connected.
[8] - Talkback switch Press to talk to remote speakers. Select a zone by pressing any Zone
Selector Switch[1] to talk to desired zone. A built-in Talk back
Microphone[10] is located above the Headphone Jack[11].
[9] - Power-Volume Control Knob Rotating knob clockwise turns on power to the unit as indicated by the
filter-OUT indicator[2]. Green LED will illuminate. Rotating clockwise
also increases loudness of monitored audio from the Monitor
Speaker[13].
[10] - Talkback Microphone Built-in microphone for talkback.
[11] - Headphone Jack Used for private listening. Any 3.5mm stereo headphone with 8 to
600W impedance may be used. Speaker is muted when headphone is
used.
[12] - Talkback Control Knob Rotate knob clockwise to increase the loudness of talkback output;
counterclockwise to decrease.
DVR/VCR
[13] - Monitor Speaker Delivers audio through speaker. Muted when a headphone is plugged
into the Headphone Jack[11].
(not used with DVR’s)
(includes DVR’s)
(includes DVR’s)
PRESS
&
TALK
[1] [2]
[3]
[4]
[5]
[6] [7]
[8]
[9]
[10]
[11]
[12]

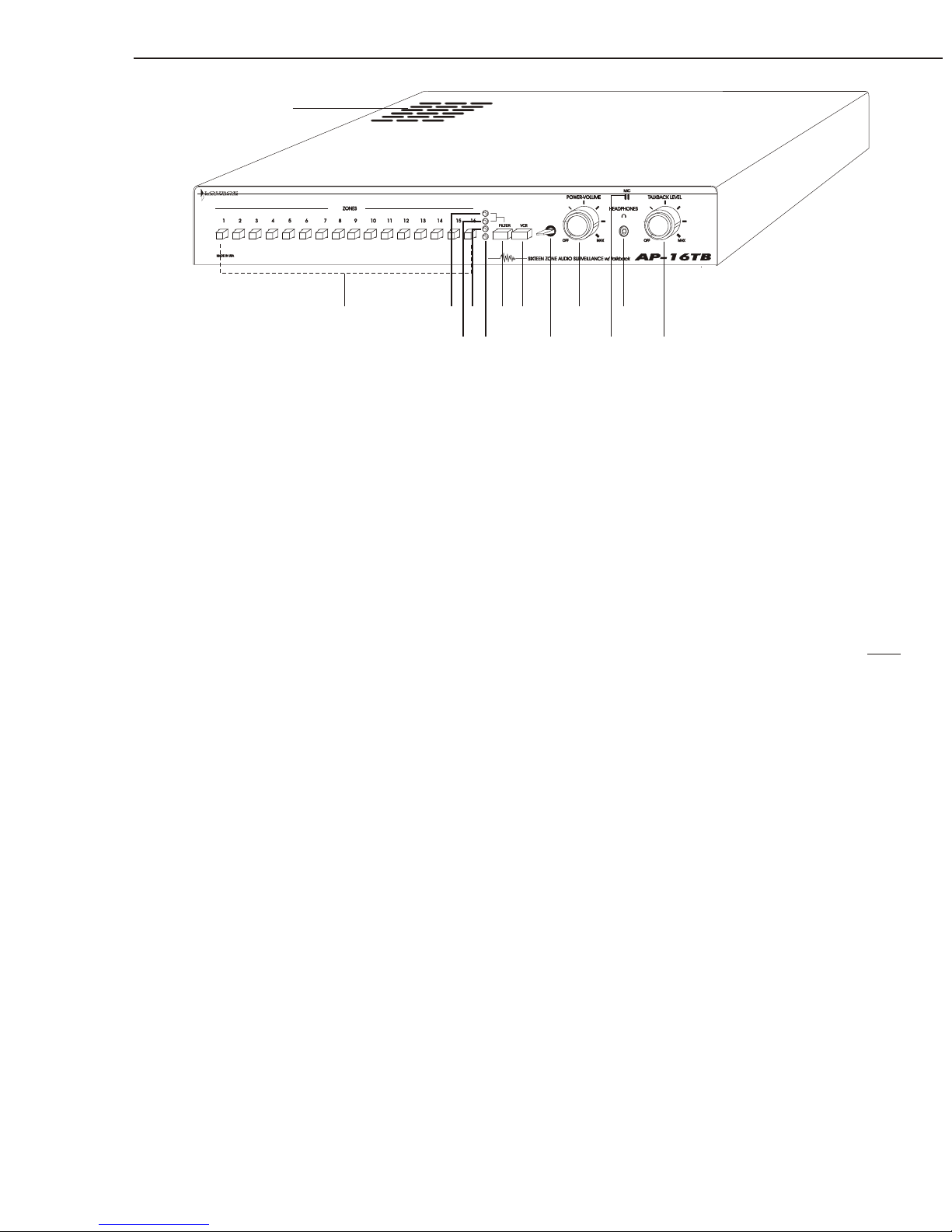

Fig. 1 AP-16TB
Front Panel
[13]
AP12/16TB 1/08
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
INSTALLATION AND OPERATING INSTRUCTIONS
page 1 of 4

[14] - Mic 5-Pin Terminal Block Connects to speaker/microphone unit at remote station.
[15] - Audio OUT Jack (RCA) Provides audio to external , remote amplifiers, etc.
[16] - Aux. Microphone Accepts handheld talkback microphone ( with 1/4” plug.
Works the same as Talkback Microphone[10] and is used as an
option.
[17] - Audio-IN Jack (RCA) Receives audio playback from external
[18] - Switch Closure Terminal Block Provides a switch closure when a zone is selected by the Zone
Selector Switch[1]. Maximum current capacity of switch is 100mA.
Do not connect load that will exceed this current rating.
[19] - Zone Aux. Mic Output Used for connection to a DVR with multiple audio inputs or for
(each zone) connecting to another AP-12TB or AP-16TB (paralleling two units).
[20] - DC-IN Jack (power) Accepts 24 Vdc from external power supply (AC adapter included).
DVR/VCR
8 to 600W)
DVR/VCR, etc.

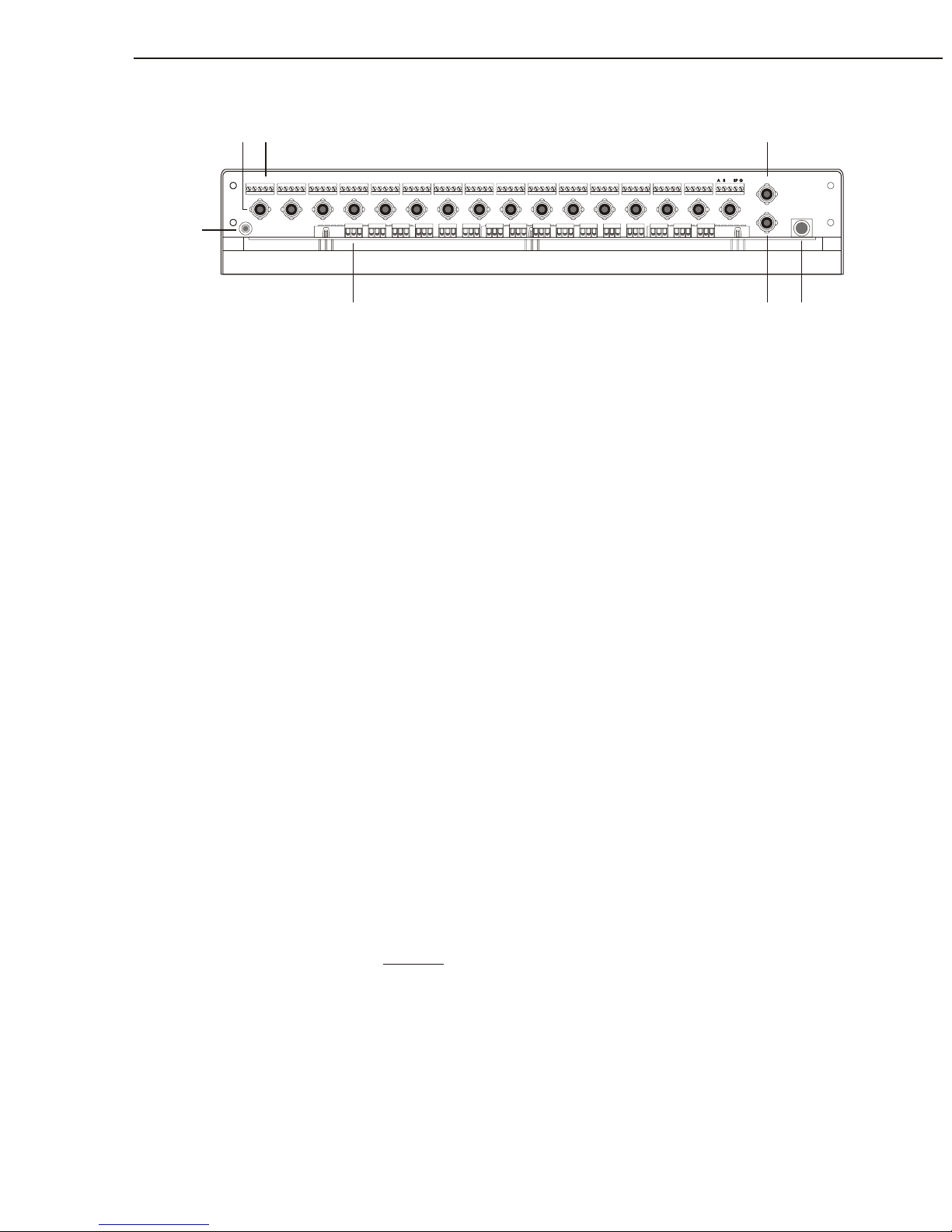

Fig. 2 Rear of AP-16TB
[14][19] [15]
[17] [16]
[20]
[18]
A B C
1ZONES 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SP
1A
24Vdc
2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A
G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G C AUDIO OUT
AUDIO IN
NOTE REGARDING CONNECTION TO DVR’s:
Models AP-12TB and AP-16TB are compatible with most all DVR’s.
If DVR has only one audio input, connect the “Audio Out” jack on
back panel of AP-12TB/AP-16TB to “Audio In” of DVR using an RCA
cable.
If DVR has multiple audio inputs, connect the “Mic Out” jacks on
back panel of AP-12TB/AP-16TB to the audio inputs of DVR using RCA
cables.
If DVR contains 3.5mm audio inputs instead of RCA types, a 3.5mm
stereo adapter must be connected to one end of RCA cable.
[17]
[19]
AP12/16TB 1/08
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
INSTALLATION AND OPERATING INSTRUCTIONS
page 2 of 4

WIRING CONNECTIONS
1). Connect one end of cable to remote speaker/microphone as shown in Fig. 3. Use 4 conductor
shielded audio cable such as West Penn 356. Connect wires wrapped with overall shield to
terminals “A”, “B”, and “C” of microphone’s terminal block. When using West Penn 356, connect red
wire to terminal “A”; black wire to terminal “B” and bare wire to terminal”C”.
2). Connect the two speaker wires (white and green) to speaker’s 70 volt transformer terminals.
Connect cable’s white wire to white wire connected to the 70 volt transformer using a wire nut.
Connect cable’s green wire to green wire of transformer with a wire nut.
3). Connect the other end of the cable to AP-12TB or AP-16TB Mic 5-Pin Terminal Block[14] for the
zone which the remote microphone is assigned. Make sure that wire connected to terminal “A” of
remote microphone connects to terminal “A” of unit’s Mic 5-Pin Terminal Block[14]; wire connected
to terminal “B’ of microphone connects to terminal “B” of unit’; “C” to “C”. If using wire from other
manufacturers, color code may vary.
4). Connect white speaker wire to Mic 5-Pin Terminal Block[14] terminal “G”. Connect green wire to
terminal marked “SP”.
5). Repeat steps 1 thru 3 for zones 2, 3, 4 .....16.
6). When a recorder is used (DVR, VCR etc.), connect Audio-OUT Jack[15] to recorder’s Audio-IN
Jack with an RCA cable (not supplied).
7). Connect Audio-IN Jack[17] to recorder’s Audio-Out Jack.
8). Plug AC Adapter (supplied) to DC-IN Jack[20].
NOTE: If AP-12TB or AP-16TB is to be used as a one-way listen only system (no talkback), any Louroe
Verifact Microphone can be used. Make microphone connections as described above (see step 1).
Disregard speaker connections. Use 2 conductor shielded cable, 22 gauge with a 24 gauge drain.
West Penn 452 or equivalent. Same color code as in West Penn 356 (red, black and bare).

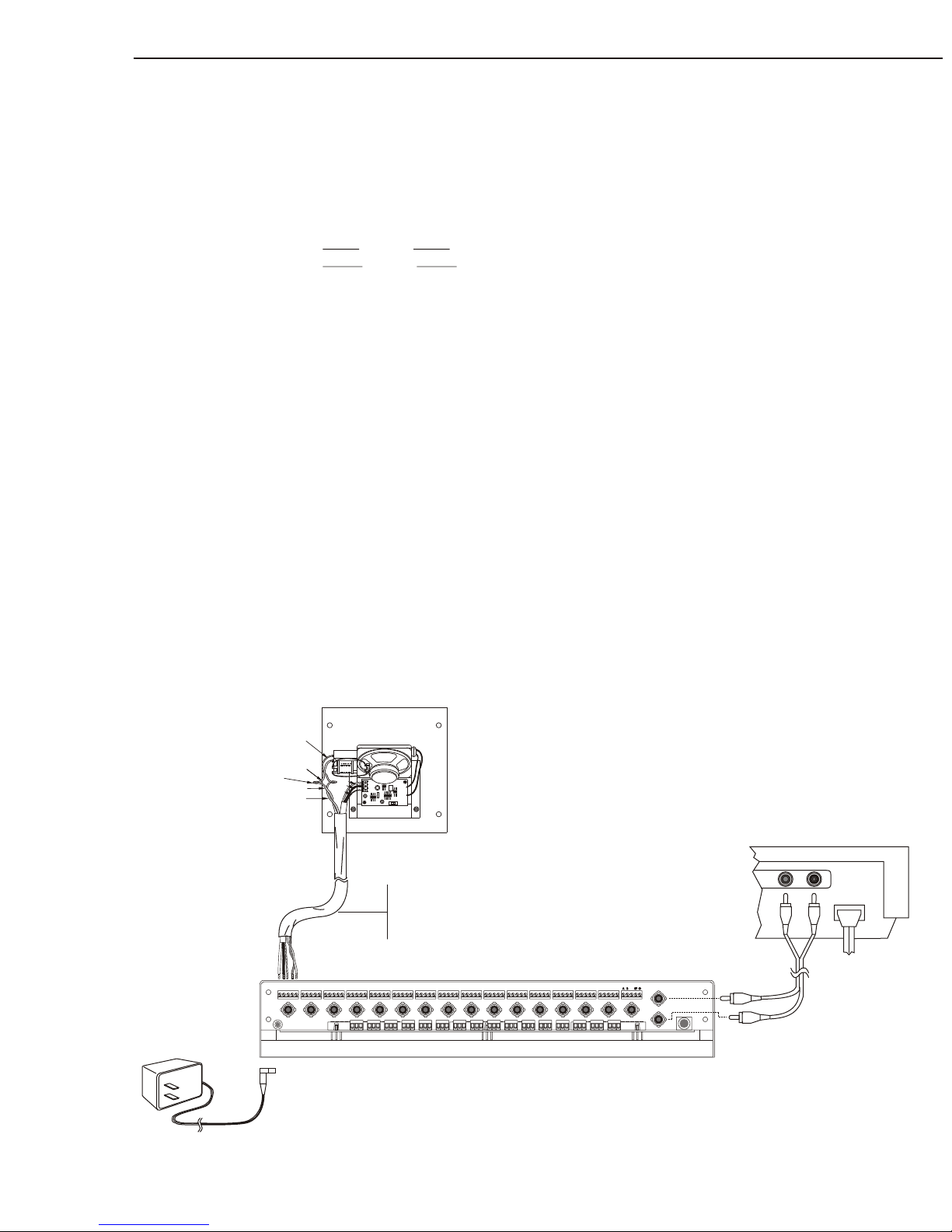

Fig. 3 Interconnection Diagram
A B C
1ZONES 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SP
1A
24Vdc
2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A
G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G C AUDIO OUT
AUDIO IN
OUTOUT ININ
EXAMPLE CABLE: EXAMPLE CABLE:
WEST PENN 356WEST PENN 356
2 CONDUCTOR SHIELDED #20 AWG2 CONDUCTOR SHIELDED #20 AWG
2 CONDUCTOR UNSHIELDED #18 AWG2 CONDUCTOR UNSHIELDED #18 AWG
1 DRAIN WIRE (BARE) #22 AWG1 DRAIN WIRE (BARE) #22 AWG
REAR OF AP-16TB
REAR OF DVR/VCR
Louroe Model TLSP Speaker/Microphone
AUDIO
AC ADAPTER
REDRED
BLACKBLACK
BAREBARE
AA
BB
CC
WHITE
GREEN
GREEN
WHITE
WIRE NUT
AP12/16TB 1/08
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
INSTALLATION AND OPERATING INSTRUCTIONS
page 3 of 4

A B
C
A B
C
NN
T
VERIFA A
CT
VERIFA A
C
L
L
RED(A)
BLACK(B) BARE(C)
ABCSPGAL
BARE
GREEN
IMPORTANT NOTICE
When this equipment is used as part of an audio
monitoring system, the law requires that the public
be given notice of AUDIO MONITORING ON THE
PREMISES. A decal notice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18. Crime and
Criminal Procedure, Sec 2510.
AUDIO
MONITORING
EE
LLOU ROEOUROE
LECTRONIC SLECTRONICS
On
These Premises
RED
BLACK
OPERATION AND TEST
1). To apply power, first connect small end of 24 Vdc power supply to the 24 Vdc power jack located
on rear panel , then plug power block into a standard 120 Vac wall outlet or power strip.
2). Turn on power to the unit by rotating the Power-Volume Control Knob[9] clockwise to “ON”
position. Filter-OUT Indicator[2] should light green, indicating power is present at the unit. Rotate
Power-Volume Knob[9] further clockwise to increase the level of loudness of monitored audio.
3). Press Zone Selector Switches[1] marked zone 1. Audio from zone 1 should be present at the
Monitor Speaker[13]. If there is no audio, temporarily remove wires connected to Mic 5-Pin
Terminal Block[14] for zone 1 located at the rear of the unit. With a voltmeter, check that 12 Vdc is
present at terminals “A” and “C”. Place positive lead of voltmeter to terminal “A” and negative to
“C”. If voltage is not present, unit has defective voltage regulator. If voltage is present, check to
see if the wires are connected properly to the right terminals. Otherwise microphone is defective.
Call factory for assistance.
4). Press Talkback Switch[8] and speak into the Talkback Microphone[10]. Rotate Talkback Volume
Control[12] clockwise to increase the level of talkback audio. Another person is needed at the
remote location to listen to the volume and clarity of talkback audio.
5). Repeat steps 3 and 4 for the other zones.
6). When a 24 hour VCR is connected to the unit, press VCR Switch[7]. VCR-IN Indicator[4] will light
yellow. Start recording live audio. It is not necessary to use VCR switch if recording into a DVR.
The VCR Switch[7] must be in the “OUT” position when a recorder is not connected to the unit.
Otherwise live audio will be muted.
7). Recorded audio can be played back through the AP-12TB/AP-16TB’s built-in amplifier and
speaker. If audio playback is from a 24 hour time lapse recorder, press Filter Switch[6] to 12/24
hour mode. Filter In indicator[3] will illuminate red. If playback is from a DVR, filter switch is not
used and should be in the “OUT” position. If no recording device is used, then filter switch must be
in the “OUT” position. Otherwise live audio will be muted. The green LED will illuminate when filter
switch is in the “OUT” position.
[20]
SPECIFICATIONS
Input sensitivity
(from remote microphone)
0.78Vrms
Monitor power output
Talkback power output
1.5W @ 8W
1.5W into 70V line
Audio input impedance 10kW
Audio frequency response 100 Hz to 10kHz
Audio frequency
response (enhanced)
-20 dB @ 200 Hz to
+5dB @ 3kHz
Headphone impedance 8 to 600W
Power input 24 Vdc, 1A
Dimensions 15”W x 12 1/2”D x 2 3/4”H
Net Weight (incl power supply) 10 lbs (4.5 kg)
Input sensitivity -55 dB
(Talkback microphone)
Audio line output impedance 600W or higher
Switch Closure Rating 100mA
AP12/16TB 1/08
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
INSTALLATION AND OPERATING INSTRUCTIONS
page 4 of 4

NOTES
AP12/16TB 1/08
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
INSTALLATION AND OPERATING INSTRUCTIONS
page 1 of 4

IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
decal notice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
E
LOUROE
LECTRONICS
On
These Premises
WARRANTY
LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS.
This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.
Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.
AP12/16TB 1/08
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
INSTALLATION AND OPERATING INSTRUCTIONS
page 1 of 4

MANUFACTURED
IN THE
AP12/16TB 1/08
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]
Website: www.louroe.com Email: [email protected]
INSTALLATION AND OPERATING INSTRUCTIONS
