Blancett B2800 standard User manual

Flow Monitor

B2800 Standard

DSY-PM-00276-EN-02 (May 2015) User Manual

CONTENTS

Scope of This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Terminology and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Basic Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Program Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Run Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Additional Scaling Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Flow 4 mA Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Flow 20 mA Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4…20 mA Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4…20 mA Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Additional Input Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Default K-factor Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installation Drawing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Part Numbering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

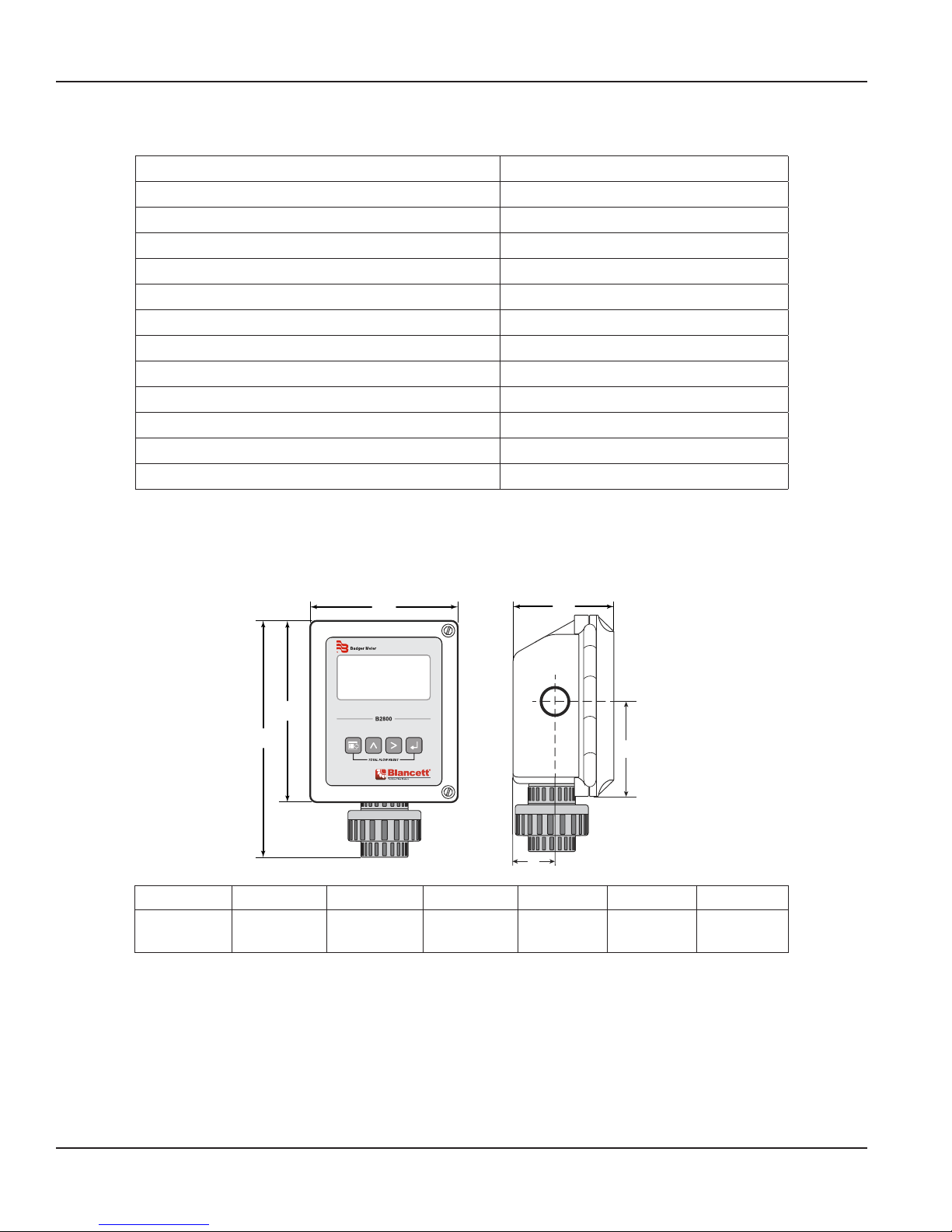

Mounting Options and Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Meter Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Remote Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Swivel Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Flow Monitor, B2800 Standard

Page ii May 2015

SCOPE OF THIS MANUAL

This manual is intended to help you get the B2800 flow monitor up and running quickly.

MPORTANTI

Read this manual carefully before attempting any installation or operation. Keep the manual accessible for future reference.

UNPACKING AND INSPECTION

Upon opening the shipping container, visually inspect the product and applicable accessories for any physical damage such

as scratches, loose or broken parts, or any other sign of damage that may have occurred during shipment.

OTE:N If damage is found, request an inspection by the carrier’s agent within 48 hours of delivery and file a claim with the

carrier. A claim for equipment damage in transit is the sole responsibility of the purchaser.

SAFETY

Terminology and Symbols

Indicates a hazardous situation, which, if not avoided, is estimated to be capable of causing death or

serious personal injury.

Indicates a hazardous situation, which, if not avoided, could result in severe personal injury or death.

Indicates a hazardous situation, which, if not avoided, is estimated to be capable of causing minor or

moderate personal injury or damage to property.

Considerations

The installation of the B2800 monitor must comply with all applicable federal, state, and local rules, regulations, and codes.

EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.

AVERTISSMENT

RISQUE D’EXPLOSION - LA SUBSTITUTION DE COMPOSANTS PEUT RENDRE CEMATÉRIEL INACCCEPTABLE POUR LES

EMPLACEMENTS DE CLASSE I, DIVISION 2.

DO NOT CONNECT OR DISCONNECT EITHER POWER OR OUTPUTS UNLESS THE AREA IS KNOWN TO BE NON-

HAZARDOUS.

AVERTISSMENT

RISQUE D’EXPLOSION. NE PAS DÉBRANCHER TANT QUE LE CIRCUIT EST SOUSTENSION, À MOINS QU’LL NE S’AGISSE

D’UN EMPLACEMENT NON DANGEREUX.

MPORTANTI

Not following instructions properly may impair safety of equipment and/or personnel.

Scope of This Manual

Page 3May 2015 DSY-PM-00276-EN-02

INTRODUCTION

The B2800 flow monitor is a state-of-the-art digital signal processing flow monitor, designed to provide exceptional flexibility

at a very affordable price. Though designed for use with Blancett flow meters, this display can be used with almost any flow

meter producing a low amplitude AC output or contact closure signals.

This flow monitor is capable of accepting a low level frequency input for calculating flow rate and total. The calculations can

then be displayed in the desired units of measurement. All B2800 flow monitors come pre-programmed from the factory, if

ordered with a Blancett flow meter. If required, however, it can easily be reconfigured in the field. The monitor’s large 8-digit

by 0.75 in. (19.05 mm) numeric liquid crystal display makes extended range viewing practical. The second 8-digit by

0.38 in. (9.65 mm) alphanumeric display provides for selectable units viewing in run mode and prompts for variables in

program mode. Finally, you can choose to display rate or total, or alternate between both rate and total.

Introduction

Page 4 May 2015DSY-PM-00276-EN-02

OPERATING THE MONITOR

Programming

Keys

Mode

Indicator

Units Display

And

Programming Choices

Rate / Total Display

And

Programming Choices

RUN PROGRAM

RELAY1 RELAY2

Figure 1: B2800 flow monitor

Buttons

MENU Switches to PROGRAM mode

UP Scrolls forward through the parameter options and increments numeric variables

RIGHT Scrolls backward through the parameter options and moves the active digit to the right

ENTER Saves programming information, advances to the next programming parameter, and

used in the reset process

Modes

RUN Normal operating mode

PROGRAM Used to program parameters in the display

If your monitor was ordered with a Blancett flow meter, the two components ship from the factory calibrated as a set. If the

monitor is a replacement, the turbine’s K-factor has changed or the monitor is being used with some other pulse generating

device, the monitor must be programmed.

Operating the Monitor

Page 5May 2015 DSY-PM-00276-EN-02

PROGRAMMING

Each turbine flow meter is shipped with either a K-factor value or frequency data. If frequency data is provided, the data must

be converted to a K-factor before programming the monitor. K-factor information, when supplied, can usually be found on the

neck of the flow meter or stamped on the flow meter body. The K-factor represents the number of pulses per unit of volume.

The K-factor is needed to program the monitor readout.

Programming Mode

K Factor Units

Units

Pulse Output

IO/SETUP

METER

PUL/GAL PUL/FT3PUL/LTRPUL/M3

K FACTOR

GPM/GAL LPM/LIT M3PH/M3 M3PD/M3 BPD/BBL

DSP BOTH TOTA L RAT E TEST

PULS ON PULS OFF

PASSWORD

RST PSWD

Enter Program Mode

Press MENU to enter the programming mode. The mode indicator changes from RUN to PROGRAM.

Select Meter Size

At the METER prompt, press UP or RIGHT to scroll to the bore size of your meter. Press ENTER to save and advance to the

K-factor Units parameter.

OTE:N The meter connection size and the bore size are different. For example, many of the one inch NPT turbines have bore

sizes that range from 3/8…1 in. Be sure to use the correct bore size or the meter will report incorrect flows and totals.

Enter The K-Factor Unit

Press UP or RIGHT to scroll to the K-factor unit of the meter. Enter the unit that the meter was calibrated in.

Example

If the meter was calibrated in US gallons, use PUL/GAL.

Press ENTER to save the K-factor unit and advance to the K FACTOR parameter.

OTE:N Unless otherwise specified, Blancett turbine flow meters are supplied with K-factors measured in pulses per gallon

(PUL/GAL) which will automatically convert to your desired units of measure.

Enter The Meter's K-Factor

OTE:N The K-factor supplied with the meter or calculated from calibration data is needed to set this parameter.

To change the K-factor value, press RIGHT to select the digit that you wish to change. Press UP to increment the digit until it

matches the meter’s K-factor. Repeat this process until all K-factor digits have been entered. Press ENTER to save the K-factor

and advance to RATE/TOTAL.

Programming

Page 6 May 2015DSY-PM-00276-EN-02

Select the Units of Measure

The monitor is programmed with five common rate/total unit options. The monitor shows the rate/total unit that the display

is currently set for. If the current selection is correct, press ENTER once to advance to the DISPLAY FUNCTION parameter.

To change the unit, press UP or RIGHT to scroll to the correct rate unit. Press ENTER to save and advance to the DISPLAY

FUNCTION parameter.

Selection Rate Total

GPM/GAL Gallons per minute Gallons

LPM/LIT Liters per minute Liters

M3PH/M3 Cubic meters per hour Cubic meters

M3PD/M3 Cubic meters per day Cubic meters

BPD/BBL Oil barrels per day Oil barrels

Select the Display Function

The monitor displays RATE, TOTAL, alternates between BOTH rate and total or TEST. If the current selection is correct, press

ENTER to advance to the next parameter. To change to an alternate display mode, press UP or RIGHT to scroll to the correct

display mode and press ENTER to save and advance to the TOTALIZER PULSE OUTPUT parameter.

The TEST function acts like a frequency counter and displays the raw input frequency being supplied to the frequency input

terminals. This is very useful when troubleshooting flow problems.

Totalizer Pulse Output

The pulse output parameter can be enabled or disabled. When enabled this output generates 20 mS duration pulse for every

time the least significant digit of the totalizer increments. The amplitude of the pulse is dependent on the voltage level of the

supply connected to the pulse output and is limited to a maximum 30V DC. Press UP or RIGHT to scroll to ON or OFF. Press

ENTER to save and advance to the PASSWORD parameter.

Password

The PASSWORD setting restricts access to PROGRAM mode. Initially, the password is set to all zeros and any user can modify

the parameter settings in PROGRAM mode. To change the password, enter any four digit code. Press UP to increment the digit,

and RIGHT to advance to the next digit. Press ENTER to store the password and advance to RST PSWD. The new password is

now required to enter PROGRAM mode. With this password set, any user is able to reset the stored totals on the monitor.

Reset Password

The RST PSWD restricts resetting the totals on the monitor. The PASSWORD must also be set to restrict the total reset. Initially,

the password is set to all zeros and any user can reset the stored totals on the monitor. To change the password, enter any four

digit code. Press UP to increment the digit, and RIGHT to advance to the next digit. After entering all digits, press ENTER to

store the password and return to RUN mode. The reset password is now required to reset the totals on the monitor.

Run Mode

Reset Total

To reset the monitor total display, in RUN mode press MENU and ENTER simultaneously. If the RST PSWD has been set to

something other than the default, you must enter the new password before the monitor will reset. The monitor flashes

TOTAL RST and returns to RUN mode at the conclusion of the reset procedure.

Store Total

The current total can be manually stored in the monitor’s flash memory. Use this feature prior to replacing the battery. Press

and hold ENTER for 2 seconds. The display responds with a flashing TOTALSVD and then returns to RUN mode.

Automatic Store Total

The monitor is equipped with a store total feature that works automatically, saving the current total to flash memory. The

frequency of saves depends on the power supply option chosen.

Battery Powered: Once per hour and just before a low battery condition turns the unit o.

Loop Powered: Once every ten minutes.

Programming

Page 7May 2015 DSY-PM-00276-EN-02

ADDITIONAL SCALING PARAMETERS

OTE:N The programming instructions below are only available for loop powered units. Battery powered units do not include

these programming parameters.

Flow 4 mA Setting

Zero is the default flow rate at the 4 mA setting. If the current selection is correct, press ENTER to advance to the Flow 20 mA

parameter. To change the setting, press UP to increment the flashing digit and press RIGHT to move to the next digit. Press

ENTER to save and advance to the Flow 20 mA parameter.

Flow 20 mA Setting

The turbine meter’s maximum flow rate is the default value for the 20 mA setting. If the current selection is correct, press

ENTER to advance to the 4…20 mA Calibration parameter. To change the setting, press UP to increment the flashing digit and

press RIGHT to move to the next digit. Press ENTER to save and advance to the 4…20 mA Calibration parameter.

4…20 mA Calibration

The 4…20 mA Calibration parameter is the fine adjustment of the 4…20 mA output. The 4 mA setting is typically between

35…50. To set the 4 mA value, connect an ammeter in series with the loop power supply. At the 4MA OUT prompt, press UP to

increment and RIGHT to decrement the 4 mA value to until a steady 4 mA reading is reached on the ammeter. Press ENTER to

lock in this value and advance to 20MA OUT. The 20 mA adjustment is performed using the same procedure as the

4 mA adjustment.

4…20 mA Test

The monitor contains a diagnostic routine that allows the simulation of mA values between 4…20 to check output tracking.

At the 4-20TEST prompt press UP to increment the simulated mA output or RIGHT to decrement the value in increments of

1 mA. The ammeter should track the simulated mA output. If a 4…20 mA test in not necessary, press ENTER once to escape

the testing at any time.

OTE:N If you ordered the B2800 flow monitor with a Blancett turbine flow meter, the 4…20 mA was programmed and

factory calibrated.

Pulse Out Freq. In4-20 mA

10…30V DC

1…5V DC

123456

+ -+ -+ -

JP2

Mag

Input

Pulse

Inuput

TB1

12345

Keypad

Connector

PULSE OUTPUT

IO/SETUP

DSP

Flow 4MA

Flow 20MA

4MA OUT

20MA OUT

4-20 TEST

PASSWORD

Figure 2: Typical ammeter connection Figure 3: 4…20 mA programming menu

Additional Scaling Parameters

Page 8 May 2015DSY-PM-00276-EN-02

ADDITIONAL INPUT OPTIONS

The B2800 flow monitor is capable of receiving magnetic pickup input (small signal sine wave) or a contact closure input

(pulse). Since most Blancett turbine flow meters use a magnetic pickup, the B2800 flow monitor is shipped configured for

magnetic pickup input. To change to a contact closure input, remove JP2 from the top two pins and jumper them to the

bottom two pins. See Figure 5.

+ Pulse In

Magnetic Pickup

10K

30V DC (Max)

20 mS Pulse

RMAX =

(Loop Supply Voltage - 5)

0.02

123456

+ -+ -+ -

- Pulse In

10…30V DC

- Common

Pulse Input Card

Analog Input Card - 4-20 mA

Figure 4: Wiring diagram

Pulse Out Freq. In4-20 mA

Magnetic Pickup

10K

30V DC (Max)

10…30V DC

1…5V DC

20 mS Pulse

250 Typ

RMAX = (Loop Supply Voltage - 5)

0.02

123456

+ -+ -+ -

JP2

Mag

Input

Pulse

Inuput

TB1

12345

Keypad

Connector

Loop Powered

Pulse Out Freq. In4-20 mA

Magnetic Pickup

10K

30V DC (Max)

20 mS Pulse

123456

+ -+ -+ -

JP2

Mag

Input

Pulse

Inuput

TB1

12345

Keypad

Connector

N/C N/C

Battery Powered

Figure 5: Circuit board layouts

Additional Input Options

Page 9May 2015 DSY-PM-00276-EN-02

DEFAULT KFACTOR VALUES

Meter Size Default K-factor Lower Limit Upper Limit

3⁄8 in. (9.53 mm) 20,000 16,000 24,000

1/2 in. (12.7 mm) 13,000 10,400 15,600

3/4 in. (19.05 mm) 2750 2200 3300

7/8 in. (22.23 mm) 2686 2148 3223

1 in. (25.4 mm) 870.0 696.0 1044

1-1/2 in. (38.1 mm) 330.0 264.0 396.0

2 in. (50.8 mm) 52.0 41.6 62.0

3 in. (76.2 mm) 57.0 45.6 68.0

4 in. (101.6 mm) 29.0 23.2 35.0

6 in. (152.4 mm) 7.0 5.6 8.0

8 in. (203.2 mm) 3.0 2.4 4.0

10 in. (254 mm) 1.6 1.3 2.0

BATTERY REPLACEMENT

Battery powered monitors use a single 1.5V, D size alkaline battery. When replacement is necessary, use a clean fresh battery.

Save the total to memory before the battery is removed.

Unscrew the two captive screws on the front panel to access the battery. Replace the battery, being sure to observe the

proper polarity, and then refasten the front panel.

Default K-factor Values

Page 10 May 2015DSY-PM-00276-EN-02

INSTALLATION DRAWING

12 11 10 987654321

D59380

B2 80001

Installation Drawing

Page 11May 2015 DSY-PM-00276-EN-02

TROUBLESHOOTING GUIDE

Issue Remedy

No LCD display • Check battery voltage. Should be 1.5V DC. Replace if low or bad.

No rate or total

displayed

• Check connection from meter pickup to display input terminals.

• Check turbine meter rotor for debris. Rotor should spin freely.

• Check programming of flow monitor.

Flow rate display

interprets reading

constantly

• This is usually an indication of external noise. Keep all AC wires separate from DC wires.

• Check for large motors close to the meter pickup.

• Check for radio antenna in close proximity.

• Try disconnecting the pickup from the monitor pig tail. This should stop the noise.

Flow rate indicator

bounces

• This usually indicates a weak signal. Replace pickup and/or check all connections.

• Check K-factor.

PART NUMBERING INFORMATION

B 28 S X X - X X

Power Option

B - Battery

L - Loop

Program Level

S-

Mounting Style

M - Meter Mount

R - Remote Mount

S - Swivel Mount

H - Hand-Held

Units of Measure

AB - Gallons

ED - Barrels

HB - Liters

ID - Cubic Meters

Troubleshooting Guide

Page 12 May 2015DSY-PM-00276-EN-02

SPECIFICATIONS

Power Supply Options

Battery Powered One D size, 1.5V alkaline battery

Loop Powered Optional 4…20 mA loop power

Alphanumeric Rate and Total Display

Eight digit, 0.75 inch high numeric display

Eight character, 0.38 inch high alphanumeric display

Fixed or toggle modes of operation for flow rate and totalizer display

Accuracy ±0.1%

Temperature Drift 50 ppm /° C (maximum)

Mounting Classification

Meter Mount Type 4X enclosure

Remote Mount Type 4X enclosure

Swivel Mount Type 4X enclosure

Environmental

Operating Temperature –22…158° F (–30…70° C)

Humidity 0…90% non-condensing

Inputs

Magnetic Pickup Input

Frequency Range: 0…3500 Hz

Trigger Sensitivity: 30 mV p-p

Over Voltage Protected: ±30V DC

Outputs

Type Opto-isolated open collector transistor

Maximum Voltage 30V DC

Pulse Width 20 mS/maximum rate 20 Hz

Current (ON state) 0.9V drop @ 5.0 mA or 0.7V drop @ 0.1 mA

Optional 4…20 mA output

Certifications

CSA Class I, Div 1 Groups C, D; Class II, Div 1 Groups E, F, G; CSA C22.2 No. 157-92, UL 913

CE IEC 61326-1

Specications

Page 13May 2015 DSY-PM-00276-EN-02

REPLACEMENT PARTS

Component Part Number

Keypad B260713

Battery B280601

Battery Tie Wrap B228036

Pickup Cable B222-121

Desiccant Bag B260630

PVC Union B220016

PVC Reducer Bushing B220056

Rubber Washer B228207

Steel Lock Washer B220018

PCB Shield (battery units) B280603

Desiccant Shield B280680

Cord Grip B220103

MOUNTING OPTIONS AND DIMENSIONS

Meter Mount

G dia

A B C D E F G dia

9.25 in.

(235.0 mm)

7.00 in.

(177.8 mm)

5.75 in.

(146.0 mm)

4.00 in.

(101.6 mm)

3.45 in.

(87.6 mm)

1.50 in.

(38.1 mm)

0.875 in.

(22.2 mm)

Replacement Parts

Page 14 May 2015DSY-PM-00276-EN-02

Remote Mount

.25 in. dia

(6.4 mm)

(4 HOLES)

I dia

A B C D E F G H I dia

7.00 in.

(177.8 mm)

2.40 in.

(61.0 mm)

2.25 in.

(57.2 mm)

7.00 in.

(177.8 mm)

5.75 in.

(146.0 mm)

4.38 in.

(111.2 mm)

3.45 in.

(87.6 mm)

1.50 in.

(38.1 mm)

0.875 in.

(22.2 mm)

Swivel Mount

Gdia

A B C D E F G dia

12.25 in.

(311.2 mm)

7.00 in.

(177.8 mm)

5.75 in.

(146.0 mm)

4.00 in.

(101.6 mm)

3.45 in.

(87.6 mm)

1.50 in.

(38.1 mm)

0.875 in.

(22.2 mm)

Mounting Options and Dimensions

Page 15May 2015 DSY-PM-00276-EN-02

www.badgermeter.com

BLANCETT is a registered trademark of Badger Meter, Inc. Other trademarks appearing in this document are the property of their respective entities. Due to continuous research,

product improvements and enhancements, Badger Meter reserves the right to change product or system specications without notice, except to the extent an outstanding
