Blomberg CEA 2211 X User manual

CEA 2211 X
Instruction manual
Built In Coffee Machine

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Disposal of electrical appliances
European Directive 2002/96/CE on electrical waste and electronic
equipment (WEEE) requires that electrical appliances not be
disposed of as unsorted municipal waste. Used appliances must be
collected separately to optimize the reclamation or recycling of the
component materials and prevent potential harm to human health
and to the environment.
The symbol of the cancelled garbage bin is displayed on all these products to
remind users of the obligation of separate collection. For further information on
the correct disposal of electrical appliances, please contact your local authorities
or the retailer.

Disposal of electrical appliances 2
1 Machine description 2
Front and overall view 2
Control buttons and display panel 2
Important safefguards 3
Safety instructions and warnings 3
Correct use 4
Technical safety 4
Use 5
Save these instructions 6
Correct use 6
Technical safety 6
Usage safety 7
2 Desciption and operation 9
3 Installation 10
4Important ınstructions for first time use! 13
5Adding water and coffee beans İn the respective containers 14
Filling the water tank 14
Filling the coffee bean container 14
6 Removing coffee grounds and water 15
7 Operation and use 16
Programming the machine 16
Automatic switch-on 16
Automatic switch-off 17
Auto shut down 17
Energy savings 17
Display language 17
Water hardness 17
Descaling 17
Ground coffee quantity 18
Coffee temperature 18
Steam temperature 18
Setting the grind 18
Coffee counter 18
Selecting the type of espresso 19
Adjusting the espresso dose 19
8Preparing the beverages 20
Cleaning 20
Preparing espresso 20
Steam 20
Preparing cappuccino 20
9 Care and cleaning 22
Water tank 22
Steam dispenser 22
10 Descaling the machine 23
11 Trouble-shooting 24
Auto-diagnostics 24
Technical service 24
Water pressure 24
Grinder 24
12 Technical Data 25
Contents

EN
2
1 Machine description
Front and overall view
Control buttons and display panel
1. Lighting 10. Short, medium, or long coffee selector
2. Steam dispenser 11. Coffee dispensing button
3. Drawer handle 12. Steam selector
4. Coffee dispenser 13. "cleaning" button
5. Water tank 14. Display
6. Drip grille 15. Grind adjuster
7. Container for coffee beans 16. Attention
8. On/Off button 17. Main switch
9. 1 cup/2 cup selector

EN
3
Important safefguards
Safety instructions and
warnings
This machine complies with
current safety regulations. The
appliance is not to be used by
persons (including children) with
reduced physical, sensorial or
mental capacities, or without
experience or knowledge, unless
they benefit, through a person
responsible for their safety,
of surveillance or instructions
regarding the use of the appliance.
Children must be overlooked to
ensure they do not play with the
appliance. Read these instructions
carefully before using the machine.
They contain important information
on safety, use and maintenance,
to provide protection and to avoid
damages to the machine.
1. Read all instructions
2. Do not touch hot surface, use
handles or knobs
3. To protect against fire, electrical
shock and injury to persons do not
immerse cord or plugs in water or
other liquid
4. Close supervision is necessary when
any appliance is used by or near
children.
5. Unplug from outlet when not in use
and before cleaning. Allow unit to
cool before putting on or taking
off parts, and before cleaning the
appliance.
6. Do not operate any appliance with
damaged cord, plug, after the
appliance malfunctions, or has been
damaged in any manner. Return
appliance to the nearest authorized
service facility for inspection, repair or
adjustment
7. The use of accessory attachments
not recommended by the appliance
manufacturer may result in fire,
electric shock or injury
8. Do not use outdoors
9. Do not let cord hang over edge
of table or counter, or touch hot
surfaces
10. Do not place on or near a hot gas or
electrical burner, or in a heated oven
11. Always attach plug to appliance first,
then plug cord into the wall outlet. To
disconnect, turn any control off. Then
remove plug from wall outlet.
12. Do not use appliance for other than
intended use
13. To reduce the risk of fire, do not
place any heating or cooking
appliance beneath the appliance
14. To reduce the risk of fire, do not
mount unit over or near any portion
of a heating or cooking appliance
15. To reduce the risk of electrical shock,
do not mount over a sink
16. To reduce the risk of fire, do not
store anything directly on top of
the appliance surface when the
appliance is in operation.

EN
4
Correct use
• This machine is designed solely for
preparing espresso, cappuccino,
long coffee and for boiling water for
tea and other hot drinks. Other types
of use are not permitted and may
prove dangerous. The manufacturer
will not be held liable for any damage
caused by incorrect use of the
machine.
Technical safety
• Before connecting the machine to the
electricity supply, check the electrical
information (voltage and frequency)
on the data sheet with that of the
electricity supply thoroughly.
• This data should be exactly the same
to avoid damaging the machine. In
case of doubt, contact a qualified
electrician.
• The electrical safety of the machine
is only guaranteed if it is connected
to a regulation earth wire. It is very
important to check this carefully. In
case of doubt, have the electricity
supply checked by a qualified
electrician.
• The manufacturer will not be
held liable for any harm or
damage caused due to a lack or
malfunctioning of the earth wire (e.g.
risk of electric shock).
• Only operate the machine when
installed so as to avoid contact with
electric parts. For the assembly,
dismantling and daily maintenance
of the machine, always make sure
it is disconnected from the electrical
supply.
• The machine should not be
connected to the electrical supply
with extension cables, as these do
not provide the necessary safety
for the machine (e.g. danger of
overheating).
• The machine may also be built into a
cabinet (special accessory). It is not
suitable for outdoor use. Due to the
weight of the machine, the cabinet
must be secured firmly to the wall.
• Installation, maintenance and repair
works must only be carried out by
qualified persons. Any installation,
maintenance and repair works
carried out incorrectly may cause
considerable danger to the user,
for which the manufacturer will not
assume any liability.
• The machine should only be
disconnected from the electrical
supply when:
- The main switch of the electrical
supply is disconnected;
- The fuse for the house electrical
supply is removed;
- The plug to the machine is taken
out of the electrical socket. To
disconnect the machine from the
electrical supply, unplug without
pulling on the cable.
“TO REDUCE THE RISK OF INJURY,
DO NOT DRAPE CORD OVER THE
COUNTER TOP OR TABLE TOP
WHERE IT CAN BE PULLED ON
BY CHILDREN OR TRIPPED OVER
UNINTENTIONALLY”
POWER CORD HAS TO BE: UL
approved, type SJO/SJT 16AWGx3C
moulded plug, max length 4-1/2ft
(1.4Mt)

EN
5
• A short power-supply cord (or
detachable power-supply cord) is to
be provided to reduce risks resulting
from becoming entangled in or
tripped over a longer cord.
• Longer detachable power-supply
cord or extension cord are available
and may be used if care is exercised
in their use
• If a long detachable power-supply
cord or extension cord is used
the marked electrical rating of the
detachable power-supply cord or
extension cord should be at least as
great as the electrical rating of the
appliance.
• If the appliance is of the grounded
type, the extension cord should be a
grounding-type 3-wire cord.
• The longer cord should be arranged
so that it will not drape over the
counter op or table top where it
can be pulled by children or tripped
over. An appliance that utilizes a
detachable power-supply cord shall
be provided with: the appropriate
detachable power-supply cord as
indicated in supply connections,
instructions that advise the consumer
that the appropriate detachable
power-supply cord is not provided,
and specify which detachable power-
supply cord or cords are appropriate.
If long and short de-tacable power-
supply cords are available, the
instructions shall include information
regarding the problems attendant
with each.
• Under no circumstances should
the machine casing be opened.
Touching the voltage cables
or changing the electrical and
mechanical structure may cause
danger of electric shock. It may also
affect the operation of the machine.
The manufacturer declines all
responsibility for persons or
property if the above instructions
are not observed in full.
• If the machine is to be installed
with other appliances, it must be
separated from them with a shelf.
Use
Warning! Danger of burning!
Liquids leaving the dispensers are
boiling!
• Children should only use the machine
while under supervision. Children’s
skin is more sensitive to high
temperatures.
They may burn themselves!
Remember too that espresso coffee
is not a children’s drink.
• When using the machine for the first
time, rinse the pipes to get rid of any
deposits and to ensure hygiene.
• Only fill the water tank with drinking
water at room temperature or chilled.
Hot or boiling water or any other
liquid may damage the operation of
the machine. It is advisable to replace
the water daily to prevent bacterial
growth.
• Only pour coffee beans into the
coffee container. If ground coffee
is poured into the container, it may
damage the grinder.

EN
6
• Sugar damages the machine!
Do not fill the machine with coffee
beans treated with caramel, sugar or
similar substances, instant coffee or
other substances containing sugar.
• Boiling water and steam may cause
burning, so these functions should
be performed with the utmost care.
Never direct the steam dispenser
towards parts of the body. It may
cause burning!
• Always ensure that the steam
selector is disconnected when no
steam is required, otherwise, steam
may escape unintentionally. It may
cause burning!
• The water/steam dispenser gets
very hot during use. Only hold the
dispenser by the handle. It may
cause burning!
• Depending on the lime content of
the water, the machine should be
descaled regularly with a citric acid
solution. In areas of very hard water,
the water pipes should be descaled
more frequently.
The manufacturer will not be held
liable for any damage caused by
inadequate descaling.
Follow the mixing instructions
indicated on the descaling pack.
Otherwise, the machine may get
damaged.
• Do not lean on the open drawer
of the coffee machine, as this may
damage the machine.
• If the coffee machine is installed near
an oven with a self-cleaning function,
disconnect the coffee machine
during self-cleaning, otherwise it may
get damaged.
The manufacturer cannot be held
liable for any damage caused
by failure to observe the safety
instructions and warnings.
Save these instructions
This machine complies with the safety
regulations currently in force. Incorrect
use of the machine may lead to
personal injury and damage to objects.
Please read all the instructions
carefully before using the machine as
they contain important information on
safety and the use and maintenance of
the machine. This will protect you and
prevent damage to the machine.
Correct use
• The machine is designed exclusively
for preparing espresso and
cappuccino, as well as boiling water
for tea and other hot beverages.
Other types of use are not
permitted and could be dangerous.
The manufacturer declines all
responsibility for damage caused by
improper and/or or incorrect use of
the machine.
Technical safety
• Before connecting the machine to
the power mains, check carefully
to make sure that the voltage and
frequency ratings shown on the
rating plate correspond to those of
the electrical system. These values
must absolutely correspond in order
to avoid damage to the machine. In
case of doubt, contact a qualified
electrician.

EN
7
• The electrical safety of the machine is
guaranteed only if it is connected to
a standard earth conductor. It is very
important to verify this information
with the utmost attention, and in case
of doubt have the electrical system
checked by a qualified electrician.
The manufacturer declines all
responsibility for any damage
caused to people or things due to
the lack or malfunction of the earth
conductor (for example: risk of
electrocution).
• Put the machine into operation only
after complete installation in order
to avoid contact with the electrical
components. Before carrying out
assembly, disassembly, or daily
maintenance of the machine, always
make sure to disconnect the power
cable from the electrical outlet.
• The connection of the machine to
the power mains must not be made
using extension cables, as they do
not guarantee the necessary safety
of the machine (for example: risk of
overheating).
• The machine can also be flush-
mounted in a wall unit (special
accessory). It is not suitable for
outdoor use. Considering the heavy
weight of the machine, it is essential
for the unit to be adequately secured
to the adjacent wall.
• If the power cable is damaged,
it must be replaced by the
manufacturer, its technical service, or
by a qualified electrician, in order to
prevent any risk.
• All installation, maintenance, and
repair operations must be carried out
by qualified personnel only. Incorrect
installation, maintenance, and repairs
may lead to serious dangers to the
user, for which the manufacturer
declines all responsibility.
• The machine is disconnected from
the power mains only when:
- the main switch of the electrical
system is switched off;
- the fuse of the home electrical
system is completely disconnected;
- the power plug of the machine
is completely removed from the
electrical outlet.
To disconnect the machine from the
power mains, grasp the plug and
remove; do not pull on the power
cable.
• Do not open the machine casing for
any reason. Touching the voltage
cables or modifying the electrical or
mechanical structure may lead to
electrocution. This could also cause
disturbance in the operation of the
machine.
The manufacturer declines all
responsibility towards persons or
things due to failure to observe
the instructions above.
• In the event that the machine has
to be installed in combination
with another appliance, it must be
separated from the other appliance
by a solid intermediate shelf.
Usage safety
Warning! Danger of burning!
The liquids that come out of the
dispensers are extremely hot!

EN
8
• Children may access the machine
only under adult supervision.
Children’s skin is more sensitive
to high temperatures. Danger of
burning!
Remember, too, that espresso
coffee is not a suitable beverage for
children.
• The first time the machine is put into
operation, it is necessary to rinse the
pipes to eliminate any deposits and
to ensure hygiene.
• Fill the water tank only with room
temperature or cold potable water.
Hot or boiling water or any other
liquid can damage the operation
of the machine. We recommend
changing the water daily to prevent
the germ proliferation.
• Place only whole coffee beans in
the coffee container. Ground coffee
poured into the container can
damage the operation of the grinder.
• Sugar damages the machine!
Never use coffee beans that are
treated with caramel, sugar, or other
similar substances, instant coffee, or
any substances containing sugar.
• Boiling water and steam can cause
burning; therefore, please use these
functions with the utmost attention.
Do not turn the steam dispenser
towards any parts of your body.
Danger of burning!
• Always make sure that the steam
selector is disengaged when steam is
not needed. Otherwise, steam could
be dispensed inadvertently. Danger
of burning!
• The steam dispenser becomes very
hot during use. Grasp the dispenser
only by the coupling. Danger of
burning!
• Depending on the lime content of
the water, the machine should be
descaled regularly using a liquid
solution of citric acid. In zones where
the water is very hard, it will be
necessary to descale the water pipes
more often.
The manufacturer declines all
responsibility for any damage
caused by insufficient descaling.
Follow the mixture ratio indicated
on the package of the descaling
product; otherwise the machine
could be damaged.
• Do not put weight on the open door
of the coffee machine, as this could
damage the machine.
The manufacturer declines all
responsibility for any damage
caused by failure to follow
the safety instructions and
precautions.

EN
9
2 Desciption and operation
The coffee machine has two water
heaters, one for the water and one for
the coffee.
Differently from the norm, in this
espresso machine the beans can
be ground at the moment and only
when necessary. This provides the
best aroma of the coffee because it is
freshly ground.
If the container used, glass or cup,
has a smaller volume than the dosage
programmed by the machine, coffee
dispensing can be interrupted at any
time by pressing key “11” (Fig. 1A/1B),
allowing the user to decide on the
preferred dose.
The grinding level can also be set,
choosing a coarser or finer grind
depending on user preference, by
turning the dial situated on the left side
of the machine.
The steam from the dispenser can also
be used for pre-heating the cups.
Fig. 1A
Fig. 1B

EN
10
3 Installation
The installation of the appliance must
be carried out exclusively by qualified
personnel in compliance with the
regulations in force. Considering the
heavy weight of the machine, it is
essential that the furniture unit be
suitably secured to the wall.
1. Check to make sure that the
opening for housing the machine has
the correct dimensions (Fig.2A/2B).
Fig. 2A
595 mm (23
7/16
”)
560 mm (22”)
600 mm (23
5/8
”)
542 mm (20”)
436 mm (17 1/4”) 440 mm (17 3/4”)
445,4 mm (18”)
320 mm (11”)
19 mm (23
3/4
”)
Min 320 mm (12
3/8
”)

EN
11

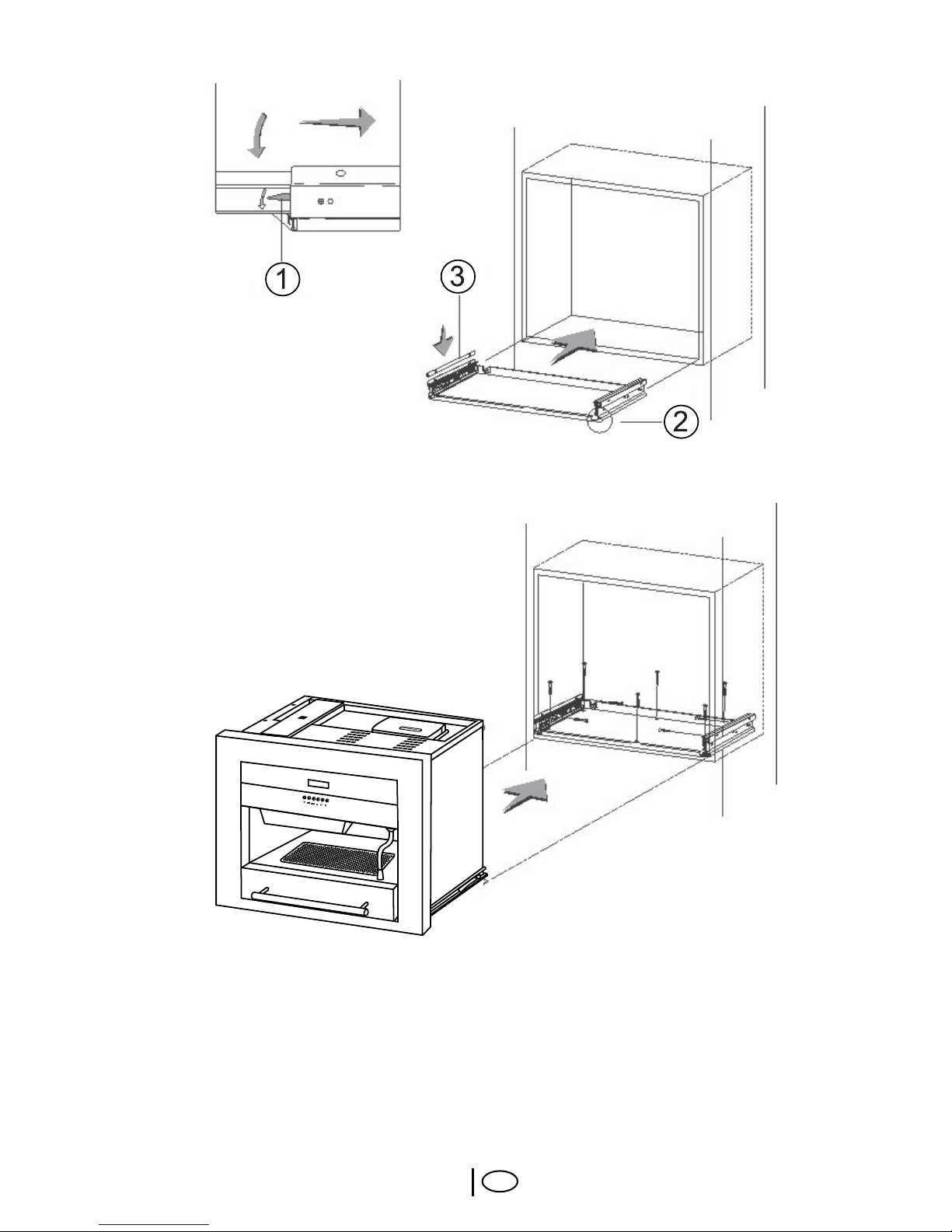

2. Remove the machine from the base
by unhooking it from the lateral
guides using the levers (Fig. 3). raising
the lever of the right-hand guide and
lowering the lever of the left-hand
guide (1).
3. Slide the base of the machine into
the unit all the way back (2).
4. Attach the base to the shelf using the
10 holes and the screws provided
(Fig.4).
Note : If the sides of the base are not
flush with the sides of the unit, use
the shims provided (3).
5. Close the machine guides all the
way.
6. Connect the plug to the power outlet
following the safety regulations in
force. Important: The power outlet
must be accessible after the machine
has been installed.
7. Insert the machine in the unit, taking
care that the machine guides are
correctly inserted in the guides on
the base, and slide the machine
in leaving the necessary space for
reaching and connecting the power
plug.
8. Close the machine by sliding it all the
way back.
9. Fill the water tank and the coffee
container.
10. Supply power to the machine using
the main switch situated on the left
side of the machine (page 3 Fig. 18)
The manufacturer declines any
responsibility towards persons or
objects, as well as for the proper
operation of the machine, due to
failure to follow the instructions
given above.

EN
12
Fig. 4
Fig. 3

EN
13
4 Important ınstructions for first time use!
Instructions additional to the
instruction booklet, which must be
read prior to using the machine.
The manufacturer declines all
responsibility for damage caused by
improper or incorrect use and failure
to follow the instructions provided in
the instruction booklet and given here
below.
1. Extract the machine by lifting the
handle of the drawer and pulling it
towards you.
2. Fill the water tank and the coffee
container following the instructions on
page 10 of the instruction booklet.

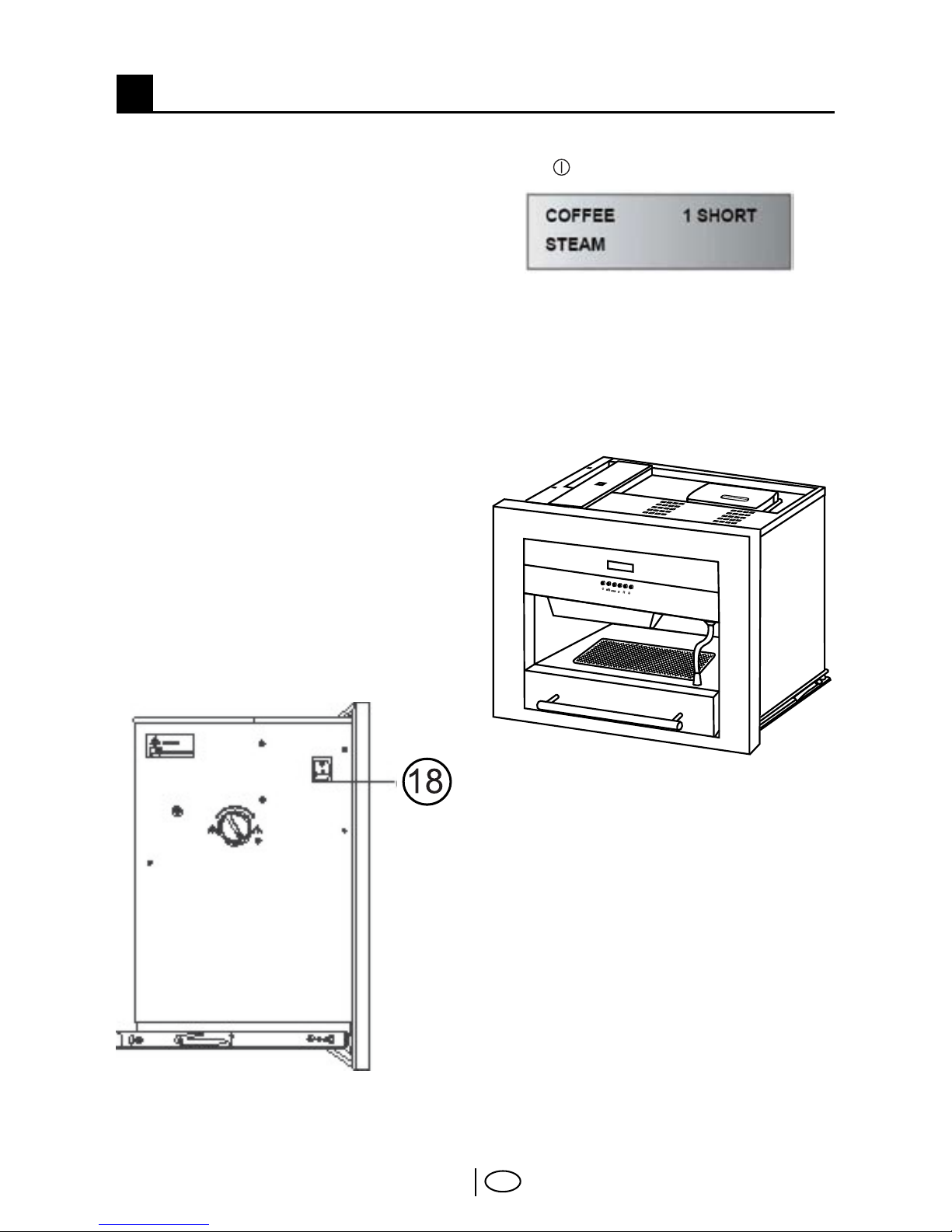

3. Supply power to the machine using
the main switch (18) located in the
upper part of the left side of the
machine.
4. Close the machine.
5. Switch on the machine using the
key
If a failure is signalled, turn the main
switch off and back on to help the
water circuit fill up.
6. The machine is now ready for use.

EN
14
5 Adding water and coffee beans İn the respective
containers
The water tank needs to be refilled
when the display shows:
Filling the water tank Filling the coffee bean
container
The coffee bean container needs to be
refilled when the display shows:
To ensure the best result in making
espresso, in addition to using good
quality coffee, it is also essential to use
good water. We therefore recommend
emptying the water tank frequently
and refilling it with fresh water. Avoid
leaving the water in the tank for
excessively long periods.
IMPORTANT: Use only cold potable
water with hardness less than 7°F.
• Open the machine by raising the
drawer handle and pulling outward.
• Fill the tank up to 4 cm (1 9/16 inches
from the top).
• Close the machine.
N.B. When the water tank is almost
empty, the message “ WATER LOW “
will appear on the display panel
Note: The tank can be removed for
cleaning.
Fill the coffee bean container using
only beans for espresso coffee.
Any other substance, including ground
coffee, can damage the coffee grinder.
Do not use beans treated with
caramel, sugar, or similar substances,
instant coffee, or any beverage
containing sugar. Sugar can damage
the machine.
• Open the machine by raising the
drawer handle and pulling outward.
• Remove the lid of the coffee bean
container.
• Fill the container with beans up to 2
cm (3/4 inches) from the top.
• Put the lid back on the container.
• Close the machine.

EN
15
6 Removing coffee grounds and water
After twenty coffees have been made,
the message “COFFEE GROUNDS”
will appear on the display.
The container should be emptied. After
this message appears, the machine
will allow 5 more coffees to be
prepared and then it stops.
IMPORTANT
The container must be emptied
regularly to prevent the formation
of mould and bacteria.
1. Open the drawer A.
2. Remove the grille B.
3. Extract and empty the coffee
grounds container Cand the water
container D.
4. Place the two containers and the
grille back in their seats.
5. Close the drawer.
6. Press the key for about 3
seconds until you hear the beep of
confirmation. Now the machine is
ready for use again.
IMPORTANT:
ALWAYS EMPTY THE GROUNDS
CONTAINER
C
B
A
D

EN
16

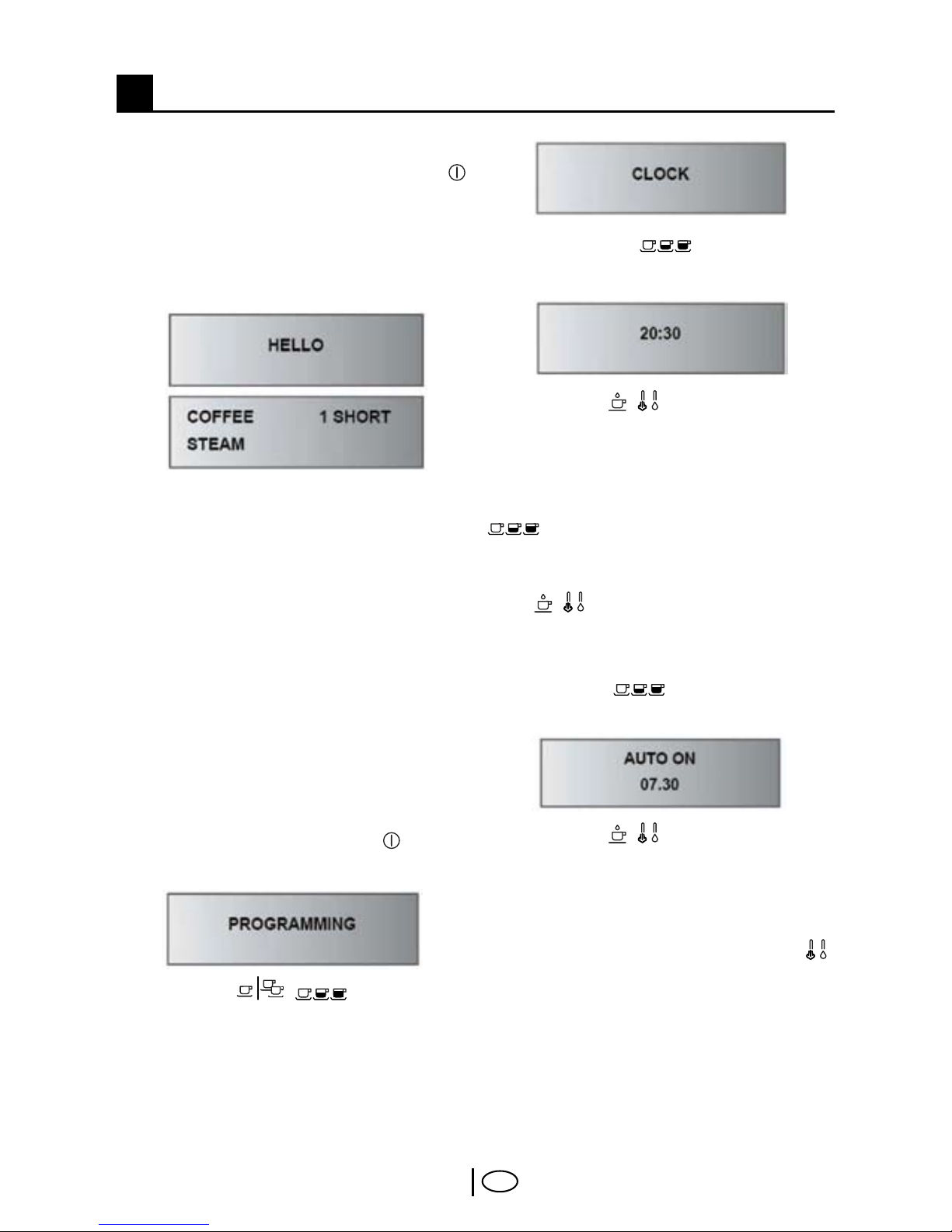

7 Operation and use
Switch-on
Switch the machine on using the key .
After a few seconds, the following
message appears on the display panel:
Welcome message
During the heating phase, the words
COFFEE and WATER flash. The
machine is ready for use only when
they have stopped flashing.
The display also shows the type of
coffee selected (short/medium/ long)
as well as the choice of making one or
two coffees at the same time.
Programming the machine
Various functions can be adjusted and
programmed, as indicated below:
To enter programming mode, with
the machine off press the key for 3
seconds until the display panel shows:
Use the keys to select the
functions to be programmed, which
are, in order of appearance:
Pressing the key the display
panel shows:
Use the keys to set the hour.
Initially the two digits related to the
hour flash.
After setting the hour, press the key
.
The two digits related to the minutes
flash. Set the minutes by pressing the
keys .
Automatic switch-on
Press the key and the display
panel shows:
Use the keys to set the time
you want the machine to switch on
automatically.
Automatic switch-on can be activated
or de-activated by pressing the key
(with the machine off). The display will
show an * next to the time

EN
17
Automatic switch-off
Press the key and the display
panel shows:
Use the keys to set the minutes
(15,30.45.60.75,90 min) after which
the machine goes into “energy
savings” mode. In this phase, the
temperature of the water heater is
lowered to reduce consumption.
Press the key to restore the
machine to a ready status quickly.
The display shows the number of litres
of water that have been dispensed
and the theoretical level of lime scale
build-up expressed as a percentage
(100% indicates that you need to
carry out descaling). This parameter
is calculated based on the water
hardness and the number of litres
of water dispensed. The lime scale
indicator will reset after a descaling
cycle has been carried out.
Use the keys to set the time
you want the machine to switch off
automatically.
Auto shut down
Press the key and the display
panel shows:
Use the keys to set the
minutes (15-30-45-60-75-90 min)
after which the machine switches off
automatically. 0=OFF.
Energy savings
press the key and the display
panel shows:
Use the keys to set the hardness
of the water after using the special
measuring kit to establish the correct
number (0,5,10,15,20,25°dh) to be
entered. (1°dh=1.786°F=1.250°e=
17.86ppm=0.1786mmol/lt)
Descaling
Use the keys to select the
desired language. Available languages
are English, Spanish, Italian, French
and German.
Water hardness
Press the key and the display
panel shows:
Display language
Press the key and the display
panel shows:

EN
18
Ground coffee quantity
Press the key and the display
panel shows:
Using the keys you can change
and set the temperature
of the steam. The scale of variation
ranges 14° to +50° F (-10 °C a +10
°C). The 0 position corresponds to the
optimal factory setting.
Press the key to exit the
programming function.
Setting the grind
A number of factors help you to
understand whether the grinding level
needs to be adjusted:
• If the coffee is dispensed too quickly,
this means that the beans have been
ground too coarsely.
• If the coffee comes out in slow drips,
this means that the beans have been
ground too finely. A very important
factor for ensuring a good coffee is
the right setting for the grinding level,
which is factory-set but can also be
modified as follows:
• Open the machine.
• Carefully turn the dial located on the
left side of the machine “A” (Fig.5).
Turning the dial clockwise produces
a finer grind; turning it anticlockwise
produces a coarser grind.
Note: Turn the dial min. 3 complete
turns, clockwise or anti-clockwise,
to obtain a change in the degree of
grinding, finer or coarser.
IMPORTANT !! After setting the
new grind, it is necessary to
dispense at least 2 coffees.
Using the keys you can change
and set the quantity of ground coffee
to make the flavour of the coffee the
desired strength. The scale of variation
ranges from -5 to +5 (0.1 sec). The 0
position corresponds to the optimal
factory setting.
Coffee temperature
Press the key and the display
panel shows:
Coffee counter
Press the key and the display
panel shows:
Steam temperature
Using the keys you can change
and set the temperature of the coffee.
The scale of variation ranges from 14°
to +50° F (da -10 °C a +10 °C). The
0 position corresponds to the optimal
factory setting.
