Blue star Bs-pl30240 Instruction and safety manual

INSTALLATION, USE AND CARE MANUAL

FOR PROFESSIONAL VENTILLATION FOR

THE HOME

IMPORTANT!—PLEASE READ AND FOLLOW

1. THIS APPLIANCE WAS DESIGNED FOR EASE OF INSTALLATION AND OPERATION. HOWEVER, WE

RECOMMEND THAT YOU READ ALL SECTIONS OF THIS MANUAL BEFORE YOU BEGIN INSTALLA-

TION.

2. DO NOT REMOVE PERMANANTLY AFFIXED LABELS, WARNINGS OR DATA PLATES FROM YOUR

APPLIANCE. THIS MAY VOID THE MANUFACTURER’S WARRANTY AND/OR HINDER EFFECTIVE

SERVICING AND MAINTENANCE.

3. THESE INSTRUCTIONS ARE TO REMAIN WITH THE APPLIANCE AND THE CONSUMER IS TO RE-

TAIN THEM FOR FUTURE REFERENCE.

4. PLEASE OBSERVE ALL LOCAL AND NATIONAL BUILDING CODES AND ORDINANCES. IF NO LO-

CAL CODES ARE APPLICABLE, PLEASE FOLLOW ALL WIRING REQUIREMENTS IN ACCORDANCE

WITH THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 EDITION.

5. PLEASE CHECK WITH A QUALIFIED AND TRAINED INSTALLER OR YOUR LOCAL CODES FOR ANY

MAKE UP AIR REQUIREMENTS.

6. THIS HOOD IS FOR RESIDENTIAL USE ONLY AND IS NOT DESIGNED FOR INSTALLATION OVER A

COMMERCIAL PRODUCT.

7. MAKE SURE ALL POWER IS TURNED OFF AT THE MAIN BREAKER OR FUSE BOX BEFORE MAKING

ANY CONNECTIONS.

8. TO AVOID RISK OF FIRE , ELECTRIC SHOCK, OR INJURY TO PERSONS, TURN OFF THE ELECTRIC-

ITY TO THE HOOD FROM THE POWER SUPPLY BEFORE CLEANING OR SERVICING.

This product is intended for domestic use only!

P/N 750306 Page 1

TABLE OF CONTENTS

Table of Contents ................................................................................................................................... 2

Safety Instructions............................................................................................................................... 3-4

Introduction ............................................................................................................................................ 5

Welcome ................................................................................................................................................ 6

Handling & Unpacking .......................................................................................................................... 7

Packing list for your Vent Hood ....................................................................................................... 8-9

Pro Line Hoods ......................................................................................................................... 8

Pyramid Style Hoods ............................................................................................................... 9

Low Profile and Re-Circulating hoods .................................................................................. 10

Installation of Pro Line Series

Dimensions…………. .. ……………………………………………………………………11

Site Preparation …………………………………………………………………………….. 12

The Correct Height …………………………………………………………………………...13

Duct Information ……………………………………………………………………………..14

Blower Installation …………………………………………………………………………...15

Custom Duct Installation ……………………………………………………………………..16

Installation of Pyramid Style

Dimensions ............................................................................................................................. 17

Site Preparation .................................................................................................................... 18

The Correct Height ................................................................................................................ 19

Duct Information ................................................................................................................... 20

Blower Installation ................................................................................................................ 21

Flue Installation ..................................................................................................................... 22

Installation of Low Profile Series

Dimensions ............................................................................................................................. 23

Site Preparation .................................................................................................................... 24

The Correct Height ................................................................................................................ 25

Duct Information and Wiring ................................................................................................ 26

Installation of Low Profile Re-Circulating Series

Dimensions ............................................................................................................................. 27

Site Preparation .................................................................................................................... 28

The Correct Height and Wiring ............................................................................................. 29

Cleaning and Maintenance ................................................................................................................. 30

Warranty.......................................................................................................................................... 31-32

Performance Checklist .................................................................................................................... 33-34

P/N 750306 Page 2

IMPORTANT!—PLEASE READ AND FOLLOW

1. THIS APPLIANCE WAS DESIGNED FOR EASE OF INSTALLATION AND OPERATION. HOWEVER, WE

RECOMMEND THAT YOU READ ALL SECTIONS OF THIS MANUAL BEFORE YOU BEGIN INSTALLA-

TION.

2. DO NOT REMOVE PERMANANTLY AFFIXED LABELS, WARNINGS OR DATA PLATES FROM YOUR

APPLIANCE. THIS MAY VOID THE MANUFACTURER’S WARRANTY AND/OR HINDER EFFECTIVE

SERVICING AND MAINTENANCE.

3. THESE INSTRUCTIONS ARE TO REMAIN WITH THE APPLIANCE AND THE CONSUMER IS TO RE-

TAIN THEM FOR FUTURE REFERENCE.

4. PLEASE OBSERVE ALL LOCAL AND NATIONAL BUILDING CODES AND ORDINANCES. IF NO LO-

CAL CODES ARE APPLICABLE, PLEASE FOLLOW ALL WIRING REQUIREMENTS IN ACCORDANCE

WITH THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 EDITION.

5. PLEASE CHECK WITH A QUALIFIED AND TRAINED INSTALLER OR YOUR LOCAL CODES FOR ANY

MAKE UP AIR REQUIREMENTS.

6. THIS HOOD IS FOR RESIDENTIAL USE ONLY AND IS NOT DESIGNED FOR INSTALLATION OVER A

COMMERCIAL PRODUCT.

7. MAKE SURE ALL POWER IS TURNED OFF AT THE MAIN BREAKER OR FUSE BOX BEFORE SERVIC-

ING OR MAKING ANY CONNECTIONS.

TO REDUCE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSONS, OBSERVE THE FOLLOW-

ING:

 USE THIS UNIT IN THE MANNER INTENDED

BY THE MANUFACTURER, IF YOU HAVE

ANY QUESTIONS PLEASE CALL 800-449-8691

 BEFORE CLEANING OR SERVICING UNIT,

SWITCH POWER OFF TO THE UNIT AT THE

SERVICE PANEL AND LOCK OUT THE SER-

VICE PANEL. IF THE SERVICE PANEL CAN-

NOT BE LOCKED OUT, PLEASE AFIX A

WARNING DEVICE PROMINENTLY, SUCH AS

A TAG, TO THE SERVICE PANEL.

WARNING! WARNING!

P/N 750306 Page 3

TO REDUCE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSONS, OBSERVE THE FOLLOW-

ING:

 INSTALLATION WORK AND ELECTRICAL

WORK MUST BE PERFORMED BY QUALIFIED

INDIVIDUALS IN ACCORDANCE WITH ALL

APPLICABLE CODES AND STANDARDS, IN-

CLUDING ALL FIRE RATED CONSTRUCTION

 DO NOT DAMAGE ANY EXISTING ELECTRI-

CAL OR HIDDEN UTILITIES WHEN DRILL-

ING , CUTTING AND/OR REMOVING A WALL,

CEILING OR FLOOR

 DUCTED FANS MUST VENT OUTDOORS

 SUFFICIENT AIR IS REQUIRED TO PROPERLY

EXHAUST GASES THROUGH THE FLUE OF

NATURAL AND LIQUID PROPANE FUELED

COOKING EQUIPMENT TO AVOID ANY BACK

DRAFTING. FOLLOW ALL LOCAL AND NA-

TIONAL CODES AND STANDARDS FOR

PROPER AIR REQUIREMENTS.

 USE ONLY METAL DUCTWORK

 NEVER VENT DUCTED EXHAUST AIR INTO

ANOTHER ROOM OR GARAGE. TO REDUCE

THE RISK OF FIRE AND TO PROPERLY VENT

EXHAUST AIR, DUCT MUST VENT OUT-

DOORS

WARNING!

TO REDUCE THE RISK OF A RANGETOP GREASE

FIRE:

 NEVER LEAVE THE APPLIANCE UNAT-

TENDED DURING USE. BOIL-OVERS MAY

OCCUR, CAUSING SPILLS WHICH MAY IG-

NITE.

 DO NOT USE WATER ON GREASE FIRES.

NEVER PICK UP A FLAMING PAN. IT IS REC-

OMMENDED YOU PURCHASE A MULTI-

PURPOSE DRY CHEMICAL OR FOAM-TYPE

FIRE EXTINGUISHER FOR YOUR HOME.

STORE IT IN CLOSE PROXIMITY TO YOUR

APPLIANCES.

TO REDUCE THE RISK OF A RANGETOP GREASE FIRE (CONTINUED):

 IF YOU ARE FLAMING LIQUOR OR OTHER SPIRITS, AND YOUR APPLIANCE IS INSTALLED UNDER

A VENT HOOD, TURN THE FAN OFF. THE DRAFT CREATED COULD CAUSE THE FLAMES TO

SPREAD OUT OF CONTROL.

 FOR YOUR SAFETY, NEVER USE YOUR APPLIANCE OR ANY OTHER COOKING APPLIANCE AS A

SPACE HEATER TO WARM OR HEAT THE ROOM.

 USE ONLY DRY POTHOLDERS. MOIST OR DAMP POTHOLDERS ON HOT SURFACES MAY RESULT

IN STEAM BURNS. DO NOT ALLOW POTHOLDERS TO TOUCH HOT BURNER AREAS. DO NOT USE

A TOWEL OR OTHER BULKY MATERIAL AS A POTHOLDER.

 TO REDUCE THE RISK OF BURNS, IGNITION OF FLAMMABLE MATERIALS, AND SPILLAGE, THE

HANDLE OF ANY POT OR PAN SHOULD BE POSITIONED SO THAT IT DOES NOT EXTEND OVER

ADJACENT BURNERS OR THE FRONT OF THE APPLIANCE.

 CLEAN VENTILATING FANS AND GREASE BAFFLES OFTEN. GREASE SHOULD NOT BE ALLOWED

TO ACCUMULATE .

WARNING!

TO REDUCE RISK OF INJURY TO PERSONS DUE TO A GREASE FIRE:

 SMOTHER THE FLAMES WITH A CLOSE FITTING LID, COOKIE SHEET OR METAL TRAY, THEN

TURN OFF THE BURNER. TAKE CARE TO AVOID AND PREVENT BURNS. IF FLAMES DO NOT EX-

TINGUISH, EVACUATE THE PREMISES AND CALL THE FIRE DEPARTMENT

 NEVER HANDLE OR PICK UP A FLAMING PAN.

 DO NOT USE WATER, INCLUDING WET DISHCLOTHS, OR TOWELS. A VIOLENT STEAM EXPLO-

SION MAY ENSUE

 DO NOT TURN ON HOOD TO EVACUATE SMOKE. TURN OFF HOOD

 USE AN EXTINGUISHER ONLY IF:

 YOU HAVE A CLASS ABC EXTINGUISHER AND YOU CAN OPERATE IT

 THE FIRE IS SMALL AND CONTAINED WHERE IT STARTED

 THE FIRE DEPARTMENT HAS BEEN NOTIFIED

 YOU CAN FIGHT THE FIRE WITH YOUR BACK TOWARDS AN UNOBSTRUCTED EXIT

WARNING!

P/N 750306 Page 4

 THIS PRODUCT IS FOR GENERAL VENTILATION APPLICATIONS. DO NOT USE TO EXHAUST HAZ-

ARDOUS, FLAMMABLE, OR EXPLOSIVE MATERIALS

 PRIOR TO CLEANING OR SERVICING THE UNIT, SWITCH POWER OFF AT THE SERVICE PANEL

AND LOCK OUT THE PANEL. IF THE PANEL CANNOT BE LOCKED OUT, AFFIX A PROMINENT

WARNING TAG TO THE SERVICE PANEL.

 DO NOT USE PORCELAIN OR ABRASIVE CLEANERS ON THIS PRODUCT. THIS MAY RESULT IN

COSMETIC DAMAGE TO THE SURFACE LIKE SCRATCHES AND/OR DISCOLORIZATION

 ALL BRASS TRIM PIECES REQUIRE SPECIAL CLEANING. DO NOT USE ABRASIVE CLEANERS OR

FURNITURE POLISH. THIS WILL RESULT IN DISCOLORIZATION TO THE BRASS SURFACE

Since 1880, we have been dedicated to quality! We believe that our success can only be measured

by the continuing success of our customers. We achieve customer satisfaction by ensuring that

each of our employees understands, meets and exceeds customer expectations. We establish and

maintain an environment that encourages all employees to pursue continuous improvement in qual-

ity and productivity.

Our quality policy is monitored by the highest levels of management.

We hope you enjoy your new appliance and we THANK YOU again for believing in our product

as much as we do.

The staff and team at Prizer Stove Works !

LOW PROFILE HOOD RECIRCULATING LOW PROFILE HOOD

PRO LINE HOOD PYRAMID HOOD

P/N 750306 Page 5

...to the exciting world of BlueStar™cooking! You have purchased one of the finest appliances available for

home use, which shows that you take cooking seriously. As the owner of a new BlueStar appliance you can look

forward to years of cooking enjoyment. You will prepare meals with the speed and accuracy of a professional chef

right in your own kitchen! All equipment is designed and manufactured to the highest quality standards in the in-

dustry specifically to meet the needs of the world’s most demanding chefs: you. From simmering to sautéing, bak-

ing and broiling these versatile appliances provide the flexibility you need in any cooking application. Commercial

styling adds a touch of elegance to your kitchen like no other appliance can. What’s more, this high quality, high-

performance appliance is backed by our professional service network from coast to coast to provide you with

quick, competent technical service should the need arise. Please take a few moments now to fill in the information

below for your future reference. In the event you require parts or service, this information will be needed to ensure

WELCOME!

P/N 750306 Page 6

NOTE: WARRANTY SERVICE MUST BE PERFORMED BY AN AUTHORIZED SERVICE AGENT. YOU

MAY REQUEST WARRANTY SERVICE BY CALLING 800-449-8691. YOU MAY ALSO REQUEST SER-

VICE VIA THE INTERNET BY SUBMITTING THE SERVICE REQUEST FORM AT

WWW.BLUESTARCOOKING.COM

In the Commonwealth of Massachusetts, gas connections must be

performed by a licensed plumber or licensed gas fitter.

DATE OF PURCHASE

DEALER’S NAME

DEALER’S ADDRESS

DATE OF INSTALLATION

INSTALLER’S NAME

INSTALLER’S ADDRESS

MODEL NUMBER

SERIAL NUMBER

HANDLING

 REMOVE ALL WATCHES, BELT BUCKLES, JEWELRY, RINGS AND ANY CLOTHING WITH

METAL BUTTONS OR SNAPS TO PREVENT DAMAGE TO THE HOOD.

 WHEN YOU BEGIN THE INSTALLATION PROCESS REMOVE THE HOOD FROM IT’S ORIGI-

NAL CARTON AND PLACE THE HOOD ON A CLEAN, NON-ABRASIVE BLANKET.

 INSPECT THE HOOD CAREFULLY FOR ANY DAMAGE OR IMPERFECTIONS BEFORE YOU

BEGIN TO INSTALL THE HOOD. IF ANY DAMAGE OR IMPERFECTIONS EXIST, RECARTON

THE HOOD AND CALL YOUR DEALER IMMEDIATELY, DO NOT INSTALL A DAMAGED

HOOD.

 IT IS HIGHLY RECOMMENDED THAT RUBBER GLOVES BE USED TO PREVENT

SCRATCHES ON THE HOOD AND TO PROVIDE YOU WITH A FIRM GRIP.

 WHEN REMOVING THE HOOD FROM THE CARTON LOCATE THE FILTERS. THE FILTERS

ARE PACKED SEPARATELY.

DO NOT REMOVE HOOD FROM ORIGINAL CARTON UNTIL YOU ARE READY TO IN-

STALL

UNPACKING

 CHECK THE PACKAGE FOR DAMAGE. IF ANY DAMAGE IS VISIBLE YOU SHOULD MARK

THE BILL OF LADING YOU SIGN THAT THERE MAY BE CONCEALED DAMAGE.

 INSURE THE CONTAINER IS UPRIGHT. IF THE CONTAINER IS NOT UPRIGHT MAJOR DAM-

AGE CAN OCCUR TO YOUR APPLIANCE. IF DAMAGE IS DISCOVERED, DO NOT REFUSE

DELIVERY. CONTACT THE DEALER AND FILE APPROPRIATE FREIGHT CLAIMS. SAVE

ALL PACKAGING MATERIAL. DO NOT CONTACT THE MANUFACTURER. YOUR APPLI-

ANCE WAS SHIPPED FROM THE DEALER YOU PURCHASED IT FROM. SHIPPING DAMAGE

CLAIMS ARE TO BE RESOLVED BETWEEN THE CUSTOMER, SHIPPING CARRIER AND

DEALER. THE MANUFACTURER MAY ASSIST IN RESOLVING ANY SUCH CLAIMS, BUT

SUCH ASSISTANCE DOES NOT RELIEVE YOU OF YOUR RESPONSIBILITY.

 MOVE THE CONTAINER AS CLOSE TO ITS INSTALLATION LOCATION AS POSSIBLE. THIS

WILL REDUCE MOVING AND HANDLING YOUR APPLIANCE ONCE IT IS OUT OF ITS SHIP-

PING CONTAINER

 DO NOT DISCARD PACKAGING WITHOUT FIRST LOCATING THE FILTERS

 INSPECT ALL MOLDED PACKAGING BEFORE DISCARDING

ANY DAMAGE MUST BE REORTED BEFORE INSTALLING THE HOOD.

ONCE THE HOOD HAS BEEN INSTALLED, NO RETURN WILL BE AC-

CEPTED!

P/N 750306 Page 7

MAKE SURE BLOWERS ARE FREE FROM OBSTRUCTIONS (PACKING AND DEBRIS). TEST

RUN BLOWERS BEFORE FINALIZING INSTALLATION. CHECK WITH MANUFACTURER BE-

FORE ATTEMPTING TO USE OTHER THAN BLUESTAR BLOWER SYSTEMS. FOR TECHNI-

CAL INFORMATION CONTACT BLUESTAR SERVICE (800-449-8691)

PACKING LIST FOR PRO LINE HOOD SERIES

PL30240——24” depth

 No blower (Sold and Packaged Separately)

 Two (2) Stainless Steel Baffle Filters

 Two (2) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

PL36240, PL42240—24” depth

 No blower (Sold and Packaged Separately)

 Four (4) Stainless Steel Baffle Filters

 Two (2) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

PL48240 , PL54240, —- 24" Depth

 No blower (Sold and Packaged Separately)

 Six (6) Stainless Steel Baffle Filters

 Three (3) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

PL60240, PL66240 — 24" Depth

 No blower (Sold and Packaged Separately)

 Six (6) Stainless Steel Baffle Filters

 Three (3) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

P/N 750306 Page 8

PACKING LIST FOR PYRAMID STYLE HOOD SERIES

PC30240—24” depth

 No blower (Sold and Packaged Separately)

 Two (2) Stainless Steel Baffle Filters

 Two (2) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

 Duct cover sold packed in separate box (2 of2)

PC36240, PC42240—24” depth

 No blower (Sold and Packaged Separately)

 Four (4) Stainless Steel Baffle Filters

 Two (2) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

 Duct cover sold packed in separate box (2 of2)

PC48240 , PC54240, —- 24" Depth

 No blower (Sold and Packaged Separately)

 Six (6) Stainless Steel Baffle Filters

 Three (3) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

 Duct cover sold packed in separate box (2 of2)

PC60240, PC66240 — 24" Depth

 No blower (Sold and Packaged Separately)

 Six (6) Stainless Steel Baffle Filters

 Three (3) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

 Duct cover sold packed in separate box (2 of2)

P/N 750306 Page 9

PACKING LIST FOR LOW PROFILE HOOD SERIES

BS-LPL24240, BS-LPL30240——24” depth

 One Pre-Installed 600 CFM blower

 Two (2) Stainless Steel Baffle Filters

 Two (2) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

BS-LPL36240——24” depth

 One Pre-Installed 600 CFM blower

 Four (4) Stainless Steel Baffle Filters

 Two (2) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

BS-LPLR24240, BS-LPLR30240——24” depth

 One Pre-Installed 520 CFM blower

 Two (2) Stainless Steel Baffle Filters

 Two (2) Charcoal Filters

 Two (2) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

BS-LPLR36240——24” depth

 One Pre-Installed 520 CFM blower

 Four (4) Stainless Steel Baffle Filters

 Four (4) Charcoal Filters

 Two (2) Pre-Installed Lights

 Lid for Electrical Box

 Use and Care Manual with Wiring Diagram

PACKING LIST FOR RE-CIRCULATING HOOD SERIES

P/N 750306 Page 10

DIMENSIONS OF THE PRO LINE SERIES HOOD

 INLET LOCATION FOR THE ELECTRICAL CONNECTION IS LOCATED NEAR THE REAR

CENTER OF HOOD 3-3/16” FROM HOOD BOTTOM.

 ELECTRICAL REQUIREMENTS: 15 AMPS AT 120 VOLTS

 LIGHT BULBS ARE HALOGEN G9, 120V, 25W

 BULBS ARE OPERATED BY A DIMMER SWITCH

 BLOWER IS VARIABLE SPEED AND MUST BE PURCHASED SEPERATELY

10.5

24.5

3-3/16”

3-3/16

P/N 750306 Page 11

IN SELECTING THE PROPER HEIGHT TO MOUNT THE HOOD, TAKE INTO CONSIDERATION

THE STATURE OF THE PERSON OR PERSONS WHO WILL BE COOKING. A HEIGHT OF 30",

MINIMUM HEIGHT OFF OF COOKING SURFACE, TO 36" MAXIMUM HEIGHT OFF OF THE

COOKING SURFACE, WILL SUIT MOST USERS. IF MOUNTED AT A HEIGHT GREATER THAN

36" ABOVE THE COOKING SURFACE, THE HOOD SHOULD BE AT LEAST 6" WIDER THAN

THE COOKING APPLIANCE TO PROVIDE A PROPER CAPTURE OF HEAT AND GREASE.

(REFER TO THE RANGE MANUFACTURER'S GUIDELINES). ONCE THE PROPER HEIGHT IS

ESTABLISHED, DRAW A LEVEL LINE WHERE THE BOTTOM OF THE HOOD WILL REST. IF

PRACTICAL, MOUNT A BOARD EQUAL TO THE WIDTH OF THE HOOD ALONG THE LINE SO

YOU MAY REST THE HOOD ON IT WHILE INSTALLING. MARK A CENTER LINE ON THE

WALL EQUAL TO THE ENTIRE HEIGHT OF THE HOOD TO ASSIST WITH THE PROPER DUCT

ALIGNMENT AND HOOD PLACEMENT. DETERMINE STUD LOCATION AND MARK IT

CLEARLY. BECAUSE OF THE WEIGHT OF THE HOOD MAKE SURE THAT THE MOUNTING

SCREWS ARE DRIVEN INTO THE FRAMING AND NOT JUST THE DRYWALL. IT MAY BE

NECESSARY TO DRILL ADDITIONAL HOLES INTO THE CANOPY FOR PROPER ALIGNMENT.

IF ONLY ONE STUD CAN BE LOCATED, TOGGLE BOLTS OR ADDITIONAL FASTENING MUST

BE INSTALLED TO FIRMLY SECURE THE HOOD TO THE WALL. INSTALL A 115 VOLT 15

AMP ELECTRICAL LEAD IN THE HOLE MARKED ON THE ROUGH-IN DIAGRAM. (FIG. A)

EXAMPLE: LOCATION FOR A 36" HOOD IS 3-3/16” FROM THE BOTTOM, CENTERED ON THE

HOOD. VERIFY THAT THE DUCTING IS IN THE CORRECT LOCATION FOR YOUR APPLICA-

TION.

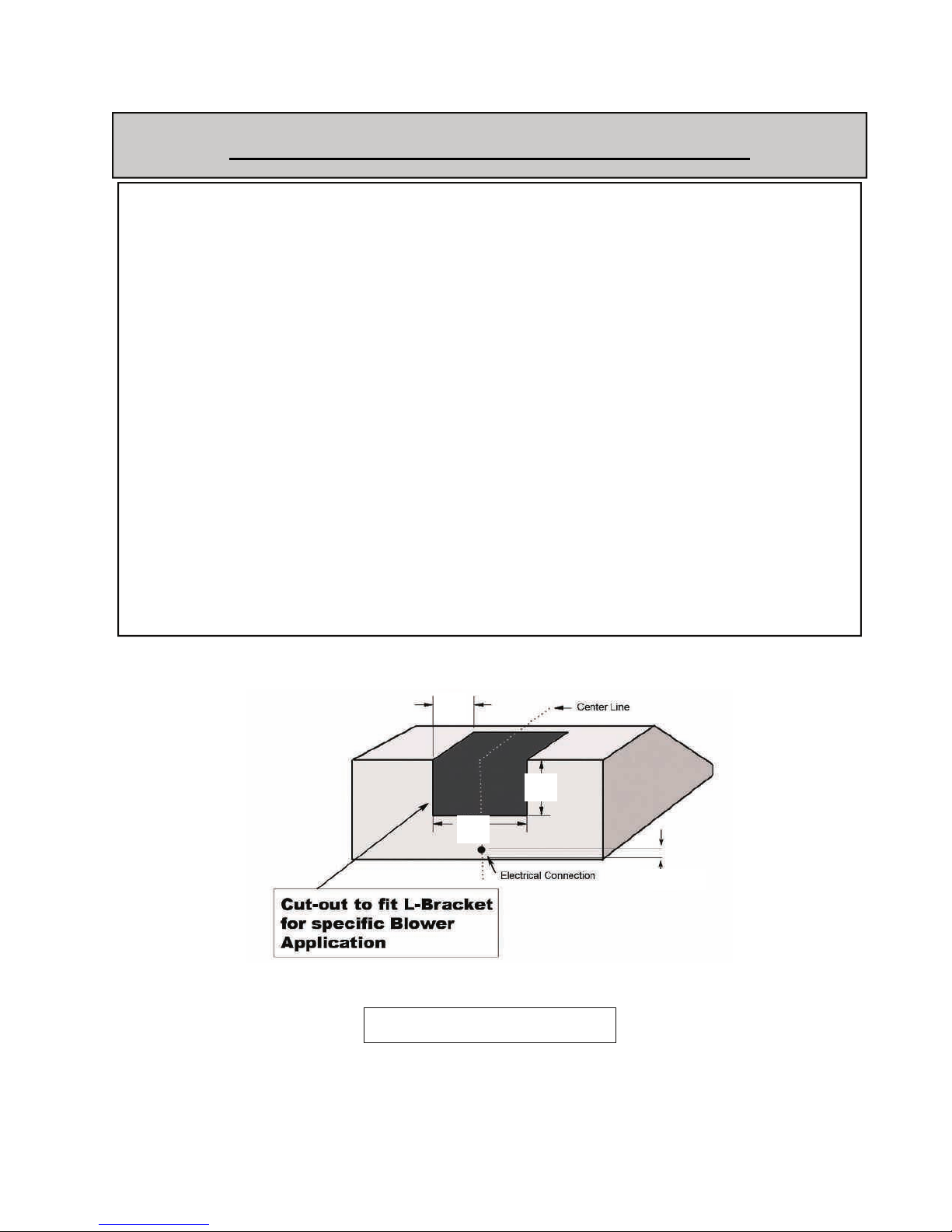

SITE PREPARATION FOR PRO LINE SERIES

FIGURE A

10.5

24.5

3-3/16

P/N 750306 Page 12

THE CORRECT HEIGHT OF YOUR PRO LINE SERIES HOOD

THE BOTTOM OF THE HOOD SHOULD BE 30" MINIMUM TO 36" MAXIMUM ABOVE THE

COUNTERTOP. THIS WOULD TYPICALLY RESULT IN THE BOTTOM OF THE HOOD BEING 66"

TO 72" ABOVE THE FLOOR. THE BOTTOM OF THE HOOD SHOULD NEVER BE MORE THAN

72" ABOVE THE FLOOR OR MORE THAN 36" ABOVE THE COUNTERTOP. THESE DIMENSIONS

PROVIDE FOR SAFE AND EFFICIENT OPERATION OF THE HOOD. IF FOR SOME REASON THE

HOOD IS MOUNTED GREATER THAN 72” FROM THE FLOOR, IT MUST BE 6” WIDER THAN THE

RANGE.

ALL PL MODEL HOODS HAVE THE FLEXIBILITY TO EITHER DUCT FROM THE

TOP OR REAR. CHECK MANUAL FOR RECOMMENDED TRANSITIONS.

TOP DISCHARGE REAR DISCHARGE

HEIGHT FROM FLOOR

68"(MIN)-72"(MAX)

167.6cm-182.9cm

COUNTERTOP

HEIGHT ABOVE COUNTERTOP

30"(MIN)-36"(MAX)

76.2CM-91.4CM

P/N 750306 Page 13

PRO LINE DUCT INFORMATION

MODEL BLOWER (cfm) DUCT SIZE TRANSITION

BS-PL30240 BS-PLIB600 6”

BS-PL30240 BS-PLIB1200 10”

BS-PL36240 BS-PLIB600 6”

BS-PL36240 BS-PLIB1200 10” TR6X15/10

BS-PL42240 BS-PLIB600 6”

BS-PL42240 BS-PLIB1200 10” TR6X15/10

BS-PL48240 BS-PLIB1200 10” TR6X15/10

BS-PL54240 BS-PLIB1200 10” TR6X15/10

BS-PL60240 BS-PLIB1200 10” TR6X15/10

BS-PL66240 BS-PLIB1200

10” TR6X15/10

BS-PLIB600 IS SIZED FOR A 6” DUCT. TRC8/6 TRANSITION IS AVAILABLE TO INCREASE THE DUCT

SIZE TO 8” FOR OPTIMAL PERFORMANCE

IMPORTANT PLANNING INFORMATION!

PROPER INSTALLATION OF DUCTING IS EXTREMELY INPORTANT FOR OPTIMAL PERFORMANCE OF

YOUR BLUESTAR VENTILLATION SYSTEM.

 ALL CFM’S ARE BASED ON TESTS AT 0.1 STATIC PRESSURE; WITHOUT STATIC PRESSURE, ALL

CFM’S WOULD BE OVERSTATED.

 STRAIGHT RUNS OR GRADUAL TURNS ARE BEST

 NEVER USE FLEXIBLE DUCT WORK

 PROPER PERFORMANCE IS DEPENDENT ON PROPER DUCT INSTALLATION, USE A QUALIFIED

AND TRAINED INSTALLER

 CONSULT WITH LOCAL CODES FOR MAKE UP AIR REQUIREMENTS

 L-BRACKETS FOR THE INTERNAL BLOWER PACKAGES CAN BE MOUNTED FOR EITHER TOP OR

REAR DISHARGE

 BS-PLIB1200 BLOWERS REQUIRE AN ADDITIONAL PURCHASE OF A 10” TRANSITION

P/N 750306 Page 14

INSTALLATION OF YOUR PRO LINE SERIES HOOD BLOWER

INSTALLATION OF BS-PLIB600 INTERNAL BLOWER KIT

REFER TO WIRING DIAGRAM

1. REMOVE SHIPPING BRACKET (SEE ITEM 1)FROM HOOD. DO NOT DISCARD SCREWS!

2. INSTALL BLOWER BRACKET WITH THE SCREWS REMOVED FROM THE SHIPPING

BRACKET.

3. LOCATE THE TERMINAL BLOCK INSIDE THE ELECTRICAL SUPPLY BOX.

4. CONNECT FAN # 1 WIRE TO TERMINAL BLOCK #4.

5. CONNECT FAN # 1 WIRE TO TERMINAL BLOCK #6.

6. CONNECT THE 115 VOLT SUPPLY WIRE TO TERMINAL BLOCK #2.

7. CONNECT THE 115 VOLT SUPPLY WIRE TO TERMINAL BLOCK #1.

INSTALLATION OF BS-PLIB1200 INTERNAL BLOWER KIT

REFER TO WIRING DIAGRAM

1. REMOVE SHIPPING BRACKET FROM HOOD. DO NOT DISCARD SCREWS!

FOR FAN #1

1. INSTALL BLOWER BRACKET WITH THE SCREWS REMOVED FROM THE SHIPPING

BRACKET.

2. LOCATE THE TERMINAL BLOCK INSIDE THE ELECTRICAL SUPPLY BOX.

3. CONNECT FAN # 1 WIRE TO TERMINAL BLOCK #4.

4. CONNECT FAN # 1 WIRE TO TERMINAL BLOCK #6.

5. CONNECT THE 115 VOLT SUPPLY WIRE TO TERMINAL BLOCK #2.

6. CONNECT THE 115 VOLT SUPPLY WIRE TO TERMINAL BLOCK #1.

FOR FAN #2

1. CONNECT FAN #2 WIRE TO TERMINAL BLOCK #3.

2. CONNECT FAN #2 WIRE TO TERMINAL BLOCK #5.

P/N 750306 Page 15

Item 1: shipping bracket should be used with remote blower, as the attachment for the flue. Once

removed attach blower as described above.

Shipping bracket

Blower motor bracket

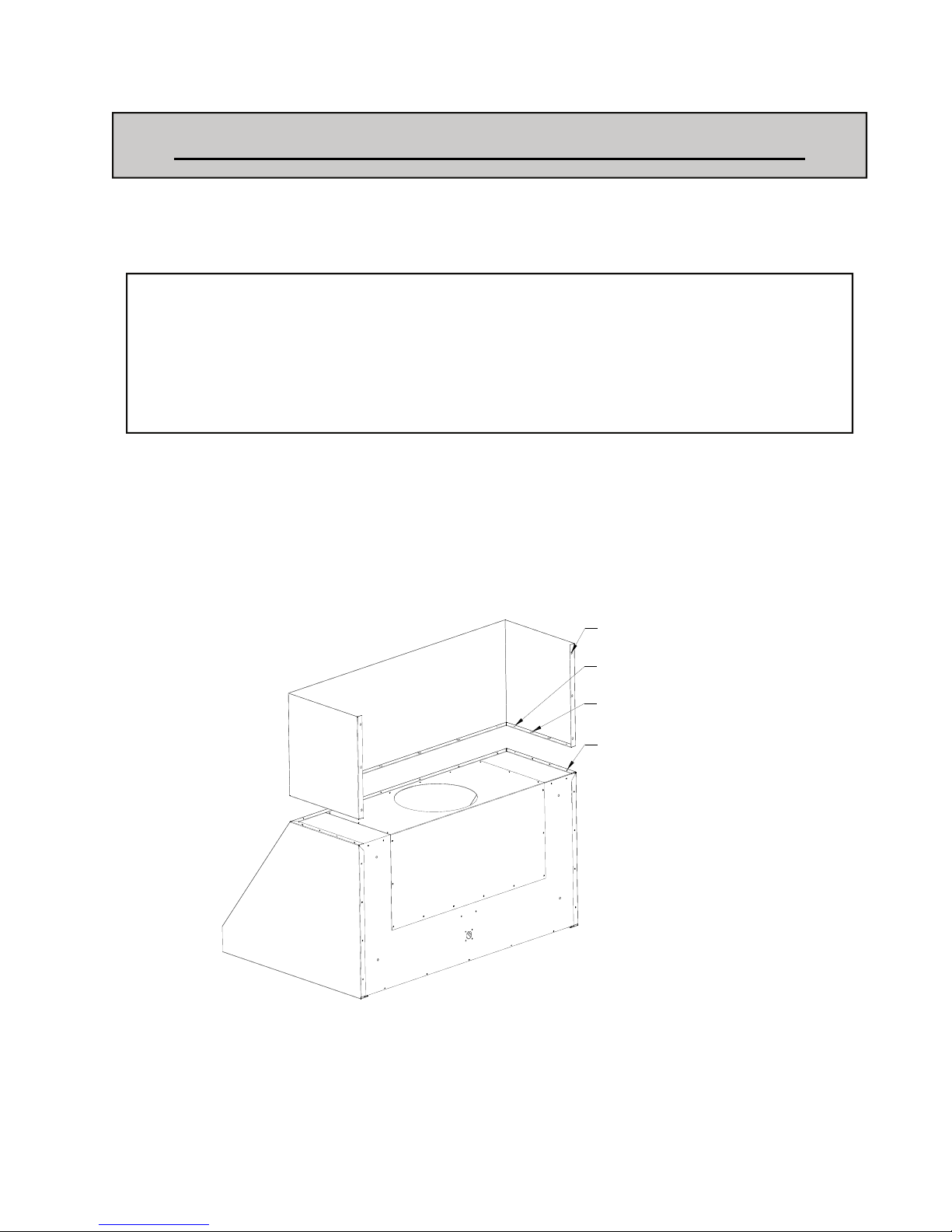

INSTALLATION GUIDE FOR PRO LINE DUCT COVER

LARGE HOLE FITS OVER

EXISTING RIVET IN HOOD

REMOVE RIVETS THAT

LINE UP WITH SMALL

HOLES IN DUCT COVER

SMALL HOLES USED

FOR FASTENING

OPTIONAL ATTACHMENT

HOLES

 REMOVE POP RIVETS FROM PRO HOOD THAT CORRESPOND WITH THE SMALL HOLES ON

THE DUCT COVER.

 INSTALL HOOD TO CORRECT HEIGHT (BE CAREFUL TO LEAVE 12” FOR DUCT COVER)

 SLIDE DUCT COVER OVER TOP OF HOOD

 MAKE SURE SMALL HOLES IN DUCT COVER FLANGE LINE UP WITH HOLES IN HOOD WHERE

RIVETS WERE REMOVED

 FROM INSIDE HOOD, ATTACH DUCT COVER TO HOOD USING SHEETMETAL SCREWS

P/N 750306 Page 16

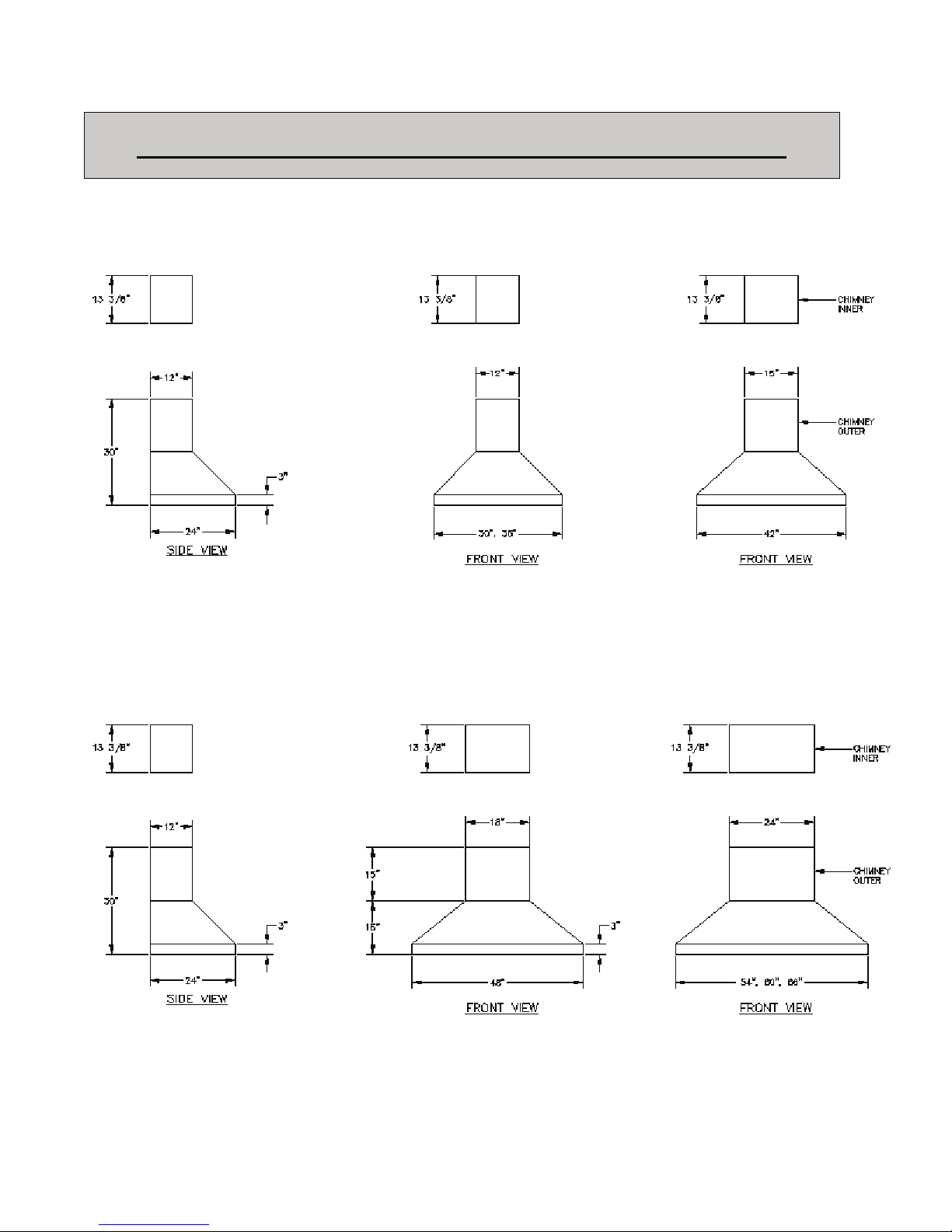

DIMENSIONS OF THE PYRAMID STYLE SERIES HOOD

P/N 750306 Page 17

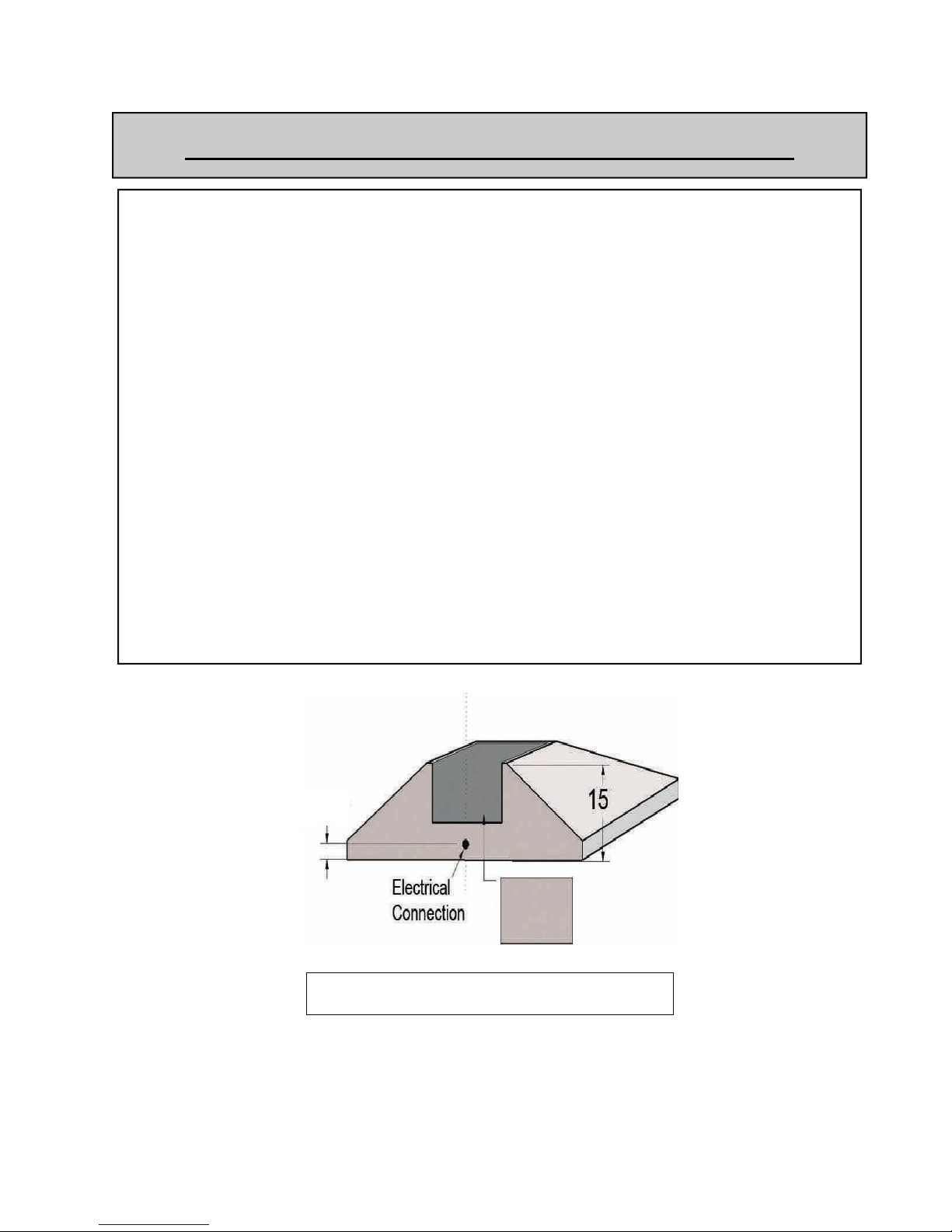

SITE PREPARATION FOR PYRAMID STYLE SERIES
