Blueshape GRANITE MINI User manual

PROFESSIONAL CINEMA
V-LOCK CAMERA BATTERIES
All models:
BV095HD
BV140HD
USER MANUAL
Revision 1.1
www.blueshape.net Printed in Malta 2022

LITHIUM-ION BATTERY PACK HANDLING PRECAUTIONS
Danger
1. Do not disassemble or modify the battery pack. The battery pack is equipped with built-in
safety/protection features. Should these features be disabled, the battery pack may leak
corrosive chemicals, overheat, emit smoke, burst and/or ignite.
2. Do not connect the positive (+) and negative (-) terminals to a metal object such as a wire.
Do not transport or store the battery pack together with metal objects such as jewellery,
hairpins, etc. In such cases, short- circuiting or over-current flow may occur causing the
battery pack to leak, overheat, emit smoke, burst and/or ignite. Metal objects such as
wires, jewellery or hairpins may generate heat if they come into contact with the battery.
3. Do not discard the battery pack into fire or heat since this may cause the insulation to melt
down and may also damage the gas release vents and other safety features possibly
leading to chemical leakage, overheating, smoke emission, bursting and/or ignition.
4. Do not use or leave the battery pack near a heat source such as a fire or a heater (> 80°C)
or in a car. If the resin separators should become damaged due to overheating, short-
circuiting may occur inside the battery pack, possibly leading to chemical leakage,
overheating, smoke emission, bursting and/or ignition of the battery pack.
5. Do not immerse the battery pack in fluids, water or seawater and do not allow it to get wet.
Otherwise, the protective features inside the battery may be damaged and abnormal
chemical reactions may occur, possibly leading to leakage, overheating, smoke emission,
bursting and/or ignition.
6. Do not recharge the battery pack near fire or in extremely hot environments. Otherwise,
hot temperatures may trigger its built-in protective features, inhibiting recharging or
damaging these built-in protective features, causing it to be charged with an excessive
current. As a result, abnormal chemical reactions may occur internally, possibly leading to
leakage, overheating, smoke emission, bursting and/or ignition.
7. To recharge the battery pack, use the battery charger specifically designed for the device
and observe the recharging conditions specified by the maker of the charger. A recharging
operation under non-conforming conditions may cause the battery pack to become
overcharged, or charged with an excessive current. Abnormal chemical reactions may
occur, possibly leading to electrolyte leakage, overheating, smoke emission, bursting
and/or ignition.
8. Do not pierce the battery pack with pointed or other sharp objects. Do not strike it with a
hammer, or step on it. Otherwise, the battery pack may become damaged and deformed
internal short-circuiting may occur, possibly leading to chemical leakage, overheating,
smoke emission, bursting and/or ignition.
9. Do not strike or throw the battery pack. An impact may cause leakage, overheating,
smoke emission, bursting and/or ignition. Moreover, if the protective features inside
become damaged, the resulting internally generated high current could lead to abnormal
chemical reactions, electrolyte leakage, overheating, smoke emission, bursting and/or
ignition. - 2 -

10. Do not use an apparently damaged or deformed battery pack. Otherwise, electrolyte
leakage, overheating, smoke emission, bursting and/or ignition of the battery pack may
occur.
11. Do not directly solder the battery pack. Otherwise, heat may melt down its insulation,
damage its gas release vents or other safety features possibly leading to leakage,
overheating, smoke emission, bursting and/or ignition.
12. Do not reverse the positive (+) and negative (-) terminals. Otherwise, during recharging,
the battery pack will be reverse-charged, abnormal chemical reactions may occur, or
excessively high current may flow during discharging possibly leading to chemical
leakage, overheating, smoke emission, bursting and/or ignition.
13. The positive (+) and negative (-) terminals are arranged in a particular orientation. Do not
force the connection if you may not easily connect the battery pack terminals to the
battery pack charger or other equipment. Confirm that the terminals are correctly
oriented. Reversing the terminals will result in reverse charging, possibly leading to
electrolyte leakage, overheating, smoke emission, bursting and/or ignition of the battery
pack.
14. Do not use the battery pack for other purposes other than those specified. Otherwise, its
guaranteed performance will be lost and/or its service life will be shortened. Depending on
the equipment in which the battery pack is used, excessively high current may flow
through battery pack, possibly damaging it and leading to electrolyte leakage, overheating,
smoke emission, bursting and/or ignition.
15. If the battery pack leaks, and the electrolyte reaches the eyes, do not rub them. Instead,
rinse the eyes with clean running water and immediately seek medical attention. Failure to
do this may result in eye injury.
Warning
1. If recharging operation fails to complete even when a specified recharging time has
elapsed, immediately stop further recharging. Otherwise, electrolyte leakage, overheating,
smoke emission, bursting and/or ignition may occur.
2. Do not put the battery pack into a microwave oven or a pressurised container. Rapid
heating or punctured sealing may lead to electrolyte leakage, overheating, smoke
emission, bursting and/or ignition.
3. If the battery pack leaks or gives off a bad odour, remove it from any exposed flame.
Otherwise, the leaking electrolyte may catch fire, and the battery pack may emit smoke,
burst or ignite.
4. If the battery pack gives off an odour, generates heat, becomes discoloured or deformed,
or in any way appears abnormal during use, recharging or storage, immediately remove it
from the equipment or battery pack charger and stop using it. Otherwise, the problematic
battery pack may develop electrolyte leakage, overheating, smoke emission, bursting
and/or ignition.
- 3 -

Caution
1. Do not use or subject the battery pack to intense sunlight or hot temperatures such as in a
car in hot weather. Otherwise, electrolyte leakage, overheating and/or smoke emission
may occur. Also, its guaranteed performance will be lost and/or its service life will be
shortened.
2. The battery pack incorporates built-in safety devices. Do not use it in a location where
static electricity may be present. Otherwise, the safety devices may be damaged, possibly
leading to electrolyte leakage, overheating, smoke emission, bursting and/or ignition.
3. The guaranteed recharging temperature range is 0°C to 45°C. A recharging operation
outside this temperature range may lead to electrolyte leakage and/or overheating of the
battery pack, and may cause damage to it.
4. If electrolyte leaking from the battery pack contacts your skin or clothing, immediately
wash it away with running water. Failure to do this may result in skin inflammation.
5. Store the battery pack in a location where children cannot reach it. Also, make sure that a
child does not take out the battery pack from the battery pack charger or equipment.
6. If you find discoloration, a bad odour due to leakage, overheating and/or other
irregularities when using the battery pack for the first time return it to your supplier or
vendor.
- 4 -

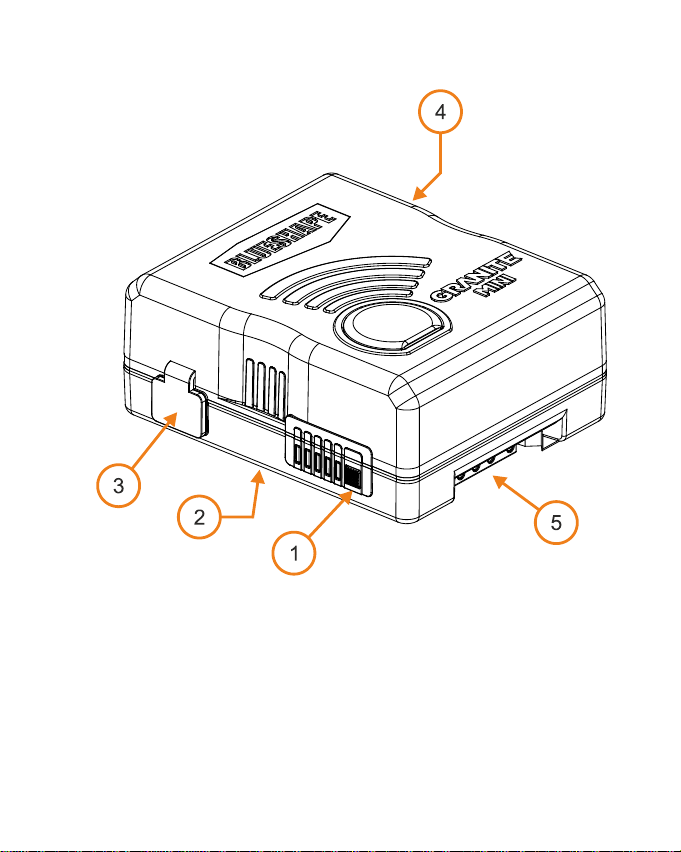

GRANITE MINI battery series:
Presentation
This drawing is for reference only. The size of the real battery may vary depending on model.
Please see the next table for precise dimensions.
1
5-LED gauge (4x blue+1x RGB) and push button for capacity
check and Wi-Fi activation. The RGB LED indicates the Wi-Fi
activity status.
2
V-bracket for battery installation
3 - 4
D-TAP sockets 14.8V(nominal) without overload protection*1can
be used as alternative charging socket
- 5 -

5
Contact block. The pin-out sequence is:
Pack negative (+ve)
ID resistor
Data communication bus (clock)*2
Data communication bus (data)*2
Pack positive (-ve)
*1The D-TAP socket are not independently overload protected meaning
that an excessive current or a short circuit will trip temporarily the battery
protections. This socket can be used as an alternative battery charge
input by means of dedicated D-TAP chargers.
*2The purpose of data communication is to send battery status
information to those cameras and devices that are compatible with the
battery communication protocol. The battery can also communicate with a
standard PC through our BSMON kit. Full technical information is
available on our web site. All GRANITE MINI batteries also feature an
embedded Wi-Fi connection for data transmission called GRANITE Link.
Specifications
The GRANITE MINI series of V-Lock batteries consists of 2 models:
Parameter BV095HDmini BV140HDmini
Nominal Voltage 14.4V 14.4V
Operating voltage range 10.8~16.8V 10.0~16.8V
Nominal Capacity 6.6Ah 9.9Ah
Nominal Energy 95Wh 143Wh
Max Continuous Discharge 12A 12A
Max D-TAP combined output No individuallimitations on D-TAP.
Shared with total battery output on pack terminals
Operating Temp. -20° ~ +60oC
IP rating IP54
Wi-Fi module WiFi 2.4 GHz - 802.11 b/g/n
Dimensions
(L x W x H) mm
(L x W x H) in
116 x 95 x 53
4.56 x 3.74 x 2.08
Weight(net) 0.710Kg (1.57lbs) 0.906Kg (1.99lbs)
- 6 -

Introduction
BLUESHAPE professional broadcast batteries use multiple lithium ion
rechargeable battery cells. These batteries are designed for use with
cameras and apparatus equipped with the V-lock mount.
Battery Features
Robust thick-walled housing made of special plastic resin for superior
impact resistance. The battery can withstand several drops from
altitudes of up to 2 metres without breaking or suffering internal
damage.
Water and dust ingress resistant construction (IP54 rated) for safe
use, even in difficult environments.
Compact size and lightweight. The external dimensions of the battery
have been optimised for usage in small cinema camera and for
maximum capacity in the space available.
Only the best available components are used in the battery
construction for ensured longevity.
Sophisticated factory programmed on-board electronics provide the
operator with full safety protection together with premium
performance and reliability.
Advanced interior design permits easy servicing and restoration by
qualified BLUESHAPE service personnel.
Dual D-TAP outputs, permitting charge. The full battery draw can
generously be tapped from these lateral output. There is no individual
overload protection on these ports, meaning that an overload or a
short-circuit on one of these ouptut will trip the whole battery
protections.
A 10-step LED indicator provides accurate remaining capacity
monitoring. Each LED accounts for 20% of state-of-charge when lit,
and accounts for the 10% when flashing; when the capacity falls
below 10%, the lower (first) LED blinks. During charge the LED bar
automatically lights up, showing the actual state of charge in % with
the topmost LED slowly blinking to indicate the charging activity.
No memory effect - batteries can be recharged at any time.
The battery's energy is conserved during operation, stand-by and low
capacity states through intelligent power mode management. When
the pack capacity is very low, it enters automatically into “shutdown
- 7 -

mode” to minimise further capacity losses and prolong cell life. The
LED indicator is permanently off and the pack can only be re-
activated by charging.

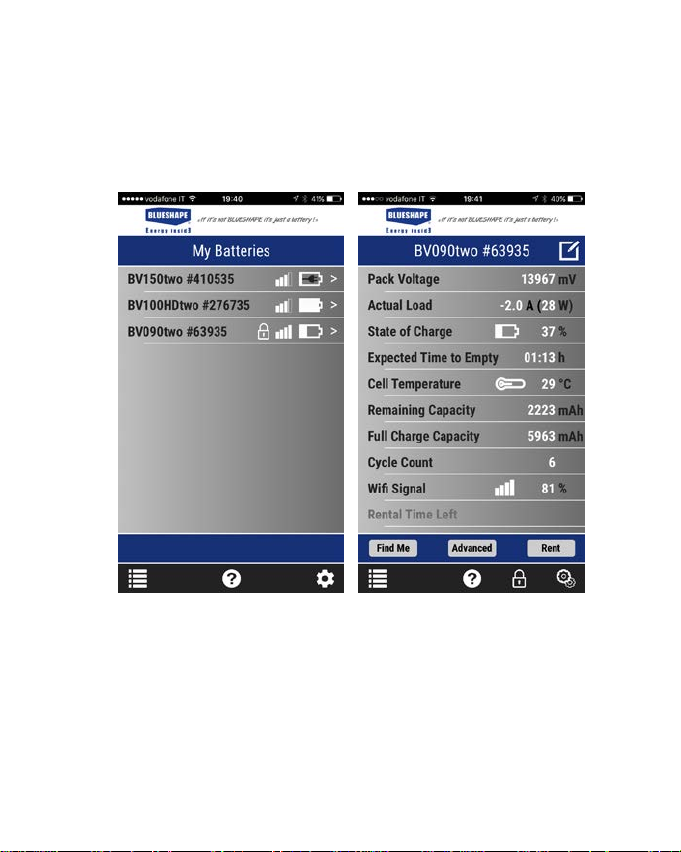

Wi-Fi enabled: this new, advanced BLUESHAPE technology permit
users and rental houses to be in command of their battery fleet
through a free App available for iOS and Android, called “GRANITE
Link”
The battery will shut down if the maximum specification discharge current
for the model in use is exceeded. It will reset approximately 30 seconds
after the excessive load has been removed. The battery will also shut
down when fully discharged but will reactivate upon charging. Pre-Charge
is enabled on all batteries to limit the charging current and gently charge
low voltage cells.
- 8 -

Further precautions
Please consult your vendor before use, to ensure compatibility with
your equipment. Although the battery has been designed for use with
most standard V-Lock equipment, there may be instances when the
battery may not be compatible.
Never attempt to open or dismantle the battery
Opening the battery during warranty will automatically invalidate the
guarantee
Do not short circuit the battery even though it is short circuit protected
Do not use the battery in extreme temperature environments
Keep the battery away from fire to avoid explosion
Charging
The battery can be charged using BLUESHAPE chargers. Consult your
vendor if you intend to charge the battery using third-party chargers.
Since the battery is normally shipped in ultra-low power consumption
mode, IT NEEDS TO BE CHARGED BEFORE FIRST USE.
The battery may become hot during charging. This is normal. Consult
your vendor if during charging, the battery becomes excessively hot or
stops charging. Charging is only allowed at temperatures between 0°C
and 45°C. While charging, the LED indicator lights up automatically to
show the battery capacity as it increases, with the topmost LED slowly
blinking to indicate the charging activity.
Performance
The battery will give full capacity performance only if it has been fully
charged before use.
The battery will self-discharge to some extent over time due to
internal electronic consumption. Recharging will restore this lost
capacity.
It is recommended to charge the battery after each use, and before
an expected prolonged shelf period.
Performance degradation may be observed in very cold or very hot
environments.
Performance decreases as the battery ages or if it has a high cycle
count or if it is not stored at the recommended temperature. When
- 9 -

the performance noticeably decreases, the battery should be
renewed.
Storage
The battery should be stored in a dry place at normal temperatures,
ideally below 25°C and not above 60°C (recommended 0°C to 20°C)
The battery is shipped in ultra-low power consumption mode and in this
state can withstand long period of storage. However, after the battery has
been reactivated with the first charge, more attention and care need to be
used:
It is recommended to charge the battery after each use.
If the battery is not going to be used for a prolonged period of time, it
is advisable to recharge the battery so as not to store it in a very low
state of charge. Remember that there will always be some internal
power consumption.
It is advisable to check the state of charge every 6 months and if
possible to exercise the battery regularly.
- 10 -

Battery Wi-Fi transmission
All GRANITE MINI batteries have an embedded Wi-Fi module that is the
core of the GRANITE Link architecture. This module is normally off by
default.
To switch it on, press the LED button for at least 5 sec until the topmost
RGB LED lights up and starts a blinking sequence till the module is on,
after which the LED blinks every ~2sec.
How to switch it on
press and hold the LED button for at least 5 sec, until the topmost
RGB LED lights up and starts a blinking sequence till the module is
on, after which the LED blinks every ~2 sec.
exception: if the battery voltage is below 10500mV while booting up,
the LED blinks green-red for 5 seconds and then turns off indicating
that the system cannot operate due to the low voltage. Wait for the
battery to rise above this threshold before powering the module
again.
How to switch it off
different methods are available:
press and hold the LED push button for at least 5 sec, when a red
LED lights up and initiates a blinking sequence lasting about 5 sec,
after which the system is off.
If the battery is not connected to the GRANITE Link App for more
than the hours indicated by the Off-Timer set in the battery by the
user through the App (default: 8hours), it switches off automatically
without user intervention to conserve power.
If the battery voltage drops below 10000mV for a time longer than 5
minutes, it switches off automatically without user intervention to
conserve power.
Please note that the status of the Wi-Fi embedded module does not alter
the operation of the battery pack: it may be turned on or off as desired
without any consequence to the battery performance.
Once the system is on, GRANITE MINI batteries operate in two modes
concurrently, Access-Point and Client.
- 11 -

Access Point Mode
By default, the battery is an access point and generates its unique
network whose SSID is the model name followed by the serial number.
The devices (smartphone, tablet, PC) would have to connect directly to
this network generated by the battery in order to communicate. Up to 4
devices can be connected at the same time and each one can monitor the
battery status. The standard password to connect to the battery network
is “blueshape00”.
This mode offers the simpler “out of the box” connectivity, but on the other
hand limits the battery monitoring to one pack at a time: to monitor
another battery the user has to manually connect to the desired network
every time.
Client Mode
The battery automatically becomes a ‘client’ of a network called
“BLUESHAPE Granite Link”, if this exists. This network is generated for
instance by our portable GRANITE Link Wi-Fi router, a solution that offers
a convenient connectivity on the field. More batteries can be on this same
network at the same time and within this mode, the same device (a
smartphone, tablet, PC) also connected to the same network can monitor
several batteries.
The battery has the ability to be connected to any other 2.4Ghz 802.11
b/g/n network, and to do so the user has to instruct the battery through
the GRANITE Link App. Once the battery is connected to a new network
and has acquired an IP, this network becomes a preferred one and the
pack will attempt to connect to it every time at start-up; if not available the
battery will try to connect to any other preferred networks it has already
connected to, if these exists.
“BLUESHAPE Granite Link” has the topmost priority among the preferred
networks: if it exists, the battery connects automatically.
A battery is in Client Mode when:
There is a portable access point (GRANITE Link Wi-Fi router), or
There is a third party network (conventional Access point like for
example, a camera equipped with Wi-Fi connectivity) and the battery
has therefore been instructed to connect with this preferred network.
- 12 -

Operation
When the Wi-Fi module is on, the battery automatically sends out
continuously data packets to any client connect to its network (AP mode)
and any other clients of the same subnet (Client Mode), so that any
device connected is updated with the same info.
The data broadcasted contain info such as:
Voltage
Current
State of charge
Capacity
Residual runtime to empty (or to full, if in charge)
Cycle life
Wi-Fi signal strength
Other status information, including the rental timers
At the same time, the battery listens and waits for specific commands that
are available to engage other actions, such as:
“findme”, to have the 5th topmost RGB LED to blink red-green for
some seconds
Set a personal password in a battery, so that only the owner can lock
and unlock it (lock means the battery cannot release any power,
while it can be normally charged)
Lock/unlock the battery: note that when the battery is unlocked
(default) it blinks green, while when locked it blinks red.
Connect to another Wi-Fi network. All networks that are requested to
connect to, will populate the list of the preferred networks that the
battery searches at startup.
Change the battery nickname shown, to simplify the display of the list
of batteries in the field
Upload a newer firmware to the Wi-Fi module, when available
Define the rental counters
This activity is shown by the topmost bliknking LED:
if the LED is green, the battery is unlocked and can discharge
(default mode)
- 13 -

it the LED is red, the battery is locked and cannot discharge,
meaning that the user has protected it or that a rental timer is
expired.
Rental Mode management
The GRANITE Link system allows rental houses to pre-program timers in
each battery, so that when at least one of them expires, the battery stops
releasing power while remaining chargeable.
Two timers are available and can be set individually or both:
Rental timer: number of rental days, not depending on the usage of
the battery. The battery starts counting immediately when the timer is
set and when the counters expire it stops.
Rental usage timer: amount of pre-programmed working hours. The
battery counts only when the battery is releasing power, and not in
stand-by or charge. When the counters expire it stops.
These timers, once generated and sent to the battery are protected and
cannot be halted even if the module is switched off. They can eventually
be extended (even remotely through the App), if a customer needs to.
These timers are among the info broadcasted by the battery, so the user
is always notified.
Rental houses can manage this system through a web-based application
where they have to subscribe for free. The web-application generates the
special action codes to set or extend timers on each different battery.
Individualy action codes must be generated and programmed in each
battery: the web application helps in this task, allowing also to send them
to customers by SMS, so that they can copy and upload to batteries
through their smartphone and/or tablet.
For faster operation with a large fleet of batteries, we offer GRANITE Link
Web Hub, a smart device that connects as a client to the local network
and acts as a gateway to all the GRANITE MINI batteries in proximity,
allowing faster and massive operations through the web App.
- 14 -

BLUESHAPE Granite Link App
In order to allow users to watch battery live data in real time and interact
with them as described, we have designed an App, available for iOS and
Android. The App can be downloaded for free from the relative stores,
and is available for both smartphones and tablets.
Here below, are some screenshots for reference.
- 15 -

- 16 -

RECYCLE
This GRANITE MINI battery can be recycled. Different
countries have different regulations on recycling. Please
consult the responsible authority in your cou
ntry or your
BLUESHAPE dealer for further information.
AIR TRANSPORT (IATA regulations)
All BLUESHAPE batteries meet the standard of the UN Manual
of Tests and Criteria, and therefore can be transported by air.
Li-Ion batteries can be transported by air only in carry-on
baggage, either stand-
alone (UN3480) or packed with
equipment (UN3481). For check-in of Li-
Ion batteries to be
allowed, it is advisable to pack them in their original boxes using
the contact protectors provided for additional safety.
Li-Ion batteries less than 100Wh can only be transported by air in carry-
on baggage and in reasonable (though unlimited) quantities, either stand-
alone (UN3480) or packed with equipment (UN3481).
The BV095HDmini model falls under this category.
For Li-Ion batteries that have capacities between 100Wh, and 160Wh,
users can carry 2 units only and in their hand luggage.
The BV140HDmini model falls under this category.
It is suggested to check with your airline in case the latter applies different
policies or if there exists, different legislation in your country.
- 17 -

IATA approved Battery flight cases
It is strongly suggested to make use of the BX8, IATA approved cases for
transporting GRANITE MINI batteries on aircraft.
BX8
BLUESHAPE offers an innovative solution for greater convenience and
safety when travelling or shipping lithium-ion batteries greater than
100Wh by air. Current IATA regulations for passengers limit batteries to 2
between 100-160Wh and any reasonable number below 100Wh. Any
larger batteries or a higher quantity must be shipped with special
packaging and markings and under many circumstances cannot be
shipped on passenger aircraft.
IATA Regulation, Packing Instructions 965 Section 1A, states that only
cargo flight can accept packages containing Li-ion batteries approved
under UN3480 designation. Nowadays this is the only possible way to
ship batteries larger than 100Wh by air.
The stringent shipping procedures impose the usage of special UN
approved packaging.
- 18 -

BLUESHAPE in cooperation with a leading manufacturer of professional
cases, has created a dedicated solution for the BLUESHAPE GRANITE
MINI series models.
These cases have been certified in accordance with UN regulations and
have a unique homologation number from an international body, thus
guaranteeing the user, more peace of mind for transporting batteries by
air.
The BX8 case ha an impact-resistant outer case. The interior has high-
density cushioning foam to eliminate and chance of interior contact. Each
battery is segregated in individual compartments. When a BLUESHAPE
battery is shipped in this case with the provided contact covers in place,
the chance of damage during flight is reduced to zero. The number of
batteries allowed in each case is specifically calculated to comply with the
UN3480 regulations.
Please refer to our website for further details.
- 19 -

Warranty
BLUESHAPE batteries are warranted to be free from defects in
materials, workmanship and functionality for a period of 18 months
commencing from the date of purchase. This warranty shall not apply
to any products or parts there-of, that have been subjected to misuse,
negligence, accidental or abnormal conditions of operation.
The buyer should always contact the place of purchase for any return
of defective product. It is important that the buyer provides us with as
much information as possible about the failure being claimed.
In the event of product failure for which warranty applies, we will
repair or replace the product free of charge. In these cases, all
expenses including transport charges will be borne by us.
In the case where the failure has been caused by one of the causes
explained above, repairs shall be billed at a nominal cost. Prior to the
carrying out of any repairs, we will inform the customer of the
estimated costs of these repairs.
These warranty conditions are the only ones applicable to our
products and overrule any other expressed or implied warranties. We
shall not be held liable for any damages resulting from warranty
statements other than those contained in this declaration.
This warranty is not transferable and is only applicable to the original
buyer. In all warranty claims, the buyer must reproduce the original
purchase invoice.
NEW CELL TOP Srl
VIA LIGURIA 4-6,
42124 REGGIO EMILIA, ITALY
TEL. [phone]
FAX.[phone]
WEB: www.blueshape.net
EMAIL:[e-mail]
