Bluesonic HCB39 User manual

Bluetooth Headset User Guide
HCB39

1
Index
1. Notice before using
2. Package List
3. Product Introduction
4. Charging the Headset
5. Power On/ Off
6. Pairing the Headset (or any Bluetooth Device)
7. Wearing the Headset
8. Answering calls
9. Refusing calls
10. Ending calls
11. Voice Dialing
12. Redialing
13. Transferring calls
14. Maintaining calls
15. Ending Call 1 and answering Call 2
16. Triple Phone Conversation
17. Adjusting the Volume
18. Safety Instruction
19.Specications
20. Excluding Problems
21. Storage of the Headset
22. Declaration of Conformity

2
1. Notice before using
Thank you for purchasing our Bluetooth Headset HCB39. First
ofall,pleasechecktondeverythinginyourpackageandcare-
fully study the user guide to know the function details. HCB39
is developed by the innovative Bluetooth wireless technology,
enabled to connect the Bluetooth mobile phone designed with
Audio Gateway (HCB18/ HCB21), PDA, desktop and notebook
with the USB Bluetooth Dongle plugged-in, etc. Before using
it,pleaseconrmyourmobilephonecomplieswithBluetooth
V1.1/ V1.2/ V2.0/ V2.1 and supports the Bluetooth Headset or
HandsfreeProle.
2. Package List
Please inspect the product you purchased. Refer to the below
package list to make sure there is no shortage or defect inside.
The complete package includes the following items:
► HCB39BluetoothHeadset ............... 1
► UserGuide........................................ 1
► WarrantyCard .................................. 1
► TravelCharger(INPUT:AC100-240V,50/60Hz,OUTPUT:
DC5.1V, 120mA) ............................. 1
► Rubber .............................................. 1
Ifyoundanyshortage,pleasecontacttheretailershopwhere
you purchased this product.

3
3. Product Introduction
Function (Answering/ Ending/ On/ Off) Button 3
LED (Indicator) Light
Receiver (Speaker)
Microphone
Power Interface adapter (charging)
Ear Hook
Decrease Volume key (-) 1
Increase Volume key (+) 2
Note:
●Forrsttimeuse,makesuretofullyrechargetheHeadsetbat-
tery.
Speaker
Indicator
light

4

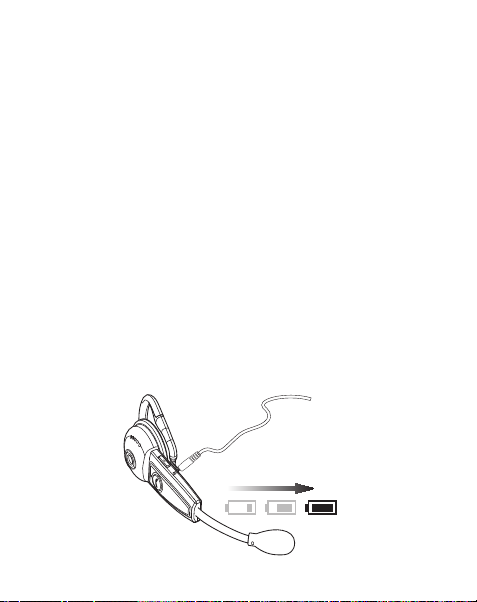

4. Charging the Headset
HCB39 comes with a Lithium Polymer battery built-in.
1. Plug the travel charger into the power socket.
2. Plug the end of the travel charger into the power interface
adapter of the Headset.
3. While charging, the indicator will turn red; when charging is
completed,theredindicatorwillshutofforashesred.
Note: Charging time is around 90~120 minutes.
●Forrsttimeuse,makesuretofullyrechargetheHeadsetupto
4 hours. After a long time of not using it (around one month),
while recharging, it takes a while for the indicator to turn red.
●Whilecharging,pleasedonotusetheHeadset.
●PleaseusetheoriginalchargertorechargetheHeadset.
●Whentheindicatorashestheredlight,itmeansthebatteryis
low, please recharge the Headset right away.
●PleaserechargetheHeadsetwithinthetemperaturerangeof-10
℃(+14℉) +45℃(+113℉).

5
5. Power On/ Off
1. Press and hold the function button for 3~4 seconds, the power
willturnonaftertheindicatorashesthebluelight3times.
2. To turn the power off, press and hold the function button for
3~4secondsuntilyouseetheredindicatorash3times.
Note:
●WhileturningtheHeadseton,youwillhearthe“BiBi”sound
from the receiver. The blue indicator light will ash 3 times,
then2times,theindicatorwillashthebluelightevery3sec-
onds to come into a standby mode.
●WhiletheHeadsetisturnedon,itwillautomaticallysearchfor
thepaireddevice.Under“ON”modeandwithintheeffective
rangeof10metersfromtheHeadset,theindicatorwillashthe
blue light to indicate that it entered the connecting mode.
●When turning the headset off, you will hear one “Bi” sound
thentheindicatorwillshutoffafterashingtheredlightfora
few times.
6. Pairing the Headset (or any Bluetooth Device)
You must pair the Headset with your Bluetooth phone or any
BluetoothdevicebeforeyouusetheHeadsetforthersttime.
1. Ensure the Headset is off.
2. Press and hold the function button for 5 seconds until the blue
indicatorlightasheswiththeredindicatorlighttoenterthe
pairing mode.

6
3. Ensure your mobile phone has the Bluetooth function and
start the Bluetooth new device searching function. Please
follow the instructions of your mobile phone to proceed the
operation.
4. When your mobile phone is in the stage of searching a new
Bluetoothdevice,itwillndHCB39.
5.PleasechooseandconrmHCB39.
6.KeyintheHeadsetPassword“0000”andpressYES.Ifthe
pairingissuccessful,theindicatorturnstoashthebluelight
only. For some mobile phones, after pairing you may have
toselect and conrmHCB39 again tostart the connection.
(Please read your mobile phone manual carefully to take the
right steps.)
7. The Headset is in the standby mode, you can start to receive
and make call.
Note:
●If the pairingis not successful, theHeadset will return to the
standby mode, please repeat the pairing process to try the pair-
ing again.
●Whilepairing,itisbettertokeepthedistancebetweenthemo-
bile phone and Headset around 10 cm to 1m and make sure no
metal objects are between.
●While pairing the Headset withotherBluetoothdevice,when
the device asks for the Password, please key-in “0000”.  For
more details, please check the manual of your Bluetooth device

7
to proceed the operation.
●Eventhoughthefollowingsituationshappen,thepaireddevices
remain pairing.
- The power for one of the devices is off.
- The service for one of the devices is off.
- One of the devices is re-switched on.
7. Wearing the Headset
1.converting from headband to over-the-ear.
1
2 4
35
converting from headband to over-the-ear.
This headset can be worn on either ear.

8
2. installing the headband.
8. Answering the calls
1. While there is a call coming, wait until you hear the ringing
from your Headset receiver to press the function button to
answer the call.
2.Ifthemobilephoneisringingrst,waituntiltheHeadsetis
ringing, then press the function button.
3.Whileansweringthecalls,theblueindicatorlightashes4
1
2 4
3
installing the headband.

9
times each second.
4. If the mobile phone is ringing and your Headset is off, turn
onyourHeadsetrst,thenpressthefunctionbuttontoanswer
the call.
5. If your mobile phone has the function of automatically re-
ceiving calls and you already set it up, while the call is com-
ing, your Headset can receive the call automatically without
pressing the function button.
Note:
●The headset is with the function of passing the same ringing
sound as the mobile phone if the mobile phone is with this func-
tion, such as Nokia.
9. Refusing calls
Wait to hear the ringing from your receiver, then press and hold
the function button for 2~3 seconds until you hear the “Du”
sound to refuse the calls.
10. Ending calls
1. When the conversation is over, press the function button to
end calls.
2. Wait until the other end hangs up the phone to end calls.
11. Voice dialing
1. If your mobile phone supports the voice dialing function, you

10
can use this function with your Headset too.
2. Under the standby or connecting mode, press the function
button of the Headset and follow the mobile phone instruc-
tions to proceed with the voice dialing.
Note:
●Theactivationofthevoicedialingfunctionwilldependonthe
design of your mobile phone.
●TheworkingrangeoftheBluetoothHeadsetis5metersindoors
and 5~10 meters outdoors.
12. Redialing
1. If your mobile phone supports the redialing function, you can
use this function with your Headset too.
2. Under the standby or connecting mode, press the function
buttonoftheHeadsetfor2~3secondsuntilyouhearthe“Du”
sound to redial the last call.
13. Transferring calls
1. When you are answering the call with the Headset, press the
increase (+) volume key for 2~3 seconds until you hear one
“Du”sound,thenthecallwillbetransferredtoyourmobile
phone.
2. When you are answering the call with the mobile phone, press
the function button of the mobile phone to transfer the call to

11
your Headset. For some mobile phones, the phone LCD will
show the transferring sign, some will not.
Note:
●Toactivatethisfunction,yourmobilephonemustsupportthe
Handsfree mode. For more details, please check the manual of
your mobile phone.
14. Maintaining calls
1. When you are answering the call with the Headset, press the
decrease (-) volume key for 2~3 seconds until you hear one
“Du”sound,thenthecallwillbemaintained.Ifthereisan
interrupting call coming, the Headset will answer it automati-
cally.
2. Press the decrease (-) volume key for 2~3 seconds until you
hear one “Du” sound to end the maintaining call function.
Also do this to renew the call.
Note:
●To activate this function, please make sure the assigned tele-
communications agent provides this service.
●Toactivatethisfunction,pleaserefertotheinstructionsofyour
mobile phones manual to make sure your phone program sup-
ports this function.
15. Holding Call 1 and answering Call 2

12
While you are answering Call 1 from your Headset, and having
theinterruptingcall,youwillhearthenotifying“DuDu”sound.
Press and hold the decrease (-) volume button for 2~3 seconds
untilyou hearone“Du”sound followedbythemusic, Call1
will be Hold and the interrupting call (Call 2) will be answered
automatically.
Note:
● To activate this function, please make sure the assigned tele-
communications agent provides this service.
●Toactivatethisfunction,pleaserefertotheinstructionsofyour
mobile phones manual to make sure your phone program sup-
ports this function.
16. Triple phone conversation
1. While you are answering Call 1 from your Headset and hav-
ingtheinterruptingcall,youwillhearthenotifying“DuDu”
sound. Press the decrease (-) volume key for 2~3 seconds
untilyouhearthe“Du”sound,Call1willbemaintainedand
the interrupting call (Call 2) will be answered automatically.
2. To proceed the triple phone conversation while you are an-
swering the interrupting call (Call 2), press the increase (+)
volumekeyfor2~3secondsuntilyouhearthe“Du”sound,
the maintained Call 1 will be renewed, then the three ends
can talk together.
3. To end the triple phone conversation, press the function but-

13
ton, then Call 1 and Call 2 will be hanged up together.
Note:
●Toactivatethisfunction,youmustmakesuretheassignedtele-
communications agent supports this service.
●Toactivatethisfunction,pleaserefertotheinstructionsofyour
mobile phones manual to make sure your phone program sup-
ports this function.
●Whenthetriplephoneconversationisonboard,itcannotreturn
to the mode of having only Call 1 or Call 2.
●Whenthetriplephoneconversationhasnotbeenactivated,you
can press the decrease (-) volume key for 2~3 seconds to easily
transfer the calls between Call 1 and Call 2.
●IfCall1ismaintainedandCall2isonline,quicklypressthe
function button to end Call 2 and renew Call 1.
17. Adjusting the Volume
During a call, you may adjust the Headset’s volume.
1. To increase the volume, press the increase (+) volume key.
2. To decrease the volume, press the decrease (-) volume key.
Note:
●Youwillhearthe“DuDu”soundwhileadjustingthevolumeup
to the loudest or lowest.
18. Safety instruction

14
1. Read the Headset manual carefully and use the headset cor-
rectly by following the instructions.
2. Keep the Headset away from children, avoid children from
swallowing it accidentally.
3.DonotusethecleaningliquidorspraytocleantheHeadset.
4. Do not clean the Headset while charging it.
5. Do not disassemble the Headset. If you encounter a problem,
contact the retailer shop.
●Urgenthandling
-Ifyouenconteraproblem,turntheHeadsetoffrst.
-If the inside components breakdown, please contact the repairing
center to ask for immediate support and service.
19. Specication
Product Model No. HCB39
Standard Convention/ Signal Output Bluetooth V2.1 + EDR, Class II
FrequencyBand 2.4GHz~2.4835GHz,ISMBand
Talk/ Standby Time Up to 5 hours / Up to 150 hours
SupportingProle Headset & Handsfree
Connection Peer to Peer

15
Data Encryption 128 bits encrypted
Power Capacity Rechargeable Li-Polymer
Power Supply 5V DC, 100~240V AC adapter
Operation Temperature -10 ~ 55 ℃
Facility Saving Temperature -20 ~ 60 ℃
Operation Moisture 10% ~ 90% (non-concrete status)
Weight 9.6 g (battery included)
Size 63x18x8 mm
Safety Regulation CE, FCC
20. Excluding Problems
1.TheHeadsetashestheredindicatorlight:Thebatteryislow,
please recharge your Headset.
2. If after recharging for 20 minutes, the Headset does not turn
on: For initial use, the power will be on after charging the
Headset at least for 40 minutes. It is suggested to fully re-
chargetheHeadsetifyouuseitforthersttime.
3. Does not show the recharging sign: When the battery is com-
pletely exhausted or the Headset has not been used for a long
time, when charging, the red indicator light will be lit after a
few minutes.
4. You hear no sound coming from the Headset:
- Make sure the Headset has been paired with the other Blue-

16
tooth device.
- Make sure the Headset is on.
- Make sure the distance between the Headset and the paired
Bluetooth device is within 10 meters.
- Make sure your mobile phone has a good signal.
- Some Bluetooth mobile phones support only one Headset, if
you pair it with more than one Headset, it may cause the other
Headsets being cut off.
21. Storage of the Headset
- Using the non-original accessories, it may debase the product’s
function,causetheproductdamage,electricalconictandthe
termination of the warranty.
- Do not disassemble the Headset, it may damage the Headset
accidentally or cause the warranty invalidation.
- Put the Headset away from places full of dust.
- Use clean and soft fabric to clean the Headset’s surface.
- Put the Headset into your pocket while not using it.
- Be aware not to let Children play with the Headset, avoiding
accidents from happening or damaging the product.
- Avoid storing the Headset in high or extra low temperature.
[Travel charger]
- The travel charger is designed for indoor use, please do not
use it outdoors.
- Connect the travel charger with the correct power supply.
- Avoid pulling the cable to take the travel charger off the sock-

17
et, it may damage the travel charger.
[Battery]
-Newbattery:forrsttimeuse,pleasefullyrechargethe
battery for 4 hours.
-Onlyauthorizedandqualiedpersonnelcandobatterychang-
ing.
- Under the normal usage, the rechargeable battery can be used
for the long time.
- The battery must be recharged within temperatures of -10 ℃
to 45℃.
- Using the Headset under room temperature enables the bat-
tery to achieve its maximum capacity.
- Under a chilly environment, it may cause the battery’s capac-
ity to decrease.
- Recharge the Headset at least once every two months, either
you use it or not.
22. Declaration of Conformity
FCC (FCC ID: RL9-HCB39):
HCB39isFCCcerticatedasthisdevicecomplieswithpart
15 of the FCC rules. It is built with new housing, extended
from HCB39.
European CE:
HCB39 has been manufactured in accordance with the Euro-
pean R& TTE directive. It complies with the European Low

18
Voltage Directive 73/23/EEC and the European EMC Direc-
tive 89/336/EEC.
Federal Communications Commission (FCC) Statement
15.21
Youarecautionedthatchangesormodicationsnotexpressly
approved by the part responsible for compliance could void
theuser’sauthoritytooperatetheequipment.
15.105(b)
Thisequipmenthasbeentestedandfoundtocomplywiththe
limits for a Class B digital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio
frequencyenergyand,ifnotinstalledandusedinaccordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
encewillnotoccurinaparticularinstallation.If thisequip-
ment does cause harmful interference to radio or television
reception,whichcanbedeterminedbyturningtheequipment
off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increasetheseparationbetweentheequipmentandreceiver.
-Connect the equipment into an outlet on a circuit different
