BMW Z4 sDrive28i User manual

Owner's Manual for
Vehicle
THE BMW Z4.
OWNER'S MANUAL.
The Ultimate Driving
Machine
THE BMW Z4.
OWNER'S MANUAL.
Contents
A-Z
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Z4 sDrive28i
Z4 sDrive35i
Z4 sDrive35is
Owner's Manual for Vehicle
Thank you for choosing a BMW.
The more familiar you are with your vehicle, the better control you
will have on the road. We therefore strongly suggest:
Read this Owner's Manual before starting off in your new BMW.
It contains important information on vehicle operation that will
help you make full use of the technical features available in your
BMW. The manual also contains information designed to en‐
hance operating reliability and road safety, and to contribute to
maintaining the value of your BMW.
Supplementary information can be found in the additional bro‐
chures in the onboard literature.
We wish you a safe and enjoyable drive.
BMW AG
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

© 2011 Bayerische Motoren Werke
Aktiengesellschaft
Munich, Germany
Reprinting, including excerpts, only with the written
consent of BMW AG, Munich.
US English VIII/11, 09 11 500
Printed on environmentally friendly paper, bleached
without chlorine, suitable for recycling.
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Contents
The fastest way to find information on a partic‐
ular topic or item is by using the index, refer to
page 208.
6Notes
At a glance
12 Cockpit
Controls
20 Opening and closing
36 Adjusting
43 Transporting children safely
45 Driving
60 Displays
68 Lamps
73 Safety
81 Driving stability control systems
85 Driving comfort
89 Climate
96 Interior equipment
103 Storage compartments
Driving tips
108 Things to remember when driving
Entertainment
116 Professional Radio
Communication
134 Telephone
145 ConnectedDrive
Mobility
152 Refueling
154 Fuel
155 Wheels and tires
163 Engine compartment
168 Maintenance
170 Replacing components
176 Breakdown assistance
182 Care
186 Indicator/warning lamps
Reference
202 Technical data
208 Everything from A to Z
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Notes
Using this Owner's Manual
The fastest way to find information on a partic‐
ular topic is by using the index.
An initial overview of the vehicle is provided in
the first chapter.
Additional sources of information
Should you have any questions, your service
center will be glad to advise you at any time.
Information on BMW, e.g., on technology, is
available on the Internet: bmwusa.com
Symbols
Indicates precautions that must be followed
precisely in order to avoid the possibility of per‐
sonal injury and serious damage to the vehicle.
◄ Marks the end of a specific item of informa‐
tion.
"..." Identifies radio display texts used to select
individual functions.
›...‹ Verbal instructions to use with the voice ac‐
tivation system.
››...‹‹ Identifies the answers generated by the
voice activation system.
Refers to measures that can be taken to help
protect the environment.
Symbols on vehicle components
Indicates that you should consult the rele‐
vant section of this Owner's Manual for infor‐
mation on a particular part or assembly.
Vehicle equipment
This Owner's Manual describes all models, all
series equipment, as well as country-specific
and special equipment offered in the model ser‐
ies.Therefore, this Owner's Manual also de‐
scribes and depicts equipment that may not be
contained in your vehicle because of the se‐
lected special equipment or country version, for
example.
This also applies to safety-related functions and
systems.
For options and equipment not described in this
Owner's Manual, please refer to the Supple‐
mentary Owner's Manuals.
On right-hand drive vehicles, some controls are
arranged differently than shown in the illustra‐
tions.
Status of this Owner's Manual
at time of printing
The manufacturer of your vehicle pursues a pol‐
icy of constant development that is conceived
to ensure that our vehicles continue to embody
the highest quality and safety standards. In rare
cases, therefore, the features described in this
Owner's Manual may differ from those in your
vehicle.
Updates made after the editorial
deadline
Any updates made after the editorial deadline for
the Owner's Manuals are located in the appen‐
dix of the printed quick reference for the vehicle.
For your own safety
Maintenance and repairs
Advanced technology, e.g., the use of modern
materials and high-performance electronics, re‐
quires suitable maintenance and repair meth‐
ods.
Therefore, have this work performed only by a
BMW center or a workshop that works accord‐
Seite 6
Notes
6Online Edition for Part no. 01 40 2 609 184 - 09 11 500

ing to BMW repair procedures with appropri‐
ately trained personnel.
If this work is not carried out properly, there is
the danger of subsequent damage and related
safety hazards.
Parts and accessories
For your own safety, use genuine parts and ac‐
cessories approved by BMW. When you pur‐
chase accessories tested and approved by
BMW and Genuine BMW Parts, you simultane‐
ously acquire the assurance that they have been
thoroughly tested by BMW to ensure optimum
performance when installed on your vehicle.
BMW warrants these parts to be free from de‐
fects in material and workmanship. BMW will not
accept any liability for damage resulting from in‐
stallation of parts and accessories not approved
by BMW. BMW cannot test every product made
by other manufacturers to verify if it can be used
on a BMW safely and without risk to either the
vehicle, its operation, or its occupants. Genuine
BMW Parts, BMW Accessories and other prod‐
ucts approved by BMW, together with profes‐
sional advice on using these items, are available
from all BMW centers. Installation and operation
of non-BMW approved accessories such as
alarms, radios, amplifiers, radar detectors,
wheels, suspension components, brake dust
shields, telephones, including operation of any
mobile phone from within the vehicle without
using an externally mounted antenna, or trans‐
ceiver equipment, for instance, CBs, walkie-
talkies, ham radios or similar accessories, may
cause extensive damage to the vehicle, com‐
promise its safety, interfere with the vehicle's
electrical system or affect the validity of the
BMW Limited Warranty. See your BMW center
for additional information. Maintenance, re‐
placement, or repair of the emission control de‐
vices and systems may be performed by any au‐
tomotive repair establishment or individual
using any certified automotive part.
California Proposition 65 Warning
California laws require us to state the following
warning:
Engine exhaust and a wide variety of automobile
components and parts, including components
found in the interior furnishings in a vehicle, con‐
tain or emit chemicals known to the State of Cal‐
ifornia to cause cancer and birth defects and re‐
productive harm. In addition, certain fluids
contained in vehicles and certain products of
component wear contain or emit chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm.
Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing
thoroughly with soap and water.
Service and warranty
We recommend that you read this publication
thoroughly. Your vehicle is covered by the fol‐
lowing warranties:
▷New Vehicle Limited Warranty
▷Rust Perforation Limited Warranty
▷Federal Emissions System Defect Warranty
▷Federal Emissions Performance Warranty
▷California Emission Control System Limited
Warranty
Detailed information about these warranties is
listed in the Service and Warranty Information
Booklet for US models or in the Warranty and
Service Guide Booklet for Canadian models.
Your vehicle has been specifically adapted and
designed to meet the particular operating con‐
ditions and homologation requirements in your
country and continental region in order to deliver
the full driving pleasure while the vehicle is op‐
erated under those conditions. If you wish to op‐
erate your vehicle in another country or region,
you may be required to adapt your vehicle to
meet different prevailing operating conditions
and homologation requirements. You should
Seite 7
Notes
7
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

also be aware of any applicable warranty limita‐
tions or exclusions for such country or region. In
such case, please contact Customer Relations
for further information.
Maintenance
Maintain the vehicle regularly to sustain the road
safety, operational reliability and the New Vehi‐
cle Limited Warranty.
Specifications for required maintenance meas‐
ures:
▷BMW Maintenance system
▷Service and Warranty Information Booklet
for US models
▷Warranty and Service Guide Booklet for
Canadian models
If the vehicle is not maintained according to
these specifications, this could result in serious
damage to the vehicle. Such damage is not cov‐
ered by the BMW New Vehicle Limited War‐
ranty.
Reporting safety defects
For US customers
The following only applies to vehicles owned
and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause injury
or death, you should immediately inform the Na‐
tional Highway Traffic Safety Administration
NHTSA, in addition to notifying BMW of North
America, LLC, P.O. Box 1227, Westwood, New
Jersey 07675-1227, Telephone
1-800-831-1117.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order
a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between you, your dealer,
or BMW of North America, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to http://www.safe‐
rcar.gov; or write to: Administrator, NHTSA, 400
Seventh Street, SW., Washington, DC 20590.
You can also obtain other information about mo‐
tor vehicle safety from http://www.safercar.gov
For Canadian customers
Canadian customers who wish to report a
safety- related defect to Transport Canada, De‐
fect Investigations and Recalls, may telephone
the toll-free hotline [phone]. You can
also obtain other information about motor vehi‐
cle safety from http://www.tc.gc.ca/roadsafety.
Seite 8
Notes
8Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Seite 9
Notes
9
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Online Edition for Part no. 01 40 2 609 184 - 09 11 500

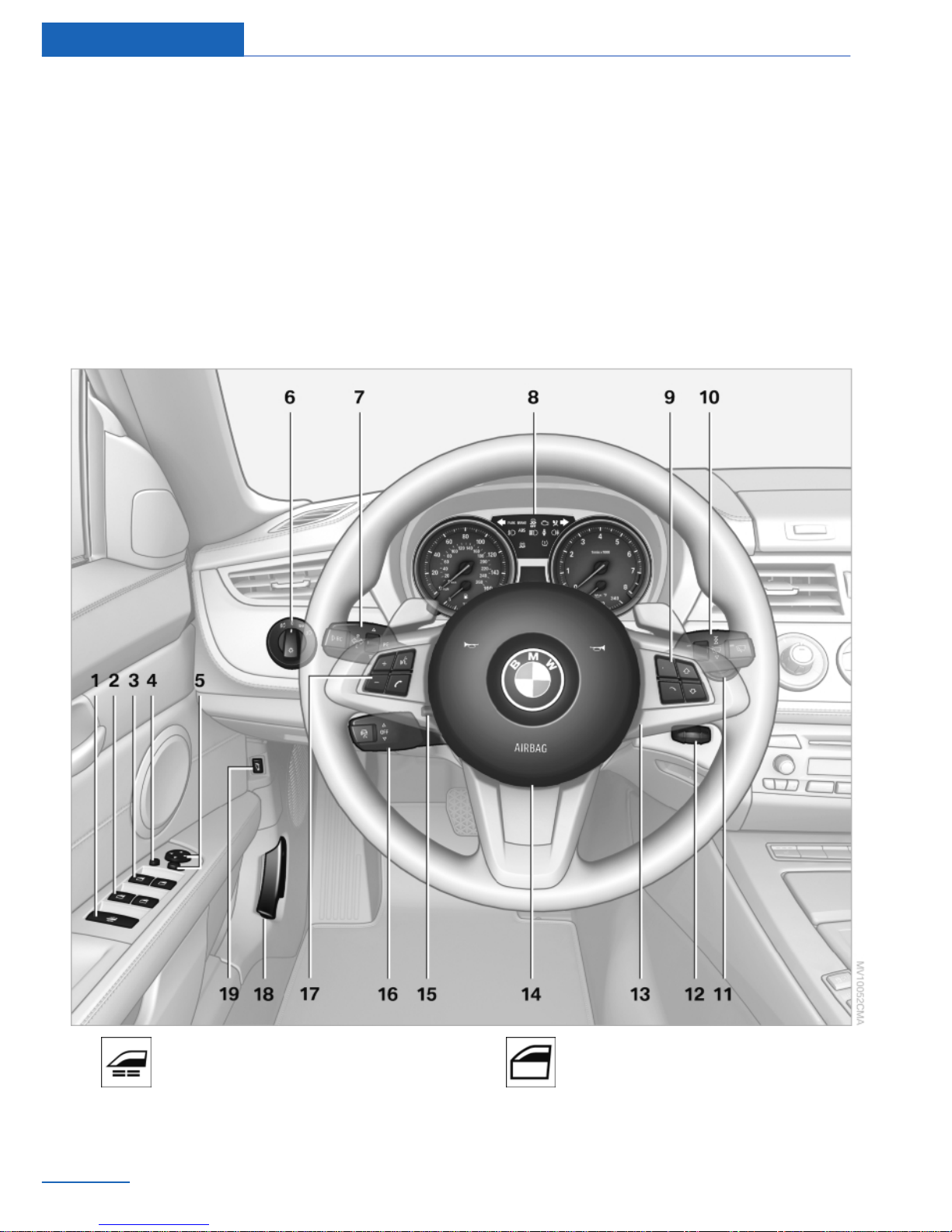

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted
with the available control concepts and options.
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Cockpit
Vehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
All around the steering wheel
1Opening and closing windows
jointly 32
2Opening and closing rear win‐
dows 32
Seite 12
At a glance Cockpit
12 Online Edition for Part no. 01 40 2 609 184 - 09 11 500

3Opening and closing front win‐
dows 32
4Exterior mirrors, folding in and out 40
5Adjust the exterior mirrors, Automatic Curb
Monitor 40
6Parking lamps 68
Low beams 68
Automatic headlamp con‐
trol 69
Adaptive light control 70
High-beam Assistant 71
7Turn signal 50
High beams, head‐
lamp flasher 70
High-beam Assistant 71
Roadside parking lamps 70
Computer 62
Settings and information about
the vehicle 62
8Instrument cluster 14
9Buttons on the steering wheel
Change the radio station
Select a music track
Leaf through the phone book and
through lists with stored phone
numbers
Next entertainment source
Recirculated air mode 94
10 Windshield wipers 51
Rain sensor 51
11 Start/stop the engine and switch
the ignition on/off 45
12 Ignition lock 45
13 Steering wheel heating 42
14 Horn, the entire surface
15 Adjust the steering wheel 42
16 Cruise control 85
17 Buttons on the steering wheel
Telephone 134
Volume
Voice operation of the tele‐
phone 141
18 Releasing the hood 164
19 Open the trunk lid 27
Seite 13
Cockpit At a glance
13
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Instrument cluster
1Speedometer
2Indicator lamps for turn signals
3Indicator/warning lamps 15
4Tachometer 61
5Engine oil temperature 61
6Display for
▷Clock 60
▷External temperature 60
▷Indicator/warning lamps 15
▷Cruise control 85
7Display for
▷Gear display, 8-gear Sport automatic
transmission 55
▷Gear display for 7-gear Sport automatic
transmission with dual clutch 55
▷Computer 62
▷Date of next scheduled service, and re‐
maining distance to be driven 65
▷Odometer and trip odometer 60
▷Programs for Dynamic Driving Con‐
trol 82
▷High-beam Assistant 71
▷Initializing the Flat Tire Monitor 75
▷Resetting Tire Pressure Monitor 78
▷Checking engine oil level 164
▷Settings and information 62
▷ Check Control message
present 66
8Fuel gauge 61
9Resetting the trip odometer 60
Seite 14
At a glance Cockpit
14 Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Indicator/warning lamps
Instrument cluster
The indicator and warning lamps can light up in
a variety of combinations and colors.
Several of the lamps are checked for proper
functioning when the engine is started or the ig‐
nition is switched on, and light up briefly.
What to do in case of a malfunction
A list of all indicator and warning lamps, as well
as notes on possible causes of malfunctions and
on how to respond, refer to page 186.
All around the center console
1Hazard warning system 176
2Central locking system 26
3Air conditioner 90
Automatic climate control 92
4Professional Radio 116
5Seat heating 38
PDC Park Distance Control 87
Close the retractable hard‐
top 33
Seite 15
Cockpit At a glance
15
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Open the retractable hard‐
top 33
Deactivate the Automatic Engine
Start/Stop Function 47
6Parking brake 49
7Buttons for Dynamic Driving Control 82
All around the headliner
1Emergency Request 176
2Reading lamp 72
3Interior lamps 72
4Reading lamp 72
5Indicator lamp, front passenger
airbag 74
Seite 16
At a glance Cockpit
16 Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Seite 17
Cockpit At a glance
17
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Controls
This chapter is intended to provide you with
information that will give you complete control of
your vehicle. All features and accessories that are
useful for driving and your safety, comfort and
convenience are described here.
Online Edition for Part no. 01 40 2 609 184 - 09 11 500

Opening and closing
Vehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
Remote control
Buttons on the remote control
1Unlocking
2Locking
3Opening the trunk lid
General information
The vehicle is supplied with two remote controls
with keys.
Each remote control contains a rechargeable
battery that is automatically recharged when it
is in the ignition lock while the car is being driven.
Use each remote control at least twice a year for
longer road trips in order to maintain the batter‐
ies' charge status.
In vehicles equipped with Comfort Access, the
remote control contains a replaceable battery,
refer to page 30.
The settings called up and implemented when
the vehicle is unlocked depend on which remote
control is used to unlock the vehicle, refer to
Personal Profile.
In addition, information about service require‐
ments is stored in the remote control, Service
data in the remote control, refer to page 168.
Integrated key
Press button 1 and pull out the key.
The integrated key fits the following locks:
▷Glove compartment, refer to page 103.
▷Driver's door, refer to page 25.
New remote controls
You can obtain new remote controls from your
service center.
Loss of the remote controls
Lost remote controls can be blocked by your
service center.
Personal Profile
The concept
You can set several of your vehicle's functions
to suit your personal needs and preferences.
▷The settings are automatically saved in the
profile currently activated.
Seite 20
Controls Opening and closing
20 Online Edition for Part no. 01 40 2 609 184 - 09 11 500
