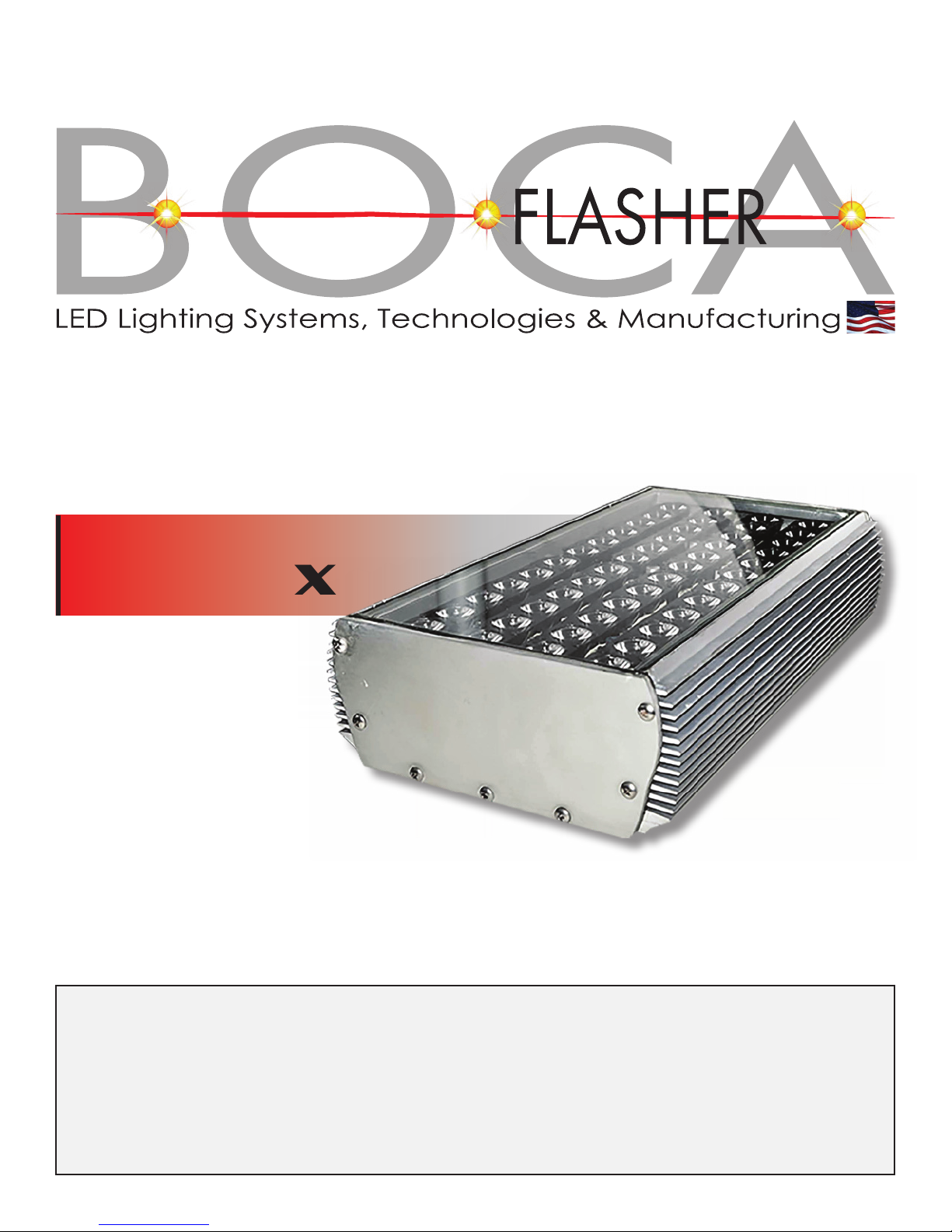

Installation Manual
SBL-MIX
WARNING: DO NOT LIFT FIXTURE BY CABLES.
This could result in permanent damage to both the xture and the cables. Damage resulting from grasping cables and/
or putting undue pressure on the cable connections will not be covered under the warranty!
DO NOT ATTEMPT TO INSTALL OR USE THE SBL-MIX FIXTURE WITHOUT READING THE INSTALLATION
INSTRUCTIONS AND SAFETY LABELS COMPLETELY.
Failure to adhere to these instructions could result in serious injury or property damage.
DO NOT MODIFY, ALTER OR ATTEMPT TO SERVICE THE SBL-MIX. DOING SO WILL VOID THE WARRANTY.

Installation Instructions
SBL-MIX
High Power DMX Controlled Washer
Fixtures must be installed by a
qualied and licensed electrician in
accordance with all national, state and
local electrical codes and regulations.
If any part of this manual does
not meet the necessary codes and
regulations, contact the factory for
more information before attempting
to install.
Model Dependent
Max temp: 55C
Min. temp: -40C
DAMP LISTING
IP65
WET LISTING
IP68
PAGE 2 OF 5
Introduction:
The Boca SBL-MIX is a powerful instrument developed for large-coverage illumination. This line voltage* xture eliminates the need for
secondary transformers, making installation contractor friendly. The housing is anodized aluminum with a durable nish making it weather
and abrasion resistant. The SBL-MIX is UL Listed for dry, damp, or wet location (model dependent).
Maintenance:
CLEANING Dry and Damp (IP65) Rated Fixtures:
Use a soft cloth, clean surface with mild soap and water.
Wet (IP68) Rated Fixtures:
To clean surface use a soft cloth with mild soap and water.
Keep the electrical cord away from heated surfaces when in use or not in use.
If cord shows signs of damage do not use, return product to manufacturer.
Electrical Specifications:
Input Voltage: 90-120VAC OR 230-277VAC (See layout drawings for spec.)
1. Total linear ft per 20A breaker: 19 ft.
2. Total linear ft per 15A breaker: 14 ft.
3. Input Current: 810mA RMS per linear foot.
Turn Power Off At Circuit Breaker Before Beginning Installation!
DO NOT LIFT FIXTURE BY CABLES!
INCLUDED IN THIS PACKAGE:
DMX In
DMX Out
Power Feed
Mounting Brackets
(2 brackets per xture)
12
SBL-MIX (solid color) Fixture
(In lengths shown on
job specic drawings)
3Job Specic Drawings
SBL-MIX
STORAGE Store in a dry, well-ventilated area when product is not in use.

▶
▶
SBL-MIX
▶
▶
▶
◀
BF-01
2. ARRANGE FIXTURES IN ORDER NECESSARY
Installation Instructions
SBL-MIX
PAGE 3 OF 5

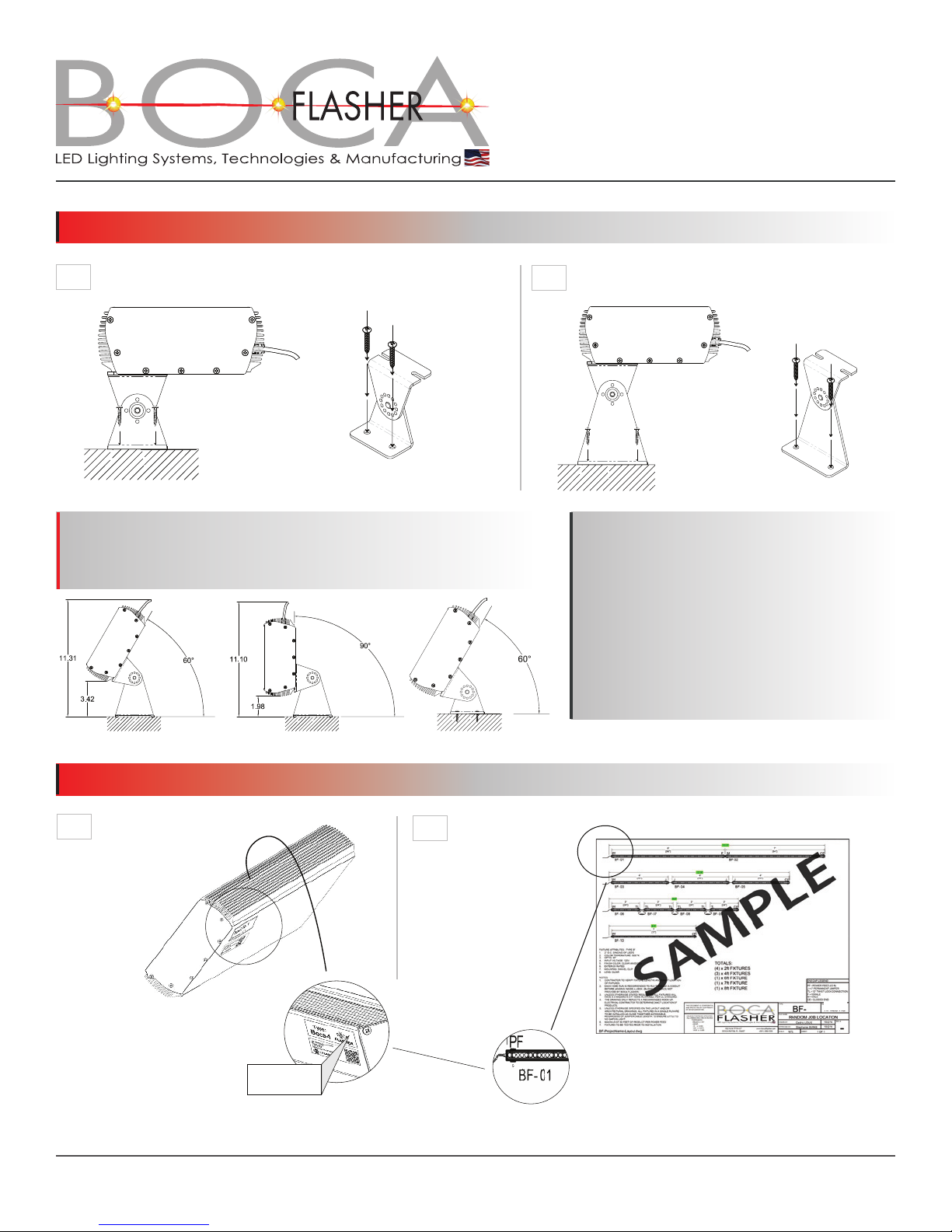

1. INSTALL SWIVEL BRACKET INTO SUBSTRATE
Rotate xture to see
bottom and note
each label.
Screw Information:
1. Screws not provided by Boca Flasher.
2. Boca Flasher recommends wide washer at head
Philips #8 screw, not to exceed .418” diameter.
3. Length of screw will vary depending on
mounting surface.
4. For outdoor installations, installer should use a
screw with weatherproof coating.
5. One foot xtures only require one hinge bracket.
2a Cross-reference with
job specic drawing.
2b
Use four screws (not provided by Boca Flasher)
to secure the brackets to the substrate.
1a 1b Loosen center hinge pin and adjust angle of xture
to focus required. Tighten pin to hold the focus.
Labels on xtures
correspond with
nomenclatures
on drawings.
* SBL-Mix Fixtures will ship with swivel mounting brackets attached to xture.
(Two swivels per xture) Clips are installed opposite side of xture cables to
allow maximum swivel ability.

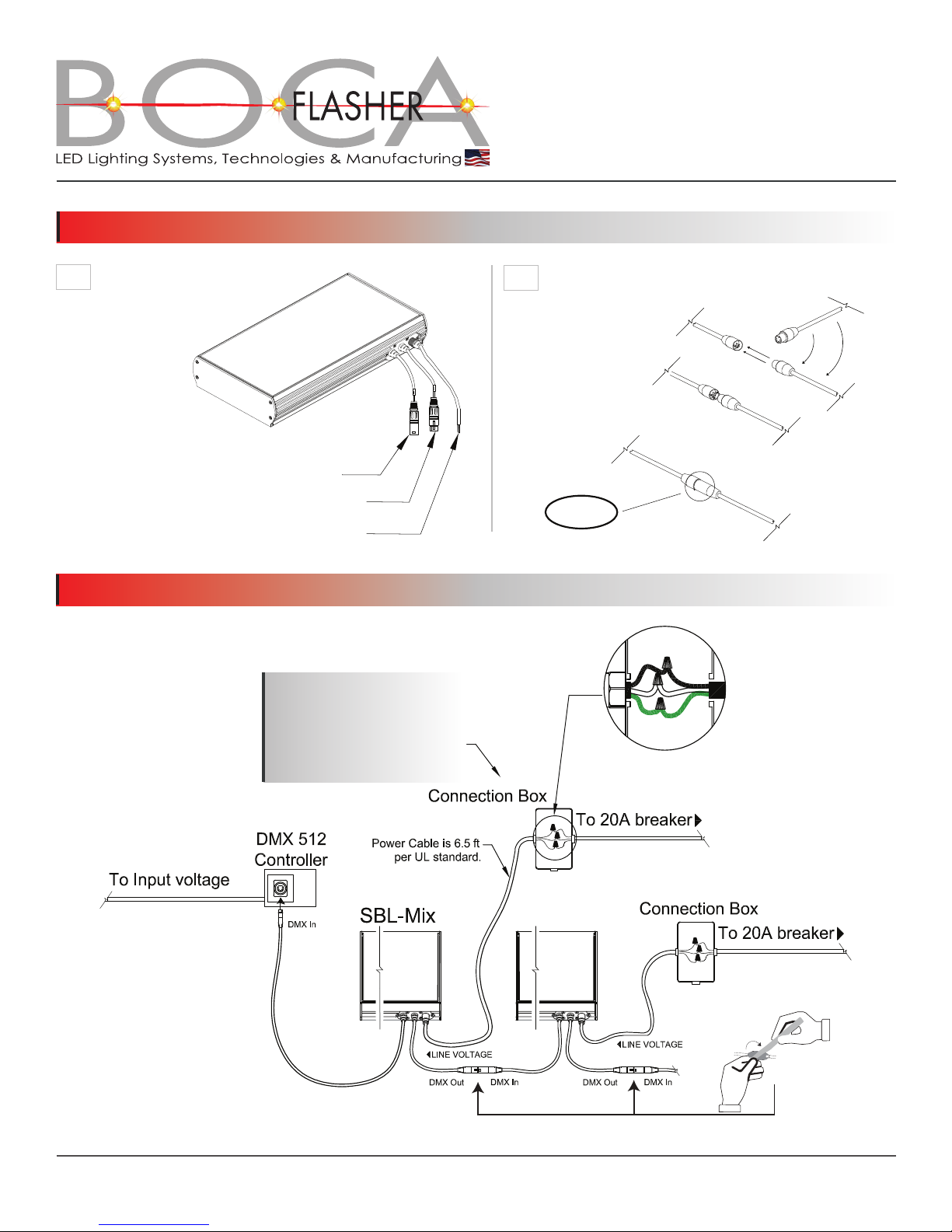

4. CONNECT FIXTURES TO POWER SINGLE RUN INSTALLATION
Installation Instructions
SBL-MIX
PAGE 4 OF 5
3. CONNECT FIXTURES TOGETHER AS SHOWN ON JOB SPECIFIC DRAWINGS
Connect DMX IN on a xture with DMX
out separate xture.
3a 3b Push together until you hear a “Click”.
▶
click!
DMX In
DMX Out
DMX In
DMX Out
◀
DMX In
DMX Out
Power Feed
* ADD Tape
where arrows indicate
NOTE:
More than one connection
can be made in each
connection box.
* Add tape to twist locks.
Place thumb over tape at starting
point and PULL around connector
area until tape overlaps itself.
For weather-tight applications only
See additional instructions for weather-tight tape

Installation Instructions
SBL-MIX
IMPORTANT SAFETY REMINDERS:
We are constantly improving our fixtures and reserve the right to change options and specifications. Additional information &
details at www.bocaflasher.com. For specific requirements, contact your Boca Flasher sales representative. Boca Flasher, Inc. 508
S. Military Trail, Deerfield Beach, Florida 33442 USA Phone: [phone] Fax: [phone] © 2017 Boca Flasher, Inc. All rights
reserved. All names and trademarks are property of their respective owners. REV 07-2017
DAMP LISTING
IP65
WET LISTING
IP68
1. DANGER:
To reduce the risk of electric shock, always unplug the SBL-MC from electrical outlet
before cleaning. Cut breaker if outlet is not available.
2. To reduce the risk of burns, re, electric shock or injury to persons:
 • UsetheSBL-MIXonlyforitsintendeduseasdescribedintheseinstructions.
 • DonotuseattachmentsnotrecommendedbyBocaFlasher.
 • NeveroperatetheSBL-MCifithasadamagedcordorplug,ifitisnotworking
properly, if it has been dropped or damaged, or dropped into water.
 • Ifthesealappearstobedamaged/broken/tornreturntheSBL-MIXtoaservice
center for examination or repair.
 • Keepcordawayfromheatedsurfaces.
 • Neverdroporinsertanyobjectintoanyopening.
 • Donotoperatewhereaerosol(spray)productsarebeingusedorwhereoxygenis
being administered.
3. WARNING:
Do not attempt to install or use the SBL-MIX without reading the installation
instructions and safety labels. Failure to adhere to these instructions could result in serious
injury or property damage.
4. Do not modify, alter or attempt to service the SBL-MIX:
Doing so will void the warranty.
5. Do not use sharp tools near or on the xture lens:
Doing so will result in property damage and void the warranty.
Boca Flasher, Inc.
508 S. Military Trail nDeerfield Beach, Florida n33442 USA
Phone: [phone] nFax: 561-982-8323
www.bocaflasher.com
