BOILER-M8 RS 25/6JG-130 Installation instructions

1
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
1
EEI ≤ 0.23
B-RATED
Prior to installation, please read these installation and operating
instructions carefully. The product warranty requires the
installation and commissioning of Boiler-m8 circulating pumps to
be carried out by a qualified installer in compliance with
BS 7593:2019 and all local building regulations and accepted
codes of practice in force at the time of installation.
Failure to follow the correct installation or use of the product for
any purpose outside of the manufacturers intended design will
invalidate the product warranty.
WARNING
Boiler-m8
Universal Circulator Pump Head
Installation & Operating Manual

1
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
Contents
1. General Information.............................................................. 2
2. Application ........................................................................... 2
2.1 Advantages ...................................................................................................... 3
3. Pump Liquid ......................................................................... 3
4. Product Key (Fig.1) ............................................................... 4
4.1 Understanding the Model Code ................................................................... 5
5. Control Panel........................................................................ 5
5.1 Pump Setting Indicators ................................................................................ 5
6. Performance Drawing ........................................................... 6
7. Fault Finding Chart ............................................................... 7
8. Installation ........................................................................... 8
9. Warranty Registration ......................................................... 13

2
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
1. General Information
These operating instructions explain the main functions and operation of the pump
when installed and ready for use. The installation must be completed by a qualified
engineer in accordance with BS 7593:2019
2. Application
Boiler-m8 B-Rated circulation pumps are designed for the circulation of water in
heating systems that are installed, commissioned and operated to
BS 7593:2019.
This product is suitable for domestic:
• Underfloor heating systems
• One-pipe systems
• Two-pipe systems
The Boiler-m8 RS25-6J universal central heating pump head has been designed
to be the ideal replacement head for the popular Grundfos UPS 15-50 15-60 pump,
replacing an end-of-life head only rather than having to replace the whole pump body.
This model has a 6 metre head so can easily accommodate the majority of larger
domestic systems, and incorporates a 3 speed selector giving 3m, 5m & 6m options.
The Boiler-m8 Universal Pump Head fits a standard Grundfos UPS pump base,
allowing easy replacement of the pump head without having to remove the base,
perfect for awkward or tight installations.

3
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
2.1 Advantages of installing a Boiler-m8 B-Rated Universal
Replacement Pump Head
3. Pump Liquid
Boiler-m8 circulating pumps are designed for heating system liquid treated in
compliance with BS 7593:2019
Using the pump to circulate mineral oils, fibrous fluids with particles, or aggressive/
explosive liquids will invalidate the product warranty and may cause serious injury.
Easy Installation & Quick Commissioning
• Boiler-m8 Universal Pump Head is easy to fit to a UPS base. Take care to
isolate any electrical supply before removing the four bolts holding the
end-of-life head in position, and refit the Boiler-m8 replacement, before
reconnecting the electrical supply and commissioning in compliance with
BS7593:2019.
High Degree of Comfort
• Minimum noise from valves and pipework

4
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
4. Product Key (Fig.1)
1. Base/Impeller Housing
2. Motor Housing
3. Model Rating Label
4. Air Vent
5. Control Panel
2
4
5
1
3

5
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
4.1 Understanding the Model Code
Screwed Pipe Pump
Nominal Width (mm)
15(=1"), 25(=1 1.2"), 32(=2")
Maximum Head (M)
Manual Setting
RS 25/6 RS
5. Control Panel
5.1 Pump Setting Indicators
Boiler-m8 B-Rated central heating circulating pumps have 3 speed settings
which can be selected with the lever on top of the control box.
The current setting is indicated by the markings on the control box that
correspond to the position of the selector.

6
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX

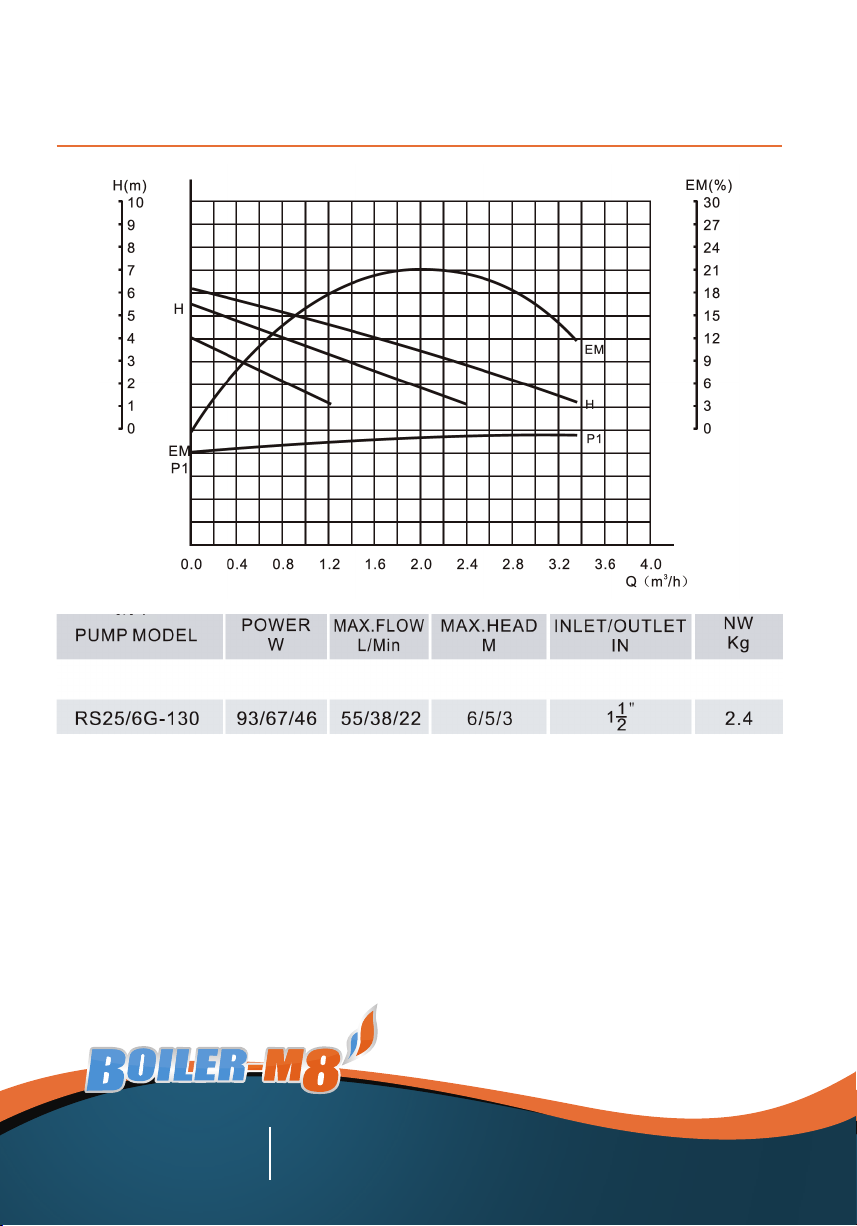

6. Relation between Pump Setting and Pump Performance
Speed Setting 1
46w - 3m Head
Speed Setting 2
67w - 5m Head
Speed Setting 3
93w - 6m Head

7
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
7. Fault Finding Chart
Only a qualified engineer should undertake inspection of the pump.
Before removing the cover or starting any work on the pump, you
must make sure that the electricity supply has been switched off
and that it cannot be accidentally switched on.
WARNING
Fault Control Panel Cause Remedy
1. The pump
does not run
No power at
pump.
a) Fuse in the
installation is blown. Replace the fuse.
b) The current-operated or
voltage-operated circuit
breaker has tripped out.
Reset the circuit breaker
and check.
c) The pump is defective. Replace the pump.
Power
confirmed.
a) Electricity supply failure.
May be too low.
Check that the electricity falls
within the specified range.
b) The pump is blocked. Remove the blockage.
2. Noise in
the System
Power is on
and speed
selector is set.
a) Air in the system. Vent the system.
b) The flow is too high. Reduce the setting.
3. Noise in
the Pump.
Power is on
and speed
selector is set.
a) Air in pump.
Leave the pump to run, it vents
itself over time. (increase
power to maximum to speed
up the elimination of air.)
b) The system pressure is
too low.
Increase the system pressure
and check the expansion tank
if installed.
4. Insufficient
Flow
Power is on
and speed
selector is set.
a) The pump performance
is too low. Increase the setting.

8
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
8. Installation
Attention: The pump MUST be installed with the motor shaft in the horizontal
position to prevent air from collecting within the pump head.

9
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
The system liquid may be scalding hot and under the high
pressure. Drain the system or close the isolating valves on either
side of the pump before removing the pump or pump head.
WARNING

10
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX

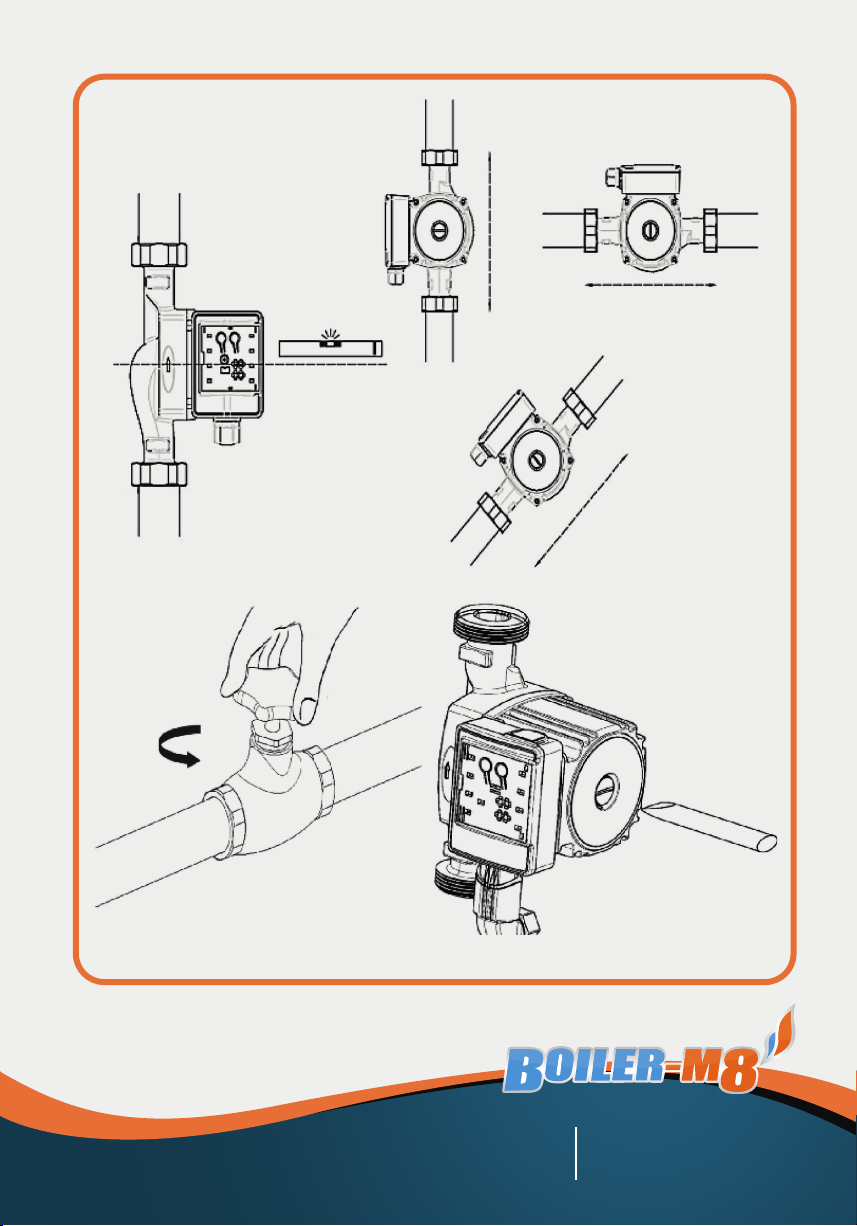

Be careful to
ensure that the
direction of flow
indicator on the
pump body is
in the correct
position for
your system
Attention: Fit the two seals between the pump and the pump valves.

11
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
Pump shaft
in the horizontal
plane

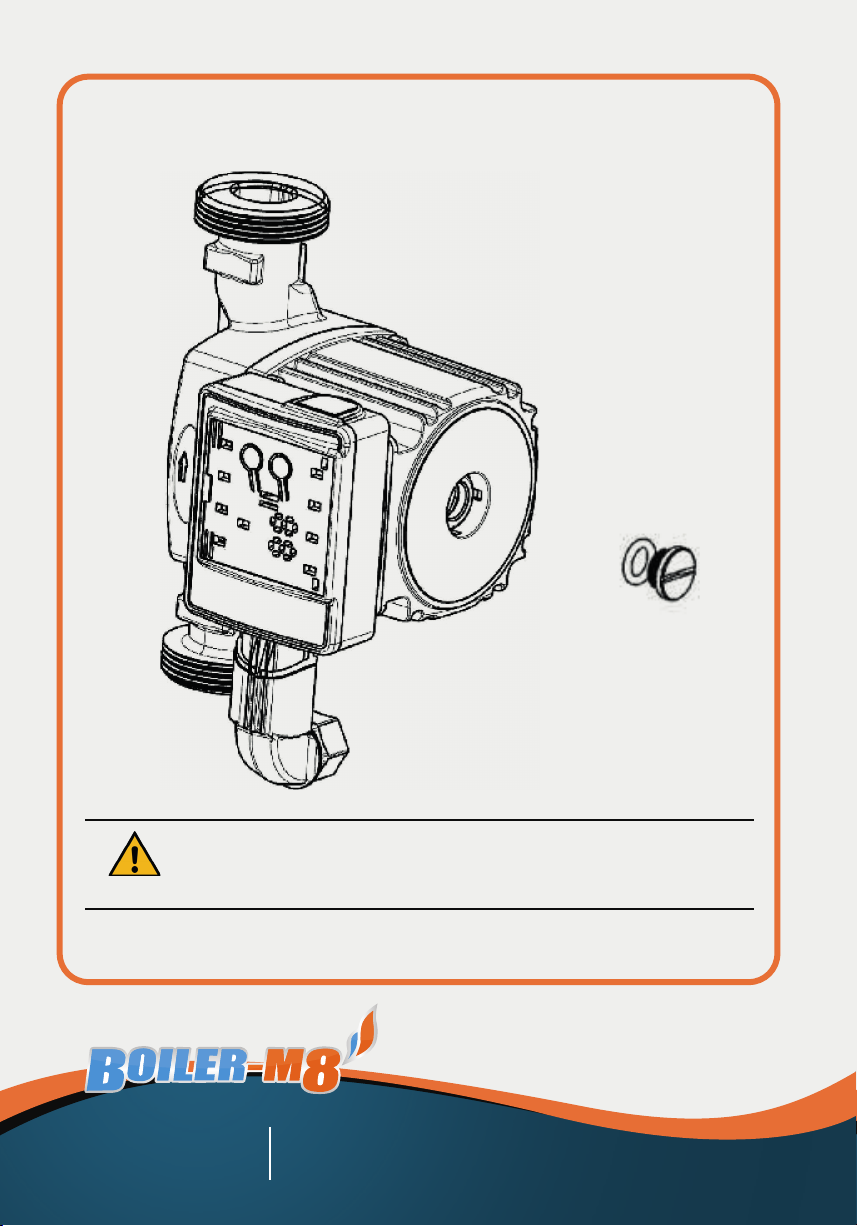

Vent the pump after
installation using a flat
head screwdriver

12
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
Venting the pump, please take care as the liquid may be very hot.
WARNING
Attention: The pump must not be allowed to run dry.

13
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
9. Warranty Registration
Register your warranty at:
https://boiler-m8.com/warranty-registration
Or visit:

14
www.boiler-m8.com
[email protected]
0333 305 8210
Boiler-m8®
Suite 11 Peel House, 30 The Downs,
Altrincham, Cheshire WA14 2PX
