Bolens TP720r Manual
Issued 8/02
REPLACEMENT PARTS - MODEL TP720r

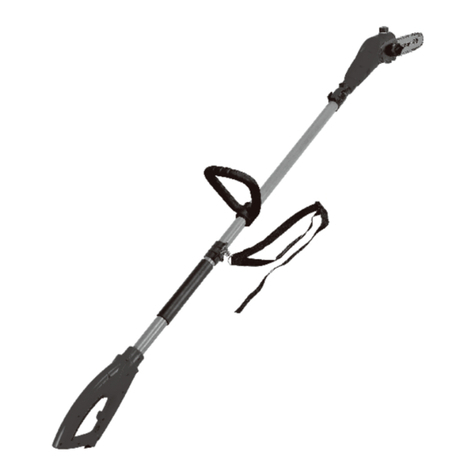

TREE PRUNER ADD-ON
PPN 41AJTP-A034
25
23
20 22
21
20
24
2
1
3414
5
10
11
7
68
9
17
18
13
16
15
15
19
12
26
Item Part No. Description
16 791-181883 Anti-Rotation Screw
17 791-181166 Drive Shaft Assembly
18 791-181992 Drive Shaft Housing Assembly
19 791-612605 Hanger
20 791-181616B Coupler (includes items 21-24)
21 791-181617 Bolt
22 791-181618B Adjustment Knob
23 791-181886 Knob Retaining Nut
24 791-182057 Screw
25 753-04352 Extension Boom and Flex Shaft Assembly
26 753-1214 Anti-Rotation Screw
*791-181167 Allen Wrench 9/64”
*791-682075B Shoulder Harness
*Not Shown
Item Part No. Description
1791-180966B Blade (2 pack)
2791-181153 Blade Cover
3791-181155 Blade Clamp
4791-181156 Blade Clamp Screw
and Washer Assembly
5791-181874 Arbor Assembly
6791-181875 Bevel Gear
7791-181876 Washer
8791-181877 Pinion Bevel Gear
9791-181851 Insulator
10 791-181878 Slide Bushing
11 791-181879 Felt Seal
12 791-181880 Slider (2-pack)
13 791-181881 Rubber Plug
14 791-181882 Housing set
15 791-181345 Housing Screw (8 required)
