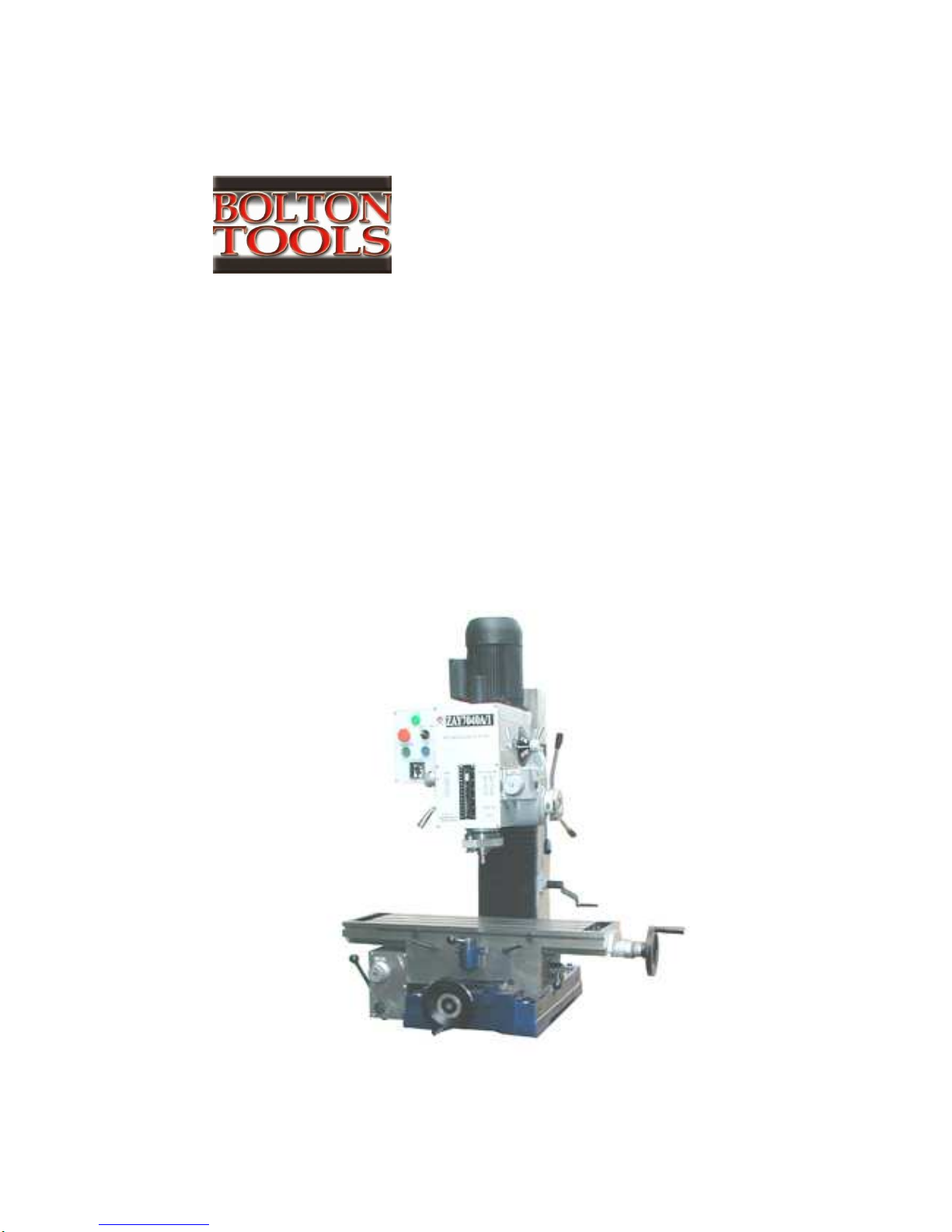

Bolton Tools ZX45A User manual

ZX45A POWER FEED
BENCH MILLING&DRILLING MACHINE
OPERATING MANUAL

2
CONTENTS
CONTENTSCONTENTS
CONTENTS
SAFETY WARNING---------------------------3
SPECIFICATION----------------------------4
FEATURES---------------------------------5
INSTALLATION-----------------------------6
OPERATION--------------------------------6
ELECTRICAL SYSTEM------------------------9
TROUBLE SHOOTING-------------------------10
MAINTENANCE------------------------------11

3
SAFETY WARNING
1.READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
2.KEEP GUARDS IN PLACE AND IN WORKING ORDER
3.KEEP WORK AREA CLEAN, CLUTTERED AREA INVITE INJURIES
4.KEEP CHILDREN AND VISITORS AWAY FROM WORK AREA
5.DRESS PROPERLY, NO LOOSE CLOTHING, GLOVES NECKTIES,OR
OTHER JEWELRY TO GET CAUGHT IN MOVING PARTS,WEAR
PROTECTIVE HAIR COVERING TO CONTAIN LONG HAIR.
6.ALWAYS WEAR EYE PROTECTION, ALSO USE FACE OR DUST MASK
IF OPERATION IS DUSTY.
7.REMOVE ADJUSTING KEYS AND WRENCHES FROM TOOL BEFORE
STARTING.
8.BE SURE DRILL BIT OR CUTTING TOOL IS SECURELY LOCKED IN
THE CHUCK.
9.AVOID UNINTENTIONAL STARTING
10. KEEP PROPER FOOTING AND BALANCE AT ALL TIMES,DO NOT
REACH OVER OR ACROSS RUNNING MACHINES.
11. MAINTAIN TOOLS WITH CARE, KEEP TOOLS SHARP AND CLEAN
FOR BETTER AND SAFER PERFORMANCE
12. DO NOT OPERATE THIS MACHINE WHILE THE INFLUENCE OF
DRUG, ALCOHOL OR ANY MEDICATION
13. USE THE RIGHT TOOL FOR THE JOB.DO NOT ATTEMPT TO FORCE
A SMALL TOOL OR ATTACHMENT TO DO THE WORK OF A LARGER
INDUSTRIAL TOOL.
14. ENSURE THIS MACHINE IS PROPERLY GROUNDED
15. SECURE WORKPIECE TO KEEP WORKPIECE FROM ROTATING
WITH THE DRILL BIT OR CUTTING TOOL

4
SPECIFICATION
Model ZX45A
Max.drilling capacity 1 7/9″
Max.face mill capacity 3 1/7″
Max.end mill capacity 1 1/9″
Max.tapping capacity M12
Max.spindle stroke 5 1/8″
Swivel angle of headstock
at
perpendicular direction
±90°
Max.distance between spindle nose to
table
15 5/9″
Distance between axes of spindle to
Column slide
10 1/4″
Spindle taper M.T.4 OR R8
Working area of table 31 1/2″×9 4/9″
Forward and backward travel of table
6 1/2″
Left and right travel of table 17 5/7″
50HZ 80,145,260,375,710,1250 RPM Spindle speeds (4P)
60HZ 95,175,310,450,850,1500 RPM
Power 1.5KW Main motor
Speed 1400RPM
Feed motor 0.25KW
Length 33 1/4″
Width 35 5/6″
Overall height (without stand) 40 1/6″
Net weight/gross weight 345kg/395kg
Wrench MAG 24
Allen wrench1/8, 1/6, 1/5, 1/4
Screwdriver(-)6″
Drill stock
Wedge
Drawbar
Standard accessories
Drawbar washer

5
FEATURES
(1) This machine may be used for surface cutting, drilling, milling, boring
and tapping.
(2) This machine is of fine quality, can be operated easily, it is not limited
to skilled operator.
(3) The drilling and milling operation can be performed by two methods:
1)Hand operation, which makes quick feeding drilling or slow feeding
milling
2)Auto-feed operation, the machine have six different feeding for
drilling.
(4) Many of the adjustable nuts are bronze, for adjusting thread clearance
and reducing wear. these bronze parts also allow screws to rotate smoothly
and improve accuracy.
(5) The vertical column is very strong and stiff, which makes the machine
very stable and improves accuracy of manufactured parts.
(6) The machine headstock is cast iron, it has been heat-treated,
stress-relieved, and precision machined.
(7) Machine gears are ground for smooth operation.
(8) Speeds and feeding can be easily changed.
(9) Tapping can be done in either rotation, working depth can be controlled
by using a positive stop gauge.
(10)The head can be turned in two rotation for a satisfying desired angle.
INSTALLATION
(1) Ensure the headstock is as lower as possible, and be fixed on the column
tightly before moving machine. while moving machine, keep its balance
and safety.
(2) Don’t mount the machine at the sunshine place to avoid the deformity
of machine and the loss of accuracy.
(3) Mount machine to a sturdy table or a solid concrete foundation, it’s
advisable that the base you choose be well constructed to avoid any
vibration during operation.
(4) Thoroughly clean the machine with a commercial degreaser, and then coat
all bright metal with a light lubricant to prevent corrosion.
(5) Level the surface of the worktable on both lengthwise and crosswise by
using a precision level.
(6)Remove the oil filler plug and fill the oil to the gear box until the oil
level reaches the middle of the oil fluid level indicator. Lubricate all

6
points
OPERATION
Notice: Check all parts and safety precautions for
proper condition before operation
1. Change speed handle
2.Feed handle 3.micro feed knob
4.Crank 5.Longitudinal handwheel
6.Cross auto-feed handle
7.Cross lock handle 8.Longitudinal
lock handle 9.Longitudinal auto-
feed handle 10.Cross handwheel
11.Change table feeding knob
12. Quick-feed handle 13. Adjust
positive stop gauge knob
14.Rack quill lock handle
15.Change spindle feeding
Knob 16.Electric box
17.Positive depth stop gauge
1. Use of main machine parts
(1)Raise and lower the headstock on its rack and pinion mechanism by using
the crank(4). when the desired height is reached, tighten the bolts
to avoid vibration.
(2)Head may be rotated 180°by loosening the three lock nuts. Adjust the
head to the desired angle, then tighten the heavy duty head lock nuts.
(3)The knobs is setted for MILLING & DRILLING, TAPPING ,STOP AND TABLE
FEED. The mushroom head red push button for emergency stop while
milling and drilling, the green push button for starting.
(4)When hand-feeding the spindle, push the feed handle(2) in;
and micro-feeding the spindle, push the handle(2) out, turn the
knob(15) to “0” position, then operate the knob(3).when auto-feeding
the spindle, turn the knob(3)to select a mount of feeding.
(5)Move the table from side to side by using longitudinal handwheel(5),
and from front to back by using the cross handwheel(10).

7
(6)Adjust the positive depth stop gauge(17) according to working depth.
(7)When move the table by hand, adjust longitudinal/cross auto-feed
handle(6,9) to middle position, then turn the longitudinal/cross
handweel(5,10) to move the table. When move the table by power,open
the switch for table feed, turn the knob(11) to select the amount of
feed at first,then, press down the handle(9) to turn left for
longitudinal moving the table left, press down the handle(9) to turn
right for longitudinal moving the table right. Press left the handle(6)
to turn up for cross moving the table forward, Press left the handle(6)
to turn down for cross moving the table backward. When the handle(6
or 9) is on the working state, press down the quick-feed handle(12)
to make longitudinal/cross quick feed .Trips of table are controlled
by limiting position block.
2. Drilling operation
(1)For drilling blind hole (which do not pass through the workpiece),
push the feed handle(2) in,then adjust the positive depth stop
gauge(17) so that the distance from the tip of the drilling bit to
the end of the blind hole is equal to the desired depth.
(2)For drillling pass hole(which pass through the workpiece),set the
positive depth stop gauge in its uppermost position.
3. Milling operation
(1)Adjust the positive depth stop gauge to its uppermost position
(2)Using the spindle feed handle(2), adjust the cutter to approximately
the correct height, push the handle(2) out.
(3)Set the working depth by using the micro feed knob(3).
(4) Lock the rack sleeve at the height with the fixed bolt.
(5) When longitudinal feeding milling,it is a good idea to lock the across
feeding table to ensure the accuracy of your work. To do this, tighten
the two screws(7) located on the right side of the table base.
(6) When cross feeding milling, lock the longitudinal feeding travel,
do this by tightening the two screws(8) on the front of the table base.
4. Tapping operation
(1)Push the feed handle(2) in
(2)Adjust the positive depth gauge to the required position.
(3)The switch point to “tapping”. When tapping is overload, press down
the red emergency switch, and the spindle reverse, the taper turn out.
5. Adjustment
(1)Adjustable moveable fixed rings are mounted on the front of the table
to limit cross travel.
(2)Your machine is equipped with gib strip adjustment to compensate for
wear and excess slack on cross and longitudinal travel.
(3)Rotate the gib strip bolt slightly clockwise to tighten the gib trip.

8
rotate it slightly counter-clockwise to loosen the gib trip.
(4)Adjust the gib trip bolt until very slight drag is felt when moving
the table.
6. Changing machine speed
(1)Turn the power off.
(2)To select the proper speed, move the handle(1) to the desired position .
(3)If the gear are not engaged, remove the arbor bolt cover. rotate the
spindle slightly to engage the gears, then replace the arbor bolt cover.
(4)Recheck the handle setting, then turn the power on.
RPM
HZ
50HZ 80 145 260 375 710 1250
60HZ 95 175 310 450 850 1500
7.Installing and changing tools
WARNING: BE SURE THE POWER IS TURNED OFF AND THE MACHINE
UNPLUGGED BEFORE INSTALLING OR CHANGING TOOL BITS.
(1)Removing face mill or drill chuck arbor.
Loosen the arbor bolt at the top of the spindle shaft approximately
2 turns with a wrench.rap the top of the arbor bolt with a mallet. After
taper has been broken loose, holding chuck arbor on a hand and turn
the arbor bolt with the other hand.
(2)To install face mill or cutter arbor
Insert cutter and cutter arbor into the taper of spindle. Tighten arbor
bolt securely, but do not overtighten.
(3)Removing taper drills
(a) Turn down the arbor bolt and insert the taper drill into the spindle
shaft.
(b) Turn down the rack sleeve until the oblong hole in the rack sleeve
appears, lock the rack sleeve, insert wedge though holes and strike
lightly with a mallet, this will force the taper drill out.

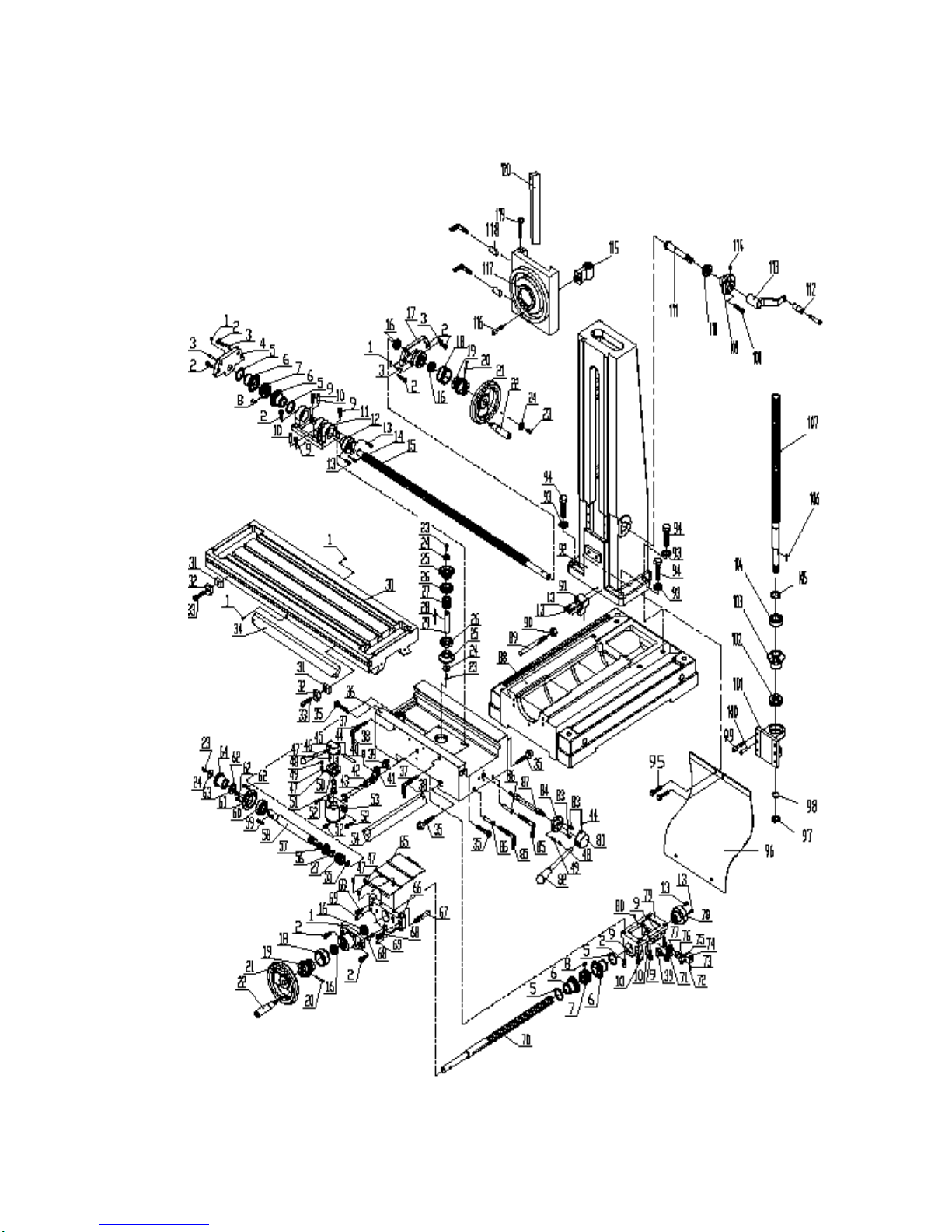

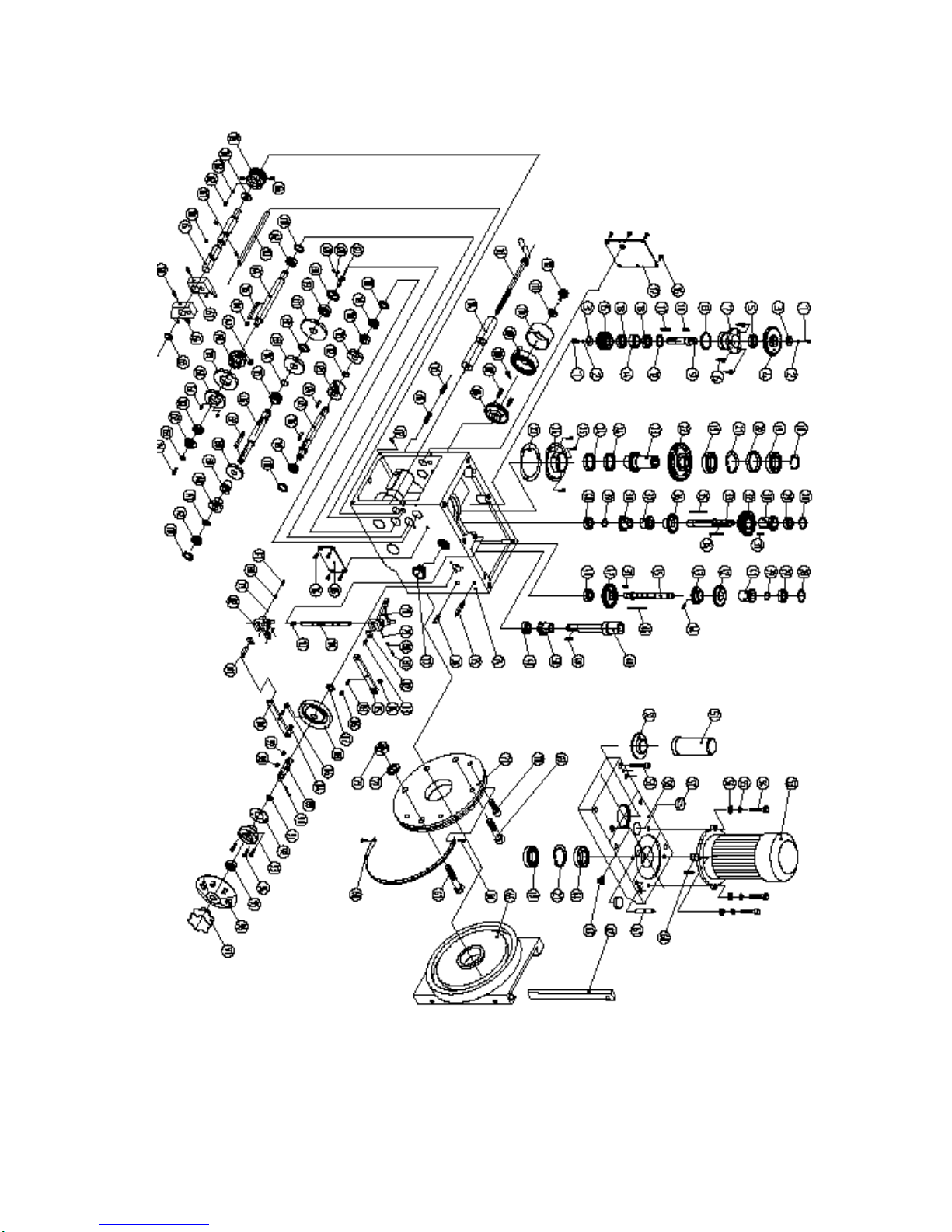

8.Ordering replacement parts
Complete parts list is attached , if parts are needed, contact your local
distributor.
9.Additional tools and accessories you will find helping
Each of machine is equipped with a M.T.3 or R8 ,contact your local
distributor or a main cutting tool distributor to obtain any of these
accessories.
Taper drill
Reamers

9
End mills
Cutter arbor
Taps
Collets
Adapters and sleeves

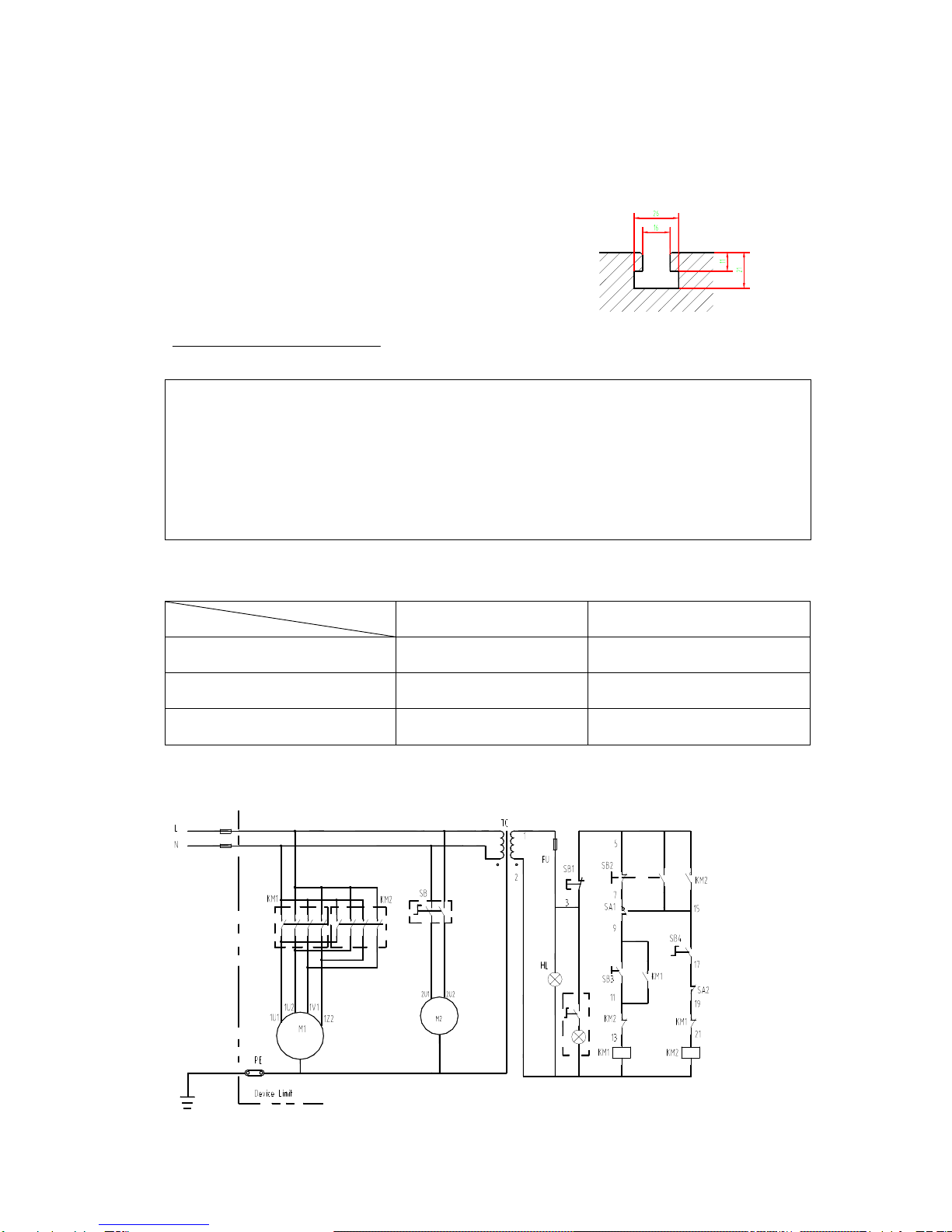

10.Specification of the T-slot
Please refer to figure, purchase or
make T-bolts and other table
top fixtures to these dimensions.
ELECTRICAL SYSTEM
WARNING: 1.A fuse must be connected between machine and power.
2.The ground terminal of machine must be grounded
properly
3.Don’t open electr
ical box during operation,if
something is wrong with machine, please ask repairman
for help.
SPECIFICATIONS OF THE FUSE
Voltage phase
Single phase Three phase
110V 20A
220V 10A 5A
380V 5A
THREE PHASE CIRCUIT

10

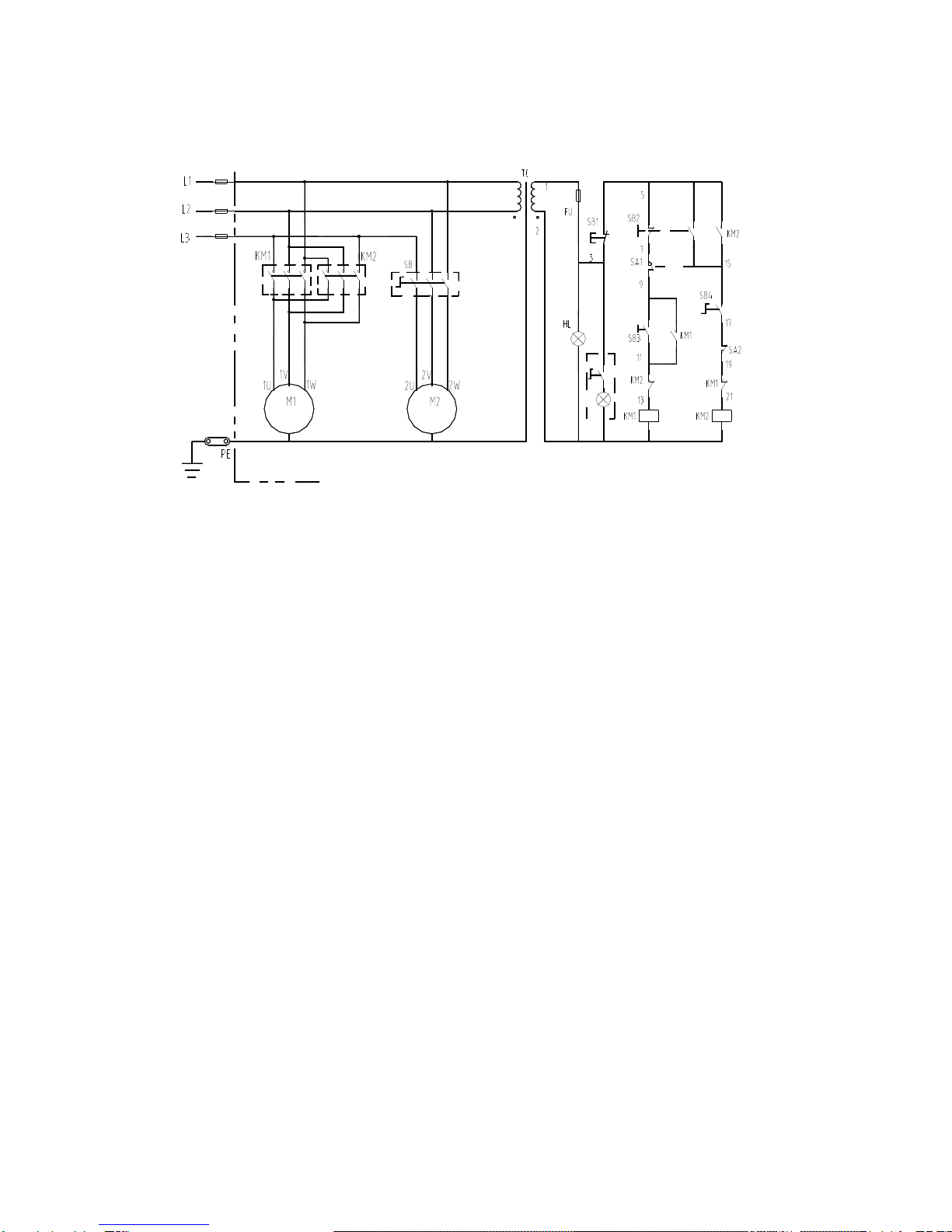

SINGLE PHASE CIRCUIT
TROUBLE SHOOTING
1.The machine doesn’t run when the power switch is turned ON
(a)The knob is in the STOP position
(b)A fuse has burned out---Check in the switch box, and replace it
necessary.
(c)If there is a surge in the current, the circuit breaker may have
opened---Press the circuit breaker back, if it is in the open position.
(d)The gear may not be engaged---Adjust the speed lever to be sure it
is engaged.
2 ．The motor overheats, or there is insufficient power
(a)The machine is overloaded---Reduce the load of feed.
(b)The voltage supply is too low---provide with a reliable power
supply.
(c)The switch may have a burned or broken contact point---Replace the
switch.
(d)The contactor relay may be broken---Replace it.
(e)There may be a poor electrical connection. Have a qualified
electrician check the wiring and power supply.
(f)The motor is poor---replace with new one.
(g)The drill bit or cutting blade may be worn---Sharpen or replace
the bits as needed.
3.The spindle bearing is very hot.
(a)There is insufficient lubrication---Turn off the power,and check
the bearing for lubrication. If necessary, apply bearing grease.

11
(b)The spindle bearing is worn, or is fixed too tight---Turn off the
power, unplug the electrical connection, and rotate the spindle
by hand.Be sure it freely. If not, adjustment the bearing .If you
feel no use in the bearing, you will have to replace it.
(c)The spindle has been turning at high speed for a long time---After
Long use, turn the machine off for a while to give it a rest, and
allow it to cool off.
4.Table travel is not balanced
(a) The gap of the table guide is too wide or feel a heavy drag when
moving the table---Adjust gib strip in proper
(b) The locked bolts may be loose---Check and tighten them if
necessary.
(c) The feed is too deep---Reduce the depth of cutting, make several
passes to reach the required depth.
5.There is vibration, and roughness of working surface
during performance.
(a)The gap of spindle bearing is too wide---Adjust the gap in proper
or replace bearing with new one.
(b)Spindle loosening up and down---Check the adjustment of the two
inner bearing covers. adjust them so there is no free play in the
taper bearing, and the bearing turns freely. Tighten them against
each other to save this adjustment.
(c)The gap of the taper sliding plate is too wide---Adjust the bolt
tension.
(d)The chuck is loose---Tighten the chuck.
(e)The drill bit or cutter is dull---Sharpen or replace it.be sure
to use cutting fluid to preserve tool life.
(f)The workpiece is not held firmly---Check the clamps or vise you
are using, and assure to tighten the workpiece
6.The micro feed does not work smoothly
(a)The clutch may be loose ---Check this and tighten if necessary.
(b)The worm or worm shaft may be worn---Check these and replace if
necessary
(c)The handwheel fixed screw may be loose---Check it and tighten
if necessary.
7.The workpiece is not machined accurately
(a)Imbalance of heavy workpiece---Check to see that heavy workpiece
are held in balance. the workpiece Out of balance may shift when
being machined
(b)A hammer has been used on the workpiece---never strike the
workpiece with a hammer.
(c)The table may not be level---check the table with a level to be
sure it is level both side to side and front to back.

12
(d)The machine may not be stable in the floor--- be sure the machine
is firmly mounted to the floor.
MAINTENANCE
1.After each use
(a) Turn off the power switch.
(b) Remove any tool bits, clean and lubricate them, and return them
to their storage case.
(c) Using a stiff bristle brush, brush off all chips.
(d) Using a rag, wipe off any excess or dirty oil or cutting fluid
left on the machine.
(e) Lubricate the points, apply light greese or oil to all unpainted
metal to prevent corrosion.
(f) Cover the machine to prevent dust or dirt contamination when not
in use.
2.Daily maintenance
(a) Fill the oil reservoir to the proper level before each use
(b) Check the tightness of the bolts holding the head in place.
(c) If overheating or unusual noises are produced, stop the machine
immediately to check for lack of lubrication, faulty adjustments,
dull tool bits or other deficiencies, correct any problems
before resuming work.
(d) Keep the work area clean.
3.Weekly maintenance
(a) Clean and coat the lead screw with oil.
(b) Check the lubrication of the sliding parts of the table. apply
light greese if needed.
4.Monthly maintenance
(a) Adjust the accuracy of the slides on both the cross and
longitudinal feeding.
(b) Lubricate the bearings, worm gear and worm shaft with light
grease.
5.Yearly maintenance
(a) Adjust the table to assure that it is level in all directions.
(b) Check the electrical cord, plug, circuit breakers and related
connections to assure that they are secure and safe.
(c) Drain the lubricant from the gear box and replace it.

2
TABLEASSEMBLY
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
PART NO.
JB/T7940.4-1995
GB/T70-86
GB/T117-85
ZAY7040A-01-021
GB/T8941-85
ZAY7040A-01-005
ZAY7040A-01-006
ZAY7040A-01-037
GB/T70-86
GB/T118-85
ZAY7040A-01-033
ZAY7040A-01-041
GB/70-85
GB/T70-85
ZAY7040A-01-022
GB/T301-94
ZAY7040A-01-009
ZX32-01-022
ZX32-01-023
GB/T879-86
ZX32-01-028
JB/T7270.4-94
GB/T819-85
ZAY7040A-01-023
ZAY7040A-01-007
GB/T276-94
ZAY7040A-01-030
GB/T1096-79
ZAY7040A-01-031
ZX32W-01-001
ZX32-01-012
ZAY7040A-01-043
GB/T70-85
ZAY7040A-01-036
ZX32-01-004
ZAY7040A-01-014
HQ400-11-015
GB/T270.12-94
ZAY7040A-01-018
GB/T119-86
ZAY7040A-01-024
ZAY7040A-01-025
ZAY7040A-01-042
GB/T119-86
DESCRIPTION
Oiler 6
Screw M8×16
Taper pin 6×25
Leadscrew seat B
Retainer ring (external) A34
Bevel gear A
Clutch A
T-key
Screw M8×20
Taper pin 6×20
Leadscrew seat B
Leadscrew nutA
Screw M6×25
Screw M5×10
Longitudinal leadscrew
Bearing 51103
Leadscrew seat A
Dial ring
Clutch
Spring pin 5×40
Handwheel
Handle M10×80
Screw M6×12
Washer
Bevel gear B
Bearing 61905
Spiral gear
Key 5×70
Shaft
Table
Fixing block
Limiting block
Screw M6×12
Gib (long)
Set screw
Middle base
Locking block
Adjusting position handle BM10×32
Fork
Taper pin 6×20
Fork arm B
Shaft gear A
Adjusting sleeve
Pin 5×45 B
QTY.
5
8
4
1
4
2
2
2
8
8
1
1
6
2
1
4
1
2
2
2
2
2
3
3
2
2
2
1
1
1
2
2
2
1
4
1
2
2
2
1
1
1
1
2

3
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
ZAY7040A-01-026
JB/T7270.11-94
GB/T819-85
GB/T119-86
GB/T2089-80
ZAY7040A-01-028
ZAY7040A-01-027
GB/T70-85
ZAY7040A-01-029
ZX32-01-019
GB/T894.1-94
GB/T894.1-94
GB/T276-94
ZAY7040A-01-019
GB/T1096-79
GB/T276-94
ZAY7040A-01-020
GB/T70-85
ZAY7040A-01-032
ZAY7040A-01-011
ZAY7040A-01-034
ZAY7040A-01-001
ZAY7040A-01-038
GB/T70-85
GB/T119-86
ZAY7040A-01-002
ZAY7040A-01-017
GB/T78-85
GB/T78-85
ZAY7040A-01-015
GB/T879-85
ZAY7040A-01-015(A)
ZAY7040A-01-016
ZAY7040A-01-008
ZAY7040A-01-004
GB/T78-85
ZAY7040A-01-011
JB/T7270.11-94
GB/T70-85
ZAY7040A-01-013
ZAY7040A-01-010
ZAY7040A-01-010(2)
ZAY7040A-01-012
ZAY7040A-01-003
ZAY7040A-01-039
GB/T6170-86
Handle seat B
Handle HY8310.28, 8×100
Screw M5×10
Pin 6×10 A
Spring 14.5×12
Cover
Shaft gear B
Screw M6×15
Seat
Gib （short）
Retainer ring (external) 16 A
Retainer ring (external) 20 A
Bearing 61804
Input shaft
Key 6×30
Bearing 6204
Cover
Screw M5×15
Adjustive washer
Bevel gear
Guard
Support seat
Limiting rod A
Screw M8×25
Taper pin 6×30
Cross leadscrew
Fork arm A
Screw M5×6
Screw M5×4
Eccentricity plectrum
Pin 3×10
Pin
Axis
Leadscrew nut
Nut seat A
Screw M4×4
Handle seat A
Handle HY8310.28, 12×60
Screw M5×12
Location seat
Locking screw suit
Bevel block
Shaft
Base
Limiting rod B
Nut M12
1
4
2
2
1
1
3
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
2
1
1
1
1

4
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
ZAY7040A-01-040
ZAY7040A-01T02-001
GB/T93-87
GB/T5780-86
GB/T5781-86
ZX32-01-010
GB/T810-88
GB/T858-77
GB/T70-85
GB/T119-86
ZX32W-01-006
GB/T301-94
ZX32W-01-007
GB/T276-94
GB/T984.1-86
GB/T1096-79
ZX32W-01T02-002
GB/T70-85
ZX32W-01-009
GB/T301-94
ZX32W-01-008
JB/T7270.1-94
ZX32W-01-017
JB/T7940.4-1995
ZX32W-01-002
GB/T70-85
ZX32W-01-001
ZX32W-01-013
ZX32W-01-014
ZX32W-01-003
Seat
Square column (A)
Spring washer 16
Bolt M16×60
Screw M8×12
Guide guard
Thin nut M16×1.5
Stopping washer 16
Screw M8×20
Pin 8×20
Support seat
Bearing 51103
Bevel gear
Bearing 6204-2RS
Retainer ring (external) 20
Key 5×12
Leadscrew(A)
Screw M6×20
Seat
Bearing 6204-2RS
Bevel gear
Handle 8×63×12
Crank
Oiler 6
Leadscrew nut
Screw M8×40
Bracket
Locking block
Adjustive screw
Gib
1
1
4
4
2
1
1
1
4
2
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
2
2
1

5

6
No
PART NO.
Name
QTY
01
GB/T70-85
Inner hexagonal screw M6×15
2
02
GB/T93-87
Spring washer 10
2
03
ZXT45G-02-004
Washer
2
04
ZXT45G-02-031
Gear（Z=34，m=2）
1
05
GB/T9877.1-88
Oil seal 20×35×10
1
06
GB65-85
Screw M6×15
3
07
ZXT45G-02-033
Bush
1
08
JB/T 7757.2-95
O shape seal 39.5×3.1
1
09
ZXT45G-02-032
Shaft
1
10
GB/T1096
Key 5×8
1
11
GB/T1096
Key 5×25
1
12
GB893-76
Inner ring 35
1
13
GB/T276-94
Bearing 16003/P6
2
14
ZXT45G-02-034
Spacer A
1
15
ZXT45G-02-005
Spiral gear A
1
16
GB68-85
Screw M5×12
10
17
ZXT45G-02-063
Left cover plate
1
18
GB/T894.2
Snap ring 35
1
19
GB/T276-94
Bearing 6007-2RS/P6
3
20
ZX32G-02-012
Spacer
1
21
GB/T893.2-86
Inner ring B62
2
22
ZX32G-02-010
Gear
1
23
ZX32G-02-009(1)
Spindle sleeve gear
1
24
GB/T9877.1-88
Oil seal B35×45×10
2
25
GB/T822-85
Round head screw M5×15
3
26
ZXT45G-02-006
Oil filler plug
1
27
ZXT45G-02-007
Washer
1
28
GB/T893.2-86
Inner ring B35
2
29
GB/T276-94
Bearing 6202-2RZ/P6
2
30
ZX32G-02-016
Gear
1
31
GB/T1096
Key 6×12
2

7
32
ZX32G-02-014(1)
Gear
1
33
ZX32G-02-003
Shaft
1
34
GB/T1096
Key 5×50
1
35
GB/T1096
Key 6×75
1
36
ZX32G-02-006(1)
Gear
1
37
ZX32G-02-005(1)
Gear
1
38
ZX32G-02-004(1)
Gear
1
39
GB/T894.1-86
Snap ring 18
2
40
GB/T276-94
Bearing 6003-Z/P6
3
41
ZX32G-02-018(1)
Gear
1
42
ZX32G-02-019(1)
Gear
1
43
ZX32G-02-020(1)
Gear
1
44
GB/T73-85
Tapered head fasten screw M5×8
1
45
ZX32G-02-017
Shaft
1
46
GB/T1096
Key 5×60
1
47
ZX32G-02-024
Gear
1
48
ZX32G-02-023
Shaft
1
49
GB/T1096
Key 5×25
1
50
ZX32G-02-022
Gear
1
51
HQ400-24-021
Arbor bolt cover
1
52
ZX32G-02-013
Arbor bolt cover base
1
53
Motor
1
54
GB/T5782-86
Bolt M10×30
4
55
GB/T93-87
Spring washer 10
4
56
GB/T95-87
washer 10
4
57
ZX32G-02-015
Cap
2
58
ZXT45G-02-008
Head body cover
1
59
GB/T70-85
Inner hexagonal screw M8×55
6
60
GB/T1096
Key 6×35
1
61
GB/T118-86
Taper pin 10×50
2
62
ZXT45G-02-015
Gib strip
1
63
ZX32G-02-045
Airflow plug
1

8
64
GB/T9877.1-88
Oil seal B35×62×12
1
65
ZXT45G-02-011
Connective base
1
66
GB/T818-85
Screw M5×10
2
67
GB/T5782-86
Bolt M16×70
1
68
ZXT45G-02-010
Angle meter
1
69
GB/T5782-86
Bolt M16×60
2
70
GB/T70-85
Inner hexagonal screw M12×25
5
71
ZXT45G-02-012
Connective plate
1
72
GB/T93-87
Spring washer 16
3
73
GB/T6182-86
Lock nut M16
3
74
ZXT45G-02-001
Head body
1
75
ZXT45G-02-029
Shaft B
1
76
ZXT45G-02-027
Shaft A
1
77
JB/T 7941.2-1995
Fluid lever indicator M27×1.5
1
78
ZXT45G-02-024
Lever A
1
79
GB/T308-84
Steel ball 5
2
80
GB/T2089-84
Spring 0.8×5×14
2
81
GB77-85
Screw M6×10
2
82
ZXT45G-02-022
Slip block
2
83
ZXT45G-02-019
Short pin shaft
3
84
GB894-76
Snap ring 8
2
85
ZXT45G-02-030
Shift Lever B
1
86
ZXT45G-02-026
Idler wheel B
2
87
GB894-76
Snap ring 16
1
88
ZXT45G-02-021
Curved wheel
1
89
ZXT45G-02-020
Joy stick
1
90
GB879-86
Spring pin 3×30
1
91
JB/T 7757.2-95
O shape seal 11.6×2.4
1
92
ZXT45G-02-017
Washer
1
93
ZXT45G-02-016
Bush
1
94
GB/T70-85
Inner hexagonal screw M6×12
3
95
GB/T9877.1-88
Oil seal B17×30×9
1
96
ZXT45G-02-014
Changing speed dial
1
97
ZXT45G-02-013
Handle
1
