Booth & Co AXBRIDGE BC-AXB-186-CP User manual

This instruction booklet covers model:
BC-AXB-186-CP
BC-AXB-186-BN
Version 2, 1-8-19
VADO
Wedmore Road, Cheddar,
Somerset, England BS27 3EB
tel [phone]
fax [phone]
www.vado.com
[e-mail]
AXBRIDGE
BC-AXB-186-CP
BC-AXB-186-BN
INSTALLATION GUIDE

2 3
Contents of Packaging
AX BR ID GE
BC- A X B-186- CP
BC- A X B-186- BN
INS TA L L AT IO N GU ID E
Installation guide &
User manual Hanger
Fixing box
Mounting plate
Hex key
Screws x 2 Wall plugs x 2
Cleaning instructions
The electroplating on this product is finished to the highest standard.
Due care needs to be taken to ensure the appearance is retained.
We recommend cleaning all products with a soft damp cloth ONLY and
advise strongly against the use of all aggressive/corrosive cleaning
products i.e. powders and liquids. If these instructions are not followed,
this may invalidate your guarantee in the event of a problem occurring.
Please read these instructions carefully before starting installation and
keep for future reference.
Remove all packaging and check the product for missing parts or
damage before starting installation. Please take great care when
installing this mixer not to damage its surface.
Warning! Please check for any hidden cables and pipes before drilling
holes in the wall.
Note: The fixings supplied are for solid walls only. If you are fitting the
accessory to a partition or wall of particularly soft substrate you will
need specialist fixings.
Important - please read
Expertly designed in our home town of Cheddar, Somerset, each
Booth & Co. product is as time-honoured on the outside as it is
pioneering within.
Hand-crafted to exude a distinct, timeless sophistication, this product
has passed through stringent quality assurance processes and
demanding lifecycle mechanical testing to ensure an unrivalled quality.
Our leading 15 year guarantee certifies excellence within every detail.
Part of the VADO family, Booth & Co. retains the same outstanding
customer service and large scale development support that earned
VADO a globally trusted reputation. For any technical or operation
queries, please contact our experienced Aftersales team on
01934 745 163.
Indulge in luxury as it should be.
Welcome to Booth & Co.

4 5
Dimensions Installation - Quick guide
60mm
60mm 2
1
3
4

6

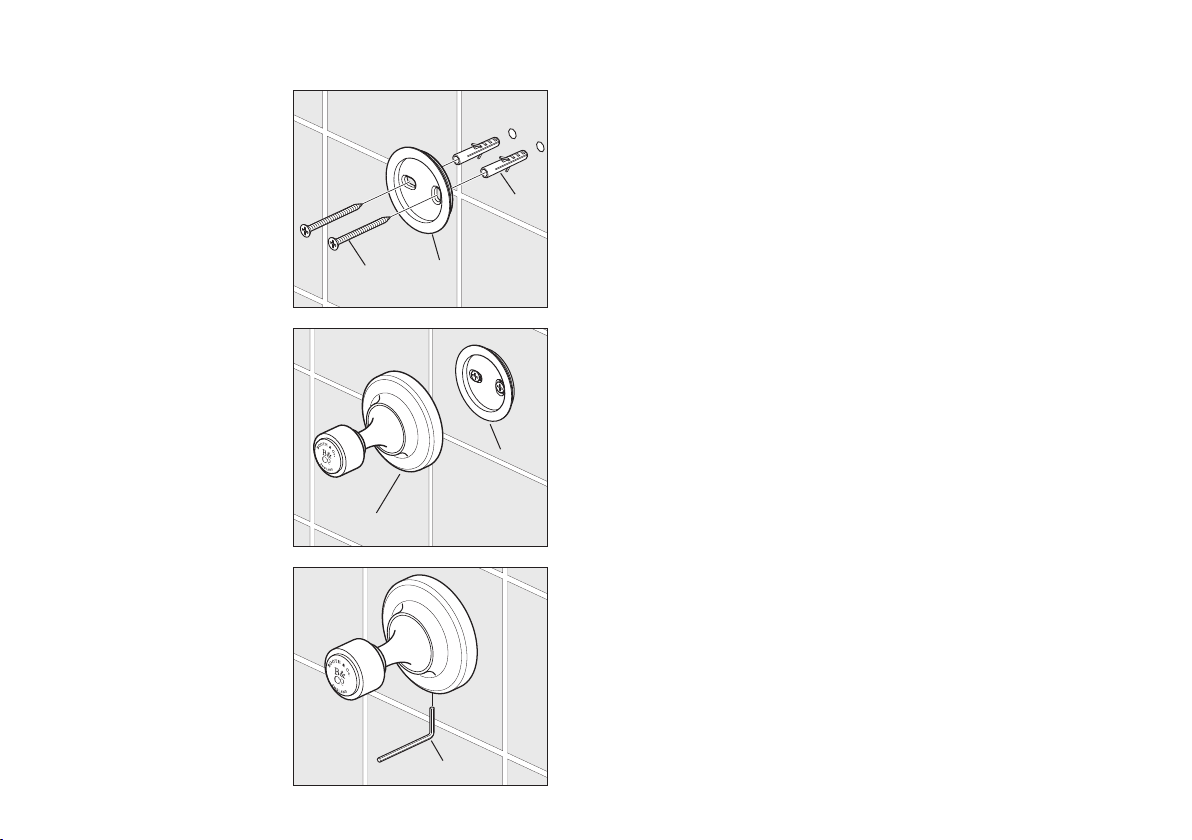

Installation
Place the mounting plate in the
required position and mark the
two fixing holes.
Drill the marked holes to a
suitable depth for the wall plugs
and secure with supplied screws.
If you are fitting to a partition
wall or a wall of particularly soft
substrate you will need specialist
fixings.
Using the supplied hex key
tighten the grub screw on the
underside of the hanger.
Place the hanger over the
mounting plate, make sure that
the grub screw is at the 6 o'clock
position.
Mounting
plate
Screws
Wall plugs
Mounting
plate
Grub screw
Hex key
