Operating and installation instructions PKT11
Tepan stainless steel grill
1038521
Operating and installation instructions: Original Translation
Manufacturer
BORA Vertriebs GmbH & Co KG
Prof.-Dr.-Anton-Kathrein-Straße 3
6342 Niederndorf
Austria
Contact
T +43 (0) 5373 / 62250-0
www.bora.com
The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited
unless expressly authorised.
These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled
out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been
adapted. Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service
Team. Subject to printing errors and mistakes.
© BORA Vertriebs GmbH & Co KG
All rights reserved.
EN
3
www.bora.com
Table of Contents
1 General information 4
2 Safety 6
2.1 General safety instructions ................................. 6
2.2 Safety instructions – operation ........................... 7
2.3 Safety instructions – installation......................... 7
2.4 Safety instructions – disassembly
and disposal ........................................................ 8
2.5 Safety instructions – spare parts ........................ 8
2.6 Intended use ....................................................... 9

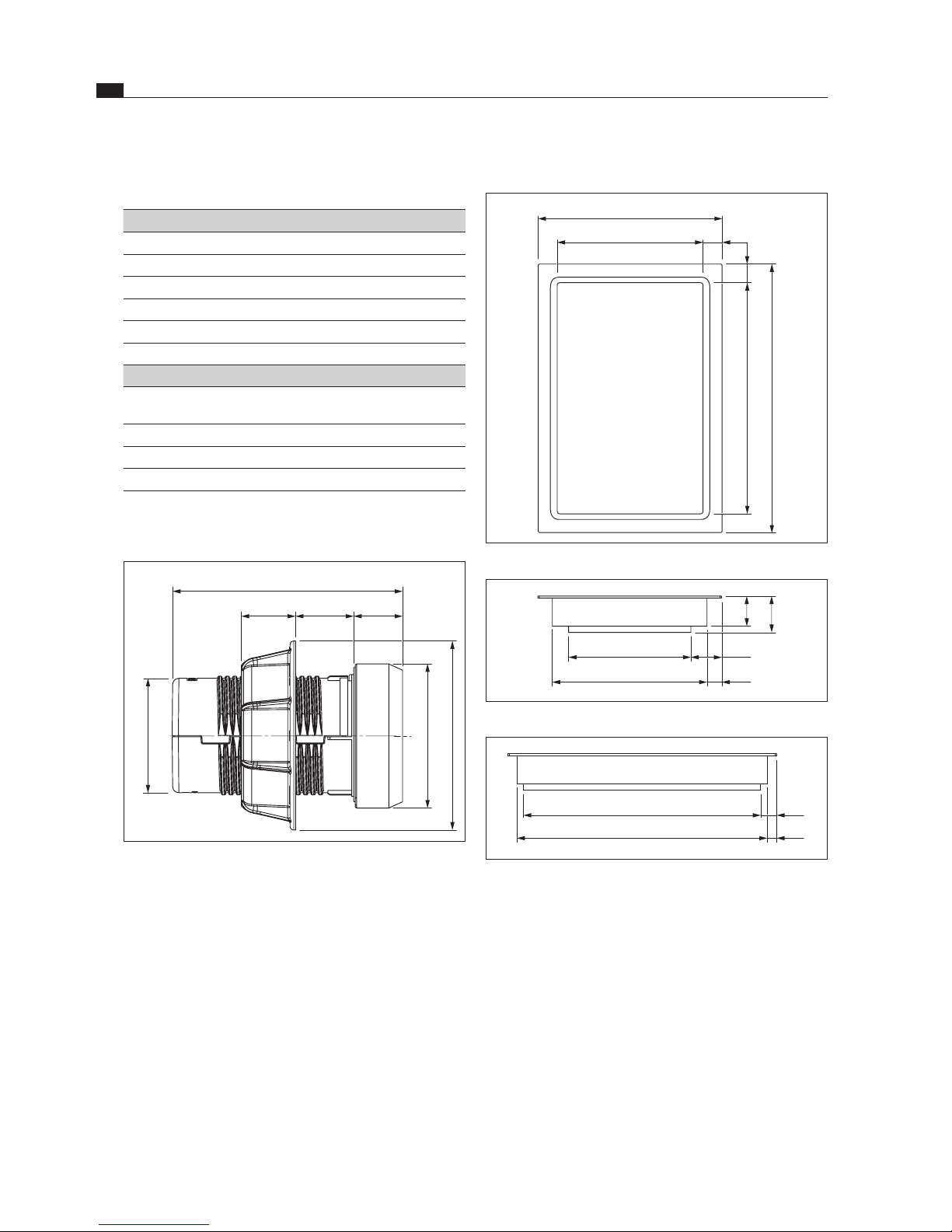

3 Technical data 10
4 Device description 11
4.1 Structure ........................................................... 11
4.2 Operating principle............................................ 11
4.3 Functional principle........................................... 12
4.3.1 Power control.................................................... 12
4.3.2 Temperature ranges ..........................................12
4.3.3 Cleaning function .............................................. 12
4.3.4 Power setting .................................................... 12
4.3.5 Bridging function ............................................... 12
4.3.6 Timer functions ................................................. 13
4.3.7 Pause function .................................................. 13
4.4 Safety devices ................................................... 13
4.4.1 Residual heat display.........................................13
4.4.2 Safety shut-down .............................................. 13
4.4.3 Childproofing feature.........................................13
5 Installation 14
5.1 Checking the scope of delivery .........................14
5.2 Tool and aids..................................................... 14
5.3 Assembly instructions .......................................14
5.3.1 Safety clearances.............................................. 14
5.4 Cut-out dimensions ........................................... 14
5.4.1 Worktop overhang............................................. 14
5.4.2 Flush installation ............................................... 15
5.4.3 Surface mounting.............................................. 15
5.5 Installing the cooktop........................................15
5.5.1 Air supply cooktop ............................................ 16
5.5.2 Installing the control knob into
the floor unit front panel ...................................16
5.5.3 Installing the cooktop........................................17
5.5.4 Seal the cooktop ............................................... 18
5.5.5 Establish communication ..................................18
5.5.6 Establishing the power connection....................19
5.6 Configuration menu ..........................................19
5.6.1 Accessing the configuration menu ....................20
5.6.2 Select menu option ........................................... 20
5.6.3 Changing the setting .........................................21
5.6.4 Exiting configuration menu................................ 21
5.7 Handover to user............................................... 21
6 Operation 22
6.1 General operating instructions .......................... 22
6.2 Initial operation ................................................. 22
6.3 Operating the cooktop ......................................22
6.3.1 Switching on the grilling zone ...........................22
6.3.2 Power setting ................................................... 23
6.3.3 Bridging function ............................................... 23
6.3.4 Cleaning function .............................................. 24
6.3.5 Childproofing feature.........................................24
6.3.6 Using the timer function.................................... 24
6.3.7 Stop function (pause)........................................ 25
6.3.8 Switching off the grilling zone ...........................25
6.4 Configuration menu........................................... 25
7 Cleaning and
maintenance 26
7.1 Cleaning agents................................................. 26
7.2 Looking after the cooktop ................................. 26
7.3 Cleaning the cooktop ........................................26
7.3.1 Cleaning the stainless steel grill surface...........26
7.4 Cleaning the control knobs ...............................27
7.4.1 Cleaning the knob ring ......................................27
7.4.2 Cleaning the touch surface
and the knob housing........................................27
8 Troubleshooting 28
9 Decommissioning, disassembly
and disposal 29
9.1 Decommissioning .............................................. 29
9.2 Disassembly ...................................................... 29
9.3 Environmentally-friendly disposal ......................29
10 Warranty, technical service
and spare parts 30
10.1 Warranty............................................................ 30
10.2 Service .............................................................. 30
10.3 Replacement parts ............................................ 30
EN
4
General information
www.bora.com
1 General information
Target group
These operating and installation instructions apply for the
following target groups:
Target group Requirements
User The appliance can be used by children
aged 8 and above as well as people with
reduced physical, sensory or mental
capacities or a lack of experience and/or
knowledge if they are supervised or have
been instructed how to safely use the
appliance and understand the resultant
risks. Children must be supervised. All
safety and warning information and the
handling instructions in the installation
instructions must be complied with.
Ambitious DIYers Ambitious DIYers can independently
conduct all joinery and installation work
providing they possess the necessary
skills and expertise. They must never
independently establish electricity and
gas connections.
Installation specialists Installation specialists are authorised
to conduct all joinery and installation
work in line with
existing regulations. The
electricity and gas connections must be
certified by a certified engineer for the
applicable trade prior to commissioning.
Electricians The electrical connection may only be
established by a certified engineer.
He/she also assumes responsibility for
the proper electrical installation and
commissioning.
Gas specialists The gas connection may only be
established by certified engineers.
They also assume responsibility for
proper installation and commissioning of
the gas system.
Tab. 1.1 Target groups
INFO BORA Holding GmbH, BORA Vertriebs GmbH
& Co KG, BORA APAC Pty Ltd and BORA
Lüftungstechnik GmbH - hereinafter referred
to as BORA - do not assume any liability for
damage arising from non-adherence to these
documents and from improper assembly! The
electricity and gas connections must be made
by a qualified specialist. Installation must
comply with the valid standards, regulations
and laws. All safety and warning information
and the operating and installation instructions
must be complied with.
Validity of the operating and
installation instructions
These instructions apply to several device versions. It is
therefore possible that some of the features described do
not apply to your appliance.
Other applicable documents
These operating and installation instructions are valid
in conjunction with other documents, which must be
adhered to.
Please be sure to adhere to all documents that form part
of the scope of delivery.
INFO BORA accepts no liability for damage caused
by failure to comply with these documents!
Directives
These devices meet the following EU/EC directives:
2014/30/EU EMC Directive
2014/35/EU Low Voltage Directive
2009/125/EC Ecodesign Directive
2011/65/EU RoHS Directive
2012/19/EU WEEE Directive
EN
5
General information
www.bora.com
Presentation of information
To make working with these instructions quick and
easy, consistent formatting, numbering, symbols,
safety instructions, terms and abbreviations are used
throughout.
Handling instructions are market with an arrow.
Always carry out handling instructions in the sequence
shown.
Bullet points are indicated by a square bullet point at
the edge of the line.
Bullet point 1
Bullet point 2
INFO Information points out specific points you must
always comply with.
Safety and warning information
The safety and warning information in these instructions
are highlighted with symbols and signal words.
Safety and warning information is structured as follows:
WARNING SYMBOL AND SIGNAL
WORD!
Type and source of the danger
Consequences of non-compliance
Measures to minimise risk
The following applies:
The warning symbol draws attention to the danger.
The signal word indicates the severity of the risk.
Warning sign Signal word Hazard
Danger Indicates an imminent hazardous
situation which could lead to
death or serious injury
if ignored.
Warning Indicates an imminent hazardous
situation which could lead to
death or serious injury if
ignored.
Caution Indicates a potentially hazardous
situation which could lead to slight
or minor injuries if ignored.
— Caution Indicates a situation which could
result in material damage if
ignored.
Tab. 1.2 Meaning of warning symbols and signal words
EN
6
Safety
www.bora.com
2 Safety
2.1 General safety instructions
INFO The appliance complies with the
stipulated safety requirements. The
user is responsible for appliance
cleaning and maintenance as well as
its safe use. Improper use can lead
to personal injury and damage to
property.
The operating and installation instructions
contain important information about
installation and operation. These enable you
to protect yourself against injuries and
prevent damage to the appliance. Contact
details for further information as well as
application and usage questions can be
found on the back of these operating and
installation instructions.
The term device applies to cooktops,
cooktop extractors and cooktops with
cooktops extractors.
Read the operating and installation
instructions fully before using the appliance
for the first time.
Always store the operating and installation
instructions within easy reach so that they
can be accessed if required.
Pass the operating and installation
instructions to the next owner if you sell
the appliance.
Conduct all work extremely attentively and
conscientiously.
Check the appliance for visible damage
when unpacking it.
Do not connect a damaged appliance.
Only use the appliance once all installation
activities are complete. This is the only way
to ensure safe operation.
Make sure that hot hobs are not touched.
Avoid boiling over.
Switch the device off after use.
Keep pets away from the appliance.
Recirculation mode
INFO When cooking, additional moisture is
released into the ambient air.
INFO In recirculation mode, only a slight
amount of moisture is removed from
the cooking vapour.
When using recirculation mode, ensure a
sufficient supply of fresh air, e.g. by
opening a window.
Ensure a normal and comfortable room
climate (humidity of 45–60%), e.g. by
opening natural ventilation openings or
using domestic ventilation systems.
After every use in recirculation mode,
switch the cooktop extractor to a low level
for about 20 minutes or activate the
automatic after-run function.
Households with children and people with
special needs
The appliance can be used by children aged
8 and above as well as people with reduced
physical, sensory or mental capacities or a
lack of experience and/or knowledge if
they are supervised or have been instructed
how to safely use the appliance and
understand the resultant risks.
Supervise children in the vicinity of the
appliance.
Children must not play with the appliance.
Do not store any items that could be of
interest to children in storage spaces above
or behind the appliance. Children will
otherwise be encourage to climb on the
appliance.
Keep children and other people away from
hot hobs.
Unauthorised modifications
Unauthorised modifications can cause the
appliance to pose risks.
Do not conduct any modifications to the
appliance.
Cleaning and maintenance
The device must be cleaned regularly. Dirt
can lead to damage or the buildup of odours.
Remove any dirt immediately.
Cleaning and maintenance work must not
be carried out by children unless they are
supervised at all times.
Do not use steam cleaners. The steam can
cause a short-circuit on live parts and
cause damage to property (see Cleaning
and maintenance section).
Do not put hot cookware near the control
panel so as not to damage the electronics
underneath.
Make sure no water penetrates inside the
device when cleaning. Only use a slightly
damp cloth. Never spray water on the
device. Water ingress can cause damage!
EN
7
Safety
www.bora.com
WARNING!
Leaving items on the cooking
surface is a fire risk!
The cooktop and its touchable parts
are hot when the cooking zone is
switched on and during the cooling
phase. Objects on the cooktop can
get hot and catch re.
Do not place any items on the
cooktop.
WARNING!
Risk of burns from hot objects!
The cooktop and its touchable
parts are hot when the cooking
zone is switched on and during the
cooling phase. Objects (e.g. pan
lids, cooktop extractor cover) on the
cooktop heat up very quickly and can
cause serious burns.
Do not place any items on the
cooktop.
Please use suitable tools
(pot holders, oven gloves).
CAUTION!
Escaping hot liquids!
Unattended pans can boil over
allowing hot liquids to escape.
Always keep an eye on pans while
cooking.
Short cooking sessions must be
constantly monitored.
2.3 Safety instructions – installation
The device must only be installed and
assembled by trained specialists who are
familiar with and comply with the standard
national regulations and supplementary
regulations of the local utility companies.
Work on electrical components must be
conducted by trained electrical personnel.
The electrical safety of the appliance is only
guaranteed if it is connected to a protective
conductor system that has been installed in
line with regulations. Ensure that this basic
safety precaution is met.
Where possible, clean the cooktop after
every cooking session.
Only clean the cooktop when it has cooled
down.
For cleaning, only use non-abrasive
detergents to avoid scratching or wearing
the surface.
Make sure the base of the cookware and
the cooking zone are clean and dry.
Always lift the cookware (do not pull) to
avoid scratching or wearing the surface.
2.2 Safety instructions – operation
Cooktop
DANGER!
Unsupervised cooktops are a fire
risk!
Oil and fat can heat up and catch re
quickly.
Never leave hot oil or fat
unattended.
Never attempt to extinguish
burning oil or fat with water.
Stifle the fire using a lid, for
example.
DANGER!
Risk of explosion caused by
flammable liquids!
Flammable liquids in the vicinity of
the cooktop can explode and cause
serious injury.
Do not place any flammable liquids
in the vicinity of the cooktop.
WARNING!
Risk of burns from hot cooktop!
The cooktop and its exposed areas
get hot during use. Once the cooking
zone is switched o, it takes a little
while to cool down below 60 °C.
Touching hot surfaces can cause
serious burns.
Never touch the cooktop when it
is hot.
Keep children away from the
cooktop when it is hot or ensure
they are supervised at all times.
EN
8
Safety
www.bora.com
2.4 Safety instructions –
disassembly and disposal
The device must only be disassembled by
trained specialists who are familiar with and
comply with the standard national regulations
and supplementary regulations of the local
utility companies.
Work on electrical components must only be
conducted by trained electrical personnel.
DANGER!
Risk of electric shock!
Incorrectly disconnecting the
appliance from the mains results in a
risk of electric shock.
Securely disconnect the appliance
from the mains using LS switches,
fuses, automatic circuit breakers
or contactors.
Use an authorised measuring
device to ensure that there is no
power to the appliance.
DANGER!
Risk of asphyxiation!
Packaging components (e.g. lm,
polystyrene) can be life-threatening
for children.
Store all packaging components
out of reach of children.
Dispose of the packaging properly
and immediately.
2.5 Safety instructions – spare parts
WARNING!
Risk of injury and damage to
property!
Incorrect components can lead to
personal injury or damage to the
appliance. Modications, additions or
alterations to the appliance can lead
to safety risks.
Only use original spare parts for
repairs.
Cooktop
DANGER!
Risk of electric shock!
Incorrect connection of the device
to the mains voltage could cause
electric shocks.
Make sure that the device is firmly
connected to the mains voltage.
Make sure the device is connected
to a properly installed earth
conductor system.
Make sure a system is installed
which allows disconnection from
the network with a contact
opening width of at least 3 mm
across all poles (circuit breaker,
fuses, automatic circuit breakers,
contactors).
DANGER!
Risk of electric shock!
If the mains connection cable comes
into contact with hot hobs, it could
get damaged. A damaged mains
connection cable can cause a
(deadly) electric shock.
Make sure that the mains
connection cable cannot come
into contact with hot hobs.
Make sure that the connection
cable is not squashed or damaged.
CAUTION!
Lifting heavy loads can cause back
injuries!
If not correctly handled, removing
and installing the device can causes
injuries to the limbs or torso.
Removing the cooktop from the
packaging is a two-person job.
Placing the cooktop into the
worktop cut-out is a two-person
job.
Use appropriate aids to prevent
damage or injuries to limbs or
torso.
Check the appliance for visible damage
before installing it.
Do not install damaged devices.
A damaged device is a hazard.
Repair work must only be carried out by
specialists authorised by the manufacturer.
EN
9
Safety
www.bora.com
2.6 Intended use
The device cannot be used at altitudes above
2000 m (metres above sea level).
The device is designed exclusively for the
preparation of food in private households.
This appliance is not intended for:
Outdoor use
Installation in vehicles
Heating rooms
Use in non-stationary installation sites
(e.g. on ships)
Use with an external timer or a separate
remote control system (remote operation)
Any use other than that specified in these
operating and installation instructions or any
use that goes beyond that which is described
here is classed as unintended. BORA does not
assume any liability for damages caused by
improper use or incorrect operation.
All misuse is prohibited!
INFO BORA Holding GmbH, BORA Vertriebs
GmbH & Co KG, BORA APAC Pty Ltd
and BORA Lüftungstechnik GmbH do
not assume any liability for damage
arising from non-adherence
to the
safety and warning information.
EN
10
Technical data
www.bora.com
3 Technical data
Parameter Value
Supply voltage 380-415 V 2N
Frequency 50/60 Hz
Power consumption 4.8 kW
Fuse protection 2 x 16 A
Dimensions (width x depth x height) 370 x 540 x 73 mm
Weight (incl. accessories/packaging) 15.8 kg
Cooktop
Power levels (temperature control) 1 - 9, P
(150–230°C, 250° C)
Front cooking zone 295 x 230 mm 2400 W
Back cooking zone 295 x 230 mm 2400 W
Temperature control range 70–250° C
Tab. 3.1 Technical data
Device dimensions control knob
Ø76
Ø58
Ø49
92
22 10-40 20
Fig. 3.1 Device dimensions control knob
Device dimensions
465
540
370
295 37,5
37,5
Fig. 3.2 PKT11 Device dimensions aerial view
311 29,5
73
60,5
246 62
Fig. 3.3 PKT11 Device dimensions front view
503 18,5
31477
Fig. 3.4 PKT11 Device dimensions side view
EN
11
Device description
www.bora.com
4 Device description
Observe all safety and warning information during
operation (see the Safety section).
The Tepan stainless steel grill has the following features:
Two grilling zones
Two control knobs
Temperature display
Power setting
Bridging function
Residual heat display
Timer functions
Childproofing feature
Stop function
Safety shut-down
Cleaning function
4.1 Structure
1 2
4 3
Fig. 4.1 Tepan stainless steel grill
[1] Two grilling zones
[2] Connections for the control knob and automatic extraction
system (at the back)
[3] Control knob for the rear grilling zone
[4] Control knob for the front grilling zone
4
3
2
1
Fig. 4.2 Control knob structure
[1] Knob casing
[2] Universal nut
[3] Control knob display
[4] Selector ring
4.2 Operating principle
2
1
Fig. 4.3 Control knob operating elements
[1] Selector ring
[2] Touch-operated area
5
4
32
1
Fig. 4.4 Control knob display elements
[1] Display functions
[2] Power display
[3] Front grilling zone display
[4] Mode or operating mode display
[5] Rear grilling zone display
EN
12
Device description
www.bora.com
Activity Temperature
in °C
Steaming fruit, e.g. apple slices, peach halves,
banana slices
160 – 170
Browning chopped vegetables, fried eggs, veal,
poultry
180 – 190
Browning breaded or battered fish, pancakes,
sausages, pork, lamb
190 – 200
Browning potato fritters, prawns, corn on the
cob and escalopes
200 – 210
Searing beef, fish, meatballs 220 – 230
Tab. 4.2 Temperature recommendations
The specifications provided in the table are standard
values.
Low temperature ranges
Additional power levels are available in the low
temperature range.
4.3.3 Cleaning function
The cleaning function cbrings the Tepan stainless steel
grill to an optimum temperature for cleaning (70°C).
4.3.4 Power setting
The two grilling zones are equipped with a power-
enhancing power setting.
The power setting can be used to quickly heat up large
quantities of water. If the power setting is activated,
the grilling zones will run at extra high power. After
10 minutes, the grilling zone is automatically switched
back to power level 9.
If the bridging function is activated, the power setting
cannot be used.
INFO Never use the power setting to heat up oil,
fat and the like. The bottom of the pan can
overheat due to the high power output.
4.3.5 Bridging function
The two grilling zones can be operated as a connected
grilling zone at the same power level.
%appears on the display.
The bridging function is suitable for heating food in a
roaster.
Unit Display Meaning
Control knob
display
e.g. 190 Temperature display
PPower setting
%Bridging function
HResidual heat display: the grilling
zone is switched off but still hot
(temperature > 50°C)
tTimer function: short-time timer
(egg timer)
LChildproofing feature
I I Pause function
cCleaning function and extended
temperature range
CConfiguration menu
0Appliance switched off
E... Error message
(see the Troubleshooting section)
Tab. 4.1 Display meaning
Knob operation
Each grilling zone has its own control knob. The
temperature and functions of the two grilling zones are
controlled by turning the selector ring and touching the
touch-operated area (see the Operation section).
INFO The temperature is shown on the control knob
display by default (target temperature and
actual temperature). The configuration menu
can be used to switch the display to a power
display or mixed display (see the Installation
section).
4.3 Functional principle
There are two heating elements under each grilling
zone. When the grilling zone is switched on, the heating
element generates heat that heats up the grill surface
directly.
4.3.1 Power control
The power is controlled using power levels, which are
indicated in °C on the control knob display by default
(temperature display).
Alternatively, the configuration menu can be used to
switch the control knob display to a power display or
mixed display.
4.3.2 Temperature ranges
The power output of the Tepan stainless steel grill heats
food extremely quickly. To avoid burning food, slight
adjustment is needed in comparison to conventional
cooking systems when selecting the temperature.
EN
13
Device description
www.bora.com
4.4.2 Safety shut-down
Each grilling zone is switched off automatically if it
exceeds the maximum operating duration at a certain
power level or heat retention level. Happears on the
control knob display (residual heat display).
Power level Switch off after hours:minutes
16:00
26:00
35:00
45:00
54:00
61:30
71:30
81:30
91:30
P0:10
Tab. 4.3 Safety shut-down for power levels
Heat retention level Switch off after hours:minutes
18:00
28:00
38:00
Tab. 4.4 Safety shut-down for heat retention levels
To put the cooking zone back into operation, switch
the grilling zone back on (see the Operation section).
4.4.3 Childproofing feature
The childproong feature prevents the cooktop from
being switched on accidentally. It can only be activated
when all grilling zones are switched on (see the Operation
section).
4.3.6 Timer functions
There are two different timer functions available for each
grilling zone.
tappears on the control knob display.
INFO You can set a time range of between
1 and 120
minutes for the timer functions.
Timer function
INFO The timer function is an automatic cut-off
function for automatically switching off a
grilling zone.
Short-time timer (egg timer)
INFO The short-time timer depends on the grilling
zone being switched off and works like a
conventional egg timer.
4.3.7 Pause function
The cooking session can be temporarily interrupted
(max. 10 minutes).
I I appears on the control knob display in front of the
power level.
4.4 Safety devices
4.4.1 Residual heat display
INFO Do not touch the cooking zone or place any
heat-sensitive objects on top of it while His
shown on the control knob display (residual
heat display). Risk of burns and fire!
The grilling zone remains hot after switching it off.
Happears on the control knob display (residual heat
display). The display goes out after a sufficient cooling
time (temperature < 50°C).
EN
14
Installation
www.bora.com
5 Installation
Observe all safety and warning information
(see the Safety section).
Follow the enclosed manufacturer’s information.
INFO The cooktop must not be installed above
cooling devices, dishwashers, stoves, baking
ovens, washing machines or driers.
INFO The contact surface of the worktops and wall
sealing strips must be made of a heat-resistant
material (up to approx. 100 °C).
INFO Worktop cut-outs must be moisture-sealed
using suitable means or, where necessary,
fitted with a thermal insulator.
5.1 Checking the scope of delivery
Name Quantity
Control knob 2
Operating and installation instructions 1
Cooktop fixing screws 4
Height adjustment plate set 1
Cooktop 1
Cooktop mounting straps 4
Control knob cable 2
Automatic extraction cable 1
Tepan scraper 1
Tab. 5.1 Scope of delivery
Check the scope of delivery for damage and make sure
it is complete.
If there are any missing or damaged parts, please
notify BORA After Sales Service immediately.
Do not under any circumstances install parts which are
damaged.
Dispose of transport packaging in the proper manner
(see the Decommissioning and Disposal section).
5.2 Tool and aids
The following tools are required for the correct installation
of the cooktop:
Pencil
Measurement equipment:
Drill or cordless drill with Forstner bit Ø 50mm
Screwdriver/hexolobular internal key (Torx) 20
Silicone sealant for sealing cutting surfaces
5.3 Assembly instructions
5.3.1 Safety clearances
Maintain the following safety clearances:
1
3
2
Fig. 5.1 Minimum clearances
[1] Minimum clearance of 50 mm at the back from of the
worktop cut-out to the rear edge of the wor0°).
[2] Minimum clearance of 300 mm from the left and right of the
worktop cut-out to the adjacent cabinet or wall.
[3] Minimum clearance of 600 mm between the worktop and
the wall unit.
5.4 Cut-out dimensions
Preparing the worktop
Create the worktop cut-out taking into account the
specified cut-out dimensions.
Make sure that the cutting surfaces of the worktops
are properly sealed.
Comply with the instructions of the worktop
manufacturer.
5.4.1 Worktop overhang
≥74x
Fig. 5.2 Worktop overhang
Please note the worktop overhang x when creating
the worktop cut-out. Applies to flush installation and
surface mounting.
EN
15
Installation
www.bora.com
(12)
10 ... 40
Fig. 5.6 Surface mounting cut-out
Cut-out dimensions when installing cooktops or cooktops
and the cooktop extractor next to each other:
Cooktops/cooktop extractor A in mm B in mm
1/0 374 346
2/0 745 717
3/0 1116 1088
1/1 485 457
2/1 856 828
3/2 1338 1310
4/2 1709 1681
Tab. 5.2 Cut-out dimensions
5.5 Installing the cooktop
INFO Clearance of one millimetre should be planned
between the built-in appliances.
INFO A clearance of two millimetres should be
planned around the built-in appliances.
INFO A mounting rail must always be fitted between
adjacent cooktops (available as an accessory).
INFO Alternatively, the cooktop can be fitted rotated
about 180°.
Cross bars on the kitchen unit in the area of the
worktop cut-out may need to be removed.
The drawers and/or shelves in the floor unit must be
removable for maintenance and cleaning purposes.
Make sure that the area below the cooktop is
sufficiently ventilated (see ‘Air supply cooktop’).
5.4.2 Flush installation
A ±2
B ±2
544 ±2
≤ R5
≤ R5
≥ 74 516 ±2
≥ 700
Fig. 5.3 Flush installation
7
14
10 ... 40
Fig. 5.4 Groove dimensions for ush installation
5.4.3 Surface mounting
B ±2
≤ R5
≥ 74 516 ±2
≥ 700
Fig. 5.5 Surface mounting
EN
16
Installation
www.bora.com
5.5.2 Installing the control knob into the
floor unit front panel
INFO Pre-drill the bore holes to prevent tearing out
the fixed front panel.
Fig. 5.9 Installed control knob and cooktop
≥70
Ø50 ±0,5
370
80-140
Fig. 5.10 Drill template
[1] Cooktop
[2] Worktop
[3] Floor unit panel
Fig. 5.11 Fitting the control knob
Pull off the knob ring.
Unscrew the fixing nut.
Push the control knob through the drilled hole in the
floor unit panel from the front.
5.5.1 Air supply cooktop
INFO A minimum opening cross-section of 50 cm²
for the air supply must be observed.
Make sure that the area below the cooktop is
sufficiently ventilated.
Air supply via the front area
If cable protection (false floor) is planned below the
appliances, it must be removable for maintenance work. A
sufficient air supply must be ensured.
Shorten the cable protection to ensure 100 mm
clearance from the back wall of the kitchen unit.
1
2
>80
100
Fig. 5.7 Air supply via the front area
[1] Air supply body front
[2] Optional cable protection (shortened)
Air supply via the plinth area
The air supply via the plinth area may be fed either
through the body or the plinth panel.
12
Fig. 5.8 Air supply via the plinth area
[1] Air supply in the plinth area through the plinth panel
[2] Air supply in the plinth area through the body
EN
17
Installation
www.bora.com
5.5.3 Installing the cooktop
321
Fig. 5.14 Insert cooktop
[1] Worktop cut-out
[2] Tepan stainless steel grill
[3] Connections for control knob and extraction system
Insert the Tepan stainless steel grill [2] into the
worktop cut-out [1].
Align the Tepan stainless steel grill [2] exactly.
For a normal installation, please note that the
connections for the control knob and the extraction
system [3] are at the back.
1
2
Fig. 5.15 Cooktop and height adjustment plates
[1] Cooktop
[2] Height adjustment plates
If applicable, insert the height adjustment plates [2].
Screw the fixing nut onto the control knob from the
rear and tighten a little.
Use the marking to align the control knob vertically in
the 12 o’clock position.
Tighten the fixing nut.
Place the knob ring on the control knob.
Example bore holes
≥70
90 90 90
Ø50 ±0,5
90 196 196
370 370
110
1 1
Fig. 5.12 Bore holes for 2 cooktops and 1 extractor
[1] Bore holes for socket (2x external)
[2] Bore holes for control knobs (5x)
[3] Cooktop 2x
[4] Cooktop extractor
[5] Worktop
[6] Floor unit panel
≥70
90 90 909090 196 196 196 196
370 370 370
110
1 1 1 1
110
Ø50 ±0,5
Fig. 5.13 Bore holes for 3 cooktops and 2 extractors
[1] Bore holes for socket (2x external)
[2] Bore holes for control knobs (8x)
[3] Cooktop 3x
[4] Cooktop extractor (2x)
[5] Worktop
[6] Floor unit panel
EN
18
Installation
www.bora.com
5.5.4 Seal the cooktop
Make sure that no silicone sealant gets under the
cooktop.
1
Fig. 5.17 Silicone sealant for ush installation
[1] Black, heat-resistant silicone sealant
1
Fig. 5.18 Silicone sealant for surface mounting
[1] Black, heat-resistant silicone sealant
5.5.5 Establish communication
Establish the connection between the cooktop and the
control knobs.
Connection the control knob
1
Fig. 5.19 Connection the control knob on the back
[1] Connection the control knob on the back
3
2
2
1
4
Fig. 5.16 Mounting brackets
[1] Mounting bracket
[2] Washer
[3] Screw
[4] Screw (60 mm)
Fasten the cooktop using the mounting brackets [1].
Tighten the mounting brackets with max. 10 Nm using
the screws [3], [4] and affixing the washer [2].
Verify that the alignment is correct.
Once all of the installation work is complete, seal the
devices with black, heat-resistant silicone sealant.
Installation rotated around 180°.
Rotate the cooktop around 180°.
For the installation, proceed as described above.
Change the installation direction in the configuration
menu (see Configuration menu).
INFO If installation is rotated around 180°, then
the connections for the control knob and the
extraction system are at the rear.
INFO If installation is rotated around 180°, then
the connections for the control knob and the
extraction system are at the front.
INFO Cables of sufficient length are supplied.
EN
19
Installation
www.bora.com
The power supply line for use (pre-assembled) must be at
least Type SiHF.
(See table Fuse protection and minimum cross-section).
Connection Fuse protection Minimum
cross-section
1-phase connection 1 x 25 A 2.5 mm²
2-phase connection 2 x 16 A 2.5 mm²
Tab. 5.3 Fuse protection and minimum cross-section
If the connection line has been damaged this must be
replaced by a special connection line. This may only
be done by an authorized member of the After Sales
Service team.
Switch off the main switch/automatic circuit breaker
before connecting the cooktop.
Secure the main switch/automatic circuit breaker
against being switched back on without permission.
Make sure the power to the appliance is disconnected.
Only connect the cooktop using a permanent
connection to a power supply cable.
1
L1 L2
2 3
N PE
220 - 240 V~
220 - 240 V~
Fig. 5.21 Connection diagram 2-phase
1
L1
2 3
N PE
220 - 240 V~
Fig. 5.22 Connection diagram 1-phase
Check that installation has been done correctly.
Switch on the main switch/automatic circuit breaker.
Put the cooktop into operation (see the Operation
section).
Check that all the functions are working correctly.
5.6 Configuration menu
Once installation is complete, you can adjust the basic
settings for the cooktop, these can then be changed at
any time.
Connect the control knob to the cooktop
321
Fig. 5.20 Connection the control knob to the cooktop on the
rear
[1] Connection the control knob for the front cooking zone
[2] Connection the extraction system
[3] Connection the control knob for the rear cooking zone
Connect the connection on the back of the control
knob to the connections provided at the rear of the
cooktops.
Use the connections provided to join the cooktop
extractor to the extraction system on the rear of the
cooktop.
Use the ribbon cable provided.
5.5.6 Establishing the power connection
Observe all safety and warning information
(see the Safety section).
Observe all national and regional laws and regulations
as well as the supplementary regulations of the local
utility companies.
INFO The power connection may only be established
by certified specialists. The specialist
also assumes responsibility for the proper
installation and commissioning.
INFO This device is intended for the connection to a
power supply system with a maximum permis-
sible system impedance ZMAX of 0.104 Ohm
at the interface point (power service box) of the
user’s supply.
The user has to ensure that this device is con-
nected only to a power supply system which
fulfills the requirement above. If necessary,
the user can the ask the public power supply
company for the system impedance at the
interface point.
EN
20
Installation
www.bora.com
Select mode
When you have confirmed menu option C 1, you can select
the operating mode.
Setting Mode
C10 Normal operating mode Factory setting
C 1 1 Demo mode
Tab. 5.6 Operating modes
INFO All the control knob functions are available
in demo mode. The heating function for the
cooktop is deactivated. Demo mode is used,
for example, for exhibitions.
0° or 180° installation
In menu option C2, you can set whether the cooktop is
installed rotated around 180°.
Setting
Display
C20 Installation 0° Factory setting
C2 1 Installation 180°
Tab. 5.7 Installation direction
INFO For installation rotated around 180°, the C2 1
assign the correct cooking zones inside the
control knob display.
Type of control knob display
In the C3 menu option, you can set whether the control
knob display should show the temperature, the power
level or a combination of the two.
Setting
Display
C 30 Temperature display in °C Factory setting
C3 1 Power display
C 32 Combination display
Tab. 5.8 Control knob display
5.6.1 Accessing the configuration menu
Twist the control knob to the 11 o’clock position. t
appears in the control knob display.
Press the touch surface of the control knob for a
second. The display switches to 000.
Press the touch surface again within 3 seconds and
hold it down for 5 seconds.
The control knob display shows C, a beep sounds and
the configuration menu is available.
5.6.2 Select menu option
Turn the knob ring to select the menu option you want.
The following menu options are available:
Menu options
C0 Volume of warning beep
C 1 Select operating mode (normal mode or demo mode)
C 2 0° or 180° installation
C 3 Type of control knob display
Tab. 5.4 Menu options in the conguration menu
Touch the touch surface on the control knob again for
1 second to confirm the menu you want.
The sub-menu is accessed and the display switches to
a three-character combination (e.g. C23).
INFO In the three-character combination shown, the
right-hand figure shows the value saved in the
system.
Setting the volume of the warning beep
Once you have confirmed menu option C0, you can set
the volume of the warning beep.
Setting Warning beep volume
C 00 100% (max. volume) Factory setting
C0 1 10% (min. volume)
C 02 20%
C 03 30%
C 04 40%
C 05 50%
C 06 60%
C 07 70%
C 08 80%
C 09 90%
Tab. 5.5 Warning beep volume
Other manuals for PKT11
2
Table of contents
Other bora Grill manuals
Popular Grill manuals by other brands
Vulcan-Hart
Vulcan-Hart VACB20 Specifications
Kingstone
Kingstone Cliff 250-1 operating instructions
Team Kalorik
Team Kalorik TKG COG 1001 manual
Gardenline
Gardenline 63187 User manual and assembly instructions
Thermos
Thermos EXPRESS 06401314 owner's manual
Outback
Outback Omega Charcoal 100 Assembly and operating instructions
