BASIC MODELS:

VACB20 20-1/8” wide VACB47 46-3/4” wide
VACB25 25-3/8” wide VACB60 60-5/8” wide
VACB36 36-1/8” wide VACB72 72-5/8” wide

KEY FEATURES:
■Stainless steel sides, control panel, top trim,
backsplash and grease trough
■Full width front grease drawer
■Heavy duty cast iron char-radiants
■5-1/4” wide cast iron diamond grates
■One 18,000 BTU/hr burner for each broiler grate
■Standing pilot ignition system
■One infinite heat control valve for each burner
■Underburner deflector system reflects heat upwards
creating a “Cool Zone” in the grease drawer and drip
areas.
■4” adjustable legs
■¾” rear gas connection and gas pressure regulator
■Supercharger burner dividers minimize heat transfer
to enhance multi-zone cooking capability
■One year limited parts and labor warranty
OPTIONAL FEATURES:
■6”, 7-5/8”, 10”, 12, and 13” legs
■Cutting board
■Plate rail
■Condiment rail
■Back and side splash kit
■Welded steel diamond and round rod grates.
■10-1/2” wide griddle plate inserts
■Stainless steel stand with undershelf and casters

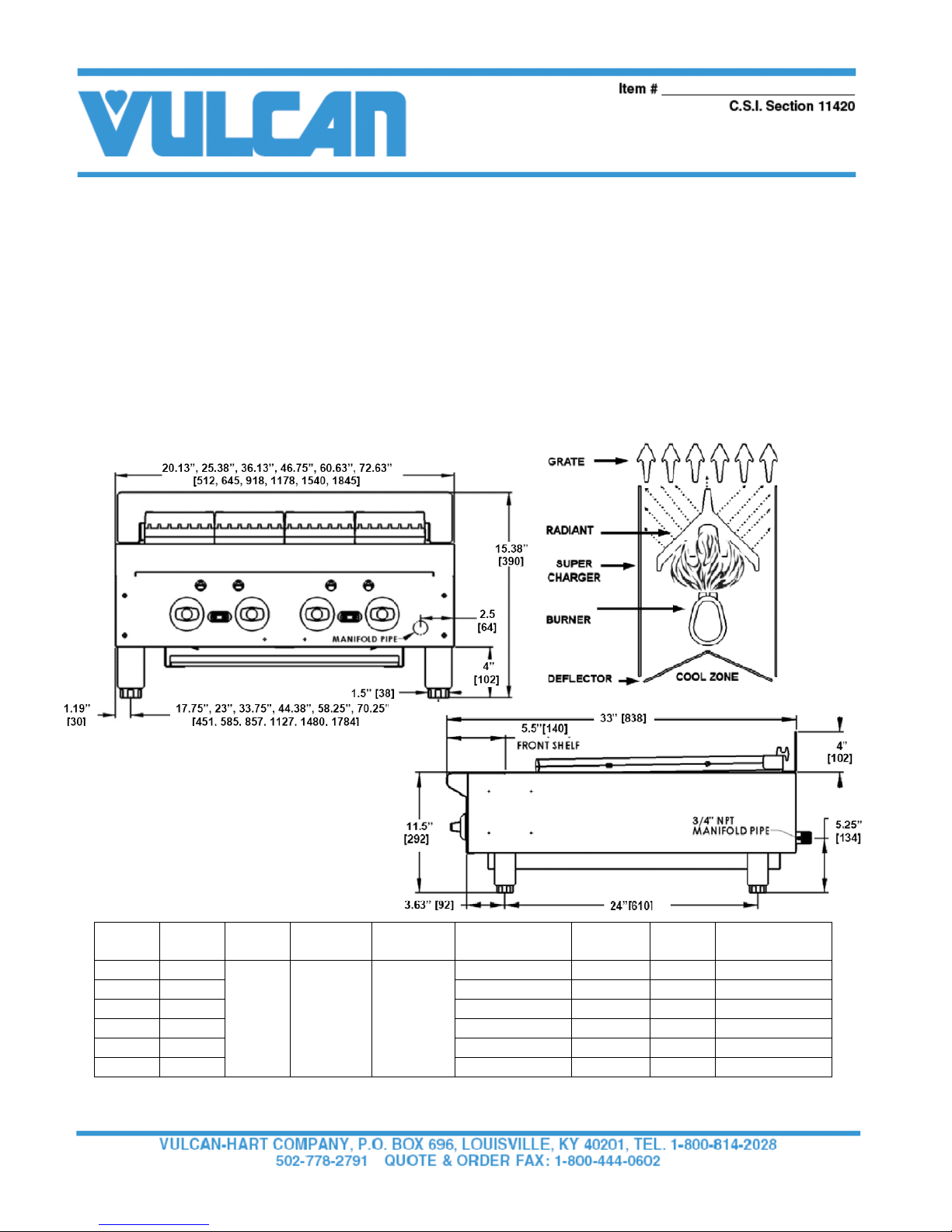

EXTERIOR DIMENSIONS:
“ W x 33” D x 11-1/2” working height on 4”
adjustable legs






Approved by
Date:
Model VACB47
F-36961 (07-08)
CSA design certified. NSF listed.
VACB SERIES
COUNTER MODEL GAS CHARBROILER
SPECIFYTYPEOFGASWHENORDERING
SPECIFYALTITUDEWHENABOVE2,000FT.


NOTE: In The Commonwealth of Massachusetts
All gas appliances vented through a ventilation hood or exhaust
system equipped with a damper or with a power means of exhaust
shall comply with 248 CMR.
4. CLEARENCES
Combustible Non-Combustible
rear 12” 3”
sides 9” 3”
5. This appliance is manufactured for commercial installation only
and is not intended for home use.
INSTALLATION REQUIREMENTS:
1. A gas pressure regulator supplied with the unit must
be installed;
Natural Gas 5.0” (127 mm) W.C.
Propane Gas 10.0” (254 mm) W.C.
2. An adequate ventilation system is required for commercial cooking
equipment. Information may be obtained by writing to the
National Fire Protection Association, Batterymarch Park, Quincy,
MA 02269. When writing refer to NFPA No. 96.
3. These units are manufactured for installation in accordance with
National Fuel Gas Code, ANSI-Z223.1/NFPA #54 (latest edition).
Copies may be obtained from The American Gas Association,
Accredited Standards Committee Z223 @ 400 N. Capital St. NW,
Washington,DC 20001, or the Secretary Standards Council, NFPA,
1 Batterymarch Park, Quincy, MA 02169-7471.

F-36961 (07-08)
*These are nominal dimensions and can vary by + 1.75” with adjustable legs.
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and specifications
without notice.
VACB SERIES
COUNTER MODEL GAS CHARBROILER

MODEL WIDTH DEPTH OVERALL* WORKING* BROILING # TOTAL APPROX SHIP
HEIGHT HEIGHT AREA BURNERS BTU/HR WT (LB/KG)
VACB20 20-1/8" 16-1/4 X 22-5/16 3 54,000 225/102
VACB25 25-3/8" 21-1/2 X 22-5/16 4 72,000 290/131
VACB36 36-1/8" 33" 17-3/8" 11-1/2" 32-1/4 X 22-5/16 6 108,000 370/167
VACB47 46-3/4" 43 X 22-5/16 8 144,000 450/203
VACB60 60-5/8" 57 X 22-5/16 11 198,000 500/225
VACB72 72-5/8" 68-3/4 X 22-5/16 13 234,000 580/263


