Bosch SHH4HCX48E User manual

Dishwasher
SHH4HCX48E
[NL] User manual
Translated from Dutch to English - www.onlinedoctranslator.com

NL
Table of contents
Safety.................................................. 4 Before using for the first time .................. 22
General instructions .................. 4
Destination of the device.................. 4
Restriction of users ............ 4
Secure installation................................. 4
Safe use.................................................. 6
Damaged device ......................... 8
Dangers for children..................... 8
First time use........ 22
Softening System .................. 22
Overview of the water hardness
settings............................ 22
Set water softening.................. 23
Softening salt ............................. 23
Switching off water softening..... 24
Avoiding material damage ........ 10 Softening system regenerative
run .................................................. 25
Safe installation.................................. 10
Safe use.................................. 10 Rinse system ...................... 25
Environmental protection and
saving................................................... .... 11
Rinse aid ......................... 25
Setting the rinse aid
amount ................................................... 26
Disposing of the packaging .......... 11
Saving energy ................................ 11
Aqua sensor ................................... 11
Switch off rinse system... 26
Detergent .................................. 26
Set up and connect................. 12 Suitable detergents .......... 26
Unsuitable detergent ................ 28
Scope of delivery .................................. 12
Setting up and connecting the
device................................................... ....... 12
Notes on
detergents................................................................... .. 28
Waste water connection ................... 12
Drinking water connection .................. 13
Electrical connection .................. 13
Filling detergent ..................... 28
Crockery.................................. 29
Damage to glass and crockery
good ................................................ 30
Getting to know your device............ 14
Device ................................................. 14
Controls..................... 15
Loading crockery ................... 30
Unloading crockery ................... 31
Programs .................................. 17 The Ministry in Essence.............. 31
Notes for test institutes ..... 18
Favorite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Opening the appliance door .................. 31
Switching on the appliance .................. 31
Set program .................. 32
Set additional function .................. 32
Making time setting................................ 32
Start program .................. 32
Interrupt program .................. 32
Cancel program ................................ 33
Switching off the appliance .................. 33
Additional Features ................................ 19
Equipment.................................. 19
Upper basket ......................... 19
Lower basket ......................... 20
Cutlery drawer.................................. 20
Etagère .................................. 21
Folding plate supports .......... 21
Cutlery basket heights ......................... 22
2

NL
Basic Settings ................................ 34
Overview of the basic settings
gen .................................................. 34
Change basic settings.................. 35
Cleaning and maintenance................ 35
Cleaning the rinse aid container .......... 35
Detergent .................................. 36
Device maintenance tips.......... 36
Machine cleaning . . . . . . . . . . . . . . . . . . . . . . . . 36
Sieving System.................................. 37
Cleaning Spray Arms................. 38
Troubleshooting ......................... 40
Error code / error indication / signal
nal .................................................. 40
Washing result ................................ 42
Indications on the display........... 49
Malfunctions................................. 50
Mechanical damage ........... 51
Sounds ................................................ 51
Cleaning the Drain Pump................... 53
Transport, storage and
disposal................................................................. 53
Disassembling the device ................... 53
Making the device frost-proof.... 54
Transporting the device .................. 54
Disposal of your old device .... 54
Service.................................. 55
Product number (E-Nr.), production
number (FD) and serial number (Z-
Nr.) ............................ ............... 55
AQUA-STOP guarantee ................... 55
Technical data.................. 56
Information on Free Software and Open
Source Software ....................... 56
3

NL Safety
Safety
Observe the following safety instructions.
General instructions
s Read this manual carefully.
s Keep the operating instructions and product information for
later use or for subsequent owners.
s Do not connect the device in case of transport damage.
Destination of the device
Only use the device:
s to wash dishes.
s for domestic use and in enclosed spaces within the domestic
environment.
s to an altitude of 4000 m above sea level.
Restriction of the users
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and/or knowledge if they are
supervised or have been instructed in the safe use of the appliance.
and have understood the resulting dangers. Children must not play
with the appliance.
Cleaning and user maintenance shall not be made by children
unless they are supervised.
Make sure that children under 8 years old cannot reach the device
or the connecting cable.
Safe installation
WARNING ‒ Risk of injury!
Improper installations can cause injury.
▶ When setting up and connecting the device, follow the
instructions in the operating and installation instructions.
4

Safety NL
WARNING ‒ Risk of electric shock!
s Improper installations are dangerous.
▶ Only connect and use the device in accordance with the
information on the type plate.
▶ Always use the supplied power cord of the new appliance.
▶ Only connect the device to a mains supply with alternating
current via a properly installed earthed socket outlet.
▶ The protective earth system of the electrical house installation must
be installed in accordance with the electrical engineering
regulations.
▶ Never power the device via an external switching device,
e.g. a time switch or remote control.
▶ When the device is installed, the mains plug of the mains
connection cable must be freely accessible, or if free access is
not possible, an all-pole disconnecting device must be
installed in the permanently installed electrical system in
accordance with the installation instructions.
▶ When setting up the device, make sure that the mains
cable is not pinched or damaged.
s Cutting the supply hose or submerging the AquaStop valve in
water is dangerous.
▶ Never immerse the plastic housing in water. An electric
valve is located in the plastic housing on the supply hose.
▶ Never cut the supply hose. There are electrical connection
lines in the supply hose.
WARNING ‒ Risk of fire!
Using an extended power cord and unauthorized adapters
is dangerous.
▶ Do not use extension cords or multiple sockets.
▶ If the power cord is too short, contact the after-sales
service.
5

NL Safety
▶ Only use adapters approved by the manufacturer.
WARNING ‒ Risk of injury!
The hinges move when opening and closing the appliance
door and can cause injury.
▶ If underfloor or built-in appliances are not located in a niche
and thus a side wall is accessible, the side hinge section
must be covered. The covers are available from specialist
dealers or from our after-sales service.
WARNING ‒ Danger of tipping over!
Improper installation can lead to the device tipping over.
▶ Only install underfloor or built-in appliances under a
continuous worktop that is firmly connected to the
adjacent cupboards.
Safe use
WARNING ‒ Risk of serious health hazard!
Failure to observe the safety instructions and instructions for
use on the packaging of dishwasher detergents and rinse aids
can lead to serious health damage.
▶ Observe the safety instructions and instructions for use on
the packaging of detergents and rinse aids.
WARNING ‒ Risk of explosion!
s Solvents in the washing area of the device can lead to
explosions.
▶ Never put solvents in the washing area of the appliance.
6

Safety NL
s Highly corrosive alkaline or strongly acidic cleaning agents in
combination with aluminum objects in the washing area of
the appliance can lead to explosions.
▶ Never use highly corrosive alkaline or strongly acidic
cleaning agents, in particular those for professional or
industrial use, in combination with aluminum objects (e.g.
grease filters from extractor hoods or aluminum pans) in
the dishwasher, e.g. for machine maintenance. maintain.
WARNING ‒ Risk of injury!
s An open appliance door can lead to injuries.
▶ Only open the appliance door for loading and unloading
dishes in order to prevent accidents such as tripping.
▶ Do not sit or stand on the open appliance door.
s Knives and objects with sharp points can cause injuries.
▶ Place knives and objects with sharp points pointing
downwards in the cutlery basket, knife holder or cutlery
drawer.
WARNING ‒ Risk of burns!
If the appliance door is opened during the program run, hot
water may splash out of the appliance.
▶ Only open the appliance door carefully during the program
run.
WARNING ‒ Risk of electric shock!
s Penetrating moisture can cause an electric shock.
▶ Only use the device in closed rooms.
▶ Never expose the device to excessive heat and humidity.
▶ Do not use a steam cleaner or high-pressure cleaner to
clean the appliance.
s Damaged power cord insulation is dangerous.
▶ Never bring the connecting cable into contact with hot
appliance parts or heat sources.
7

NL Safety
▶ Never bring the power cable into contact with sharp
points or edges.
▶ Never kink, pinch or alter the power cord.
Damaged device
WARNING ‒ Risk of electric shock!
s A damaged appliance or power cord is dangerous.
▶ Never use a damaged device.
▶ Never use a device with a cracked or broken surface.
▶ Never pull on the power cord to disconnect the device
from the power supply. Always pull the plug on the power
cord.
▶ If the appliance or the mains cable is damaged, immediately
unplug the mains cable from the socket or switch off the
fuse in the fuse box and close the tap.
" Contact customer service." → Page 55
s Improper repairs are dangerous.
▶ Only qualified personnel may carry out repairs on the
device.
▶ Only original spare parts may be used to repair the device.
▶ If the power cord of this appliance is damaged, it must be
replaced with a special cord available from the
manufacturer or its service agent.
Dangers for children
WARNING ‒ Risk of suffocation!
s Children can pull packing material over their head and become
entangled and suffocate.
▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.
8

Safety NL
s Children can inhale or swallow small parts and choke.
▶ Keep small parts away from children.
▶ Do not allow children to play with small parts.
s Children can lock themselves in the appliance and suffocate.
▶ If present, use the child lock.
▶ Never allow children to play with or operate the appliance.
WARNING ‒ Risk of health hazard!
Children can lock themselves in the appliance and endanger
their lives.
▶ In the case of discarded appliances, remove the plug of the
mains cable from the socket, then cut the mains cable and
damage the lock of the appliance door so that the appliance
door no longer closes.
WARNING ‒ Risk of crushing!
Children can become trapped between the appliance door
and the cupboard doors below with appliances installed high.
▶ Watch out for children when opening and closing the appliance
door.
WARNING ‒ Risk of chemical burns!
Dishwasher and rinse aids can cause burns to the mouth,
throat and eyes.
▶ Keep children away from detergents and rinse aids.
▶ Keep children away from the opened appliance. The water in
the washroom is not drinking water. Residues of detergent
and rinse aid may still be left in this.
WARNING ‒ Risk of injury!
Children can get their little fingers caught in the slots of the
tablet tray and injure themselves.
▶ Keep children away from the opened appliance.
9

NL Avoid material damage
m Material damage
avoid
avoid material damage s Modified or damaged water
hoses can lead to material damage
and damage to the device.
▶ Never kink water hoses,
pinch, modify or cut.
▶ Only supplied water hose
or use original spare hoses.
▶ Never used water hoses
reuse.
s Too low or too high water pressure
may interfere with the device function.
▶ Make sure the water pressure
at the water supply installation is
a minimum of 50 kPa (0.5 bar)
and a maximum of 1000 kPa (10
bar).
▶ When the water pressure reaches the
exceeds the given maximum
value, a pressure reducing valve
must be installed between the
drinking water connection and
the hose set of the unit.
Avoid material damage
Safe installation
PAY ATTENTION!
s An improper installation of
the device can cause damage.
▶ If the dishwasher is under or above
If other household appliances
are installed, the information on
installation in conjunction with
the dishwasher in the installation
instructions for the respective
household appliance must be
observed.
▶ If no information is available
or if the installation manual
does not contain any
instructions on this subject,
check with the manufacturer of
these household appliances
whether the dishwasher can be
built-in above or below other
household appliances.
▶ If there is no information from the fa-
brine is available, the
dishwasher must not be
installed above or below these
household appliances.
▶ To ensure safe operation of all
household appliances, you must
also follow the installation
instructions for the dishwasher.
▶ Do not place the dishwasher under a
install hob.
▶ Do not install the dishwasher in
near heat sources such as
radiators, water heaters, stoves
or other appliances that give off
heat.
Safe use
PAY ATTENTION!
s Emerging water vapor
can damage built-in furniture.
▶ The device after the end of
allow the program to cool down
briefly before opening the
appliance door.
s The rinse aid container can be
corrode softening salt for
dishwashers.
▶ To ensure that
spills out of the softening salt
from the rinse aid container, the
softening salt must be filled into
the water softening salt
reservoir immediately before the
program starts.
10

Environmental protection and saving NL
sDishwasher detergent can damage
the water softener.
▶ The reservoir of the softener
Only fill the water supply with
special salt for dishwashers.
Unsuitable detergents can damage
the appliance.
▶ Do not use a steam cleaner.
▶ To prevent scratches
do not use sponges with a
rough surface or abrasive
cleaning agents on the surface
of the appliance.
▶ To prevent corrosion at
dishwashers with a stainless
steel front do not use sponge
cloths or rinse them well several
times before using them for the
first time.
If you only need to wash a few
dishes, you can use the Half load
option. 1
The program is adapted to the
lower load and the consumption
values are reduced.
→ "Additional Features", Page 19
s
Aquasensor
The aquasensor is an optical
measuring device (photocell) with
which the turbidity of the washing
water is measured. Water can be
saved with the aqua sensor.
The use of the aquasensor depends
on the specific program. In case of
heavy soiling, the washing-up water is
pumped out and replaced with fresh
water. In the case of light soiling, the
washing water is also used during the
next washing phase and the water
consumption can be reduced by 3-6
litres. In the automatic programs, the
temperature and running time are
also adapted to the degree of soiling.
m menvironmental protection and saving
environmental protection and
savings
Environmental protection and saving
Disposal of the packaging
The packaging materials are
environmentally friendly and can be
reused.
▶ The individual components on
kind of separate disposal.
Save energy
If you follow these instructions, your
appliance will use less electricity and
water.
Use the Eco 50° program.
The Eco 50° program is energy-
saving and environmentally friendly.
→ "Programs", Page 17
1Depending on the device version
11

NL Set up and connect
O
Set up and connect
set up and connect a continuous worktop that is
permanently connected to the adjacent
cupboards.
O sset up and connect
Connect the appliance to electricity
and water in a professional manner
for correct use. Observe the required
criteria and the installation
instructions.
1. " Observe the safety instructions." →
Page 4
2. " Observe the instructions for the
electrical connection."
→ Page 13
Scope of supply 3. Check the contents of the package
and the condition of the device.
After unpacking, check all parts for
transport damage and for
completeness of the delivery.
For complaints, please contact the
store where you purchased the
device or our customer service.
4. The required installation dimensions can be found
in the installation instructions.
5. Level the appliance using the
adjustable feet.
Remark: The device has been checked
at the factory for correct operation.
Water stains may remain on the
device. The water spots disappear
after the first wash cycle.
Pay attention to a firm stand.
6. " Install the waste water
connection." → Page 12
7. " Install the drinking water
connection." → Page 13
The delivery consists of:
s Dishwasher
s Instructions
s Assembly instructions
s Other documents containing information
tie
s Mounting material
s Steam protection plate
s Salt filling aid funnel
s Power cord
s Quick Guide
8. Connect the device to the
power.
Waste water connection
Connect the appliance to a drain water
connection so that the contaminated
washing water can be drained.
Install waste water connection
1. The necessary steps can be found in
the supplied installation manual.
Setting up and connecting the
device
2. Connect the drain hose to the
connection nipple of the siphon
using the supplied parts.
You can install your under-counter or
built-in appliance in the kitchen unit
between wooden and plastic walls. If
you subsequently install the device as
a free-standing device, you must
secure the device against tipping over,
e.g. by screwing it to the wall or
installing it under
3. Make sure that the drain hose is
not kinked, crushed or tangled.
4. Make sure that the water does not
flow out by a sealing cap in the
waste water connection.
12

Set up and connect NL
Drinking water connection 3. Check the plug for tightness.
Connect the device to a drinking
water connection.
Install drinking water connection
Note
s When you replace the device,
you can use a new water supply
hose.
1. The necessary steps can be found in
the supplied installation manual.
2. Connect the device to the
drinking water connection using
the enclosed parts.
The "technical data"
→ Page 56 consider.
3. Make sure that the drinking water
connection is not kinked, crushed
or entangled.
Electrical connection
Connect the device to the mains.
Connecting the appliance
electrically Notes
s Observe the "Safety
sing" → Page 4.
s Only connect the device
on an AC voltage of 220 - 240 V
and 50 Hz or 60 Hz.
s Please note that the
The protection system only works
when the device is supplied with
power.
1. Connect the appliance plug of the
connecting cable to the appliance.
2. Plug the appliance into a socket in
the vicinity of the appliance.
The connection data of the device
can be found on the type plate.
13

NL Getting to know your device
YOU Getting to know your deviceget to know your device
Getting to know your device

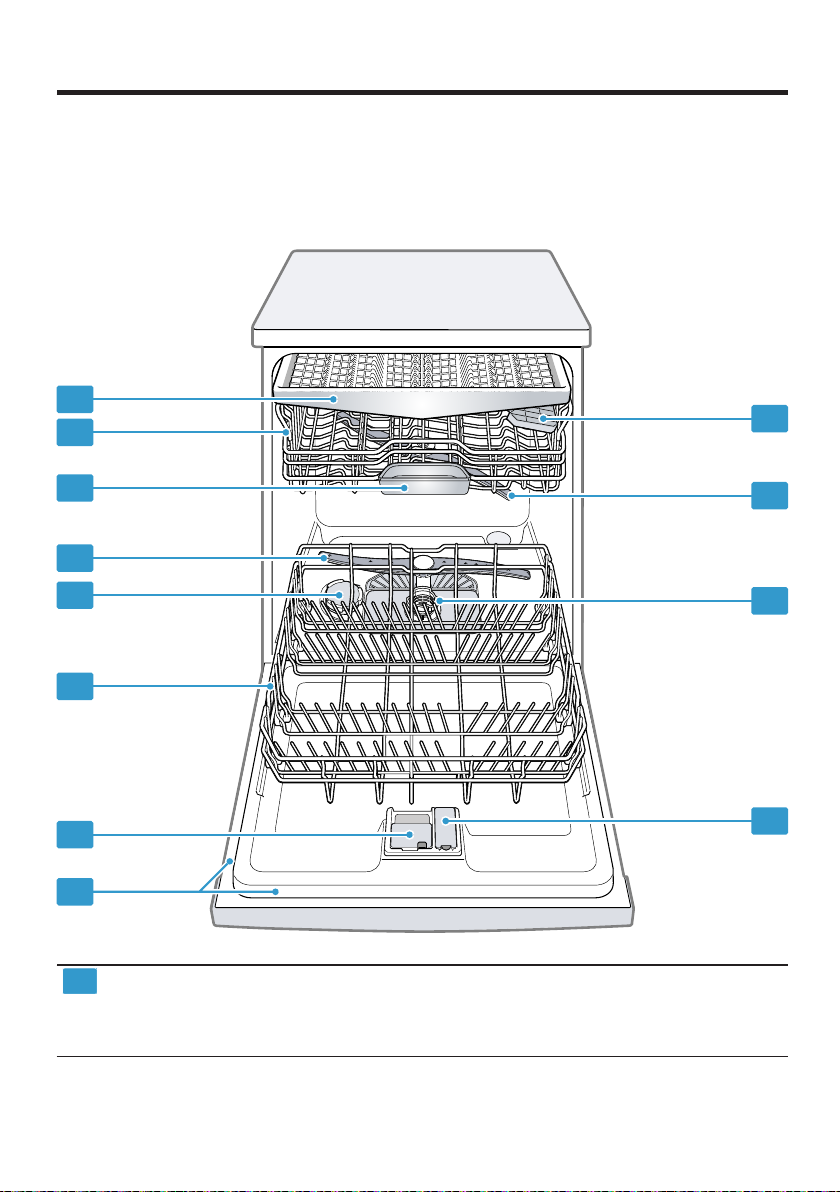

Device
Here you will find an overview of the components of your device.
8
79
10
6
5
411
3
2
1
12
1Nameplate Type plate with "E number and FD number"
→Page 55.
You need this information for the "service"
→Page 55.
1 Depending on the device version
14

Getting to know your device NL
2Detergent dispenser Put the "dishwasher detergent" in the detergent dispenser
→Page 26.
3
4
Lower crockery basket
Reservoir for softening salt
"Lower crockery basket" → Page 20
Add softening salt to the water softening salt
reservoir.
→"Softening System", Page 22
5Lower spray arm The lower spray arm cleans the dishes in
the lower basket.
If the dishes do not get optimally clean, clean
the spray arms.
→"Cleaning the spray arms", Page 38
6Tablet tray During the wash cycle, tabs automatically fall from the
detergent dispenser into the tablet compartment where
the tabs can dissolve optimally.
7
8
9
10
Upper crockery basket
cutlery drawer
Etagère 1
Upper spray arm
Upper crockery basket
"cutlery drawer" → Page 20
"Etagère" → Page 21
The upper spray arm cleans the dishes in
the upper basket.
If the dishes do not get optimally clean, clean
the spray arms.
→"Cleaning the spray arms", Page 38
11
12
Sieving System
Rinse aid reservoir
"Sieve system" → Page 37
Add rinse aid to the rinse aid reservoir.
→"Rinse system", page 25
1 Depending on the device version
Controls
You can set all functions of your device and obtain information about the
operating status via the control panel.
You can perform various functions with a few keys.
15

NL Getting to know your device
1 2 3 4 5 6 7
11 10 9 8
1ON/OFF button and Reset button "Turn on device" → Page 31
"Turn off device" → Page 33
"Abort program" → Page 33
2
3
4
5
6
Program keys
Refill softener salt indicator
Refill rinse aid indicator Water
supply indicator
Program keys and additional functions
"Programs" → Page 17
"Water softening" → Page 22
"rinse system" → Page 25
Water supply indication
"Programs" → Page 17
"Additional Features" → Page 19
7
8
Start button
Key
"Start program" → Page 32
If you press for approx. 3 seconds,
open the basic settings.
9
10
11
Choose start time
door opener 1
Display
"Create time setting" → Page 32
"Open device door." → Page 31
The display shows information about the time
remaining or basic settings. You can change the
basic settings via the display and the setting
buttons.
1 Depending on the device version
16

Programs NL
p Programsprograms
p Here you will find an overview of the
adjustable programs. Depending on
the configuration, different programs
are offered on the control panel of
the device. The running time depends
on the selected program. In addition,
the running time depends on the
water temperature, amount of
crockery, degree of soiling and
selected additional function. Also a
disabled
programs
rinse system or lack of rinse aid
affects the run time.
The consumption values can be
found in the quick guide. The
consumption values apply under
normal conditions and a water
hardness of 13 - 16 °dH. Various
factors, such as water temperature or
pipe pressure, can lead to deviations.
Program Usage Program sequence Additional Features
China:
s Pots, pans, non-
clean delicate crockery
and cutlery.
Degree of pollution:
s Very caked, in-
burnt or dried up
remove food residues
containing starch or
protein.
Intensive:
s Pre-rinse
s Cleaning 70 °C
s Intermediate rinse
s Rinse aid 69 °C
s To dry
All
→"Additional Features",
Page 19
Intensive 70°
China:
s Mixed crockery and
clean cutlery.
Degree of pollution:
s Slightly dried up, in the
household food
waste.
Sensor-optimized: All
Auto 45-65° s Becomes dependent on the → " additional features",
degree of contamination of Page 19
the washing water is optimized
by the sensor system
lized.
China:
s Mixed crockery and
clean cutlery.
Degree of pollution:
s Slightly dried up, in the
household food
waste.
Most economical program:
s Pre-rinse
s Cleaning 50 °C
s Intermediate rinse
s Rinse aid 61 °C
s To dry
All
→"Additional Features",
Page 19
Eco 50°
China:
s Mixed crockery and
clean cutlery.
Degree of pollution:
s Slightly dried up, in the
household food
waste.
Sound-optimized:
s Pre-rinse
s Cleaning 50 °C
s Intermediate rinse
s Final rinse 63 °C
s To dry
All
→"Additional Features",
Page 19
Silent 50
17

NL Programs
Program Usage Program sequence Additional Features
China:
s Mixed crockery and s Cleaning 65 °C
clean cutlery.
Degree of pollution: s Rinse aid 69 °C
Time-optimized:
s Intermediate rinse
Extra Dry
→"Additional Features",
Page 19
Express 65° - 1h
s Slightly dried up, in the s To dry
household usual
remove food residues.
Use only with the
device removed.
Machine cleaning 70 °C No
Machine cleaning
- - -
Favorite
Remark: The relatively longer run
time of the Eco 50° program is due to
longer soaking and drying times.
These enable optimum consumption
values.
Favorite
save.
on the device
1. Open the appliance door.
to press.2. on
3. Press the program button.
→ "Programs", Page 17
Notes for test institutes
4. Press the button for the desired
additional function.
→ "Additional Features", Page 19
Test institutes receive instructions for
comparison tests, e.g. according to
EN60436.
This concerns the conditions for
conducting the tests, not the results
or consumption values.
Inquiry by email to:
[email protected]
The product number (E-No.) and the
production number (FD) are required,
which you will find on the type plate on the
appliance door.
5. Press for 3 seconds.
a The selected program and
the additional function will flash.
flashes.a
a The program and the extra function
are stored.
Tip: To reset the program you can
reset the device to the factory
setting.
→ "Overview of the basic settings
gen", Page 34
Favorite
Under the key
nation of a program and additional
function.
The Pre-rinse program is stored
under this button at the factory. Pre-
rinse is suitable for all types of
crockery. The dishes are pre-cleaned
by cold rinse.
can you make a combi
18

Additional Features NL
E Additional Featuresextra features YOU Equipmentequipment
E Here you will find an overview of the
adjustable additional functions.
Depending on the configuration, various
additional functions are provided on the
control panel of the device.
extra features YOU Here you get an overview of the
possible equipment of your device
and the way in which you use it. The
equipment depends on your device
variant.
equipment
Additional function Usage Upper crockery basket
s The duration depends on
depending on the
washing program by
15% to 75%.
s The additional function can
before the programs
tart or at any time
during the program
progress are activated
spring.
s The water and energy
consumption are
high.
Place cups, glasses and small
crockery in the upper basket.
SpeedPerfect+
s With few crockery
switch.
s Less detergent
in the dishwasher
then make a bowl
for a full load
is recommended.
s The running time is
short.
s The water and energy
consumption are
low.
half load To create space for larger crockery,
you can adjust the height of the upper
crockery basket.
Adjusting the upper basket with
side levers
To wash large items of crockery in
the crockery baskets, you can adjust
the shelf height of the top crockery
basket.
s For an improved dry-
The final result is the
rinse temperature
increased and the
drying phase extended.
s Particularly suitable for
drying plastic
parts.
s The energy consumption is
slightly higher and the
maturity increases.
1. Pull out the upper basket.
Extra Dry 2. Hold the crockery basket on the
sides at the top edge to prevent
the crockery basket from falling
down jerkily.
19

NL Equipment
3. Press the levers on the left and
right on the outside of the basket
inwards.
Lower crockery basket
Place pans and plates in the lower
basket.
4. Lower or raise the dish basket
evenly to the desired position.
→ "Cutlery basket heights",
Page 22
Large plates with a diameter of up
to 34 cm can be placed in the lower
basket as shown.
Make sure that the upper
crockery basket is level on both
sides.
cutlery drawer
Put the cutlery in the cutlery drawer.
5. Push in the upper basket.
20
