Bosch SHX3AR72UC User manual

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
Technical Details
Watts (W) 1400 W
Current (A) 12 Amps
Volts (V) 120 V
Frequency (Hz) 60 Hz
Power cord length N/A
Minimum water pressure
(lb/sin)
15
Length inlet hose (in) N/A
Length outlet hose (in) 91 3/4"
Dimensions & Weight
Overall appliance
dimensions (HxWxD)
(in)
33 7/8" x 23 9/16"
x 22 9/16"
Required cutout size
(HxWxD) (in)
33 7/8" x 24" x 24"
Adjustable feet Yes
Net weight (lbs) 71 lbs
Accessories—Optional
Dishwasher Supply and
Drainage Hose Extension
76 3/4"
SGZ1010UC
Dishwasher 3-Prong
Power Cord 55 1/4"
SGZPC001UC
Dishwasher Accessory
Kit
SGZ1052UC
Duo-Flex Silverware
Basket
SMZ4000UC
General Properties
Number of wash cycles 6
Number of options 2
dBA 50
Third rack N/A
Rack adjustability Manual
Tub material Stainless steel/
polypropylene
Control type Buttons
Concealed heating
element
Yes
Leak protection system 24/7 Overflow
Protection
Water softener No
Five-level wash Yes
ChildLock No
Special features N/A
Efficiency
Water usage per cycle 2.95
Energy efficiency class Tier 1
ENERGY STAR® qualified Yes
Total annual energy
consumption (kWh)
279
Total annual water
consumption (g)
634
Capacity
Number of place settings 14
SHX3AR72UC
White
Bosch dishwashers
incorporate 18 unique
sound-reducing
technologies, to make
Bosch the quietest
dishwasher brand in
the US.
Features & Benefits
50 dBA: Quietest
dishwasher brand.
Height adjustment upper
rack.
Stainless steel tall tub
with polypropylene bottom
delivers durability.
Sanitize option eliminates
bacteria and enhances
drying results.
24/7 Overflow Protection
System® helps prevent
water leaks.
Also available in:
Stainless Steel SHX3AR75UC
Black SHX3AR76UC
Ascenta – White SHX3AR72UC
24" Bar Handle Dishwasher

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.

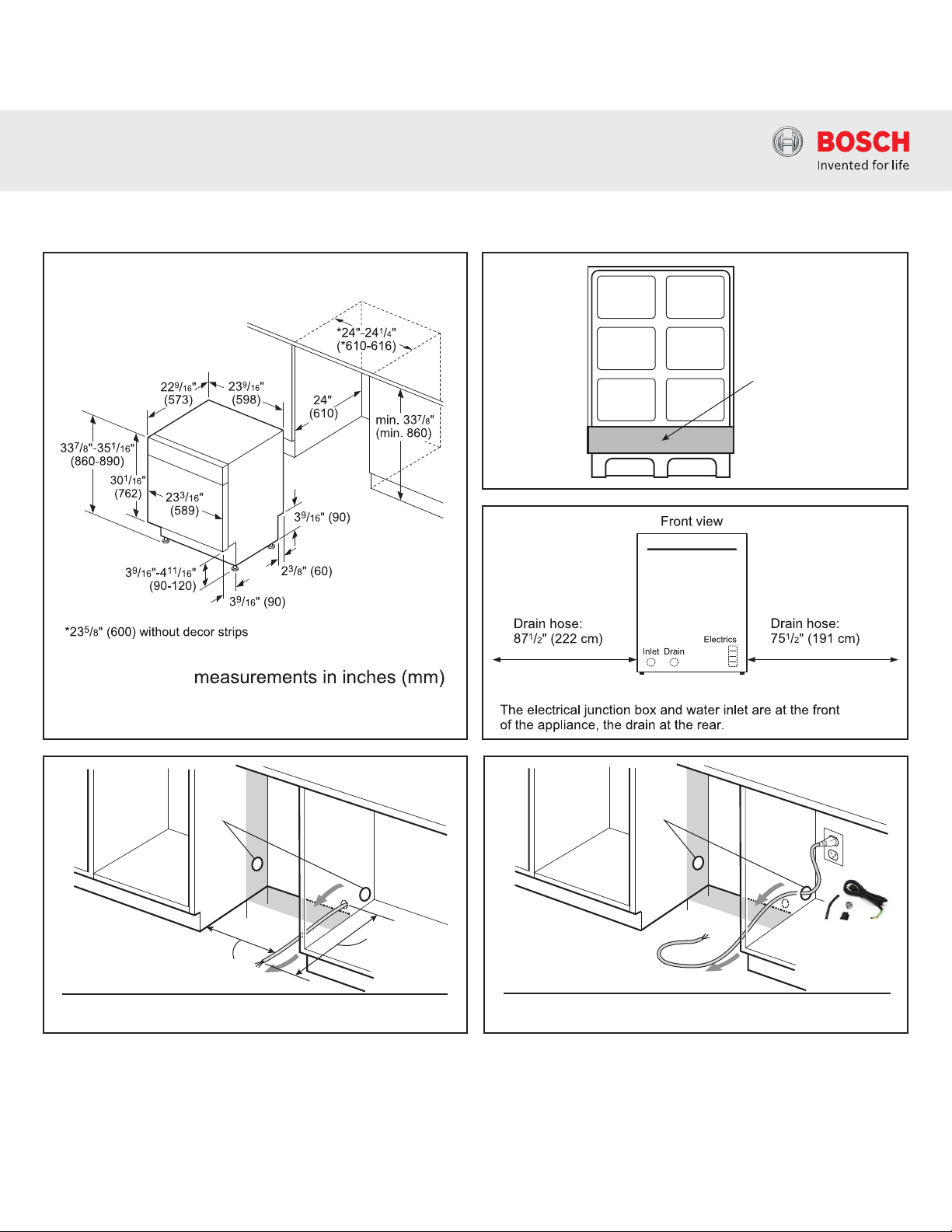

Installation Details
Drain hose
Toe-kick
Included:
Image 2: Ascenta
Ø 2"
(51 mm)
2"
(51 mm)
21"
(54 cm)
Example of Hardwire Installation
30"
(77 cm)
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
Image 3a: Ascenta
Ø 2"
(51 mm)
2"
(51 mm)
Example of an Electrical Receptacle Installation
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
Accessory power
cord for receptacle
connection
SGZPC001UC
(not included).
Image 3b: Ascenta
Ascenta – White SHX3AR72UC
24" Bar Handle Dishwasher

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
Installation Details
Note: Plumbing installations will vary - refer to local codes.
Drain hose included is 91 3/4" (233 cm) and can be
extended to a maximum of 168 1/2" (428 cm).
Always use the approved drain hose extension kit
(SGZ1010UC).
Ensure a portion of the drain hose is raised between min.
20" (50 cm) and max. 43" (110 cm) above the cabinet floor.
Non-metallic tie
min 20" (50 mm) max 43" (110 mm) min 20" (50 mm) max 43" (110 mm)
Non-metallic tie
Remove
plug
Image 5: Ascenta
Ascenta – White SHX3AR72UC
24" Bar Handle Dishwasher
