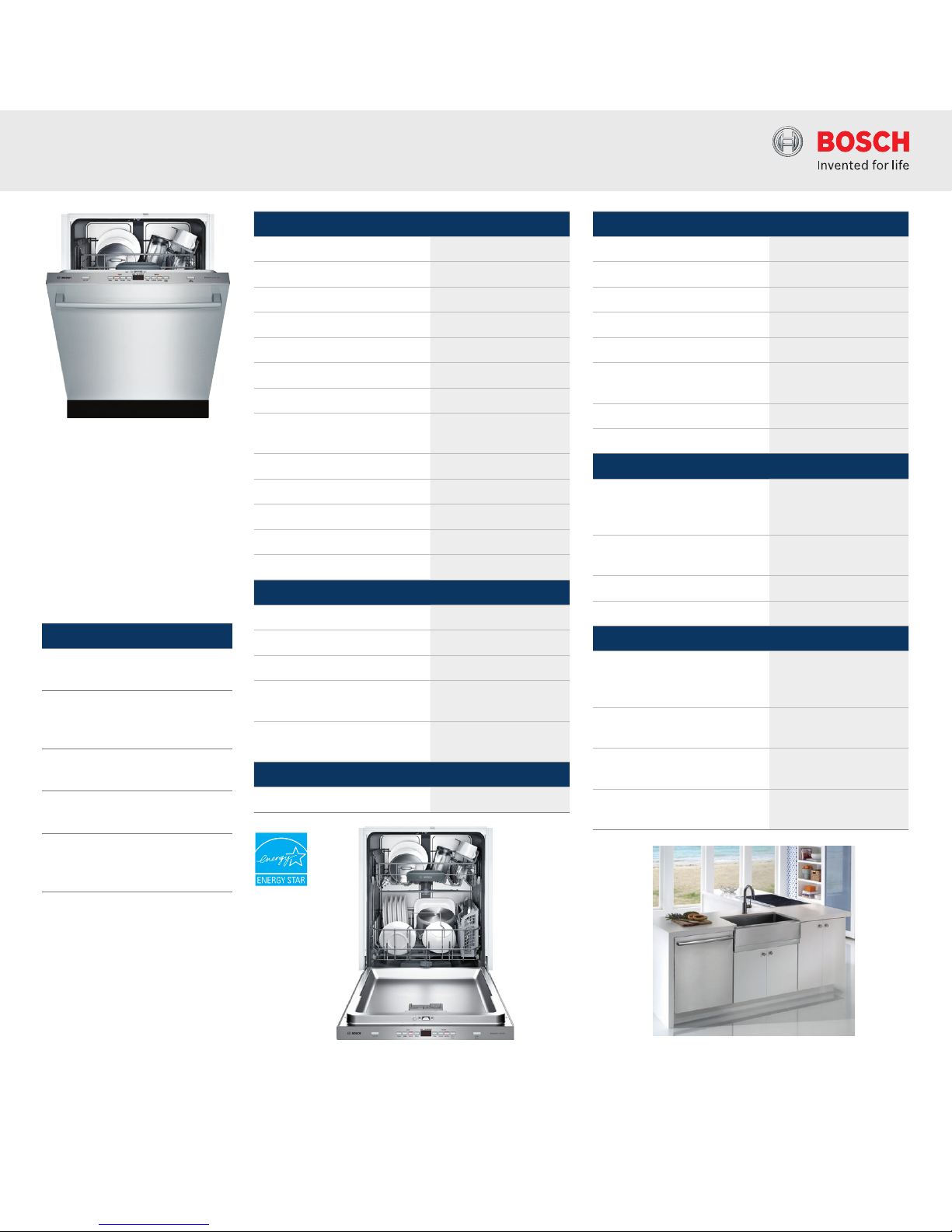

Bosch SHX53T55UC User manual

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
Technical Details
Watts (W) 1300 W
Current (A) 12 Amps
Volts (V) 120 V
Frequency (Hz) 60 Hz
Power cord length 56 5/16"
Minimum water pressure
(lb/sin)
14
Length inlet hose (in) 60"
Length outlet hose (in) 79"
Dimensions & Weight
Overall appliance
dimensions (HxWxD)
(in)
33 7/8" x 23 9/16"
x 23 3/4"
Required cutout size
(HxWxD) (in)
33 7/8" x 23 5/8"
x 24"
Adjustable feet Yes
Net weight (lbs) 84 lbs
Accessories—Optional
Dishwasher Supply and
Drainage Hose Extension
76 3/4"
SGZ1010UC
Dishwasher 3-Prong
Power Cord
SMZPC002UC
Dishwasher Accessory
Kit
SMZ5000
Duo-Flex Silverware
Basket
SMZ4000UC
General Properties
Number of wash cycles 4
Number of options 4
dBA 46
Third rack
Rack adjustability Manual
Tub material Stainless steel
Control type Buttons
Concealed heating
element
Yes
Leak protection system 24/7 AquaStop®
Water softener No
Five-level wash Yes
ChildLock No
Special features InfoLight®
Efficiency
Water usage per cycle 2.9
Energy efficiency class Tier 1
ENERGY STAR® qualified Yes
Total annual energy
consumption (kWh)
259
Total annual water
consumption (g)
624
Capacity
Number of place settings 15
SHX53T55UC
Stainless Steel
Bosch dishwashers are
so quiet, you may forget
they’re on. InfoLight®
projects a red light onto
the floor to let you know
it’s on.
Features & Benefits
46 dBA: Quietest
dishwasher brand.
InfoLight® shines on the
floor so you know the
dishwasher’s running.
Height adjustment for
upper rack.
Detergent tray optimizes
detergent dissolving.
AquaStop® leak protection
works 24/7 to prevent
water damage.
300 Series - Stainless Steel SHX53T55UC
24" Bar Handle Dishwasher

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
Installation Details
Pre-connected
drain hose
Pre-connected
inlet hose
Toe-kick
Power cord with
junction box
Included:
Image 2: 2013 New Dish NBN
Ø 2 1/2"
(63.5 mm)
7"
(178 mm)
Example of Hardwire Installation
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
Power cord
with junction
box included
2 1/2"
(63.5 mm)
Image 3a: New Dish NBN
Ø 2 1/2"
(63.5 mm)
7"
(178 mm)
Example of an Electrical Receptacle Installation
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
Accessory
power cord for
receptacle connection
SMZPC002UC
(not included).
2 1/2"
(63.5 mm)
Image 3b: New Dish NBN
300 Series - Stainless Steel SHX53T55UC
24" Bar Handle Dishwasher

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
Installation Details
Note: Plumbing installations will vary - refer to local codes.
Drain hose included is 79 (201 cm) and can be extended
to a maximum of 155 3/4" (396 cm).
Always use the approved drain hose extension kit
(SGZ1010UC).
Ensure a portion of the drain hose is raised between min.
20" (50 cm) and max. 43" (110 cm) above the cabinet floor.
Non-metallic tie
min 20" (50 mm) max 43" (110 mm) min 20" (50 mm) max 43" (110 mm)
Non-metallic tie
Remove
plug
Image 5: New Dish NBN
300 Series - Stainless Steel SHX53T55UC
24" Bar Handle Dishwasher
