Bosch EX40N User manual

Precision Engineered Opto-Electronics™
EX40N
Hi-Impact Dome Night-Vision Camera
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION INSTRUCTIONS
MAN-40N-00

1. Read these instructions.
2. Keep this instruction.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install
in accordance with manufacturer instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade
or the third prong is provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.

10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the power where they exit
from the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in a way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.

IMPORTANT
For best results, please read this Instruction Booklet prior to
installing the EX40Ncamera.
For best results in infrared image quality, when reassembling the
dome to the housing, make sure the foam donut is in tight 360°
contact with the dome.
WARNING !
CSA Certified / UL Listed CLASS 2 power adaptors must be used
in order to comply with electrical safety standards.
This Product Has Been Certified By CSA International To
Include the Health Care Facility Requirements Of UL 2044.
Bosch Security Systems, Inc. will not be responsible for injuries
or damages resulting from the
improper installation or use of any product
sold by Bosch Security Systems, Inc their agents, distributors or
dealers.
.
EU Directives covered by this declaration:
72/9/EC Low Voltage Directives
89/336/EEC Electromagnetic Compatibility Directive

NOTE: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to
part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. As part of it's
normal operation this device can generate radio
frequency energy and if not installed and used in
accordance with the installation manual may cause
interference to radio communications. However, there
is no guarantee that interference will not occur on a
particular installation. If the device does cause
interference to radio or television reception the user is
encouraged to try to correct the interference by one or
more of the following measures:
1) Fit Ferrite beads on all cable to and from the power
supply box, within the box walls.
2) Route the composite cable between the camera and
the power supply in steel conduit piping over the entire
run of the cable up to and including connection to a
deep conduit base fitted under the camera and a conduit
fitting adaptor in the wall of the PSU box.
3) Contact BOSCH Service Center for further advice.

INDEX – EX40N
Page
Description...................................................1
Unpacking....................................................2
Parts List......................................................2
Items Required for Installation.....................2
Initial Preparations.......................................3
Guidelines....................................................3
Section 1. Dome Removal...........................4
Section 2. Input Power Connections ...........6
Section 3. Mounting - Camera Base............9
Section 4. Camera/LED Adjustments........16
Section 5. Camera Re-Assembly ..............21
Section 6. Troubleshooting Guide.............23
Section 7. Mounting Holes DIiagram.........26
Section 8. General Specifications..............27

1
DESCRIPTION
The EX40N High Impact Dome Night Vision
Camera has been engineered for day/night
surveillance in hostile environments. Compact
and good looking, the camera features armour-
tough construction for protection against
vandalism or accidental damage.
An aluminum housing, CNC-machined from a
billet, with an impact resistant polycarbonate
dome and locking retaining ring, make it
extremely rugged and weather-tight.
For flexibility, the CCD Camera/LED Array can
be fully rotated using a unique “Pan-Tilt-Twist”
(PTT) mounting bracket.
A voltage regulator circuit allows for 12V dc or
24V ac operation, and a range in between, also
providing protection from voltage surge,
transient spikes, and reverse voltage.
The EX40N is available in several models
designed to meet specific needs.

2
UNPACKING
Care should be taken when unpacking the shipped
unit. Check the parts list and confirm all items have
been located. Inspect the equipment thoroughly to
ensure nothing was damaged in transit.
Contact BOSCH Service Center if a problem is
noted, see the rear page of this booklet for contact
numbers.
PARTS LIST (items supplied with unit)
- Camera Assembly
-Installation Instructions booklet
- EX40N Plastic bag containing an Allen key and
one ½ NPT plug wrapped with Teflon tape
ITEMS REQUIRED FOR INSTALLATION
(not supplied with unit)
- Philips screwdriver
- Small slotted screwdriver
- Silicone sealant and Teflon sealing tape.
-Mounting screws, etc.

3
INITIAL PREPARATIONS
Determine the operating voltage at the
installation site. The camera has been pre-
wired for 24V ac operation before shipment.
See Section 2, Input Power Connections.
Determine the optimum location for the
camera. Section 3, Mounting-Camera Base.
All cameras have been tested prior to
shipment. After the wiring has been
reconnected, it is advisable to check the
camera’s operation before installation.
ESD protection – Cameras and circuit boards
are sensitive electronic components. It is
recommended to wear a ground strap to
ground any static charge. (Alternative: touch a
grounded metal plate for at least a minute
before proceeding with any disassembly)
GUIDELINES
The installation of the EX40N camera is explained
in Sections 1 to 5 listed below. It is important that
these steps are followed in sequence:
1. Dome Removal
2. Input Power Connections
3. Mounting - Camera Base
4. Camera /LED Adjustments
5. Camera Re-Assembly

4
1. DOME REMOVAL
The camera’s dome and its retaining ring must
be removed prior to mounting the camera or
performing any wiring disconnections and re-
connections. The set-screws in the retaining ring
are not tightened in the factory and protrude by
1/8" (3mm) in order for the ring to be rotated.
Refer to Figure 1 - 1 on page 5.
Step 1.1 - Place the camera on a flat surface.
Step 1.2 - Press firmly on the dome with one
hand and rotate the retaining ring in
a counter-clockwise direction with
the other hand. Push against the
protruding set-screws with a finger
to rotate the ring. Do not use a
screwdriver or other metal device.
Step 1.3 - Remove the dome and the retaining
ring. Set them aside.

5
FIGURE 1 – 1
Dome Removal
Set Screws
Retaining
Ring
Loosen or tighten ring
Dome
Camera
Base

6
2. INPUT POWER CONNECTIONS
Attention: External Video Cable Systems Must
Be Properly Grounded In Accordance With The
National Electrical Code, ANSI/NFPA 70.
The EX40N camera units are pre-connected
with an electrically isolated power board (VRB)
for 24V ac or 12V dc operation, with no change
to the polarity of the wires.
The VRB also connects to the camera and to the
Line Lock Board (if available).
See Figure 2 – 1 on page 7.
NOTE:
For DC input, the input voltage range is
10.5V dc to 40V dc.
The recommended input current from the power
supply should be approximately 1 Amp.
For AC input, the input voltage range is 12V ac
to 28V ac.
The recommended input current from the power
supply should be approximately 1 Amp.

7
Power
IN Power OUT
FIGURE 2 – 1
12V dc or 24V ac
Electrically Isolated Power Board (VRB)

8
FIGURE 2 – 2

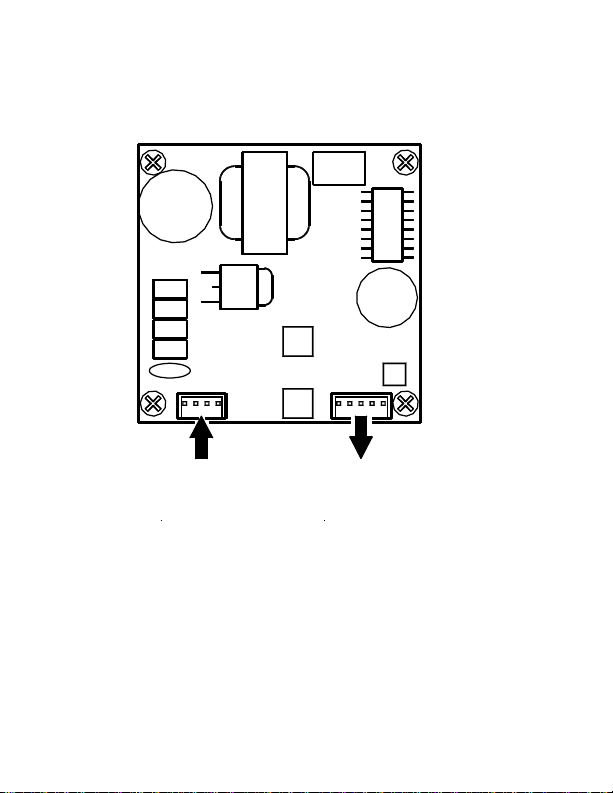

LED Array Power Board
Power
Input
12V
Enable
Power to
LED Array Photocell
Adjustment

9
3. MOUNTING - CAMERA BASE
NOTE: Section 3 explains the camera’s
mounting procedure.
At this time, it would be advantageous to the
installer if the power input wires and the
video output wires are disconnected from
their respective connections on the VRB.
These wires can then be routed through
either the side or the bottom holes of the
housing, depending on the needs of the
installation. In this way, the wires need only
to be removed from their source one time
only.
See Figures 3-1 and 3-2 on pages 13 & 14
for further explanations.

10
The selected mounting location should not place
the camera in a situation where its environmental
specifications could be exceeded. See page 28.
Caution: Ensure the selected location is
protected from falling objects, accidental contact
with moving objects, and unintentional
interference from personnel. Follow all applicable
building codes.
The following installation guidelines
must be followed:
•Locate the camera such that it cannot be
easily interfered with, either intentionally or
accidentally.
•Select a mounting surface capable of
supporting the combined weight of the
camera and mounting hardware under all
expected conditions of vibration and
temperature.
•Secure all cabling.
•Installations on drywall must use #8 screws
and #8 drywall nylon plugs or a superior
connection.

11
The mounting holes are configured for a single-
gang electrical box or a round ceiling electrical
box. See page 26 for the mounting hole
diagram. The housing can also be mounted to
any flat surface.
Step 3.1 - Once the mounting location has
been selected, determine if the
video and the power input wires
should enter the housing through
either the side or the bottom. For
ease of re-assembly, this step
should be performed in conjunction
with Section 2, Input Power
Connections.
Step 3.2 - Disconnect the Input Power wires
from the terminal block on the
Voltage Regulator Board (VRB).
Unplug the BNC section of the
Video Output cable.

12

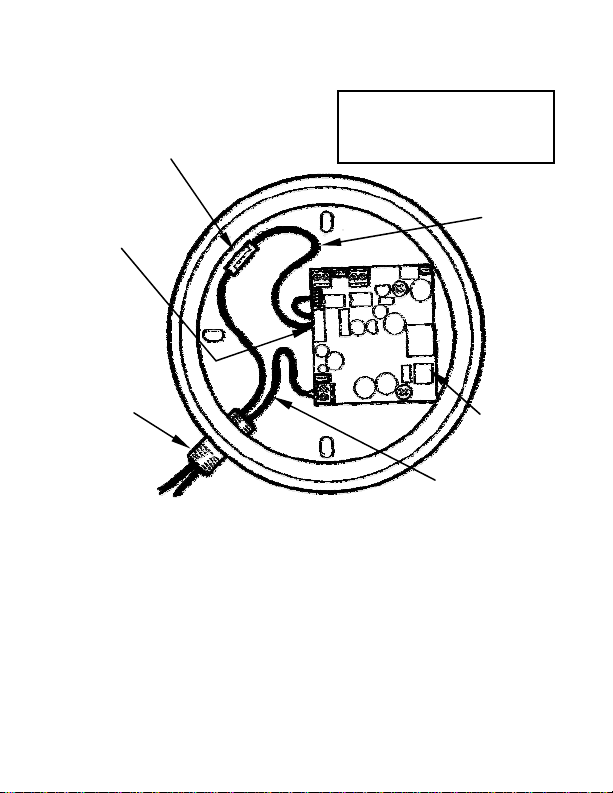

Step 3.3 - For side wiring entry, feed the
power and video cables through a
½ NPT nipple (not supplied) or an
electrical conduit and connect them
as per Figure 3-1 on page 13.
Tighten the nipple into the side of
the base. Seal the wiring conduit
with silicone to prevent moisture
penetration.
Step 3.4 - For bottom wiring entry, feed the
wires through the hole in the base
and connect them as per Figure 3-2
on page 14. Close the side hole with
the supplied ½ NPT plug.
Step 3.5 - Mount the camera base. A mounting
hole template has been provided on
page 26 for this procedure.
Step 3.6 - Seal all holes in the neoprene pad
and around the ½ NPT plug with
silicone to prevent moisture
penetration.

13
Feed the two cables through the ½ NPT nipple
and connect them to their appropriate connector
and terminal block. Tighten the nipple and seal
the opening with silicone.
FIGURE 3 – 1
Side Entry Wiring Connections
Video Cable 3 Pin
Connector
VRB
Input Power
Cable
½ NPT
Nipple
or
Conduit
Camera/Lens and PTT
Assembly are not shown
for clarity reasons.
To Camera
Board Video
Cable

14
Make sure the wires are not crimped or chafed
when feeding them through the bottom hole.
Close the side entry hole with the ½ NPT plug.

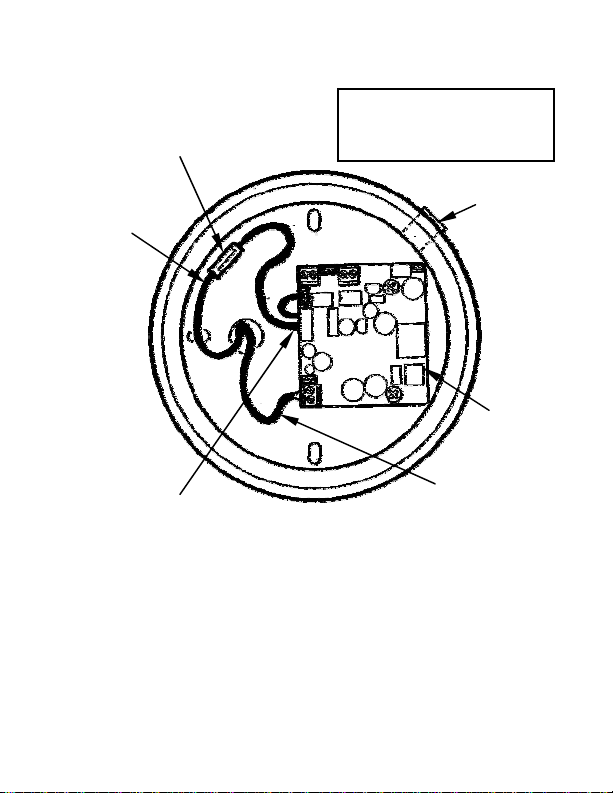

FIGURE 3 - 2
Bottom Entry Wiring Connections
Camera/Lens and PTT
Assembly are not shown
for clarity reasons.
½ NPT
Plug
VRB
Input Power
Cable
Video Cable 3 Pin
Connector
Video
Cable
To Camera Board
