Video | FLEXIDOME IP 7000 VR

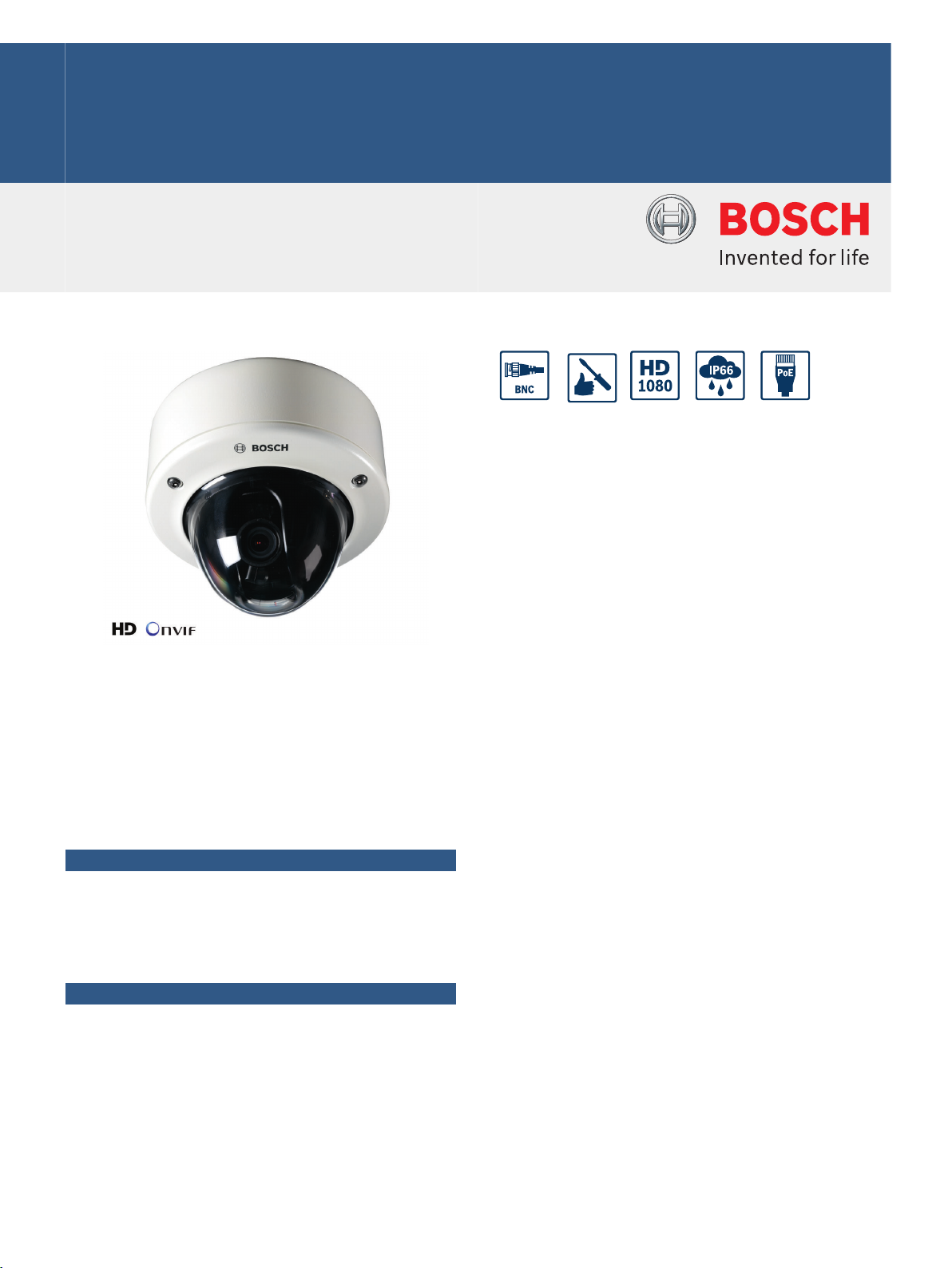

FLEXIDOME IP 7000 VR

www.boschsecurity.com

uAesthetic vandal-resistant enclosure, suitable for

indoor or outdoor applications

uBuilt-in Intelligent Video Analytics to trigger relevant

alerts and quickly retrieve data

uContent-based scene analysis optimizes the image

processing

uIntelligent Dynamic Noise Reduction reduces

bandwidth and storage requirements by up to 50%

uEasy to install with auto zoom/focus SR lens, wizard

and pre-configured modes

The FLEXIDOME IP 7000 VR dome camera combines

intelligence with adaptive video processing to provide

you with superior HD image quality. This true day/

night camera provides high resolution video, tuned for

24x7 applications.

The aesthetic vandal-resistant housing makes the

camera suitable for indoor or outdoor installation.

System overview

Compared to SD cameras, this camera offers, at no

higher cost, motorized autofocus, higher resolution,

better sensitivity, higher frame rates, and improved

picture quality, and is still more bandwidth-efficient.

Video storage costs are significantly reduced.

Functions

Content Based Imaging Technology

Content Based Imaging Technology (CBIT) is used to

radically improve image quality in all lighting

conditions and to identify areas for enhanced

processing. The camera examines the scene using

Intelligent Video Analytics and provides feedback to re-

tune the image processing. This provides better detail

in the areas that matter and better all-round

performance. With IVA, the Intelligent Auto Exposure

technology, for example, allows you to view moving

objects in bright and dark areas of a scene.

Intelligent Dynamic Noise Reduction reduces

bandwidth and storage requirements

The camera uses Intelligent Dynamic Noise Reduction

which actively analyzes the contents of a scene and

reduces noise artifacts accordingly.

The low-noise image and the efficient H.264

compression technology provide clear images while

reducing bandwidth and storage by up to 50%

compared to other H.264 cameras. This results in

reduced-bandwidth streams that still retain a high

image quality and smooth motion. The camera

provides the most usable image possible by cleverly

optimizing the detail-to-bandwidth ratio.

Area-based encoding

Area-based encoding is another feature which reduces

bandwidth. Compression parameters for up to eight

user-definable regions can be set. This allows

uninteresting regions to be highly compressed, leaving

more bandwidth for important parts of the scene.

The average typical optimized bandwidth in kbits/s for

various image rates is shown in the table:

IPS 1080p 720p 480p

30 1600 1200 600

15 1274 955 478

12 1169 877 438

5 757 568 284

2 326 245 122

Multiple streams

The innovative multi-streaming feature delivers various

H.264 streams together with an M‑JPEG stream. These

streams facilitate bandwidth-efficient viewing and

recording as well as integration with third-party video

management systems.

An upright mode can be selected for the second

stream. In this mode an image of 400 x 720 (9:16

aspect ratio) is cropped from the full sensor image.

When the scene to be monitored is suitable to this

mode, the bandwidth and storage requirements are

reduced.

Regions of interest and E-PTZ

Regions of Interest (ROI) can be user defined. The

remote E-PTZ (Electronic Pan, Tilt and Zoom) controls

allow you to select specific areas of the parent image.

These regions produce separate streams for remote

viewing and recording. These streams, together with

the main stream, allow the operator to separately

monitor the most interesting part of a scene while still

retaining situational awareness.

Intelligent Tracking can follow objects within the

defined regions of interest. Intelligent Tracking can

autonomously detect and track moving objects or the

user can click on an object which the tracker will then

follow.

Flexible lens choice

The camera comes with a choice of AVF (Automatic

Varifocal) lenses for easy installation. These SR (Super

Resolution) lenses have an advanced iris design to

ensure that the high resolution HD sensor produces

the sharpest image possible, even in the corners.

Simple set-up

The camera has a very intuitive user interface that

allows fast and easy configuration. Configurable scene

modes are provided with the best settings for a variety

of applications.

•Indoor – general day-to-night changes in an indoor

environment without sun highlights or street lighting

effects.

•Outdoor – general day-to-night changes in an outdoor

environment with sun highlights and street lighting

effects.

•Traffic – for monitoring traffic movement on roads or

parking lots. It can also be used in industrial

applications where fast moving objects are to be

monitored. Motion artifacts are minimized.

•Night-optimized – optimized for details in low light

environments.

•Intelligent AE – optimized for scenes with fluctuating

front and back light caused by sunlight or other

illuminated objects in the scene.

•Vibrant – enhanced contrast, sharpness and

saturation.

•Low bit rate – reduces bandwidth requirements.

•Sports and gaming – high-speed capture, and

improved color rendition and sharpness.

•Retail – improved color rendition and sharpness with

reduced bandwidth requirements.

Storage management

Recording management can be controlled by the

Bosch Video Recording Manager (VRM) or the camera

can use iSCSI targets directly without any recording

software.

Edge recording

Insert a memory card into the card slot to store up to

2 TB of local alarm recording. Pre-alarm recording in

RAM reduces recording bandwidth on the network,

and extends the effective life of the memory card.

Video analytics

With built-in video content analysis, the camera

reinforces the Intelligence-at-the-Edge concept where

edge devices become increasingly intelligent. The

MOTION+ video motion analysis system that is built

into all camera versions is the perfect solution for

applications where standard video content analysis

features are required.

The IVA version of the camera uses the latest

generation of the Bosch Intelligent Video Analysis (IVA)

software. This IVA system is the guard-assistant

system of choice when reliable indoor or outdoor

video analytics is needed. The state-of-the-art system

reliably detects, tracks, and analyzes moving objects

while suppressing unwanted alarms from spurious

sources in the image.

The face detection feature detects faces in the scene

and forwards a high quality JPEG image of the best

shot of each face when the face disappears from the

scene.

Retrospective forensic search capabilities are available

remotely from the web browser or the

Bosch Video Client.

Cloud-based services

The camera supports time-based or alarm-based JPEG

posting to four different accounts. These accounts can

address FTP servers or cloud-based storage facilities

(for example, Dropbox). Video clips or JPEG images

can also be exported to these accounts.

Alarms can be set up to trigger an e-mail or SMS

notification so you are always aware of abnormal

events.

2 | FLEXIDOME IP 7000 VR

Access security

Password protection with three levels and 802.1x

authentication is supported. To secure Web browser

access, use HTTPS with a SSL certificate stored in the

camera.

Complete viewing software

There are many ways to access the camera’s features:

using a web browser, with the Bosch Video

Management System, with the free-of-charge

Bosch Video Client, with the video security mobile

app, or via third-party software.

Video security app

The Bosch video security mobile app has been

developed to enable Anywhere access to HD

surveillance images allowing you to view live images

from any location. The app is designed to give you

complete control of all your cameras, from panning

and tilting to zoom and focus functions. It’s like taking

your control room with you.

This app, together with the separately available Bosch

transcoder, will allow you to fully utilize our dynamic

transcoding features so you can play back images even

over low-bandwidth connections.

System integration

The camera conforms to the ONVIF Profile S, ONVIF

Profile Q and ONVIF Profile G specifications.

Compliance with these standards guarantees

interoperability between network video products

regardless of manufacturer.

Third-party integrators can easily access the internal

feature set of the camera for integration into large

projects. Visit the Bosch Integration Partner Program

(IPP) website (ipp.boschsecurity.com) for more

information.

Easy installation

Power for the camera can be supplied via a Power-

over-Ethernet compliant network cable connection.

With this configuration, only a single cable connection

is required to view, power, and control the camera.

Using PoE makes installation easier and more cost-

effective, as cameras do not require a local power

source.

The camera can also be supplied with power from

+12 VDC/24 VAC power supplies. To increase system

reliability, the camera can be simultaneously

connected to both PoE and +12 VDC/24 VAC supplies.

Additionally, uninterruptible power supplies (UPS) can

be used, which will allow continuous operation, even

during a power failure.

The automatic zoom/focus lens wizard makes it easy

for an installer to accurately zoom and focus the

camera for both day and night operation. The wizard is

activated from the PC or from the on-board camera

push button making it easy to choose the workflow

that suits best.

The AVF (Automatic Varifocal) feature means that the

zoom can be changed without opening the camera.

The automatic motorized zoom/focus adjustment with

1:1 pixel mapping ensures the camera is always

accurately focused.

Hybrid mode

An analog video output enables the camera to operate

in hybrid mode. This mode provides simultaneous high

resolution HD video streaming and an analog video

output via a BNC connector. The hybrid functionality

offers an easy migration path from legacy CCTV to a

modern IP-based system.

Aesthetic vandal resistant design

The compact aesthetic design is suitable for

installations where housing size and appearance are

important. The cast-aluminum housing, polycarbonate

window, and hardened inner liner can withstand the

equivalent of 55 kg (120 lbs) of force (IK10). The

camera is also protected against water and dust. Using

the proprietary pan/tilt/rotation mechanism, installers

can select the exact field of view. Mounting options

are numerous, including surface, wall, corner, and

suspended-ceiling mounting.

Typical applications

• Retail, banks

• Stadiums

• Schools

• Care facilities

• Traffic monitoring (air, land and sea)

• Hotels, bars and nightclubs

• Commercial and government buildings

• City surveillance and safety

• Border control

Certifications and approvals

HD standards

Complies with the SMPTE 274M-2008 Standard in:

– Resolution: 1920x1080

– Scan: Progressive

– Color representation: complies with ITU-R BT.709

– Aspect ratio: 16:9

– Frame rate: 25 and 30 frames/s

Complies with the SMPTE 296M-2001 Standard in:

– Resolution: 1280x720

– Scan: Progressive

– Color representation: complies with ITU-R BT.709

– Aspect ratio: 16:9

– Frame rate: 25 and 30 frames/s

Standards

Emission EN55022 Class B

FCC Part 15, class B

Immunity EN50130-4 (PoE, +12 VDC, 24 VAC)*

EN50121-4

Safety EN60950-1

UL60950-1 (2nd edition)

CAN/CSA-C 22.2 No. 60950-1

3 | FLEXIDOME IP 7000 VR

Vibration Camera with lens as per IEC60068-2-6 (5 m/s2,

operational)

ONVIF

conformance

EN 50132-5-2; IEC 62676-2-3

* Chapters 7 and 8 (mains voltage supply requirement) are not applicable to the camera.

However, if the system in which this camera is used needs to comply with this standard,

then any power supplies used must comply with this standard.

Marks CE, cULus, WEEE, PADS, RCM, EAC and China

RoHS

Region Certification

Europe CE

CE accessories

USA UL

FCC

Installation/configuration notes

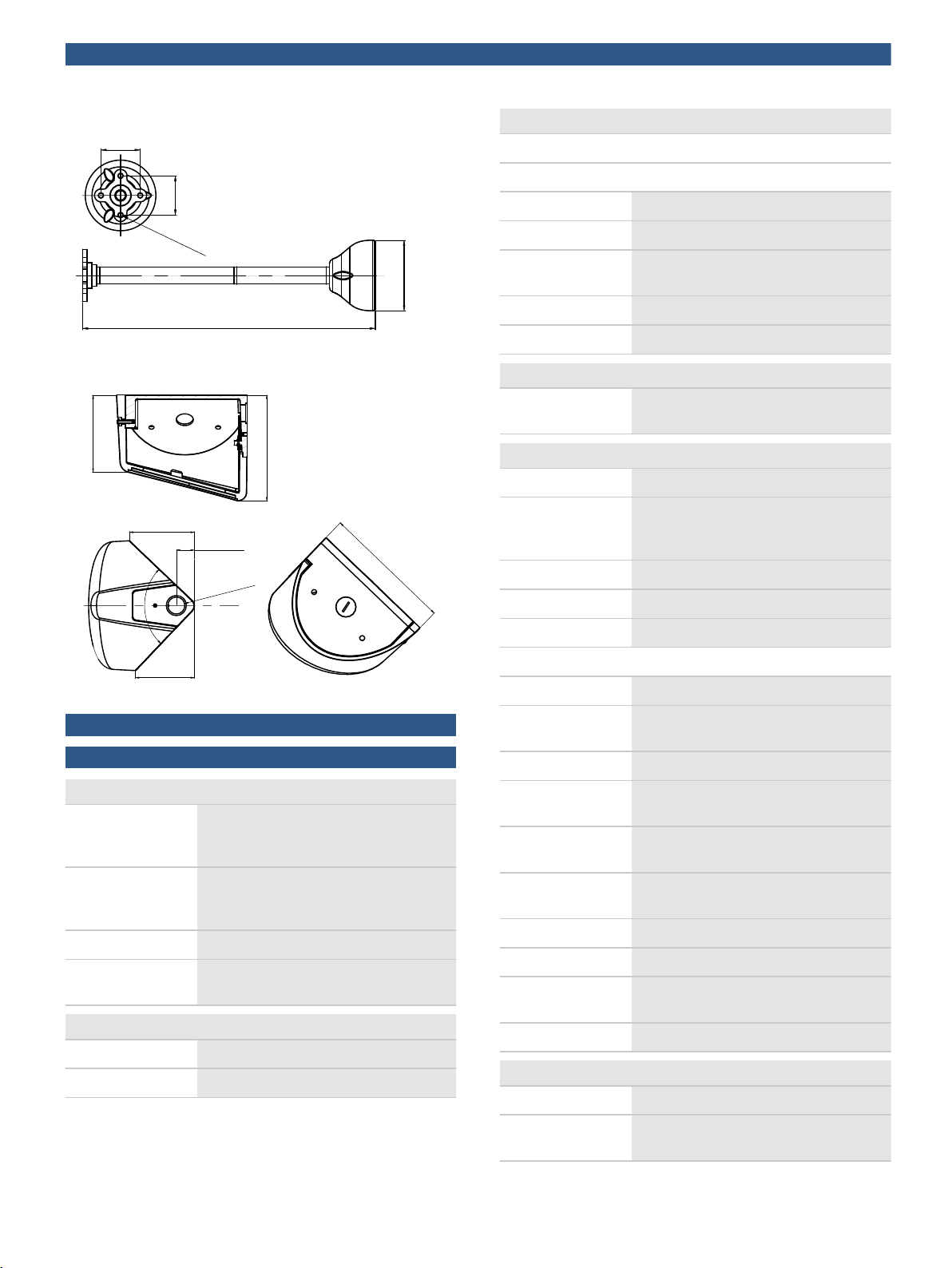

Dimensions flush mounting

Ø158 (6.22)

Ø95 (3.7)

mm (in)

39 (1.54)

85 (3.35)

Dimensions surface mounting

141 (5.55)

Ø158 (6.22)

mm (in)

VDA-WMT-DOME –Pendant Wall Mount

205 (8.07)

mm (in)

247 (9.71)

46 (1.81)

83 (3.27)

Ø133 (5.24)

Ø4.8 (0.19)

Ø158 (6.23)

113 (4.43)

LTC 9213/01 Pole Mount Adapter

M8 Thread

Typ 4 Places

6-32 Thread

Typ 4 Places

139.1

(5.48)

53.3

(2.10)

66.5

(2.62)

(1.81)

49.4

(1.95)

49.4

45.8

(1.95)

(6.00)

82.9

(3.27) 152.4

38.4

(1.51)

Hole

(in.)

4 | FLEXIDOME IP 7000 VR

VDA-PMT-DOME –Pendant Pipe Mount

656 (25.82) mm (in)

Ø158 (6.23)

88 (3.47)

Ø11 (0.43)

VDA-CMT-DOME –Corner Mount

90°

90 (3.54)

81 (3.21)mm (in)

25 (0.98)

107 (4.19)

146 (5.75)

180 (7.09)

3-3/4"NPT

Parts included

Technical specifications

Power

Power Supply 24 VAC 50/60 Hz

12 VDC

Power-over-Ethernet 48 VDC nominal

Current

Consumption

500 mA | 600 mA IVA (12 VDC)

450 mA | 500 mA IVA (24 VAC)

150 mA | 175 mA IVA (PoE 48 VDC)

Power Consumption 6 W | 7.2 W IVA

PoE IEEE 802.3af (802.3at Type 1)

Sensor

Sensor type 1/2.7‑inch CMOS

Total sensor pixels 1952 x 1092 (2MP)

Video performance - Sensitivity

Sensitivity – (3200K, reflectivity 89%, 1/60, 30IRE)

Lens 3 - 9 mm (F1.2)

• Color 0.22 lx (0.022 fc)

• Mono 0.05 lx (0.005 fc)

Lens 10 - 23 mm

(F1.6)

• Color 0.4 lx (0.04 fc)

• Mono 0.1 lx (0.01 fc)

Video performance ‑ Dynamic range

Dynamic range 76 dB WDR

92 dB WDR (with IAE)

Video streaming

Video compression H.264 (MP); M-JPEG

Streaming Multiple configurable streams in H.264 and M-

JPEG, configurable frame rate and bandwidth.

Regions of Interest (ROI)

Overall IP Delay Min. 120 ms, Max. 240 ms

GOP structure IP, IBP, IBBP

Encoding interval 1 to 30 (25) ips

Resolutions (H x V)

• 1080p HD 1920 x 1080

• 960p HD 4:3

(cropped)

1280 x 960

• 720p HD 1280 x 720

• Upright 9:16

(cropped)

400 x 720

• D1 4:3

(cropped)

704 x 480

• 480p SD Encoding: 704 x 480;

Displayed: 854 x 480

• 432p SD 768 x 432

• 288p SD 512 x 288

• 240p SD Encoding: 352 x 240;

Displayed: 432 x 240

• 144p SD 256 x 144

Video functions

Day/Night Color, Mono, Auto

Adjustable picture

settings

Contrast, Saturation, Brightness

5 | FLEXIDOME IP 7000 VR

Video functions

White Balance 4 automatic modes, manual mode and

measure

Shutter Automatic Electronic Shutter (AES)

Fixed (1/30 [1/25] to 1/15000) selectable

Default shutter

Backlight

compensation

Off / On / Intelligent Auto Exposure (BLC)

Contrast

enhancement

On/off

Noise reduction Intelligent Dynamic Noise Reduction with

separate temporal and spatial adjustments

Sharpness Sharpness enhancement level selectable

Privacy Masking Four independent areas, fully programmable

Video Motion

Analysis

MOTION+ or Intelligent Video Analysis

Other functions Image mirror, Image flip, Pixel counter, Video

watermarking, Display stamping, Scene

modes

Audio streaming

Audio Streaming Full duplex / half duplex

Signal-to-noise ratio > 50 dB

Audio compression AAC-LC, G.711, L16 (live and recording)

Input/output

Analog Video out CVBS (PAL/NTSC), 1 Vpp, BNC, 75 Ohm

Analog Video out

(service only)

CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack,

75 Ohm (no surge protection)

Audio 1 x mono line in, 1 x mono line out

• signal line in 12 kOhm typical, 1 Vrms max

• signal line out 1 Vrms at 1.5 kOhm typical,

Alarm 2 inputs

• activation

voltage

+5 VDC to +40 VDC

(+3.3 VDC with DC-coupled 22 kOhm pull-up

resistor)

Relay 1 output

• voltage 30 VAC or +40 VDC

Maximum 0.5 A continuous, 10VA

Local storage

Internal RAM 10 s pre-alarm recording

Memory card slot Supports up to 32 GB microSDHC / 2 TB

microSDXC card. (An SD card of Class 6 or

higher is recommended for HD recording)

Recording Continuous recording, ring recording. alarm/

events/schedule recording

Software

Unit Configuration Via web browser or Configuration Manager

Firmware update Remotely programmable

Software viewer Web browser, Bosch Video Client, or third

party software

Network

Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/

RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,

FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link

local address), NTP (SNTP), SNMP (V1, MIB-

II), 802.1x, DNS, DNSv6, DDNS

(DynDNS.org, selfHOST.de, no-ip.com),

SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS),

LLDP, SOAP, Dropbox, CHAP, digest

authentication

Encryption TLS 1.2, SSL, DES, 3DES

Ethernet 10/100 Base-T, auto-sensing, half/full duplex

Connectivity Auto-MDIX

Interoperability ONVIF Profile S; ONVIF Profile G ; ONVIF

Profile Q

GB/T 28181

Optical

Lens 3 to 9 mm Automatic Varifocal (AVF) SR lens

(IR corrected)

- or –

10 to 23 mm Automatic Varifocal (AVF) SR

lens (IR corrected)

Lens mount Board mounted

Adjustment Motorized zoom/focus

Iris control Automatic iris control

Viewing angle (3 to

9 mm)

Wide: 121º x 62º (H x V)

Tele: 38º x 21º (H x V )

Viewing angle (10 to

23 mm)

Wide: 34º x 18º (H x V)

Tele: 15º x 8.5º (H x V )

Mechanical

Dimensions (D x H) 158 x 124 mm (6.22 x 4.89 in)

Weight 0.85 kg (1.87 lb)

1.28 kg (2.82 lb) with SMB

6 | FLEXIDOME IP 7000 VR

Mechanical

Mounting Flush mount or surface mount

Color White (RAL9010) trim ring with black inner

liner

Adjustment range 360º pan, 90º tilt, ±90º twist

Dome bubble Polycarbonate, clear with UV blocking anti-

scratch coating

Trim ring Aluminum

Environmental

Operating

temperature

-30 ºC to +50 ºC (-22 ºF to +122 ºF) for

continuous operation;

-34 ºC to +74 ºC (-30 ºF to +165 ºF)

according to NEMA TS 2-2003 (R2008),

para 2.1.5.1 using fig. 2.1 test profile

Cold start

temperature

-20 ºC (-4 ºF)

Storage temperature -50 ºC to +70 ºC (-58 ºF to +158 ºF)

Operating humidity 5% to 93% relative humidity

Storage humidity Up to 98% relative humidity

Impact protection IK10

Water/dust

protection

IP 66 and NEMA Type 4X (with appropriate

installation standards)

Ordering information

FLEXIDOME IP 7000 VR
