Bosch WTW85560BY User manual

en Installation and operating instructions
Tumble dryer
WTW85560BY

2
Your new tumble dryer
You have opted for a tumble dryer
manufactured by Bosch.
Please take a few minutes to read and
become familiar with the advantages of
your tumble dryer.
To meet the high quality demands
required by Bosch, every tumble dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our Customer
Service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before operating the tumble
dryer.
Display rules
:Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■/ -
Lists are represented by a small box or
a dash.

en
3
Table of contents en Installation and operating instructions
8Intended use. . . . . . . . . . . . . . . . .4
(Safety instructions . . . . . . . . . . .4
Children/people/pets . . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 7
Cleaning/Maintenance . . . . . . . . . . . 10
7Energy-saving tips. . . . . . . . . . .11
5Installing and connecting
the appliance . . . . . . . . . . . . . . .12
Included with the appliance: . . . . . . . 12
Installing the appliance . . . . . . . . . . . 12
Connecting the appliance. . . . . . . . . 13
Before using the appliance
for the first time. . . . . . . . . . . . . . . . . 14
Optional accessories . . . . . . . . . . . . 14
2Appliance settings. . . . . . . . . . .15
Childproof lock . . . . . . . . . . . . . . . . . 15
Activating setting mode . . . . . . . . . . 15
Exiting setting mode . . . . . . . . . . . . . 16
9Quick reference guide . . . . . . . .17
*Familiarising yourself
with your appliance . . . . . . . . . .18
Appliance overview. . . . . . . . . . . . . . 18
Panel . . . . . . . . . . . . . . . . . . . . . . . . 19
Display . . . . . . . . . . . . . . . . . . . . . . . 20
/Overview of programmes . . . . .21
0Programme settings . . . . . . . . .23
ZLaundry. . . . . . . . . . . . . . . . . . . .24
Preparing the laundry . . . . . . . . . . . . 24
Sorting laundry . . . . . . . . . . . . . . . . . 25
1Operating the appliance . . . . . .26
Loading laundry and switching on
the appliance . . . . . . . . . . . . . . . . . . 26
Setting a programme. . . . . . . . . . . . .26
Starting a programme . . . . . . . . . . . .27
Programme progress . . . . . . . . . . . .27
Changing the programme
or adding more laundry. . . . . . . . . . .27
Cancelling the programme . . . . . . . .27
Programme end . . . . . . . . . . . . . . . .27
Removing laundry and switching
off the appliance . . . . . . . . . . . . . . . .28
Emptying the condensation
container . . . . . . . . . . . . . . . . . . . . . .28
Removing the fluff . . . . . . . . . . . . . . .29
DCleaning and maintenance. . . . 30
Cleaning the appliance . . . . . . . . . . .30
Cleaning the moisture sensor . . . . . .31
Cleaning the filter in
the condensation container . . . . . . . .32
YInformation on the display . . . . 33
3Help with the appliance . . . . . . 34
LTransporting the appliance . . . 35
[Consumption values . . . . . . . . . 37
Consumption values table . . . . . . . . .37
Most efficient programme
for cotton laundry . . . . . . . . . . . . . . .37
{Technical specifications . . . . . . 38
)Disposal . . . . . . . . . . . . . . . . . . . 38
4After-sales service . . . . . . . . . . 39

en Intended use
4
8Intended use
Intendeduse ■This appliance is intended for private
domestic use only.
■Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■This appliance must only be used for
drying and freshening up domestic
laundry, consisting of items that have
been washed with water and are
suitable for tumble drying (see label
on item). Using the appliance for any
other purpose is outside of the
scope of its intended application and
is forbidden.
■This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.
(Safety instructions
Safetyinstructions The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■Children must not play with
this appliance.

Safety instructions en
5
■Do not allow children to
clean or maintain this
appliance unsupervised.
■Keep children under 3 years
and pets away from this
appliance.
■Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.

en Safety instructions
6
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Make sure
that:
■The mains voltage on your
power socket matches the
rated voltage specified on
the appliance (identification
plate). The connected loads
and the required fuse
protection are specified on
the identification plate.
■The appliance is only
connected to a source of
alternating current via a
nationally recognized and
grounded outlet that has
been correctly installed.
■The mains plug and the
grounded socket match and
the earthing system has
been correctly installed.
■The cross section of the
cable is sufficiently large
enough.
■The mains plug is accessible
at all times.
■If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
:Warning
Risk of fire/material damage/
damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material
damage/damage to the
appliance!
■The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.

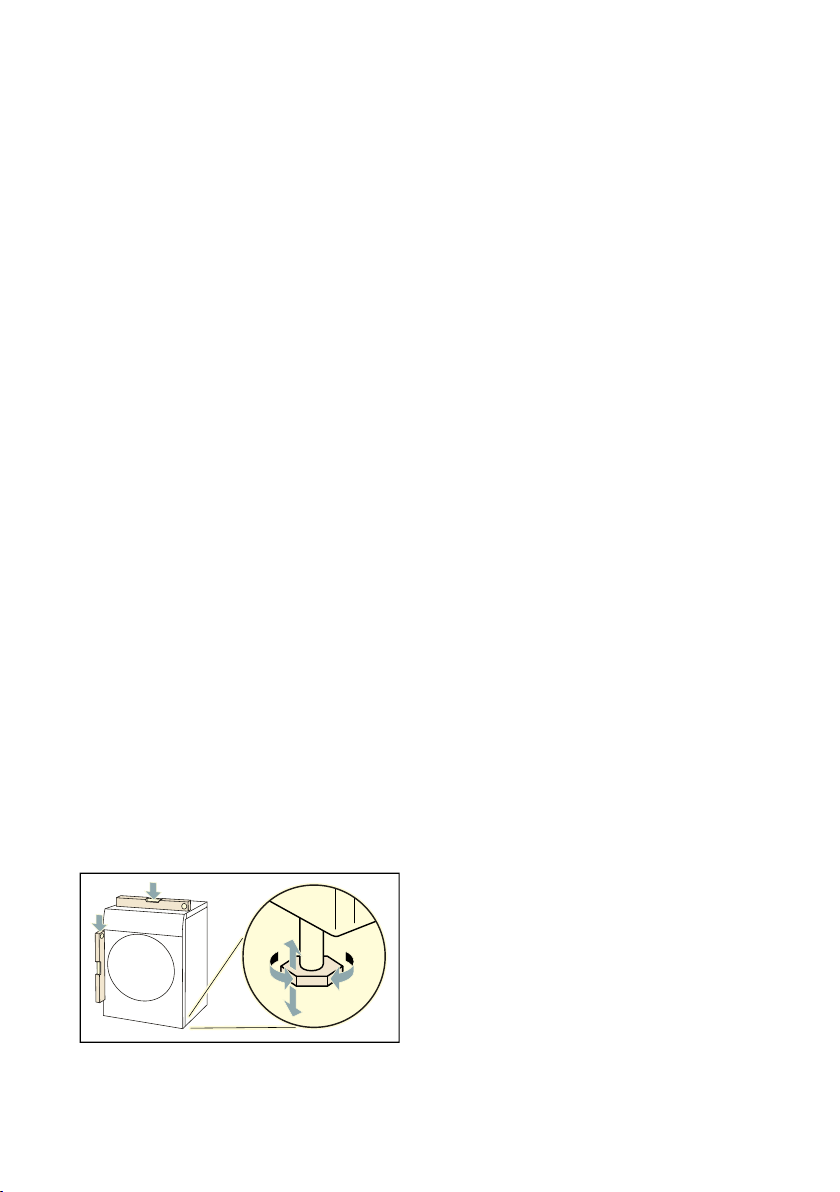

Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!

Safety instructions en
7
■Incorrectly placing (stacking)
this appliance on top of a
washing machine may result
in injury, material damage
and/or damage to the
appliance.
If this appliance is to be
placed on top of a washing
machine, the washing
machine must be of at least
the same depth and width as
the appliance, and it must be
secured in place with the
appropriate connection set if
available. ~Page 14 The
appliance MUST be secured
with this connection set.
Stacking the appliance in
any other way is forbidden.
Risk of injury/material damage/damage to the appliance!
■If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
:Warning
Risk of injury!
■The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
Operation
:Warning
Risk of explosions/fire!
Laundry that has come into
contact with solvents, oil, wax,
wax remover, paint, grease or
stain remover may ignite when
dried in the machine, or even
cause the appliance to explode.
Therefore please note:
■Rinse the laundry thoroughly
with warm water and
detergent before drying it in
the machine.
■Do not place laundry in this
appliance to be dried if the
laundry has not been
washed first.
■Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.

en Safety instructions
8
:Warning
Risk of explosions/fire!
■If there is any residual
material left in the fluff filter,
this may ignite when drying
is in progress, or even cause
the appliance to catch fire or
explode.
Clean out the fluff filter each
time the appliance is used to
dry laundry.
Risk of explosions/fire!
■Certain objects may ignite
when drying is in progress,
or even cause the appliance
to catch fire or explode.
Remove any lighters or
matches from pockets on
items of clothing.
Risk of explosions/fire!
■If there is coal dust or flour in
the air around the appliance,
this may cause an explosion.
Make sure that the area
around the appliance is kept
clean when it is in operation.
:Warning
Risk of fire/material damage/
damage to the appliance!
If a program is terminated
before the drying cycle has
finished, this prevents the
laundry from cooling down
sufficiently and may cause the
laundry to ignite, or may result
in material damage or damage
to the appliance.
■During the last part of the
drying cycle, the laundry in
the drum is not heated
(cooling cycle). This is to
ensure that it remains at a
temperature at which it will
not be damaged.
■Do not switch off the
appliance before the drying
cycle has finished unless you
remove all items of laundry
from the drum immediately
and spread them out (to
dissipate the heat).
:Warning
Risk of poisoning/material
damage!
Condensation water is not
suitable for drinking and may
be contaminated with lint.
Contaminated condensation
water may be hazardous to
health and may cause material
damage.
Do not drink or reuse.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.

Safety instructions en
9
:Warning
Risk of injury!
■If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
Caution!
Material damage/damage to
the appliance
■If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs. ~Page 21
Material damage/damage to the appliance
■If you operate the appliance
without a fluff filter, or if the
fluff filter is defective, this
may result in damage to the
appliance.
Do not operate the appliance
without a fluff filter, or with a
fluff filter that is defective.
Material damage/damage to the appliance
■Light objects such as hair
and lint may be sucked into
the air inlet when the
appliance is in operation.
Keep these away from the
appliance.
Material damage/damage to the appliance
■Foam and foam rubber may
deform or melt if dried in the
appliance.
Do not dry laundry items that
contain foam or foam rubber
in the appliance.
Material damage/damage to the appliance
■If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
Material damage/damage to the appliance

en Safety instructions
10
■If the appliance overheats, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Make sure that the
appliance's air inlet is never
obstructed when the
appliance is in operation,
and that the area around the
appliance is adequately
ventilated.
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■Never take hold of the mains
plug with wet hands.
■When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■Do not make any technical
modifications to the
appliance or its features.
■Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material
damage/damage to the
appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer
or steam cleaner to clean your
appliance.
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.

Energy-saving tips en
11
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■Do not allow these agents to
come into contact with the
surfaces of the appliance.
■Clean the appliance with
nothing but water and a soft,
damp cloth.
■Remove any detergent,
spray or other residues
immediately.
7Energy-saving tips
Energy-savingtips ■Spin the laundry before drying. The
drier the laundry, the shorter the
programme will be, in turn reducing
energy consumption.
■Load the appliance with the
maximum loads permitted for the
programmes.
Note: If the maximum load is
exceeded, this extends the programme
duration and increases energy
consumption.
■Operate the appliance in a ventilated
room and make sure that the air inlet
on the appliance is unobstructed so
that air exchange can take place
unhindered.
■Regularly remove the fluff from the
appliance. If there is fluff in the
appliance, this extends the
programme duration and increases
energy consumption.
■If you do not perform any actions on
the appliance for an extended period
before the programme starts or once
the programme has ended, the
appliance will automatically switch to
Energy saving mode. The display
and indicator lights will go out after a
few minutes and Start/Pause Awill
flash.To end Energy saving mode, all
you need to do is perform an action
on the appliance, such as opening
and closing the door.
■If you do not perform any actions on
the appliance for an extended period
when it is in Energy saving mode,
the appliance will automatically
switch itself off.

en Installing and connecting the appliance
12
5Installing and
connecting the
appliance
Installingandconnectingtheappliance Included with the appliance:
1. Remove any packaging and
protective covers completely from
the appliance.
2. Open the door.
3. Remove all the accessories from the
drum.
You can now install and connect the
appliance.
Caution!
Risk of material damage/damage to the
appliance
Objects remaining in the drum that are
not designed for operation with the
appliance may result in material
damage and damage to the appliance.
Remove these objects, along with all
accessories, from the drum.
Installing the appliance
:Warning
Risk of death!
Children may lock themselves inside
appliances and find themselves in a life-
threatening situation.
■Do not position the appliance behind
a door, as this may obstruct the
appliance door or prevent it from
opening completely.
■Once an appliance has reached the
end of its life, pull the mains plug
from the socket before severing the
mains cable, and then destroy the
lock on the appliance door.
:Warning
Risk of explosions/fire!
If there is coal dust or flour in the air
around the appliance, this may cause
an explosion.
Make sure that the area around the
appliance is kept clean when it is in
operation.
:Warning
Risk of injury/material damage/
damage to the appliance!
■The appliance may vibrate or move
when in operation, potentially
resulting in injury or material
damage.
Place the appliance on a clean,
even, solid surface and, using a
spirit level to guide you, level it with
the screw-in feet.
Risk of injury/material damage/damage to the appliance!
■Incorrectly placing (stacking) this
appliance on top of a washing
machine may result in injury, material
damage and/or damage to the
appliance.
If this appliance is to be placed on
top of a washing machine, the
washing machine must be of at least
the same depth and width as the
appliance, and it must be secured in
place with the appropriate
connection set if available.
~Page 14 The appliance MUST be
secured with this connection set.
Stacking the appliance in any other
way is forbidden.
Risk of injury/material damage/damage to the appliance!
Accompanying documents (e.g.
installation and operating
instructions)

Installing and connecting the appliance en
13
■If you take hold of any of the
appliance's protruding parts (e.g. the
appliance door) in order to lift or
move it, these parts may break off
and cause injury.
Do not take hold of any of the
appliance's protruding parts in order
to move the appliance.
:Warning
Risk of injury!
■The appliance is very heavy. Lifting it
may result in injury.
Do not lift the appliance on your
own.
Risk of injury!
■The appliance has sharp edges on
which you could cut your hands.
Do not take hold of the appliance by
its sharp edges. Wear protective
gloves to lift it.
Caution!
Material damage/damage to the
appliance
If the appliance overheats, it may not be
able to operate properly, or this may
result in material damage or damage to
the appliance.
Make sure that the appliance's air inlet
is never obstructed when the appliance
is in operation, and that the area around
the appliance is adequately ventilated.
Install the appliance as follows:
1. Place the appliance on a clean,
even, solid surface.
2. Check that the appliance is level
using a spirit level.
3. If necessary, turn the appliance feet
to make sure it is level.
You can now connect the appliance.
Notes
■All appliance feet must stand firmly
on the ground.
■If appliances are not installed
correctly, this may result in noises,
vibrations, uneven drum operation
and/or to residual water leaking out
of the appliance.
Connecting the appliance
:Warning
Risk of electric shock/fire/material
damage/damage to the appliance!
If the appliance is not installed properly,
this may lead to a dangerous situation.
Make sure that:
■The mains voltage on your power
socket matches the rated voltage
specified on the appliance
(identification plate). The connected
loads and the required fuse
protection are specified on the
identification plate.
■The appliance is only connected to a
source of alternating current via a
nationally recognized and grounded
outlet that has been correctly
installed.
■The mains plug and the grounded
socket match and the earthing
system has been correctly installed.
■The cross section of the cable is
sufficiently large enough.
■The mains plug is accessible at all
times.
■If using a residual current circuit
breaker, only use one that bears the
following mark: z. The presence of
this mark is the only way to be sure
that it fulfils all the applicable
regulations.

en Installing and connecting the appliance
14
:Warning
Risk of electric shock/fire/material
damage/damage to the appliance!
If the appliance's mains cable is altered
or damaged, this may result in electric
shock, short circuiting or fire due to
overheating.
The mains cable must not be kinked,
crushed or altered, and must not come
into contact with any heat sources.
:Warning
Risk of fire/material damage/damage
to the appliance!
The use of extension cords or power
strips may result in fire due to
overheating or short circuiting.
Connect the appliance directly to an
earthed socket that has been correctly
installed. Do not use extension cords,
power strips or multi-way couplers.
:Warning
Risk of injury!
If the hoses and mains cables are not
correctly routed, they may constitute a
tripping hazard, which may result in
injury.
Route hoses and cables such that they
do not constitute a tripping hazard.
Connect the appliance as follows:
1. Plug the appliance's mains plug into
the designated socket.
2. Check that the mains plug is in
securely.
Your appliance is now ready to use.
Note: If in doubt, have your appliance
connected by a qualified professional.
Before using the appliance for
the first time
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Note: Once the appliance has been
properly installed and connected, it is
ready to use. No further steps are
necessary.
Optional accessories
Order optional accessories*from the
after-sales service:
■Basket for woollens:
Dry or air individual woollen items,
sports shoes and soft toys in the
basket for woollens.
– Order number: WMZ20600.
■Platform:
For easier loading and unloading,
raise your dryer with a platform.
You can transport laundry with the
laundry basket integrated into the
platform drawer.
– Order number: WMZ20500.
■Washer-dryer stack connection kit:
To save space, the dryer can be
placed on top of a suitable washing
machine of the same width and
depth.
Only this connection kit may be used
to secure the dryer to the washing
machine.
– Order number with pull-out
worktop: WTZ11400
– Order number without pull-out
worktop: WTZ20410.
* Depending on the appliance features

Appliance settings en
15
2Appliance settings
Appliancesettings Childproof lock
Activating the childproof lock prevents
the settings from being accidentally
changed on the control panel.
Activating/deactivating the childproof
lock:
■Press and hold child lock Epush 3
sec for 3 seconds.
Note: The childproof lock will remain
active, even once the appliance has
been switched off. If you wish to change
settings on the control panel when you
turn on the appliance, you will need to
deactivate the childproof lock.
Activating setting mode
In order to apply the settings described
below, you will first need to activate
setting mode. The options on the
programme selector that will allow you
to do this are as follows:
1. Switch on the appliance.
2. Turn the programme selector to
position 1.
3. Press Fine adjust óand, at the
same time, turn the programme
selector to position 2.
4. Release Fine adjust ó.
Setting mode is now activated.
Changing the audible signal volume
You can adjust the volume of audible
notification signals (that indicate that a
programme has ended, for example)
and audible button signals by turning
the rotary selector to the following
positions:
■2: Audible notification signal volume
■3: Audible button signal volume
1. Activate setting mode.
2. Turn the programme selector to the
required position.
3. Use the Finished in ñ+ or –button
to set the volume you require (0 =
off; 4 = very loud).
1 Activate setting mode
2 Activate setting mode and adjust
audible notification signal
volume
3 Adjust the audible button signal
volume
4Automatic switch-off function



#

en Appliance settings
16
Switching the automatic switch-off
function on/off
If the appliance is not used for an
extended period, it may automatically
switch itself off until a programme starts
or when a programme has ended in
order to save energy.It can be switched
back on again at any time by pressing
#.
You can switch the appliance's
automatic switch-off function on or off
as follows:
1. Activate setting mode.
2. Turn the programme selector to
position 4.
3. Use the Finished in ñ+ or –button
to switch the appliance's automatic
switch-off function on or off.
Exiting setting mode
Once you have applied all the settings,
press #to switch off the appliance.
The settings you have selected will be
saved and will take effect the next time
the washing machine is switched on.

Quick reference guide en
17
9Quick reference guide
Quickreferenceguide
--------
--------
--------
--------
1
Before starting
the programme:
@ @ @
Sort the laundry. Switch on the
appliance.
Select a
programme.
2@ @ @
Open the door and
place the laundry in
the drum.
Close the door. If necessary: Adjust
the programme
settings.
Start the
programme.
3
Once the
programme has
ended:
@ @ @
Switch off the
appliance.
Open the door and
remove the laundry.
Empty the
condensation
container.
4
Remove the fluff.

en Familiarising yourself with your appliance
18
*Familiarising yourself with your appliance
Familiarisingyourselfwithyourappliance Appliance overview
(Condensation container
0Control panel
8Drum interior lighting (depending on the model)
@Air inlet
HDoor
PFluff filter



#
+
3

Familiarising yourself with your appliance en
19
Panel
#

;
+3
C







K
(Programmes ~Page 21
0Programme selector
■Press to switch the appliance on/off
■Turn to set a programme
8Childproof lock
Prevents the functions you have set from being changed accidentally.
To activate/deactivate it: ~Page 15
@Anti-Crease 60 min
HAnti-Crease 120 min
PLow-Heat Drying
XDisplay
Displays settings and information
`Afor:
■Starting a programme
■Pausing a programme, e.g. to add items of laundry
■Cancelling a programme
hReady in
“Degree of dryness
”Dryness level
‘Audible signal

en Familiarising yourself with your appliance
20
Display
ðEmpty the condensation
container ~Page 28
éRemove the fluff ~Page 28
óThe heat exchanger is being
cleaned automatically
Programme progress for:
eDrying
öIron Dry
»Cupboard Dry
QAnti-Crease
- ˜ -Pause
- ‹ -Programme end
Dryness levels for:
öIron Dry
»Cupboard Dry
ÒCupboard Dry Plus
5Degree of dryness selected
\Timed programme selected
1:27 Expected programme
duration in hours and
minutes
3h Programme delay in hours
when "Ready in" time is
selected
