Bosch RPS D5500CU User manual

RPS
D5500CU
en Installation Guide

RPS Table of Contents | en 3
Bosch Security Systems, Inc. Installation Guide 4998141259 | 09 | 2008.10
Table of Contents
1Legal 5
1.1 Trademarks 5
1.2 Software License Agreement 5
2 Introduction 8
2.1 Release Notes 8
2.2 Minimum System Requirements 8
2.2.1 RPS Minimum System Requirements 8
2.2.2 Minimum System Requirements for SQL Express Only 9
2.2.3 RPS and SQL Express on the Same PC Minimum Requirements 10
2.2.4 Minimum System Requirements for RPS and SQL Express on a PC with Vista 10
3 Installing RPS 11
3.1 Hardware Installation 11
3.1.1 Installing a Modem 11
3.1.2 Protecting AC Power and Phone Lines 11

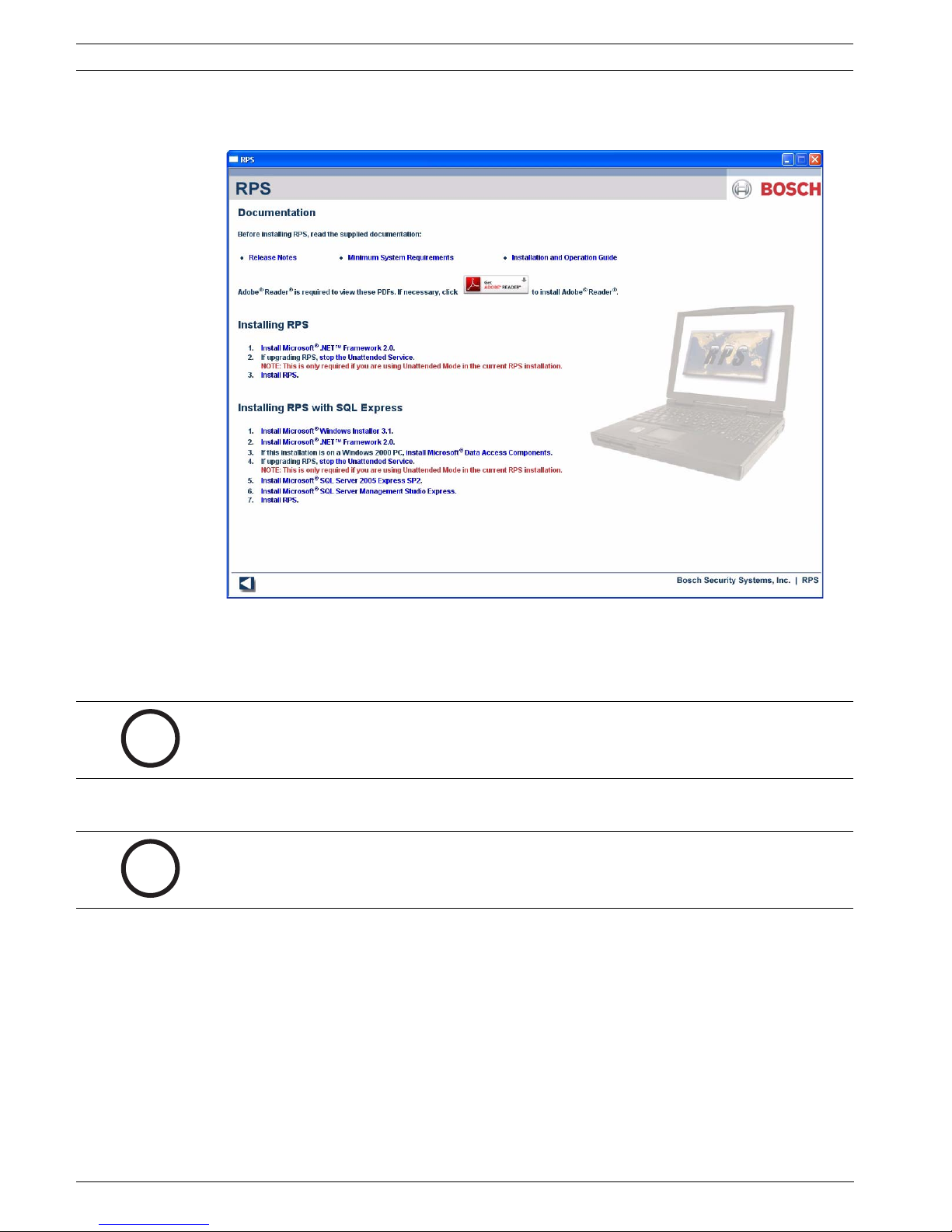

3.2 Installing RPS 11
3.3 Installing RPS Together with SQL Express 12
3.3.1 Prerequisites for a New Installation 12

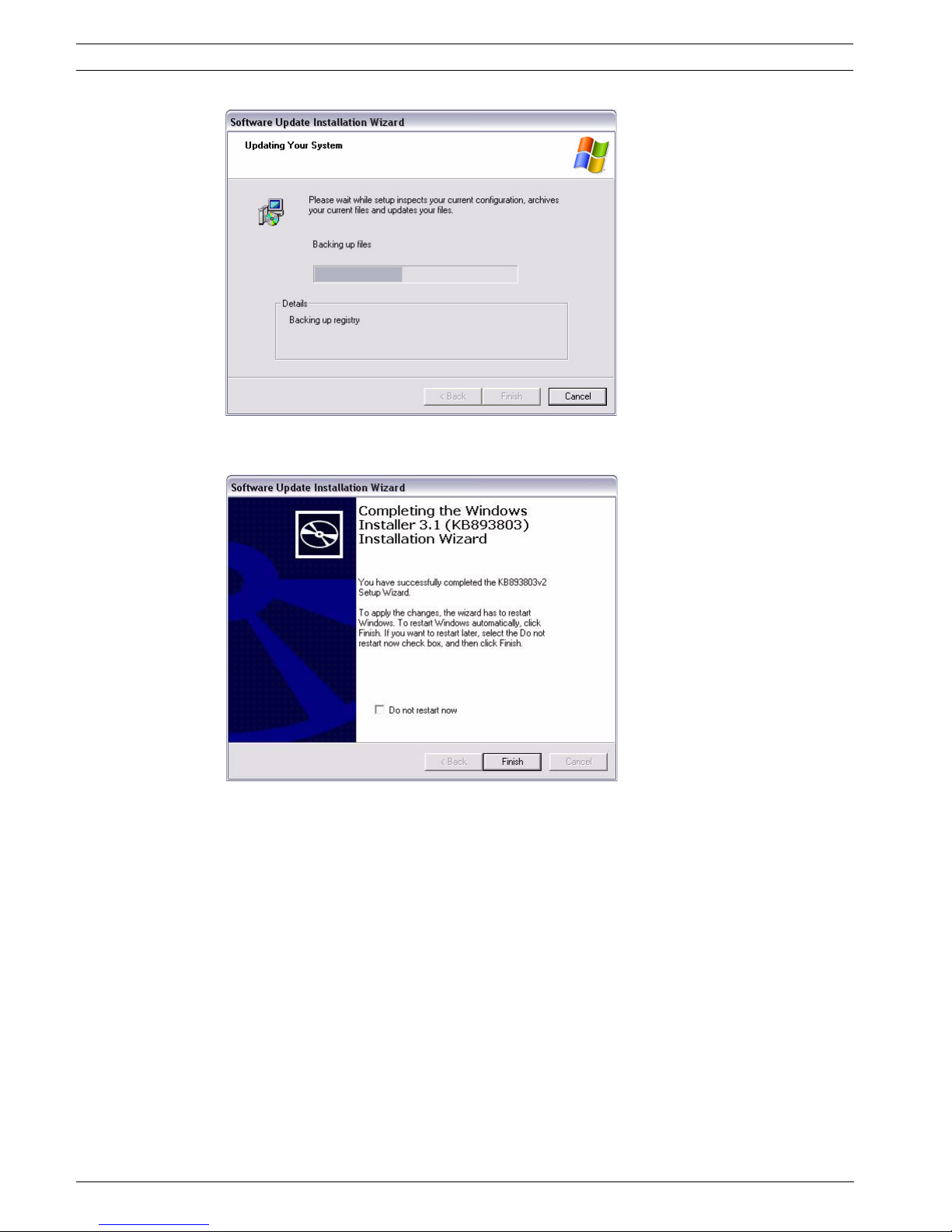

3.3.2 Windows Installer 3.1 13
3.3.3 Installing .NET Framework 2.0 15
3.3.4 Installing MDAC 17
3.3.5 Installing SQL Express 18
3.3.6 Installing SQL Server Management Studio Express 25
3.4 Installing RPS with SQL Server or SQL Express 28
3.4.1 New Installations for Standalone PCs 28
3.4.2 Installation Using SQL Server 35
3.4.3 Installation Using SQL Express on a Network 41
3.4.4 Using a Networked Drive to Store Database Files 47
4 Upgrading Existing RPS Installations 48
4.1 Upgrading RPS Client and Access Database to SQL 48
4.2 Upgrading the SQL Server Database From the Server 54
4.3 Upgrading the SQL Express Database From the Server 56
4.4 Upgrading SQL Server Database from the RPS Client 58
4.5 Upgrading the RPS Client Only (if using a network database) 63
4.6 Upgrading RPS .dat Files on the Server 66
5 Post-Installation/Upgrade Tasks 67
5.1 Switching From a Client to Network Installation 67
5.2 Reverting to Previous RPS Installation After SQL Upgrade 71
5.2.1 Reverting to a Microsoft Access Database 71
5.2.2 Reverting to a Previous SQL Database 72
5.3 Setting Security Levels by Panel Type for Networked Users 76
5.4 Backing Up the SQL or SQL Express Database 77

4en | Table of Contents RPS
4998141259 | 09 | 2008.10 Installation Guide Bosch Security Systems, Inc.
6 RPS Setup and Maintenance 79
6.1 Modifying RPS 79
6.2 Repairing RPS 80
6.3 Removing RPS 80
7 Logging Into RPS 81
7.1 First Time Log-In 81
7.2 Changing the Password 82
8 Recovering Old Database Files 83
9 RPS Operation and Control Panel Account Notes 84
9.1 RPS Notes 84
9.1.1 Installation and Administration 84
9.1.2 General Operation 84
9.1.3 Modems 84
9.2 Control Panel Account Notes 85
9.2.1 2000 Series 85
9.2.2 D6412/D4412 and DS7240/DS7220 85
9.2.3 D7024 and DS9400 86
9.2.4 D8112 86
9.2.5 D9112B1, D7212B1 86
9.2.6 DS7400XiV4-EXP 87
9.2.7 Control Panel Help Files 87

RPS Legal | en 5
Bosch Security Systems, Inc. Installation Guide 4998141259 | 09 | 2008.10
1Legal
1.1 Trademarks
– Microsoft®, Windows® 2000, XP, VistaTM UltimateTM and SQL ServerTM are either
registered trademarks or trademarks of Microsoft Corporation in the United States and/
or other countries.
– InstallShield® is a registered trademark and service mark of Acresso Software in the
United States and other countries.
– Intel® is a registered trademark of Intel Corporation in the United States and other
countries.
– Pentium® is a registered trademark of Intel Corporation in the United States and other
countries.
1.2 Software License Agreement
Bosch Security Systems, Inc. ("Bosch") licenses this software and all associated
documentation (the "Software") for your (also referred to herein as "Licensee") non-exclusive
use. Licensee has read this End User Software License Agreement ("License") and agrees to
abide by the terms and conditions of this License. By using the Software you the Licensee
accept and agree that you will abide by and are legally bound by the terms of this License. If
you do not agree to abide by the terms of this License you shall immediately return the
Software to Bosch. Licensee's use of the Software is subject to the following terms and
conditions:
1. LICENSE: Under the terms of this nonexclusive, non-transferable (except as specifically
permitted herein) license:
a. You may use a machine-readable form of the Software on a single computer or a
single server at a time, or as otherwise defined in the installation/operation manual
of the Bosch product and only for the operation of Bosch products.
b. You may not modify, translate, create derivative works, decompile, disassemble or
reverse engineer the Software.
c. You may not sublicense, lease or otherwise rent the Software without Bosch's prior
written consent.
d. You may make one copy of the Software solely for backup or archival purposes,
provided such copy must contain the original Software proprietary notice. No other
copying of the Software or the accompanying documentation is permitted.
e. This License will terminate automatically if you fail at any time to comply with any of
its terms or conditions. Upon termination, you shall immediately destroy the
Software or return it to Bosch along with any copies you have made, and to delete
any installed copy from your hardware.
2. TRANSFER OF OWNERSHIP: You may transfer this License to another party only if you:
a. Also transfer the License, Software, and all accompanying documentation and (by
sale or lease) ownership of the associated Bosch hardware, if applicable,
b. Require the other party to abide by the terms of this License, and
c. Destroy all copies of the Software and any updates that you do not transfer to the
other party.

6en | Legal RPS
4998141259 | 09 | 2008.10 Installation Guide Bosch Security Systems, Inc.
3. OWNERSHIP AND PROPRIETY RIGHTS: Although the diskette/media containing the
Software is yours, the Software is owned and copyrighted by Bosch and/or its suppliers.
Except for the rights expressly granted herein, Bosch and its suppliers retain all rights to
the Software, including, without limitation, the title to all copyright, patent, trade secret
and other intellectual and proprietary rights therein and any copies thereof, in whole or in
part, all of which are the valuable property of Bosch and/or its suppliers. You may not
remove, change or delete the copyright notice from the Software. If you make any copies
of the Software in whole or in part, all such copies shall contain the same copyright and
proprietary markings as appear on or in the original Software copy, including diskette
markings. You will instruct your employees and others having access to the Software in
and ensure their compliance with the terms of this License. You will use your best efforts
to prevent any unauthorized copying of the Software. You will be responsible for any
breach of any provision of this License by your employees. You shall not sell, transfer,
publish, disclose or otherwise make available the whole or any part of the Software or
any copies thereof to any third party or persons not permitted by the terms of, and
pursuant to the terms contained in this License. You are not in violation of this
Agreement, including this section, when a third party views the functional output
resulting from your use of the Software.
4. TAXES: You must pay all taxes that may now or hereafter be imposed, levied, or assessed
with respect to the possession or use of the Software or this License. You shall file all
reports required in connection with such taxes.
5. WARRANTY, LIMITATION OF LIABILITY, REMEDIES: THE SOFTWARE IS PROVIDED "AS
IS" WITHOUT WARRANTY OF ANY KIND INCLUDING WARRANTIES THAT THE SOFTWARE
IS ERROR FREE OR WILL RUN UNINTERRUPTED, OR WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR AGAINST
INFRINGEMENT. NEITHER BOSCH NOR ITS SUPPLIERS SHALL BE LIABLE FOR ANY LOSS
OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, LOSS OF DATA, NOR FOR
INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND
WHETHER UNDER THIS LICENSE OR OTHERWISE, OR FOR ANY CLAIM BY ANY OTHER
PARTY. Bosch does not warrant the functions provided by the Software. However, Bosch
warrants the diskette or other media on which the Software is furnished to be free from
material defects in materials and workmanship under normal use for a period of 90 days
from the date of original purchase. Bosch's entire liability to you, and your exclusive
remedy, shall be the replacement of the diskette or other media not meeting Bosch's
warranty, provided you return the same to Bosch. The replacement will be warranted for
the remainder of the term of the original warranty or 30 days, whichever is longer. You
assume responsibility for the selection of the Software to achieve your intended results,
and for the installation, use and results obtained from the Software. Without limiting the
generality of the foregoing, in no event shall Bosch be liable for any consequential,
special or general damages in any action, whether based on tort, contract or otherwise,
in connection with this License, or the Software furnished hereunder. The damages
excluded under this paragraph include, but are not limited to, damages for loss of actual
and anticipated profits, loss of programming and/or production materials, and damage to
the business reputation of user.
6. U.S. GOVERNMENT RESTRICTED RIGHTS: The Software is provided with restricted
rights. Use, duplication, or disclosure by the U.S. Government is subject to restrictions as
set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer
Software clause at DFAR 252.227-7013, Federal Acquisition Regulation clause 52.227-19
(c) (2) Commercial Computer Software Restricted Rights, NASA clause 52.227.86 (d)
Commercial Computer Software Licensing or their successor.

RPS Legal | en 7
Bosch Security Systems, Inc. Installation Guide 4998141259 | 09 | 2008.10
7. EXPORT LAWS, APPLICABLE LAW: If you, the licensee under this License, are not a U.S.
citizen or you will take delivery of the Software outside the United States, Bosch will
secure the necessary U.S. Government authorizations for exportation of the Software to
your country of destination. You agree to not reexport the Software from that destination
to another foreign country without complying with all applicable U.S. Government
restrictions and requirements. If you, the licensee, are a U.S. citizen or you will take
delivery of the Software inside the United States, then you agree to not export the
Software from the United States without complying with all applicable U.S. Government
restrictions and requirements, including obtaining any necessary U.S. Government
authorization for the export. You will not permit the Software to be reexported from an
authorized foreign destination country to any other foreign country except in compliance
with all U.S. laws and regulations. This License will be governed by the laws of the State
of New York and the United States of America, including U.S. copyright laws.
8. TERM AND TRANSFER: You may terminate this Agreement at any time by returning the
Software to Bosch or destroying the Software together with all copies in any form. Bosch
may terminate this Agreement if you fail to comply with its terms and conditions in any
material respect. Upon termination, you may not use the Software and must return or
destroy all copies thereof in whole or in part, and we will not further support the
Software.
9. ENTIRE CONTRACT: This License, including all schedules, constitutes the entire and only
agreement between the parties and supersedes all prior agreements, understandings and
communications, whether oral or written, between the parties respecting the subject
matter hereof. There are no understandings, agreements, warranties or representations,
express or implied, except as set forth herein. This License prevails over any additional,
conflicting or inconsistent terms and conditions appearing on any purchase order
submitted by Licensee. This License shall be governed by and interpreted under the laws
of New York, excepting any conflicts of laws provision. Jurisdiction for any suit brought
hereunder shall be the federal or state courts residing in New York City.

8en | Introduction RPS
4998141259 | 09 | 2008.10 Installation Guide Bosch Security Systems, Inc.
2 Introduction
RPS (Remote Programming Software) is a Windows®-based account management and control
panel programming utility designed to remotely set up and program specific control panels.
2.1 Release Notes
The Release Notes provide additional information about RPS that became available after the
printing of this manual. Review these notes before using RPS. The Release Notes also list
control panels that are compatible with RPS.
2.2 Minimum System Requirements
2.2.1 RPS Minimum System Requirements
i
NOTICE!
Unattended Mode does not run on Windows® XP Home, Windows® Vista HomeBasic, or
Windows® Vista Home Premium editions.
Processor: Pentium III, 800 MHz or faster
Operating System: – Microsoft® Windows® 2000 Professional with Service Pack 4
– Microsoft Windows 2000 Server with Service Pack 4
– Microsoft Windows 2003 Server
– Microsoft Windows XP Professional with Service Pack 2
– Microsoft Windows XP Home Edition
RAM: –Minimum: 128 MB (limited overall performance of RPS)
–Recommended: 256 MB or higher
Hard Drive Space: Approximately 250 MB for RPS installation. Accounts and history
require additional hard drive space.
Video: VGA monitor capable of supporting 1024 x 768 resolution. RPS
supports 24-bit color palettes and lower. For Windows XP, change the
font settings to Normal Fonts.
Database Support: Microsoft SQL Server™ 2000
Modems: The online help file for each control panel lists compatible modems
that were tested with RPS. The administrator can also configure and
use most major brands and types of modems with RPS. Refer to
Modem Specifications in the RPS Help file for more information.
Ports: One serial port for modem communication and one parallel port for
printer connection or security block (dongle). One USB port for
security block (dongle). If you have an available USB port and your
installation requires a security block, you can use either the USB or
parallel port security block.

RPS Introduction | en 9
Bosch Security Systems, Inc. Installation Guide 4998141259 | 09 | 2008.10
2.2.2 Minimum System Requirements for SQL Express Only
Processor: Pentium III Compatible or higher
–Minimum: 500 MHz
–Recommended: 1 GHz or higher
Operating System: – Microsoft® Windows® VistaTM UltimateTM
– Microsoft Windows Vista Home Premium
– Microsoft Windows Vista Home Basic
– Microsoft Windows Vista Business
– Microsoft Windows Vista Enterprise
– Microsoft Windows 2003 Server with Service Pack 1
– Microsoft Windows 2003 Server Enterprise Edition with Service
Pack 1
– Microsoft Windows 2003 Server Premium Edition with Service
Pack 1
– Microsoft Windows XP Professional with Service Pack 2
– Microsoft Windows XP Home Edition with Service Pack 2
– Microsoft Windows XP Tablet Edition with Service Pack 2
– Microsoft Windows XP Media Edition with Service Pack 2
– Microsoft Windows 2000 Professional Edition with Service Pack 4
– Microsoft Windows 2000 Server Edition with Service Pack 4
– Microsoft Windows 2000 Advanced Edition with Service Pack 4
– Microsoft Windows 2000 Datacenter Server Edition with Service
Pack 4
RAM: –Minimum: 192 MB (limited overall performance of RPS)
–Recommended: 512MB or higher
Hard Drive Space: 600 MB free space.
Browser: Microsoft Internet Explorer version 6 or later
Software: – Microsoft .NET Framework 2.0
– Windows Installer 3.1
– Microsoft Data Access Components (MDAC)

10 en | Introduction RPS
4998141259 | 09 | 2008.10 Installation Guide Bosch Security Systems, Inc.
2.2.3 RPS and SQL Express on the Same PC Minimum Requirements
2.2.4 Minimum System Requirements for RPS and SQL Express on a PC with
Vista
Processor: Intel Pentium IV
Operating System: – Microsoft Windows 2003 Server with Service Pack 1
– Microsoft Windows XP Professional with Service Pack 2
– Microsoft Windows XP Home Edition with Service Pack 2
– Microsoft Windows 2000 Professional Edition with Service Pack 4
– Microsoft Windows 2000 Server Edition with Service Pack 4
RAM: –Minimum: 512 MB
–Recommended: 1 GB or higher
Hard Drive Space: Approximately 512 MB for RPS installation. Accounts and history
require additional hard drive space.
Video: VGA monitor capable of supporting 1024 x 768 resolution. RPS
supports 24-bit color palettes and lower. For Windows XP, change the
font settings to Normal Fonts.
Modems: The online help file for each control panel lists compatible modems
that were tested with RPS. The administrator can also configure and
use most major brands and types of modems with RPS. Refer to
Modem Specifications in the RPS Help file for more information.
Ports: One serial port for modem communication and one parallel port for
printer connections.
Browser: Microsoft Internet Explorer version 6 or later
Software: – Microsoft .NET Framework 2.0
– Windows Installer 3.1
– Microsoft Data Access Components (MDAC)
Processor: 1 GHz 32-bit (x86) processor
Operating System: – Microsoft Windows Vista (all versions)
RAM: –Minimum: 512 MB
–Recommended: 1 GB or higher
Hard Drive Space: 20 GB hard drive with at least 14 GB of available space.
Video: VGA monitor capable of supporting 1024 x 768 resolution. RPS
supports 24-bit color palettes and lower. Set the font settings to
Normal Fonts.
Modems: The online help file for each control panel lists compatible modems
that were tested with RPS. The administrator can also configure and
use most major brands and types of modems with RPS. Refer to
Modem Specifications in the RPS Help file for more information.
Ports: One serial port for modem communication and one parallel port for
printer connections.
Browser: Microsoft Internet Explorer version 6 or later
Software: – Microsoft .NET Framework 2.0
– Windows Installer 3.1

RPS Installing RPS | en 11
Bosch Security Systems, Inc. Installation Guide 4998141259 | 09 | 2008.10
3 Installing RPS
3.1 Hardware Installation
3.1.1 Installing a Modem
When using an internal modem, consult the documentation accompanying your modem for
physical installation.
3.1.2 Protecting AC Power and Phone Lines
Protect your hardware and data from costly damage by protecting the AC power source and
the phone line for the modem. Several manufacturers offer devices that provide combined AC
and telephone line protection. Contact your computer dealer for more information on these
devices.
3.2 Installing RPS
1. Insert the RPS CD-ROM into your CD-ROM drive.
The RPS startup program should automatically start.
Figure 3.1 RPS Startup
2. If the startup program does not automatically start:
a. Select Start > Run…
b. At the prompt, type: X:\Winopen rps_menu.hta
("X" = the drive letter assigned to your CD-ROM drive.)

12 en | Installing RPS RPS
4998141259 | 09 | 2008.10 Installation Guide Bosch Security Systems, Inc.
3. When the startup window opens, select a language from the list provided. Refer to
Figure 3.1 on page 11. An instruction window opens in the selected language.
Figure 3.2 English Instruction Page
From the instruction window, you can open the RPS documentation and install RPS.
4. Follow the steps listed on the instruction window for installing each component required
for RPS.
3.3 Installing RPS Together with SQL Express
3.3.1 Prerequisites for a New Installation
Use the following steps to install RPS for the first time, or to replace a previous version that
was removed using Add/Remove Programs.
i
NOTICE!
For new installations of RPS 5.x, you must install Microsoft .NETTM Framework 2.0. If you are
upgrading or re-installing RPS 5.x, install only RPS.
i
NOTICE!
If SQL Express is already installed, you do not need to install SQL Server 2005.
If SQL Server 2005 is already installed, you do not need to install SQL Express.

RPS Installing RPS | en 13
Bosch Security Systems, Inc. Installation Guide 4998141259 | 09 | 2008.10
3.3.2 Windows Installer 3.1
1. Select the Windows Installer 3.1 from the RPS installation CD-ROM, or select Install
Windows Installer 3.1 from the RPS instruction dialog.
2. The Windows Installer 3.1 welcome dialog opens.
Click Next.
Figure 3.3 Windows Installer 3.1 Welcome Dialog
3. The License Agreement dialog opens.
Click I Agree, then click Next.
Figure 3.4 License Agreement Dialog
4. The Updating Your System dialog shows the status of the installation.
i
NOTICE!
Windows Installer 3.1 is only needed on Windows® 2000 and Windows® XP SP2 operating
systems.

14 en | Installing RPS RPS
4998141259 | 09 | 2008.10 Installation Guide Bosch Security Systems, Inc.
Figure 3.5 License Agreement Dialog
5. When the installation completes, click Finish to restart the PC.
Figure 3.6 Windows Installer 3.1 Completing Dialog

RPS Installing RPS | en 15
Bosch Security Systems, Inc. Installation Guide 4998141259 | 09 | 2008.10
3.3.3 Installing .NET Framework 2.0
1. Select Install .NET Framework 2.0 from the RPS installation CD-ROM, or select Install
.NET Framework 2.0 from the RPS instruction dialog.
2. The Microsoft .NET Framework 2.0 Setup welcome dialog opens.
Click Next.
Figure 3.7 .NET Setup Welcome Dialog
3. The End-User License Agreement dialog opens.
Select I accept the terms of the License Agreement, then click Install.
Figure 3.8 .NET End-User License Dialog
i
NOTICE!
.NET Framework 2.0 is not required for Windows® Vista operating systems.

16 en | Installing RPS RPS
4998141259 | 09 | 2008.10 Installation Guide Bosch Security Systems, Inc.
4. The Installing Components dialog show the installation progress.
Figure 3.9 .NET Installing components Dialog
5. When the Setup Complete dialog opens, click Finish.
Figure 3.10 .NET Setup Complete Dialog

RPS Installing RPS | en 17
Bosch Security Systems, Inc. Installation Guide 4998141259 | 09 | 2008.10
3.3.4 Installing MDAC
1. Select the MDAC installer from the RPS CD-ROM, or select Install Microsoft Data Access
Components from the RPS instruction dialog.
2. The End User License Agreement dialog opens.
Select I accept all of the terms of the preceding license agreement, then click Next.
Figure 3.11 MDAC End User License Agreement Dialog
3. The Installing the Software dialog opens.
Click Finish.
Figure 3.12 MDAC Installing the Software Dialog
4. When the Setup is Complete dialog opens, click Close.
i
NOTICE!
MDAC is required only for Windows 2000 installations.

18 en | Installing RPS RPS
4998141259 | 09 | 2008.10 Installation Guide Bosch Security Systems, Inc.
Figure 3.13 MDAC Setup is Complete Dialog
3.3.5 Installing SQL Express
1. Select the SQL Express installer from the RPS installation CD-ROM, or select Install
Microsoft SQL Server 2005 Express SP2 from the RPS instruction dialog. The Extracting
Files dialog shows briefly.
Figure 3.14 SQL Express Extracting Files Dialog
2. The End User License Agreement dialog opens.
Select I accept the licensing terms and conditions, then click Next.
Figure 3.15 SQL Express End User License Agreement Dialog

RPS Installing RPS | en 19
Bosch Security Systems, Inc. Installation Guide 4998141259 | 09 | 2008.10
3. The Installing Prerequisites dialog opens,
Click Install.
The dialog shows the progress of the installation.
Figure 3.16 SQL Express Installing Prerequisites Dialog
4. The Microsoft SQL Server Installation Wizard welcome screen opens.
Click Next.
Figure 3.17 Microsoft SQL Server Installation Wizard Welcome Dialog
5. When the System Configuration Check dialog finishes, click Next.

20 en | Installing RPS RPS
4998141259 | 09 | 2008.10 Installation Guide Bosch Security Systems, Inc.
Figure 3.18 SQL System Configuration Check Dialog
6. The Microsoft SQL Server Installation dialog shows the status of the installation.
When the installation finishes, click Next.
Figure 3.19 Microsoft SQL Server Installation Dialog
