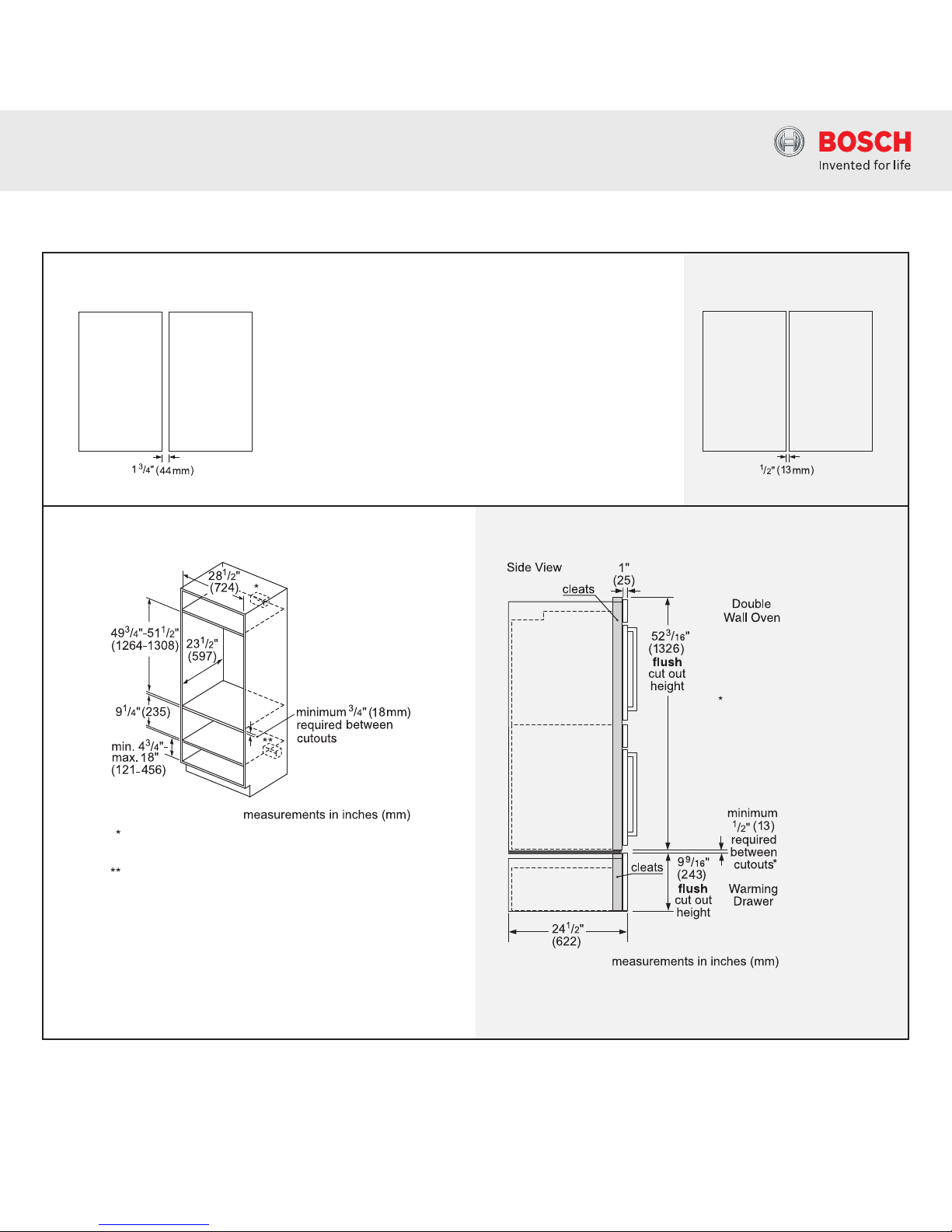

Installation Details
Standard Flush
Cutout 1
The ovens will overlap the cutout resulting in
a
1/2" (13mm) spacing between the products
IMPORTANT: The spacing between cutouts applies when installing any Bosch 30
" or
" single, double, combination and 27"/30" compact oven in a side-by-side installation.
Side-by-Side Installation
Cutout 2 Cutout 1 Cutout 2
Standard Flush
Cutout 1
The ovens will overlap the cutout resulting in
a 1/2" (13mm) spacing between the products
IMPORTANT: The spacing between cutouts applies when installing any Bosch 30" or
27" single, double, combination and 27"/30" compact oven in a side-by-side installation.
Side-by-Side Installation
Cutout 2 Cutout 1 Cutout 2
Flush
Cutout 1
The ovens will overlap the cutout resulting in
a 1/2" (13mm) spacing between the products
IMPORTANT: The spacing between cutouts applies when installing any Bosch 30" or
27" single, double, combination and 27"/30" compact oven in a side-by-side installation.
Side-by-Side Installation
Cutout 2
Cutout 1 Cutout 2
Standard
Cutout 1
The ovens will overlap the cutout resulting in
a 1/2" (13mm) spacing between the products
IMPORTANT: The spacing between cutouts applies when installing any Bosch 30" or
27" single, double, combination and 27"/30" compact oven in a side-by-side installation.
Side-by-Side Installation
Cutout 2
Flush Installation
Double Oven over Storage or Warming Drawer
IMPORTANT: base has to be
able to support oven weight.
Please check oven manual for
minimum weight requirements.
Benchmark™ Series - Stainless Steel HBLP651LUC
30" Double Wall Oven Left Swing Door
Standard Installation
30" Double Oven over Storage or Warming Drawer
Wall oven junction box may be located above or right
or left of the unit within reach of the power conduit.
Electrical hook up may be located below
(depending on space) or next to the drawer
within the reach of the power cord.
If another product is installed adjacent to the side hinge we recommend to increase each
distance by an additional 1/4" (6mm) to leave room for the door to open and close freely.
