Installation Details
Warming Drawer
required
minimum
IMPORTANT: base has to be able to support
oven weight. Please check oven manual for
minimum weight requirements.

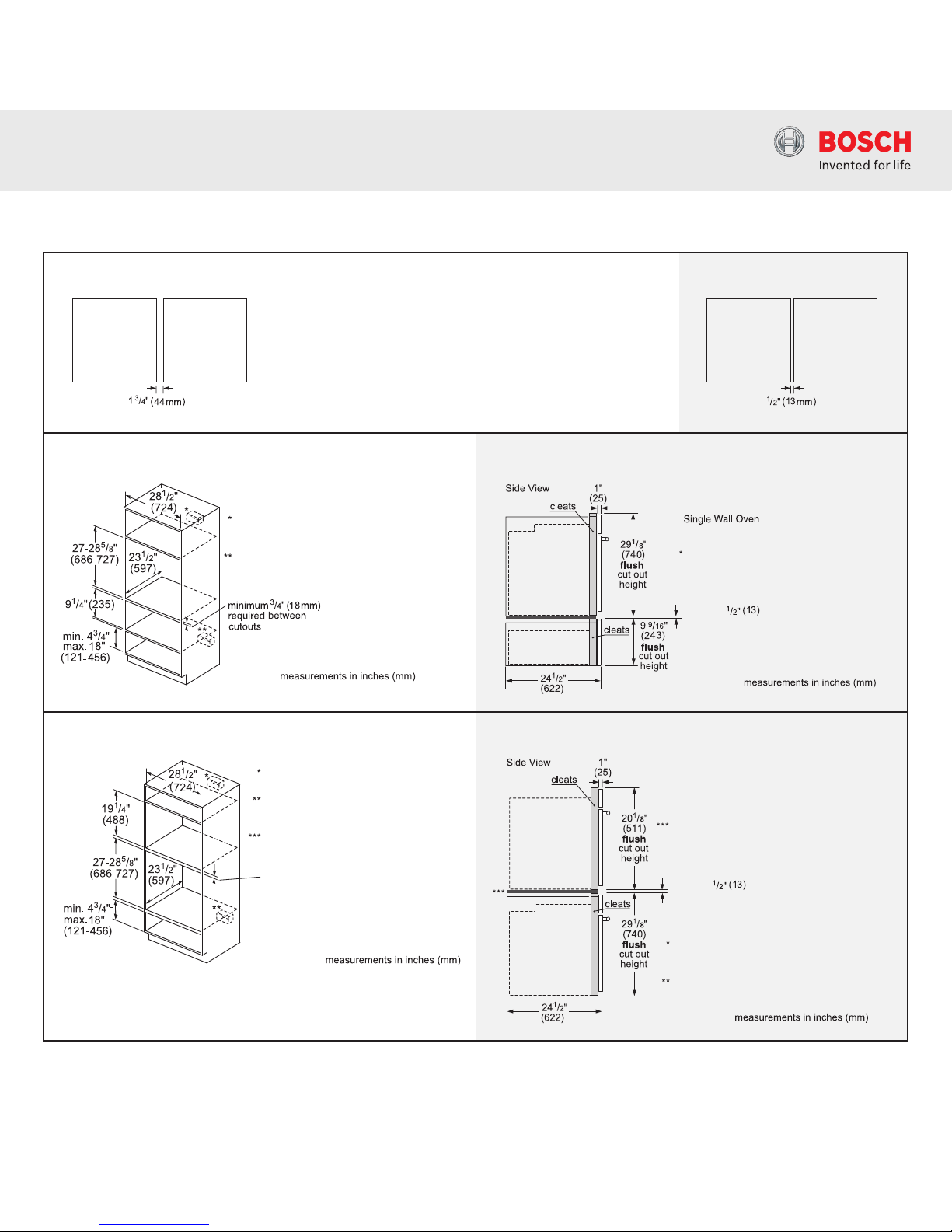

Flush Installation
Single Oven over Storage or Warming Drawer
between cutouts*
Wall Oven
Speed Microwave Oven
Speed Microwave Oven over 30" Single Oven**
Most combinations available as combo oven
(one cut out, one electrical hook up).
IMPORTANT: base has to be able to support
oven weight. Please check oven manual for
minimum weight requirements.
required
minimum
between cutouts*
Flush installation requires a base plate
underneath the body: 30" Products - Dimensions:
H 5/16"(8) x W 281/2"(724) x D 221/2"(571)
Standard
Cutout 1
The ovens will overlap the cutout resulting in
a 1/2" (13mm) spacing between the products
IMPORTANT: The spacing between cutouts applies when installing any Bosch 30" or
27" single, double, combination and 27"/30" compact oven in a side-by-side installation.
Side-by-Side Installation
Cutout 2
Standard Flush
Cutout 1
The ovens will overlap the cutout resulting in
a 1/2" (13mm) spacing between the products
IMPORTANT: The spacing between cutouts applies when installing any Bosch 30" or
27" single, double, combination and 27"/30" compact oven in a side-by-side installation.
Side-by-Side Installation
Cutout 2 Cutout 1 Cutout 2
Flush
Cutout 1
The ovens will overlap the cutout resulting in
a 1/2" (13mm) spacing between the products
IMPORTANT: The spacing between cutouts applies when installing any Bosch 30" or
27" single, double, combination and 27"/30" compact oven in a side-by-side installation.
Side-by-Side Installation
Cutout 2
Cutout 1 Cutout 2
The ovens will overlap the cutout resulting in
a 1/2" (13mm) spacing between the products
IMPORTANT: The spacing between cutouts applies when installing any Bosch 30" or
27" single, double, combination and 27"/30" compact oven in a side-by-side installation.
Side-by-Side Installation
Cutout 2 Cutout 1 Cutout 2
Benchmark™ Series – Stainless Steel HBLP451UC
30" Single Wall Oven
Standard Installation
30" Speed Microwave Oven over Single Oven***
Junction box may be located above or next
to the unit within the reach of the power cord.
Junction box may be located below
(depending on space) or next to the
unit within the reach of the power cord.
Most combinations available as combo oven
(one cut out, one electrical hook up).
Minimum dimension
between cut outs:
• 1" (25mm) for wall oven
cut out height of 285/8"
• 25/8" (67mm) for wall oven
cut out height of 27"
Standard Installation
30" Single Oven over Storage or Warming Drawer
Wall oven junction box may be located above
or right or left of the unit within reach of the
power conduit.
Electrical hook up may be located below
(depending on space) or next to the drawer
within the reach of the power cord.
