Instruction Manual and Installation Instruction
Washer-Dryer
WKD28541EE

2
Your new washer-dryer
You have chosen a Bosch washer dryer.
Please take a few minutes to read and become familiar
with the advantages of your washer dryer.
To meet the high quality demands required by Bosch,
every washer dryer that leaves our factory is carefully
checked to ensure that it functions correctly and is in
perfect condition.
For more information on our products, accessories,
replacement parts and services, see our website
www.bosch-home.comor contact our after-sales service
centres.
If the operating and installation instructions describe
different models, any differences will be pointed out at the
relevant points in the text.
Read these operating and installation instructions before
switching on the washer dryer.

3
Contents
Operating instructions General safety information ......................................................... 4
Environmental protection/economy tips .................................. 6
Your new washer-dryer ............................................................... 7
Before washing for the first time ................................................ 9
Preparing and sorting the laundry ............................................. 9
Detergents and Care Products.................................................11
Programmes.................................................................................13
Washing and drying options .................................................15
Washing and drying ..................................................................17
Cleaning and care ......................................................................19
What to do if... ............................................................................21
After-sales service .....................................................................24
Installation instructions Installation instructions ........................................................25
Appendix Table of programmes.................................................................30
Consumption rates......................................................................31
Index ..............................................................................................32

4
General safety information
Intended use
– For private domestic use only.
– The washer dryer is suitable for machine washable textiles and hand
washable wool and for drying certain types of textiles according to care
instructions.
– The appliance is suitable for operation with cold mains water and
commercially available detergents and care products which are
suitable for use in a washer dryer.
– Always follow the manufacturer's instructions when dosing
all detergents, cleaning aids, cleaning products and cleaning agents.
– The washer dryer may be operated by children from 8 years of age, by
persons who have limited physical, sensory or mental abilities and by
persons who have inadequate experience or knowledge, provided
they are supervised or have been instructed by a responsible
person.Children must not perform any cleaning or maintenance work
without supervision.
– Keep children under the age of 3 years away from the washer dryer.
– Keep pets away from the washer dryer.
– Install and operate the washer dryer in a room which has an outflow.
This washer-dryer complies with the relevant safety regulations.
Electrical safety Warning
Danger of death!
Danger of death if live parts are touched.
– When disconnecting the mains plug, always pull the plug
itself and not the cable, otherwise the cable could be
damaged.
– Never touch or hold the mains plug with wet hands.
Risk of injury Warning
Risk of injury!
– If the washer dryer is lifted using projecting parts (e.g. the
washer dryer door), these components may break off and
cause injuries.
– Do not lift the washer dryer by its projecting parts.
– If you climb onto the washer dryer, the worktop may break and
cause injuries.
– Do not climb onto the washer dryer.
– If you lean/support yourself on the open door, the washer
dryer may overturn and cause injuries.
– Do not lean on the open washer dryer door.
– If you reach into the rotating drum, you may injure your hands.
– Do not grip the rotating drum. Wait until the drum stops
rotating.
Warning
Risk of scalding!
– When washing at high temperatures, you may be scalded
if you touch the hot washing water (e.g. if draining hot
washing water into a washbasin).
– Do not touch the hot washing water.
– If a drying programme was interrupted, the washer dryer
and laundry may be very hot. Select Intensive Dry Ùor
Low Heat Dry ^and select 15 min drying time to cool
down the washing and then remove.

5
Safety for children Warning
Danger of death!
If children play with the washer dryer, they may get into life-
threatening situations or injure themselves.
– Do not leave children unattended near the washer dryer.
–Donotletchildrenplaywith the washer dryer.
Warning
Danger of death!
Children may lock themselves in appliances, putting their
lives at risk.
For appliances that have reached the end of their service
life:
– Disconnect the mains plug.
– Cut through the mains cable and remove it, along with plug.
– Destroy the lock on the washer dryer door.
Warning
Risk of choking!
Children may become wrapped in packaging/film or packing
parts if allowed to play with them, or they may pull them over
their heads and suffocate.
Keep packaging, film and packaging parts out of the reach
of children.
Warning
Risk of poisoning!
Detergents and care products may be poisonous if
consumed.
Keep detergents and care products out of the reach of
children.
Warning
Eye / skin irritation!
Detergents and care products may cause irritation if they
come into contact with the eyes or skin.
Keep detergents and care products out of the reach of
children.
Warning
Risk of injury!
When you wash/dry at high temperatures, the glass in the
washer dryer door gets hot.
Do not let children touch the hot washer dryer door.

6
Environmental protection/economy
tips
– Separate out the various waste materials of the packaging and take
them to the nearest collection point.
– Always fill the washer-dryer with the maximum load for the relevant
programme.
– Wash normally soiled laundry without a prewash.
–InsteadofResistentes/Algod. (Cottons/Coloureds) 90 °C, select the
Color eco/Cor eco (Cottons Eco) 60 °C programme. This gives
comparable results, but uses less energy.
– Measure the detergent according to the manufacturer's instructions
and in line with the local water hardness.
WEEE
)
This appliance is labelled in accordance with European Directive 2012/
19/EU concerning used electrical and electronic appliances (waste
electrical and electronic equipment - WEEE). The guideline determines
the framework for the return and recycling of used appliances as
applicable throughout the EU.

7
Your new washer-dryer
Description of the
washer-dryer
The washer-dryer can be used
in 3 ways –> page17:
– washing only
– drying only
– successive washing and drying.
The successive wash-dry programme automatically shifts from the wash
cycle to the dry cycle without further intervention.
Drying is achieved using the condensation principle. The condensate that
is produced during drying runs via the Drain hose into the Drain tank.
Caution: the water supply hose and water Drain hose must be correctly
connected during washing and drying –> page28. The tap must be open.
A safety device prevents the door from being opened during operation.
Before opening
Make sure that there is no water in the drum and that the drum is not
moving.
Emergency release
In the event of a power cut, the door can be released mechanically
–> page23.
Door

8
Control panel
Indicator lamp
Indicates the settings that have been
selected for:
– Temperature: Ž
- 90°C.
– Spin speed: $ - 1400 rpm.
– Options/signal.
Display panel
Shows the settings that have been selected (e.g. spin speed,
drying time), the progress of the current programme and the
programme status.
Programme progress
! N'
B ‘
Pre-wash, Main wash, Rinse,
Final spin, Drying.
Drying options
5 Pe e:
Time-controlled drying, Iron-damp,
Cupboard-dry, Extra-dry.
Auxiliary displays
2 % E
l kg
Finished in time, Programme start, Childproof
lock, Fluff-removal cycle, recommended
load.
Indicator lamp Display panel
Washing and drying options –> page15
–°C (Temperature): individual adjustment of the
washing temperature.
–B (Spin speed): individual adjustment of the spin
speed.
–menu (Options): sets washing options.
–selec.: activation/deactivation of the selected
washing options.
–0 (Finished in time): delays the Programme start.
–Secar (Drying): sets the drying options
A(Start/Pause ):
starts and stops the washing programme –> page16.
Buttons
Programme selector –> page13
For switching the washer-dryer on and
off and for selecting the programme, can
be turned in both directions. Do not
adjust the programme selector while
washing/drying is in progress.
Programme selector

9
Before washing for the first time
Preparing and sorting the laundry
The washer-dryer was tested before leaving the factory.
To remove any water that may be left over from the test, do not load any
laundry the first time that you run a wash programme.
Make sure that the transport safety bolts on the rear of the washer-
dryer have been removed –> page26.
Do not load any laundry.
Close the door.
Turn on the tap.

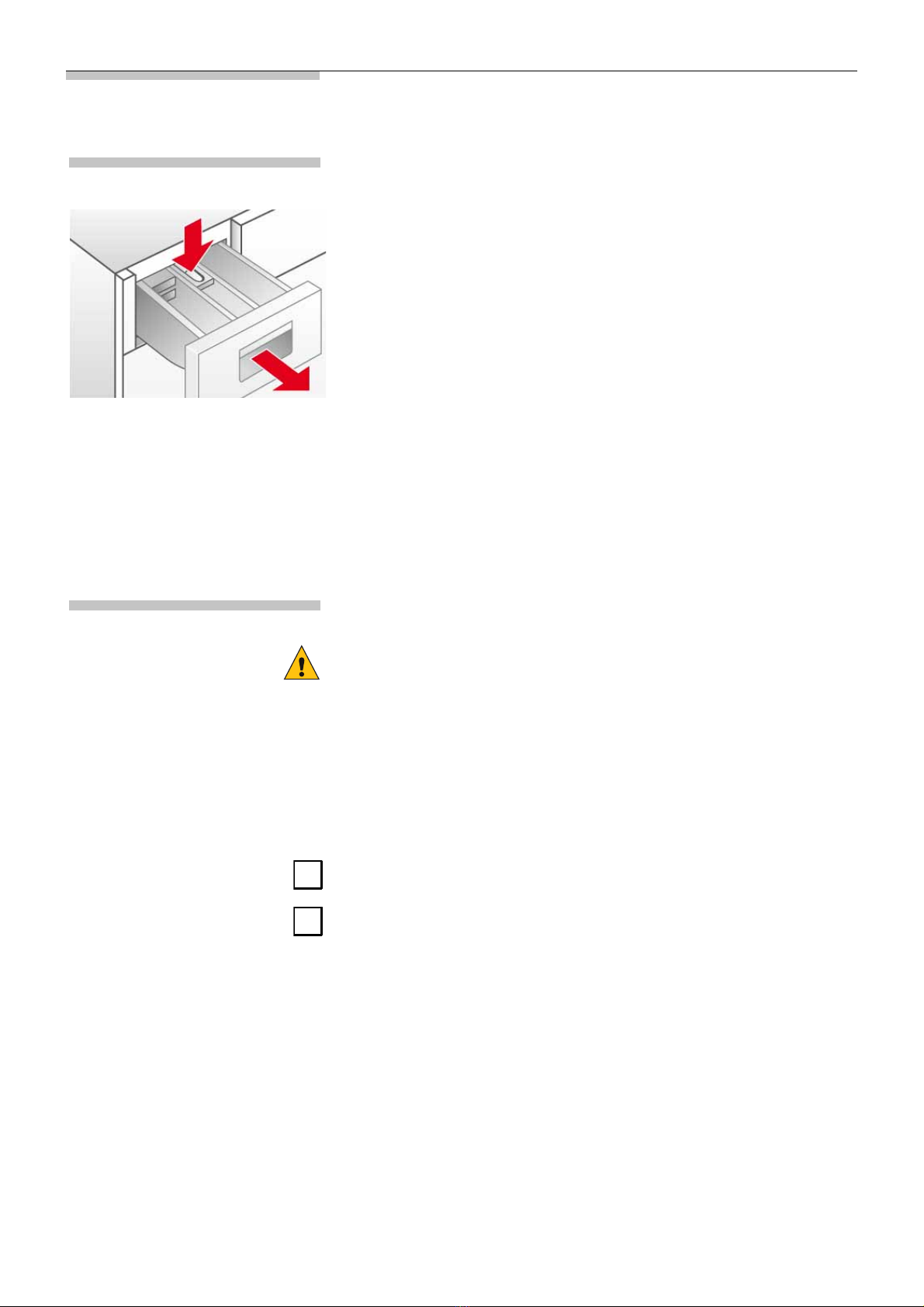

Pull out the detergent drawer.
Add ½ a measuring cup of detergent to compartment II –> page11.
Do not use detergents for wool or delicates (these cause foam to be
created).
Close the detergent drawer.
Turn the programme selector to the 60°C programme.
Press the A (Start/Pause) button.
At the end of the programme, turn the programme selector to Stop.
Open the door.
Leave the door open to allow the inside of the washer-dryer to dry.
Sorting laundry for
washing
– Wash white laundry separately from coloureds.
– Unhemmed or torn items should not be washed in the washer-dryer, as
they may fray.
– The laundry may be damaged if you do not observe the fabric care
symbols.
Only wash laundry with the following care labels:
Laundry with care symbol Do not wash.
i
i
Sorting laundry
according to the
information on the
care labels
Care label Type of laundry
<; Cottons 90 °C.
:98 Coloureds 60 °C, 40 °C, 30 °C.
BA> Easy-care 60 °C, 40 °C, 30 °C.
uFAE> Hand- and machine-washable silk, 40 °C, 30 °C,
cold.

10
Sorting laundry for
drying
Only dry laundry that is labelled "suitable for tumble-drying" or which
has the following care symbols:
Do not wash the following fabrics in the washer-dryer:
–Donotmachinedrylaundry with the b
care symbol.
– Airtight fabrics (e.g. rubber-coated fabrics).
– Delicate materials (silk, curtains made from synthetic fabrics) -
they may crease.
– Dripping-wet laundry - high energy consumption
– Wool or fabrics containing wool.
Preparing laundry for
washing
Loose foreign bodies (e.g. coins, paper-clips, needles, nails) may damage
the laundry and components of the washer-dryer (e.g. the drum).
Drain the pockets of all items.
Brush any sand out of pockets and collars.
Pretreat any stains.
Close zips, do up cover buttons.
Remove curtain fittings or place curtains in a laundry bag.
Wash the following in a laundry bag/pillowcase:
– Delicates, e.g. tights, curtains,
– Small items, e.g. socks or handkerchiefs,
– Underwired bras (the underwiring may come loose during the
washing process and cause damage).
Turn trousers, knitwear and knitted fabrics, e.g. jerseys,
T-shirts or sweatshirts inside out.
Preparing laundry for
drying
Only dry fabrics that have already been washed, rinsed and spun.
Also spin easy-care fabrics before drying.
Sort the items for washing according to material and desired level of
dryness to ensure even drying.
Loading the
laundry
Before loading the washer-dryer, make sure that there are no foreign
bodies or pets in the drum.
Risk of explosion. items that have been treated with cleaning agents
containing solvents, e.g. stain remover or, must be carefully rinsed out
before they are loaded into the washer-dryer, otherwise there is the risk
of an explosion.
Unfold the laundry and place it loosely in the drum. Load a mixture of
small and large items.
Observe the maximum drum loads,
Programme table –> page30.
Take care not to trap items of laundry between the door and the rubber
seal.
Close the door. You will hear it click shut.
Measure out and add detergent and care products for only a washing
programme or a combined washing and drying programme.
Turn on the tap.
Sorting laundry
according to the
information on the
care labels
Care label Type of laundry
aDry at normal temperature.
`Dry at low temperature (delicate drying).
