Your new washing machine
You have chosen a premium washing machine made by Bosch.
Thanks to its innovative technologies, the washing machine is
distinguished by its perfect washing performance and its
economic consumption of water and energy.
Please take a couple of minutes to read and become familiar
with the advantages of your washing machine.
To meet the high quality demands of the Bosch brand, each
washing machine, which leaves our factory, is inspected
thoroughly to ensure that it functions properly and is in perfect
condition.
Further information on our products, accessories, spare parts
and services can be found at: www.bosch-home.com or contact
our customer service centres.
If the instructions for use and assembly describe various models,
reference is made to the differences at the appropriate places.
Explanation of the symbols
ãWarning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in death or
serious injuries unless it is avoided.
ãCaution!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight or
minor injuries or damage to property and the environment.
²
Instructions on how best to use the appliance as well as other
useful information.

3
Contents en InstructionManualandInstallationInstructions
Before washing
ØIntended use 4
ØSafety instructions 5
ØProtection of the environment 8
ØGetting to know your appliance 9
ØDetergent drawer 10
ØOperating elements/Display elements 11
ØThe main points in brief 12
Operating the appliance
ØBefore each washing 13
ØWashing 19
ØAfter washing 22
ØProgramme overview 23
ØProgramme settings/options 28
ØAutomatic stain treatment 30
ØConsumption values 31
ØAppliance settings 32
ØSensors – Your washing machine is so intelligent 33
Cleaning and maintenance
ØCare and maintenance 34
ØEmergency lock release, e.g. if power failure occurs 38
ØInformation on the display panel 39
ØFaults, what to do? 40
ØCustomer service 42
Installing the appliance
ØStandard accessories 43
ØInstallation 45
ØRemove transportation protection devices 48
ØConnecting the water 50
ØAlignment 53
ØElectrical connection 54
ØBefore the 1st washing 55
ØTransportation, e.g. if moving house 56
Index 57

4
Beforewashing
Intended use
ØFor use in the household only.
ØThe washing machine is suitable for washing machine-
washable textiles and hand-washable wool in wash liquor.
ØThe washing machine is suitable to be operated with cold
drinking water and commercially available detergents and
care products which are suitable for use in washing
machines.
ØWhen dosing all detergents, cleaning aids, cleaning products
and cleaning agents, always follow the manufacturer's
instructions.
ØThe washing machine may be operated by children from 8
years of age, by persons who have limited physical, sensory
or mental abilities and by persons who have inadequate
experience or knowledge, provided they are supervised or
have been instructed by a responsible person.
ØKeep pets away from the washing machine!
Read and follow the operating and installation instructions and all
other information enclosed with the washing machine.
Retain documents for subsequent use.

5
Safety instructions
ãWarning!
Danger of death from electric shock!
Danger of death if live parts are touched.
– Never pull out the mains plug by tugging the power cord.
– Insert/pull out the mains plug with dry hands only.
ãWarning!
Risk to children!
– Do not leave children unsupervised near the washing machine.
– Children must not play with the washing machine.
– This will prevent children from locking themselves in and
suffocating.
On redundant appliances:
– Pull out the mains plug!
– Sever the power cord and discard together with the plug.
– Destroy the lock on the washing-machine door.
– Children must not perform any cleaning or maintenance work
without supervision.
– When playing, children may become entangled in the
packaging/film and packaging parts or pull them over their
heads and suffocate.
Keep packaging, plastic film and packaging parts out of the reach
of children.
– When washing at high temperatures, the glass of the washing
machine door becomes hot.
Prevent children from touching the hot washing machine door.
– Detergents and care products may cause intoxication if
consumed or eye and skin irritation if touched.
Keep detergents and care products out of the reach of children.

6
ãWarning!
Risk of explosion!
Items of washing pretreated with solvent detergents, e.g. stain
remover/petroleum ether, may cause an explosion when the
washing machine has been loaded.
Before hand thoroughly rinse items of washing by hand.
ãCaution!
Danger of scalding!
When washing at high temperatures, you may be scalded if you
touch the hot wash liquor (e.g. if draining hot wash liquor into a
washbasin or if draining the washing machine in an emergency).
Allow detergent solution to cool down.
ãCaution!
Risk of damaging appliance!
–Cover plate may break!
Do not climb on the washing machine.
–Opened washing machine door may break off or washing
machine may overturn!
Do not lean on the open washing machine door.
ãCaution!
Danger when reaching into/gripping the rotating drum!
If you reach into the rotating drum, you may injure your hands.
Do not grip the rotating drum. Wait until the drum stops rotating.

7
ãCaution!
Risk of coming into contact with liquid detergents/care products!
If the detergent drawer is opened while the washing machine is
running, detergent/care product may spray out.
Caution when opening the detergent drawer.
In case of eye/skin contact, rinse thoroughly.
If accidentally swallowed, seek medical advice.

8
Protection of the environment
Packaging/Old appliance
Hints and tips
ØUtilise the maximum amount of washing for the particular
programme.
ØWash normally soiled washing without Pre-wash.
ØInstead of Cottons 90 °C programme select Cottons 60 °C
and EcoPerfect button. Comparable cleaning result with
significantly lower energy consumption.
ØEnergy saving mode: The display panel light goes out after
several minutes, Start/Pause Aflashes. To activate the light,
select any button.
The energy-saving mode is not activated if a programme is
running.
ØAutomatic switch off: If the appliance is not operated for a
prolonged period, it automatically switches off before the
programme starts and when the programme has ended to
save energy. Switch on by pressing main switch # button.
ØIf the washing is then dried in the tumble dryer, select spin
speed according to the instructions of the dryer
manufacturer.
)Dispose of packaging in an environmentally friendly manner.
This appliance has been identified in accordance with the
European Directive 2002/96/EG on Waste Electrical and
Electronic Equipment (WEEE).
The Directive specifies the framework for an EU-wide valid return
and recycling of waste appliances.

9

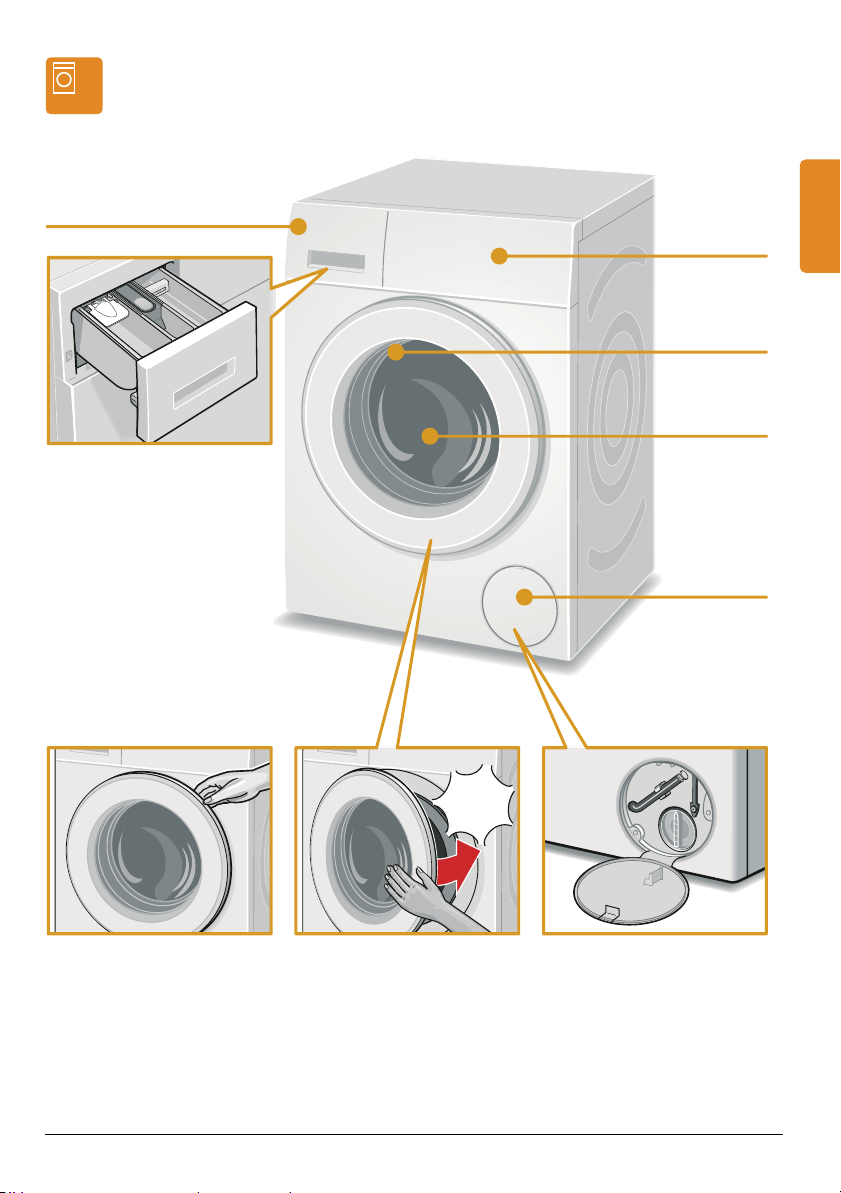

Getting to know your appliance
'HWHUJHQWGUDZHU
FODFN
2SHUDWLQJ
HOHPHQWV
'LVSOD\
HOHPHQWV
'UXPOLJKW
GHSHQGLQJ
RQPRGHO
'RRU
6HUYLFHIODS
2SHQLQJ DQGFORVLQJWKHGRRU 6HUYLFHIODS

10

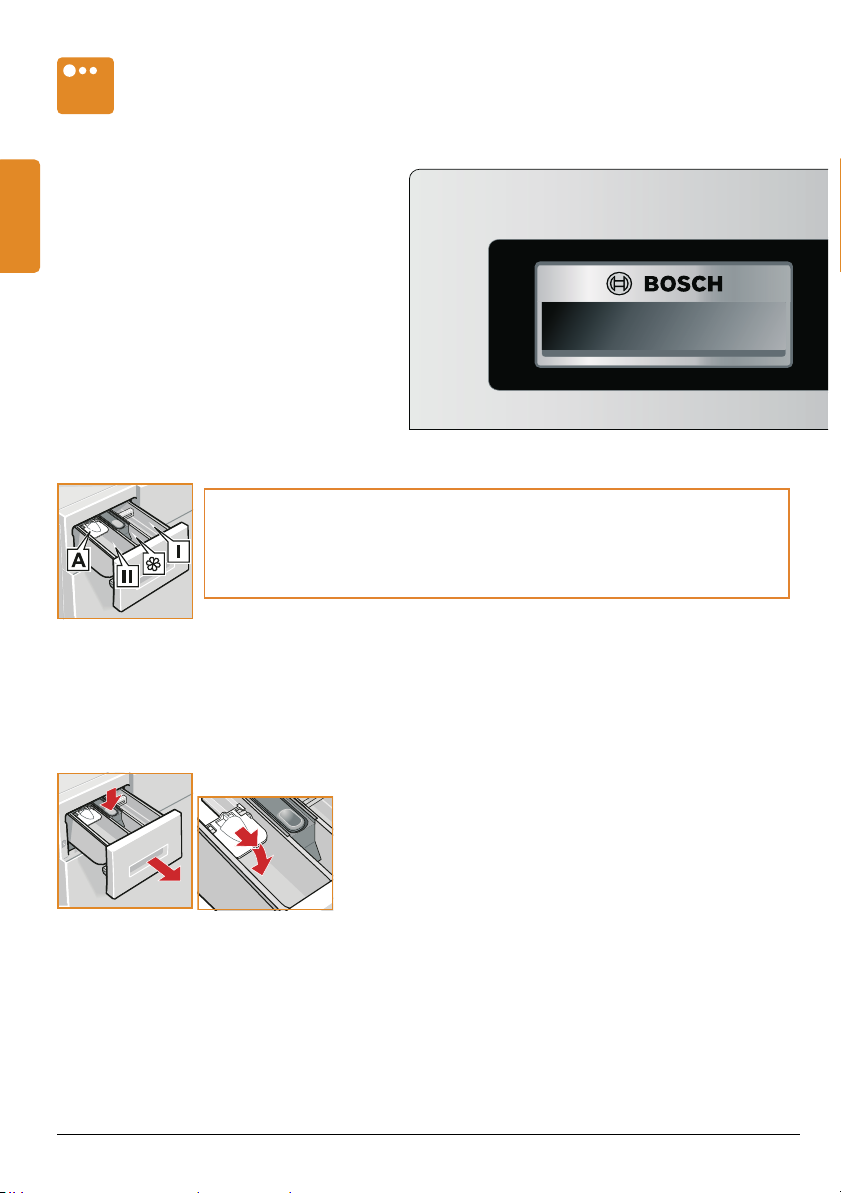

Detergent drawer
Dispenser IDetergent for prewash
Dispenser iSoftener, starch. Do not exceed the maximum load.
Dispenser II Detergent for main wash, water softener, bleach,
stain remover
Dispenser Afor dosing liquid detergent (not for all models)
For models with insert for liquid detergent:
The detergent drawer features an insert which is used as a dosing aid for liquid detergent.
²Do not use insert:
– For gel-like detergents and washing powders.
– For programmes with Prewash or Finished in option.
Position insert for dosing liquid detergent:
Completely remove detergent drawer.
Push insert forwards.
For models without insert for liquid detergent:
Dose liquid detergent according to the manufacturer’s instructions.

11

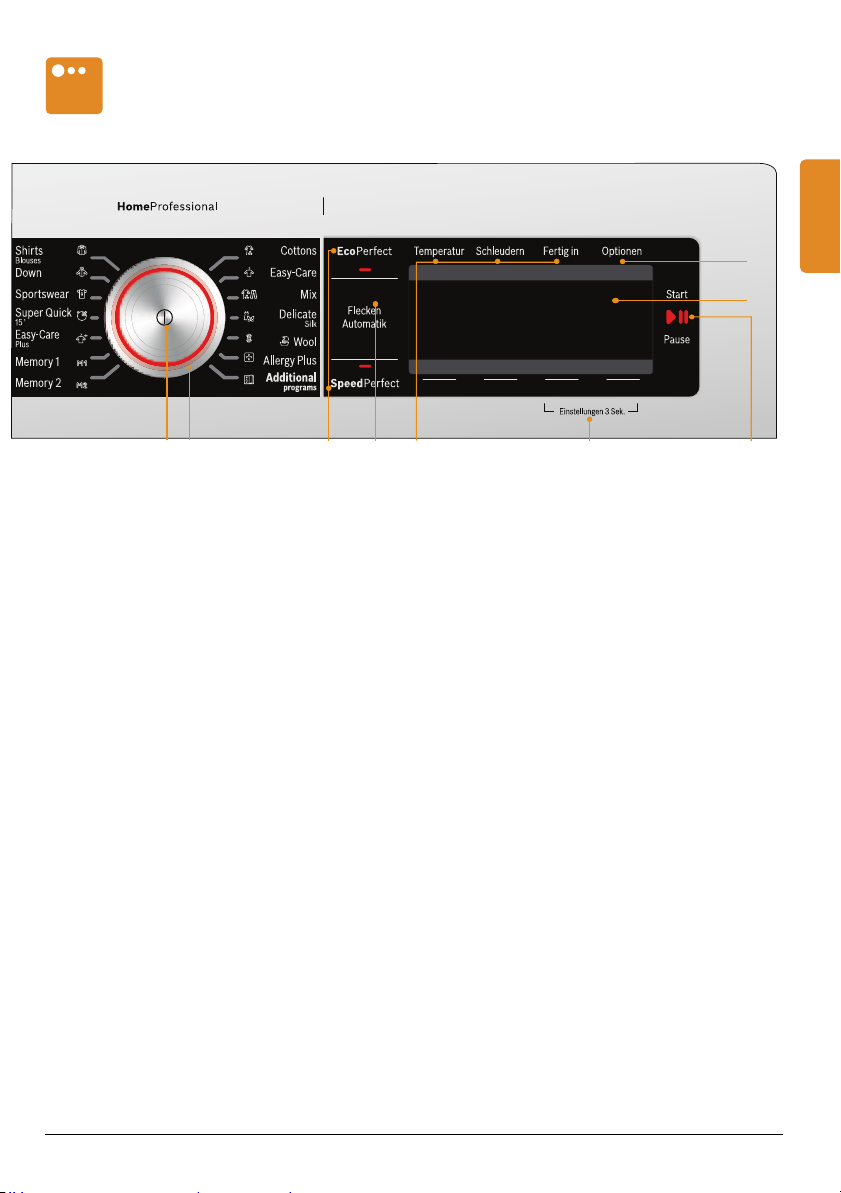

Operating elements/Display elements
N
LM
O P
Q
R
S
T
²All buttons are sensitive, they only need to be touched gently.
iSwitch on and off the appliance.
Press the #main switch button.
jSelect a programme. Rotating the in
either direction is possible. Programme
Overview, refer to ~Page 23
Change programme settings of the selected
programme and select programme options:
kSelect Temperatur (Temperature),
Schleudern (Spin Speed), Fertig in
(Finished in) buttons and change.
~Page 17, ~Page 28
lSelect EcoPerfect or
( SpeedPerfect. Page 17, ~Page 28
mSelect Flecken Automatik (Anti-Stain
System) button for stain selection.
Overview of all stains ~Page 30
nSelect Optionen (Options) button for
additional programme options. Overview
of all options ~Page 28
oStart wash programme.
Select Start/Pause Abutton to start,
interrupt and cancel the programme
(e.g. reload washing).
pChange appliance settings. Select
Einstellungen 3 Sek. (basic settings
3 sec.) buttons for appliance settings
(end signal, button signal, language,
autom. switch off) for approx. 3 seconds.
See Overview of all settings. ~Page 32
qDisplay panel for settings and
information.

12

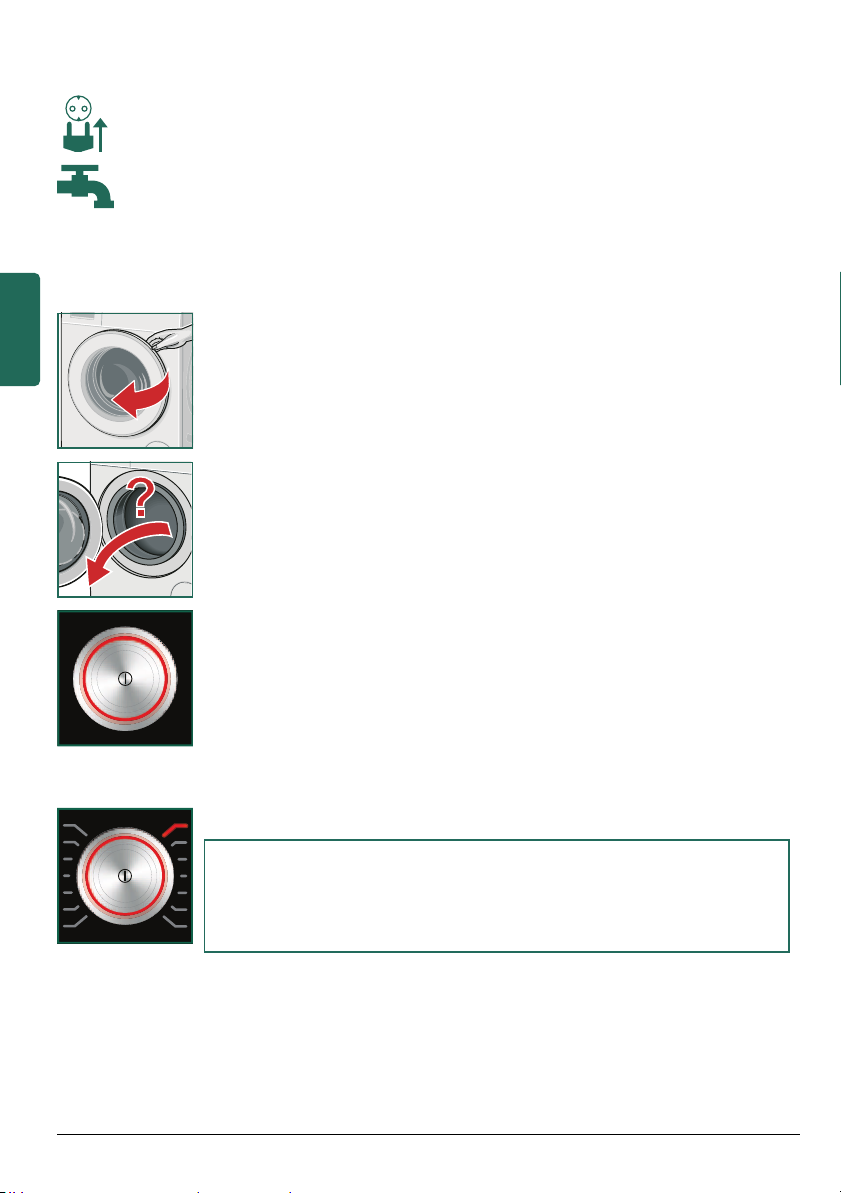

The main points in brief
1@ @ @
Insert mains plug.
Turn the tap on.
Open the washing
machine door.
To switch on, press
the #button.
Select the pro-
gramme, e.g.
Cottons.
2@ @
Dosage: 30% ¼
Please load laundry: max. 8kg
Sort the washing. Insert the washing. Do not exceed maximum load.
3@ @
Dosage: 70% ¼
Please load laundry: max. 8kg
Open the detergent
drawer.
Dose detergent according to dosing recommen-
dation.
Close the washing
machine door.
FODFN
4@
If required, change programme settings of the selected programme and se-
lect programme settings/options.
Select
Start/Pause A.
5@ @
vFinished, remove washing.
End of the programme For switching the
machine on, press
the # button.
Turn off the mains
supply (for models
without Aqua-Stop).

13
Operatingtheappliance
Before each washing
²–Install and connect washing machine properly.
Refer to ~Page 45
– Before the 1st wash, wash once without any washing.
~Page 55
1. Preparing the washing
Sorting the washing according to:
ØType of fabric/fibre.
ØColour.
ØSoiling.
ØFollow manufacturer’s care information.
ØCare label specifications:
Protecting the washing and the machine:
²– When dosing all detergents, cleaning aids, cleaning products
and cleaning agents, always follow the manufacturer's
instructions.
– Keep detergents and agents for the pretreatment of washing
(e.g. stain remover, prewash sprays, ...) away from the
surfaces of the washing machine. Using a damp cloth,
immediately remove any fine spray residue and other
residue/droplets.
–Emptypockets.
– Remove metal parts (paper clips, etc.).
– Wash delicates in the net/bag (tights, underwired bras).
–Closezips,buttonupcovers.
– Brush sand out of pockets and collars.
– Remove curtain fittings or include in the net/bag.
–Washnewitemsseparately.
<;Cottons 95 °C, 90 °C
:98Coloureds 60 °C, 40 °C, 30 °C
BA > Easy-Care 60 °C, 40 °C, 30 °C
AL>
K
Delicates 40 °C, 30 °C
WAL
>K
Hand and machine-washable silk and woollens cold,
40 °C, 30 °C
ŽDo not wash laundry in the washing machine.

14
2. Preparing the appliance
Insert mains plug.
Turn on water tap.
3. Selecting a programme and putting the washing in
the drum
1. Open the washing machine door.
2. Check whether the drum has been completely emptied. If
required, empty. Otherwise, the load display may malfunction.
3. Press the #button. The appliance is switched on.
The Bosch logo is indicated on the display panel and all
programme indicator lamps are lit.
Then always the Cottons programme preset at the factory is
displayed.
Displays for the Cottons programme:
– The indicator lamp is lit on the programme selector and
the main menu for the selected programme is indicated
on the display panel.
××××
60°C 1400B2:45h
ÖÖÖ

15
– For appliances with drum light:
After switching on the appliance, after opening and
closing the washing machine door as well as after starting
the programme, the drum is lit. The light goes out
automatically.
4. Select a programme.
You can use the saved programme
or select another programme, Programme overview, refer to
~Page 23,
or select other programmes (see Additional programms j
programmes) and choose one programme as follows:
other programmes selected using Additional programms j
and choose e.g. Towels
– Select programme using the buttons under the arrows.
The selection is acknowledged by a tick.
– Wait or back by pressing Main menu button, selected
programme is indicated on the display panel.
– To change the programme, select button under the black
highlighted programme and change programme.
5. Insert the washing.
The load screen for the selected programme (e.g. for Cottons) is
indicated on the display panel. The load screen is indicated when
the door is opened or when the amount of washing is changed.
-1200 B2:15h
Drain
Additional programms Towels Â
Rinse/
Freshen Up
Main menu Ö×
××××
-1200B2:15h
Towels
ÖÖÖÖ
Dosage: 30% ¼
Please load laundry: max. 8kg

16
²– Unfold and load presorted items of washing. Mix large and
small items. Washing items of different size distribute
themselves better during the spin cycle. Individual items of
washing may cause an unbalanced load. ~Page 33
– Do not load washing until the main menu for the saved
programme is displayed after the Bosch logo.
– The load screen is indicated when the door is opened or
when the amount of washing is changed.
– The load bar progresses as the washing machine is loaded. If
the max. load is exceeded, the bar flashes. Do not exceed
indicated max. load. Overfilling reduces the washing result
and encourages creasing.
4. Add detergent and care product
1. Pull out the detergent drawer.
2. Dosing in dispenser according to:
– Dosing recommendation on the display panel,
e.g. for Cottons:
Depending on the amount of washing in the washing
machine, a dosing recommendation is indicated on the
display panel.
–Soiling.
– Water hardness (ask your water supply company).
– Manufacturer’s instructions.
²– When dosing all detergents, cleaning aids, cleaning products
and cleaning agents, always follow the manufacturer's
instructions.
– Dilute viscous fabric softener and fabric conditioner with
water.
Prevents blockage of the overflow!
5. Changing the settings of the selected programme
²Take care not to trap any items of clothing between the loading
door and rubber seal.
Dosage: 70% ¼
Please load laundry: max. 8kg

17

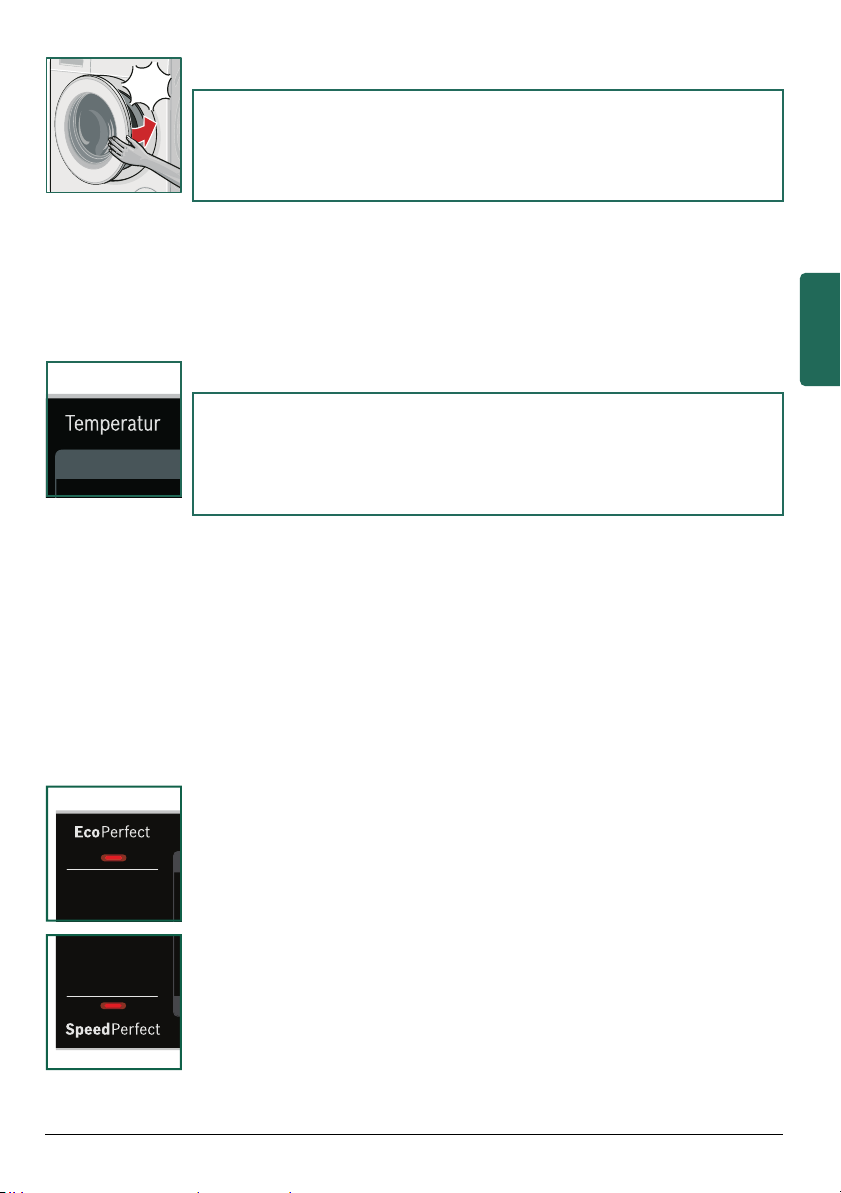

Close the door.
The main menu for the selected programme is indicated again on
the display panel.
You can use the displayed presettings or adjust the selected
programme optimally to the items of washing by changing the
presettings or selecting additional settings/options.
ØSelect Temperature, Spin, Finished in. Refer to ~Page 28:
Selecting and changing e.g. the Temperatur (Temperature):
The arrows on the display panel indicate which buttons are
used to change the settings. The settings are active without
acknowledgement and are displayed in the main menu.
²– If the buttons are held down, the set values automatically run
through.
– The respective programme duration is displayed by selecting
the programme. The programme duration is adjusted while
the programme is running if the programme duration requires
changing, e.g. due to changes in the programme settings/
options, foam detection, unbalanced load detection, the load
or soiling.
ØEcoPerfect :
for saving energy with a comparable washing effect to the
standard programme. When selected, the display lamp is lit.
ØSpeedPerfect :
for a shorter wash time with a comparable washing effect to
the standard programme. Observe maximum load.
~Page 23 When selected, the display lamp is lit.
FODFN
××××
60°C 1600B2:45h
ÖÖ Ö
××××
70
60°C 1600B2:45h
50
ÖÖ Ö

18
ØFlecken Automatik (Automatic stain treatment). Overview of
all stains ~Page 30
Do not let stains dry. Remove solid substances beforehand.
Arrange items of washing as usual and load washing
machine. and load washing machine. Select the programme.
Select a stain type (depending on the selected programme).
Select Flecken Automatik (Automatic stain treatment) button
and select e.g. ·grass:
– Select/deselect stain using displayed buttons. Stain option
is immediately active and is indicated on the display
panel.
– Wait or back by pressing Main menu or
Flecken Automatik (Automatic stain treatment) button.
ØOptionen (Options). Overview of all options~Page 28
Select Optionen (Options) and e.g. ZWater Plus buttons:
– Select option by pressing the two buttons displayed on the
left.
– Select/deselect option by pressing the two buttons
displayed on the right. The selected options are
immediately active.
In the case of multi-level settings keep touching the
buttons to run through the settings automatically.
– Wait or back to the main menu by pressing Optionen
(Options) button.
6. Starting the programme
ØSelect Start/Pause A. The indicator light is on.
60°C 1400B2:31h ·
Soil and sand
x Stains ·grass Â
coffee
Main menu Ö×
60°C 1400B2:31h Z
Extra rinse
Z Water Plus Â
Rinse Hold
Ö×Ö×

19
Washing
During the wash cycle the programme progress is indicated by a
bar on the display panel. The bar progresses in the course of the
wash cycle and provides information about the current
programme progress.
The arrows are switched on and off according to the programme
progress. They indicate the programme settings/options which
can be changed/added as the programme progresses.
Some programme sequence steps explained:
ØLoad adjust active ~Page 33
ØPrewash, wash, rinse, spin, drain ... are displayed during the
wash cycle.
ØExtra rinse: foam~Page 21
ØOther displays ~Page 39
During washing
ØChildlock
To prevent the set functions of the washing machine from
being accidentally changed, the childproof lock can be
activated.
Activate/deactivate: press Fertig in (Finished in) for approx.
5seconds.
Display panel goes back to the Main menu after approx.
3seconds.
If the programme selector is adjusted or a button is selected
while the childproof lock is active, the Esymbol flashes
briefly.
×× ×
60°C 1600B2:45h Z
Load adjust active
ÖÖ
EChildlock has been activated

20
ØTopping up washing
When the programme has started, washing can be reloaded
or taken out as required.
Select Start/Pause A.
²– If there is a high water level, high temperature or if the drum
is rotating, the washing machine door remains locked for
reasons of safety and reload is not possible. Follow the
information on the display panel. To continue the programme,
select the Start/Pause Abutton. The washing machine door
is locked and the programme continues automatically.
– Load display is not active during relosding.
– Do not leave washing machine door open for a prolonged
period – water could run out of the washing.
ØChanging the programme sequence
if you have mistakenly started a wrong programme:
1. Select Start/Pause A.
2. Select another programme.
3. Select Start/Pause A. The new programme starts from
the beginning.
ØCancelling the programme
For programmes at high temperature:
1. Select Start/Pause A.
2. Cool down washing: select Rinse/Freshen Up
(see Additional programms jprogrammes).
3. Select Start/Pause A.
For programmes at low temperature:
1. Select Start/Pause A.
2. Select Spin * or Drain *.
(* see Additional programms jprogrammes)
3. Select Start/Pause A.
×× ×
60°C 1400B2:31h
Pause: Reload is possible
ÖÖ
