Boss Audio Systems BVI9994 User manual

To ensure safety while driving
and to comply with laws,
drivers should not watch video or
operate the video device while driving.

!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightening flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated dangerous voltage
within the products enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert user to
the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
CLASS 1 LASER PRODUCT
Laser product symbol: located on the rear panel of the unit, indicate this player is a class
laser product, only use weak laser and no hazardous radiation outside of the unit.
1.Read through this instruction manual before installation and use.
2.Before removing the unit, remove the disc from the unit first.
3.Do not open the cover or touch any of the components exposed out of the unit, only for
qualified technicians.
4.Do not expose the unit to direct sunlight or nearby objects that radiate heat to avoid
damage the unit.
5.Do not place the unit in moist and humid conditions.
6.Please ensure the ventilation holes are not covered to avoid overheating and malfunction.
7.Clear the panel and case with soft dry cloth only, do not apply any kind of thinner,
alcohol or sprays.
WARNING: TO REDUCE THE
RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.
PRECAUTION
-1-

Contents
Precaution........................................................................................................1
Contents..........................................................................................................2
Wires Connection Description............................................................................3
Unit Installation.................................................................................................4
General Knowledge About Remote Control..........................................................5
Remote Control Description...............................................................................6
Locations and Names of Controls on or in the Unit................................................7
Common Operation...........................................................................................8
Radio Operation..............................................................................................11
Disc, USB and Card Operation..........................................................................14
1. Load/unload Disc, USB or Card....................................................................14
2. Pause Playback..........................................................................................16
3. Stop Playback ............................................................................................16
4. Select Chapter/Track with >>|/|<< Button......................................................16
5. Select Chapter/Track with Number Buttons...................................................16
6. Select Chapter/Track with Root/PBC Menu....................................................16
7. Playback with Speed...................................................................................17
8. Playback with Slow Speed...........................................................................17
9. Display Still Frame Step by Step...................................................................18
10. Playback Repeatedly.................................................................................18
10.1 One/All Repeat........................................................................................18
10.2 A-B Repeat.............................................................................................18
11. Playback in Scan Mode..............................................................................19
12. Playback from a specified Chapter/Track or a Specified Time........................19
13. Playback in Random..................................................................................19
14. Playback in Different View-Angle................................................................19
15. Playback in Zoom Mode.............................................................................19
16. Change Caption Language.........................................................................20
17. Change Audio Language............................................................................20
18. Change Video Signal System......................................................................20
19. Look over Playback Status.........................................................................20
20. Program Playback.....................................................................................21
21. Playback IMAGE files.................................................................................21
22. Playback MP4 files....................................................................................22
23. ESP and ID3 Function................................................................................22
24. DVD System Menu Setup Operation............................................................22
AUX IN Operation............................................................................................26
Rear View Camera...........................................................................................27
iPod Operation................................................................................................28
Trouble Shooting.............................................................................................29
Specification...................................................................................................30
-2-

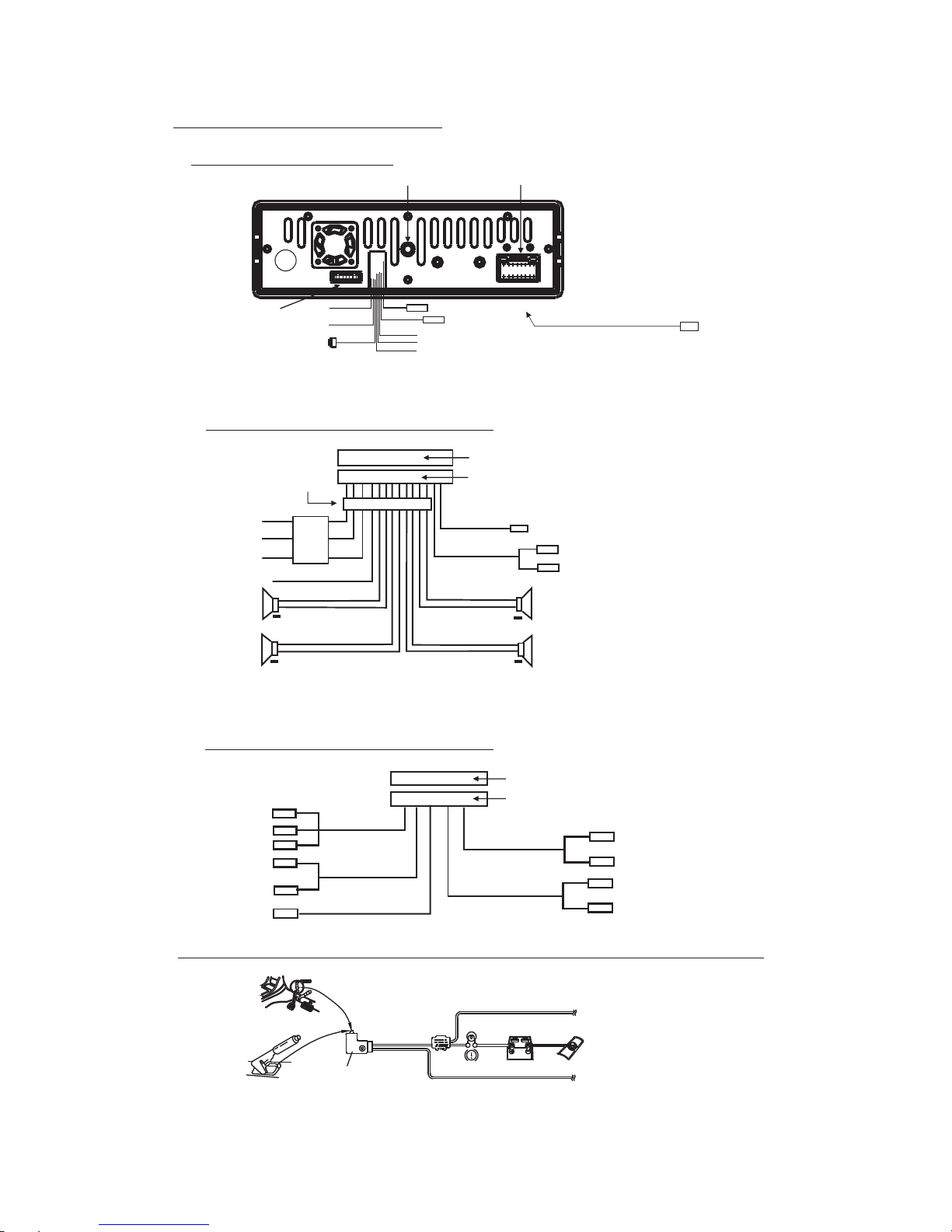

Wires Connection Description
Description of the Wiring Diagram for Socket 1
1. Parking wire must be connected. And the parking brake must be engaged in order for the monitor to work.
2. Use the clip end of the Ground Wire provided by manufacturer to connect Mounting Screw, using the other
end of the Ground Wire to connect the negative pole of the power source. Otherwise, the video on screen
maybe flashes.
Description of Wires Connection
Description of Connecting the Parking Brake Line to the Parking Brake System Built in a Car
Parking brake
Parking brake switch
(inside the car)
Parking brake wire(Green)
To metallic body or chassis of the car
NOTE: after connecting the Parking Line, the video on the small monitor of the front panel will be display only after braking the car.
Description of the Wiring Diagram for Socket 2
YELLOW
MEMORY B+
BLACK(GND)
IGNITION SWITCH
BLUE AUTO ANT
GREEN
WOOFER LINE OUT
RED
FRONT
REAR
RIGHT
SP
FRONT WHITE
WHITE / BLACK
GREEN / BLACK VIOLET / BLACK
GRAY / BLACK
GRAY
VIOLETGREEN
REAR
LEFT
SP
+
++
+
RED R
WHITE L
FRONT AUDIO RCA OUT
FUSED
FILTER
BOX 1A
& 10 A
FUSES
WIRING CONNECTING SOCKET 1
WIRING CONNECTING PLUG 1
NOTES:
1. Only speakers with 4 ohms impedance may be used.
2. Ensure that the blue auto antenna cable does not make contact
with any ground connection.
BLACK
ISO CONNECTOR
PARKING LINE
GREEN
REVERSAL LINE
WHITE
Fixing Screw Bolt Wiring Connecting Socket 1
Wiring Connecting Socket 2
Radio Antenna jack
BLACK
BLACK
BLACK
AV IN
IPod IN
USB LINE IN
BLACK
KEY GROUND(BLACK)
KEY A(BROWN)
KEY B(YELLOW)
GREY
YELLOW
YELLOW VIDEO RCA OUT
REAR VIEW CAMERA
BLACK
YELLOW
REAR AUDIO RCA OUT
GREY
WHITE L
RED R
WIRING CONNECTING SOCKET 2
WIRING CONNECTING PLUG 2
BROWN
RED R
WHITE L
YELLOW VIDEO
BLUE
BACKGROUND AUDIO RCA OUT WHITE L
RED R
video out yellow
from the bottom cover of the chassis
-3-

UNIT INSTALLATION
INSTALLATION INSTRUCTIONS
TO BOOST UP THE CAPABILITY OF
ANTI-JAMMING, PLEASE FIX THE
METAL STRAP ON THE METAL
CONNECTED TO THE BOTTOM
BRACKET OF THE CAR.
METAL STRAP
DASH BOARD
SLIDING METAL HOUSING
TO DRAW THE CHASSIS OUT OF
THE SLIDING METAL HOUSING,
INSERT THE LEFT AND RIGHT KEY
PLATES INTO THE RIGHT POSITION
OF THE 2 SIDES OF CHASSIS.
PLASTIC TRIM OUT
UNIT CHASSIS
SELECT THE PROPER TAB
FOR FIXING THE SLIDING
METAL HOUSING.
THE UNIT IS INSTALLED TO BE AN ANTI-THEFT ONE. THE CHASSIS
OF THE UNIT WEARS A SLIDING METAL HOUSING. PLEASE DO THE
CONNECTION OF THE POWER, SPEAKERS AND ANTENNA ACCORDING
TO THE REQUIREMENT OF THE INSTRUCTION BOOK , THEN INSTALL
THE SLIDING METAL HOUSING IN THE CAR AS FOLLOWS.
FRONT PANEL
-4-

1. Removing insulating sheet
If using remote control for the first time, you
can see an insulating sheet at the bottom
side of remote control as right.
you must remove the insulating sheet as right.
Otherwise, the remote control is disabled.
2. Replace lithium cell
If the electric energy of lithium cell is weak,
replace it.
1) Press and hold the movable block as direction
indicated by arrow 1 as right, at one time pull
cell holder out of remote control as direction
indicated by arrow 2 as right.
2) Replace the old cell by a new one with (+)
polarity side upward as right.
3) Insert the cell holder into remote control again
as right.
3. Note about using remote control
1) You should face the emitting window of remote control towards the sensor
window of the unit.
2) Operation angle for front panel: About 30 degree
3) The distance between the emitting window of remote control and the sensor
window of the unit : < 5M .
4. Warning for lithium cells of remote control
1)Cell leakage may cause damage to remote control.
2)Do not throw cells into fire, it may cause explosion.
.
3.To avoid risk of accident, keep cells out of reach of children.
GENERAL KNOWLEDGE ABOUT REMOTE CONTROL
-5-

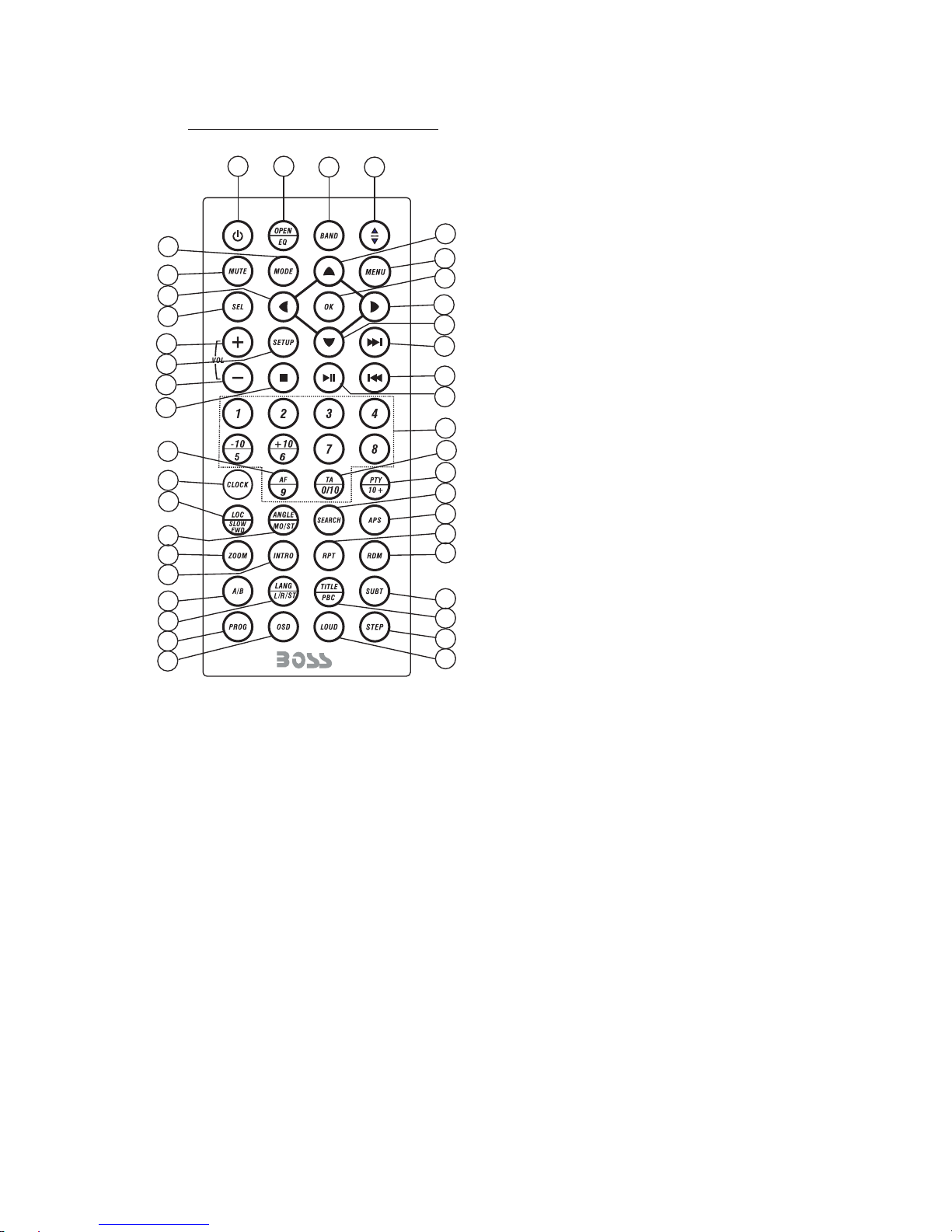

Remote Control Description
16. SEARCH BUTTON
17. RDM BUTTON
18. RPT BUTTON
19. SUBTITLE or BUTTON
20. TITLE/PBC BUTTON
21. VIEW-ANGLE or ST/MONO BUTTON
22. ZOOM BUTTON
23. LANG/L/R/ST BUTTON
24. CLOCK BUTTON
25. A-B BUTTON
26. INTRO BUTTON
27. EQ/OPEN BUTTON
28. LOC/DX or SLOW-FWD BUTTON
29. MUTE BUTTON
30. STOP BUTTON
31. VOLUME- BUTTON
32. < BUTTON
33. OK BUTTON
34. VOLUME+ BUTTON
35. BAND BUTTON
36. PROG BUTTON
37. OSD BUTTON
38. LOUD BUTTON
39. STEP BUTTON
40. TA BUTTON
41. AF BUTTON
1. ANG BUTTON
2. MENU BUTTON
3. POWER BUTTON
4. ^ BUTTON
5. >>| BUTTON
6. > BUTTON
7. |<< BUTTON
8. v BUTTON
9. SEL BUTTON
10. PLAY/PAUSE BUTTON
11. NUMBER(0~10,+10
-10) BUTTONS
12. 10+/PTY BUTTON
13. SETUP BUTTON
14. MODE BUTTON
15. APS BUTTON
-6-
41
3
9
13
14
21
22
23
24
25
26
27
28
29
30
31
32
34
36
37
40
1
2
4
5
6
7
8
10
11
12
15
16
17
18
19
20
33
35
39
38

Locations and Names of Controls on or in the unit
1. OPEN button
2. POWER/MUTE button
3. Monitor
4. AUX socket
5. Disc Slot
6. USB Jack
7. SD/MMC Card Slot
8. MODE button
9. SEL button and VOL knob
10. ^ button
11. v button
12. PLAY/PAUSE/1 button
13. INT/2 button
14. RPT/3 button
15. RDM/4 button
16. - 10 / 5 button
17. + 10 / 6 button
18. BAND button
19. APS button
20. EJECT button
21. RESET button
22. Small LCD Screen
23. IR Remote Sensor
24. REL button
25. TA/AF button
1
2 3
4 6
10
9
8
11
12 14
16 17
5
13
18
15
19
22 23
Front Panel
The Front Facet after removing front panel
20
24
721
2
SD/MMC
REL
1INT
2
4RDM 5-10
3RPT
6+10
MUTE
AUX
IR
BAND APSMODE
TA / AF OPEN
- VOL +
SEL
-7-

Mode Menu 1
Common Operation
1. To turn on/off the unit
In power off mode, short press any buttons except REL to turn on the unit.
In power on mode, long press the POWER button on the front panel or short press the
POWER button on the remote control to turn off the unit.
2. To slide the monitor of the Car Audio System out of the chassis
Shortly press the OPEN button on the front panel or long press the OPEN button on
the remote control can slide the monitor of the Car Audio System out of the chassis or
slide it into the chassis.
3. To adjust the angle of the monitor
press the ^ or v button on the monitor to adjust the angle
of the monitor.
4. To select function mode
Press the MODE button to select RADIO, DISC (After
inserting a disc), USB(After inserting a USB storage),
SD/MMC CARD(After inserting a SD/MMC card), AUX ,
or iPod mode.
In any mode, tapping the icon (after popping up Key-
board interface for disc/USB/card) can pop up Mode
Menu 1 as right image, then touch and hold any place
and slide leftward to display the Mode Menu 2 and Mode
Menu 3 . finally tap one icon in the Mode Menus to enter
your desired mode.
5. To adjust sound level
Rotate the VOL knob on the front panel or press and
hold the + or - button on the remote control will adjust
the volume level.
6. To adjust audio and turn on or off the touch screen
Press the SEL button continuously to switch between
VOLUME, BASS, TREBLE, BALANCE and FADER.
after switching on a desired audio mode above, rotate
the VOL knob on the front panel or press or hold the
VOL+ or VOL- button on the remote control to set it.
Long press the SEL button to turn on/off the touch screen.
7. To mute sound
Press the MUTE button on the remote control to turn
on/off MUTE mode.
Pressing the POWER button on the front panel shortly also can turn on/off MUTE mode.
8. To display clock time
Press the CLK button to display clock time on the monitor screen.
After sliding the monitor into the chassis, pressing the CLK button can display clock
time on the small LCD.
9. To select a desired EQ mode
Press the EQ button on the remote control to select one of the preset music equalizer
curves: POP, ROCK, CLAS, FLAT. The sound effect will be changed.
10. To turn on/off LOUD mode
Press the LOUD button on the remote to turn on/off LOUD mode.
When turning on LOUD mode, it will enhance bass level immediately when bass is not
enough.

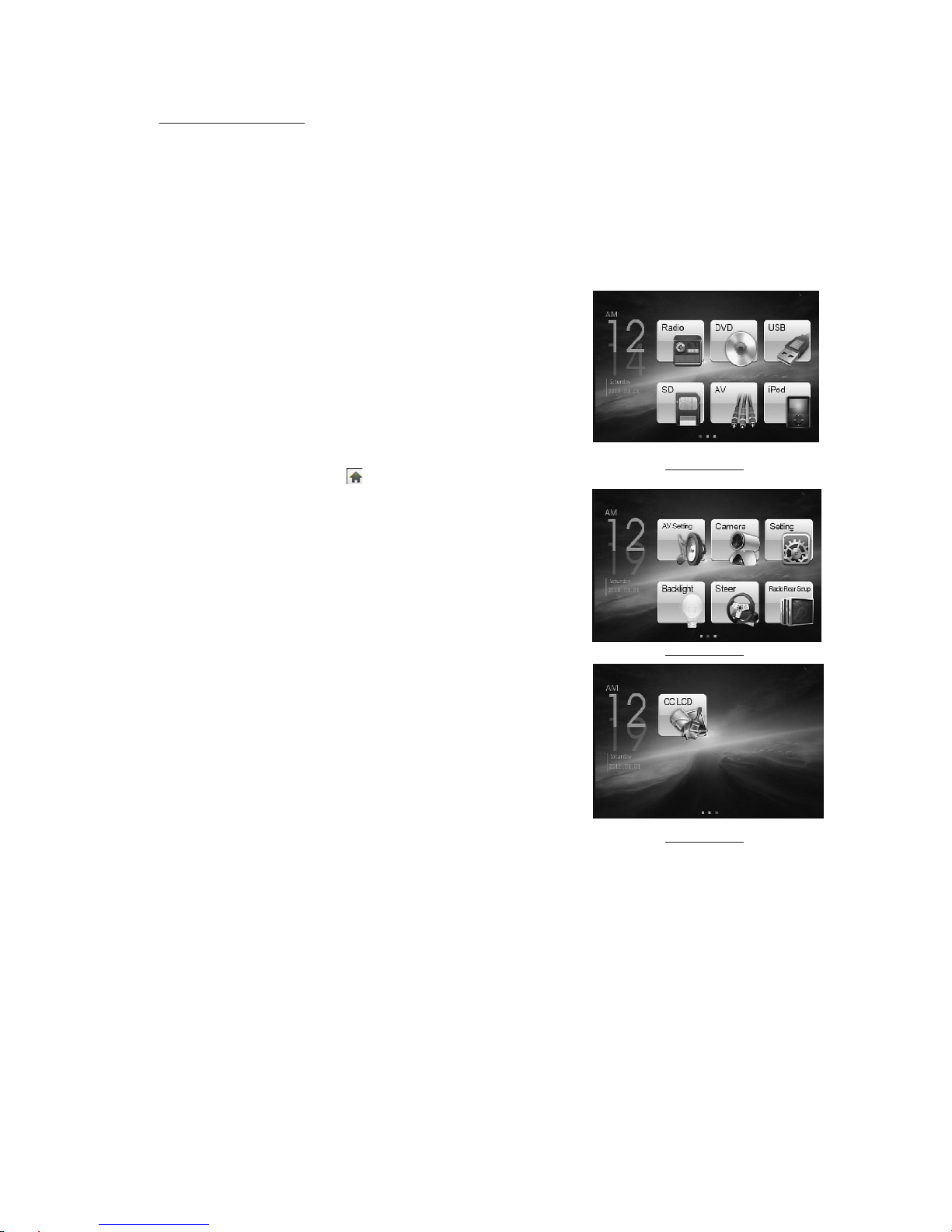

Mode Menu 2
Mode Menu 3
-8-

11.To remove the front panel
press the REL button to flip down the front panel from
the main unit, then hold the right end of the front panel
to push leftward and pull away.
12.To reset the player
When the monitor , the small LCD display or some
buttons are not working or sound is distorted, remove
the front panel, then press the RESET button to reset
the program to factory default.
13.To calibrate the screen
To pop up Calibration interface during media playback,
first press the STOP button, then press the ZOOM button,
finally press the ^ and v buttons in turn.
In the interface, you can have calibration by accurately
tapping the cross cursor.
14.AV Setting
In the Mode Menu 2 screen, tapping the AV Setting icon
can pop up the AV Setting interface as right.
In the AV Setting interface, tapping the Audio or Video
icon can switch between Audio Setting and Video Setting
interface.
In these 2 interfaces, tapping the or icon can set
one item of them.
In the Audio Setting interface, you can set the value of
the VOLUME, BASS, TREBLE, BALANCE and FADER.
In the Video Setting interface, you can set the value of
the BRIGHTNESS, CONTRAST, SATURATION and HUE.
15.General Setting
In the Mode Menu 2 screen, tapping the Setting icon can
pop up the 1st page of the General Setting. Then tapping
one icon in the bottom row can pop up the other pages.
In these pages, tapping the or icon can select a
setting item. After selecting a setting item, tap its value
to set it.
In the 1st page, you can set the WALLPAPER, LOGO
and BEEP.
In the 2nd page, you can set the CLOCK MODE, TIME,
YEAR, MONTH and DAY.
In the 3rd page, you can set the DBAS, MBP, LOUD, EQ
and REVERSE VOI.
Audio Setting
Video Setting
the 1st Page of the General Setting
the 2nd Page of the General Setting
the 3rd Page of the General Setting
-9-

the 4th Page of the General Setting

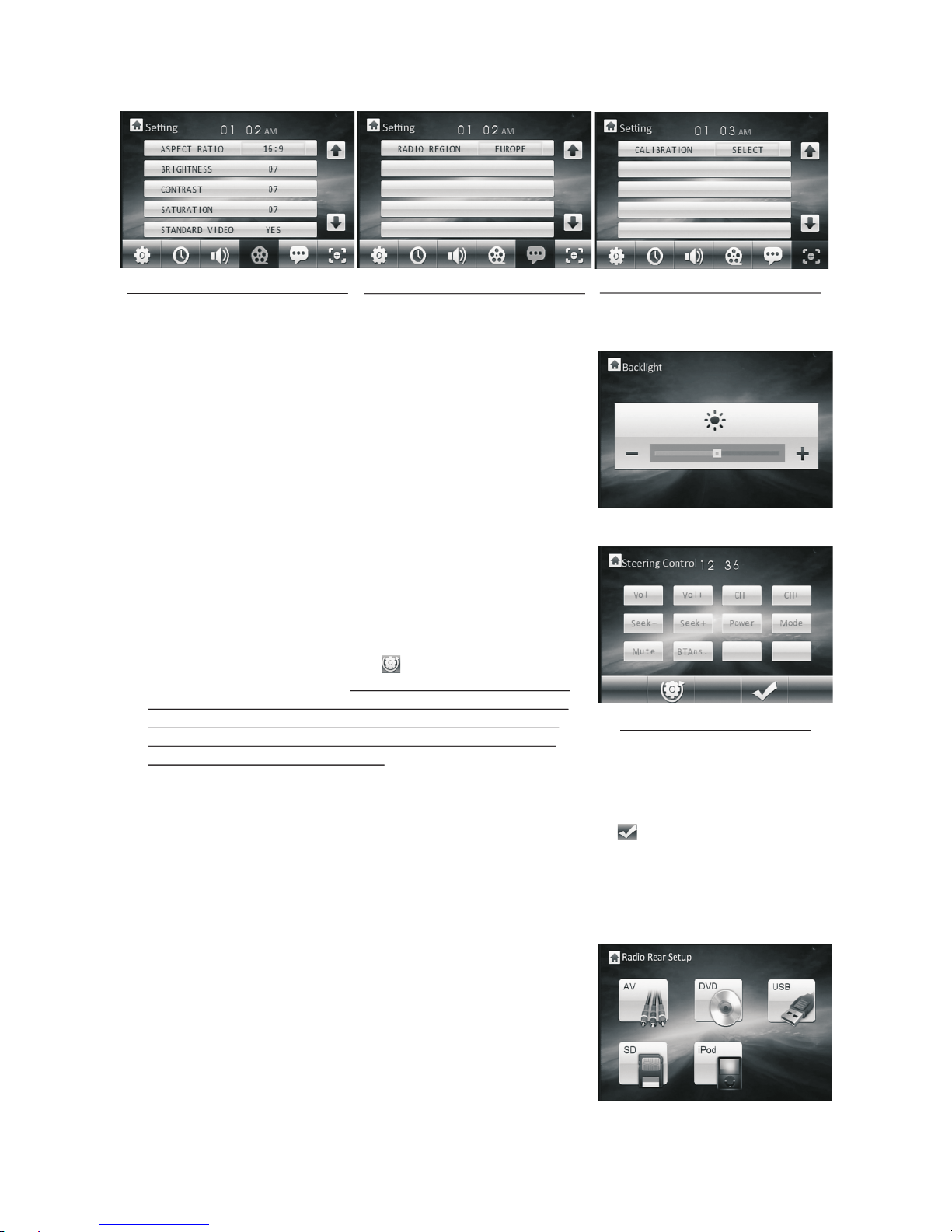

In the 4th page, you can set the ASPECT RATIO, BRIGHNESS, CONTRAST, SATU-
RATION and STANDARD VIDEO.
In the 5th page, you can set RADIO REGION.
In the 6th page, you can calibrate the screen.
16. Backlight Setting
In the Mode Menu 2 screen, tapping the Backlight icon
can pop up the Backlight Setting interface.
In the interface, tapping the - or + icon can set the
backlight.
17. Function setting and application for Steer buttons
In the Mode Menu 2 screen, tapping the Steer icon can
pop up the Steering Control interface.
In the interface, tapping the icon can restore the
user settings to zero and display Please press steer
the 1th key function , then long press the 1st button
in the steer to display Please choose steer the 1th
key function , tap one function icon in the Steering
Control interface such as vol-.
Set the functions of the other steer buttons as the underlined step above.
After finishing function setting of all steer buttons , tap the icon to save.
CH- and CH+ : In radio mode, to select previous or next memory station.
Seek- and Seek+ : In disc/USB/card mode, to play previous or next track/
chapter; In radio mode, short press to manually tune down or up for a desired
station, long press to automatically search down or up for an available station.
BTAns. : To receive a coming telephone.
18. Radio Rear Setup
In the Mode Menu 3 screen, tapping the Radio Rear
Setup icon can pop up the Radio Rear Setup interface.
In the interface, tapping the AV, DVD, USB, SD or iPod
icon can enter the background audio output mode of
the AV, DVD, USB, SD or iPod and pop up the fore-
ground radio interface as next page.
the 5th Page of the General Setting the 6th Page of the General Setting
the Backlight Setting interface
the Steering Control interface
the Radio Rear Setup interface
-10-

The icons in the foreground radio interface describe
as follows:
: To return to the Radio Rear Setup interface.
< and > : To automatically search up or down for
an available station.
CH- and CH+ : To manually search up or down for
a desired station.
19. Change Color of the LCD
In the Mode Menu 3 screen, tapping the CC LCD icon
can pop up the CC LCD interface.
In the interface, tapping the or icon can change
the color of the LCD. When the RED word change to
CUSTO, tapping the - or + icon can set the value of the
R, G and B.

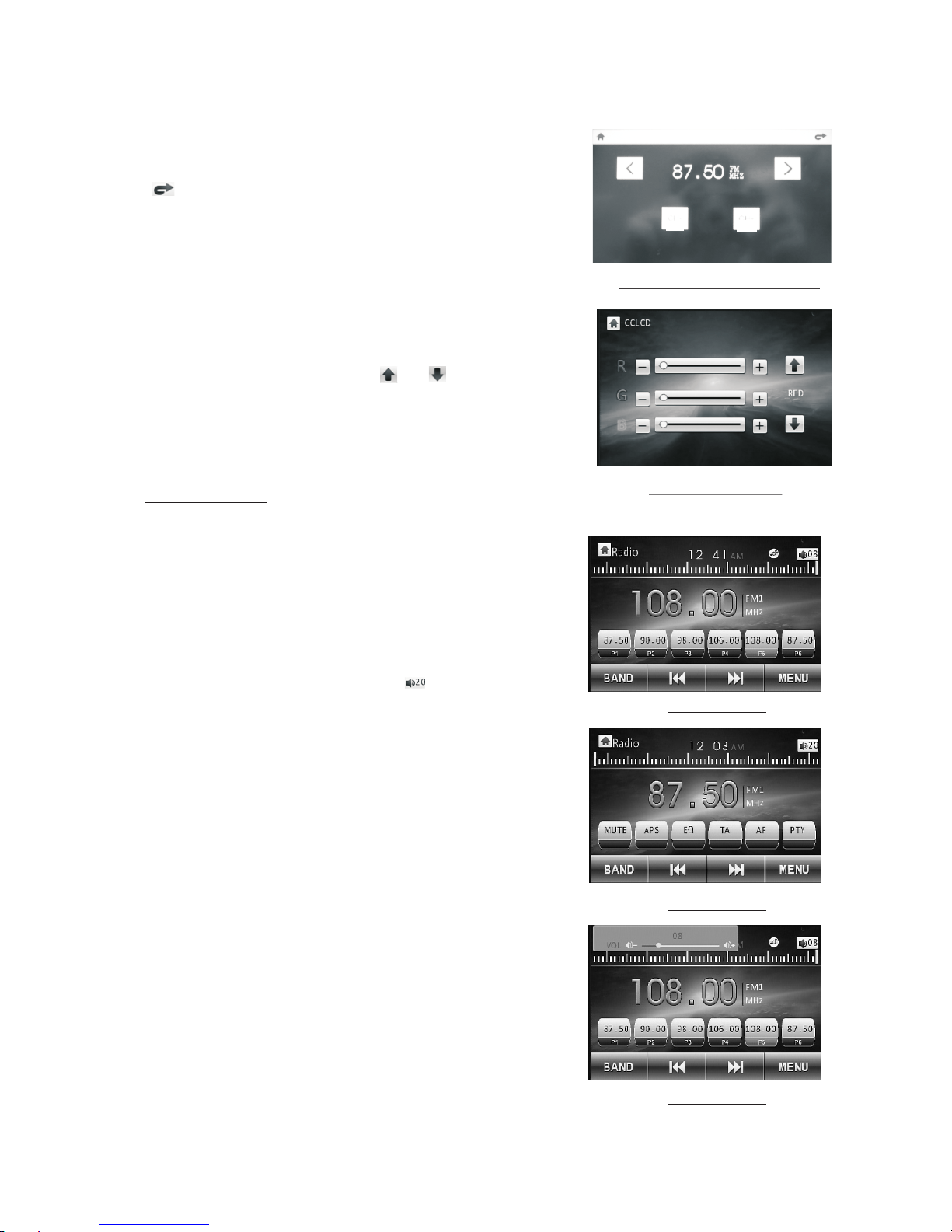

the Foreground Radio interface
the CC LCD interface
RADIO interface 1
Radio Operation
1. To enter RADIO mode(MODE button or RADIO icon)
When you use MODE button or Mode Menu 1 (tapping
RADIO icon) to enter RADIO mode, it will display Radio
interface 1 as right.
In the Radio interface 1, tapping the MENU icon can pop
up the Radio interface 2 as right.
In the Radio interface, tapping the icon can pop up
the Volume interface 3 as right. In the Volume interface,
tapping the - or + icon can adjust the volume level.
* The functions of the icons in the radio interface are same
as the same buttons in the remote control or in the main
unit.
2. BAND BUTTON
In RADIO mode, press the BAND button on the remote
controller or on the front panel to select your desired radio
band of FM1, FM2, FM3, AM1 and AM2, and the selected
band will be displayed on the small monitor on the front panel.
3. TUNE/SEEK UP/DOWN BUTTONS
In RADIO mode:
1) Long press the >>| or |<< button to automatically search up
or down for a available station from the current frequency.
2) Briefly press the >>| or |<< button to manually search up or
down with step by step for your desired station from the
current frequency.
RADIO interface 2
RADIO interface 3
C H - C H +
-11-

4. APS BUTTON
In RADIO mode:
1) When long pressing the APS button, the radio searches from the lowest frequency and
checks the signal strength level until 1 cycle search is finished. And then the 6 strongest
stations are preset to the corresponding preset number memory bank. The AS operation
is implemented in each bank of the selected band. (It can store 3x6 stations for FM and
2x6 stations for AM)
When the AS operation is finished, it will scan each preset station for 5 seconds in FM or
AM band from M1 when APS button is pressed briefly. After the scanning is finished,
broadcasting will resume on the M1.
2) When pressing the APS button briefly, the radio will scan each preset station for 5
seconds in FM or AM band from M1. After finishing a circle of scanning, it will resume
broadcasting on the M1.
NOTE: In FM band, FM1,FM2,FM3 is checked one at a time; In AM band, AM1, AM2 is
checked one at a time.
5. PRESET STATION [ 1-6 ] BUTTONS
In RADIO mode:
1) To memorize the current frequency on the current band, long press any of the number
buttons (1-6) on remote control or on the front panel .
2) To recall the preset memory on the current band, briefly press one of the preset buttons
[1-6] on remote control or on the front panel.
6. STEREO/MONO BUTTON
Press the ST button on the remote control to select the STEREO or MONO sound mode
for FM band.
7. LOC BUTTON
1) In RADIO mode, when the signal of the distance radio station is very weak and the
receiving effect is bad during tuning. If there is the word LOC on the monitor, press this
button to turn off the LOC function, then tune again for the distance radio station;
2) In RADIO mode, when the signal of the local radio stations are too strong and the inter-
ference doesn t allow the tuner to lock on stations, press this button to turn on the LOC
function to display the word LOC on the monitor, then tune again for the local radio
stations.
8. PTY (PROGRAM TYPE) BUTTON
Press the PTY button shortly to select one of the following mode:
PTY MUSIC group- - PTY SPEECH group -- OFF
When PTY group is on, press the VOL+ or VOL- button on the remote control or rotate
the VOL knob on the front panel to select one of PTY programs as follows:
<-->NEWS<-->AFFAIRS<-->INFO<-->SPORT<-->EDUCATE<-->DRAMA<-->CULTURE
<-->SCIENCE<--> VARIED<-->WEATHER<--> FINANCE<-->CHILDREN<-->SOCIAL
<-->RELIGION<-->PHONE IN<-->TRAVEL<-->LEISURE<-->DOCUMENT< -->PTY
NONE<-->POP M< -->ROCK M<-->EASY M<-->LIGHT M<--> CLASSICS<-->OTHER M
<-->JAZZ<-->COUNTRY<-->NATION M<-->OLDIES<-->FOLK M<-->
-12-

When PTY group is on, pressing the 6 number buttons also can select one of PTY
programs as above.
After selecting one of the PTY programs, it will display SEEK PTY and automatically
search for the station of the PTY program. If the station of the PTY program does not
exist, it will display PTY NONE and then return back to the normal station.
9. AF [ALTERNATIVE FREQUENCIES] BUTTON
When short press the AF button on remote control or long press the TA/AF button on the
main unit, the AF switching mode is selected and the status of the AF switching mode is
displayed by AF segment on the display.
Segment off: AF switching mode off.
Segment on: AF switching mode on, and has RDS information.
Segment flashing: AF switching mode on, but RDS information is not received yet.
When the AF switching mode is selected, the radio checks the signal strength
of the AF all the time. The interval of checking time of each AFs depends on
the signal strength of the current station, from a few minute for the strong
station to a few seconds for the weak station. Every time when a new AF is
stronger than the current station, it switches over to that frequency for very
short time, and the NEW FREQUENCY is displayed for 1-2 second. Because
the mute time of the AF switching or the checking time is very short, it is almost
inaudible in case of normal program. (When AF flashes on the monitor, it will
search for the stronger RDS station. If AF and TP flash on the monitor, it can
only search for the traffic announcement station).
In FM mode, when AF is on, SEEK, (SCAN), AUTO-MEMORY functions can
only receive and save the RDS program.
10. TA [TRAFFIC ANNOUNCEMENT] BUTTON
Press the TA button on the remote control or press the TA/AF button on the
main unit to turn on TA search mode.
When traffic announcement is transmitted:
1).If the unit is in Disc Play mode, it will switch to radio mode temporarily.
2).Temporarily switches over to an station with traffic announcement, and TA,
TP will be displayed on the monitor.
* TA interruption function:
The current traffic announcement is cancelled by pressing TA button briefly.
* When TA is on, SEEK, (SCAN), AUTO MEMORY functions can be received
or saved only when traffic program identification code has been received.
-13-

Disc, USB and Card Operation
1. Load/unload disc , USB or Card
To play files in a disc, press the REL button to flip
down the front panel, then insert the disc into the
disc slot and flip up the front panel and push it onto
the chassis till click, then it will automatically play .
To remove the disc from the unit, press the REL
button to flip down the front panel, then press the
EJECT button to eject disc from the disc slot and
then you can remove it.
To play files in a USB storage, firstly insert the small
end of a USB cable into the mini USB port, then insert
the USB storage into the big end of the USB cable,
finally it will automatically play. The front and rear
USB can not be played at the same time.
To remove the USB storage, directly remove it.
To play files in a SD/MMC card, firstly remove the front
panel, then insert the SD/MMC card into the SD/MMC
card slot, finally it will automatically play.
To remove the SD/MMC card from the SD/MMC card
slot, remove the front panel, push in the card and then
pull it out of the Card Slot.
* It supports version 1.1/2.0 USB and 8 GB SD CARD.
Remark1: If the disc, USB or SD/MMC card includes
MP3 or WMA files, after loading, it will display the
File Playing interface as right.
If you want to check the diretory, tap the icon to
display the Files List of the Playing Folder, the
Folders List of the Playing File Format or the Root
interface.
If the disc, USB or SD/MMC card includes MPEG4 or
Picture files, after loading, the screen will play video.
tap any place in the screen to display Keyboard and
then tap the icon to pop up the Files List of the
Playing Folder, tap the icon to pop up the Folders
List of the Playing File Format or the Root interface.
In the Files List or Folders List interface, tapping the
or icon can file or folder up or down.
Tapping the icon of the file, folder or file format can enter it.
In the root interface, the Music icon is for audio files; the Video icon is for image
files; the Picture icon is for Video files. If there are not any files for Music, Video
or Picture, you can not enter it.

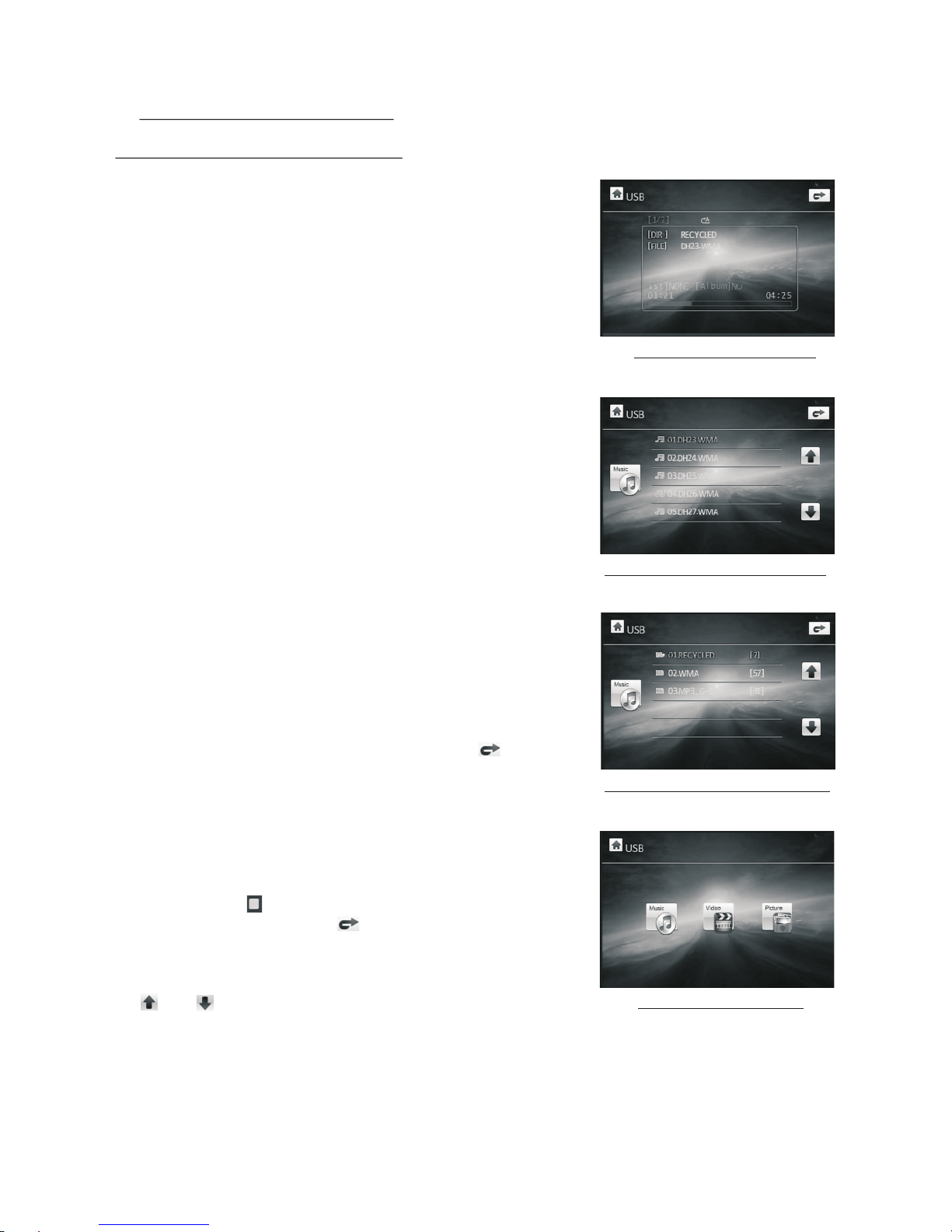

The File Playing interface
The Files List of the Playing Folder
The Folders List of the Playing File Format
The Root interface
-14-

In the File Playing interface, tapping any place in the
rectangle of the screen can pop up the Keyboard-1
of MP3/WMA, then tapping the icon can pop up
the Keyboard-2 of MP3/WMA.
Remark2: After loading a CD disc, the screen will
display the CD interface as right. In the CD interface,
tapping the icon can pop up the number inter-
face and use the icons of the number, <-- and OK to
select a desired track to play; use the or icon
to track up or down. In the bottom row of the CD
interface, it is the Keyboard-1 of CD, tapping the
icon can pop up the Keyboard-2 of CD.
Remark3: During video or image playback, tap-
ping any place on the screen can pop up the key-
board-1 of Video/Picture as right. then tapping
the icon can pop up the Keyboard-2 or Key-
board-3 of Video/Picture as right.
* In any work mode, tapping the progress bar can
change the current start point.
All function icons are described as follows:

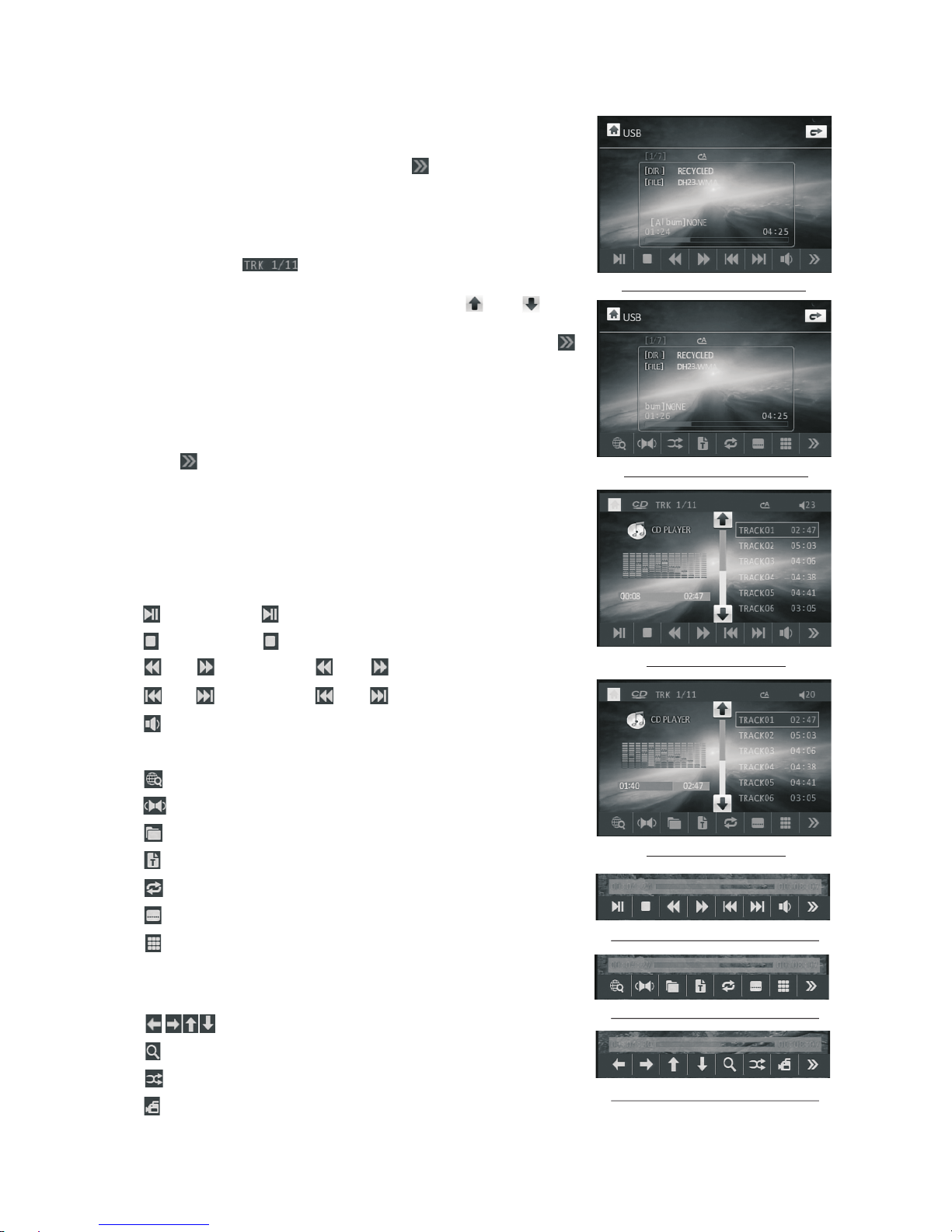

The Keyboard-2 of MP3/WMA
The Keyboard-1 of CD
The Keyboard-2 of CD
The Keyboard-1 of MP3/WMA
: Same as button.
: Same as button.
or : Same as or button.
or : Same as or button.
: Tapping it can pop up the Volume Bar and tap
the Volume Bar to adjust the volume level.
: Same as INT button.
: Same as LANG or L/R/ST button
: Same as PBC or MENU button.
: Same as TITLE button.
: Same as REPEAT button.
: Same as SUBTITLE button.
: tapping it can pop up the number interface and
use the icons of the number, <-- and OK to select
a desired track or chapter to play
: Same as the < / > / ^ /v button on RC.
: Same as zoom button.
: Same as RDM button.
: Same as ANGLE button.
The Keyboard-1 of Video/Picture
The Keyboard-2 of Video/Picture
The Keyboard-3 of Video/Picture
-15-

2. Pause Playback
When playing DVD/VCD/CD/MP3/WMA , press the PAUSE button on IR
remote control to pause the playback, press the PLAY button to resume
normal playback.
3. Stop Playback
When playing DVD/VCD/MP3/WMA/CD , press the STOP button once to
pause the playback, then press the PLAY button to resume the normal
playback; press the STOP button twice to full stop the playback, then press
the PLAY button to start playing from the beginning of the first chapter/track.
4. Select Chapter/Track with the >>| or |<< Button
During playback, press the >>| or |<< button to select the next or previous
chapter/track to playback.
Note: Press the >>| or |<< button multiple times to advance multiple chapters
/tracks forward or backward.
5. Select Chapter/Track with the Number Buttons
When playing DVD/VCD(PBC OFF)/MP3/WMA/CD , press one of the 1~9
and the 0/10 number buttons to directly select and play the 1st to 10th track
/chapter (the 0/10 button is used as the 10 button).
If you want to play the track/chapter larger than 10, use the 10+, 1~9 and
0/10 button. Example 1: to play the 13th track/chapter, first press the 10+
button once, then press the 3 button. Example 2: to play the 34th track/
chapter, first press the 10+ button 3 times, then press the 4 button.
(The 0/10 button is used as the 0 button)
Note: long pressing the +10 or -10 button can play the next 10th or previous
10th chapter/track(only for MP3/WMA).
6. Select Chapter/Track with the Root/PBC Menu (If the disc includes the
root/PBC menu)
When playing DVD
1. Press the TITLE button on the remote control to display the title list.
-16-

2. Press the direction buttons to select your desired title, and then press the OK
or PLAY button to open the root menu of the selected title.
3. Press the direction buttons to select your desired chapter, finally press the
OK or PLAY button to play the selected chapter.
During playback, pressing the MENU button can directly display the root
menu of the title that is playing.
In VCD mode
1. When starting to turn on the PBC function, it will play from the beginning of
the disc till it display the PBC menu on TV screen if the disc include the PBC
menu.
2. Press the number buttons to select your desired track to play.
In MP3/WMA mode
1. The root menu is displayed on the monitor screen all the time(and the TITLE
or MENU button is not available).
2. Press the direction buttons to select your desired FOLDER, then press the
OK or PLAY button to open the FOLDER, and then press the direction buttons
to select your desired file, finally press the OK button to play the selected file.
In CD mode, the TITLE, PBC, MENU buttons are disabled.
7. Playback with Speed
During normal playback, long press the >>|/|<< button continuously to fast
forwards or backwards at the following speeds: x2, x4, x8, x20, normal.
During speed playback, press the PLAY button to resume normal playback.
8. Playback with Slow Speed
During playback , press the SLOW_FWD button to execute the Slow Forward
function.
With each consecutive pressing of the SLOW_FWD button, the playback
speed decreases. The speed levels in Slow Forward as follows:
x1/2,x1/3,x1/4,x1/5,x1/6,x1/7,normal.
-17-

During slow forward, press the PLAY button to resume normal playback.
This function is only for video.
9. Display still frame step by step
If the unit is currently playing video, press the TEL button consecutively
to display still frame step by step.
Press the PLAY button to resume normal playback.
10. Playback Repeatedly
10.1 ONE/ALL Repeat
1. In the mode of DVD playback:
Press the RPT button to select REP CHAPTER, REP TITLE, REP ALL
or REP OFF.
2. In the mode of VCD(PBC OFF)/CD playback:
press the RPT button to select REP ONE, REP ALL or OFF.
When it is in the state of PBC ON, during VCD disc playing, the RPT
button are not available.
3. In the mode of MP3/WMA playback:
Press the RPT button to select REP ONE, REP DIR, REP ALL or OFF.
10.2 A-B Repeat
Press the A-B button if you want to repeat a specific segment on a disc
that you define:
1. Press the A-B button at a point (A) where you want it to be the start point
of the repeat segment. Press the A-B button again at a point (B) where you
want it to be the terminal point of the repeat segment. Then it will play the
segment repeatedly.
2. To cancel the A-B repeat mode and resume normal playback, press the A-B
button for the third time.
Note:
During VCD/MP3/WMA/CD playback, points A and B must be within the
same track.
During DVD playback, points A and B can be selected from different chapters.
-18-
