Boyo BOYOMirror VTG43 User manual

Quick Reference Guide
For
GPS Navigation
Model : VTG43/ VTG43A

1.Rear-view mirror
2.GPS navigation system
3.Bluetooth hands free system
4.Media center
5.Rear view visual system (with AV-IN)
Clip the clamp on the back of the navigator, the left half of the navigator used as the
normal rear-view mirror, on the right half is the GPS navigator screen.
Rear-view Mirror
Auto-dimmer Sensor
GPS Navigator(Touch Screen)
FRONT PANEL INDICATIONS
Channel Bluetooth
PowerVolume - Microphone
Volume + USB connector
SD Card Slot
Channel selection
Power
Volume +
Bluetooth
Volume -
Switch between AV1/AV2/AV3/GPS display
Turn on/off the GPS navigator LCD display (NOT power off)
Turn the system volume up
Execute blue-tooth hands free receiving function
Turn the system volume down
3
1
2
4
5

Microphone
SD card slot
USB connector
Use this to talk during phone call
Insert S/D memory card for map or storage expansion
Connect to your PC for data transfer
8
6
7
THE MAIN MENU OF THE NAVIGATION
Navigation
E-book
Enter navigation mode
View .txt e-book stored on SD card
View the photo stored on SD cards
Bluetooth Enter Bluetooth hands free operation menu
Video Switch to video in mode
Music Play music files stored on SD card
Movie Play video files stored on SD card
Setting Enter system setting menu
Follow these four easy steps and you are on your way.
Before operating your NavMate software, please carefully read and follow the
instructions provided in the "Safety Information and Precautions" section of
user manual.
Step1-Please Drive Safely

Step 2-Select Destination
2.1 Go To
2.2 Address
Mode button
A toggle to enter
city, post code or
street first
2.3 Spell City
2.4 Spell Street
Check mark
Press to see
list of cities.
2.5 Enter House Number
2.6 Start Route

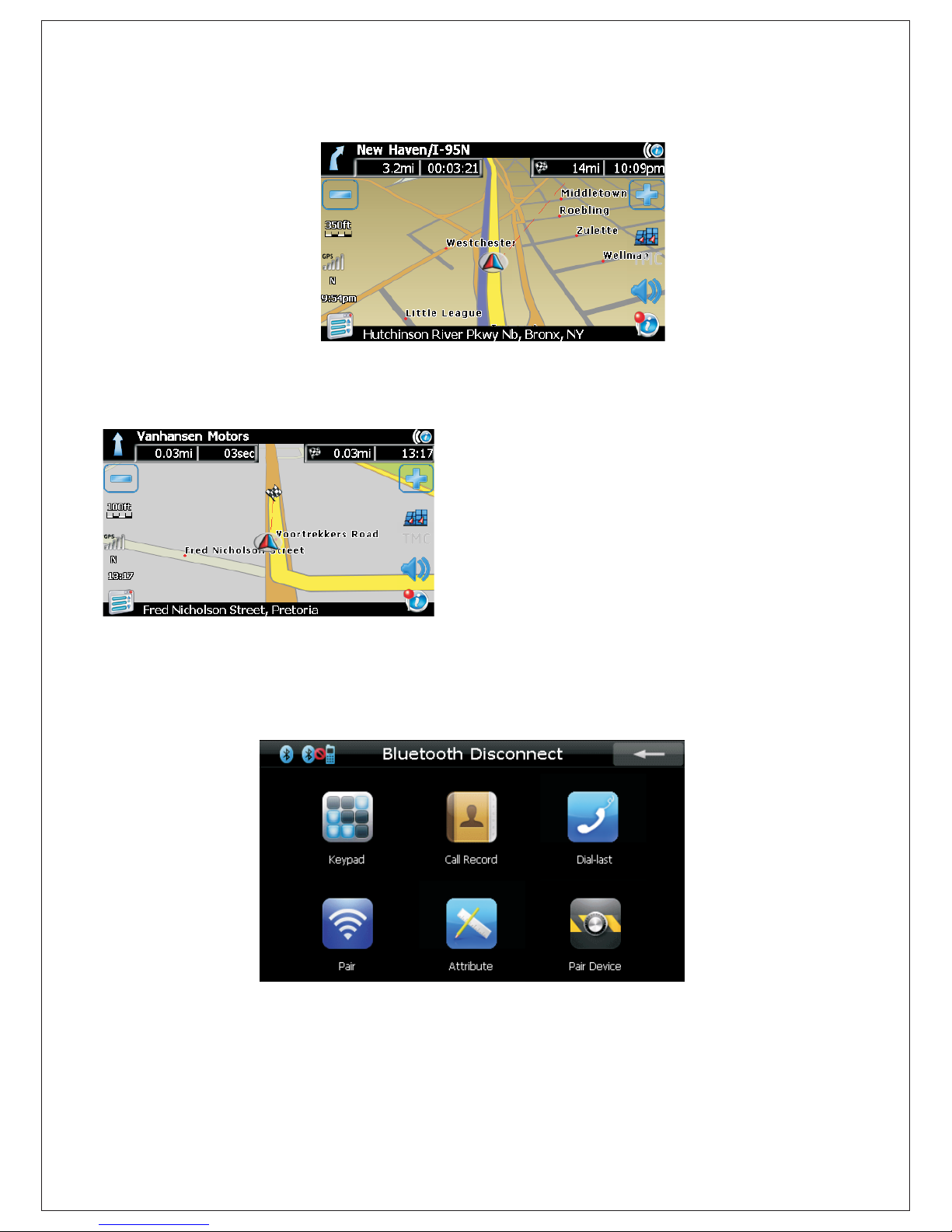

Step 3-Guide along Route
Road to turn onto
Turn arrow
distance to turn, time until turn
Zoom out
Map scale
GPS status
Compass heading
Time
Show menu
Repeat voice
Distance to go,Time of arrival
Zoom in
Change view
Mute
Get local info
Current Location
Step 4 Arrive at Destination-
BLUETOOTH HANDS FREE SYSTEM
Press Bluetooth button on the main menu you will enter the Bluetooth hands free sub-
menu.
Before using the Bluetooth hands free system, you need to pair your mobile phone
with the navigator.
HOW TO PAIR THE GPS WITH YOUR MOBILE

Step 3, Press search new device on your mobile phone, your mobile phone will
automatically search for the GPS. (Please refer to your mobile phone user manual for
detailed operation)
Step 4, The default name of is “GPS”. When you see the device GPS on your
mobile phone's device list, select and pair it.
Step 5, Enter the pair code (0000 as default)
Step 6, The phone and the GPS was paired and connected; return to main menu and
you are now able to use the GPS as a Bluetooth hands free kit.
Note: As the navigator is a passive Bluetooth device, it is not able to search your
mobile phone by itself. You need to use your mobile phone to search for it and get
connected.

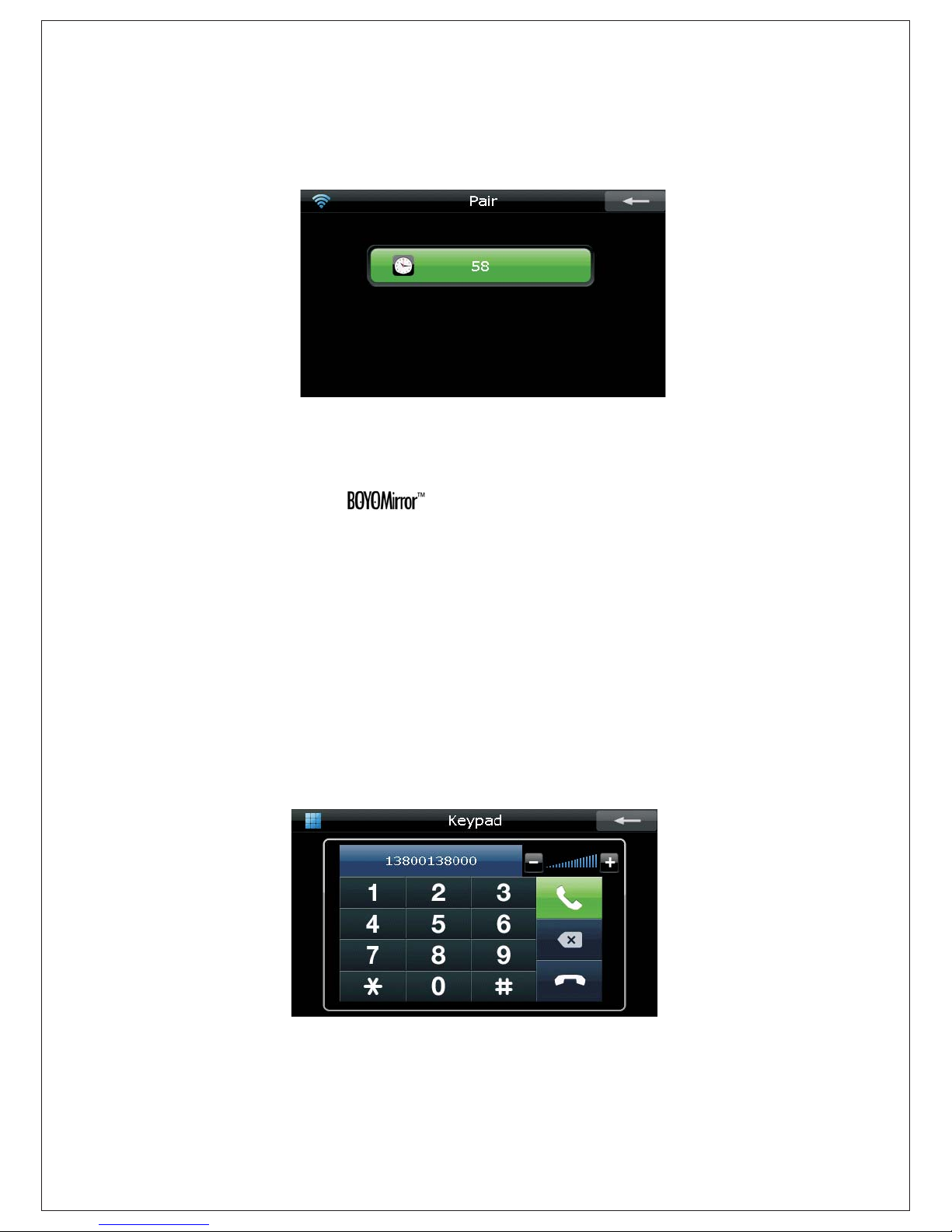

MAKING PHONE CALL
Press keypad button you will enter the keypad interface as below, using this touch
screen keypad you are able to make phone calls to your contact.
ANSWERING PHONE CALL
When the phone was paired with GPS, the LCD panel will switch to the below screen
while there is an incoming call.
Step 1, Refer to your mobile phone's user manual, turn on the Bluetooth function.
Step 2, Press the pair button on the menu, you will see the screen as below. The
device will wait for pair signal for 60 seconds, if the connection was failed, you need
to activate this function again.

Press the green button to answer, or the red button to hang up.
Media center
Your GPS system is also a multimedia center. You can view your picture, listen to the
music and even watch movie on it.
Music
E-book
Allow you to view your photos stored on SD card
You can play your music stored on your SD card
Allow you to read your .txt e-book stored on SD card
Movie Play your movie files stored on your SD card
REAR VIEW VISUAL SYSTEM (WITH AV-IN)
To enable this function, you need to connect the navigator with the camera.

Cable Connection
Red Cable
Yellow RCA Jack
Av1
Black Cable
+12V from fuse box inside the car
- GND from fuse box inside the car
Yellow RCA Jack
Av2
AV2 Video Input connected to 2nd Wired or Wireless
RearView Camera
Yellow RCA Jack Av3
RED RCA Jack Av3
AV3 Video and Audio input connected to DVD Player,
Mp4orsoon.
AV1 Video Input connected to main Wired or Wireless
RearView Camera
The system has 3 inputs, AV1 / AV2 / AV3 as below
You can either press the video button on the main menu to enter the default video in
channel, or press the M button on the front panel to switch between the main menu
and 3 input channels.
SYSTEM SETTINGS
Click enter to the system setting sub-menu
Volume
Backlight
Adjust system volume
Adjust LCD backlight
Activate auto dimmer function (For VTG43A BOYO Mirror
ONLY)
Language Change the default system language

FM
Nav. Setup
Enable FM transmitter function, to mute the system speaker
and using car's speaker system through FM
Preset the FM transmission frequency
Setup the navigation program storage route
Sys info Display the system info
Calibration to adjust the touch screen accuracy
GPS reset to reset the GPS program to manufacturer
default setting
Factory reset to reset the to the factory default
setting
navigation
navigation
