DIGIFRAME BUSINESS LINE 158 8GB
MANUAL

2
Table of Contents
__________________________________________
1 INTRODUCTION .................................................................... 3
1.1 FEATURES ............................................................... 3
1.2 WHAT'S IN THE BOX .................................................. 3
1.3 PRODUCT OVERVIEW................................................. 4
2 IMPORTANT SAFETY INSTRUCTIONS...................................... 7
3 GETTING STARTED ................................................................ 8
3.1 CONNECTING TO POWER ............................................ 8
3.2 START UP THE DPF ................................................... 8
4 USING THE BRAUN DIGITAL PHOTO FRAME ........................... 9
4.1 MAIN MENU ........................................................... 9
4.2 SELECT INPUT SOURCE ............................................... 9
4.3 VIEW A PHOTO/SLIDESHOW ...................................... 10
4.4 MUSIC ................................................................. 11
4.5 MOVIE................................................................. 12
4.6 CALENDAR ............................................................ 13
4.7 AS EXTENDED DISPLAY ............................................. 13
5 ADJUSTING THE SETTINGS .................................................. 14
6 COPY FILES TO INTERNAL MEMORY .................................... 15
7 SCROLL SUBTITLE................................................................ 16
8 FREQUENTLY ASKED QUESTIONS (FAQ) ............................... 17
9 CUSTOMER SUPPORT ......................................................... 18
10 PRODUCT SPECIFICATIONS ................................................. 18
11 LIMITED WARRANTY . FEHLER! TEXTMARKE NICHT DEFINIERT.

3
1 Introduction
Thank you for selecting this BRAUN Digital Photo Frame. Displaying your
favorite picture is easy and fun.
1.1 Features
• 15.6" TFT LED full view panel with 1920 * 1080 pixels resolution, 16:9
aspect ratio.
• Supports most photo formats: JPG, JPEG, BMP, PNG and more.
• Supports most movie formats: MPEG-1, MPEG-2, MPEG-4 (AVI/Xvid),
M-JPEG, TS and more.
• Supports most audio formats: MP3, WMA, WAV and more.
• Supports photo with background music.
• Supports viewing pictures in thumbnail mode.
• Convenient features for daily life include alarm clock, calendar, video
player and music player.
• Slots for SD (SDHC/MMC) memory card and USB memory stick.
• Stereo speaker, earphone output.
• HDMI Input.
• Auto power on and off.
• 8 GB built-in memory.
1.2 What's in the Box
• Digital Photo Frame (DPF)
• AC Power Adaptor
• Remote Control
• Back Stand
• User Manual
• Warranty Card

4
1.3 Product Overview
1.3.1 Function Buttons at Right Side
1 2 3 4 5 6 7
1 Exit
2 Volume Up/Right
3 Volume Down/Left
4 Next File/Down
5 Previous File/Up
6 Enter/Play/Pause
7 Power On/Off
1.3.2 Interface at Right Side
1 2 3 4 5 6
1 DC Port
2 Power Switch
3 3.5mm Earphone Jack
4 USB Port
5 SD/MMC/SDHC Memory Card Slot
6 HDMI Port
1.3.3 Remote Control

5
Icon Description
Power On / Off
Mute
HDMI/DMP Input Source
CALENDAR Calendar/Sub Title
PHOTO Photo Play Mode
MUSIC Music Play Mode
MOVIE Video Play Mode
Up
Down
Left
Right
ENTER Enter
VOL + Volume Up
VOL - Volume Down
Fast Forward
Fast Backward
Play Previous File
Play Next File
Play or Pause
SETUP Setting
The PDF has a built-in remote control sensor in the bottom right of frame.
Maximum
vertical and horizontal
angle approximately 30 degrees
Approximately 1.4 m or less

6
Replacing the remote control battery
1. On the back of the remote control, pull out the battery holder.
2. Insert the new battery into the holder. The battery must be placed with
the positive charge facing upwards, as shown in the illustration below.
3. Slide the battery holder into the remote control.
Positive charge
faces upwards

7
2 Important Safety Instructions
Always follow these basic safety precautions when using your Digital
Photo Frame (DPF). This will reduce the risk of fire, electric shock and
injury.
Caution: To reduce the risk of fire or shock hazard, do not expose this
product to rain or moisture.
Do not remove the cover. There are no user-serviceable parts inside.
Refer all servicing to qualified personnel.
• The DPF is for indoor use only.
• The frame is not suitable for permanent 24/7 use.
• Unplug the DPF before performing care and maintenance.
• Do not block the ventilation holes on the back of the DPF at any time.
• Keep your DPF out of direct sunlight and heat sources.
• Route the power cable so that it is not likely to be walked on or pinched
by items placed on or against it. Pay particular attention to the point
where the cable attaches to the DPF.
• Only use the AC adapter included with the DPF. Using any other power
adapter will void warranty.
• Unplug the power cord from the power outlet when the unit is not in use.
Cleaning the DPF
Treat the screen gently.
To clean fingerprints or dust from the LCD screen we recommend using a
soft, non-abrasive cloth such as a camera lens cloth.
If you use a commercial LCD cleaning kit, do not apply the cleaning fluid
directly to the LCD screen. Clean the LCD screen with the cleaning
solution applied to the cleaning cloth. Clean the outer surface of the DPF
with a soft cloth dampened with water.

8
3 Getting Started
3.1 Connecting to Power
1. Insert and gently push up the back stand.
2. Remove the protecting film on the panel.
3. Place the DPF on a flat surface.
4. Press plug the AC power adapter into the photo frames DC power jack
and an electrical wall outlet.
5. Press the button on the remote control.
3.2 Start up the DPF
After powering on the DPF for the first time, change the system language
and local time if necessary:
Change System Language
1. Press the SETUP button.
2. Press the button and the button to select your language.
3. Press the EXIT button.
Change Local Date & Time
1. Press the SETUP button.
2. Press the button to Clock menu.
3. Press the ENTER button to the sub-menu. Use the button and the
button to adjust Day to your local time.
4. Press the button to Month, Year, Hour, Minute and Sec to adjust
them accordingly.
4. Press the EXIT button.

9
4 Using the BRAUN Digital Photo Frame
4.1 Main Menu
Press the EXIT button three times to the main menu page. Use the button
and the button to select the function or press the function button on the
remote control.
4.2 Select Input Source
There are three input sources: Internal memory (8 GB) or SD (SDHC/MMC)
memory card (up to 32 GB) or USB memory stick (up to 32 GB).
1. Insert the USB memory stick or SD (SDHC/MMC) memory card.
2. In the main menu page, use the button and the button to select the
Photo, Music or Movie function, press the ENTER button to the input
source page.
3. Use the button and the button, press the ENTER button to see the
files under the selected input source.

10

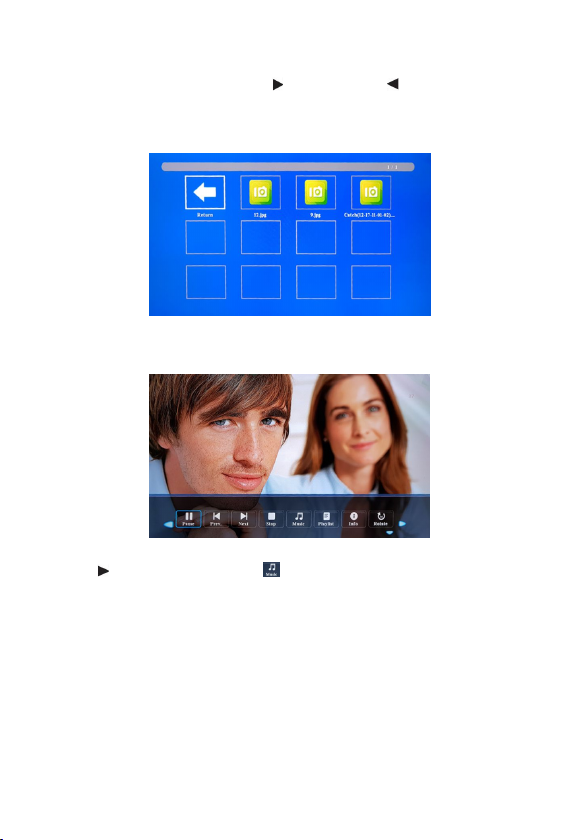

4.3 View a Photo/Slideshow
Select Photo function from the main menu, press the ENTER button and
choose the input source, press the button and the button to select an
individual photo by press the ENTER button. Wait for a while, your favorite
slideshow will start automatically.
Press the CALENDAR button to show/hide the subtitle menu.
Use the button to highlight the button, press the ENTER button to turn
the background music on or off. If there is audio files under the same folder,
music will be played at the background of photo/slideshow.
IMPORTANT: Please ensure you save photo files in the compatible format
for playing on your DPF.
Tips: Photo transition time interval and effect can be adjusted via Setup >
Transition Interval/Transition Effect.

11
4.4 Music
Select Music function from the main menu, press the ENTER button and
choose the input source, press the button and the button to select an
individual audio files by press the ENTER button.
Press the CALENDAR button to show/hide the sub title menu.
Use the button to Play/Pause. Press the button to previous and the
button to next tracks. Adjust volume by the VOL + and VOL - buttons on
the remote control or the controls on back of the frame.
IMPORTANT: Please ensure you save music files in the compatible format
for playing on your DPF.
Tips: Adjust music repeat mode via Setup > Repeat Mode.

12
4.5 Movie
Select Music function from the main menu, press the ENTER button and
choose the input source, press the button and the button to select an
individual audio files by press the ENTER button.
Press the CALENDAR button to show/hide the sub title menu.
Use the button to Play/Pause. Press the button to Previous and the
button to Next tracks. Adjust volume by the VOL + and VOL - buttons
on the remote control or the controls on back of the frame.
IMPORTANT: Please ensure you save video files in the compatible format
for playing on your DPF.
Tips: Adjust movie repeat mode via Setup > Repeat Mode.

13
4.6 Calendar
Press the CALENDAR button on the remote control to see a full-screen
month-by-month calendar and clock display. If there are pictures under
the current folder, pictures will display automatically.
Tips: Adjust photo transition interval via Setup > Transition Interval.
4.7 As Extended Display
The DPF can be used as an extended display. Link the computer via the
HDMI cable (not supplied as standard accessory). Press the button
and select HDMI as input source.

14
5 Adjusting the Settings
Using the control buttons
Press the button to move up to previous menu.
Press the button to move up to next menu.
Press the button for previous option.
Press the button for next option.
Press the EXIT button to exit.
Overview
Menu
Options
OSD Language
English and Other 9 languages
Auto Play
Photo, Music, Movie, Photo + Music, Off
Repeat Mode
All, Off, One
Transition
Interval
Off, 5s, 10s, 30s, 1 min, 10min, 30min
, 1 hour, 12 hours, 24 hours
Transition Effect
On, Off
Clock
Clock Mode
12
-
hours, 24
-
hours
Display Mode
Auto, Fit, Panorama
Brightness
Contrast
Saturation
Scroll Subtitle
Off, Black, White, Red, Blue, Green
Auto Power
On, Off, Time 1, Time 2,
Time 3 and its On/Off time
Media Type
USB, Memory (Control the default input source)
Factory Default

15
6 Copy Files to Internal Memory
Add a file named “copy.txt” to the USB memory stick. File name must be
lowercase.
Files under the USB memory stick will be automatically copied to the
built-in memory when the USB memory stick is inserted into DPF.
IMPORTANT:
1. Please ensure the files in the built-in memory have been backed up
since they will be deleted.
2. The capacity of built-in memory is 8 GB. Not all the files in the USB
memory stick will be copied to the build-in memory if the total size of
the files to be copied exceeds 8 GB.

16
7 Scroll Subtitle
Create a file named SCROLL.TXT with the scroll subtitle. Select Unicode as
the encoding format and save it. Please refer to below picture. The file
name SCROLL.TXT must be uppercase and the file need put under the
root directory of USB memory stick or the SD (SDHC/MMC) memory card.
Scroll subtitle will appear when you play video.
Tips: Adjust scroll subtitle color via Setup > Scroll Subtitle.

17
8 Frequently Asked Questions (FAQ)
Why no photo is displayed in my calendar?
There is no photo under the current folder. Use Photo function to
check and select folder with photo file as current folder. Then select
Calendar function again.
I have a memory card in the Digital Photo Frame, but it’s not reading
the card. What should I do?
First, make sure that you are using a memory card that is supported
by the Digital Photo Frame (<=32GB). Second, ensure that the
memory card is inserted all the way into the correct slot. Third, press
the EXIT button until you reach the “Select Input Source” page.
Note:
Some digital cameras save images into non-standard formats. Please
refer to your camera’s operating manual for specifics or transfer the files
to the formats supported by this DPF.
Why do some photos load faster than others?
Higher resolution photos load slower. Using a lower resolution when
taking photos will speed up loading time.
How can I set USB memory stick as default input source?
Change the setting of Media Type under Setup to USB.

18
9 Product Specifications
LCD Type 15.6” TFT LCD Full View
Backlight type
LED
Screen Resolution
1920 * 1080 pixels
Aspect ratio
16:9
Photo Format
JPG,
JPEG
,
BMP
, PNG and more
Music Format
MP3
,
WMA
,
WAV
and more
Video Format
MPEG1
,
MPEG2
,
MPEG4 (Xvid
/
AVI)
,
M
-
JPEG
, TS and more
Media Slots
SD (SDHC/MMC) memory card up to 32 GB
USB memory stick up to 32 GB
Clock/Calendar
Yes
Input power
AC100
~
2
4
0V
Output power
DC
12
V
2
A
10 Customer Support
Many questions regarding the operation of your BRAUN product can be
answered by reading the instruction manual packaged with this product.
If this product is deemed to be defective and is under warranty, you may
contact for support / technical assistance the following address:
BRAUN Photo Technik GmbH
Merkurstr. 8
72184 Eutingen / Germany
www.braun-phototechnik.de
Declaration on CE provisions
This device has been tested and complies with the restrictions for a
digital device in accordance with CE regulations. These limits are
intended to provide adequate protection against preventable
disturbances in domestic installations.
