Briggs & Stratton CH8993H User manual

BEARCATPRODUCTS.COM//
888.625.4520
9 inch Turntable chipper
OWNER’S MANUAL
ENGLISH
993cc Briggs & Stratton®
P/N: 78673-00
Revision B
VIN Range: 5VJAA0211MW006735 - Current
Companion to P/N: 78674-00
ENGLISH ESPAÑOL FRANÇAIS

Before You Begin
© 2021, Crary®Industries, All rights reserved. Produced and printed in the U.S.A.
HOW TO CONTACT Crary Bear Cat
ADDRESS PHONE E-MAIL HOURS
237 NW 12th Street
P.O. Box 849
West Fargo, ND 58078
888-625-4520
701-282-5520
Fax: [phone]
[e-mail]
ser[email protected]
Monday - Friday
8 a.m. to 5 p.m.
Central Time
DEAR Crary®Bear Cat®CUSTOMER
Thank you for purchasing an Crary Bear Cat product. The Crary Bear Cat line is designed, tested, and manufactured to give
years of dependable performance. To keep your machine operating at peak efciency, it is necessary to adjust it correctly and
make regular inspections. The following pages will assist you in the operation and maintenance of your machine. Please read
and understand this manual before operating your machine.
If you have any questions or comments about this manual, please call us toll-free at 888-625-4520.
If you have any questions or problems with your machine, please call or write your local authorized Crary Bear Cat dealer.
This document is based on information available at the time of its publication. Crary Bear Cat is continually making
improvements and developing new equipment. In doing so, we reserve the right to make changes or add improvements to our
product without obligation for equipment previously sold.
FOR MACHINE SERVICE OR PARTS
For service assistance, contact your nearest authorized
Crary Bear Cat dealer or the factory. For parts, contact your
authorized dealer. The parts manual for your machine is
available at bearcatproducts.com/Product-Support/Find-A-
Product-Manual. Your dealer will need to know the serial
number of your machine to provide the most efcient service.
See below for information on how to identify and record the
serial number for your machine.
FOR ENGINE SERVICE OR PARTS
For engine service or parts, contact your nearest authorized
engine dealer. Crary Bear Cat does not handle any parts,
repairs or warranties for engines.
ORDERING PARTS
Only genuine Crary Bear Cat replacement parts should be
used to repair the machine. Replacement parts manufactured
by others could present safety hazards, even though they
may t on this machine. Replacement parts are available
from your Crary Bear Cat dealer.
Provide the following when ordering parts:
• The SERIAL NUMBER of your machine.
• The PART NUMBER of the part.
• The PART DESCRIPTION.
• The QUANTITY needed.
IDENTIFICATION NUMBER LOCATION
Your machine will have a vehicle identication number
(VIN). VINs are located on the left side of the trailer frame
near the hitch. They are 17-digit numbers of the format:
5VJAA001XXWXXXXXX. For the exact location of the VIN,
see the parts manual available at bearcatproducts.com/
Product-Support/Find-A-Product-Manual.
Record your identication number in the space provided and
on the warranty registration card.
VEHICLE IDENTIFICATION NUMBER
IMPORTANT WARRANTY REGISTRATION
IF YOU HAVE NOT REGISTERED YOUR CRARY BEAR CAT PRODUCT, PLEASE DO SO TODAY. TO REGISTER YOUR CRARY BEAR CAT
PRODUCT ON-LINE AT HTTPS://WWW.BEARCATPRODUCTS.COM/SUPPORT/PRODUCT-REGISTRATION/ OR CALL OUR CUSTOMER
SERVICE LINE AT [phone] FOR ASSISTANCE IN REGISTRATION.

ENGLISH
LIMITED WARRANTY
This warranty applies to all Crary
®
Bear Cat
®
Outdoor Power Equipment manufactured by Crary Industries, Inc. and
does not include gas engine or electric powered pressure washers under the Crary Bear Cat brand. See Crary Bear
Cat Pressure Washer Limited Warranty for complete warranty details on those products.
Crary Industries, Inc. warrants to the original owner each new Crary Bear Cat product to be free from defects in
material and workmanship, under normal use and service. The warranty shall extend, from date of purchase, three
years (U.S. and Canada only [two years outside U.S. and Canada]) for Consumer use of the product, one year for
Commercial applications and six months for Rental applications. Replacement parts and accessories are warranted
for 90 days from date of installation. Batteries for Inverters and Generators are warranted for 90 days from the date
of purchase.
“Consumer” de ned as:Complete unit for personal, residential, or non-income producing use.
“Commercial” de ned as:Complete unit for commercial, institutional, property management, agricultural,horticultural
or income producing use.
“Rental” de ned as: Complete unit for rental purposes to produce income.
The product is warranted to the original owner by either a completed warranty registration on  le at Crary Industries,
Inc. and/or proof of sale. Warranty coverage begins on the date of purchase. The warranty registration can be
registered on-line by visiting bearcatproducts.com/Product-Support/Product-Registration.
In the event of a failure, return the product, at your cost, along with proof of purchase to the selling Crary Bear
Cat dealer. Crary Industries, Inc. will, at its option, repair or replace any parts found to be defective in material
or workmanship. Warranty on any repairs will not extend beyond the product warranty. Repair or attempted repair
by anyone other than an authorized Crary Bear Cat dealer as well as subsequent failure or damage that may occur
as a result of that work will not be paid under this warranty. Crary Industries, Inc. does not warrant replacement
components not manufactured or sold by Crary Industries, Inc.
1. This warranty applies only to parts or components that are defective in material or workmanship.
2. This warranty does not cover normal wear items including, but not limited to: batteries, bearings, belts,
pulleys,  lters, chipper blades, shredder knives.
3. This warranty does not cover normal maintenance, service, or adjustments.
4. This warranty does not cover depreciation or damage due to misuse, negligence, accident, or
improper maintenance.
5. This warranty does not cover damage due to improper setup, installation, or adjustment.
6. This warranty does not cover damage due to unauthorized modi cations of the product.
7. Engines are warranted by the respective engine manufacturer and are not covered by this warranty.
Crary Industries, Inc. is not liable for any property damage, personal injury or death resulting from the unauthorized
modi cation or alteration of an Crary Bear Cat product or from the owner’s failure to assemble, install, maintain, or
operate the product in accordance with the provisions of the Owner’s manual.
Crary Industries, Inc. is not liable for indirect, incidental, or consequential damages or injuries including but not
limited to loss of crops, loss of pro ts, rental of substitute equipment or other commercial loss. This warranty gives
you speci c legal rights. You may have other rights that may vary from area to area.
Crary Industries, Inc. makes no warranties, representations or promises, expressed, or implied as to the performance
of its products other than those set forth in this warranty. Neither the dealer nor any other person has any authority
to make any representations, warranties or promises on behalf of Crary Industries, Inc. or to modify the terms or
limitations of this warranty in any way. Crary Industries, Inc., at its discretion, may periodically offer limited, written
enhancements to this warranty.
CRARY INDUSTRIES, INC. RESERVES THE RIGHT TO CHANGE THE DESIGN AND/OR SPECIFICATIONS OF ITS
PRODUCTS AT ANY TIME WITHOUT OBLIGATION TO PREVIOUS PURCHASERS OF ITS PRODUCTS.
ENGLISH

TABLE OF CONTENTS
1 SAFETY .................................................................. 1
1.1 SAFETY ALERT SYMBOL........................................ 1
1.2 FIRE HAZARD INFORMATION................................ 1
1.3 BEFORE OPERATING.............................................. 1
1.4 OPERATION SAFETY............................................... 2
1.5 FEED ROLLER SAFETY .......................................... 2
1.6 BATTERY SAFETY.................................................... 3
1.7 MAINTENANCE/STORAGE SAFETY...................... 3
1.8 TOWING SAFETY ..................................................... 3
1.9 SAFETY DECALS ..................................................... 4
1.10 SAFETY DECAL LOCATIONS ............................... 6
2 ASSEMBLY............................................................. 8
2.1 ATTACH TRAILER WHEELS .................................... 8
2.2 ATTACH HITCH ASSEMBLY .................................... 8
2.3 INSTALL REAR STABILIZER ................................... 8
2.4 ATTACH CHIPPER CHUTE ...................................... 8
2.5 ATTACH DIGITAL DISPLAY CONTROLLER
MOUNT ASSEMBLY........................................................ 9
2.6 ATTACH DISCHARGE TUBE ................................... 9
2.7 CHECK REAR ROLLER WHEELS ........................ 10
2.8 ADD OIL TO ENGINE.............................................. 10
2.9 CHECK/ADD HYDRAULIC FLUID ......................... 10
2.10 INSTALL BATTERY ................................................11
2.11 FILL THE FUEL TANK ............................................11
3 FEATURES & CONTROLS ................................. 12
4 OPERATION......................................................... 14
4.1 STARTING ENGINE................................................ 14
4.2 OPERATING THE CHIPPER.................................. 14
4.3 CHIPPER OPERATION GUIDELINES .................. 15
4.4 SLOWING AND STOPPING THE CHIPPER
ROTOR AND ENGINE .................................................. 16
4.5 FEED ROLLER SPEED CONTROL....................... 16
4.6 CHIPPER FEED CONTROLLER ........................... 16
4.7 USING THE DIGITAL DISPLAY CONTROLLER... 16
4.8 TOWING................................................................... 19
5 SERVICE & MAINTENANCE.............................. 20
5.1 MAINTENANCE SCHEDULE ................................. 20
5.2 ROTOR LOCK ......................................................... 21
5.3 RAISE/LOWER ACCESS COVER ......................... 21
5.4 CHIPPER BLADES MAINTENANCE..................... 21
5.5 REMOVING THE BLADES ..................................... 22
5.6 SHARPENING THE BLADES................................. 22
5.7 INSTALLING THE BLADES.................................... 22
5.8 SETTING CHIPPER BLADE CLEARANCE .......... 22
5.9 TRAILER MAINTENANCE TIPS ............................ 23
5.10 CLEARING A PLUGGED ROTOR........................ 23
5.11 DRIVE BELTS ........................................................ 24
5.12 ROTOR BEARINGS .............................................. 25
5.13 HYDRAULIC FEED MAINTENANCE................... 26
5.14 CHANGE HYDRAULIC FLUID FILTER ............... 27
5.15 CHANGE OIL......................................................... 27
5.16 CHECK ROLLER WHEEL CLEARANCE............. 27
5.17 LUBRICATION ....................................................... 28
6 TROUBLESHOOTING......................................... 31
6.1 FLASH CODES FOR THE DIGITAL DISPLAY
CONTROLLER .............................................................. 31
6.2 TROUBLESHOOTING GUIDE ............................... 32
7 SPECIFICATIONS ............................................... 34
7.1 BOLT TORQUE........................................................ 35
7.2 TEMPERATURE OPERATING WINDOW ............. 36
8 OPTIONS.............................................................. 37

19 INCH TURNTABLE CHIPPER
ENGLISH
Section
1. Read and understand this owner’s manual. Be
completely familiar with the controls and the proper
use of this equipment.
2. Familiarize yourself with all of the safety and
operating decals on this equipment and on any of its
attachments or accessories.
3. Keep safety decals clean and
legible. Replace missing or illegible
safety decals.
4. Obtain and wear safety glasses and
use hearing protection at all times
when operating this machine.
5. Avoid wearing loose tted clothing. Never operate this
machine while wearing clothing with drawstrings that
could wrap around or get caught in
the machine.
6. Do not operate this machine if you
are under the inuence of alcohol,
medications, or substances that
can a󰀨ect your vision, balance or
judgement. Do not operate if tired or ill. You must be
in good health to operate this machine safely.
1 SAFETY
Indicates an imminently hazardous situation that, if not
avoided, will result in death or serious injury.
DANGER
1.1 SAFETY ALERT SYMBOL
Indicates a potentially hazardous situation that, if not
avoided, could result in death or serious injury.
WARNING
Indicates a potentially hazardous situation that, if not
avoided, may result in minor or moderate injury.
CAUTION
The Owner/Operator’s manual uses this symbol to alert
you of potential hazards. Whenever you see this symbol,
read and obey the safety message that follows it. Failure
to obey the safety message could result in personal injury,
death or property damage.
Federal, state, and local laws may prohibit the operation
of an internal combustion engine using hydrocarbon
fuels on any forest covered, brush
covered or grass covered land or on
land covered with grain, hay or other
ammable agricultural crops, without
an engine spark arrestor in continuous
e󰀨ective working order.
The engine on your power equipment,
like most outdoor power equipment,
is an internal combustion engine that burns gasoline
or diesel fuel (hydrocarbons). If operating your power
equipment in a󰀨ected areas, it must be equipped with a
spark arrestor in continuous e󰀨ective working order. The
spark arrestor must be attached to the engine exhaust
system in such a manner that ames or heat from the
system will not ignite ammable material.
Failure of the owner/operator of the equipment to comply
with federal, state, and local laws may subject him or her
to nes and/or other penalties. Contact your local re
marshal or forest service for specic information about
which regulations apply in your area.
The standard mu󰀪er installed on the engine is spark
arrestor capable. Spark arrestors require regular
maintenance. See the Service & Maintenance section of
this manual for more information.
Contact local re authorities for laws or regulations
regarding re prevention requirements.
1.2 FIRE HAZARD INFORMATION
1.3 BEFORE OPERATING

29 INCH TURNTABLE CHIPPER
SAFETY
1.4 OPERATION SAFETY
7. Do not operate this equipment in the vicinity of
bystanders. Keep the area of operation clear of all
persons, particularly small children. It is recommended
that bystanders keep at least 50 feet (15 meters)
away from the area of operation.
8. Do not allow children to operate this equipment.
9. Use only in daylight or good articial light.
10. Do not run this equipment in an enclosed area. Engine
exhaust contains carbon monoxide gas, a deadly
poison that is odorless, colorless and tasteless.
Do not operate this equipment in or near buildings,
windows or air conditioners.
11. Always use an approved fuel container. Do not
remove gas cap or add fuel when engine is running.
Add fuel to a cool engine only.
12. Do not ll fuel tank indoors. Keep open ames, sparks,
smoking materials and other sources of combustion
away from fuel.
13. Do not operate machine without shields in place.
Failure to do so may cause serious injury or death.
14. Keep all guards, deectors, and shields in good
working condition.
15. Before inspecting or servicing any part of this machine,
shut o󰀨 the machine and make sure all moving parts
have come to a complete stop. Disconnect the battery
and remove the ignition key where applicable.
16. Check that all screws, nuts, bolts, and other fasteners
are secured, tightened and in proper working condition
before starting the machine.
17. Do not transport or move machine while it is operating
or running.
1. Always stand clear of discharge area when operating
this machine. Keep face and body away from feed
and discharge openings.
2. Keep hands and feet out of feed and discharge
openings while machine is operating to avoid serious
personal injury. Stop and allow
machine to come to a complete
stop before clearing obstructions.
3. Set up your work site so you are
not endangering tra󰀩c and the
public. Take great care to provide
adequate warnings.
4. Do not climb on machine when operating. Keep
proper balance and footing at all times.
5. Check cutting chamber to verify it is empty before
starting the machine.
6. The rotor will continue to rotate after being disengaged.
Shut o󰀨 the machine and make sure all moving parts
have come to a complete stop before inspecting or
servicing any part of the machine. Disconnect the
battery and remove the ignition key if applicable.
7. Do not insert branches with a diameter larger than
the max chipper capacity into machine or machine
damage may occur.
8. When feeding material into machine, do not allow
metal, rocks, bottles, cans or any other foreign
material to be fed into the machine.
9. Ensure debris does not blow into tra󰀩c, parked cars,
or pedestrians.
10. Keep the machine clear of debris and other
accumulations.
11. Do not allow processed material to build up in the
discharge area. This may prevent proper discharge
and can result in kickback of material through the
feed opening.
12. If the machine becomes clogged, the cutting
mechanism strikes any foreign object, or the machine
starts vibrating or making an unusual noise, shut o󰀨
machine immediately and make sure all moving parts
have come to a complete stop. Disconnect the battery
and remove the ignition key if applicable. After the
machine stops: A) Inspect for damage, B) Replace
or repair any damaged parts, and C) Check for and
tighten any loose parts.
13. On electric start models, disconnect cables from
battery before doing any inspection or service.
Remove key.
14. Check blade bolts for proper torque after every 8 hours
of operation. Check blades and rotate or resharpen
daily or as required to keep blades sharp. Failure
to do so may cause poor performance, damage or
personal injury and will void the machine warranty.
1.5 FEED ROLLER SAFETY
1. The feed roller can cause serious injury or death.
Keep hands, feet and clothing
away from the feed roller and
chipper rotor blades.
2. Never climb onto the feed chute
when the unit is operating or
running.
3. Do not overreach. Keep proper balance and footing
at all times.
4. Never allow anyone to sit on the
feed chute.
WRONG
WRONG

39 INCH TURNTABLE CHIPPER
ENGLISH
SAFETY
Improper use and care of the battery on electric start
models can result in serious personal injury or property
damage. Always observe the following safety precautions.
●Poison/Danger – Causes Severe Burns. The
battery contains sulfuric acid. Avoid contact with skin,
eyes or clothing. Keep out of reach of children.
●ANTIDOTE – External Contact: Flush immediately
with water.
●ANTIDOTE – Internal: Drink a large amount of water
or milk. Follow with milk of magnesia, beaten egg or
vegetable oil. Call a physician immediately.
●ANTIDOTE – Eye Contact: Flush with water for 15
minutes. Get prompt medical attention.
1. The battery produces explosive gases. Keep sparks,
ame or cigarettes away. Ventilate area when
charging battery. Always wear safety goggles when
working near battery.
2. The battery contains toxic materials. Do not damage
battery case. If case is broken or damaged, avoid
contact with battery contents.
3. Neutralize acid spills with a baking soda and water
solution. Properly dispose of a damaged or worn-
out battery. Check with local authorities for proper
disposal methods.
4. Do not short circuit battery. Severe fumes and re can
result.
5. Before working with electrical wires or components,
disconnect battery ground (negative) cable rst.
Disconnect positive cable second. Reverse this order
when reconnecting battery cables.
1. Before inspecting, servicing, storing, or changing
an accessory, shut o󰀨 the machine and make sure
all moving parts have come to a complete stop.
Disconnect the battery and remove the ignition key
where applicable.
2. Replace any missing or unreadable safety decals.
Refer to the safety decal section for part numbers.
3. Allow machine to cool before storing in an enclosure.
4. Store the machine out of reach of children and where
fuel vapors will not reach an open ame or spark.
5. Never store this machine with fuel in the fuel tank
inside a building where fumes may be ignited by
an open ame or spark. Ignition sources can be hot
water and space heaters, furnaces, clothes dryers,
stoves, electric motors, etc.
6. Drain the fuel and dispose of it in a safe manner for
storage periods of three months or more.

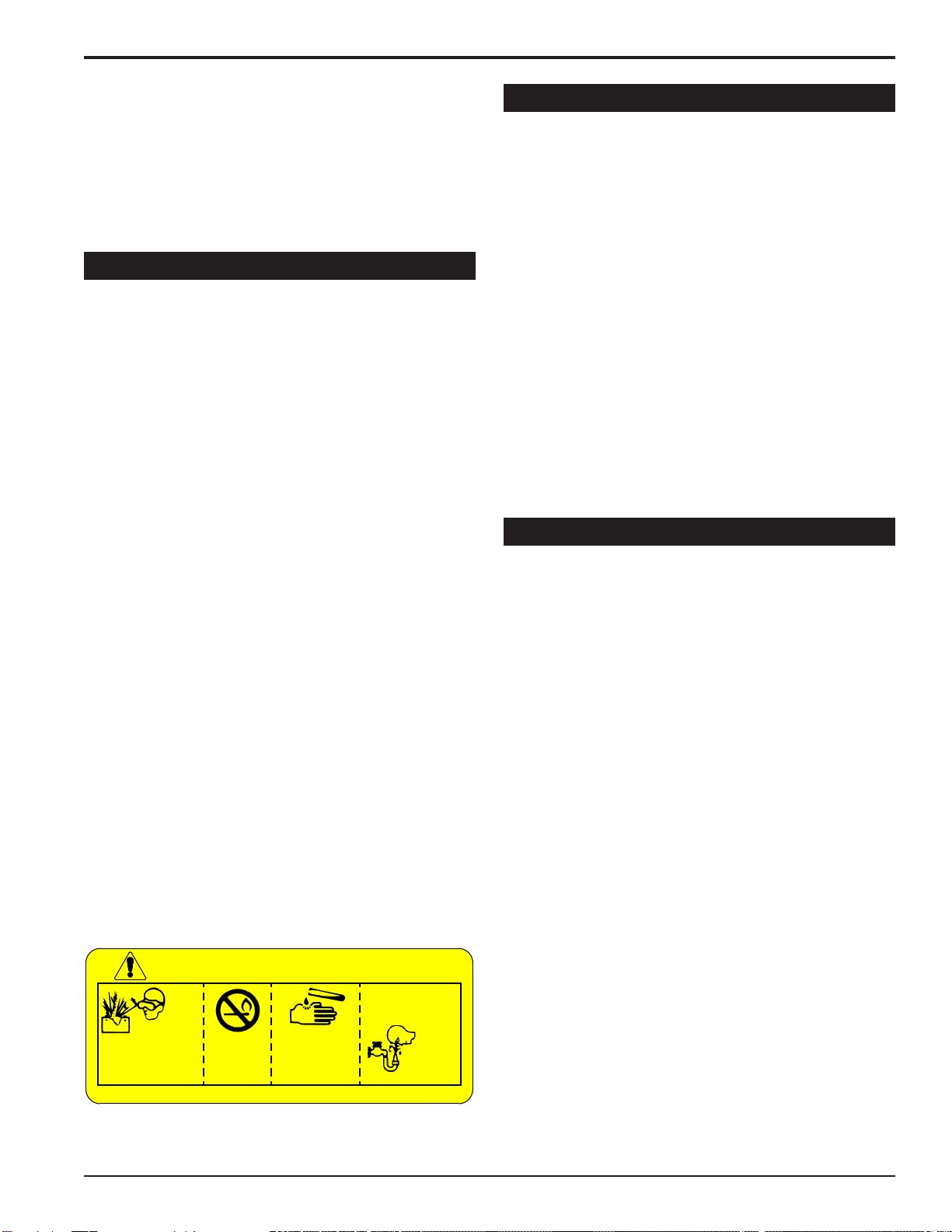

DANGER / POISON
FLUSH EYES
IMMEDIATELY
WITH WATER
GET
MEDICAL
HELP
FAST
KEEP OUT OF THE REACH OF CHILDREN. DO NOT TIP. KEEP VENT CAPS TIGHT AND LEVEL.
SULFURIC
ACID CAN
CAUSE
BLINDNESS OR
SEVERE BURNS
NO
• SPARKS
• FLAMES
• SMOKING
SHIELD EYES
EXPLOSIVE
GASES CAN
CAUSE BLINDNESS
OR INJURY
1. Position and lock the discharge tube to face the
opposite direction of the towing vehicle prior to towing.
2. Insert turntable pin.
3. Connect hitch safety chains. Tighten trailer hitch
bolts. Do not attempt to tow the trailer if the vehicle is
not equipped with a 2" (50 mm) ball.
4. Do not exceed the maximum towing speed indicated
on tire sidewall. Inate tires to manufacturer’s
specications as stated on the tire sidewall.
5. Optimum towing performance can be achieved by
maintaining a horizontal trailer hitch.
6. Check wheel lug bolts periodically to ensure they are
tight and secure.
7. Make sure the jack stand and the rear stabilizer
(where applicable) on the trailer are in the UP position
during towing. Place the jack stand on a level surface
and secure it in the DOWN position before using.
8. Never allow passengers to ride on the machine.
9. If applicable, shut o󰀨 fuel supply when towing.
10. Towing laws may vary in di󰀨erent countries/regions/
states. It is recommended that you contact your local
motor vehicle department for any special regulations
that pertain to towing and know the laws of any
country/region/state you travel through.
5. When feeding material into the feed roller wear eye,
face and hearing protection.
6. Stand to side of feed chute when feeding material
and release material quickly.
7. When inspecting or servicing the feed roller, secure
the feed roller in the raised position using the lock pin,
if applicable.
1.6 BATTERY SAFETY
1.7 MAINTENANCE/STORAGE SAFETY
1.8 TOWING SAFETY

49 INCH TURNTABLE CHIPPER
SAFETY
1.9 SAFETY DECALS
Keep hands and feet out of inlet and discharge openings
while machine is operating to avoid serious personal
injury. Stop and allow machine to come to a complete stop
before clearing obstructions.
Read and understand this owner/operators manual.
Be completely familiar with the controls and the
proper use of this equipment
Obtain and wear safety glasses and use hearing
protection at all times when operating this machine.
Before inspecting or servicing any part of this
machine, shut o󰀨 power source, remove the key,
disconnect spark plug wire from spark plug and
make sure all moving parts have come to a complete stop.
Do not operate this equipment in the vicinity of
bystanders. Do not allow children to operate this
equipment. Always stand clear of discharge area when operating this
machine. Keep face and body away from discharge areas.
Do not operate machine without shields in place.
Failure to do so may cause serious injury or death.
Check blade bolts for proper torque after
every 8 hours of operation. Check blades
and rotate or resharpen daily or as required
to keep blades sharp. Refer to owners manual for instructions. Failure to
do so may cause poor performance, damage or personal injury and will
void the machine warranty.
Read and understand your owners manual before operating. If owners
manual was not included or you have any questions, please call
800.247.7335 or 701.282.5520 (U.S.A.).
Do not operate this equipment in the vicinity
of bystanders. Do not allow children to
operate this equipment. Always stand clear
of discharge area when operating this
machine. Keep face and body away from
discharge areas. Rotate the discharge tube over the hitch before towing
and lock securely in place.
See Section 1.10 for decal locations. Familiarize yourself with all of the safety and operating decals on the machine
and the associated hazards. See the engine owner’s manual or contact the engine manufacturer for engine safety
instructions and decals.
PN 12174
Keep hands and feet out of inlet and discharge
openings while machine is operating to avoid
serious personal injury. Stop and allow
machine to come to a complete stop before clearing obstructions.
1
6
2
7
3
8
4
5
11
PN 12169
PN 12172
PN 12173
PN 12174
PN 12175
Lock in place with lock pin before
repairing or servicing. Failure to do so
may result in serious personal injury.
PN 14942-00
PN 32109-00
PN 12250
9PN 35747-00
PN 36378-00
Operation of this equipment may create
sparks that can start res around dry
vegetation. A spark arrestor may be
required. The operator should contact
local re agencies for laws or regulations
relating to re prevention requirements.
10 PN 33883-00
33883-00
WARNING
ADVERTENCIA
OPERATION OF THIS EQUIPMENT MAY CREATE SPARKS
THAT CAN START FIRES AROUND DRY VEGETATION. A
SPARK ARRESTOR MAY BE REQUIRED. THE OPERATOR
SHOULD CONTACT LOCAL FIRE AGENCIES FOR LAWS
OR REGULATIONS RELATING TO FIRE PREVENTION
REQUIREMENTS.
EL USO DE ESTE EQUIPO PUEDE CREAR CHISPAS
CAPACES DE INICIAR INCENDIOS EN VEGETACION
SECA. PODRIA SE NECESARIO USAR UN PARACHISPAS.
EL OPERADOR DEBERA COMUNICARSE CON CUERPOS
DE BOMBEROS LOCALES PARA INFORMARSE DE LEYES
O REGLAMENTOS RELACIONADOS CON LOS
REQUISITOS EXIGIDOS PARA LA PREVENCION DE
INCENDIOS.

59 INCH TURNTABLE CHIPPER
ENGLISH
SAFETY
16 PN 32327-00 ENG. & FR.
(32339-00 ESP. & PORT.)
13 PN 32328-00 ENG. & FR.
(32340-00 ESP. & PORT.)
14
PN 32330-00 ENG. & FR.
(32342-00 ESP. & PORT.)
15 PN 32332-00 ENG. & FR.
(32341-00 ESP. & PORT.)
*Decals 12-15 not for CE compliant machines.
Feed roller support must be secured in
the up position prior to servicing chipper
feed area. Feed roller can fall and cause severe bodily harm. Consult
owner’s manual for proper method of securing feed roller support. Lower
feed roller before operating chipper.
12 PN 18983-00

69 INCH TURNTABLE CHIPPER
SAFETY

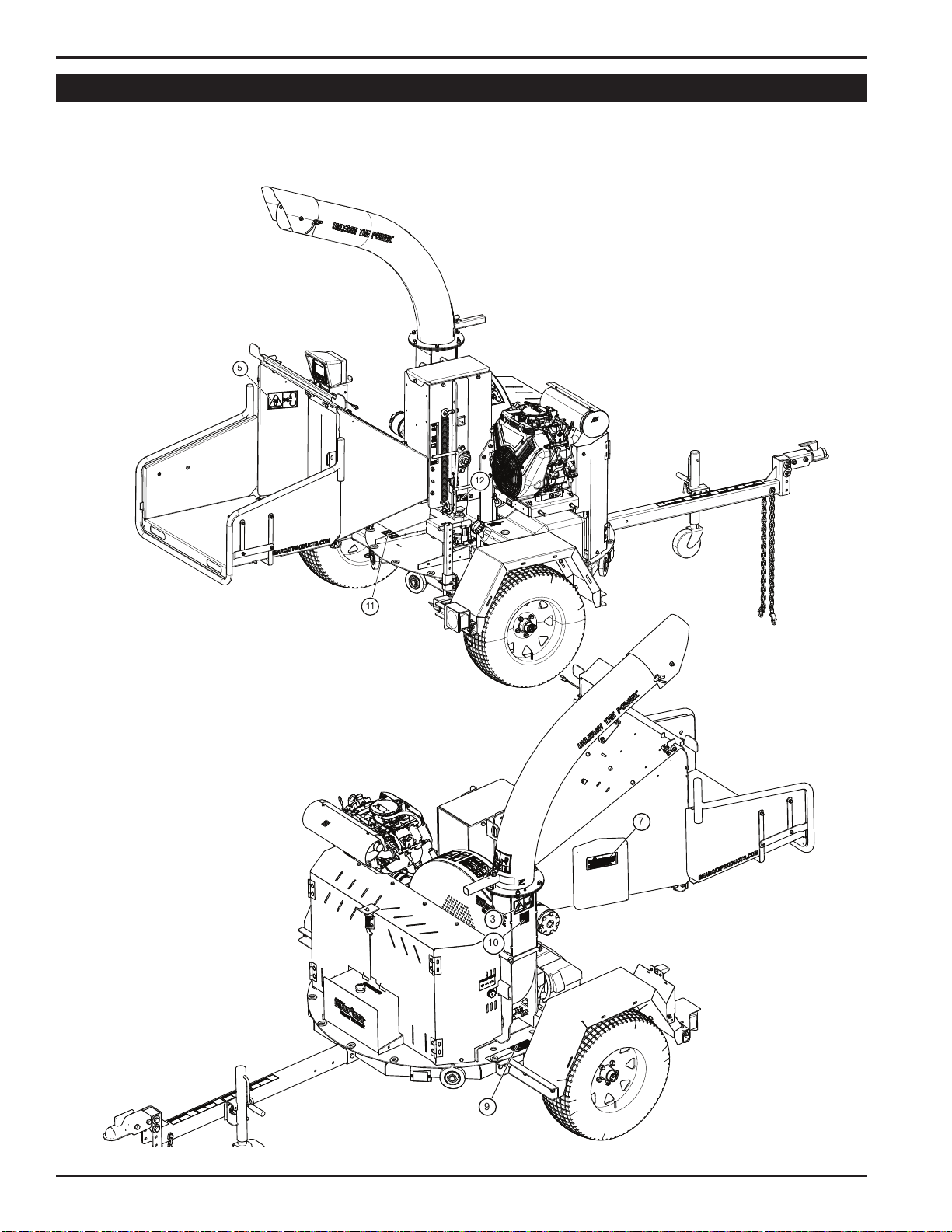

1.10 SAFETY DECAL LOCATIONS
The numbers below correspond to the decals in Section 1.9. Make certain that all safety and operating decals on this
machine are kept clean and in good condition. Decals that need replacement must be applied to their original locations.
5
12
11
7
3
10
9

79 INCH TURNTABLE CHIPPER
ENGLISH
SAFETY
*Decal located under shield

89 INCH TURNTABLE CHIPPER
Section
2 ASSEMBLY
1. Remove the chipper from its shipping crate. Place the
unit on a level surface before attempting to assemble.
2. Raise the trailer several inches from the ground with
a hoist or jack. Support the chipper securely.
3. Lift one wheel to a hub and align the wheel lug holes
with the hub lug bolts. Thread the lug nuts onto the
bolts and tighten them to 75 ft-lbs. Follow a star
pattern when tightening the lug bolts. Repeat this
step for the remaining wheel.
2.1 ATTACH TRAILER WHEELS
1. Place hitch pole assembly (1) into the frame, align
mounting holes to desired length and secure using
two 1/2" × 4-1/2" bolts, washers and nuts (hardware
not shown in Figure 2.1). Torque to 75 ft-lbs.
2. Attach coupler mount (2) to hitch pole using two 5/8"
× 4-1/2" bolts (3), washers (5) and centerlock nuts (4).
Torque to 150 ft-lbs.
3. Attach 2" coupler (6) to coupler mount using two 1/2"
× 4" bolts (7) and nylock nuts (8). Torque to 75 ft-lbs.
Figure 2.1, Non-CE Compliant Hitch Assembly
1
2
3
4
5
6
7
8
1. Mount the chipper chute (1) to the chipper housing
(2) using eight 3/8" × 1-1/4" bolts (3) and nylock nuts
(4). Use three bolts on each side and two on the
bottom. Install clamp (5) for wire harness as shown
in Figure 2.5.
If feed roller is obstructing the top bolt holes, it may be
necessary to use the hydraulic jack to raise the feed
roller in order to insert the top bolts. Before inserting
the top side bolts to mount the chute, it is important
to raise the feed roller high enough to engage the
locking mechanism. See Section 5.10 for instructions
on how to use the hydraulic jack to lift and secure the
feed roller.
2. To insert the top bolts, rotate the feed roller until the
notches (one on each side) on the feed roller are
aligned with the top bolt holes.
3. Connect the wire harness coming from the feed chute
to the connector that is located underneath the feed
roller.
If any bolts or nuts are dropped in the machine, be
sure to remove them before starting the machine.
WARNING
2.2 ATTACH HITCH ASSEMBLY
Verify that the rear stabilizer is installed. To install the
rear stabilizer, slide the stabilizer into the corresponding
bracket beneath the rear of the chipper frame. Adjust the
stabilizer and secure with the provided snap pin.
Figure 2.4, Rear Stabilizer
SNAP PIN
REAR
STABILIZER
Do not operate this unit without the chipper chute
correctly installed. Rotating cutting blades can cause
serious personal injury.
WARNING
2.3 INSTALL REAR STABILIZER
2.4 ATTACH CHIPPER CHUTE

99 INCH TURNTABLE CHIPPER
ENGLISH
ASSEMBLY
Figure 2.5, Chipper Chute Assembly
1
2
3
45

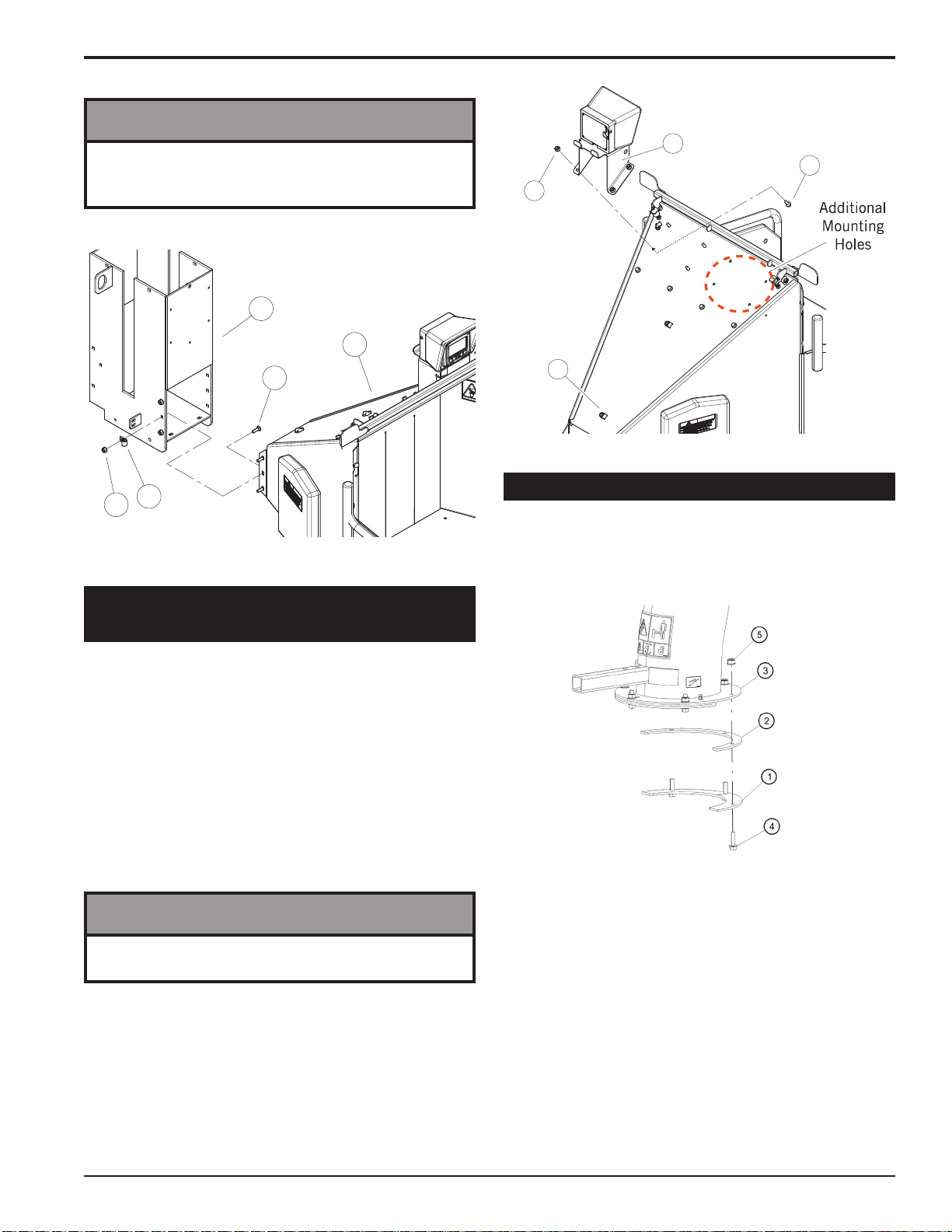

1. Remove the bolts (1) and nuts (2) attaching the digital
display controller mount assembly (3) to the inside of
the chute.
2. Attach mount assembly to the outside of the chute as
shown.
3. Route harness using the zip ties and two holders (4)
shown in Figure 2.6. Leave excess harness at the
controller to allow rotation of the enclosure from side
to side.
In tropical regions, areas of high humidity or rainfall
amounts, dielectric grease may be added to wire
harness connectors to provide corrosion resistance.
NOTE
2.5 ATTACH DIGITAL DISPLAY
CONTROLLER MOUNT ASSEMBLY
The controller mount assembly can be attached to the
chute in either set of mounting holes.
NOTE
Figure 2.6, Digital Display Controller Enclosure
1
2
3
4

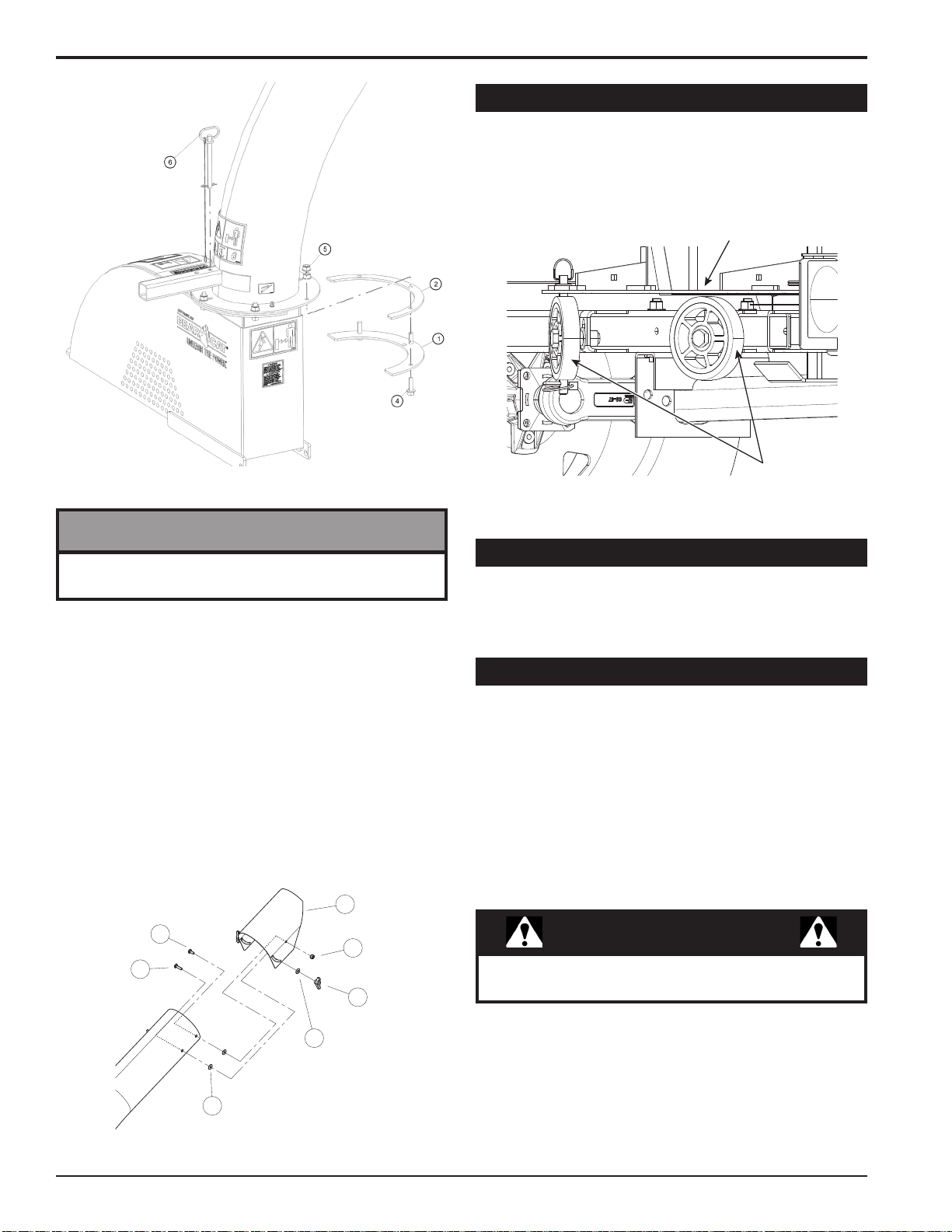

1. Attach one clamping ring (1) and one spacer ring (2)
to discharge tube base (3) using three 3/8" × 1-1/4"
bolts (4) and nylock nuts (5). Tighten leaving 1/16"
gap to assist in mounting to ange. See Figure 2.7.
2. Slide the tube onto the mounting ange on the
chipper frame. The discharge clamp (1) should slide
underneath the lip of the ange. Tighten the bolts to
secure it.
3. Install the second half of the spacer (2) and clamp
ring (1) on the discharge tube with three 3/8" × 1-1/4"
bolts (4) and nylock nuts (5).
4. Attach lanyard with discharge pin (6) as shown in
Figure 2.8. Loop on lanyard installed below nut
located under discharge handle.
Figure 2.7, Attach Clamp Ring and Spacer
2.6 ATTACH DISCHARGE TUBE

10 9 INCH TURNTABLE CHIPPER
ASSEMBLY
Keep nuts as tight as possible while allowing the
discharge tube to freely turn.
NOTE
Figure 2.9, Attach Discharge Deector
7
11
9
8
10
12
13
Hydraulic uid drives the feed roller. The machine was
shipped with uid, as it was tested at the factory. However,
check the uid levels before initial operation and add if
necessary.
The hydraulic pump requires premium hydraulic uids
containing high quality rust, oxidation, and foam inhibitors.
These include premium turbine oils, API CD engine oils
per SAE J183, M2C33F or G automatic transmission
uids meeting Allison C-3 or Caterpillar TO-2, and certain
specialty agricultural tractor uids.
Check the oil level and, if needed, ll the engine crankcase
with the type and amount of oil specied in the engine
owner’s manual.
5. Lubricate the tube by applying grease to the grease
zerk at the base of the tube. Rotate the tube and
apply grease until the tube rotates freely.
6. Rotate the tube 360 degrees and lock it in place with
the lock pin to make sure it is mounted correctly.
7. Attach the discharge deector (7) to the discharge tube.
Connect the deector with two 3/8" × 1-1/2" bolts (8)
through the lower hole in the discharge tube. Run these
bolts through the inside of the tube, 1/2" washer (12),
deector, 3/8" washer (13), and then knob (9).
8. Finish bolting the deector to the tube with two 3/8" ×
1" bolts (10) through the end hole in the discharge tube
and secure with 3/8" washers and nylock nuts (11).
After the chipper is fully assembled, check the rear roller
wheels to make sure they are touching the turntable base
that is directly above them. If there is a gap, the wheels
will not adequately support the trailer base. To adjust the
wheels, see Section 5.17.
REAR
ROLLER
WHEELS
TURNTABLE BASE
Figure 2.10, Rear Roller Wheel Adjustment
Figure 2.8, Attach Discharge Tube
For additional information, please see the chart under
Temperature Operating Window (Section 7).
IMPORTANT
2.7 CHECK REAR ROLLER WHEELS
2.8 ADD OIL TO ENGINE
2.9 CHECK/ADD HYDRAULIC FLUID

119 INCH TURNTABLE CHIPPER
ENGLISH
ASSEMBLY
To avoid sparks and a possible explosion or re due
to a short circuit, do not touch the positive (+) battery
terminal and any surrounding metal with tools, jewelry
or other metal objects. When installing battery cables,
connect the positive (+) cable rst and the negative (-)
cable last.
WARNING
Gasoline and diesel fuels are highly
ammable and their vapors are
explosive. To prevent personal injury or
property damage:
Store fuel only in approved containers,
in well ventilated, unoccupied buildings,
away from sparks or ames. A container
with a capacity of 2 gallons or less with
a pouring spout is recommended. Do
not ll the fuel tank while the engine is hot or running,
since spilled fuel could ignite if it comes in contact
with hot parts or sparks from ignition. Do not start the
engine near spilled fuel. Never use fuel as a cleaning
agent.
DO NOT MIX OIL WITH FUEL.
WARNING
Use only those types of fuels that are recommended in
your engine owner’s manual.
To add fuel:
1. Stop engine, wait for all parts to stop moving and
disconnect spark plug wire. Remove key from key
switch. Allow the engine and mu󰀪er to cool for at
least three minutes.
2. Clean area around fuel ll cap and remove cap.
3. Using a clean funnel, ll fuel tank to 1/2" below bottom
of ller neck to provide space for any fuel expansion.
Install fuel ll cap securely and wipe up any spilled
gasoline.
You will need to purchase a battery. Choose a battery
that meets or exceeds the engine manufacturer’s
specications. Consult your engine owner’s manual or
authorized dealer for specication details.
2.10 INSTALL BATTERY 2.11 FILL THE FUEL TANK
To install the battery:
1. Open the battery box (11-1/8" × 7-3/4" × 10-1/8") and
insert battery into the battery box.
2. Attach the positive (red) battery cable from the engine
to the positive (+) battery terminal.
3. Attach the negative (black) battery cable from the
engine to the negative (-) battery terminal.
4. Secure the cover on the battery box with the strap.

12 9 INCH TURNTABLE CHIPPER
Section
3 FEATURES & CONTROLS
Understanding how your machine works will help you achieve the best results when using your chipper. The following
descriptions dene the features and controls of your machine.
REFER TO ENGINE OWNER’S MANUAL FOR FURTHER ENGINE OPERATING INSTRUCTIONS.

139 INCH TURNTABLE CHIPPER
ENGLISH
FEATURES & CONTROLS
1. CHUTE EXTENSION TRAY
The feed chute has an extension tray that folds down.
Raise the extension tray to an upright position and
secure with latch before towing the machine.
2. DIGITAL DISPLAY CONTROLLER
Used to control the chipper. See Sections 4 and 6 for
more information.
3. DISCHARGE CAP
Directs the discharge of material vertically. Adjust the
discharge cap by turning the knobs located on the
side. Turn knob counterclockwise to loosen discharge
cap. Adjust to desired position. Turn knob clockwise
to secure discharge cap.
4. DISCHARGE TUBE
Directs the discharge of chipped material horizontally.
The discharge tube can be rotated 360° horizontally
by removing the pin and rotating the discharge
tube until the discharge faces the desired position.
Replace the pin in one of the holes on the base of the
discharge.
5. ROTOR ACCESS COVER
Tilts up to expose rotor.
6. ROTOR LOCK
Use the rotor lock to hold the rotor in place when
doing any maintenance work. See Section 5.2.
7. FEED CHUTE
Materials to be chipped are fed into the feed chute,
through the feed roller, to the chipper blades.
8. TOP SAFETY BAR
In the event of an emergency, push the top safety bar
and feed roller will reverse.
9. FEED ROLLER LIFT JACK
Used to lift the feed roller. The feed roller can be
raised to inspect and service the machine and to
clear a plugged rotor. Secure the feed roller in the
raised position using the provided snap pin.
10. FEED ROLLER SPEED CONTROL
Controls the speed of the feed roller. Allows the
operator to have better control over the material
being fed into the chipper. Turning the knob clockwise
will decrease the speed of the feed roller. Turning the
knob counterclockwise will increase the speed of the
feed roller.
11. HITCH JACK
Used to adjust the height of the hitch. Always have in
UP position and clear from ground when transporting
the chipper. When disconnected from tow vehicle,
place in DOWN position on a level surface.
12. MANUAL CONTAINER
Conveniently holds your manuals.
13. REAR STABILIZER
Prevents the chipper from tipping when disconnected
from tow vehicle. Always have in UP position and
clear from ground when transporting the chipper.
When disconnected from tow vehicle, place in DOWN
position on a level surface.
14. KNEE BAR
In the event of an emergency, push the bar in and
forward feed will stop. Hold the knee bar reset button
on controller to resume operation.
15. SAFETY CHAINS
Safety chains are used, during towing, to prevent
the chipper from completely separating from the tow
vehicle in the event the chipper detaches from the
tow vehicle. Cross the safety chains under the hitch
and connect to tow vehicle.
16. COUPLER
2" coupler, always use safety chains when towing.
17. HYDRAULIC FLUID TANK
Check level of hydraulic uid before each use.
18. FUEL TANK
Fuel level indicator is located on top.
19. DRIVE BELT SHIELD
Never remove shields when in use.
20. ENGINE THROTTLE
This controls the speed of the engine. Increase the
throttle by moving the lever to the FAST position. To
decrease the throttle, move the lever to the SLOW
position.
21. ENGAGEMENT HANDLE
During engine start-up, the engagement handle must
be in the disengaged (UP) position. With the engine
at 1/4 throttle, carefully engage the rotor by slowly
pushing the engagement handle down, allowing the
rotor to speed up gradually. Engaging the chipper too
quickly with the engine at full or half throttle will bog
down the engine and will shorten the life of the belt.
See Sections 4.2 and 4.4.
22. TURNTABLE PIN
Locks the turntable to the frame in one of 15 positions.
The chipper base must always be locked in place.
Failure to do so may result in machine vibration,
serious bodily injury or death.

14 9 INCH TURNTABLE CHIPPER
Section
4 OPERATION
Move machine to a clear, level area outdoors before
starting. Do not operate in the vicinity of bystanders.
Make sure cutting chamber is empty before starting.
WARNING
Before operating your machine, be sure you read
and understand all safety, controls and operating
instructions in this owner’s manual and on your
machine. Failure to follow these instructions can result
in serious injury or property damage.
WARNING
As with any other piece of outdoor equipment, getting the
feel for how your machine operates and getting to know
the best techniques for particular jobs are important to
overall good performance.
CHIPPING OPERATION
The chipping operation takes place in the middle of
the machine, where hardened steel chipper blades are
mounted on a rotating rotor assembly. Material fed into
the chipper chute is sliced into small chips and propelled
out through a discharge tube.
4.1 STARTING ENGINE
BEFORE ATTEMPTING TO START THIS MACHINE,
MAKE SURE THE BELT IS DISENGAGED AND THE
HANDLE IS IN THE “START” POSITION.
NEVER ATTEMPT TO START MACHINE WITH THE
DRIVE BELT ENGAGED.
1. Check engine oil level before starting.
2. Place the throttle control midway between the SLOW
and FAST positions. Place the choke control into the
CHOKE position.
3. Place the chipper engagement lever in the START
position.
4. Use key switch to start the engine.
4.2 OPERATING THE CHIPPER
After the engine has been started and properly allowed
to warm to an operating temperature, you can begin
operating the chipper. To properly start and operate the
chipper, follow the steps below:
1. AFTER engine is warmed and ready for use, move
the throttle control back to approximately 25% of full
throttle.
2. When engine is running at approximately 25% of
full throttle, SLOWLY engage belt by using the belt
engagement lever.
DO NOT engage the belt with engine running at
high RPM.
Engaging belt while engine is running at high
RPM will result in signicant belt squealing and
damage.
Engaging belt while engine is running at high
RPM can also damage vital drive components of
the chipper.
3. If the chipper engine stalls while engaging the belt,
return the engagement handle back to the START
position, restart engine, SLIGHTLY increase throttle
and attempt engagement again.
4. Once the belt is engaged, SLOWLY increase throttle
to 100% or full throttle.
5. ALWAYS run the chipper at 100% or full throttle when
chipping material.
5. Move the choke to the RUN position.
●For a cold engine: gradually return the choke to the
OFF position after the engine starts and warms up.
●For a warm engine: use of choke may not be
necessary for restart of a warm engine. If it is needed,
return choke to the OFF position once the engine
starts.

159 INCH TURNTABLE CHIPPER
ENGLISH
OPERATION
The chipper base must always be locked in place.
Failure to do so may result in machine vibration,
serious bodily injury or death.
WARNING
Read and follow all safety instructions in this manual.
Failure to operate the machine in accordance with
the safety instructions MAY RESULT IN PERSONAL
INJURY!
WARNING
4.3 CHIPPER OPERATION GUIDELINES
The machine chips a variety of materials into a more
readily decomposed or handled condition. The following
guidelines will help you get started.
1. Gradually increase engine speed until full throttle
is achieved. When the controller light is steady green
the engine speed is high enough to begin to chip.
2. ALWAYS run engine at full operating speed before
starting to chip material.
3. Engage the hydraulic feed by pushing the forward
button from the Chipping Screen (see Section 4.7 for
more details on utilizing the Digital Display Controller).
4. If the chipper rotor slows, the feed roller will stop
automatically to process backed up material. Feed
material more evenly.
5. If the chipper jams, the feed roller will reverse
momentarily to remove the branch. Once the branch
is removed, rotate it before reinserting into the
chute. Alternately insert and retract the limb or insert
continuously at a rate that will not kill the engine.
6. Sharpen the chipping blades periodically. Check
the sharpness of the blades every 5-15 hours. Refer to
the Service and Maintenance section for sharpening
instructions.
7. Limbs fed in to the chipper chute must be 8"
(20.3 cm) in diameter or less. Trim side branches
that cannot be bent enough to feed into the chipper
chute. Hold small diameter branches together in a
bundle and feed in simultaneously.
8. Alternate green or fresh cut material with dry
material to lubricate the chipping blades for
longer life and better performance. Chipping dead,
dry material will create heat and dull the chipping
blades quicker.
9. ALWAYS feed brush from the side of the chipper
chute, rather than from the front. Step aside to avoid
being hit by the brush moving into the chipper.
10. ALWAYS place limb, butt end rst, into the
chipper chute until it contacts the chipper blades.
The actual feed rate of the limb into the chipper will
depend on the type of material fed and sharpness of
the cutting blades.
11. NEVER use the belt engagement to clear a
plugged rotor. This may cause belt damage. Refer
to the instructions for clearing a plugged rotor in the
Service and Maintenance section.
12. NEVER attempt to clear a plugged rotor or discharge
with the engine running. ALWAYS shut engine OFF
and remove the spark plug wire before servicing any
part of this machine.
13. NEVER attempt to chip pieces of metal, rock, bottles,
cans or other foreign objects.
●Never lean over the chipper chute to push objects
into the cutting device. Use a push stick or brush
paddle.
●Never use shovels or forks to feed brush. They
can cause extensive damage if they contact the
blades. In addition, metal pieces can be ejected
from the chipper chute and cause serious injury
or death.
●Never feed brush into the chute with your feet.
●Never use hands or feet to clear materials that
build up in the chute.
CAUTION
●Obtain and wear safety glasses at all times when
operating the machine.
● Do not wear loose tting clothing.
●The operator should always wear heavy boots,
gloves, pants and a long-sleeved shirt.
●Use common sense and practice safety to protect
yourself from branches, sharp objects, and other
harmful objects.
CAUTION

16 9 INCH TURNTABLE CHIPPER
OPERATION
4.5 FEED ROLLER SPEED CONTROL
This machine is equipped with a ow control to vary
the speed of the feed roller. This allows the operator to
increase the feed speed when processing smaller material
and lower the speed when handling material close to the
maximum capacity of the machine. It is recommended that
operators start using the machine at the lower limits of the
speed control and slowly increase the speed, according
to the size and hardness of the material being chipped.
While occasional stopping and starting of the feed roller
is normal, frequent stopping and starting of the feed
roller and/or rapid decreases in chipper rotor RPMs is
an indication that the feed speed is too high. Continued
operation under such conditions can result in plugging of
the discharge, belt damage, and ine󰀩cient operation.
Recommended Procedure: Turn the ow control knob
fully clockwise to bring the feed roller to a stop. Turn the
ow control knob counter clockwise two full turns and
begin feeding material into the chipper. Adjust as needed.
4.6 CHIPPER FEED CONTROLLER
This machine is equipped with a Digital Display Controller
(DDC). The DDC monitors the chipper rotor RPM and
regulates the feed roller.
When chipper rotor RPM drops too low, the feed roller
is stopped automatically to allow the chipper rotor to
process material.
When the chipper rotor returns to chipping RPM, the
feed roller will automatically reengage.
Try Again Feature: If the feed roller becomes obstructed,
the controller will reverse the feed roller momentarily to
clear the obstruction. The controller will then engage the
feed roller and feed the material again.
This cycle will continue if the piece is not pulled in by the
feed roller. Remove or reposition the material manually
and activate the forward position.
Remember to sharpen blades when necessary so
material will feed smoothly.
The rotor sensor and safety bar sensors must be set
to the correct clearance or the chipper will not operate.
Set the clearance to 1/32" (the width of a credit card).
The rotor sensor will ash with every rotation of the
chipper rotor when the clearance is set correctly.
NOTE
4.7 USING THE DIGITAL DISPLAY
CONTROLLER
The feed roller FORWARD and REVERSE functions are
controlled by the controller. In addition to the feed roller
control functions, the controller also provides service
reminders, onboard diagnostics, operating instructions,
troubleshooting help and language selection.
4.7.1 MAIN MENU
After turning the key to the ON position, the Crary Bear
Cat®logo will be displayed followed by the screen shown
in Figure 4.1.
The model number of the chipper is displayed in the upper
right hand corner. The model number shown should match
the model of the chipper. If it does not, contact Crary Bear
Cat Service at 888-625-4520 for help.
A scannable QR code is located in the lower left corner. It
will lead you to the Crary Bear Cat website where owner’s
and parts manuals can be viewed and downloaded.
Battery Voltage is displayed in the upper left hand corner.
The Main Menu is at the center of the screen. The menu
is navigated by using the up and down keys on the
Navigation Button, located directly below the menu.
4.4 SLOWING AND STOPPING THE
CHIPPER ROTOR AND ENGINE
NEVER disengage the belt as part of the stopping or
shut down process. The belt should remain engaged
during the entire shutdown process.
Leaving the belt engaged is a vital part of proper
shutdown and ensures the rotor stops spinning in
conjunction with the engine shutting o󰀨.
TO PROPERLY SLOW DOWN AND STOP
THE ROTOR AND ENGINE
1. With the belt still engaged, slowly move the throttle to
the SLOW position with the belt still engaged.
2. Allow the engine to run at slow idle for 30-60 seconds.
3. Stop the engine by moving the throttle to the STOP
position or turning o󰀨 the ignition switch.
4. Allow rotor to come to a complete stop.
5. Once the engine is o󰀨 and the rotor has completely
stopped, the belt can be disengaged by moving the
belt engagement handle back to the START position.
The rotor will continue to turn for some time after the
engine has been shut o󰀨. Make sure rotor has stopped
completely before inspecting or servicing machine.
NOTE
