BRIO Beardscape User manual
For the Beard and Beyond
1
Safety Information
Components of your Beardscape
Getting Started
Charging
Best Practices for Li-ion Batteries
Using the Beardscape
Trimming Tips
LCD Screen Function
Caring for your Brio Beardscape
Warranty / Support
Troubleshooting
2
6
8
8
9
10
10
12
14
16
17
Contents
2
IMPORTANT SAFEGUARDS: READ ALL
INSTRUCTIONS BEFORE USING
The Brio Beardscape has been carefully designed to provide the
best possible trimming experience. When using electrical products
– especially those with blades – basic safety precautions should
always be followed.
Safety Information
3
Reduce the Risk of Electric Shock and Injuries
• Always unplug this product aer charging is complete.
• Do not use while bathing / showering.
• Do not place the product where it can fall into water.
• Do not place, drop, or otherwise submerge product in
water or other liquid.
• If charger falls into water, unplug immediately and
discontinue use.
• Never use charger if the cord or plug are damaged.
• Use this product only for its intended use as described
in the manual.
• Do not use accessories, chargers, or attachments that
are made by other manufacturers.
• Discontinue use if product is damaged in any way.
• Do not allow any portion of this product to be used as a toy.
Safety Information |
4
• Do not pull or carry by cord, use cord as a handle, or pull
cord around sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the
plug, not the cord.
• Only connect this product to a properly grounded outlet
that is GFCI protected.
• Do not plug into an outlet with a voltage other than 120 v.
• Never force the plug into the outlet; Do not attempt use
if it does not easily fit into the outlet.
5
Other Considerations
• This product has the ability to rapidly cut hair and is
capable of producing very bad haircuts. Please make sure it is
used with care.
• This product is not intended for use by persons with
reduced physical, sensory, or mental capabilities or lack of
experience or knowledge of this product.
• Children should not be allowed to use the Beardscape
• Do not use attachments other than those sold by the
manufacturer.
• Never place any portion of this product in the dishwasher.
• If the product is dropped, Inspect and test for proper
operation before use.
• Do not use if blade appears to be cracked or damaged
in any way.
Safety Information |
6
Components of your Brio Beardscape
I
K
J
F
E
C
D
G
H
B
A
7
D
A
B
C
E
F
G
H
I
J
K
Charging Base and Cord
Blade Assembly
Lever Lock Button
On/Off Button
USB Plug
Micro Adjust Lever
LCD Display
Speed Control
Cleaning Brush
Blade Oil
Components |
Reversible Clipper Heads
8
Charging your Beardscape
• Plug the USB style charger into the transformer and plug into
the wall.
• The charging plug can either be connected directly to the bottom
of the Beardscape or plugged into the charging cradle.
• If you are using the charging cradle, plug it in and set the
Beardscape in, bottom first as shown.
• Make sure the charging light on the LCD screen turns on.
• A complete charge may take up to 3 hours.
• The Beardscape will beep and automatically stop charging when
the battery is full.
• If the battery is low, the Beardscape can still be used while plugged
directly into the wall.
Getting Started
9
Getting Started |
The display will show differing amounts of battery time remaining
based on the speed setting of the trimmer. The table below shows
how long a fully charged battery will last based on the speed
settings.
RPM Compared to Expected Life
5000 RPM – 240 min 5500 RPM – 225 min
6000 RPM – 210 min 6500 RPM – 195 min
7000 RPM – 180 min
Best Practice for Optimal Battery Life
• Don’t let your Beardscape get to hot or too cold.
• Make sure you fully charge the BeardScape before using.
• It is best to cycle the battery - let the battery run down a little
before re-charging - it is not necessary to re-charge aer each use.
• It is best to charge the battery when the capacity less than 20% or
when the display shows less than 36 min.
10
Trimming Tips
• Before starting, make sure you have selected the proper guard or
blade height, if you are not sure, start with a longer cut height and
move to shorter heights as desired.
• To use the micro-adjust lever, make sure to press down the center
lock button before sliding the lever up or
down. The lever controls between cutting heights of 1.0, 1.3, 1.6,
and 1.9mm.
• To clip the guards on, grab the guard in one hand and press
it onto the clipper aligning the nubs on the side of the guard
with the recessed sections on the clipper head. The guard
should make a snap sound when it is attached properly. Test the
connection before use.
Using the Brio Beardscape
11
Using the Brio Beardscape |
• A precise cut may take multiple passes, so move the clipper slowly
and take your time.
• In certain areas (like your neck) it may help to use your free hand to
pull your skin tight to get the best trim.
• The Beardscape cuts best when the gold part of the rake is pressed
flat against your skin.
12
LCD Screen Functions

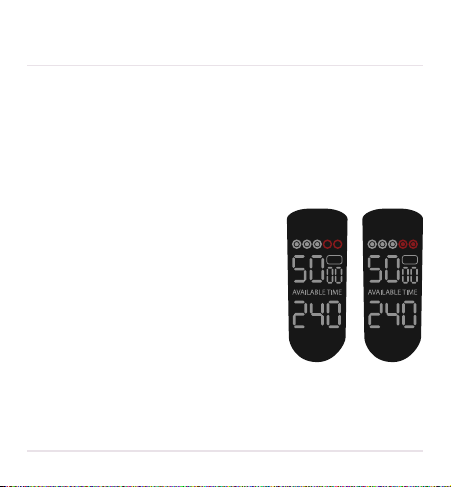

Load State - Burden
The circles at the top of the display show the load on the clipping
head. During use the clipper head may become clogged with hair
or in need of oil.
The first 3 circles display a load state un-
der normal use. If the 4th and 5th circles
(red) light up, clean and oil the clipping
head. To clean, sweep away hairs with
your included brush and to oil simply
put one or two drops of oil on the tips of
the cutting surface, run the trimmer for a
minute to work in the oil and wipe away
any excess with a dry cloth.
Good Bad
13
LCD Screen Functions |
RPM - Speed Control
The Beardscape operates at an RPM range of 5,000-7,000 revolu-
tions per minute. Use the (- +) button to change the speed settings.
The high torque motor is designed to
maintain the speed setting even when cutting thick or course hair.
Available Time
The time display shows the amount of cutting
time remaining in the charge. As the speed
(RPM) is lowered, cutting time increases.
Oil Prompts
Every 60 minutes of operating time the
Beardscape will signal that it is time to oil the
blade by flashing the oiling light and making a
beep tone. When the oil prompts go off, please
clean and oil your trimmer blade.
Oil Blade
14

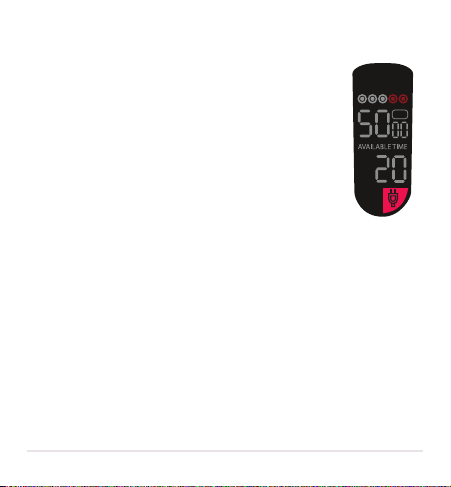

Charging Prompts
When only 20 minutes of time remain on the
trimmer, the charging icon will flash and the
Beardscape will make a beep tone, alerting you
to fully charge the Beardscape aer your use.
Caring for your Brio Beardscape
Do not rinse your Beardscape! If you were paying
attention in 6th grade science, you will remember
that oil and water don’t mix. Your blade likes oil, not water. If you
feel there is too much hair or debris on the trimmer, use the includ-
ed brush to clean it off. NEVER run the blade under the water.
You shouldn’t need to remove the blade of your Beardscape very
oen. The internal gears are strong and will not
become clogged with hair. If you do need to remove the blade,
lower the micro-adjust lever all the way down to the 1.9mm setting.
Use two thumbs on the front of the blade and gently press the
blade back. It should pop off easily.
Charge
15
Caring for your Brio Beardscape |
To put the blade back on, make sure the micro adjust lever is in
the lowest position (1.9 mm) and put the bottom part in first. While
pressing down firmly rock the blade assembly toward the top of
the clipper. It should click into place. Check the alignment to make
sure it is in properly. This takes a little practice, but don’t worry, it
gets easier.
If you need a new blade contact Brio at
16
Recycling your Beardscape
If your Beardscape is no longer working, contact Brio at
warranty. If you need to dispose of the device, please recycle
properly as it does contain a battery. The device can be recycled as
you would other batteries. For a drop-off location near you check
out www.e-stewards.org for a nearby battery recycling location.
Warranty & Support
The Brio Beardscape is guaranteed to function properly from two
years from the date of purchase. Defects due to faulty materials and
workmanship will be repaired or replaced at Brio’s expense with a
qualified receipt.
To contact Brio customer service please call 248-268-6530 or
email [email protected]
For more information on the warranty service process please visit
www.brio4life.com/service
17
Recycling and Warranty Information |
Limitation of Remedies
In no event shall Brio or any of its affiliated companies be liable for
any special, incidental, or consequential damages based upon
breach of warranty, breach of contract, negligence, tort, or any
other legal theory. Such damages include, without limitation, loss
of savings or revenue, loss of profit, loss of use; the claims of third
parties including, without limitation, and cost of any substitute
equipment or services. Some states do not allow the exclusion or
limitation of incidental or consequential damages.
Troubleshooting
If you are unable to resolve a problem of any kind based on the
information within these instructions. Please contact Brio Customer
Service at 248-268-6530 to speak to a representative.
