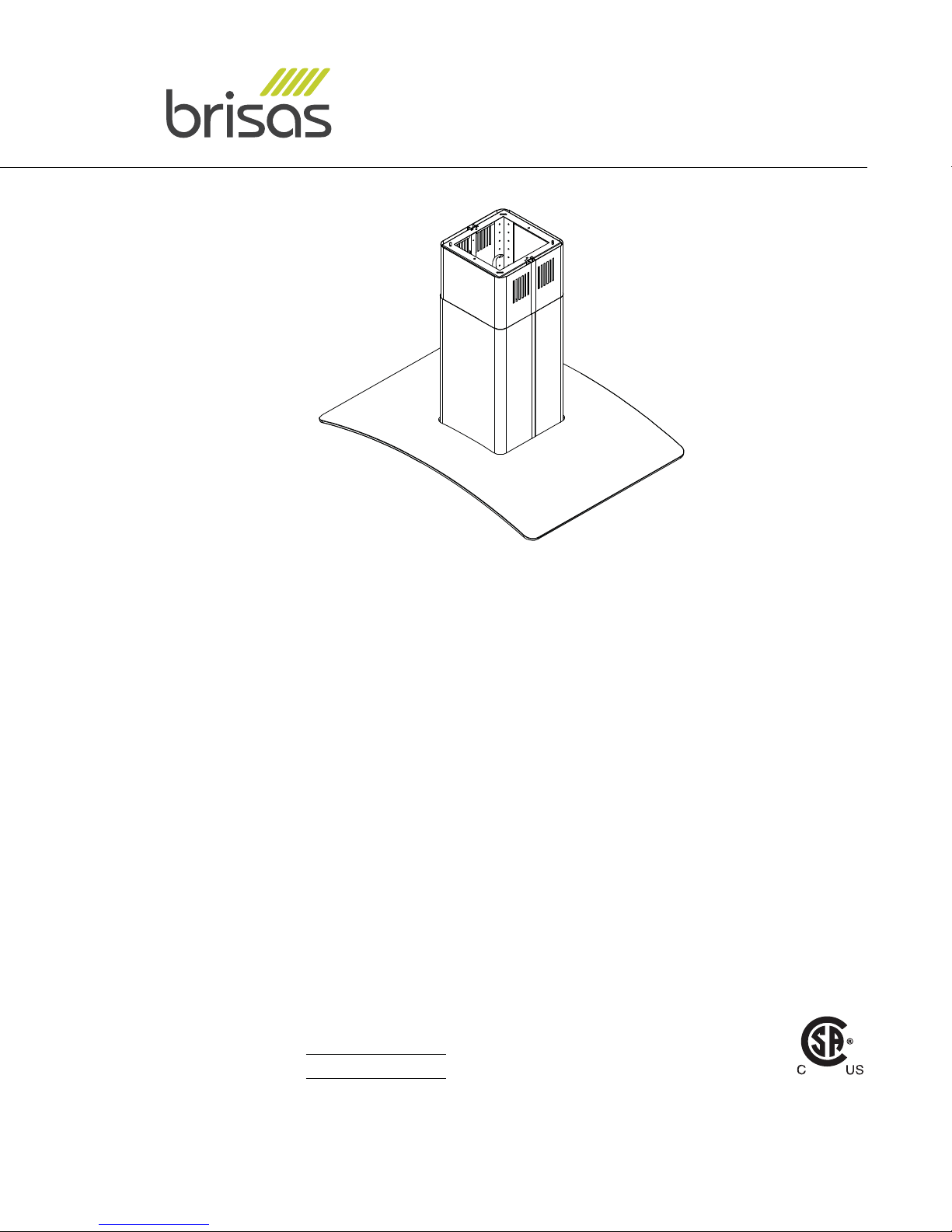

Brisas BML-E36AG User manual
(3) Wire Nuts
(1) Suction Cup
(4) 6 x 1-1/2”
(wood screws)
(2) M4 x 8
(top support
frame screws)
(1) M4 x 12
(safety screw)
(12) M3 x 6
(duct cover screws)
1 - Hardware package
2 - Thick trim pieces
2 - Thin trim pieces
1 - Top support frame
1 - Bottom support frame
2 - Top duct covers
2 - Bottom duct covers
1 - Hood body w/ blower (pre-installed)
1 - Canopy, glass
2 - Stainless steel mesh filters
2 - 50W GU-10 halogen lights
1 - 6” round damper (pre-installed)
MODELS: BML-E36AG
PARTS SUPPLIED
HARDWARE PACKAGE CONTENTS
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
- Duct cover extension accessory
- Recirculating kit accessory
(4) 3/16 x 8
(canopy screws)
A
B
Front of Hood
CL
/
Cut-Out Shaded Area
1 - Paper ceiling
template
Duct pieces To t a l
Equivalent number
length x used =
3- 1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) = Ft.
8” Round,
straight
1 Ft. x ( ) = Ft.
3- 1/ 4” x 10”
Rect. 900
elbow
15 Ft. x ( ) = Ft.
3- 1/ 4” x 10”
Rect. 450
elbow
9 Ft. x ( ) = Ft.
3- 1/ 4” x 10”
Rect. 900
flat elbow
24 Ft. x ( ) = Ft.
3- 1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
5 Ft. x ( ) = Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
900 elbow
20 Ft. x ( ) = Ft.
6” Round,
900 elbow
15 Ft. x ( ) = Ft.
6” Round,
450 elbow
9 Ft. x ( ) = Ft.
Ft.
7” Round,
straight
1 Ft. x ( ) = Ft.
Subtotal column 1 =
Duct pieces To t a l
Equivalent number
length x used =
6”- 8” Round
wall cap
with damper
30 Ft. x ( ) = Ft.
Round
wall cap
with damper
30 Ft. x ( ) = Ft.
7” or 8”
Round,
900 elbow
15 Ft. x ( ) = Ft.
7” or 8”
7” or 8”
Round,
450
elbow
9 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6”- 8” Round,
roof cap
30 Ft. x ( ) = Ft.
7” or 8”
Round,
roof cap
30 Ft. x ( ) = Ft.
Subtotal column 2 =
Subtotal column 1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length of a 3 1/ 4” x 10” rectangular 6” or 7”
diameter round duct should not exceed 100 equivalent feet.
6” round to
3- 1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” round to
3- 1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) = Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” round to
3- 1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) = Ft.
side wall cap
w/ gravity damper
Soffit or crawl space
Roof Pitch w/
Flashing & Cap
ductless
recirculating
(blower
housing)
(blower
housing)
(blower
housing)
FRONT SIDE
TOP of HOOD TOP SUPPORT FRAME
(top view)
10 3/8”
23 15/16”
35 3/16”25 9/16”
24 1/2”
3 9/16”
10 3/4”
2 3/4”
11 5/8”
4 3/8”
Min. Ducted - 28”
Min. Recirc. - 28”
Maximum - 38”
(top of electrical box)
13 3/4”
5/16”
C/L
6”
8”
8 3/4”
8 1/4”
3 3/4”
4 3/16”
5/8”
elec. k/o
A
B
Front of Hood
CL
/
Cut-Out Shaded Area
FRONT
WARNING: Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.
!
ELECTRONICS
MOUNTING
BRACKET
BLOWER
HOUSING
CAUTION: At least two installers are
required due to the weight and size of the
hood.
!
2
1
3
5
4
Top duct covers
Top support frame
Bottom duct covers
Bottom support frame
Thick trim piece (top)
Thin trim piece (bottom)
cut trim piece
if necessary
,IXVLQJKRRGLQUHFLUFXODWLQJPRGH\RXPXVWLQVWDOOWKHDLUGLYHUWHUSODWHEHIRUHDVVHPEOLQJWKHGXFWFRYHUV
7XUQWRSDJHIRULQVWUXFWLRQV
Blower Off Lights On/Off
13
2Blower Speed Selection
Blower Off
The blower will be powered off by pressing:
Blower Speed Selection
Select one of three speed levels by pressing:
Lights On/Off
Power lights on and off by pressing:
3
BML-E36AG
BML-E36AG290
