BROHN BRR108 600 User manual

Please read this manual carefully before using, and keep it for future reference.
User Manual
WALL CANOPY RANGEHOOD
Model: BRR108 600; BRR108 900; BRR129 900; BRR206B 900

P a g e | 2
web: brohn.com.au
CONTENTS
1 PACKAGE.................................................................................................................................................3
1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS.......................................................... 3
1.2 HANDLING........................................................................................................................................ 3
1.3 UNPACKING..................................................................................................................................... 4
1.4 BEFORE USING YOUR NEW APPLIANCE.....................................................................................4
2 SAFETY WARNINGS.................................................................................................................................5
2.1 IMPORTANT INFORMATION.......................................................................................................... 5
2.2 WARNING!........................................................................................................................................ 5
2.3 USAGE CONDITIONS AND RESTRICTIONS................................................................................. 7
3 PRODUCT OVERVIEW............................................................................................................................ 8
3.1 LAYOUT.............................................................................................................................................. 8
3.2 RANGEHOOD COMPONENTS................................................................................................... 11
3.3 OPTIONAL ACCESSORIES............................................................................................................11
4 INSTALLATION........................................................................................................................................ 12
4.1 INSTALLATION WARNINGS.......................................................................................................... 12
4.2 INSTALLATION PREPARATION.....................................................................................................12
4.3 EXHAUST WAY SELECTION...........................................................................................................13
4.4 RECIRCULATION / DUCTLESS, VENT INSIDE OPTION
...............................................................14
4.5 POSITIONING THE RANGEHOOD.............................................................................................. 15
4.6 WALL INSTALLATION..................................................................................................................... 15
5 USING RANGEHOOD...........................................................................................................................17
5.1 CONTROLS......................................................................................................................................17
5.2 USING TOUCH CONTROLS..........................................................................................................18
6 CARE AND MAINTENANCE................................................................................................................19
6.1 ALUMINIUM GREASE FILTER........................................................................................................ 19
6.2 STAINLESS STEEL SURFACES......................................................................................................... 20
6.3 CONTROL PANEL SURFACE........................................................................................................20
6.4 CHARCOAL FILTERS......................................................................................................................20
6.5 CHANGING A LIGHT GLOBE...................................................................................................... 20
7 TROUBLESHOOTING............................................................................................................................. 22
7.1 IN CASE OF EMERGENCY........................................................................................................... 22
8 TECHNICAL SPECIFICATIONS.............................................................................................................24
9 DISPOSAL................................................................................................................................................26
10 CUSTOMER CARE...................................................................................................................................27

P a g e | 3
web: brohn.com.au
Congratulations on purchasing your new appliance!
We recommend that you read this Instruction and Installation Manual in order to fully
understand how to install and operate it correctly. For installation, please read the
installation section. Read all the safety instructions carefully before use and keep this User
Manual for future reference.
1 PACKAGE
1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS
Please thoroughly inspect your goods at the delivery time, if you notice any damage to
your goods:
Please notify the delivery team at the time of delivery and do NOT accept
damaged product.
Please notify us immediately as the problem can be solved and damaged product
can be returned to the courier office.
When package is opened, and damage/marks are found on the appliance, it must be
reported within 24 hours. Do not install or connect the item and keep the package as it
was originally if you wish to claim for damage/marks under the manufacturer’s warranty.
This does not affect your statutory rights.
Evidence of damage will be required.
1.2 HANDLING
Do not use cable, door and/or handle to carry or move the appliance.
Carry out the movements and transportation in the original packaging.
Pay maximum attention to the appliance while loading/unloading and handling.
Ensure that the packaging is securely closed during handling and transportation.
Protect from external factors (such as humidity, water, etc.) that may damage the
packaging.
Take caution while handling and transporting appliance to prevent risk of poor
operationdue to possibility of bumps, crashes, drops, etc.

P a g e | 4
web: brohn.com.au
1.3 UNPACKING
During transportation, protective packaging is used to protect the appliance
against any damage. After unpacking, please dispose of all packaging in a
sustainable and environmentally friendly manner.
All materials used for packaging are environmentally friendly and are fully
recyclable.
CAUTION: During unpacking, the packaging materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of children.
1.4 BEFORE USING YOUR NEW APPLIANCE
Read this guide, taking special note of the ‘Safety Warnings’ section.
Remove any protective film that may still be on your appliance.
NOTE:
This instruction manual has been prepared jointly for multiple models. Some of the
specifications explained in the manual, may be slightly different or not be included in
your appliance. Pay attention to the explanations with illustrations while reading the
manual.

P a g e | 5
web: brohn.com.au
2 SAFETY WARNINGS
2.1 IMPORTANT INFORMATION
Your safety is important to us. Please read this manual thoroughly before you start using
the appliance.
The safety precautions instructions reduce the risk of fire, electric shock and injury when
correctly complied to.
Please follow all instructions and take notice of all warnings.
This rangehood (cooker hood) is a domestic appliance which has been manufactured
and tested to comply with Australian and New Zealand Standard AS/NZS 60335.2.31.
2.2 WARNINGS
INSTALLATION:
This rangehood must only be installed in accordance with the instructions provided.
Incorrect installation may cause harm to persons, damage to property and void the
product’s warranty. Read the following carefully to avoid damage or injury.
Ensure the appliance is connected to a well-placed earth wiring system. Before
carrying out any work, repairs or maintenance on this appliance, it has to be
disconnected from the mains. If possible switch of the rangehood from the wall
before cleaning, failure to do so may result in electric shock or death.
Never carry out flammable cooking under the cooker hood.
This cooker hood is not suitable for use over barbecues.
This cooker hood cannot be installed for external use, only to be installed
indoors.
The aluminium grease filters must be removed every four weeks (at a
maximum) for cleaning to reduce the risk of fire.
The exhaust from the cooker hood must not be discharged into any
heating flue, which may carry combustion products from other sources.
Exhaust air must not be discharged into a wall cavity, unless the cavity is designed
for the purpose.
There shall be adequate ventilation of the room when the range hood is used at
the same time as appliances burning gas or other fuels, not applicable that only
discharge the air back into the room.
Regulations concerning the discharge of air have to be fulfilled.
There must be adequate ventilation of the room when the cooker hood is
used at the same time as appliances burning gas or other fuels.

P a g e | 6
web: brohn.com.au
Your new rangehood is guaranteed against electrical or mechanical defects,
subject to certain exclusions that are noted in the Warranty Terms and Conditions.
The foregoing does not affect your statutory rights.
Always cover lit gas burners with pots or pans when cooker hood is in use.
Always switch off gas burners before you remove pots or pans.
Do not leave lit gas burners exposed due to the risk of fire.
ELECTRICAL CONNECTION:
Check that the mains voltage matches with the voltage on the data plate inside
the rangehood. Check that the installation complies with standards of local building,
gas and electrical authorities. Before connecting to the mains supply, ensure that
the mains voltage corresponds to the voltage on the rating plate inside the cooker
hood.
WARNING: If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or similarly qualified person in order to avoid a hazard.
WARNING: All electrical work must be done in accordance with local and national
electrical codes as applicable and should be undertaken by licensed and qualified
professionals.
SAFETY WARNINGS – FOR THE INSTALLER:
When installing the cooker hood, make sure you adhere to the minimum and
maximum distances from the cooker hood base to the cook top surface as
informed below in related chapter.
EXHAUST FLUE INSTALLATION:
The following rules must be strictly followed to obtain optimal air extraction.
Keep exhaust corrugated flue short and straight.
Do not reduce the size or restrict exhaust corrugated flue.
Keep bends in the exhaust corrugated flue to a minimum, the more bends the
lower the extraction performance.
When using flexible flue always install duct with helix pulled taut to minimise pressure
loss.
Failure to observe these basic instructions will drastically reduce the performance
and increase noise levels of the cooker hood.
Exhaust air must not be discharged into a wall cavity, unless the cavity is designed
for that purpose. The exhaust from the cooker hood must not be discharged into
any heating flue which may carry combustion products from other sources.

P a g e | 7
web: brohn.com.au
NOTE: Some installations may require the expandable/telescopic ducting to be cut to
length.
Cut with sharp tin snips or a fine-tooth hack saw blade, taking care not to distort or dent
the exhaust cover. Where using expandable ducting, it’s important to have the ducting
fully taught to maximise efficiency of the airflow.
2.3 USAGE CONDITIONS AND RESTRICTIONS
Supervision over children is to ensure they do not play with the appliance. Never
allow for them to use, play with, or crawl inside the appliance.
Cleaning and maintenance must not be done by children.
This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless under responsible supervision and instruction to ensure appliance hazards are
understood.
Make sure to read all rules and regulations in this manual. Anyone who is not familiar
with this appliance are not to operate it. These instructions do not cover every
possible situation or condition as with any appliance. Use extreme caution when
installing, operating and maintaining this appliance.
For indoor domestic use only. It is not to be used for industrial or commercial use.
Do not use this product for anything other than its intended purpose, and only use it
as described in this manual. Do not attempt to alter or modify this appliance.
Do not allow children to operate or play with this appliance.
Make sure you do not use the appliance if any part has been damaged. It must
only be repaired by a qualified technician. Incorrect repair could expose you to risk
of electric shock, fire or injury. If you continue to use the product in such a condition,
it could cause a fire or electrocution.
Do not store items on the appliance surfaces.
Disconnect the appliance from the mains (if it’s accessible) before cleaning.
Do not cover the appliance or power cord in water or other liquids.
Do not use any steam cleaning products for the cleaning of this appliance.
Do not disconnect the appliance by using wet hands, gripping end of plug and
forcefully pulling cord to disconnect.
Do not use appliance if there is a technical fault. All faults must be fixed by a
qualified/authorised and licensed person.
Incorrect use can result in property damage, injury or death. We assume no liability
for misuse of the appliance or noncompliance with these instructions.
Only plug this unit into a properly earthed outlet. If in doubt, seek advice from a
suitably qualified technician

P a g e | 8
web: brohn.com.au
3 PRODUCT OVERVIEW
3.1 LAYOUT

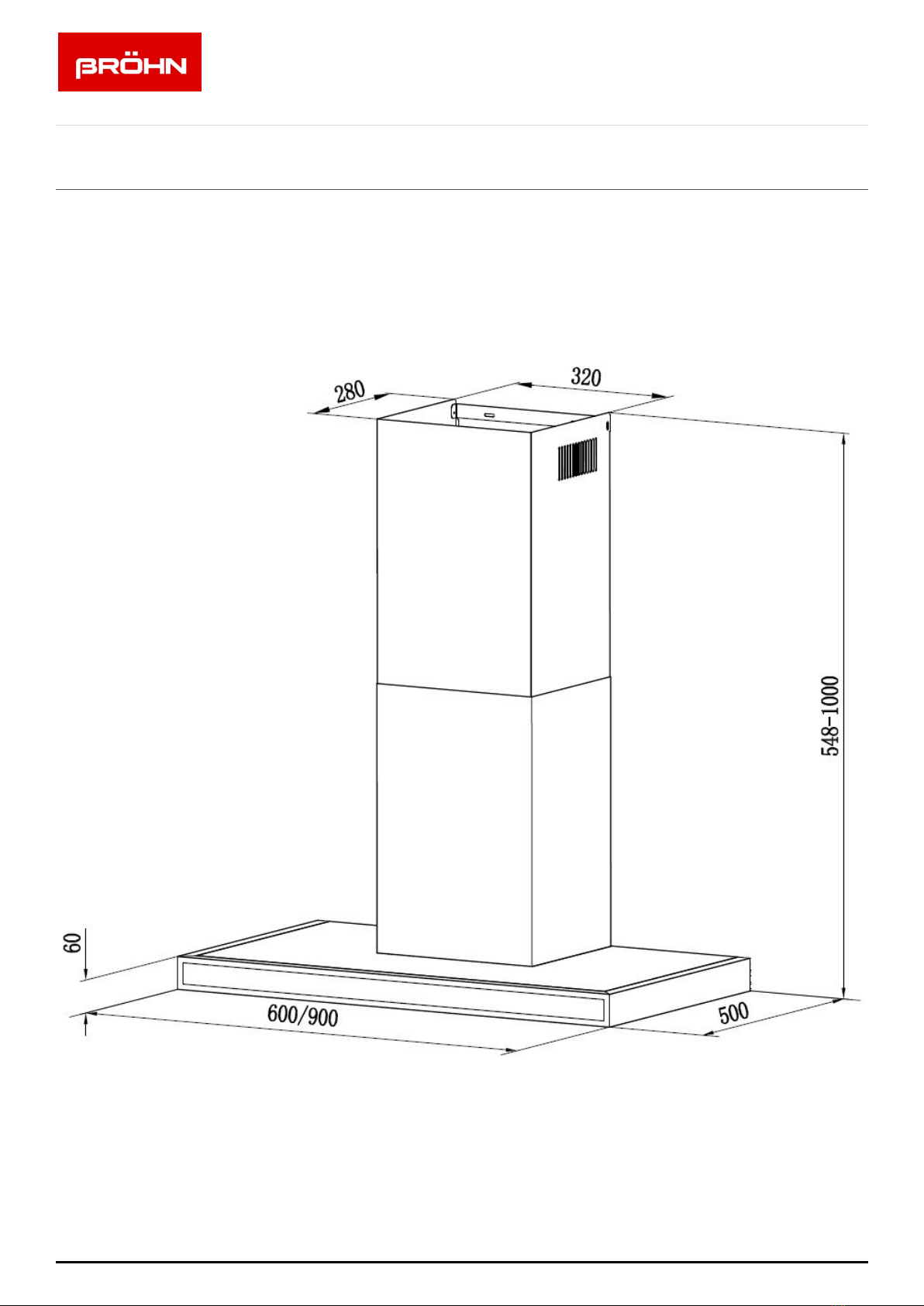

MODEL: BRR108 600 / BRR108 900

P a g e | 9
web: brohn.com.au

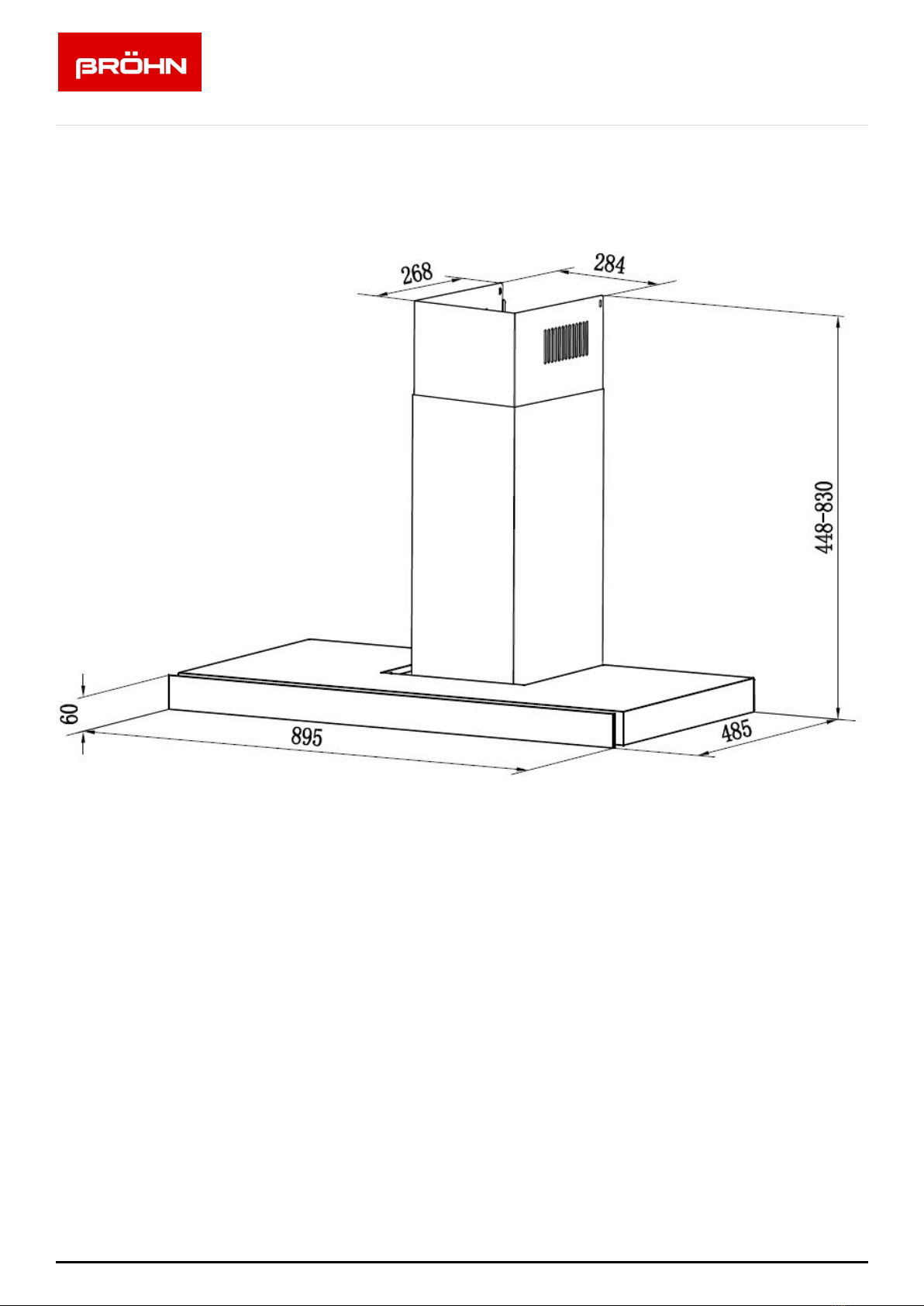

MODEL: BRR129 900

P a g e | 10
web: brohn.com.au

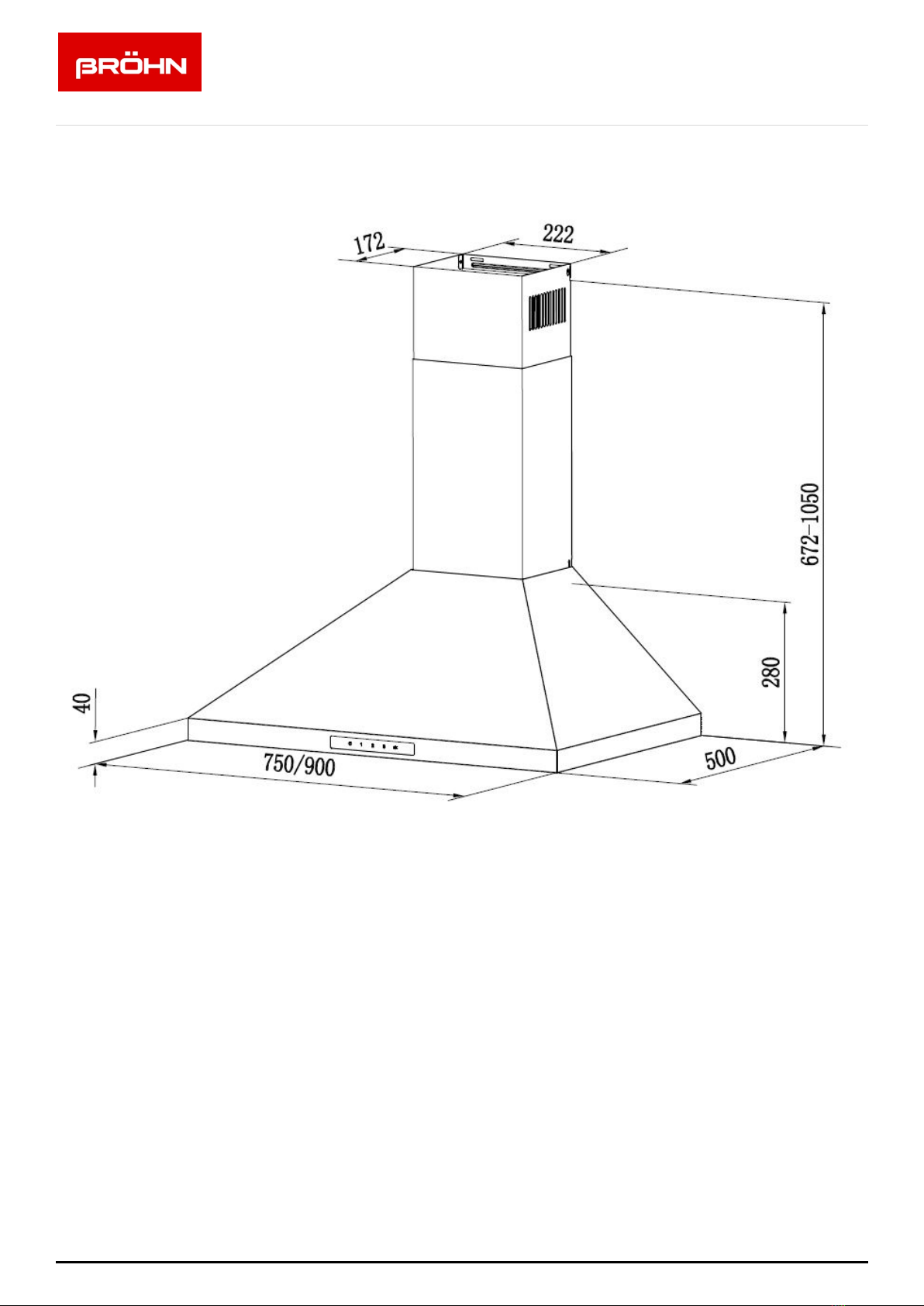

MODEL: BRR206B 900

P a g e | 11
web: brohn.com.au
3.2 RANGEHOOD COMPONENTS
The Wall Canopy Rangehood is supplied with:
1 × Rangehood
1 × Expandable 150mm pipe
1 × Packet of fasteners and wall plugs
2 × Stainless Steel flue pieces (upper and lower)
1 × Wall Bracket for the rangehood body
1 × Wall Bracket for the inside of the chimney piece
1 × Wall Bracket for the outside of the chimney piece
1 × User Manual
3.3 OPTIONAL ACCESSORIES
Following accessories can be purchased separately via contacting our Customer Service.
Carbon Filter
Various ducting solutions (rigid ducting, adapters, vents/outlets and elbow bends)
Stainless Steel Flue extensions for various ceiling heights

P a g e | 12
web: brohn.com.au
4 INSTALLATION
4.1 INSTALLATION WARNINGS
Before starting the installation, please refer to the Safety Information section.
•Always switch the power off prior to beginning the installation.
•Ensure to handle appliance carefully as stainless steel can be easily damaged during
installation.
•Wherever possible, protect the rangehood with the cardboard box or plastic
•A power point must be located within 1.5m of the power cord exit from the rangehood
and should always be accessible to allow isolation from power during cleaning or
maintenance.
•A 150mm round ducting adapter is supplied, however all other ducting accessories are
not.
•All ducting must comply with building codes and local requirements.
•If you are re-circulating the air, rather than ducting, please ensure that the side outlet
grilles are not obstructed in any way as this will affect the efficiency of the rangehood.
•Ensure that the rangehood is mounted in a level position, both horizontally and
vertically. This is essential to ensure the rangehood operates correctly and prevents
grease build up at one end.
IMPORTANT: Never use silicone around your rangehood or flue pieces. Never install the
rangehood or flue pieces into the plaster ceiling which prevents easy access to the
rangehood for servicing requirements.
IMPORTANT: Before installing your rangehood, please record the details of your
rangehood’s rating label. Usually this label is located inside the chamber behind the
aluminium grease filters. This will be helpful should you need to contact for service in the
future.
4.2 INSTALLATION PREPARATION
TOOLS AND MATERIAL REQUIRED FOR INSTALLATION:
Duct tape or cable ties
Ducting relevant to your installation requirements (including any rigid bends, vents
and/or adapters)
Drill and/or screwdriver
Spirit Level
Tape Measure

P a g e | 13
web: brohn.com.au
Jigsaw
Ladder
4.3 EXHAUST WAY SELECTION
Before beginning the installation of the rangehood, the method of ducting should be
considered and selected.
NOTE: Most rangehoods can be operated in recirculation mode. For better operation
and performance, it is recommended to duct vent outside wherever possible. The guide
below illustrates the various ducting options. Below information is only a reference and the
most suitable way of ventilation shall be decided by professional installer.
DUCTING OUTSIDE MODE
Please follow the tips below on how to correctly duct your rangehood:
Always use correctly sized ducting.
Do not reduce the size of the ducting.
Always use solid ducting.
Always use non-flammable ducting.
Do not use flexible ducting.
Do not duct into the ceiling space.
Avoid sharp 90-degree bends as much as possible. Use 45-degree bends instead
wherever possible.
Duct to the outside using the shortest duct run possible.
Use cylindrical ducting whenever possible.

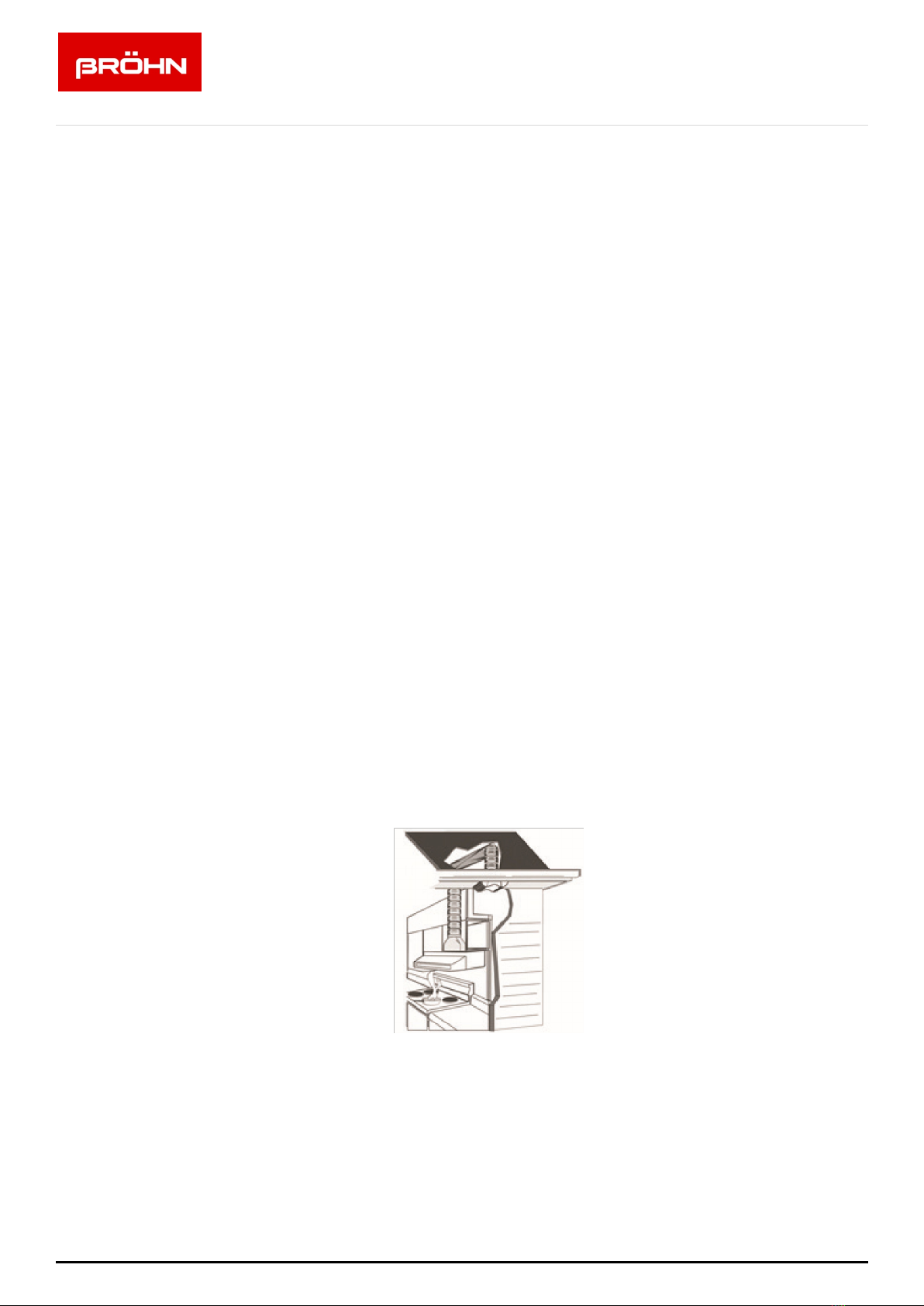

1. Into the ceiling cavity and then vented through your eaves

P a g e | 14
web: brohn.com.au
2. Straight up and through the roof
3. Through the wall
4.4 RECIRCULATION / DUCTLESS, VENT INSIDE OPTION
If the outside duct outlet is not available, most rangehoods are
able to operate in recirculation mode.
The wall installation is shown above.
The activated carbon filters can be used to trap cooking odours
and must be attached to the fan motor.
To install the carbon filter, the grease aluminum filter should be detached first. Press the
lock and pull it downward.
Plug the activated carbon filter
into the fan motor inlet and turn it in clockwise direction. If the motor requires two filters,
repeat the same on the other side.

P a g e | 15
web: brohn.com.au
NOTE:
Make sure the filter is securely locked. If loose, it will cause danger.
In recirculation mode, w hen activated carbon filter is attached, the suction power
performance will be lower then in ducted outside mode.
4.5 POSITIONING THE RANGEHOOD
IMPORTANT: The height of the rangehood underside must be a minimum of 600mm to a
maximum 800mm from the top of your cooktop surface (for gas cooktops, this is the top of
the gas burner).
NOTE: If the installation instructions for your cooktop specify a greater distance than the
minimum, then that shall be the minimum height for installation.
COOKTOP FUEL TYPE:
DIMENSION A
Minimum*
Maximum
Gas
(multiple burners with maximum 45.4 MJ/h total output and
no single burner exceeding 16.2 MJ/h output)
650mm
800mm
Gas
(multiple burners with total output greater than 45.4 MJ/h but
less than 77.8 MJ/h, and no single burner exceeding 17.3 MJ/h
output)
760mm
800mm
Gas
(single burner not exceeding 21.6 MJ/h output)
650mm
800mm
Gas
(single burner with an output greater than 21.6 MJ/h but not
exceeding 29.2 MJ/h)
760mm
800mm
Electric
600mm
800mm
4.6 WALL INSTALLATION

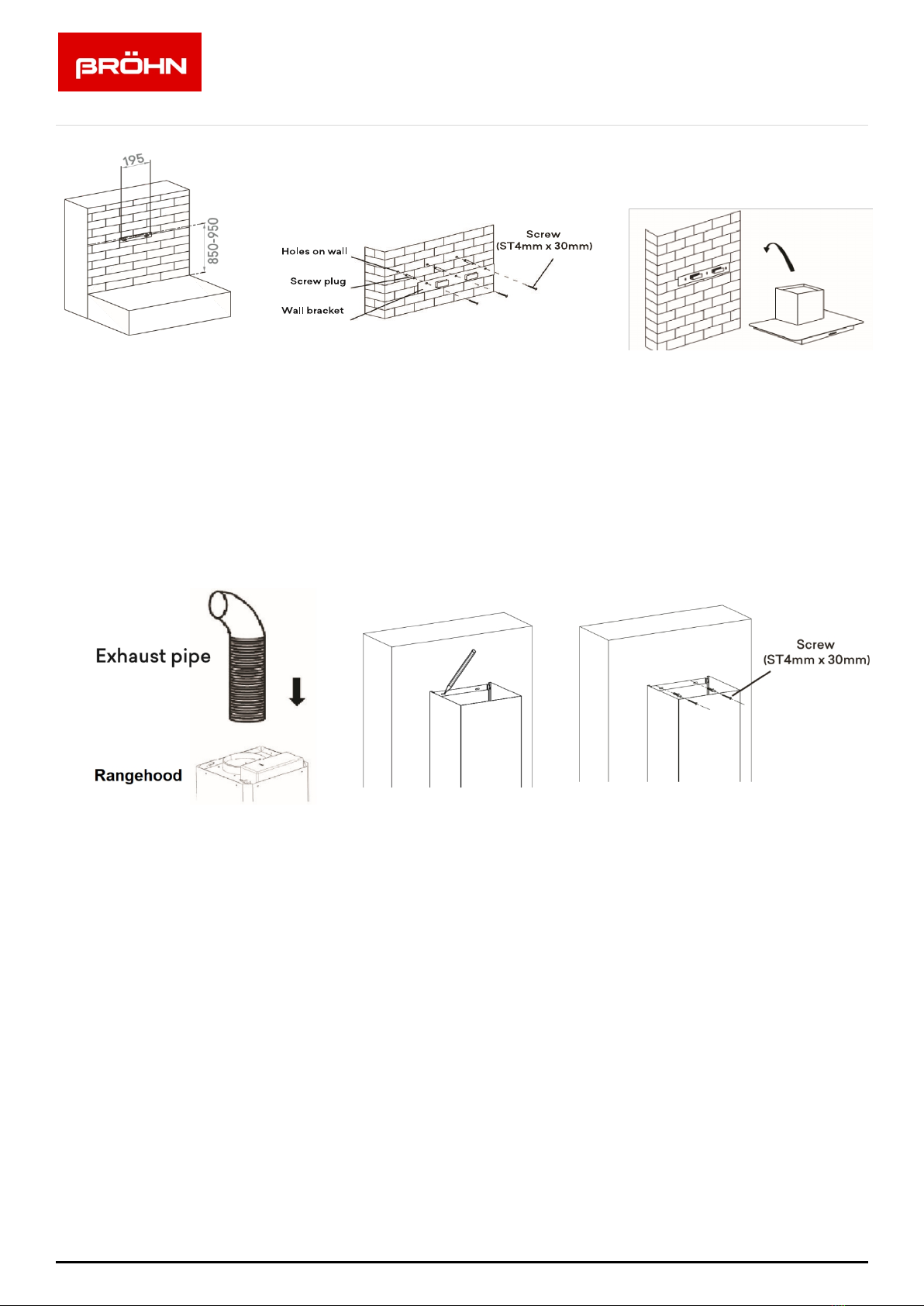

Set the installation height. Drill 3 holes to install the mounting bracket (hook) onto
the wall ensuring that it’s secured in a level position. Tighten the bracket with the
screw plug and screw (ST4mm X 30mm).
Line up the hood and hang onto the wall bracket hook (See Figure 1).

P a g e | 16
web: brohn.com.au
Figure 1
Attach the flexible 150mm tube to the
canopy. Put the inside chimney with the outside chimney together, ensuring that
the inner chimney piece can move freely inside. Now attach the chimney to the
hood. When finished, fix the outside chimney to the canopy, mark the hole and drill
2 holes, then tighten the outside chimney bracket with screw plug and screw
(ST4mm X 30mm) (See Figure 2).
Figure 2
If the safety screws need to be fixed into the hood, mark, drill and tighten the hood
with screw plug and screw (ST4mm X 30mm).
NOTE: Remove the grease filters first (See Figure 3).
Slide the inner chimney to adjust the inner chimney height. When the required
height is reached, mark it and accommodate the inner chimney bracket with
screw plug and screw (ST4mm X 30mm).
When finished, fix the inner chimney with the screws (4mm X 8mm) to the inner
chimney bracket (See Figure 3).

P a g e | 17
web: brohn.com.au
Figure 3
5 USING RANGEHOOD
5.1 CONTROLS
The rangehood features touch controls with four speed levels of extraction.
When the rangehood is powered, the ‘1’ button would appear illuminated.
This indicates the rangehood is now in standby mode. Press any of the keys to begin
operation.
TOUCH CONTROL TO01
On/Off button
Fan turn on/off
Speed increase button
For increasing the speed of the fan
Speed decrease button
For decreasing the speed of the fan.
Light button
Digital display
Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed.

P a g e | 18
web: brohn.com.au
Quick timer: Press & hold for 1 second. Digital display will turn flashing and
rangehood switch into 5 minutes countdown mode. After 5 minutes motor and light will
turn off automatically and the buzzer sounds for 1 second.
SPEED SETTINGS
“1“ Press the ‘1’ button,the rangehood will operate at low speed.
Ideal for cooking with lower steam emissions such as slow cooking or simmering, and
boiling with closed pans.
“2” Press the ‘2’ button,the rangehood will operate at medium speed. This is the
ideal standard intensity for a normal cooking environment.
“3” Press the ‘3’ button,the rangehood will operate at high speed. This is the ideal
high intensity cooking such as grilling, intensive frying, wok cooking, stir frying, etc.
Press the ‘Light’ button and the LED panel lights will turn on. To turn the lights off,
simply push the ‘Light’ button again.
5.2 USING TOUCH CONTROLS
The controls respond to touch, so you don’t need to apply any pressure.

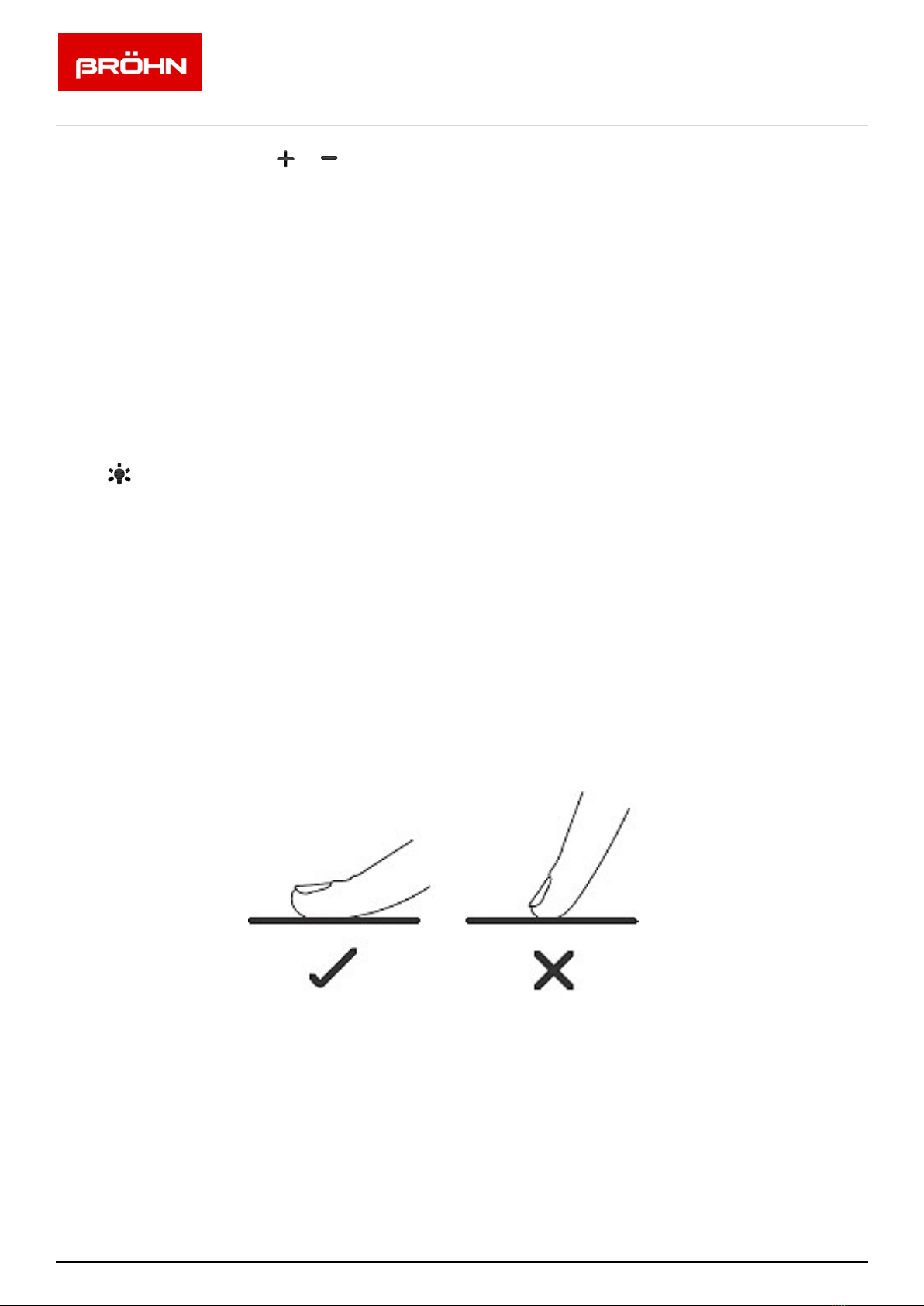

Use the ball of your finger, not the tip.
You will hear a “beep” like noise each time a touch is registered.
Make sure the controls are always clean, dry, and that there is no object (e.g. a
utensil or a cloth) covering them. Even a thin film of water may make the controls
difficult to operate.

P a g e | 19
web: brohn.com.au
6 CARE AND MAINTENANCE
Proper cleaning and maintenance of this rangehood will ensure long fault free operation.

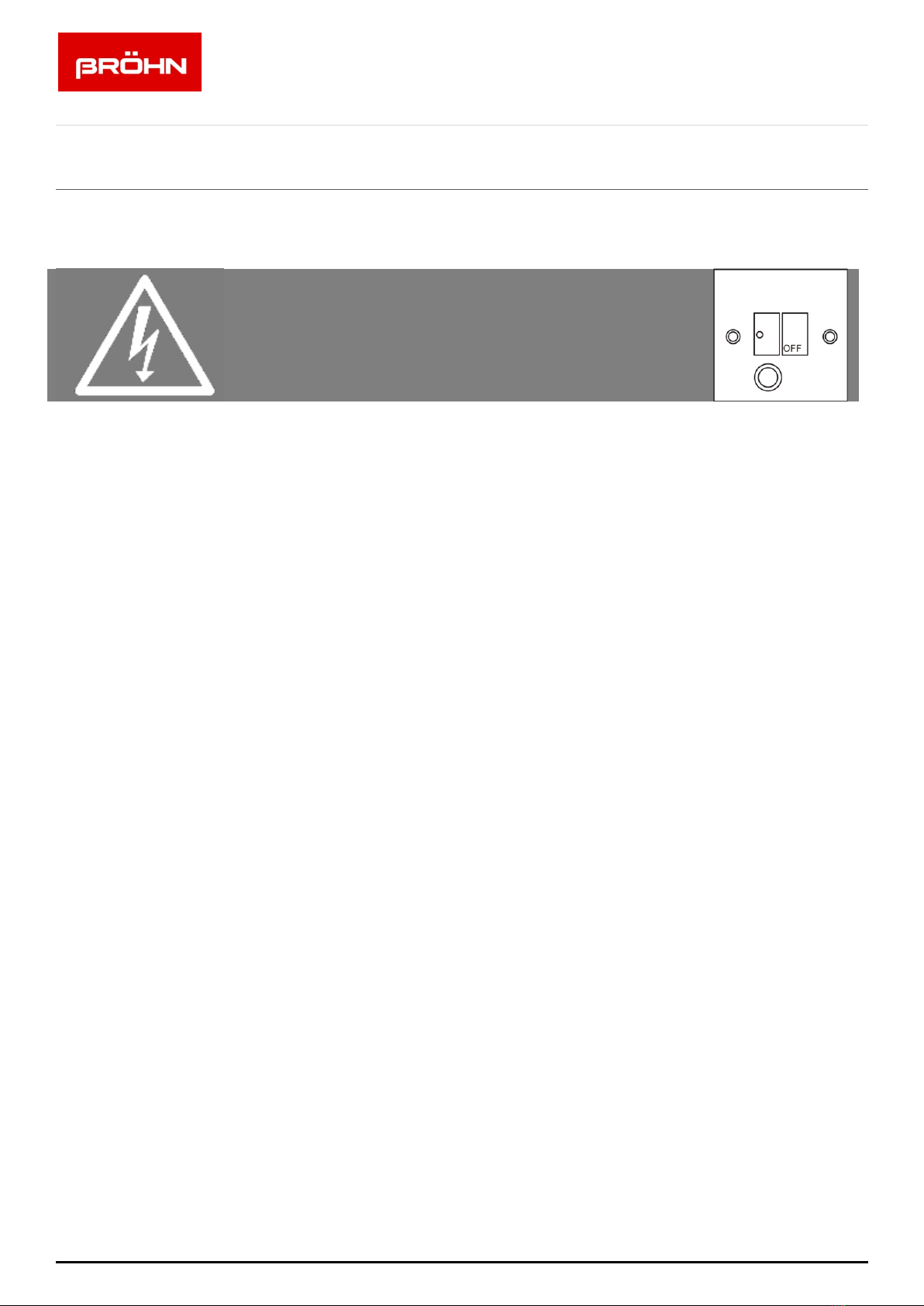

Warning!
Always switch off the electricity supply before
performing maintenance work. In the event of a
fault, contact customer service.
CAUTION:
Before maintenance or cleaning is carried out, the rangehood should be
disconnected from the main power supply. Ensure that the cooker hood is switched
off at the wall socket and the plug removed.
Stainless steel is susceptible to marks and abrasions, so please follow the cleaning
instructions to ensure best possible results are achieved without damage.
The instructions within this manual must be followed to avoid a fire risk.
Keep the motor and other spare parts free from water as this will cause damage to
the appliance.
Damaged power cables should be replaced by a qualified electrician
6.1 ALUMINIUM GREASE FILTER
To remove the aluminium grease filter, use a finger to pull the small locking latch on
each filter to release it from the rangehood body. Be careful, as the filter can easily
drop down once released and scratch or damage your cooktop.
The filter collects grease, smoke and dust so the filter is directly affecting the
efficiency of the cooker hood.
If not cleaned, the grease residue (potentially flammable) will saturate the filter.
Clean it with household cleaning detergent.
Your aluminium filters can be washed by hand in warm soapy water. For stubborn
grease stains, use a soft nylon brush to help remove these stains. After cleaning,
allow filters to completely dry before refitting into your rangehood.
CAUTION: The filters should be cleaned every few weeks of use to prevent fat and oil
buildup and condensation. We do not recommend washing the aluminium filters in a
dishwasher. This can damage the filter and cause discoloration of the filter.
Cleaning the filter every month can prevent risk of fire.

P a g e | 20
web: brohn.com.au
6.2 STAINLESS STEEL SURFACES
Clean stainless-steel surfaces using non-abrasive cleaning products that are specifically
designed to be used on stainless steel. To ensure best results, use even pressure and follow
the grain of the stainless steel. Use of a soft cloth reduces the risk of scratching. If the cloth
is wet, ensure that a dry soft cloth is also used to wipe down the surface afterwards to
reduce the risk of any surface rust appearing. Never use metal pads, chemical, abrasive
material or stiff brushes to clean the unit.
6.3 CONTROL PANEL SURFACE
The control panel can be cleaned using warm soapy water. Ensure the cloth is well wrung
before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.
6.4 CHARCOAL FILTERS
If the rangehood has been installed in recirculating mode, you should be using the
charcoal filter accessories available for purchase separately. These filters can not be re-
used or cleaned and as a general rule the activated charcoal filter should be replaced
every few months or more frequently depending on the amount and type of cooking.
Annual Cleaning for Activated Carbon Filter
Apply when rangehood installed as a recirculation unit. The carbon filters must be
replaced at least once a year depending on how frequent the cooker hood used.
To order a replacement filter, please contact our Customer Service.
6.5 CHANGING A LIGHT GLOBE
The LED lights should not require service. If it requires replacement, plsease check below
or contact Customers Service for more information.
Replacing the bulb: Model BRR108 600, BRR108 900; 60cm/90cm * LED Light*
1. Switch the unit off and unplug the appliance.
2. Remove the stainless steel panel.
3. Remove the light cover by unscrewing the 2 screws.
4. Unscrew the broken light and replace with the
same type and rated LED Light.
