Bryant 538P Series User manual

619P/538P
Heating & Cooling Systems

Owner• s Manual
TABLE OF CONTENTS
PAGE
A NOTE ABOUT SAFETY ................................................................................. 2
GENERAL ............................................................................................... 2
PART NAMES ............................................................................................ 3
OPERATING INSTRUCTIONS ......................................................................... 4
REMOTE CONTROL OPERATION ..................................................................... 5
REMOTE CONTROL FUNCTIONS ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . .. 6-8
USING THE REMOTE CONTROL . ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . 9-16
OPERATING INSTRUCTIONS .................................................................... 17-19

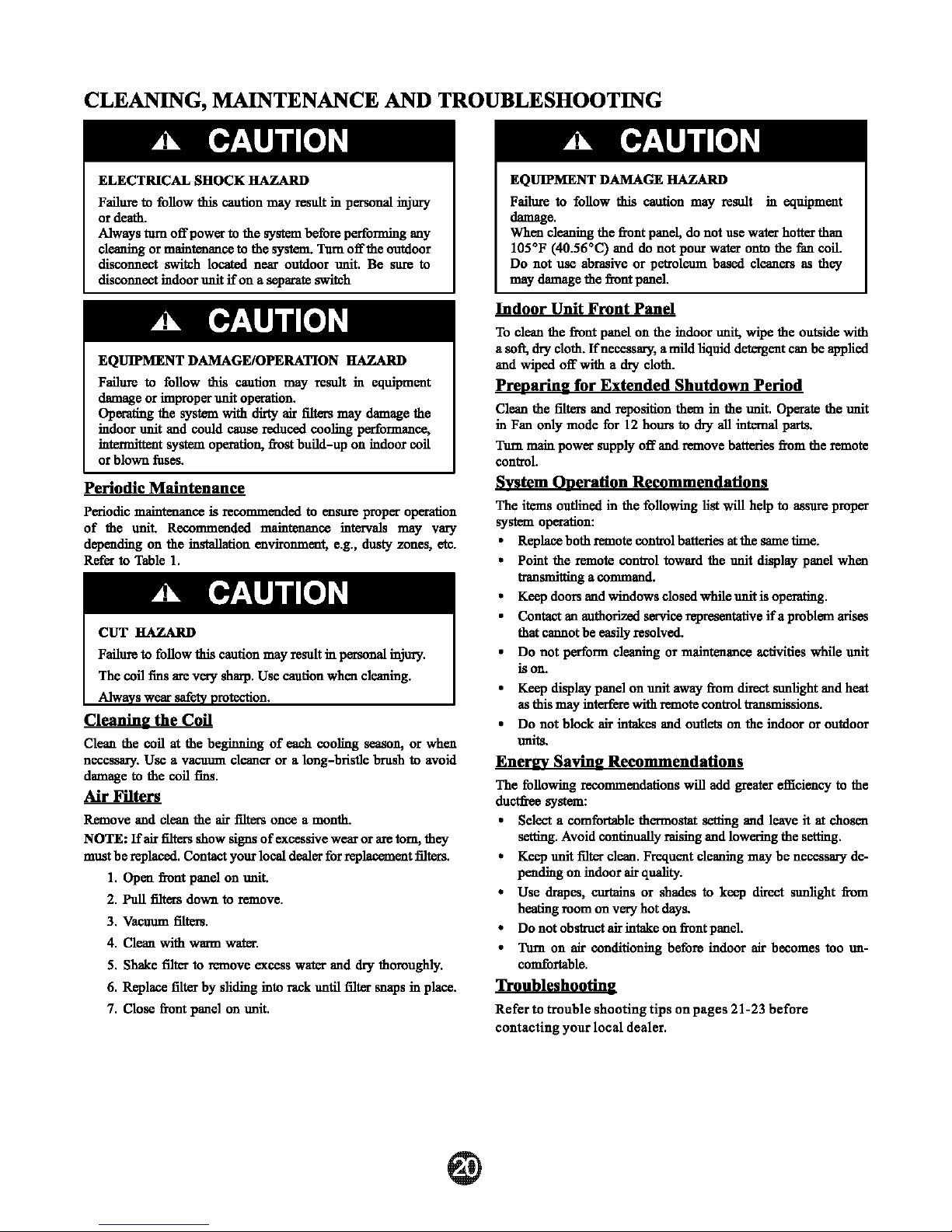

CLEANING,MAINTENANCE AND TROUBLESHOOTING ............................................ 20
MAINTENANCE ................................................................................... 21-22
TROUBLESHOOTING TIPS ....................................................................... 23-25
NOTE 10 EQUIPMENT OWNER:
Please read this Owner's Information Manual carefully before installing and using this air
conditionerand keep this manual for future reference.
For your convenience, please record the model and serial numbers
of your new equipment in the
spaces provided. This information, along with the installation data and dealer contact information,
will be helpful should your system require maintenance or service.
UNIT INFORMATION DEALERSHIP CONTACT INFORMATION
Model# _____________ Company Name: ___________ _
Serial # Address:
-----------------
INSTALLATION INFORMATION Phone
Number:. ___________ _
Date
Installed-----------
Technician Name: ___________ _

SAFETY PRECAUTIONS
2

PART NAMES
Indoor unit
Outdoor unit
Indicator lamp
Depending on unit size, the displaywindow
Names of parts
Indoor unit
1. Frontpanel
2. Air inlet
3. Air filter
4. Air outlet
5. Horizontal air flow grille
6. Vertical airflowlouver(inside)
7. Display panel
Outdoor unit
8. Connecting pipe
9. Connecting cable
10. Stop valve
NOTE:
All illustrations are for
reference only. Your unit may
differ in appearance or may not
include all components shown.
Indicator lamp
~ FRESH Indicator (optional)
~ This lamp illuminates when Clean
Air feature is activated.
on
the indoor unit may look like the following: onono
ououo
DEFROST Indicator
(e
(A)
(B)
(Enabled on cooling & heating modelsonly):
Lights up when the air conditioner starts
defrostingautomatically or when thewarm
aircontrol feature is activated in heating
operation.
OPERATION Indicator
This lamp illuminates when the air
conditioner is in operation.
TIMER Indicator
Lights up during Timer operation.
8181 DIGITAL DISPLAYindicator(optional)
•Displays the temperature settingswhen the
airconditioner is operational.
•Displays the malfunction code.

4
OPERATING INSTRUCTIONS
Special functions
Refrigerant Leakage Detection
When a refrigeration leak is detected at the outdoor unit, an 'EC' error code will appear
on the indoor unit display panel.
Louver Angle Memory Function(optional):
The unit will memorize the previous angle of the louver, as long as it is set within the
louver safety limitations. Note: The louver will return to the standard position if the
power is turned off or the manual control button is pressed.
SELF CLEAN function COptional)
• Under this function, the air conditionerwill automaticallyclean and dry the evaporator.
• The
unit will operate in following sequence: FAN ONLY mode at LOW fan speed, Heating
operation
at LOWfan speed (applicable to cooling &heating models only) and then FAN
ONLYoperation. Once the FAN ONLYoperation has ended, the unit will turn off.
Note:
e This function is onlyavailable under COOL(AUTO COOL, FORCED COOL) and DRY mode.
• Beforeselecting this function, it
is recommended to run the air conditioner under Cooling
operation
for approximately one half of an hour. Oncethe Self Clean function isactivated,
all TIMERsettings will be cancelled.
•
lfthe SELF CLEAN function is selected whilethe SELF CLEAN function is already in
process, the
unit automatically shut down.
Vertical swing function (Optional)
After the air conditioner is operating, userscan control the vertical louver swing by
using the remote control.
•

Using the remote control
5
REMOTE CONTROL OPERATION
• I I
(A. Precautions)
Location of the remote controller.
• The remote control can operate the unit from
a distance of up to 26ft. (8 m) as long as there
are no obstructions.
• NOTE: When transmitting a command from the
remote control to the unit, be sure to point the
control toward the right side of the unit. The unit
will confirm receipt of a command by sounding an
audible beep.
• The air conditionerwill not operate ifcurtains, doors orother materials
block the signals from the remote control
to the indoor unit.
• Prevent any liquid
from falling into the remote control. Do not expose
the remote control to direct sunlight orheat.
•
If the infrared signal receiver on the indoorunit is exposed to direct
sunlight,
the airconditioner may not function properly. Use curtains to
prevent the sunlight from falling
on the receiver.
•
If otherelectrical unit, air conditioner react to the remote control.
either move these
unit,air conditioner orconsult your local dealer.
Replacing batteries
TwoAAA 1.5 v alkaline batteries (included) are required for
operation of the remote control.
To install or replace batteries:
1. Slide the back cover off the control to open the battery compartment.
2. Insertbatteries. Followthe polarity markings inside the
batterycompartment.
3. Replace batterycompartmentcover.
NOTE:
1. When replacing batteries, do not use old batteries or a different
type battery. This may cause the remote control to malfunction.
2.
lfthe remote is notgoing to be used for several weeks, remove
the batteries. Otherwise battery leakage may damage the remote
control.
3. The average battery life undernormal use is about 6 months.
4. Replace the batteries when there is no audible beep from the
indoor unit or if the Transmission Indicatorfails to light.
5. When batteries are removed, the remote control erases all
programmed settings. The control must be reprogrammed
after
insertion of new batteries. •

Two AAA 1.5v alkaline batteries
26ft (8m)
6
REMOTE CONTROL FUNCTIONS
s

I Function buttons I
(oN/OFF)
(MODE) [T:P]
8"'7
( SLEEP ) ~=:=.J_I
( TURBO )
RG52B/BGEU
0 ON/OFF Button
Operation starls when this button is pressed
and stopswhen this button is pressed again.
f) MODE Button
Each time this button is pressed, the operation
mode is selected in a sequence
of following:
cum --coOL-- DRY--f.i:l_i0:(:--- FAN]
NOTE: Please do not select HEATmode
if you have a cooling only system.
D FAN Button
Used to select the fan speed in four steps:
rAUTO-LOW-MED- HIGH]
0 SLEEP Button
Activate/Disable sleep function. It can maintain
the most comfortable temperature and save
energy. Thisfunction
is available on COOL,
HEAT and AUTO mode only .
NOTE: While the unit is running in SLEEP
mode, it will be cancelled if the, FAN
SPEED or ON/OFFbutton is pressed.
0 TURBO Button
Activate/Disable Turbo function. Turbo
function enables the unit to reach the preset
temperature
at cooling or heating operation
in the shortest time( if the indoor unit does
not
support this function, a corresponding
operation will notoccur.}
Activate/Disable
a LED Button
Activate/Disable indoor screen Display.
When pressing the LED button, the indoor
unit display screen will be cleared. Once
pressed again, the display will illuminate.

........------t--t 7
(•oo~ [r:•]
a'Q'
(SLEEP )
( TURBO )
RG52B4/BGEU1
0 UP Button( ~ )
Pushing this button will increase the indoor
temperature setting
in 1°F (1 ° C) increments up to 86°F(30°C).
DOWN Button( "V' )
Pushing this button will decreasethe indoor
temperature setting
in 1°F (1 ° C) incrementsup to62°F(17°C).
NOTE: Press and hold ~~~ and ~'Q', buttons
togetherfor 3 seconds to alternate the
temperature display between the °C &
°F
scale.
9 SHORTCUT Button( For RG52BIBGEU model)
• Used to restore the current settings or
resume previous settings.
• If the SHORTCUT button is the firstfunction
selected upon unit operation, the unit will
operate in AUTO mode- 80~ (27°C), and auto
fan speed.
• Push this button when remote control is on,
the system will automaticallyrevert back
to the previous settings, including operating
mode, temperature setting, fan speed level
and sleepfeatureQf activated).
• If pressed for more than 2 seconds, the system
will automatically restore the current operation
settings, including operating mode, temperature
settings, fan speed, and
sleep features (if activated).
(l) FP Button( For RG52B4JBGEU1 model)
While the air conditioner operates in
heating mode, pressing the LP button
will activate 4EfF (8°C} heating. The display
window on the indoor unit will display "FP".
0 TIMER ON Button
Pressthis button to initiate the auto-on time
sequence. Each time
the TIME ON button is
pressed,
it will increase the auto-timed setting
in 30 minute increments. When the time setting
displays 10, the the auto-timed setting will then
increase by 60 minute increments.
To cancel the
auto-timed program,
simply adjust the auto-on
time
to 0.0.

USING THE REMOTE CONTROL
.----+--f7
RG52B/BGEU
®
®
® TIMER OFF Button
Press this button to initiatethe auto-offtime
sequence. Each time the TIME OFF button
is pressed, itwill increase the auto-timed
setting in 30 minute increments. When the
time setting displays 10, the the auto-timed
setting will then increase by60 minute increments.
To cancel the auto-timed program, simplyadjust
the auto-on time to 0.0.0.0.
~ DIRECT Button
Used to adjustthe louvermovement and set
the desired up/down
airflow direction. Each
time the DIRECT button is pressed, the louver
angle moves 6 degrees.
@ SWING Button
Used
to start or stop the horizontal auto
swing feature.
NOTE:
-The remote control button design is based
on the standard model, and may appear
slightly different from the actual remote.
-All ofthe functions described are accom
plished by the unit. Ifthe unit does not have
a particular feature, there will be
no
corresponding function associated with
that button.
-When there is a discrepancy between
the "Remote control illustration" and the
"Users Manual",
on the remote control
function, the Users Manual will prevail.

!Indicators on LCD I
Mode display
Displays the current operation mode. Including
auto(®), cool(*), dry('), heat~~) (Not
applicable to cooling only models), fan(@ )
and backto auto( cD
).
Transmission Indicator
This transmission indicator will illuminate
when remote controller transmits signals to
the indoor unit.
ON/OFF display
~
Displayed by pressing the ON/OFF button.
__ _-f __ __1 LPress the ON/OFF button again to remove.
'9 I 0 ON 5FF TINIER ON display
AUTO® SET TEMP.
1 Displayed when TIMER ON time is set.
I * ~-~~-~1] ;;tl
COOL f* TINIER OFF display
1
DRY • • • I Displayed when TIMER OFFtime is set.
~ HEAT :tlf~ 1.1.1.1 H I Sleep Display
"' ~ 1111111111111111111111111111
~
'AN @ ·~ :.·::.·:::.·::::.·:::::.·::::::. Displayed under sleeping operation.
_ _
~ ~:::~:::~::·~:::~ Press the SLEEP button again to remove.
FOLLOW NIE Display(on some models)
Displayed when FOLLOW ME function is activated.
Temp./Timer display
Indicates the temperature and timer settings. It displays
thetemperature setting (6t'F(1 t'C)-BEfF (3cfC)). Itdisplays
"TIMERON"when
the auto--on time function is set, "TIMER OFF"
when the auto--offtime function is set, and "TIMERON OFF
when both functions are set.
L__ _____ Fan speed display
Displays the selected fan speed, AUTO(no display)
and three fan speed levels "~c i:::i : II (LOW) ·~ :~:::~::::~::m!·ll
(MED) ~~x:~:::~::n~::m~:::!!!
1
:;m!!
1
• II (HIGH) can be indicated.
The fan speed is AUTO when the operating mode
is set to either AUTO or DRY.
