Bss audio Fds 355 User manual

FDS 355

User Manual

V 2.0 JMK 13th October 1997

Software version 1.10 and above

We have written this manual with the aim of helping installers and sound engineers to get to grips with the

FDS-355 and obtain its maximum capability. If you are new to BSS products, we recommend that you begin at

the start of the manual.

We welcome any comments or questions regarding the FDS-355 or other BSS products, and you may contact us

at the address or World Wide Web site given in the warranty section.

This equipment has been tested and found to comply with the following European and international Standards

for Electromagnetic Compatibility and Electrical Safety:

Radiated Emissions (EU): EN55013 (1990) Associated Equipment

RF Immunity (EU): EN50082/1 (1992) RF Immunity, Fast Transients ESD

Mains Disturbance (EU): EN61000/3/2 (1995)

Electrical Safety (EU): EN60065 (1993)

Radiated Emissions (USA): FCC part 15 Class B

Electrical Safety (USA): UL813/ETL (1996) Commercial Audio Equipment

Electrical Safety (CAN): UL813/ETLc (1996) Commercial Audio Equipment

IMPORTANT SAFETY INFORMATION

DO NOT REMOVE COVERS. NO USER SERVICABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL. THIS EQUIPMENT MUST BE EARTHED.

IT SHOULD NOT BE NECESSARY TO REMOVE ANY PROTECTIVE EARTH OR SIGNAL CABLE SHIELD

CONNECTIONS TO PREVENT GROUND LOOPS. ANY SUCH DISCONNECTIONS ARE OUTSIDE THE

RECOMMENDED PRACTISE OF BSS AUDIO AND WILL RENDER ANY EMC OR SAFETY CERTIFICATION

VOID.

For continued compliance with international EMC legislation ensure that all input and output cables are wired

with the cable screen connected to Pin 1 of the XLR connectors. The input XLR Pin 1 is connected to the

chassis via a low value capacitor, providing high immunity from ground loops whilst ensuring good EMC

performance.

Quick Start - Reference 5

FDS-355 Omnidrive 5

1.0 Introduction 8

1.1 OMNIDRIVETM Compact

Loudspeaker Management System 8

1.2 Other features 8

1.3 Voltage setting 9

1.4 AC Power fusing 9

2.0 Unpacking 9

3.0 Mechanical Installation 10

4.0 Mains Power Connection 11

4.1 Mains power 11

5.0 Controls 12

5.1 Input section 12

5.2 Output section 14

5.3 Rear panel 15

Screen Layout 16

6.0 Default Screen 20

7.0 Utilities Menu 21

8.0 Inputs Menu 25

9.0 Outputs Menu 26

10.0 EQ Screens 30

11.0 Store and Recall 32

11.1 Storing 32

11.2 Recalling 33

12.0 System Headroom Management 34

Contents

13.0 Phase Compensation 34

14.0 Typical Applications 35

14.1 Stereo 2-Way with a mono sub-bass 35

14.2 Dual Bi-amp (Stage monitors) 35

14.3 5-Way zoning distribution 35

14.4 Mono 5-way 36

15.0 Quick Reference - How to ... 37

15.1 Use delays to Time align(R) drivers 37

15.2 Keep relative delays while delaying a

group 37

15.3 Name a band 37

15.4 Make a band full range 37

15.5 Add EQ for Constant Directivity horns 38

15.6 Loading custom logos 38

16.0 PC Card 39

16.1 Card types 39

16.2 PC Card format 39

17.0 System Security 40

17.1 Program lock 40

17.2 Lock mode 40

17.3 OWNER lock 40

17.4 OEM lock 41

17.5 Safe 42

18.0 Troubleshooting 43

19.0 Warranty Information 44

20.0 Specifications 45

Index

User Notes

Spare Parts Information

Quick Reference

Quick Start - Reference

AC Power connection

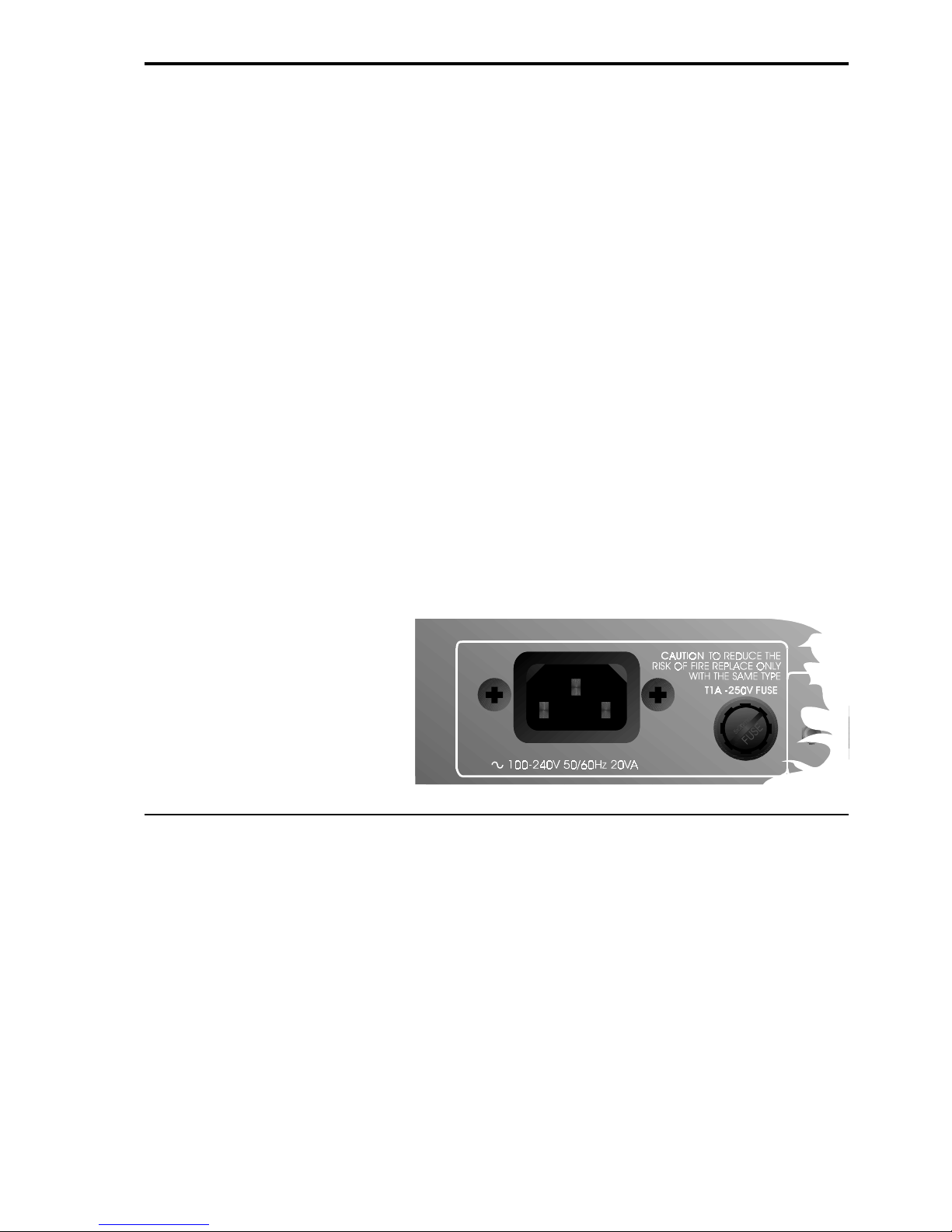

The FDS-355 has a universal voltage AC Power input. Connect the FDS-355 to

AC Power with the lead supplied. The unit will switch on automatically (there

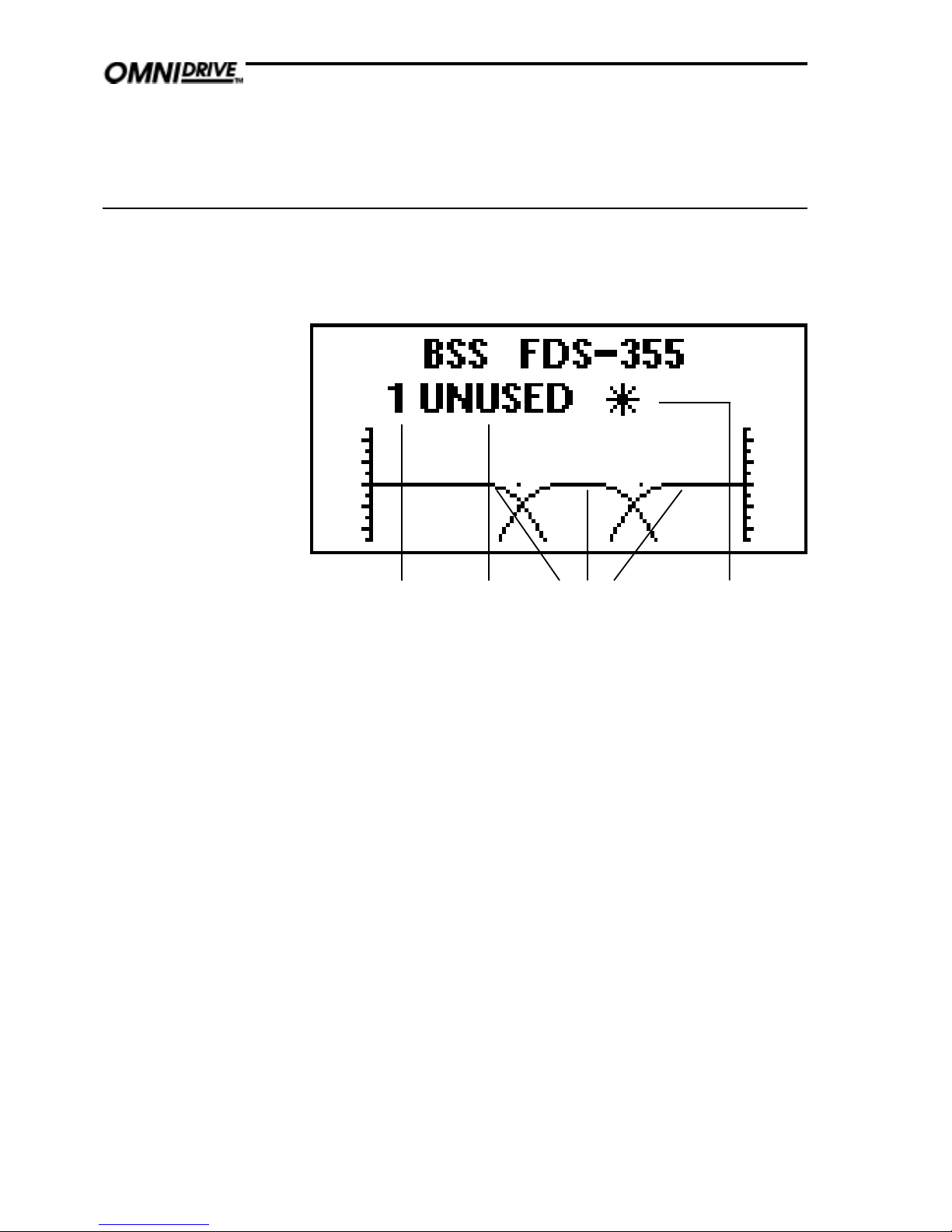

is no separate on/off switch). The display will show the default screen, with

the current program (if selected), and overall system response curves.

Audio connections

Connect the inputs and outputs as desired. All inputs and outputs are

electronically balanced, with Pin 2 hot signal (+ve). Do not put any audio

through the unit at this time.

Program settings

If your FDS-355 has been already configured with a program, you only need to

use the RECALL mode to set the parameters to that program.

Press RECALL. Turn the parameter wheel to select the designated program

(which has a number and name) and press RECALL again. Programs marked

with diamonds are OEM programs and have been designed to match specific

sound systems.

Some units will be locked (refer to section 17.0; System Security) to a

specific program. In this case most controls will be disabled and the unit will

be ready for use.

Recalling a program from a PC Card

To load a file from a PC card, push the card into the slot on the front panel of

the FDS-355. Press RECALL. Push the DOWN key to highlight 'Int', and turn

the encoder to select CPrg (or CAll for a full PC Card recall). Push the UP key

to return to file selection, and turn the parameter wheel to select the file. Push

RECALL again to recall the file.

Setting up a system

To configure your FDS-355, the mode of the unit should be decided upon

before setting up.

Once the Config is set (In the Utilities menu), the crossover points, individual

band delays, any EQ, and limiter thresholds can be set up.

To enter the Utilities menu, press the UP key from the default screen.

Configuring the FDS-355

The FDS-355 has 2 modes from which the unit can be configured: Stereo 2-

Way with sub (Stereo), or Mono 5-way (MONO). To select the mode you wish

to use, enter the Utilities menu, and press the UP key until you reach the

Config screen. Turn the parameter wheel to select the option you wish to use.

NOTE: When the configuration is changed, the unit will prompt for

confirmation of the action. If the STORE key is pressed, then the mode will

change, and DEFAULT VALUES WILL BE RESTORED. It is advisable to do a

'Store' before changing modes if you have set up a program.

FDS-355

Omnidrive

Setting the crossover points

Select the band to be edited by pushing the parameter wheel to cycle through

inputs and outputs. Note the LEDs above each channel change as the screen

changes.

Once the band has been selected, press the UP/DOWN keys until the first

crossover (Filter shape - Low slope) screen appears. Select the type of filter

shape by using the parameter wheel to cycle through the selection. Refer to

section 9.0; Outputs Menu for more info on crossover filter shapes. Pushing the

UP key from here will move to the Filter Frequency (Low slope) screen. Use

the parameter wheel to select the frequency. The high slope screen are then

access after this screen by pushing the UP key (once or twice).

Band delays

Use the UP/DOWN keys until the delay screen appears. The delay is adjusted

using the parameter wheel. Default settings for display and adjustment of

delay is in meters (m), but can be changed to milliseconds (ms), or feet/inches

(ft).

Bands can also be linked so multiple outputs can be delayed as one using the

delay link facility.

Adding EQ

Use the UP/DOWN keys to move to the EQ screen. The EQ shape can be

edited first. The shape of the EQ can be selected from one of the following by

turning the parameter wheel:

Hi-Shelf with 12dB slope (Hi12)

Hi-Shelf with 6dB slope (Hi6)

BELL

Low-Shelf with 6dB slope (Lo6)

Low-Shelf with 12dB slope (Lo12).

Pushing the UP key from the EQ shape screen will access the following

screens, in this order:

Filter Frequency screen

Cut/Boost screen

Filter Bandwidth screen

Setting the limiters

There are two screens associated with the limiters of the FDS-355, which

allow you to:

Turn the limiters on/off

Adjust the limiter threshold..

In the limiter on/off screen, turning the parameter wheel will select whether

the limiters are on or not. Pushing the UP key from this screen will access the

limiter threshold screen, and turning the parameter wheel will change the

threshold. The output meters are calibrated to this threshold, so the threshold

will show as '0' on the meter at all times, even if the limiters are off. The

thresholds are indicated in dBu, but can be changed to mV via the Limiter

Units screen in the utilities menu.

Quick Reference

Automatic Phase Compensation

Automatic phase compensation is employed in the FDS-355 to maintain zero

phase difference between adjacent bands, even in 4 and 5-Way systems,

where the phase errors due to the effects of closely spaced crossover filters

can be significant. Phase compensation helps you to keep the response of the

system with the minimum of 'fiddle factor' adjustments.

Headroom Management System (H.M.S)

Headroom Management System manipulates the gain structure to make

maximum use of the dynamic range of critical components, resulting in lower

noise levels with sensitive amplifiers, where limiter thresholds are low.

1.0 Introduction

1.1 OMNIDRIVE TM

Compact

Loudspeaker

Management

System

Introduction

An arrangement of 3 inputs and 5 outputs, and an additional internal sum of

inputs A&B, can be matrixed in any combination to provide a complete

loudspeaker management system with integral crossovers, delays, EQ, and

protection limiters.

In stage monitor systems, the FDS-355 can function as a dual bi-amp crossover

with delay, limiters and EQ, providing a solution to on-stage hotspots caused

by monitors with identical signals, which can be eliminated by applying small

delays between wedges.

Furthermore, the FDS-355 can function as a distribution unit to multizone

systems where crossovers may be passive or local to the loudspeaker. In this

case, the provision of delays and EQ can radically enhance such a system,

while reducing both processing costs and required rack space.

The FDS-355 brings the power and usability of OMNIDRIVE into 1U of rack

space. It has new 24-bit A-D input converters giving further improvement in

dynamic range, together with the familiar OMNIDRIVE 20-bit D-A converters.

A new BSS technique has been used, which combines system software and

hardware to optimise the performance of the output converters. This ensures

that the D-A is always operating at full range, minimising converter noise

whatever the system operating level.

All the system operating software is held in flash EPROM, which means that

upgrading to new software is easy - either via PC card or from a PC via the

MIDI or RS-232 ports. 60 internal program locations are available to the user

for storing system setups, which may be generic system programs or complete

venue settings. These memories may be stored onto a PC card for backup or

archiving. The FDS-355 can also be configured as a fully secure unit, with

password protection at multiple levels to prevent unauthorised tampering.

Crossover slopes of 6,12, 18, 24 or 48dB per octave, filter types Butterworth,

Bessel or Linkwitz-Riley, as appropriate.

Output limiters on each band (mid-filter).

High resolution input and output delays up to 1.3 seconds in 11

microsecond steps.

Input LED metering, showing signals from -20dB to clip level.

Output LED metering, showing signals from -20dB to +6dB over limit

threshold.

Front panel output level trims and Mutes

Polarity reverse on each output.

Phase adjustment for each output.

PC card port for storage and recall of program settings

Electronically balanced inputs and outputs with transformer options.

MIDI and RS-232 ports on rear panel.

1.2 Other features

The FDS-355 uses a switched-mode power supply which offers high efficiency

and low heat generation. This power supply accepts universal AC Power input

voltages in the range 100V AC to 240V AC (nominal), and requires no setting

adjustment for AC power voltages in this range. Minimum AC input voltage is

90 Volts, and the maximum is 264 volts.

Outside these ranges the unit will not work satisfactorily, if at all. Voltages in

excess of the maximum will probably cause damage. Voltages below the

minimum will cause complete system shutdown. The flash memory in the unit

will preserve all data in the event of a power failure.

1.3 Voltage setting

The Green-and-Yellow wire of the mains cord must always be connected to an

installation Safety Earth or Ground. The Earth is essential for personal safety as

well as the correct operation of the system, and is internally connected to all

exposed metal surfaces. Any rack framework into which this unit may be

mounted is assumed to be connected to the same grounding circuit.

The incoming mains power is fused within the FDS-355 by the fuse holder

mounted on the rear panel. Always replace with an identical 20mm x 5mm

'T' fuse, rated at 1A for continued protection from equipment damage and fire.

Spare fuses of the correct rating are supplied with the unit.

It is most important for continued safety that this specification is strictly

adhered to.

1.4 AC Power

fusing

Voltage/Fusing

Unpacking

As part of BSS' system of quality control, this product is carefully inspected

before packing to ensure flawless appearance.

After unpacking the unit, please inspect for any physical damage and retain

the shipping carton and ALL relevant packing materials for use should the unit

need returning.

In the event that damage has occurred, please notify your dealer

immediately, so that a written claim to cover the damages can be initiated.

See Section 19.0.

2.0 Unpacking

Fig 1.1 Mains fuse on

rear panel.

Mechanical Installation

3.0 Mechanical Installation

A vertical rack space of 1U (1¾" / 44.5 mm high) is required. Ventilation gaps

are unnecessary (See Figure 3.1).

If the FDS-355 is likely to undergo extreme vibration through extensive road

trucking and touring, it is advisable to support the unit at the rear and/or sides

to lessen the stress on the front mounting flange. The necessary support can

generally be bought ready-built as a rack tray. As with any low-level signal

processing electronics, it is best to avoid mounting the unit next to a strong

source of magnetic radiation, for example, a high power amplifier, to help

keep residual noise levels in the system to a minimum.

Fig 3.1 Unit

dimensions.

Fig 3.2 Rack

dimensions.

Green and Yellow......Earth

Blue......Neutral

Brown......Live

As the colours of the wires in the mains lead may not correspond with

the markings identifying the terminals in your plug, proceed as

follows.

Mains Power Connection

4.0 Mains Power Connection

Refer also to sections 1.3 and 1.4; Voltage setting and AC Power Fusing.

WARNING! THIS APPLIANCE MUST BE EARTHED.

IMPORTANT: The wires in the mains lead are colour coded in accordance

with the following code.

4.1 Mains power

The wire which is coloured Green and Yellow or Green must be connected

to the terminal which is marked with the letter E or by the Earth signal

or which is coloured Green and Yellow or Green.

The wire which is coloured Blue must be connected to the terminal

labelled N or coloured Black or Blue.

The wire which is coloured Brown must be connected to the terminal

labelled L or coloured Red or Brown.

Those units supplied to the North American market will have an integral

moulded 3 pin connector which is provided to satisfy required local standards.

Front Panel Controls

5.0 Controls

AStore key

Program data can be stored to either internal memory, or a PC card, and is

done by using the store facility. The STORE key also doubles as an ENTER key

for confirmation of some actions.

Refer to section 11.1; Storing

BRecall key

Program data is recalled to the unit from either internal memory or a PC card

using the recall facility.

Refer to section 11.2; Recalling

CUP/DOWN Keys

Controller keys for editing parameters displayed by the LCD screen.

DMode LEDs

Displays whether the FDS-355 is currently in Utils, Store or Recall mode.

EMain Display

The main LCD screen displays current parameters being edited with numerical

and graphical representations. When the user is not editing, the screen can

display the overall system response, or a custom logo.

FEncoder (Parameter wheel)

The encoder/parameter wheel is used in conjunction with the UP/DOWN keys

to input or select information, and also to move between screens. Pushing and

holding the wheel in will return you to the default screen after a few seconds.

Pushing and holding the encoder, then pressing a mute button, will take the

display to the corresponding output channel.

GInput meter

Input signal level referenced to the clip level. Actual signal clipping will

occur slightly above the 'clip' indicator.

Fig 5.1 Front panel

5.1 Input section

HPC card slot

The card slot is used for storing/recalling program data via a PC card.

Refer to section 16.0; PC Card for more information.

JInput LEDs

These indicate which (combination of) input channels are being edited. The

Card LED underneath illuminates when a PC Card is inserted into the front

panel slot.

Note: If all three input LEDs illuminate at once (which is highly unlikely), the

unit is clipping internally due to large amounts of EQ or gain being added.

KOutput controls

Refer to section 5.2; Output section for more detail.

5.2 Output section

Output section

AEdit LED

Lights up when the output is being edited.

BOutput meter

CMute LED

Shows the mute status of the output band.

DMute key

Pressing a mute key will toggle the associated band output on and off. The

mute LED is illuminated when the output is MUTED. Mute status is saved

when a program is stored.

EGain trim

Each output band can be trimmed for output level across a range of -6dB to

+6dB.

Fig 5.2 Output section

Rear panel

5.3 Rear panel

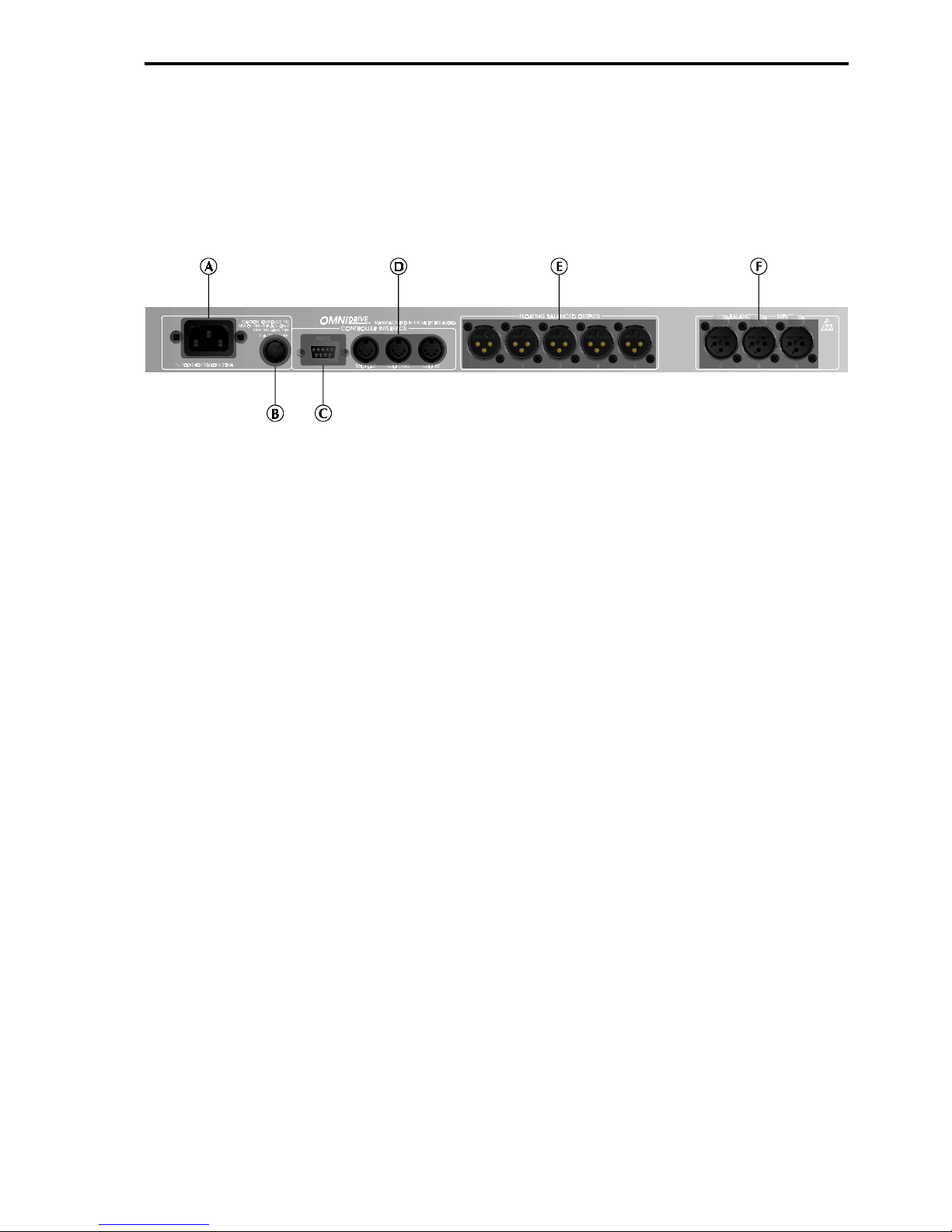

Fig 5.3 Rear panel

AMains power input

The Power inlet for the FDS-355. Note that there is no On/Off switch for the

unit.

BFuse

CRS-232 connector

For connection to a PC for access to one or more FDS-355s on a MIDI loop,

which provides an easy way to upload new software.

DMIDI interface connectors

E5 Band outputs

The FDS-355 audio outputs are electronically balanced and floating.

Transformer balancing is available as a retrofit option.

Pin 1 Shield/Ground

Pin 2 Signal Hot (+)

Pin 3 Signal Cold (-)

F3 Channel inputs

The FDS-355 audio inputs are electronically balanced. Transformer balancing

is available as a retrofit option.

Pin 1 Open circuit

Pin 2 Signal Hot (+)

Pin 3 Signal Cold (-)

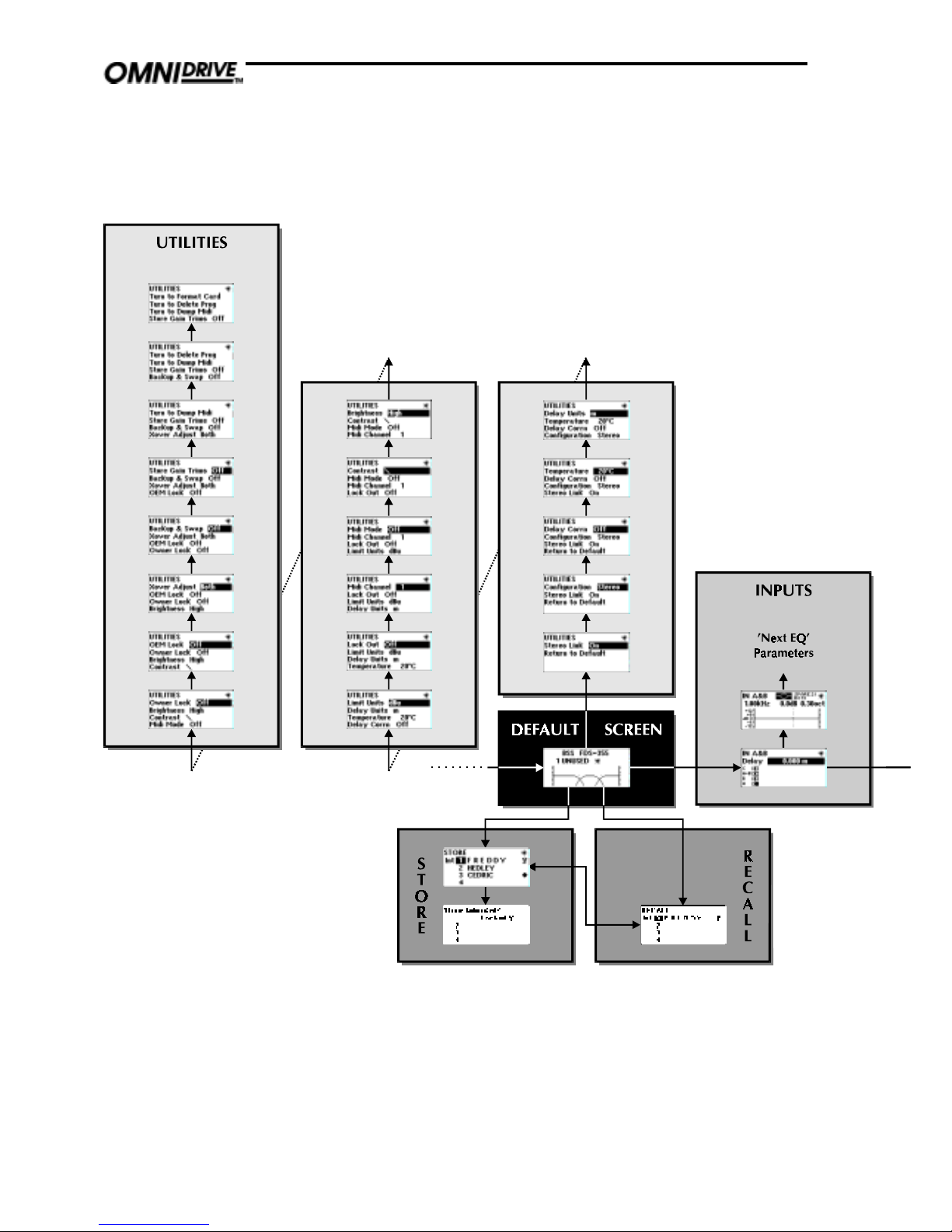

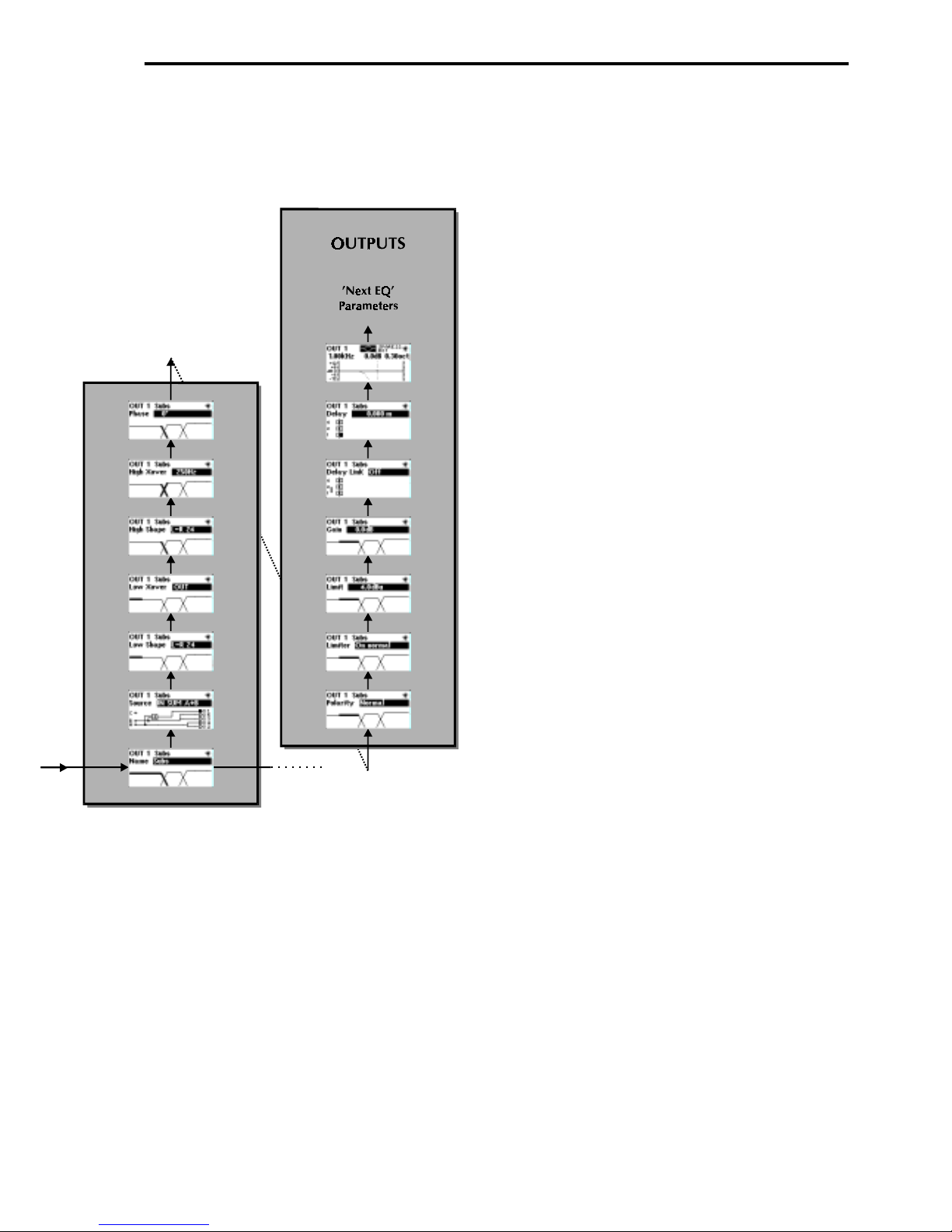

Screen layout - Overview

Moving about the screens

Use the parameter wheel to move between Default, Utility, Input and Output menus (Vertical

columns). Pushing the wheel in, or pushing and holding the wheel in while turning clockwise, will

move to the next screen on the right. Pushing and holding the wheel while turning anti-clockwise

will move you a screen to the left. Each menu is shaded with a different colour to identify each

seperate menu structure. Pushing and holding the wheel in will return you to the default screen after

a few seconds. Pushing and holding the encoder, then pressing a mute button, will take the display

to the corresponding output channel.

Use the UP and DOWN keys to move up and down within each menu. The Utility and Output

menus are displayed here in multiple columns since they have too many screens to display in one

long column.

Moving to a new menu may not bring up the first (bottom) screen shown in each column, as the

FDS-355 remembers, and moves you to, the last screen accessed in each menu.

Store and Recall are accessed by pressing their respective keys. Refer to section 11.0 for more

information.

After powering up, the FDS-355 performs internal checks and sets up the audio

path before releasing the output mute relays. This takes a few seconds.

Refer to section 6.0; Default screen.

Key screens

The stereo link screen shows whether the unit is operating in a linked mode or

not.

Refer to section 7.0; Utilities menu.

The configuration screen changes the output mode of the unit.

Refer to section 7.0; Utilities menu.

The MIDI details screens allows the user to select the MIDI channel and the

MIDI mode of the unit.

Refer to section 7.0; Utilities menu.

Input settings Pushing the parameter wheel again (at any time in the Default or Utilities

menu) will enter Inputs Mode. Here the parameters of each input can be

adjusted.

The delay screen shows the delay value set for each input.

Refer to section 8.0; Inputs menu.

The next screen allows the user to edit the filter parameters in the following

order: EQ shape, Frequency, Cut/Boost, and Width. Each filter is dealt with on

a seperate screen. Therefore, all of the first filter parameters will be accessed

before moving on to the parameters of the second filter, and so on...

Refer to section 10.0; EQ screens.

Utilities Pushing the UP key will enter the Utilities Mode. Many of the utility screens

are self explanatory (see Screen layout on the previous two pages), but the

more important ones are shown below.

The display shows the currently selected utility at the top of the screen, and

the previous 3 available utilities underneath.
