BulletHD BIKER MATE User manual

Copy
WARRANTY CARD
•Thanks for purchasing BulletHD BIKER MATE
•Please read this instruction manual to ensure correct use of the product prior to use.
•Please keep this instruction manual in a safe place.
•Please ensure that the sales store fills out the warranty with the date of purchase
and the name of the store.
• The warranty does not cover any damage that may occur during any activity. It is
the user’s responsibility to secure the action cam securely to any equipment.
Welcome

Contents
WHAT’S INCLUDED
BIKER MATE OVERVIEW
LED Status
Initial Set Up
Charging The Battery
Engine Start Mode
Power ON/OFF By Pressing Button
Card Slot Empty
Card Slot Full
Basic Settings Via SETTINGS.TXT File
Storage Chart
Take a Video (Manual)
Loop Recording
G-Sensor Settings
Playback On Your Computer
On a Mac
Important Tip For MAC Users
Technical Specifications
Warranty
Warning
Warranty Card
P3
P4
P6
P6
P7
P7
P8
P8
P8
P9
P10
P10
P10
P11
P11
P12
P12
P13
P14
P14
P16
2

3
1 2 3 4 5
6
7
9
8

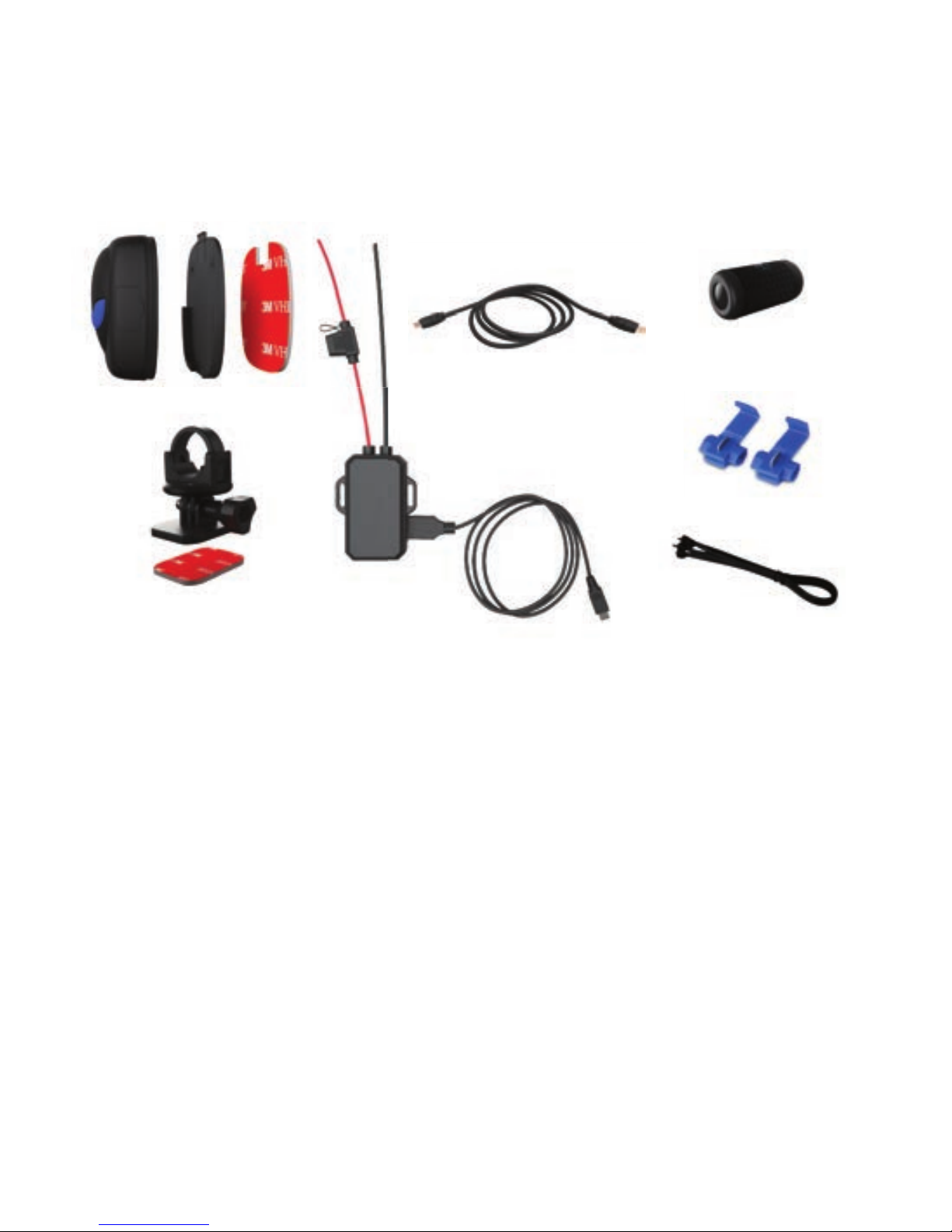

1. Main Controller
2. Main Controller Flat Mount
3. 3M VHB Adhesive Type-A (Pre-Fixed)
4. Sensor Data Cable 78 Inch (2 Meter)
5. Interchangeable Lens Module
6. 360 Lens Flat Mount
7. 3M VHB Adhesive Type-B (Pre-Fixed)
8. Dual USB Power Converter (DC 12V to DC 5V)
9. USB Cable
10. Cable Connector * 2 Pieces
11. Cable Ties * 4 Pieces
WHAT’S INCLUDED
11
10

4
BIKER MATE OVERVIEW
USB Cable
USB Port
Charging Indicator LED
Recording Button
Status Indicator LED
Power ON/OFF Button
Sensor Data Cable Port
Sensor Data Cable
720P/1080P Mode Button
MIC
Micro SD Card Slot

5
Sensor Data Cable
Optical Lens
Sensor Data Cable Port
Recording Indicator LED
Waterproof Fuse Box
Power Indicator LED
USB Power Output #1
USB Power Output #2
(inside waterproof cover)
Power Cable(12V INPUT)
①and ②Please make sure
the cable is plugged into
correct position as the
marking on top of the cable.
Notice:

6
Initial Set Up
1. Please ensure the BIKER MATE is OFF before insert or take
out the Micro SD card!
2. Open the Micro SD card slot cover.
3. Install a micro SD memory card (max up to 64GB(FAT32))
into the card slot with contacts facing upwards.
4. If no micro SD memory card is inserted in the BIKER MATE,
the Status Indicator LED will blink red and blue and camera
will shut OFF after 30 seconds.
LED Status
Status Table Buzzer
Power OFF
Power ON
LED Colour
Taking Video
Stop Video
Standby
Card Slot
Empty
MicroSD
Card Full
Low Battery
Battery Charing OFF
OFF
6 Times
3 Times
2 Times
1 Time
4 Times
Lens Module
LED (Top)
Camera Module
Charging Indicator
LED (Back)
Camera Module Status
Indicator LED x 2 (Top)
RED RED BLUE BLUE(720P)RED(1080P) BEEP
Flashing
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
ON
Flashing
OFF Flashing
OFF
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
Flashing
Flashing
Fast
Flashing
Slowly
brighten,
then slowly
turn dark
Flashing
OFF
OFF
OFF
Flashing
OFF
OFF
Fast
Flashing
Fast
Flashing
Slowly
brighten,
then slowly
turn dark
2 Seconds
Long Beep
REMARKS:
When connected to Power Converter, the RED charging LED is ON in
all modes except when the internal built-in Li-Po battery is fully charged.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!

7
5. When using a micro SD memory card, there should be no
DATA from other devices on the card. If you are using a
micro SD memory card for the first time in the BIKER MATE,
you should first format (FAT32) the card in your computer.
It is recommended to use Class 6 or above.
Charging The Battery
There is built-in Li-Po (Lithium-Polymer) battery inside the
BIKER MATE. The RED color charging LED turns ON while
charging, goes OFF when the battery is fully charged. The
BLUE color LED flashes when battery power is low. The
internal battery is normally charged when motorcycle engine is
running via the Power Converter. The internal camera battery
can also be charged with an external mains supply 5V adapter
or a power bank with a minimum rating of 2A. During charging,
the camera is automatically switched ON and has to manually
switch OFF for faster charging.
Engine Start Mode / Ignition (ACC) Start Mode
Turn
BIKER Camera
ON
Turn
BIKER Camera
OFF
Once the Power Converter is installed on your bike,
BIKER MATE starts REC after Ignition is started.
When you cut OFF the Ignition, it stops recording and
saves the recorded files automatically without pressing
any button.

8
Card Slot Empty
If there is no Micro SD card in the camera, the red and blue
LED will flash for 30 seconds. Then, the camera will switch
OFF automatically.
Card Slot Full
If loop feature is set OFF, the microSD card will run out of
memory storage. The camera will then shut down automatically
30 seconds after the card is Full.
Power ON/OFF By Pressing Button
Turn ON the BIKER camera by pressing the Power
button once. The BIKER MATE will beep 3 times，Blue
LED will flash on Charging Indicator and Red LEDs on
Status and Lens Module will be steady ON. A single
beep will indicate Recording with Red LED flashing on
Lens Module and slowly blinking on Status Indicator.
Turn the BIKER camera OFF by pressing and holding
the Power button for at least 2 seconds (Long Press).
The Blue LED flashes on Charging Indicator and will
beep 6 times and all LEDs turn OFF.
Turn
BIKER MATE
ON
Turn
BIKER MATE
OFF
Friendly reminder:
Please insert the Micro SD card before using the camera!

9

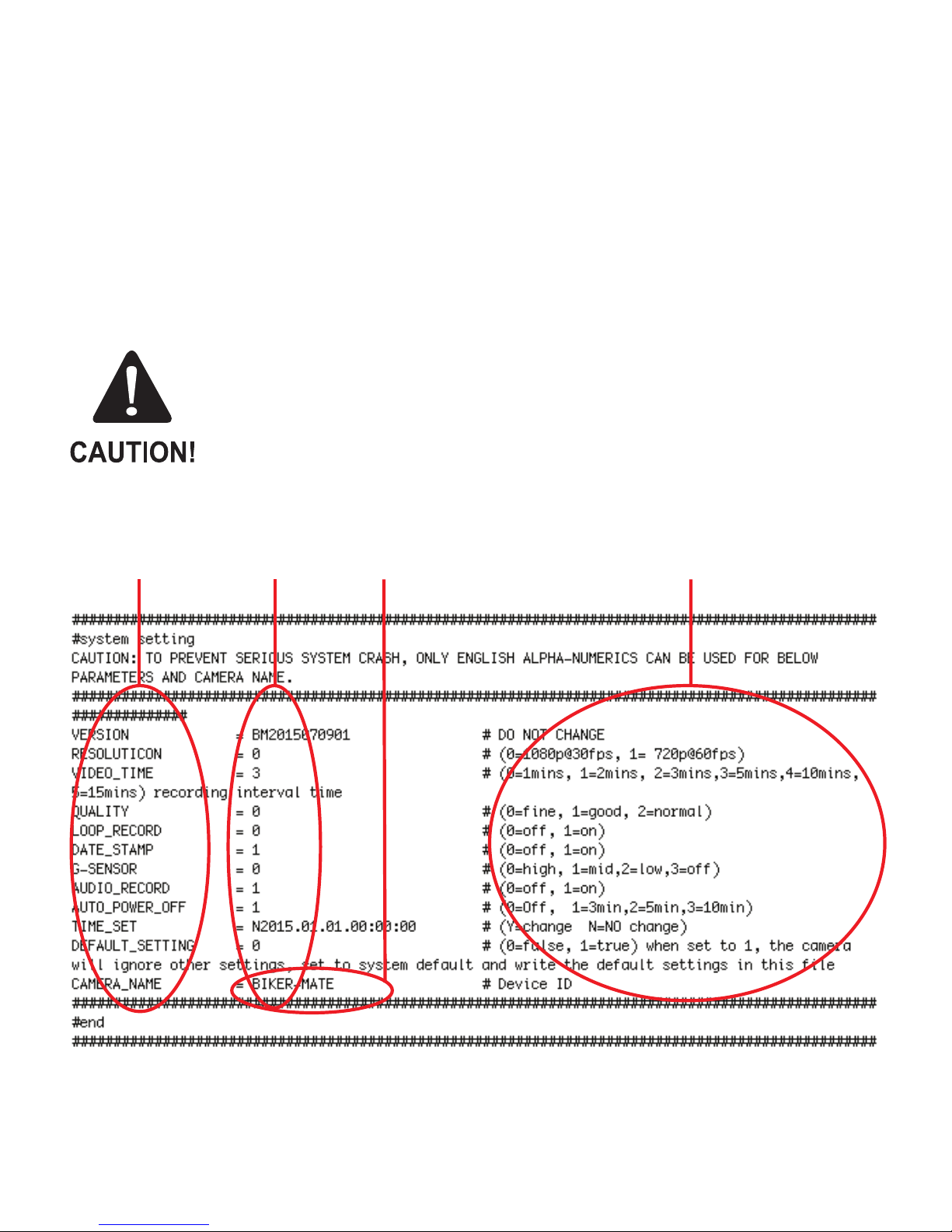

Basic Settings Via SETTINGS.TXT File
You can also change the settings via the SETTINGS.TXT file,
the file will be created automatically on the micro SD card after
the camera is turned ON.
You can even type your Name on the screen of video.
For example: BIKER-MATE
To prevent serious system crash, only English
alpha-numeric can be used for below parameters
and camera name. Wi-Fi Name and Camera Name
are not allowed to use symbols or empty space(s)
between the wordings. ONLY _ (underscore) or –
(hyphen) can be used.
Settings Parameters Remarks
Camera_Name

10
Remember to insert a micro SD card before you start taking videos!
Storage Chart Micro SD Card
Video
4GB 8GB 16GB 32GB 64GB
Mode
1080P @30FPS
720P @60FPS
30 mins 60 mins 120 mins 235 mins 470 mins
530 mins35 mins 70 mins 140 mins 270 mins
FAT32 Formatted
Take a Video (Manual)
Turn ON the BIKER MATE by pressing the Power button.
The Camera beeps 3 times with lens/status twin LEDs flashing
Red and the Charger LED flashing Blue. At the fourth beep, the
camera automatically starts recording slow blinking twin status
LEDs Red and flashing Lens LED Red. To STOP recording,
press the STOP button once and camera is in Standby mode
after 2 beeps and all LEDs steady RED. To completely switch
OFF the Camera, Long Press the Power button.
Loop Recording
This special feature allows the user to continously record the
video clips without running out of storage memory. When Loop
ON mode Is selected, the oldest video clips are recorded over
by the current videos. If this feature is set OFF, the camera will
shut down automatically 30 seconds after the memory storage
on the card is Full.

11
Playback On Your Computer
Power OFF the BIKER MATE! Connect with your computer via
USB cable from the USB port. The camera will switch ON and
recognized automatically as USB Device. Or you can take out
the micro SD card and use your own card reader to connect
with your computer too.
G-sensor Event Recording
If an event happens, such as sudden impact, high-speed
driving, an overturn or an accidental crash, the G sensor will
prompt the recorder to lock and save the recording. The
locked/saved recordings will not be replaced by temporary
video clips even when the camera is looping recording. The
camera will automatically store the video and protect it against
being auto-deleted. The locked file name EVExxxxx.MOV will
be different from the normal files FILExxxx.mov. Please note
that you can also create locked event files manually by
pressing the STOP button once.
If the G-Sensor sensitivity is set to "High", even minor shocks
will be detected. If the G-Sensor sensitivity is set to "Low", it
will only detect significant shocks. G-Sensor sensitivity can be
adjusted or disabled in the Settings menu.

12
Ensure that the Camera is switched OFF before
connection to the Computer and the Sensor Data
Cable is connected to Lens Module. Data download
is only possible when the device is ON.
Do not remove the USB cable under "Mass Storage" status!
Please switch OFF the camera with LONG Press before
removing the USB cable! It will not show as a device on your
computer once camera is switched OFF.
On a MAC
Simply plug the BIKER camera into your MAC via USB cable,
turn ON the BIKER MATE, and the MAC OS will recognize the
BIKER MATE as an external hard drive.
Important Tip For MAC Users
When deleting files from your Micro SD cards, you must format
the Micro SD before removing it or unplugging the BIKER
camera. If you do not format the Micro SD, the photos and
videos files will not be completely erased from your cards.

13
Technical Specifications
Optics:
• FISHEYE view @1080p (default) Mode
• Ultra Wide Angle view @720p Mode
• Lens aperture f/1.8, fixed focus glass lens
• Optical lens: ø18mm FISHEYE Lens
• Lens Construction: 6 Elements
• Angle of view: 160° (diagonal)
Video:
• Full HD Resolution Settings: 1080p: 1920x 1080 @ 30fps
• HD Resolution Settings: 720p: 1280x 720 @ 60fps
• Digital Video Motion Stabilization Technology
• Anti-Shaking (Stabilizer)
• Video Format: H.264 (avc1) / MOV
• Exposure Control: Auto
• White Balance: Auto
•G-Sensor
Audio:
• Built-in microphone
Storage:
• Memory: Micro SD card (Not included), up to 64GB (FAT32)
capacity (recommended Class 6 or above)
• Avg. Record Time: 5~10min/GB
Battery:
• 3.7V 850mAh Li-Po Built-in
Operating System (for USB drive): WIN XP, 7, 8, Vista; Mac OS X 10.8.4+

14
As the warranty is included within this instruction manual,
please ensure that the store name and date of purchase are
filled in. Please read the warranty carefully and keep it in a
safe place. This product is covered by a 365 days Limited
Warranty on parts and labor from the date of original purchase,
and purchases must be made through an authorized dealer.
The warranty covers defects in workmanship and materials.
The warranty does not apply to units, which have been
damaged or abused intentionally or unintentionally. Purchase
from individuals or unauthorized internet sites voids the
warranty. The warranty does not apply to units where the rear
cap was incorrectly closed, cosmetic damage, modification of
or to any part of the product.
Tampering with or altering the unit will void the warranty. Any
unauthorized service will void the warranty. Original sales
receipt must be produced for any warranty service and a return
authorization must be obtained from our customer service
points.
The warranty does not cover any damage that may occur
during a sport activity. It is the users responsibility to secure
the BulletHD securely to any sport equipment.
Warranty:
The form and functions of BULLETHD, accessories, logos, and
all graphics are the patented, protected property of Silver
Creation International Ltd. Any attempt by anyone other than
our authorized dealers to copy or reproduce any of the above
without permission of Silver Creation Int’l Ltd. will be met with
legal action. Silver Creation Int’l Ltd. products are available for
purchase only from authorized dealers.
WARNING:

Technical changes and mistakes reserved!
Due to rapid technical development, products are under constant changes / improvements
- please check www.BulletHD.us for current updates.
Shoot and share video at
www.BulletHD.us
V2.0 BulletHD BIKER MATE UM English
