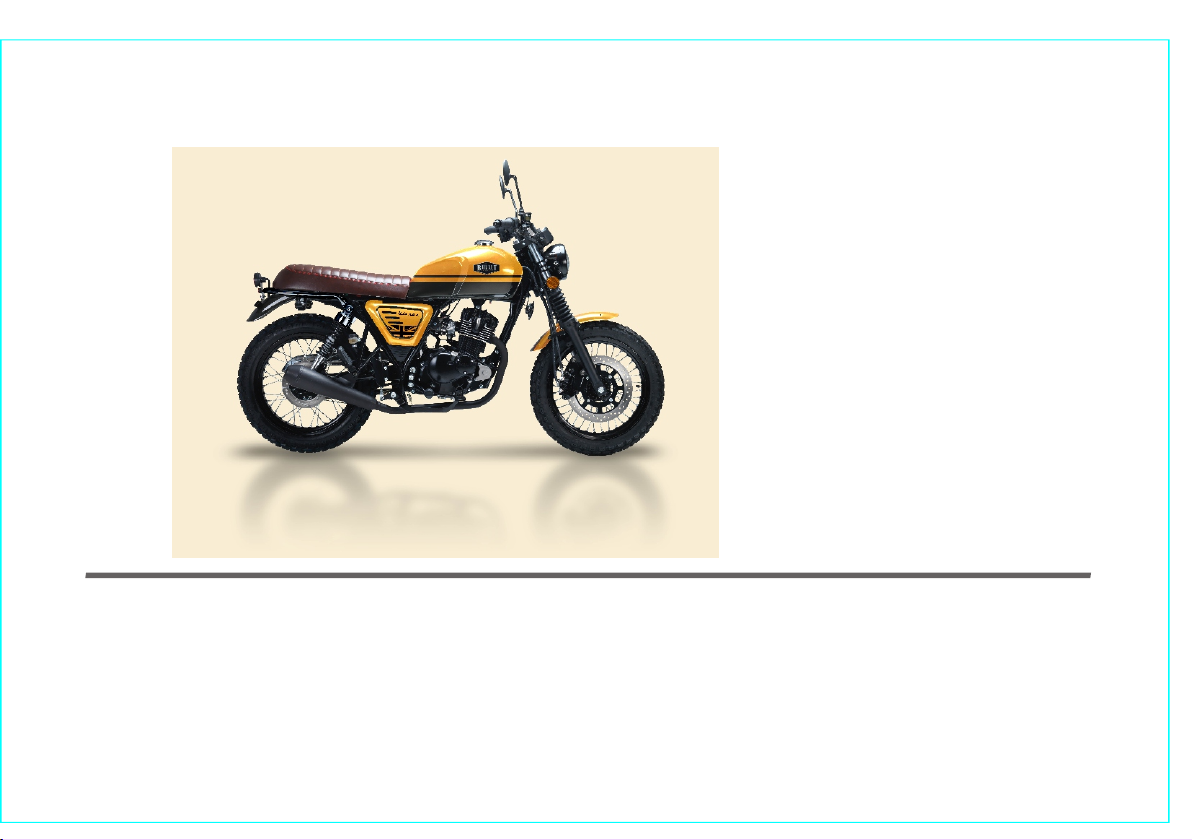

Bullit Bluroc 125 User manual

Owner’s Manual

We highly appreciate you for choosing our model fuel injection motorcycle, it will offer
you pleasant and safe driving.
Driving motorcycle is one of the most exciting sport. For safety reason, you should read this o-
wner' manual carefully and following these instructions before you drive.
This manual introduces the regular maintenance and service, please follow these instructions,
it will help you to keep your motorcycle in good condition and more durable.
Our company never stop improving our quality and performance,it may cause color or structure
change not as same as manual description. If it brings any inconvenience to you, we are very
sorry about this.
s
,
Preface
Bluroc 125
MOOOF NV

1.Driver and passenger
This motorcycle is designed only for one driver and one passenger.
2.Road condition for driving
This motorcycle is only suitable for driving on road.
Please read this manual carefully. The run-in time of engine is necessary it will make mot-
orcycle more durable and stable
Please take notice of following words:
t means if you don't follow instruction, it may cause serious damage for driver and
passenger.
It means if you don follow instruction, it may cause the person injured or damage
of motorcycle.
Provide useful information
This user manual is property of the motorcycle. If transfer this vehicle to others, you should
pass this manual to new owner together with vehicle.
Without our company permission, it is not allowed to copy or translate any part of this manual.
3.
I
't
,
.
.
Warning
Carefully:
Notice:
The motorcycle use professional oil for lubrication.
:
Important Notice

Warning: The motorcycle must equip the right fuse for driving, it is not allowed to use other fuse
or without fuse. Otherwise it may cause damage to the vehicle or fire.
Forbidden Modify:
Please do not change original parts position, otherwise it will seriously affect the vehicle perfor-
mance and safety, and even cause vehicle not driving properly. Such as modify electronic, emis-
sion and fuel system, it is not allowed legally. Our company will not take the responsibility for a-
ny change without our permission.
Fuse position: Beside battery.
Fuse specification: The main cable fuse is 15A
The fuse failure is normally by vehicle circuit problem, before change fuse, should check the situation of
vehicle. If after change fuse, it breaks again, please send the vehicle to nearest shop for service.
Notice:
First time mounting or change battery should be careful with Anode and Cathode. If make wrong con-
nection, should check the fuse immediately. even fuse not broken, the vehicle should be sent to service
centre to check deeply. The wrong connection for anode and cathode may cause some damage of elec-
tric part. If damage part continue working, it may bring some unpredicted risk.
Before change fuse, should take off the key in case of short circuit.
When change fuse, should be carefully not damage the fuse bottom,otherwise it may bring damage p-
art or fire.
※
※
※
Special Notice
.

Information of safe
Motorcycle series number
Part description
Speedometer
Operation of parts
Information of gasoline and oil
Engine run-in
Checking before driving
Driving motorcycle
… … … … … … … … … … … … … … … …
… … … … … … … … … … … … … … … 1
… … … … … … … … … … … … … …
… … … … … … … … … … … … … … … …
… … … … …… … … … …… 1
… … … … … … … … … … … … … 2
… … … … … … … … … … … … … … … … … … …3
… … … … … … … … … … … 4
… … … … … … … … … … … … … … … 5
… … … … … … … … … … 5
… … … … … … … … … … … … … … … … … … 5
… … … … … … … … … … … … … … … … … … 5
… … … … … … … … … … … … … … … … … … 6
… … … …… … … …… … … …… … … … …… … 7
… … … … …… … … … … …… … … … … … 7
… … … … … … … … … … … … … … … … …8
… … … … … … … …… … … … … … … … …… … 8
… … …… … … …… … … …… … … …… … … 8
… … … … … … … … … … … … … … … …8
… … … … …… … … … …… … … … … … …… 8
… … … … … … … … … … … … …9
……………………………………………… 9
… … … … …… … … … …… … … … ……10
… … … … … … … … … … … … … … … … …
… … … … … … … …… … … … … … … … … …
1
l
l
l1
l1
… …
… … … … …
… … … … … … … …
… … … … … …
… … … …… …
… …
…
… … … … … … … … … …
… … … …
… … … … … … … … … … … … … …
… … …
… … … …
… … …
… ……
… … … …
…
… …
… … ……
… … … … …
… …
…
… …
… … …… … … …… … …… … …… … …… … … …
Safe driving
Clothes
Helmet
Driving when raining
Key
Power key
Left grip
Right grip
Fuel tan k
Shift pedal
Rear brake pe dal
Side stand
Tool box
Rear shock absorber
Mirror
Engine start
Shifting gear l1
… … … … … … … … … … … … … … … …
… … … … … … … … …… … … …
… … …… … … … … … … … … …
… … … … … … … … … … … … …
… … …… …… … … … …… … … …15
… … … … … … … … … … … … … … … …
… … … … … … … … … … … … …
……………… ………………………
… … … …… … … …… … …… …
… … … …… … … … …… … … …
… … … … … … … … … … … … …
… … … … … … … … … … … …
… … … … … … … … … … … … … … …
… … … … … … … … … … … … … …
… … … … … … … … … … … …
… … … … … … … … … … … … … …
… … … … … … … …… … …
… … … … … … … … … … … … … …
… … … … … … … … … … … … … …… …
… … … … … … … … … … …… …
… … … … … … … … …… … … … …
… … … … … … … …… … …… … … ……
……………
… … … …
… … … … … …
Driving in slope
ABS maintain instruction
… …1 1
… … …1 1
… … … … … … … … … … … … … …12
… 13
… 13
…
… … … …1 6
… 16
… …16
… … … … …1 7
… … … … ……17
… … … … … … 17
… … … … … … … … … …1 8
… … … … … … … …19
… … … … … … … … …2 0
… …2 0
… … … … … … …2 1
… … …… …2 1
… …21
… … … … … …22
… … … … … … …… … …2 3
… … … … …… …2 4
… … … …2 4
… … … … … … … … … … … …25
… … … … … … … … … … … … … … … …26
… … … … … … … … …… … … …27
Using brake and stop
Agenda of maintenance
Oil position and change
Spark plug
Throttle cable adjustment
Clu tch adjustment
Idle adjustment
Throttle valve
Driving chain
Brake
Tire
Seat
Air cleaner maintena nce
Catalyst
Fuel injection system
Lubrication of parts
Battery
Fuse
Headlight
Bulb change
Checking and maintenance
Parking information
Specification
Electronic circuit
Preface
Important Notice
Special Notice
Context

1
Safety information
Safety Regulation:
1.Before driving must check vehicle, in case of accident
or damage parts.
2.Driver must has legal driving license, and not allowed
to borrow the vehicle to whom without driving license.
3.Avoid to have damage from other vehicle driver shou-
ld:
Wear bright color clothes.
Not to close other vehicle.
4.Strictly obey regulation, not allowed to cut in other line
suddenly.
5.Most accident because of over speed,so speed should
follow the speed limitation.
6.When making turns, should turn on indicator.
7.In the cross, parking or fast line, should be carefully d-
riving.
8.Do not modify motorcycle or take off parts, it is illegal
and not safe, and it will aff ect warranty.
9.Add accessories must not aff ect driving, specially not
overload electronic parts.
,
●
●
Clothes:
Helmet:
Driving when raining:
1.For safety reason, driver must wear helmet, glass and
boot,gloves and racing suit.Passenger should also wear
helmet.
2.During driving, the muffl er temperature is high, it is for-
bidden to touch muffler during driving or just after driving.
3.During driving, please do not wear too loose clothes.
It is most important to wear good quality helmet and wear
glass.
Driving in the rain need special attention, the brake dista-
nce is two times more than dry weather.

2
Motorcycle series number
Vehicle Identifi cation Number ( VIN ) and engine number
is for registration.Please record your number
for future use.
VIN number grave on the vehicle handle bar right side
Engine number grave on the engine crankcase left side
Product information label on the vehicle handle bar right
side
VIN number:
Engine number:
motorcycle
,
,
.
①
②
③
①
②
③

3
Parts description
(2)Clutch lever
(5)Speedometer
(8)Front brake lever
(11)Oil cover
(14)Rear footrest
(17)Side stand
(3)Left side switch
(6)Right side switch
(9)Throttle grip
(12)Rear brake pedal
(15)Rear brake
(18)Shift gear pedal
(1)Left mirror
(4)Ignition switch
(7)Right mirror
(10)Fuel tank
(13)Front footrest
(16)Front brake
(19)Seat locker
①②③④⑥⑦⑧
⑨
⑩
⑤
11
12
13
14
14
16
13 17
15
18

4
(6)
(11)
Indicate the engine s gear position.
Low fuel level warning light
Indicate the fuel level in the fuel
tank.If the fuel is sufficient, the
light will be off. When the fuel is
not sufficient, the light will be on. Please fill up with fuel in time.
In the bottom of speedometer, there's a small round projecting
button.
Button function:
Short press: switch between
total mileage and trip mileage.
Long press: when the
speedometer shows total
mileage, long press this button,
switch between kilometers and
miles. When the speedometer
shows trip mileage, long press this button, the
trip mileage turns to zero.
'
Speedometer adjustment button
(1)
(10)
(7)
(9)
(4)
(5)
FI Indicator
When the left turning light on, the indicatorwill be flash.When the
right
turning light on, the in-dicator
will be flash.
When the gear on neutral, the neutral indicator will be on
When the high beam headlight on, the High
beam indicator will be on.
When the keyon, the fuel inje-ction indicator on. Oil pump
will work 3 seconds, then engine will start. When the engine
start, the indicator will be off.If indicator still on, it means has
some problem.In the same way, during normal driving, the
indicator should be off. If indicator on, it must stop driving
and check immediately.
Neutral indicator
High beam indicator
Speedo
Odometer
.
This is to show your driving speed.
This is to record the distance of all
driving.
Speedometer
Engine speed
11
ou
①
②
③
④
⑤
⑥
⑦
⑧⑨⑩
①
(3)
(8)Low voltage indication
The lamp lights up when the battery voltage is less than 11.5v

5
Operation of parts
●
“ ” “ ”……
●
“ “ ”” ……
Key
Warning:
This vehicle has two keys, it's u-
sed to start motorcycle and open
all the locks. Please keep key in
safe place. If you want to have m-
ore keys, please contact closest
dealer of your area.
Please don t try to turn the key during driving, otherwise
the vehicle will lose control.
logo when the key on
position, it is no power and can not start
engine, the key can be taken out.
Electric power locker
logo when the key on
position, it has electric power and start engine, the key can
not be taken out.
'
“ ”
“ ”
●
“ ”
“ ”
①
②
③
position: In case of thieves, when you parking, ple-
ase use this function. Turn the handle bar to left, press key
down and release, then turn the key to position, it
will lock handlebar. Then you can take out the key.
when you parking, please lock turning and take out the key
in case of thieves. Please park the vehicle in a proper pla-
ce.
Clutch lever
When start the engine or shift ge-
ar, please grip clutch lever, it will
stop rear wheel driving.
Horn button
When you press horn button, the horn will work.
The switch of low and high beam
when the switch on position, the high beam on, and
the speedometer high beam indicator will be on as well. W-
hen switch on position, the low beam on. Normally,
use low beam when driving in city
Notice:
Left grip
area or meeting others.
①
④
⑤
②③

6
,
itch to right ,
c power,
rt.
er, the
rt.
.
the left side turning light will
the right side tu-
h Dismiss the turning signal, please
n.
e or turning, please turn on turning li-
ing, please turn off the turning light
this button several times, the headlight
for pass or warning.
“ ”
“ ”
”
”
“
“
Warning:
The engine off switch only use for emergency case. Wh-
en the vehicle still slide, please don't stop engine, othe-
rwise it has air with gas together enter muffl er, burning
catalyst may damage muff ler.
Start
When you press this button, the engine will be start
Throttle grip
Throttle grip control the speed of motorcycle. when you
want to accelerate speed, please turn the grip to the di-
rection close to driver.
Front brake lever
When brake, please grip the right side lever gradually
.
.
②
③
④
①
②③
④
Turn the switch to
position, it has electric powe
the engine can be start.
position, it is not power, the
engine can not be start.
④
.
.
⑤
①
Turning light switch
Turn the switch to left
be flash
rning light will be flash Di
press the switch down.
when you change line or tu
ght on time. After turning,
immediately.
Passing
When you fast press this
will be flash. It is only for pa
Engine off switch
When the switch on
When the switch on
Warning:
Right side grip●
“
“

●Shift gear pedal
Caution:
.
.
This vehicle is international gear
engine. Neutral gear between first
gear and second gear. When you
change gear, please follow the ru-
les.
When it is neutral gear, the indicator will be on Please
loose clutch gradually to make sure it is really in the n-
eutral gear When change gear, hold the clutch lever, ch-
ange gear when clutch loose completely.
5
N
1
2
3
4
5
7
●Fuel tank
When the speedometer’s low fuel lever warning light is on ,
please add gasoline immediately. First open the anti-dusty
cover as then enter the key and turn as clockwise, pull
out the fuel tank with key. After fill in gasoline close the
fuel tank cap please align the right point press down cap
then it will be close.
①,
cap ,
, ,
Warning:
please do not fill in too much gasoline. Do not splash gaso-
line on the hot engine, it is very dangerous.
Flame is prohibited when filling gasoline
If the gasoline go inside the carbon box, please go to the lo-
cal dealer to clean or replace the carbon box. Because gas-
oline will make the activated carbon expire earlier.
Check the water leaking hole around the fuel tank cap, ma-
ke sure it work properly and no water go inside the fuel tank.

8
●
●
●
①
Rear brake pedal
Side stand
Caution:
Toolbox
Press down rear brake pedal (as
picture). When the brake pedal
working, the taillight will be on.
Side stand is on the left side, when park motorcycle, please
make sure side stand in the right position. This motorcycle
is equipped with a side stand switch. If the side stand is fo-
lded up, the engine can be started. otherwise, the engine is
shut off and won’t start.
Please don’t park the vehicle in the slope place, otherwise
the vehicle may fall down
Toolbox under the seat. Toolbox
including screwdriver, sleeve,
wrench.
.
●
●
Rear shock absorber
Adjustable mirror
This vehicle shock absorber main
component including spring and
liquid damp, this shock absorber
adjustable according different
road condition.
Upper side of shock absorber has
two adjustable screws , adjust screws
turn up or turn down, it will change the spring pressure.
① ①.
is
1
1
2
1
Loosen the bolt , rotate the mi-
rrors , adjust the front and rear
angle of the mirrors.To adjust the
left and right angle of the mirrors,
just turn the mirrors to left or right.
Adjust the glasses inside the mirrors until the objects displayed
clearly in the mirrors.
①
②

9
Gasoline and oil information
Gasoline
Caution:
Oil
Please use lead-free gasoline. Please use the octane ra-
ting above
use lead-free gasoline, spark plug will have longer life.
Please use SG or above SG grade engine oil which mat-
ch SAE standard. Please buy oil from dealer according to
the local weather , please check the follow chart to cho-
ose suitable oil.
#93 .
The chart show the max rpm during engine run-in period
Engine running in
Top speed
Engine speed change
Avoid running long time in low speed
All the new motorcycle, during the first 1500 km driving, not
to make engine run too high speed or accelerate too much.
It should avoid the rpm to beyond 80% of maximum.
Speed should not always keep the same, it should change
frequently, it help the parts running smoothly.
It is damage to the parts if always keep engine in a low
speed it should always change to diff erent gear to drive.,
First 800 km
+40+15-10 0-20-30 ℃
℉+104+59+32+14-4-22
5W-20
5W-30
10W
15W-40 15W-50
20W-4020W-20 20W-50
10W-30 10W-40 10W-50
Under 5000 rpm
First 1500 km
Over 1500 km
Under 6000 rpm
Under 8500 rpm

10
Before driving, please let oil suff iciently
First maintenance
Caution:
Special Notice
Before driving
lubricate
▲
Before driving, please keep engine in idle situation for a
while, in order to have enough lubrication of engine.
The fir st 1,000 km maintenance is the most important w-
ork. Please tighten all the screw and change oil.
km maintenance should follow this manual.
Please pay more attention on Caution and Warning
part.
The fir st engine running at km, please ask dealer to
change oil and clean air fil ter. Then follow
the maintenance schedule to maintain the motorcycle.
Before driving, it is necessary to check the following it-
ems.
1,000
300
oil fil ter and
“ ” “ ”
Checking item
Handle bar
1)
2)Turning flexible
3)No loosing
Stable
Points
1)
2)No oil leaking
Brake level and pedal has right
feeling
1)Air pressure correct
2)Pattern of tire correct
3)No crack on tire
Have enough gasoline for driving
Turn on/off all the lights
Checking high-beam, gear,
turning indicator
Correct
The level of oil correct
1)The throttle grip work correct
2)Acceleration and deceleration
correct
Correct
1)Correct setting
2)Lubrication
Brake
Tire
Fuel
Light
Indicator
Horn
Oil
Throttle
Clutch
Drive chain

11
Driving motorcycle
Engine start
Please turn the key to position, and the engine
switch on right handle bar on put gear
in the
“ ”
“ ”position,
neutral gear, the gear indicator should be on. Pre-
ss start switch, engine turn on.
Start engine when hold the clutch lever and put gear in
neutral position .
When start by electric starter, ECU will check the envi-
ronment temperature and engine condition to supply n-
ecessary fuel to engine.
Not to start engine indoor without good air ventilation.
don’t leave motorcycle on without monitor.
When not driving motorcycle, don’t make the engine run
over speed, otherwise, engine will be over heated and
damage the parts inside.
Caution:
Warning:
Caution:
Using gear shift
Slope driving
Using brake and parking
Gear shift system will make engine driving smoothly. Dr-
iver should change gear according to the driving speed.
When driving in the slope place, motorcycle speed will d-
ecrease and show the power is not enough. In this case,
it should reduce gear to get more torque.
When go downhill, put the gear in low position, it help en-
gine brake. Please don’t make the engine run at overhigh
speed.
It should completely loose throttle and gradually brake
front and rear. Before completely stop motorcycle, hold
clutch and change gear to neutral and check the gear in-
dicator on or not.

Caution:
The new driver always want to use rear brake,it will
make brake abased very fast and brake distance too
long.
Warning
Only using front brake or rear brake is dangerous, it
may slip down or lose control. Especially in wet road
condition or corner, should be very carefully use brake.
Suddenly brake hard is very dangerous.
Motorcycle should parking in fl at ground. If motorcycle
must park in slope place, please put motorcycle in fir st
gear in case of motorcycle slip away.
:
12
ABS maintain instruction
Turn on the bike every time, the ABS instruction light on the
speedometer is on, this is normal. When the speed reach 5
Km/H, the ABS instruction light will be off, ABS works prop-
erly. If the ABS system is wrong, the ABS instruction light
will be on during ride. Then check the ABS, like if the ABS
plug-in to wire harness is loose, is the gap between ABS
wheel speed sensors and gear rings 0.5mm and 1.5mm, if
the surface of wheel speed sensors adsorb small metal pi-
eces. After fixation of ABS faults, the instruction light on s-
peedometer will be off when speed is 5Km/H and up. If the
problem still exists, contact your dealers for service.

13
Checking and maintenance
The symbol means:
The follow chart show the kilometers for maintenance. When reach the kilometer, it must follow the instruction to check
and make maintenance. Turning system, engine, electronic system, side stand and wheels are key important parts. It is
necessary to have a professional technician to handle.
I: checking, clean, adjust C: clean R: change A: adjust L: lubrication T: tight
Maintenance
period Odometer ( )KM ( )Remark 2
Air filter( )Remark 1
Spark plug
Valve clearance
Gasoline filter
Brake pedal
Brake oil
Driving chain
Screw
300 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000
Everyday
check before
riding
I
I I I I
CCC
I I I I
I I I I I I I I I I I I I I I I
I
Every 1000km I A： 、
T T T T
I
Oil filter and oil net
Oil for crankcase Every 2000km R
Every 2000km C
Every 4000km clean filter if necessary please change
Maintenance
content
R
C

14
*
*
When the mileage is over the highest on the table, please perform according to the period set on the table.
Driving on dusty place, it is recommended to clean it frequently.
*Often drive on bad road condition, make the maintenance and service more frequently.
III
I
I
I
I
I
I
I
I
I
I
I
I
I
I I
III
I
I
I
300 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000
I A、
III
Every1000km I L A： 、 、
I A、I A、I A、
Maintenance
period
Maintenance
content
Odometer ( )KM ( )Remark 2
Everyday
check before
riding
Driving chain( )Remark 3
Friction disc
Brake system
Brake
Clutch
Stand
Suspension
Screw/bolt/fasteners
( )Remark 3
Wheel( )Remark 3
Turning system
Front headlight beam
adjustment

●
①
1.
①
Oil level and change oil
Caution:
Before start engine, it need to check
the oil level.When check the oil level,
it should park the vehicle in flat gro-
und, through oil window to check oil
between the scale L and H. when the
oil level lower than the scale L position, it should open the
oil cover add oil until the scale H position.
When the engine is not completely cold down, it is the best
time to change oil. The body should support by supporter
and keep vehicle in vertical position and fast leaking all the
oil.
The engine oil capacity is 1.7 liter, it
should change 1.7 liter oil.
When leaking oil, please put a
container under the oil leaking pos-
ition, and take off leaking screw
,
.
When completely leading out the oil,
put on the leaking screw. The fix to-
rque is 20-25 Nm.
15
1
3 4
(1).
(2).
(3).
(4).
2.
3.
4.
5.
②
③
Remove oil filter cap , take off the oil filter.
Clear up the oil filter cap and the engine surface.
Remove the oil filter screen cap , clean the oil filter
screen or change a new oil filter.
Assemble them back.
Please do not take off oil filter O ring seal, because it will
make O ring seal not in right position. It will bring leaking
or damage engine.
Fill the qualified oil.The capacity is 1.7 liter.Check the oil
level gauge accordingly. Don t fill more than upper level.
Close the oil cover.
Start engine and keep engine in the idle for few minutes
and turn off engine.
Check oil level. Again make sure the oil level in the right
position and no leaking of engine.
④
'
Caution:
1
L
H
2
