Burg Wächter SWC-230RBIF User manual

SWC-230RBIF
1
KURZANLEITUNG / QUICK INSTALLATION GUIDE e
Dual-Wärmebild IP Bullet Kamera mit IR-LEDs
Dual thermal IP bullet camera with IR LEDs
Modell / Model:
SWC-230RBIF
Lieferumfang:
1x Kamera
1x Sechskantschlüssel
1x Bohrlochschablone
1x Satz Schrauben und Dübel
1x Kurzanleitung und Sicherheitshinweise
1x CD mit Browser Plugin, Config Tool,
Video Player, Benutzerhandbuch
Items included in the delivery:
1x Camera
1x Hexagonal wrench
1x Mounting drawing paper
1x Set screws and anchors
1x Quick installation guide and security note
1x CD with browser plugin, Config Tool,
video player, user manual
Besondere Ausstattungsmerkmale:
Dual Kamera mit Echt-/Wärmebild
Bildüberlagerung
Video Analyse Funktionen
2x Streaming, Multicast
Wide Dynamic Range (WDR)
1/2.8“ Progressive Scan CMOS Sensor
Ungekühltes VOx Microbolometer
160(H)x120(V)
25 B/S bei 2 MP (PAL)
12V DC, PoE Betriebsspannung
4 Privatzonen
4 unabhängige Zonen für
Bewegungserkennung
Special features:
Dual lens camera with real-/thermal pic
pictureoverlay
Video Analytics supported
2x streaming, multicast
Wide Dynamic Range (WDR)
1/2.8“ progressive scan CMOS sensor
Uncooled VOx Microbolometer
160(H)x120(V)
25 fps at 2 MP (PAL)
12V DC, PoE voltage
4 privacy zones
4 independent zones for motion detection
Version 1.01 cko/0917/dt-engl/A5

SWC-230RBIF
2
Technische Zeichnung / Technical drawing:
Alle Angaben in mm.
Zeichnung nicht maßstabsgerecht.
Irrtum und technische Änderungen
vorbehalten.
All dimensions in mm.
Drawings not true to scale.
Subject to technical changes.
Errors excepted.
Installationshinweis / Installation note:
1) Kamera drehen
2) Kamera neigen
3) Kamera am Fuss drehen
1) Camera rotation
2) Camera tilt
3) Camera rotation on bracket

SWC-230RBIF
3
Anschlüsse / Connectors:
Nr/Sn
Beschreibung
Description
1
Audio Ausgang
Audio Out
2
Audio Eingang
Audio In
3
LAN Port
Ethernet Port
4
Alarm_NO
Alarm_NO
Alarm_COM
Alarm_COM
Alarm_IN1
Alarm_IN1
Alarm_IN2
Alarm_IN2
Alarm_GND
Alarm_GND
5
Stromversorung 12Vdc
Power 12Vdc
6
RS485
RS485
7
Video Ausgang Analog
Analouge Video Out
Empfohlenes Zubehör:
SPC-24AC12DC
Spannungsconverter
Power converter
IN: 20-30VAC OUT: 12VDC max. 1A
SNCA-MK-4532
Adapter / Anschlussbox
Adapter / mounting box
SNCA-PM-4661
Mastadapter inkl. Spannbänder von 80 bis 130 mm
Corner mount for SANTEC IP cameras incl. straps 80 to 130 mm

SWC-230RBIF
4
Video Setup
Dual Wärmebild Kamera
Dual thermal camera
Stream 1: Echt-Bild
Stream 1: real-visible live view
Stream 2: Wärmebild
Stream 2: thermal-invisible live view

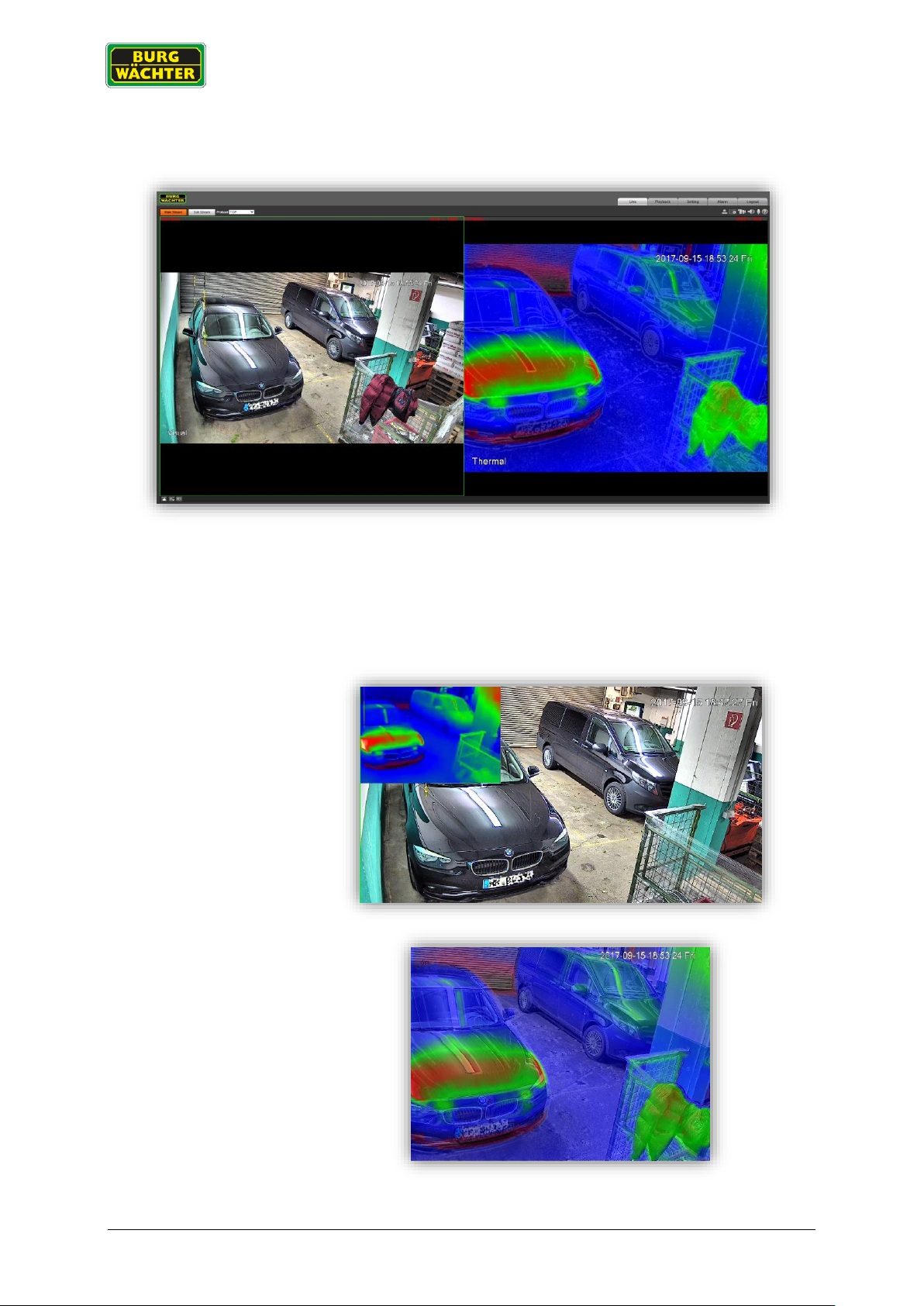

Überlagerungsmodi / Fusion mode
Modus/Mode
Beispiel/Example
BiB –Bild in Bild
PiP –picture in picture
Überlagerung/Fusion

SWC-230RBIF
5
Technische Daten / Technical specifications:
Modell / Model
SWC-230RBIF
Kameratyp / Camera type
Dual-IR-Bulletkamera /dual IR Bullet camera
Installation / Installation
Innen- und Außenbereich / Indoors and outdoors
Videonorm / Video norm
PAL / NTSC
Wärmebild / Thermal Sensor
Uncooled VOx Microbolometer
Aktive Bildelemente / Effective pixel
160(H)x120(V)
Blickwinkel / Angle of view
H: 56°, V: 44°
Thermal Sensitivity (NETD)
<50mK@f/1.1
Spectral Range
7~14µm
Echt-Bildsensor / Image sensor
1/2.8” 2 Megapixel CMOS
Aktive Bildelemente / Effective pixel
1920(H) x 1080(V)
Max. Auflösung / Resolution
1080P(1920x1080)/1.3M(1280× 960)/720P(1280×
720)/D1(704× 576/704× 480)/CIF(352× 288/352×
240)
Bildrate / Frame rate (PAL)
2MP(1 ~ 25/30fps)
Signal/Rauschabstand / SN ratio
> 50 dB
Blickwinkel / Angle of view
H: 74.8° , V: 44.7°
Lichtempfindlichkeit / Illumination
0.01 Lux, F1.4
Rauschunterdrückung / Noise reduction
3D NR
Weißabgleich / White balance
AWB
WDR (Wide Dynamic Range)
BLC / HLC / WDR
Technische Daten / technical data
Alarm Eingang/Ausgang / Alarm in/out
2/1
Audio Eingang/Ausgang / Audio in/out
1/1
Videoausgang / Video output
RJ-45
Speicherkarte / Memory slot
Micro SD, max. 128GB
Schutzart / Classification
IP66
OSD-Menü / OSD menu
Mehrere Sprachen / Multi-language
IR-Scheinwerfer / IR LEDs
Max. 35m Reichweite* / Max. 35m range*
Betriebsspannung / Voltage
12 V DC ±10%, PoE
Leistungsaufnahme / Power consumption
Max. 12 Watt (IR on)
Betriebstemperatur /
Operating temperature
-30° bis / to +50° C
Lagertemperatur / Storage temperature
0° bis / to +50° C
Abmessungen / Dimensions
238.6mm × 90.4mm× 90.4mm
Gewicht / Weight
ca. 1 kg
Gehäusefarbe / Housing color
Weiß / White
Zertifizierung / Certification
CE
Empfohlenes Netzteil /
Recommended power adapter
VACDC-12V-1A, SNPS-12D2
* Hinweis: Die Reichweite des IR-Strahlers ist stark abhängig von Einsatzort und von der
Umgebung. Stark absorbierende Flächen, wie z.B. dunkle raue Strukturen (Boden, Rasen,
Asphalt) können zu einer deutlichen Verringerung der maximalen Reichweite führen.
Irrtum und technische Änderungen vorbehalten.
* Note: The range of the built-in IR-LEDs strongly depend on the location and the
surroundings. Strongly absorbent surfaces, e.g. dark, rough structures (floor, lawn or asphalt)
may lead to a considerable reduction of the maximum range.
Subject to technical changes without notice. Errors excepted.

SWC-230RBIF
6
Inbetriebnahme
Installieren Sie die Kamera am
gewünschten Ort.
Schließen Sie die Kamera an die
Betriebsspannung / PoE an.
Installieren Sie den auf der CD
mitgelieferten IP-Finder.
Default IP: 192.168.1.108
Standard Login ab Werk:
Benutzername: admin
Passwort: admin
Es wird dringend empfohlen, nach Starten
der Kamera den Benutzernamen und das
Passwort zu ändern unter:
Einstellungen ► System ► Konto
Klicken Sie auf das Stift-Symbol und
ändern Sie den Benutzernamen und das
Passwort.
Getting started
Install the camera in the desired
location.
Connect the camera to power / PoE.
Install the IP-Finder which is included on
the supplied CD.
Default IP: 192.168.1.108
Default login:
User account: admin
Password: admin
It is highly recommended to change the
user name and password. Make these
changes here:
Setting ►System ►Account
Click on the pencil symbol and change
the user name and password.
Ausführliches Benutzerhandbuch:
Diese Kurzanleitung dient dazu, das Gerät
einfach und unkompliziert in Betrieb zu
nehmen. Eine ausführliche Beschreibungen
der einzelnen Funktionen finden Sie im
Benutzerhandbuch, das Sie auf unserer
Webseite als pdf-Datei herunterladen
können.
Alternativ können Sie für einen schnellen
Zugriff auf das Handbuch diesen QR-Code
einlesen, um das Handbuch direkt auf Ihr
Smartphone oder Tablet zu erhalten.
Detailed user manual:
The purpose of this quick installation guide
is to start the device in an easy and
convenient way. Further detailed
explanations and descriptions of the various
functions are available in the user manual
which you can download as pdf file from our
website.
Alternatively, for quick access to the user
manual, you can scan the below QR-code to
view the user manual on your smartphone
or tablet.

SWC-230RBIF
7
Beschreibung der Kamera-Konfigurationen
1. LIVE
Stream
Protokoll
Manuelle Aufnahme
Schnappschuss
2. WIEDERGABE
Aufnahmen
Suche
Daten Download
Kalender
3. EINSTELLUNGEN
Kamera
Netzwerk
Ereignis
Speicherung
System
Information
4. ALARM
Alarm Liste
Alarm Ton
6. LOGOUT
Description of camera configurations
1. LIVE
Stream
Protocol
Manual recording
Snapshot
2. PLAYBACK
Recordings
Search
File download
Date
3. SETTINGS
Camera
Network
Event
Storage
System
Information
4. ALARM
Alarm list
Alarm sound
6. LOGOUT

SWC-230RBIF
8
Allgemeine Sicherheitshinweise
Vor Inbetriebnahme des Gerätes sollte dieses Handbuch sorgfältig gelesen und als Nachschlagewerk
verwahrt werden.
Vor jeder Reinigung muss das Gerät ausgeschaltet und von der Betriebsspannung getrennt werden.
Benutzen Sie für die Reinigung ein feuchtes Tuch.
Benutzen Sie keine scharfen Reinigungsmittel oder Sprühdosen. Das Typenschild darf nicht ersetzt werden.
Benutzen Sie keine Zusatzgeräte, die nicht vom Hersteller des Gerätes empfohlen wurden. Diese können die
Funktionalität des Gerätes beeinflussen und schlimmstenfalls Verletzungen und einen elektrischen Schlag
herbeiführen oder sogar Feuer auslösen.
Betreiben Sie das Gerät niemals in der Nähe von Wasser oder anderen Flüssigkeiten.
Das Gerät sollte an einem sicheren Ort und auf fester Unterlage gemäß den Angaben des Herstellers
installiert werden. Schweres Gerät sollte mit großer Sorgfalt transportiert werden. Schnelle Halts,
übermäßige Krafteinwirkungen und unebener Boden können die Ursache sein, dass das Gerät zu Boden fällt
und schweren Schaden an Personen und anderen Objekten verursacht.
Eventuell am Gerät befindliche Öffnungen dienen der Entlüftung und schützen das Gerät vor Überhitzung.
Diese Öffnungen dürfen niemals zugedeckt oder zugestellt werden. Sorgen Sie dafür, dass das Gerät nicht
überhitzt wird.
Verwenden Sie nur die empfohlene Betriebsspannungsversorgung. Wenn Sie nicht sicher sind, ob die am
Installationsort vorhandene Stromversorgung verwendet werden kann, fragen Sie Ihren Händler.
Ein Gerät, das von einer polarisierten Stromversorgung versorgt wird, hat meistens als
Sicherheitsvorkehrung einen Netzanschlussstecker mit unterschiedlichen Klinken, welche nur auf eine Art
und Weise mit der Netzsteckdose verbunden werden können. Versuchen Sie niemals, diese
Sicherheitsvorkehrung eines polarisierten Steckers außer Betrieb zu setzen.
Wenn das Gerät eine Stromversorgung mit Erdungsanschluss erfordert, dann sollte es auch nur an eine
entsprechende Netzsteckdose mit Erdungsanschluss angeschlossen werden. Steht eine solche
Schukosteckdose nicht zur Verfügung, dann sollte sie von einem Elektriker installiert werden.
Anschlusskabel sollten so verlegt werden, dass man nicht darauf treten kann oder dass sie durch herab
fallende Gegenstände beschädigt werden können.
Bei einem Gewitter oder bei längerer Nutzungspause sollte das Gerät immer von der Betriebsspannung
getrennt werden. Lösen Sie auch andere Kabelverbindungen. Auf diese Weise schützen Sie das Gerät vor
Blitzschäden oder Stromstößen.
Setzen Sie Netzsteckdose und Netzkabel niemals einer Überbelastung aus. Feuer und elektrische Schläge
können die Folge sein.
Stecken Sie niemals Gegenstände durch die Öffnungen des Geräts. Sie können Spannungs- führende Teile
berühren und einen elektrischen Schlag erhalten.
Vergießen Sie auch niemals Flüssigkeiten über das Gerät.
Bei Betriebsstörungen oder einem vollständigen Betriebsausfall schalten Sie das Gerät aus und trennen es
von der Versorgungsspannung. Versuchen Sie niemals, selbst Wartungs- oder Reparaturarbeiten bei
geöffnetem Gehäuse durchzuführen, da Sie sich gefährlichen Spannungen aussetzen. Überlassen Sie
Wartungs- oder Reparaturarbeiten ausschließlich qualifizierten Fachwerkstätten.
Als Ersatzteile dürfen nur Teile verwendet werden, die vom Hersteller zugelassen wurden oder solche, die
identische Leistungsdaten aufweisen. Nicht genehmigte Ersatzteile können zu Schäden an Personen
(elektrischer Schlag) und Gerät (Feuer) führen.
Nach jeder Wartung oder Reparatur des Geräts muss das Gerät auf einwandfreien Betrieb überprüft werden.
Die Installation des Geräts darf nur von qualifiziertem Personal ausgeführt werden und muss den örtlichen
Spezifikationen und Vorschriften entsprechen.
Richten Sie die Kamera nie auf ein Objekt mit hoher Leuchtkraft. Helle vertikale oder horizontale Linien
können auf dem Bildschirm das gesamte Bild überstrahlen. Dieser Nachzieheffekt ist kein Fehler, sondern
eine Eigenart der Halbleiter CCD’s, wenn dieser einer starken Lichtquelle direkt ausgesetzt wird.
Bei Einsatz dieser Kamera an Orten mit stark unterschiedlichen Lichtverhältnissen ist die Blendeneinstellung
anzupassen.
Bitte beachten Sie im Fall der Entsorgung unbrauchbarer Geräte die geltenden gesetzlichen Vorschriften.
Dieses Symbol bedeutet, dass elektrische und elektronische Geräte am Ende ihrer
Nutzungsdauer vom Hausmüll getrennt entsorgt werden müssen. Bitte entsorgen Sie das Gerät
bei Ihrer örtlichen kommunalen Sammelstelle.
Bei Kameras mit einem IR-Scheinwerfer:
Bewahren Sie stets einen Abstand von > 1m, um gesundheitlichen Schäden vorzubeugen.
Schauen Sie nie direkt in den IR-Scheinwerfer hinein, um Augenschäden zu vermeiden.
CE Richtlinien
Vorsicht: Änderungen und Modifizierungen, die nicht ausdrücklich durch die zuständige
Genehmigungsbehörde genehmigt worden sind, können zum Entzug der Genehmigung zum
Betreiben des Gerätes führen. Dieses Gerät entspricht den CE-Richtlinien.

SWC-230RBIF
9
General safety precautions and safety instructions
Safety instructions
Before operating the appliance, please read this manual carefully and retain it for further reference.
Before cleaning the appliance, it has to be switched off and unplugged from the power outlet. Wipe the
appliance with a soft damp cloth.
Do not use harsh cleansers or aerosols for cleaning. The type label may not be replaced.
Do not use attachments unless recommended by the manufacturer as they may affect the functionality of the
appliance and result in the risk of fire, electric shock or injury.
Never install the appliance in areas exposed to water or other liquids.
The appliance has to be installed in a safe and stable location which is able to carry the weight of the
appliance. Quick stops, excessive force, and uneven surfaces may cause the appliance to fall causing
serious injury to persons and damage to objects.
Openings in the appliance, if any, are provided for ventilation to ensure reliable operation of the appliance
and to protect if from overheating. These openings must not be covered or blocked. Please make sure that
the appliance does not overheat.
The appliance should only be operated from the type of power source indicated on the marking label. If you
are not sure of the type of power supplied at the installation location, please contact your local dealer.
An appliance which is powered through a polarized plug (a plug with one blade wider than the other) will fit
into the power outlet only one way. This is a safety feature. If you are unable to insert the plug into the outlet,
try reversing the plug. Do not defeat the safety purpose of the polarized plug.
If the appliance is powered through a grounding-type plug, the plug will only fit into a grounding-type power
outlet. This is a safety feature. If your outlet does not have the grounding plug receptacle, contact your local
electrician.
Route power cords and cables in a manner to protect them from damage by being walked on or pinched by
items places upon or against them.
For protection of the appliance during a lightning storm or when it is left unattended and unused for a longer
period, unplug the appliance from the wall outlet. Disconnect any antennas or cable systems that may be
connected to the appliance. This will prevent damage to the appliance due to lightning or power-line surges.
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
Never insert items into the openings of the appliance. They may touch parts under electric current which may
cause an electric shock.
Never pour any liquids over the appliance.
In case of any operating interruption or a complete operating failure please switch off the appliance and
disconnect it from the wall outlet. Never attempt to service or repair the appliance yourself, as opening or
removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified
service personnel.
When replacement parts are required, be sure that the service technician uses replacements parts specified
by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock or other hazards.
Upon completion of any service or repairs to the appliance, ask the service technician to perform safety
checks to verify that the appliance is in proper operating condition.
The appliance must only be installed by qualified service personnel and has to comply with local
specifications and regulations.
Never point the camera at an object with a high degree of luminance. Bright vertical or horizontal lines can
result in a distortion (outshine) of the entire image on the monitor. This artifact is not an error but a
particularity of semiconductor CCDs when they are directly exposed to a powerful light source.
At the installation site, the camera has to be adjusted to the given light conditions (see OSD).
Please respect the local legal regulations on waste if you need to dispose of discarded appliances.
This symbol means that electrical appliances need to be disposed of properly and not simply with
unsorted household refuse. Please respect local regulations on waste disposal.
For cameras equipped with IR LEDs:
Please make sure to always keep a distance of > 1m to avoid damages to your health. Never look
directly into the IR-LEDs –this may cause eye damages!
CE compliance
Attention: Any changes or modifications to this appliance which have not been explicitly approved of
by the respective regulatory authority, may lead to a prohibition of usage of this appliance.
This appliance complies with the CE guidelines.

SWC-230RBIF
10
GNU GPL Lizenzhinweis
Beachten Sie, dass dieses Produkt u.a. Open Source Software enthält, welche unter der GNU
General Public License (GPL) lizensiert ist. Wir verweisen auf die Lizenzbestimmungen der GPL, um
eine GPL-konforme Verwendung der Programme sicherzustellen.
Der ausgedruckte Lizenztext der GPL V2 liegt diesem Produkt bei.
Der Lizenztext der GPL kann auch von der Homepage unter
www.santec-video.com/Download/GNU_GPL/GNU_GPL_V2.pdf
heruntergeladen werden.
Sie und jeder Dritte erhalten auf Anfrage den vollständigen und maschinenlesbaren Open Source
Quellcode der unter der GPLv2 lizensierten Software. Der Quellcode kann entweder als kostenfreie
Download-Link oder alternativ auf einem üblichen Datenträger (zu Selbstkosten) zur Verfügung
gestellt werden. Dieses Angebot ist gültig für einen Zeitraum von drei Jahren ab dem Zeitpunkt, zu
dem Sie die Software heruntergeladen haben bzw. ab dem Zeitpunkt, zu dem wir das Produkt
versendet haben.
Bitte richten Sie Ihre entsprechende Anfrage an:
SANTEC BW AG Tel: [phone]
An der Strusbek 31 Fax: [phone]
22926 Ahrensburg E-Mail: [email protected]z
Deutschland
Bitte beachten Sie, dass wir keinen Support oder Garantie für die Fehlerfreiheit des Quellcodes geben
können. Der Quellcode stellt lediglich einen Teil der Gesamtsoftware dar.
-------------------------------------------------------------------------------
GNU GPL License note
Certain open source components are licensed pursuant to GNU General Public License. This
establishes that the customers have the right to acquire, modify and redistribute the source code of
said software in accordance with the terms of the GNU General Public License or Lesser General
Public License.
A printed copy of the license text GPL V2 is included in this product shipment.
The license text can also be downloaded from our homepage at
www.santec-video.com/Download/GNU_GPL/GNU_GPL_V2.pdf
You as well as any other third party may request to have access to the complete and machine-
readable open source code for the GPLv2 licensed software. The source code can be provided as
free-of-charge download link or, alternatively, on a common data storage device (at cost price). This
offer is valid for up to three years after you downloaded the software or after the product has been
shipped to you.
Please send your request to the following address:
SANTEC BW AG Phone: [phone]
An der Strusbek 31 Fax: [phone]
22926 Ahrensburg E-mail: [email protected]z
Germany
We can’t give support or guarantee for squeaky-cleanness of source codes. The source codes are
only a part of whole software.

SWC-230RBIF
11
GNU General Public License
Version 2, June 1991
This page mirrors the text from http://www.gnu.org/licenses/gpl-2.0.html.
Copyright © 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies of this
license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By
contrast, the GNU General Public License is intended to guarantee your freedom to share and change
free software—to make sure the software is free for all its users. This General Public License applies
to most of the Free Software Foundation's software and to any other program whose authors commit
to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General
Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses
are designed to make sure that you have the freedom to distribute copies of free software (and charge
for this service if you wish), that you receive source code or can get it if you want it, that you can
change the software or use pieces of it in new free programs; and that you know you can do these
things. To protect your rights, we need to make restrictions that forbid anyone to deny you these
rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for
you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of
such a program, whether gratis or for a fee, you must give the recipients all the rights that you
have. You must make sure that they, too, receive or can get the source code. And you must show
them these terms so they know their rights. We protect your rights with two steps:
(1) copyright the software, and (2) offer you this license which gives you legal permission to copy,
distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that
there is no warranty for this free software. If the software is modified by someone else and passed on,
we want its recipients to know that what they have is not the original, so that any problems introduced
by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger
that redistributors of a free program will individually obtain patent licenses, in effect making the
program proprietary. To prevent this, we have made it clear that any patent must be licensed for
everyone's free use or not licensed at all. The precise terms and conditions for copying, distribution
and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright
holder saying it may be distributed under the terms of this General Public License. The “Program”,
below, refers to any such program or work, and a “work based on the Program” means either the
Program or any derivative work under copyright law: that is to say, a work containing the Program or a
portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter,
translation is included without limitation in the term “modification”.) Each licensee is addressed as
“you”.
Activities other than copying, distribution and modification are not covered by this License; they are
outside its scope. The act of running the Program is not restricted, and the output from the Program is
covered only if its contents constitute a work based on the Program (independent of having been
made by running the Program). Whether that is true depends on what the Program does.

SWC-230RBIF
12
1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any
medium, provided that you conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to
the absence of any warranty; and give any other recipients of the Program a copy of this License
along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based
on the Program, and copy and distribute such modifications or work under the terms of Section 1
above, provided that you also meet all of these conditions:
1. You must cause the modified files to carry prominent notices stating that you changed the files
and the date of any change.
2. You must cause any work that you distribute or publish, that in whole or in part contains or is
derived from the Program or any part thereof, to be licensed as a whole at no charge to all
third parties under the terms of this License.
3. If the modified program normally reads commands interactively when run, you must cause it,
when started running for such interactive use in the most ordinary way, to print or display an
announcement including an appropriate copyright notice and a notice that there is no warranty
(or else, saying that you provide a warranty) and that users may redistribute the program
under these conditions, and telling the user how to view a copy of this License. (Exception: if
the Program itself is interactive but does not normally print such an announcement, your work
based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not
derived from the Program, and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those sections when you distribute them
as separate works. But when you distribute the same sections as part of a whole which is a work
based this License, whose permissions for other licensees extend to the entire whole, and thus to
each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by
you; rather, the intent is to exercise the right to control the distribution of derivative or collective works
based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a
work based on the Program) on a volume of a storage or distribution medium does not bring the other
work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or
executable form under the terms of Sections 1 and 2 above provided that you also do one of the
following:
1. Accompany it with the complete corresponding machine-readable source code, which must
be distributed under the terms of Sections 1 and 2 above on a medium customarily used for
software interchange; or,
2. Accompany it with a written offer, valid for at least three years, to give any third party, for a
charge no more than your cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for software interchange; or,
3. Accompany it with the information you received as to the offer to distribute corresponding
source code. (This alternative is allowed only for noncommercial distribution and only if you
received the program in object code or executable form with such an offer, in accord with
Subsection b above.)

SWC-230RBIF
13
The source code for a work means the preferred form of the work for making modifications to it. For an
executable work, complete source code means all the source code for all modules it contains, plus any
associated interface definition files, plus the scripts used to control compilation and installation of the
executable. However, as a special exception, the source code distributed need not include anything
that is normally distributed (in either source or binary form) with the major components (compiler,
kernel, and so on) of the operating system on which the executable runs, unless that component itself
accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place,
then offering equivalent access to copy the source code from the same place counts as distribution of
the source code, even though third parties are not compelled to copy the source along with the object
code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided
under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is
void, and will automatically terminate your rights under this License. However, parties who have
received copies, or rights, from you under this License will not have their licenses terminated so long
as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else
grants you permission to modify or distribute the Program or its derivative works. These actions are
prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program
(or any work based on the Program), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient
automatically receives a license from the original licensor to copy, distribute or modify the Program
subject to these terms and conditions. You may not impose any further restrictions on the recipients'
exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties
to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason
(not limited to patent issues), conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of
this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License
and any other pertinent obligations, then as a consequence you may not distribute the Program at all.
For example, if a patent license would not permit royalty-free redistribution of the Program by all those
who receive copies directly or indirectly through you, then the only way you could satisfy both it and
this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the
balance of the section is intended to apply and the section as a whole is intended to apply in other
circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims
or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of
the free software distribution system, which is implemented by public license practices. Many people
have made generous contributions to the wide range of software distributed through that system in
reliance on consistent application of that system; it is up to the author/donor to decide if he or she is
willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of
this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder who places the Program under this License may
add an explicit geographical distribution limitation excluding those countries, so that distribution is
permitted only in or among countries not thus excluded. In such case, this License incorporates the
limitation as if written in the body of this License.

SWC-230RBIF
14
9. The Free Software Foundation may publish revised and/or new versions of the General Public
License from time to time. Such new versions will be similar in spirit to the present version, but may
differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of
this License which applies to it and “any later version”, you have the option of following the terms and
conditions either of that version or of any later version published by the Free Software Foundation. If
the Program does not specify a version number of this License, you may choose any version ever
published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution
conditions are different, write to the author to ask for permission. For software which is copyrighted by
the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions
for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of
our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR
THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES
PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO
THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM
PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR
CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL
ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO
LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU
OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER
PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs If you develop a new program, and you want it to
be of the greatest possible use to the public, the best way to achieve this is to make it free software
which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each
source file to most effectively convey the exclusion of warranty; and each file should have at least the
“copyright” line and a pointer to where the full notice is found.
[one line to give the program's name and an
idea of what it does.]
Copyright (C) [yyyy] [name of author]
This program is free software; you can redistribute it and/or modify it under the terms of the GNU
General Public License as published by the Free Software Foundation; either version 2 of the License,
or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;
without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program;
if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-
1301, USA.

SWC-230RBIF
15
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) [year]
[name of author]
Gnomovision comes with ABSOLUTELY NO WARRANTY;
for details type ‘show w’. This is free software, and you are welcome to redistribute it under certain
conditions; type ‘show c’ for details.
The hypothetical commands ‘show w’ and ‘show c’ should show the appropriate parts of the General
Public License. Of course, the commands you use may be called something other than ‘show w’
and ‘show c’; they could even be mouse-clicks or menu items—whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a
“copyright disclaimer” for the program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright
interest in the program ‘Gnomovision’ (which
makes passes at compilers) written by James
Hacker.
[signature of Ty Coon], 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If
your program is a subroutine library, you may consider it more useful to permit linking proprietary
applications with the library. If this is what you want to do, use the GNU Lesser General Public License
instead of this License.
Copyright notice above.
51 Franklin Street, Fifth Floor, Boston, MA 02110, USA
Verbatim copying and distribution of this entire article is permitted in
any medium without royalty provided this notice is preserved.

SWC-230RBIF
16
Hinweise zur Geräteentsorgung
Bitte beachten Sie im Fall der Entsorgung
unbrauchbarer Geräte die geltenden
gesetzlichen Vorschriften.
Dieses Symbol bedeutet, dass
elektrische und elektronische
Geräte am Ende ihrer
Nutzungsdauer vom Hausmüll getrennt
entsorgt werden müssen. Bitte entsorgen
Sie das Gerät bei Ihrer örtlichen
kommunalen Sammelstelle.
Impressum
Das Copyright dieser Bedienungsanleitung
liegt ausschließlich bei SANTEC BW AG.
Jegliche Vervielfältigung auch auf
elektronischen Datenträgern bedarf der
schriftlichen Genehmigung der SANTEC
BW AG. Der Nachdruck –auch
auszugsweise –ist verboten.
Irrtum und technische Änderungen
vorbehalten.
SANTEC ist ein eingetragenes
Warenzeichen der SANTEC BW AG. Übrige
evtl. genannte Firmen- und Produktnamen
sind Warenzeichen oder eingetragene
Warenzeichen bzw. Marken der jeweiligen
Inhaber.
Notes on waste disposal
Please respect the local legal regulations on
waste if you need to dispose of
discarded appliances.
This symbol means that electrical
appliances need to be disposed of properly
and not simply with unsorted household
refuse. Please respect local regulations on
waste disposal.
Copyright
All rights reserved. This publication may not
be reproduced, stored in a retrieval system
or transmitted, in any form or by any means
(electronic, mechanical, photocopying,
recording or otherwise), without the written
prior permission of SANTEC BW AG.
No reproduction of any part or excerpts
thereof are permitted.
Errors excepted. Specifications are subject
to change without notice for quality
improvement.
SANTEC is a registered trademark of
SANTEC BW AG. All other companies or
products mentioned in this publication are
trademarks, registered trademarks or
brands of the respective company.
© Copyright: SANTEC BW AG
An der Strusbek 31
22926 Ahrensburg
Germany
www.santec-video.com
