Burr-Brown Corporation DEM-PCM1717 User manual

1
®
DEM-PCM1717
®
© 1996 Burr-Brown Corporation LI-475 Printed in U.S.A. July, 1996
DEM-PCM1717
DEM-PCM1717-1
DEM-DAI1717
EVALUATION FIXTURE
FEATURES
●DEM-PCM1717
Basic evaluation board for the PCM1717
requires an external audio processor for
connection to digital audio source.
●DEM-PCM1717-1
DEM-PCM1717 plus Windows evaluation
software and connector.
●DEM-DAI1717
Evaluation board for the PCM1717 includ-
ing evaluation software and Digital Audio
Interface.
BLOCK DIAGRAMS
EVALUATION SOFTWARE AND CONNECTOR
6 Pin Connector +V
CC
Evaluation Software
Centronics Connector
GND
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: [phone] • Twx: 910-952-1111
Internet: http://www.burr-brown.com/ • FAXLine: [phone] (US/Canada Only) • Cable: BBRCORP • Telex: 066-6491 • FAX: [phone] • Immediate Product Info: [phone]
DEM-DAI1717
SBAU019

2
®
DEM-PCM1717
BLOCK DIAGRAMS (CONT)
PCM1717
GND
Audio Data
LRCK/BCK/DATA
256/384fs
Control Data
ML/MC/MD
Lch Direct Out
Lch Capacitive Out
Rch Direct Out
Rch Capacitive Out
+V
CC
DEM-DAI1717
DEM-PCM1717
Theinformationprovidedhereinisbelievedtobereliable;however,BURR-BROWNassumesnoresponsibilityforinaccuraciesoromissions.BURR-BROWNassumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
withoutnotice.No patent rightsorlicenses to anyofthe circuits describedhereinare implied orgrantedto any thirdparty.BURR-BROWN does notauthorizeor warrant
any BURR-BROWN product for use in life support devices and/or systems.
PCM1717
DAC
–V
S
GND
CS8412
DAI
OPA2604
LPF
+V
S
GND
COAX
OPT
SPDIF
+V
CC
Lch Low Pass Out
Lch Direct Out
Rch Low Pass Out
Rch Direct Out

3
®
DEM-PCM1717
DEM-PCM1717
The DEM-PCM1717 is the basic evaluation fixture for the
PCM1717 ∆Σaudio DAC. This fixture provides an easy way
to connect power, data, and interface signals to the DAC.
Figure 1 shows the block diagram of the DEM-PCM1717.
The user must supply 4 digital audio signals, power, and
mode control signals. The DAC will then provide two
channels of either directly or capacitively coupled analog
outputs.
The PCM1717 can be operated either in a hardware or
software mode. In the software mode either external logic or
a processor is used to program four registers internal to the
PCM1717. (Consult the data sheet for additional informa-
tion).
The hardware mode can be evaluated using this fixture by
use of the on board DIP switches. These switches are
connected to pins on the PCM1717 which force either power
or ground to the pin. In the hardware mode some of the
features of the PCM1717 can be exercised. The selection
between the hardware and software mode is done using the
mode switch on the DEM-1717. Figure 2 shows the switch
settings and the resulting functions attained for the PCM1717.
The switches operate in an active low condition.
FIGURE 1. DEM-PCM1717 Block Diagram.
FIGURE 2. DEM-PCM1717 Switch Settings.
HARDWARE DESCRIPTION
Figure 3 shows the schematic diagram of the DEM-PCM1717
evaluation board.
Figure 4 illustrates the PC board design and component
placement for the DEM-PCM1717 evaluation board. Note
on the parts layout that there are 3 connectors CN1, CN2,
and CN3. CN1 is used to connect the digital audio signals to
the PCM1717. CN2 is used connect the control lines for the
PCM1717 as well as power and ground. CN3 is used to
access the audio output from the PCM1717. The analog
outputs are available as DC-coupled (VOR-D, VOL-D) or
ac-coupled (VOR-C, VOL-C). The DC coupled output is
referred to ground, and the AC- coupled output is referred to
VCC/2, typically 2.5V. There is also a connection for the
output of the zero detect flag. Use of this pin requires a pull-
up resistor, R1. This resistor is labeled R1 on the schematic
and the board and a typical value is 4.7kΩ.
The crystal (U1) is not included.
CN3
CN2
+VCC
GNDRSTB MDMCML
+VCC
R1
VOL • C
VOL • D
VOR • D
VOR • C
ZO
GND
PCM1717E
S1
5
CN1
CLKO
XTI
BCK
LRCK
DIN
GND
4
Mute
On
Mute
Off
Off
48kHz
44.1kHz
32kHz
Off
44.1kHz
DEM-PCM1717
De-Emphasis
48kHz
32kHz
Reset
Off
Reset
On
Hardware
Software
ML MC MD RSTB Mode
On
Off
Low
High

4
®
DEM-PCM1717

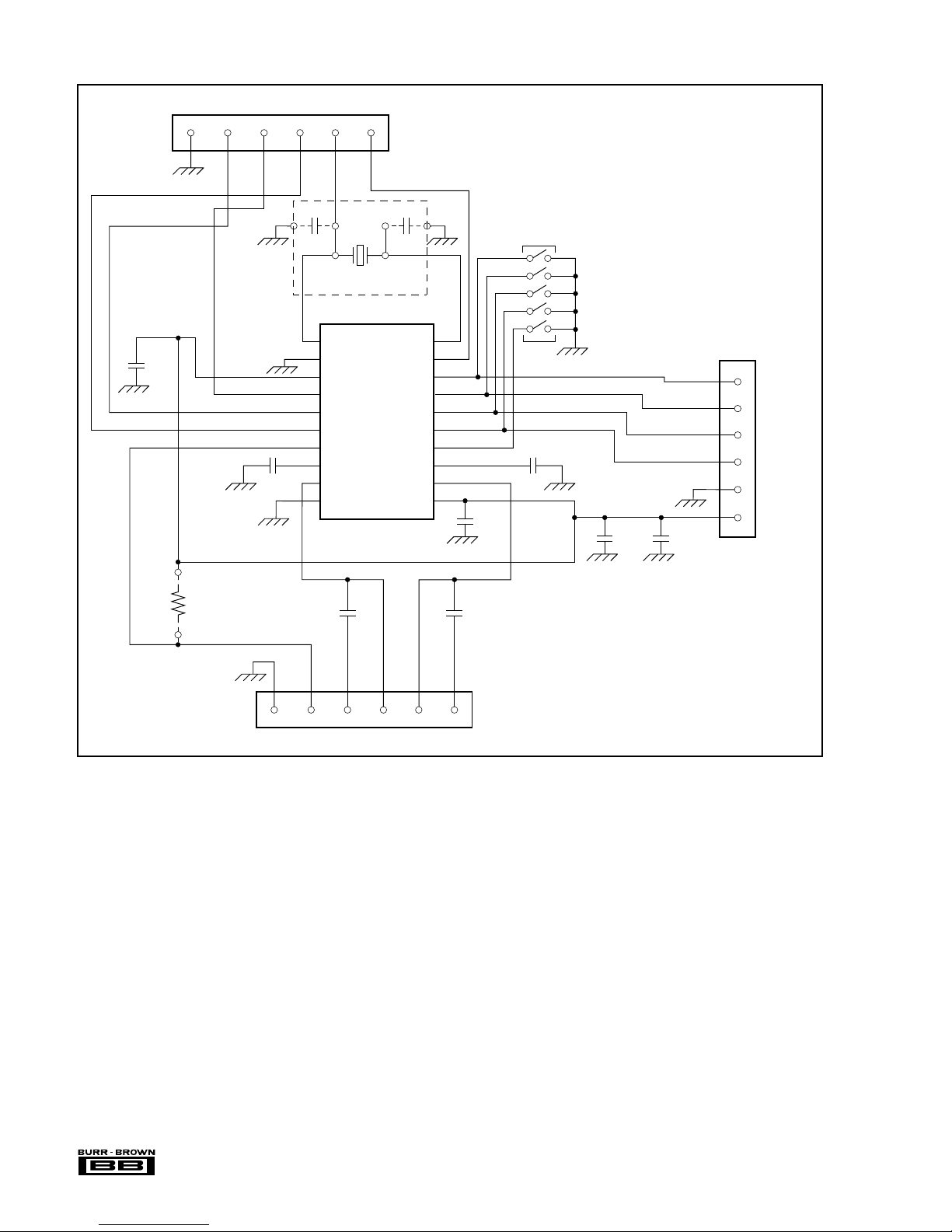

FIGURE 3. DEM-PCM1717 Schematic.
CN2
ML
MD
MC
RSTB
GND
+V
CC
+
S1
ML/MUTE
MC/DM1
MD/DM0
RSTB
MODE
C6
10µF
R
1
+
C3
2.2µF
+
C
2

0.1µF C
1

100µF
PCM1717E
1
2
3
4
5
6
7
8
9
10
XTI
DGND
V
DD

LRCIN
DIN
BACKIN
ZERO
D/C_R
V
OUT
R
AGND
XTO
CLKO
ML/MUTE
MC/DM1
MC/DM0
RSTB
MODE
D/C_L
V
OUT
L
V
CC
20
19
18
17
16
15
14
13
12
11
+C4
2.2µF
+
CN3
VOL-C XTAL, C
S1
, C
S2
, R1: Not Installed.
VOL-D
VOR-D
VOR-C
ZO
GND
C
5

10µF
+C
7

10µF
+
C
8

10µF
CN1
CLKOXTIBCKLRCKDINGND
C
S1
XTAL
U1
C
S2

5
®
DEM-PCM1717

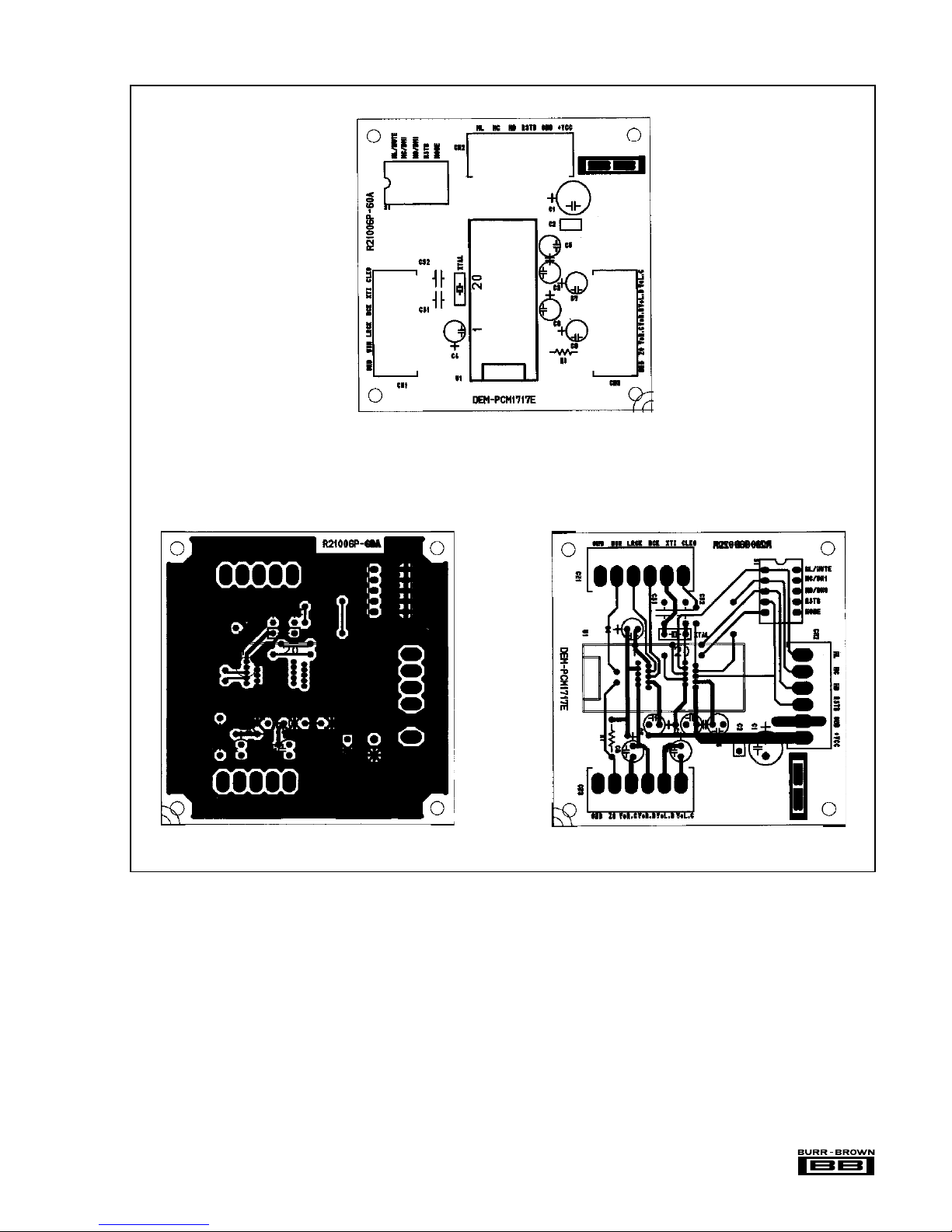

FIGURE 4. DEM-PCM1717 Parts Layout and Trace Design.

6
®
DEM-PCM1717
DEM-PCM1717-1
This demo board kit consist of a DEM-PCM1717 hardware
board, together with an interface cable, for connecting the
DEM-PCM1717 to power and connecting the software con-
trol lines to an IBM-PC parallel port. DEM-PCM1717 also
includes evaluation software, described later under Software
Description. The interface cable connects to the connector
CN2, a source of +5V and ground, and the parallel port of

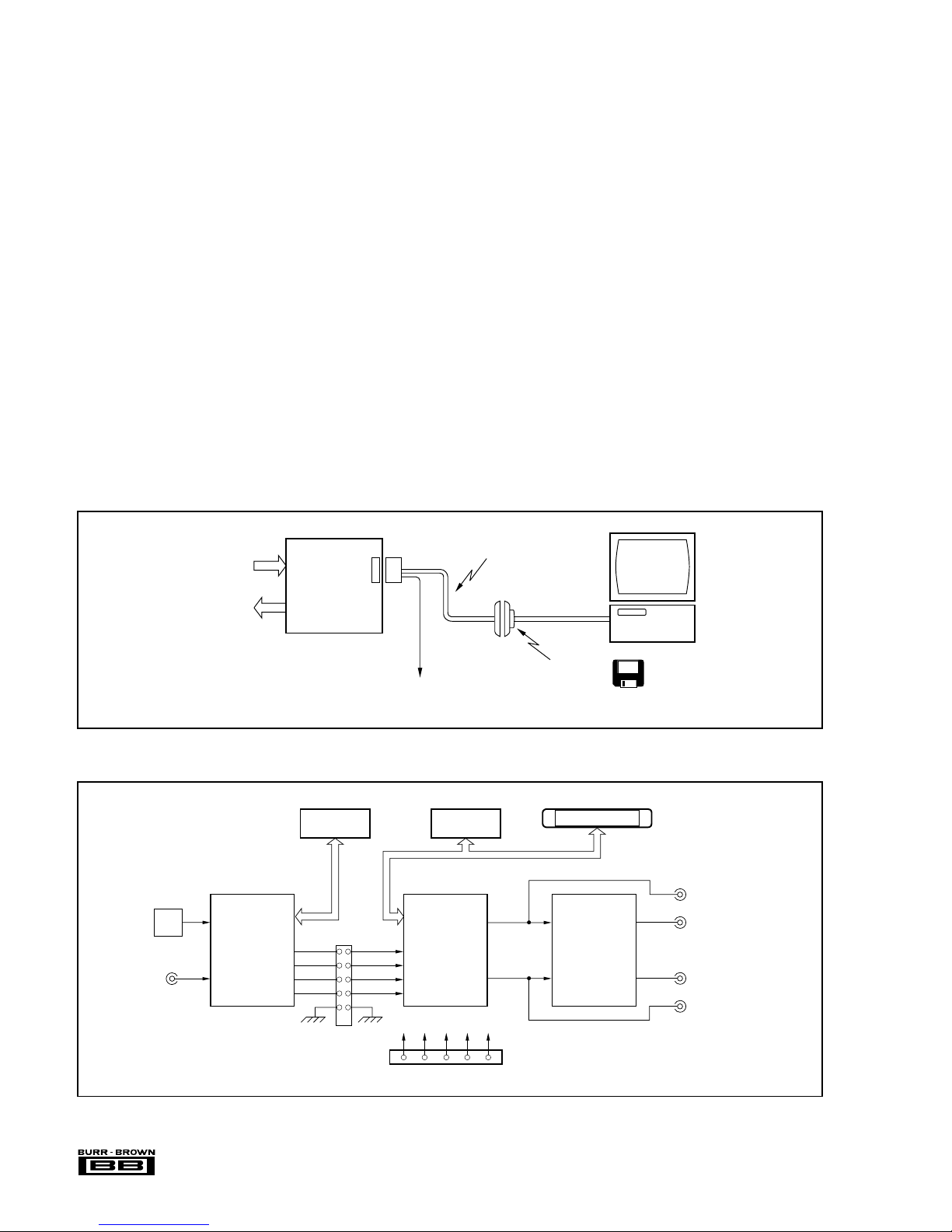

an IBM compatible PC. Figure 5 shows the block diagram
and connection for the DEM-PCM1717-1.
DEM-DAI1717
DEM-DAI1717 is a complete evaluation fixture, including
an SPDIF receiver, PCM1717 and an analog post low-pass
filter DEM-DAI1717 also includes evaluation software.
PCM1717 contains features which can be programmed ex-
ternally. These features include a 256-step digital attenuator,
data interface format, word length, output format, etc. Refer
to the PCM1717 data sheet for a complete description of
these special functions.
PCM1717’s special functions are programmed via a 3-wire
serial interface. This type of control is commonly referred to
as serial or software control. The penalty for using this mode
is that the DAC must be controlled via external microproces-
sor or logic. But since most digital audio systems usually
contain a microprocessor or micro controller, component
count is not always increased.
DEM-DAI1717 utilizes the parallel port of an IBM-compat-
ible PC to implement the 3-wire serial programming inter-
face. The evaluation software runs on Windows©Operating
System.
The DEM-DAI1717 evaluation board consists of three main
sections or functions. The audio interface section consists of
an electrical (RCA jack) or fiber optics connector to the
SPDIF input. The input signal is processed into a standard 3-
wire serial digital audio interface with the SPDIF receiver.
The DAC section consists of the PCM1717E audio DAC
and its associated circuitry. The active filter section uses an
OPA2604 op amp to implement a 2nd-order filter for reduc-
tion of out-of-band noise. Figure 6 shows the block diagram
of the DEM-DAI1717 system board.
FIGURE 6. DEM-DAI1717 Block Diagram.
DAC
PCM1717
DAI-Receiver
CS8412
OPA2604
Low-Pass
FIlter
SPDIF Optical
TORX
174 Lch Filtered Out
Lch Direct Out
V out L
Mode Settings Centronics
S3
V out R
RCA: Connector
Rch Filtered Out
Rch Direct Out
RCA - 75Ω
+V
S
GND–V
S
+V
CC
GND
DAI-Settings
S0, S1, S2
JP 256fs
LRCK
BCK
DATA
FIGURE 5. DEM-PCM1717-1 Interface Connection.
PC
Software
+5V, Ground
MC, MD, ML
Centronics
DEM-PCM1717
LRCK, BCK
DIN, SYSCLK
Left/Right Audio

7
®
DEM-PCM1717
DEM-DAI1717 also allows for operation in the hardware
mode. In this mode, the special functions are limited to de-
emphasis frequency selection, soft mute and reset. These
hardware features are controlled with DIP switches, and no
PC connection is required.
DEM-DAI1717 SYSTEM CONTENTS
• DEM-DAI1717 Evaluation Board
• DEM-DAI1717 Software on a 3.5" high density disc
• DEM-DAI1717 Evaluation Board contains a SPDIF in-
terface, an interface for the IBM-PC, and an external low
pass filter for the DAC itself.
• DEM-DAI1717 Software must be installed under the
Windows version 3.1 or Windows 95.
DEM-DAI1717 SYSTEM REQUIREMENTS
• An IBM compatible PC with a 386/25MHz processor
• Windows 3.1 or newer
• A parallel port with Centronics cable interface.
• A source of digital audio data in the SPDIF format
• Installed and working DEM-PCM1717 Software and
System Board
INSTALLING THE DEM-PCM1717 SOFTWARE
It is recommended to install the DEM-PCM1717 software to
the hard disk drive. It is possible to run the program from the
floppy, but not recommended due to operating speed consid-
erations. It is also recommended to use a desk-top computer.
Certain laptop PCs have non-standard parallel ports which
may not be compatible with DEM-DAI1717.
From the “File Manager” select the “Create Directory” from
the “File Menu” and create a directory called “pcm17dem”
on the hard drive that the software is to be installed on. Copy
all seven files from the floppy disk’s “pcm17dem”
subdirectory.
CREATING AN ICON FOR THE
DEM-1717 PROGRAM
The following procedure should be followed to create an
Icon for starting the DEM-PCM1717 software.
• From the Windows Main Menu select Windows Setup.
• From the Windows Setup select Set Up Applications
selection. From this Menu select the Ask you to specify an
application selection.
• The next window will ask for the Application Path and
Filename to be specified, assuming that drive C: was the
drive the software was copied to then this path and filename
should be typed in as C:/PCM17DEM/PCM17DEM.EXE.
• Also from the previous menu the Program Group that the
icon should be added to can be selected. The default choice
of Applications is a good choice for this selection.
For the rest of this manual it will be assumed that the
software was installed from the A: drive to the C: hard drive
and that an Icon was created for the software under the
Applications program group.
CONFIGURING THE PCM17DEM.INI FILE
The DEM-PCM1717 software controls the software mode of
the PCM1717 by sending messages to the I/O address of the
parallel port of an IBM compatible PC. In order for these
control signals to reach the DEM-DAI1717 evaluation board
the software must be configured for the parallel port to be
used. The contents of the default pcm17dem.ini file is as
follows:
[PCM17DEM]
PCMIFADR = &H3BC
The last three characters of the second line of this program
specify the I/O address will send instructions to the software.
Typically the IBM-PC has three I/O addresses that are used
for parallel or printer communications. The default address
for the DEM-PCM1717 software is 3BC. If the port that is
being used to control the DEM-DAI1717 system board is
different from this default address then the 3BC address
should be changed to that address.
Typical port assignments are as follows:
If the DEM-DAI1717 system board is connected to LPT1 on
an IBM-PC made in the U.S. then the pcm17dem.ini should
be modified to read
3BC International Printer Port address
378 US LPT1 address
278 US LPT2 address
[PCM17DEM]
PCMIFADR = &H378
If the DEM-DAI1717 system board is connected to LPT1 on
an IBM-PC made in the U.S. then the pcm17dem.ini should
be modified to read
[PCM17DEM]
PCMIFADR = &H278
The pcm17dem.ini file can be modified using the windows
program note pad.

8
®
DEM-PCM1717
DEM-DAI1717 SYSTEM BOARD
INFORMATION
GENERAL SPECIFICATIONS
Table I lists the specifications for the DEM-DAI1717 sys-
tem board.
SPDIF Interface Optical via Toslink
RCA with 75Ωimpedance.
System Clock Frequency 256 times sampling frequency, fs
Digital Audio Interface 16 bits, Normal Format, MSB last
18 bits, Normal Format, MSB last
I2S 16 or 18 bits
THD+N 0.004% typical, with internal 20kHz Low
Pass Filter.
0.08% typical, direct out, with external
30kHz Low Pass Filter.
Dynamic Range 94dB typical, (EIAJ method, A-weighted
filter)
SNR 100dB typical, (EIAJ method, A-weighted
filter)
Maximum Output 2Vrms (using internal low pass filter out)
+VCC range +4.5 to +5.5
+ICC +60mA (no external load) to +120mA
±VS±5V ~ ±15V
±IS±15mA (no external load)
TABLE I. DEM-DAI1717 General Specifications.
SPDIF INTERFACE OPTIONS
The DEM-DAI1717 employs a SPDIF receiver chip. This
receiver extracts 4 signals from a two wire signal that is
interfaced to the board. The receiver can supply these four
digital audio signals in up to eight different formats. Of these
formats only three are useful or valid for the PCM1717. The
output format is commanded by the setting switches S0, S1,
and S2. Figure 7 shows the switches and resulting output
configurations from the settings. Only the three configura-
tions shown will produce valid outputs from the PCM1717E.
installed by default. An optional ground connection can be
made between the receiver chip and the PCM1717E. Refer
to Figure 8 for the orientation of these jumpers.
MODE CONTROL SWITCH SETTINGS
The DEM-DAI1717 system board uses 5 switches, labeled
as S3, to select between software and hardware control and
to provide settings for the hardware mode. When the DEM-
DAI1717 is to be used with the system software then it is
necessary for all of the mode switches to be in the high or
off position. Figure 9 shows the functions of all five of these
switches.
FIGURE 7. SPDIF Interface Options.
JUMPER SETTINGS
The DEM-DAI1717 system board has 5 jumpers blocks that
allow the digital outputs from the SPDIF receiver chip to be
connected to the PCM1717. The four jumpers that intercon-
nect the four digital audio signals from the receiver chip are
FIGURE 8. DEM-DAI1717 Jumper Configuration.
JP
CS8412 PCM1717E
256fs
LRCK
BCK
DATA
GND
FIGURE 9. DEM-DAI1717 Mode Control Switch Settings.
PARALLEL PORT CONNECTIONS
Figure 10 shows the connections made between the parallel
port connector and the pins on the PCM1717.
FIGURE 10. DEM-DAI1717 Parallel Port Connections.
12345
19
18
36
PARALLEL PCM1717E
2
3
4
5
19 ~ 30
ML
MC
MD
RSTB
GND
LS0
S0 S1 S2 SPDIF Output Format

H
L
L
L
H
H
H
H
L
16 bits Normal Format MSB First
18 bits Normal Format MSB First
I
2
S 16 or 18 bits

S1 S2
H
Mute
On
Mute
Off
Off
48kHz
44.1kHz
32kHz
Off
44.1kHz
DEM-DAI1717
48kHz
32kHz
Reset
Off
Reset
On
Hardware
Software
ML MC MD RSTB Mode
On
Off
Low
High
De-Emphasis

9
®
DEM-PCM1717
HARDWARE CONNECTIONS FOR THE
DEM-DAI1717
Hardware configuration of the DEM-DAI1717 evaluation
board consists of supplying a source of digital audio data,
connecting the board to an IBM-PC parallel port, connecting
the audio output to a speaker or measurement tool and
supplying a source of power to the system board.
Digital Audio Source
Figure 11 shows the “schematic” drawing of the DEM-
DAI1717 evaluation board. There are a total of four connec-
tors that must be used for the PCM1717 to reproduce digital
audio data. Figure 12 details the parts location and orienta-

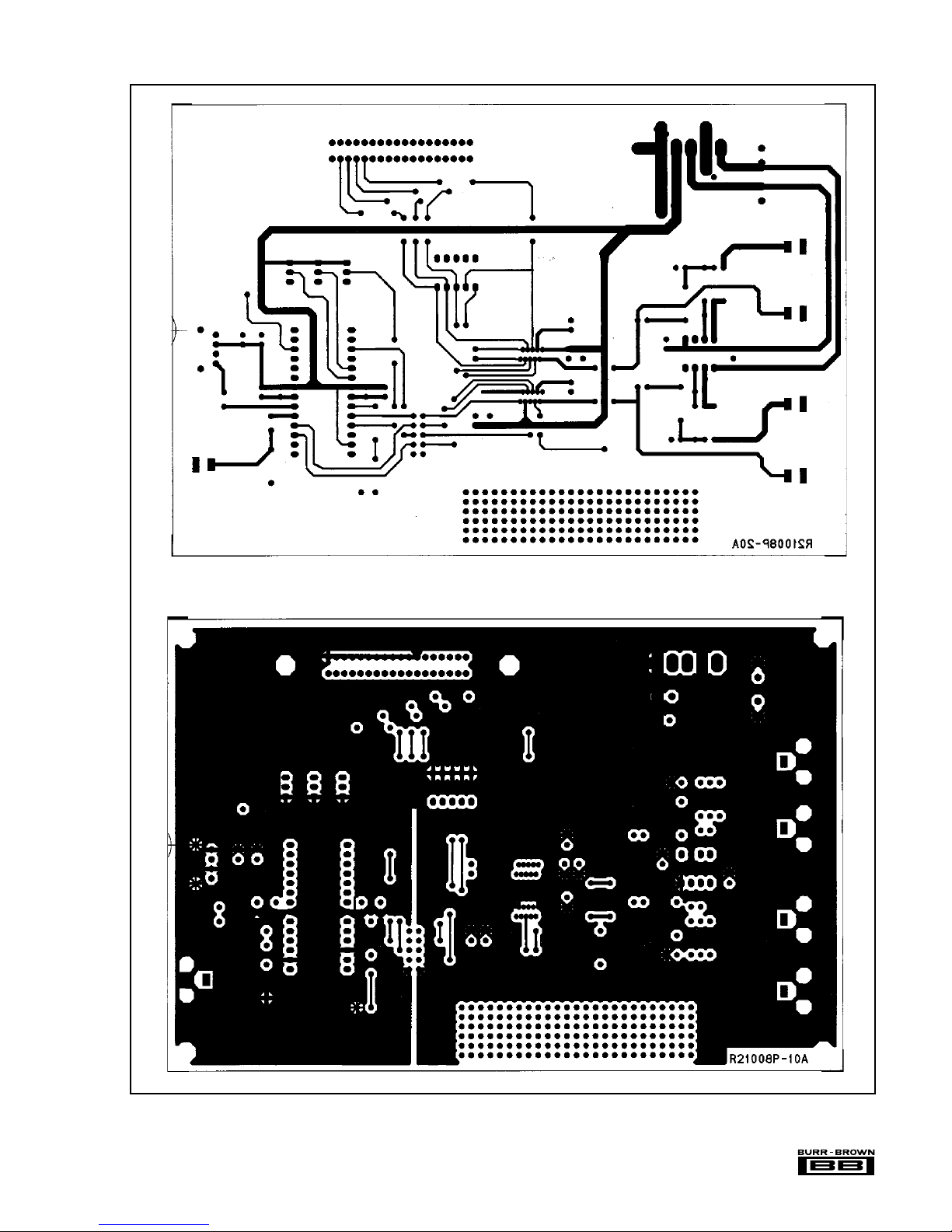

tion for the DEM-DAI1717 evaluation board. The PCB
layer design for the traces and ground planes used in the
DEM-DAI1717 system board are shown in Figure 13.
Digital Audio Input Data
The source of digital audio data is connected via the coax
connector labeled as “CN3” or “COAX.” This port is used
if the SPDIF digital audio data comes from a RCA connec-
tor.
SPDIF data can also be provided to the DEM-DAI1717
system board via fiber optic connection. The “port” that is
used for this form of data is connected to the U4 or OPT
connection. The connection is made using a standard
“Toslink” connector.
Power Connections
A 5 pin connector labeled CN1 is used to connect power to
the DEM-DAI1717. A separate +5V supply is used for the
SPDIF receiver chip and the PCM1717, labeled as +VCC.
The power connections +VSand –VSare used to provide for
the active filter op-amp, OPA2604. This amplifier should
not be run at power supply voltages greater than ±15V. The
remaining pins are used for ground connections. These
grounds are not isolated from each other electrically.
Analog or Audio Connections
The analog outputs of the PCM1717 are brought out directly
through RCA jacks CN6 and CN7 for the left and right
channel respectively. These outputs are referred to 1/2 of the
VCC voltage, i.e. the output swings symmetrically about
2.5V for a 5V supply.
SOFTWARE DESCRIPTION
The PCM1717 demo software is used to control the internal
register settings of the PCM1717 through a set of four
windows. The main menu is brought up by clicking on the
“D17CTRMK” icon in the applications folder.
MAIN MENU
Figure 14 shows the main menu that is brought up when the
“D17CTRMK” icon is selected. This menu has three areas
of interest. The “Execute” option allows the user to either
reset the PCM1717 to its default power-on state using the
Reset command, or allows the user to exit from the PCM1717
software. The execute menu can be opened by either click-
ing on the “Execute” or by using the Alt-E key sequence.
(All of the menus and commands can be activated by using
the mouse and the left button or Alt key sequences). The
Windows submenu (Alt-W) allows the Attenuation (Alt-A),
Function (Alt-F), and Dataform (Alt-D) submenus to be
opened. The function of these menus is explained in the next
section.
The bottom of the PCM1717 Main or Control Menu con-
tains the Hexadecimal value of the current contents of the
PCM1717 four control or Mode Registers. For a more
detailed description of these registers consult the product
data sheet for the PCM1717E audio digital-to-analog con-
verter.
A Pass/Hold selection is available for all three of these
control menus. When the Menu is in the Pass mode then
commands are sent to the PCM1717 as various selection or
options are selected immediately. When the Menu is in the
Hold mode the changes are held in the software for the
DEM-PCM1717 until the menu is changed to the Pass
Mode.
ATTENUATE MENU
The PCM1717 allows the user to command 255 steps of
noiseless attenuation into each channel. The left and right
channels can either be controlled together, i.e. equal attenu-
ation of both channels, or independent control over each
channel. Figure 15 shows the attenuation menu.
To change the attenuation or volume of a channel use the
mouse pointer over the bar in the attenuation level menu for
the desired channel, press and hold the left button and drag
the bar to the desired level. Pressing the Hold selection in the
Control Data section of the Attenuation Control Menu will
change the Hold section to Pass, and the necessary register
settings for the desired attenuation level will be passed to the
PCM1717. The level or volume will change. (Note that if the
Left and Right channels have been chosen to be equal from
the Format Control menu, then only the Left channel Attenu-
ation Level will be selectable.)
FORMAT CONTROL MENU
This menu allows the user to program the data input format,
resolution, Left-Right clock polarity, output format, and
Attenuation formats for the PCM1717. This menu is com-

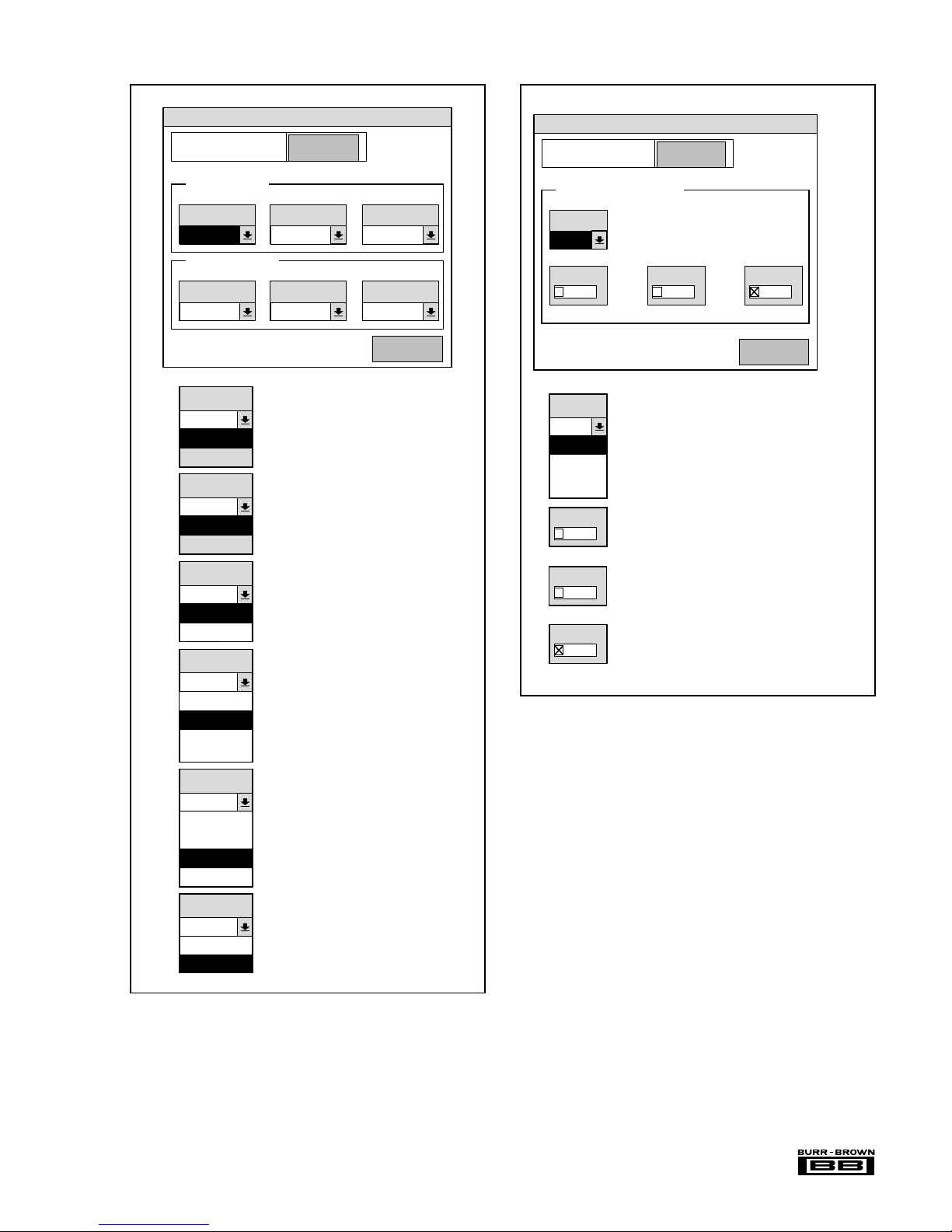

posed of six submenus explained below. Figure 16 shows
the default menu for this section.
FORMAT
This menu allows the PCM1717 to be programmed for
either the standard or I2S format for incoming data to the
DAC. The standard format is used when the incoming data
is MSB aligned to the Left-Right clock or LRCK. The I2S
format is used when the incoming data conforms the Inter-
IC sound format. Refer to the product data sheet of the

10
®
DEM-PCM1717
PCM1717E for a more detailed explanation of these for-
mats. Selecting either of these formats is done by clicking on
the Format window and selecting the desired format.
WIDTH
This menu controls the number of bits that the PCM1717
uses for digital audio conversion. The choices are either 16
or 18 bits.
LRCK
This menu selection allows the user to specify the polarity of
the incoming digital audio data when respect to the left/right
or sample clock. The choices allow the user to specify
whether the low portion of the left/right clock is coincident
with either the left or right channel data.
L-OUT AND R-OUT
These two menu selections allow the user to control the
analog channels and formats through which the recovered
digital data will be sent. The choices allow for either channel
to be swapped or sent to the other channel allow the two
channels to be summed together and the magnitude to be
divided by two, mono, or allows either channel to be muted.
ATT CTRL
This menu controls whether the attenuation controls affect
each channel individually or whether both channels are of
equal volume.
PCM1717 FUNCTION CONTROL
This menu controls the De-emphasis, Infinite Zero Detec-
tion, and Operational Enable features of the PCM1717, as
shown in Figure 18. These features are controlled by three
submenus detailed below.
DeEMPH
This menu allows the selection of three de-emphasis fre-
quencies or allows the de-emphasis to be disabled.
IZD
This selection allows the user to turn on or off the infinite
zero detection feature. Because this feature is either on or off
there is no menu for its selection. Clicking on the box places
an x in its selection and turns off the feature.
OPE
This selection allows the user to enable the operation of the
PCM1717 this is equivalent to turning the PCM1717 on or
off. As with the previous feature, this feature does not have
a menu and the PCM1717 is enabled by clicking on the box
and turning the PCM1717 on.

11
®
DEM-PCM1717

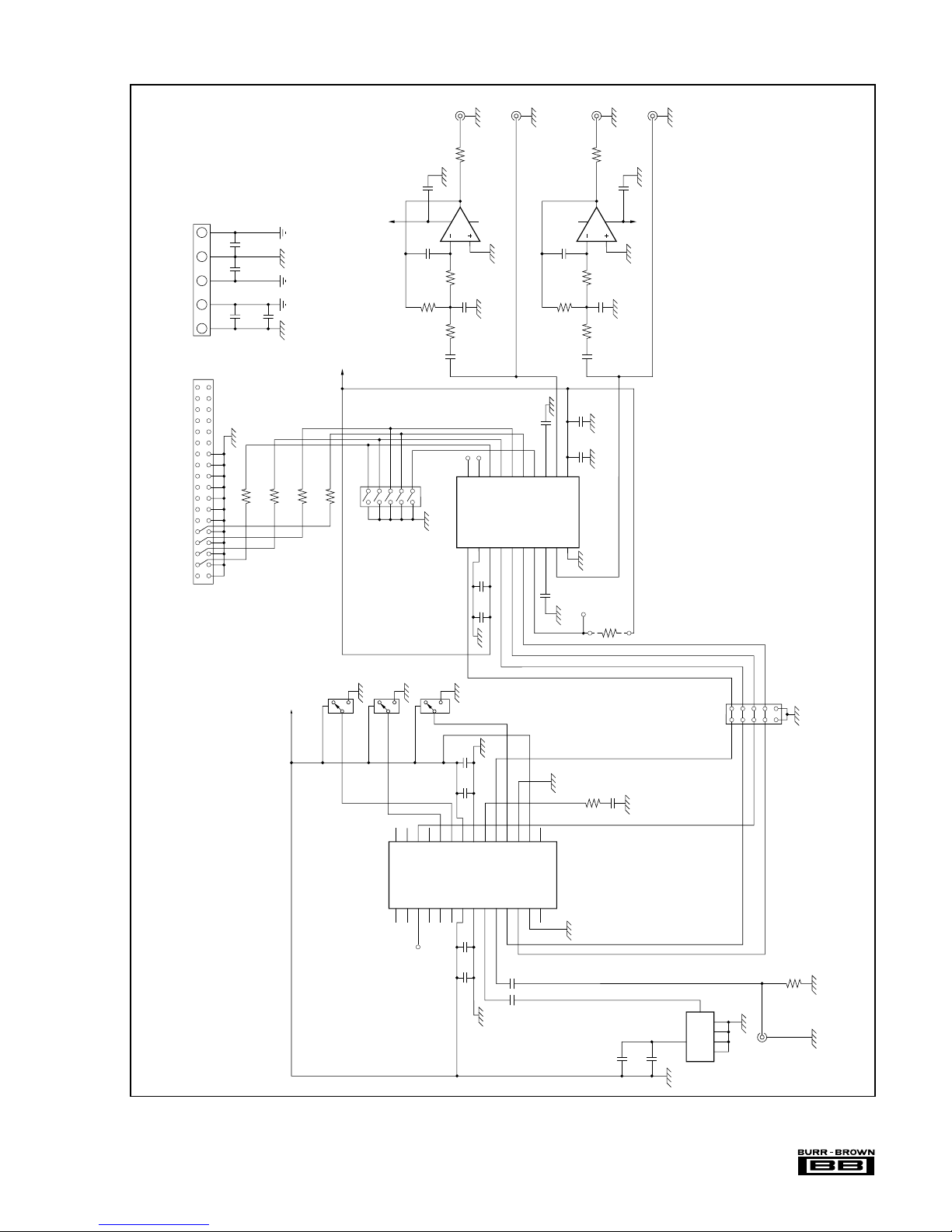

FIGURE 11. DEM-DAI1717 Schematic.
+

C
21

10µF
R
15
+
C
17

0.1µF C
16

10µF
PCM1717E
1 2 3 4 5 6 7 8 9
10
XTI DGND V
DD

LRCIN DIN BACKIN ZERO D/C_R V
OUT
R
AGND
XTO
CLKO
ML/MUT
MC/DM2 MC/DM1
RSTB
MODE
D/C_L
V
OUT
L
V
CC
20 19 18 17 16 15 14 13 12 11
+V
CC
S3 ML
MC MD RSTB MODE
+
+C
19

10µF C
18

0.1µF
C
20

10µF
+
GND +V
CC
–V
S
GND +V
S
C
2

0.1µF
CN1
CN2 18
36
1
19
1 2 3 4 5 6 7 8 9
10 11 12 13 14
28 27 26 25 24 23 22 21 20 19 18 17 16 15
CC/FO V
D
DGND PXP FXN FSYNC SCK CS12/FCK
V
A
AGND
MO
M1
FRT
MCK
M2 M3
SEL
SDATA
+V
CC
U1
CS8412CP
R
11

100Ω
R
12

100Ω
R
13

100Ω
R
14

100Ω
S0
S1 S2
C
1

100µF
+
C
3

100µF
+
C
4

100µF
JP XTI
LRCK DATA BCK GND
+C
5

10µF
C
9

10µF
+
C
12

0.47µF
C
11

0.047µF
C
6

0.1µF
+
C
7

0.1µF C
8

10µF
R
2

1kΩ
C
13

0.047µF
R
1

75Ω
COAX CN3
C
10

0.1µF
TORX174
U4
3
2456
1
OPT
R
9

100ΩLch Filtered
Out
CN4
R
7

3.9kΩ
R
3

5.5kΩ
Lch Direct
Out
CN5
R
5

10kΩ
C
24

2700pF
C
26

330pF
+V
S
C
14

0.1µF
1/2U3
OPA2604
C
22

10µF
+
R
10

100ΩRch Filtered
Out
CN4
R
8

3.9kΩ
R
4

5.6kΩ
Rch Direct
Out
CN5
R
6

10kΩ
C
25

2700pF
C
27

330pF
–V
S
C
15

0.1µF
1/2U3
OPA2604
C
23

10µF
+

12
®
DEM-PCM1717
FIGURE 12. DEM-DAI1717 Parts Layout.

13
®
DEM-PCM1717
FIGURE 13. DEM-DAI1717 PCB Design.

14
®
DEM-PCM1717
FIGURE 15. Demo Software Attenuation Menu.
FIGURE 14. Demo Software Main Menu.
Control Data
Input Format
HOLD
CLOSE
Format
Standard
Width LRCK
Low = R
Output Format
L-Out
L-In
R-Out
R-In
Att Ctrl
L < > R
16 bit
Control Data
Functional Condition
HOLD
CLOSE
DeEmph
OFF
Mute
OFF IZD OFF OPE ON
Control Data
Attenuate Level
HOLD
CLOSE
Left
Right
step 255 0.00 dB
step 255 0.00 dB
PCM1717 Control
Mode Register
Execute (E)
Register 0 01FFH
Register 1 01FFH
Register 2 0000H
Register 3 0090H
Window (W)
Execute (E)
Reset (R)
Exit (X)
Window (W)
Attenuate (A)
Function (F)
Dataform (D)
Control Data
PCM1717 Attenuate Control
Attenuate Level
HOLD
CLOSE
Left
Right
step 255 0.00 dB
step 255 0.00 dB
Attenuate Level
Left
Right
step 81 –10.00 dB
step 81 –10.00 dB

15
®
DEM-PCM1717
FIGURE 16. Demo Software Format Menu.
FIGURE 17. Demo Software Function Menu.
Control Data
PCM1717 Attenuate Control
Functional Condition
HOLD
CLOSE
DeEmph
OFF
DeEmph De-Emphasis Control
OFF
Mute
OFF IZD OFF OPE ON
Mute
OFF
IZD
OFF
OPE
Left and Right DACs Soft Mute
Internal Zero Detection Circuit Control
Left and Right DACs Operation On/Off Control
ON
OFF
48.0kHz
44.1kHz
32.0kHz
Control Data
PCM1717 Format Control
Input Format
HOLD
CLOSE
Format
Standard
Width
16 bit
LRCK
Low = R
Output Format
L-Out
L-In
R-Out
R-In
Att Ctrl
L < > R
Format Audio Data Format Select
Standard
Standard
IIS
Width Input Audio Data Bit Select
16 bit
16 bit
18 bit
LRCK Polarity of LRCKIN (pin 4) Select
Low = R
Low = R
Low = L
L-Out Analog Output Mode Select
(Left-Channel)
L-In
L-In
R-Out Analog Output Mode Select
(Right-Channel)
R-In
R-In
Att Ctrl Attenuator Control
L == R
L = R
Mute
R-In
(L+R)/2
Mute
L-In
(L+R)/2
L <> R

IMPORTANT NOTICE
TexasInstrumentsandits subsidiaries(TI)reserve the righttomake changestotheirproducts ortodiscontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those
pertaining to warranty, patent infringement, and limitation of liability.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TIdeems necessarytosupportthiswarranty.Specifictesting ofallparameters ofeachdeviceisnot necessarily
performed, except those mandated by government requirements.
Customers are responsible for their applications using TI components.
In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.
TIassumesno liability forapplicationsassistanceor customerproductdesign.TI does notwarrantorrepresent
thatanylicense,eitherexpressorimplied,isgrantedunderanypatentright,copyright,mask workright,orother
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.
Copyright 2000, Texas Instruments Incorporated
