Burris SIGNATURE HD SPOTTING SCOPE User manual

2 | Signature HD Spotting Scope
2
Congratulations on purchasing a Burris
Signature HD Spotting Scope. With
its 20-60x magnification, you will take
your glassing to a higher level.
The HD lenses and apochromatic lens
system give you the advantage in the
field by eliminating color fringing and
delivering edge-to-edge resolution at any
magnification.

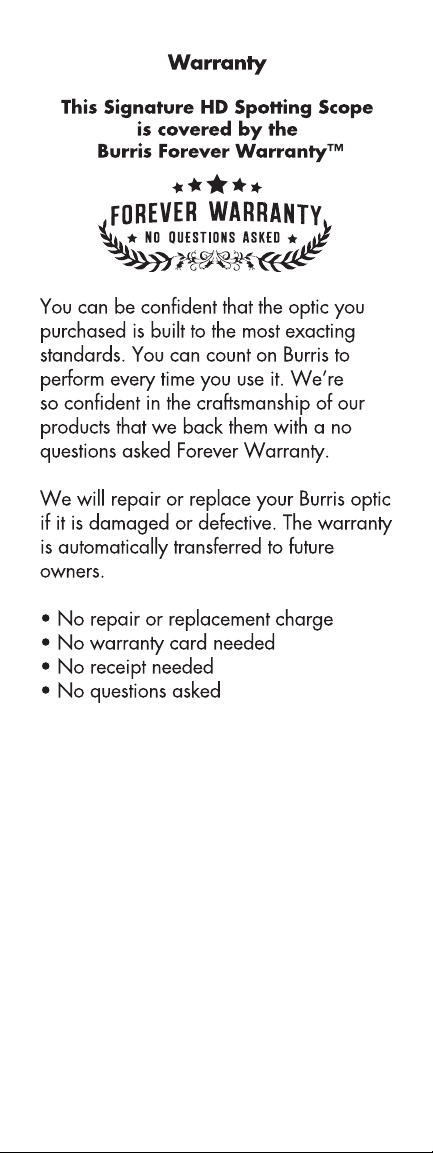

Backed by the legendary Burris Forever
Warranty, you will enjoy the following
features of your Signature HD spotting
scope:
•Built-in sun shade for reduced glare
and protection from rain and snow
•The new centrally located focus ring
allows for rapid focus and a more
streamlined design
•Adjustable eyecup to accommodate
eyeglasses
•Lightweight, durable design with a die-
cast magnesium body that is armored
for even greater protection in the field.
•Angled eyepiece and rotating tripod
mount make it easy to use whether
you’re standing or prone.
•ARCA-Swiss compatible tripod mount
•M-LOK attachment points for
accessories such as Red Dots or Range
Finders.

3 | Signature HD Spotting Scope
SIGNATURE HD
SPOTTING SCOPE
PRODUCT MAP
Eyepiece with Twist-up Eyecup
Magnification Adjustment Ring
M-LOK Acessory Rails
ARCA-SWISS
1/4” - 20
Tripod Mount
Fine Focus
Adjustment
Retractable
Sunshade
Objective
Lense
20-60x85mm

4 | Signature HD Spotting Scope
Setting Up Your
Spotting Scope For Use
To attach the eyepiece to the scope,
remove the lens covers from the
eyepiece and the spotting scope. Align
the magnification
reference mark ( )
on the eyepiece
with the red dot on
the bayonet fitting
on the scope. Insert
the eyepiece and
turn it clockwise
until you hear a
click.
To detach the
eyepiece, find the
release tab on the
underside of the
eyepiece. Hold
down while turning
counter-clockwise.
To prevent scratches
to the lenses or dust
on the lens surface,
replace both covers.
30X Wide Angle Eyepiece
(Sold Separately)
Burris offers an accessory eyepiece with
a fixed power 30x magnification. Ideal
for tactical and precision shooting, it is
available with either an SCR Mil or SCR
MOA reticle.
SCAN TO VIEW
PRODUCT

5 | Signature HD Spotting Scope
Mounting the Spotting Scope
To a Tripod
For use in the field or at the range, the
Signature HD can be mounted to a tripod
or car window mount. The tripod foot has
an integrated designed to work with any
tripod head or quick-release plate that
uses 1/4” - 20 screw threads.
The tripod foot is also ARCA-SWISS
compatible, eliminating the need to
purchase ARCA-SWISS mounting plates.
Using Your Spotting Scope
The adjustable eyepiece provides a wide
range of magnification from 20x to 60x.
The magnification settings are shown on
the magnification adjustment ring. Turn
the ring and set the desired magnification
using the silver arrow on the eyepiece.
Remember that your field of view is
reduced as magnification is increased.
It might be easier to start with a lower
power and then zoom for greater detail.

6 | Signature HD Spotting Scope
Viewing Tips:
•To increase the magnification, turn
the eyepiece to the left or counter-
clockwise.
•To decrease magnification, turn the
eyepiece to the right or clockwise
•When using eyeglasses or sunglasses,
twist the eyecup down for optimal
viewing.
Focusing Your Spotting Scope
In order to prevent eye fatigue, it is
necessary to adjust the focus as precisely
as possible.
Here are steps for achieving the sharpest
possible image:
•Set the magnification by turning the
magnification adjustment ring
•Slowly turn the focus dial until the
subject is clearly in focus
Extendable sunshade
The integrated sunshade can be used to
block stray light and reduce glare. To use
the sunshade, just slide the hood forward.
This also provides some protection from
rain and snow.
Magnification Adjustment
Fine Focus Adjustment
Extendable Sunshade

7 | Signature HD Spotting Scope
Adjust The Viewing Angle
For greater flexibility, the Signature HD
can be adjusted for more comfortable
viewing. Whether you are standing, sitting
or prone, adjusting viewing angle is quick
and simple by following these steps.
•Loosen the thumbscrew on the mounting
collar by turning to the left or counter-
clockwise
•Rotate spotting scope body to the most
comfortable viewing position.
•Hold the scope body in place and
tighten the thumbscrew by turning to
the right or clockwise.
NEEDS NEW PHOTOS
Thumbscrew

8 | Signature HD Spotting Scope
M-LOK ACCESSORY MOUNT
Remove the rubber covers engraved with
the Burris logo, located on either side
of the scope body, just in front of the
eyepiece to expose the M-LOK slots.
The M-LOK will accept any M-LOK
compatible accessory that fits within the
one slot, including a 3-slot picatinny rail
or the included universal red dot mounting
plate.
Mounting a FastFire
The FastFire makes aiming and target
acquisition much easier. Mount the
FastFire to the included Red Dot mounting
plate using the instructions included with
the FastFire. Center your spotting scope
field of view on a target or known object
and sight your FastFire to the same target
or object. Now you can quickly get on
target using your Red Dot.(FastFire sold
separately)
UNIVERSAL RED DOT
MOUNTING PLATE
FASTFIRE/DOCTER
#6-48 THREAD
#6-32 THREAD
M4 THREAD
RMS | SMS | DELTAPOINT RMR FF | DOCTER | RMSc

9 | Signature HD Spotting Scope
Care & Maintenance
The Signature HD spotting scope is fully
waterproof and fogproof. In the event that
the lenses are subject to dust, dirt or mud,
follow these steps to clean and protect the
lens surface. Failure to remove grit before
final cleaning can damage lens coatings.
Coarse dirt/debris must be removed from
the lens surface. The most convenient
way to clean a lens surface is to use a
Lens Pen. Position the scope so particles
will fall away from the lens, and then use
the Lens Pen or soft brush to gently whisk
away the debris while blowing on the lens
to dislodge the particles. Canned air or
an air compressor will help clear off any
dust particles. For heavy dirt, like dried
mud, use a spray of clean water or lens
cleaning fluid to remove the dirt.
Your Burris spotting scope will provide
reliable performance given reasonable
care and treatment. All moving assemblies
are permanently lubricated. Only
occasional cleaning of the outside of the
scope and the exterior lenses is required.
Never disassemble your spotting scope.
Disassembly by anyone other than our
factory will void the warranty. If you have
any other problems with your spotting
scope, contact Burris Customer Service.
SCAN TO ACCESS OUR
CUSTOMER SERVICE PORTAL

10 | Signature HD Spotting Scope
Item Number 300103
MAGNIFICATION High 60 ± 5%
Low 20 ± 5%
OBJECTIVE DIAMETER 85mm
FINISH Black / Green
FOV
(FT @ 1000 YD)
High 55 ± 3%
Low 110 ± 3%
EYE RELIEF High 18 mm ± 5%
Low 19.7 mm ± 5%
FOCUS Fine Focus
LENGTH
(ZERO DIOPTER) 16.25 in.
WEIGHT 70.4 oz
STORAGE TEMP -5°F to 150°F
OPERATING TEMP 5°F to 140°F
WATERPROOF IPX7
SIGNATURE HD SPOTTING SCOPE
20-60X85mm SPECIFICATIONS

11 | Signature HD Spotting Scope

INSTR-9103
