BUSCH BFSLSAEB9B User manual

Instruction manual
Dishwasher
BFSLSAEB9B - BFSLSAE9W

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
You’ll soon be enjoying your new
BFSLSAEB9B - BFSLSAE9W Dishwasher.
It all begins here, with your instructions. Don’t worry,
there’s nothing too technical coming up. Just
simple, step-by-step guidance to get you up and
running quickly. Sound good? Then let’s get started.
Help and Guidance
We’re here to help you get the most from your BFSLSAEB9B - BFSLSAE9W. Should
you require any guidance, a simple solution can often be found online at:
www.bush-support.com
If you still require further assistance, call one of our experts on 0345 257 7271.

3
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
Contents
Product support
Troubleshooting 33
Help and assistance 36
Declaration of conformance to product
standards 37
Disposal 37
Guarantee 38
7
6
10
Safety information
Safety information
Getting to know your
Dishwasher
Ready? Let’s begin
Accessories 13
Installing your Dishwasher
16
16
17
20
24
25
28
28
Installation requirements
Unpacking
Connections (electrical, water, gas)
Functions
Functions
Using your Dishwasher
First use of BFSLSAEB9B - BFSLSAE9W
Standard and advanced functions/use
Care and Maintenance
Cleaning
Maintenance actions
Technical specifications 29
1
2
3
4
5
6

1
Safety information
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Fire risk
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly

Safety information
Important - Please read these instructions fully before
installing or operating. Keep this manual
for future reference.
Safety information
6
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
1.1 General Safety Warnings
Please check the packaging of your
machine before installation and the outer surface of
the machine once the packaging has been
removed. Do not operate the machine if it appears
damaged or if the packaging has been opened.
•Packaging materials protect your machine
from any damage that might occur during
transportation. The packaging materials are
environmentally friendly as they are
recyclable. Use of recycled material reduces
raw material consumption and decreases
waste production.
•Choose a suitable and safe place to install
your machine.
•Only original spare parts should be used with
the machine.
Unplug the machine before installation.
Your machine must only be installed by an
authorised service agent. Installation by anyone
other than an authorised agent may cause your
warranty to be void.
Check that the indoor electrical fuse system is
connected in line with safety regulations.
All electrical connections must match the
values on the plate.
Ensure the machine does not stand on the
electrical supply cable.
Never use an extension cord or a multiple
socket connection.
The plug should be accessible after the
machine is installed.
After installation, run your machine unloaded for the
first time.
The machine must not be plugged in during
positioning.
Always use the coated plug supplied with your
machine.
If the electrical cable is damaged, it should only
be replaced by a qualified electrician.
1.3 During Use
This machine is for domestic use only; do not use it for
other purposes. Commercial use will void the
guarantee.
Do not stand, sit or place loads on the open
door of the dishwasher.
Only use detergents and rinse aids produced
specifically for dishwashers. Our company is not
responsible for any damage that may occur due to
misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place
any chemical dissolving agents into the machine’s
washing section.
Check the heat-resistance of plastic items before
washing them in the machine.
Only put items in the machine which are
suitable for dishwashing and take care not to overfill the
baskets.
This appliance can be used by children
aged from 8 years and above, and by persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning the use
of the appliance in a safe way and understand
hazards involved. Children should not be allowed to
play with the appliance.
Remove packaging and keep it out of reach
of children.
Keep children away from detergents and
rinse aids.
There may be some residue left in the
machine after washing. Keep children away from
the machine when it is open.
1.2 Installation Warnings

Safety information
Important - Please read these instructions fully before
installing or operating. Keep this manual
for future reference.
Safety information
7
Do not open the door while the machine is in
operation, hot water may spill out. Safety devices
ensure the machine stops if the door is opened.
The machine door should not be left open. It
may cause accidents.
Place knives and other sharp objects in the
cutlery basket in a blade-down position.
For models with the automatic door-opening
system, when the EnergySave option is active, the
door will open at the end of a program. To prevent
damage to your dishwasher, do not attempt to close
the door for one minute after it has opened. For
effective drying, keep the door open for 30 minutes
after a programme has ended. Do not stand in front of
the door after the auto-open signal sounds.
In the case of a malfunction, repair should
only be performed by an authorised service company,
otherwise the warranty will be void.
Before repair work, the machine should be
disconnected from the mains. Do not pull the cable to
unplug the machine. Switch off the water tap.
Operation at a low voltage will cause a
decline in performance levels.
For safety, disconnect the plug once a
program has finished.
To avoid an electric shock, do not unplug the
machine with wet hands.
Pull the plug to disconnect the machine from
the mains, never pull on the cord.
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.

Getting to know your
Dishwasher 2

Getting to know your Dishwasher
10
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Getting to know your Dishwasher
You’ll be up and running in no time
Ready? Let’s begin...
Please read these instructions carefully. They contain
important information which will help you get the best
from your BFSLSAEB9B - BFSLSAE9W and ensure safe and correct
installation and operation.
If you require any further assistance, our technical
experts are happy to help. For full details, refer to
the product support section at the end of these
instructions.

Getting to know your Dishwasher
You’ll be up and running in no time
Getting to know your Dishwasher
11
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.

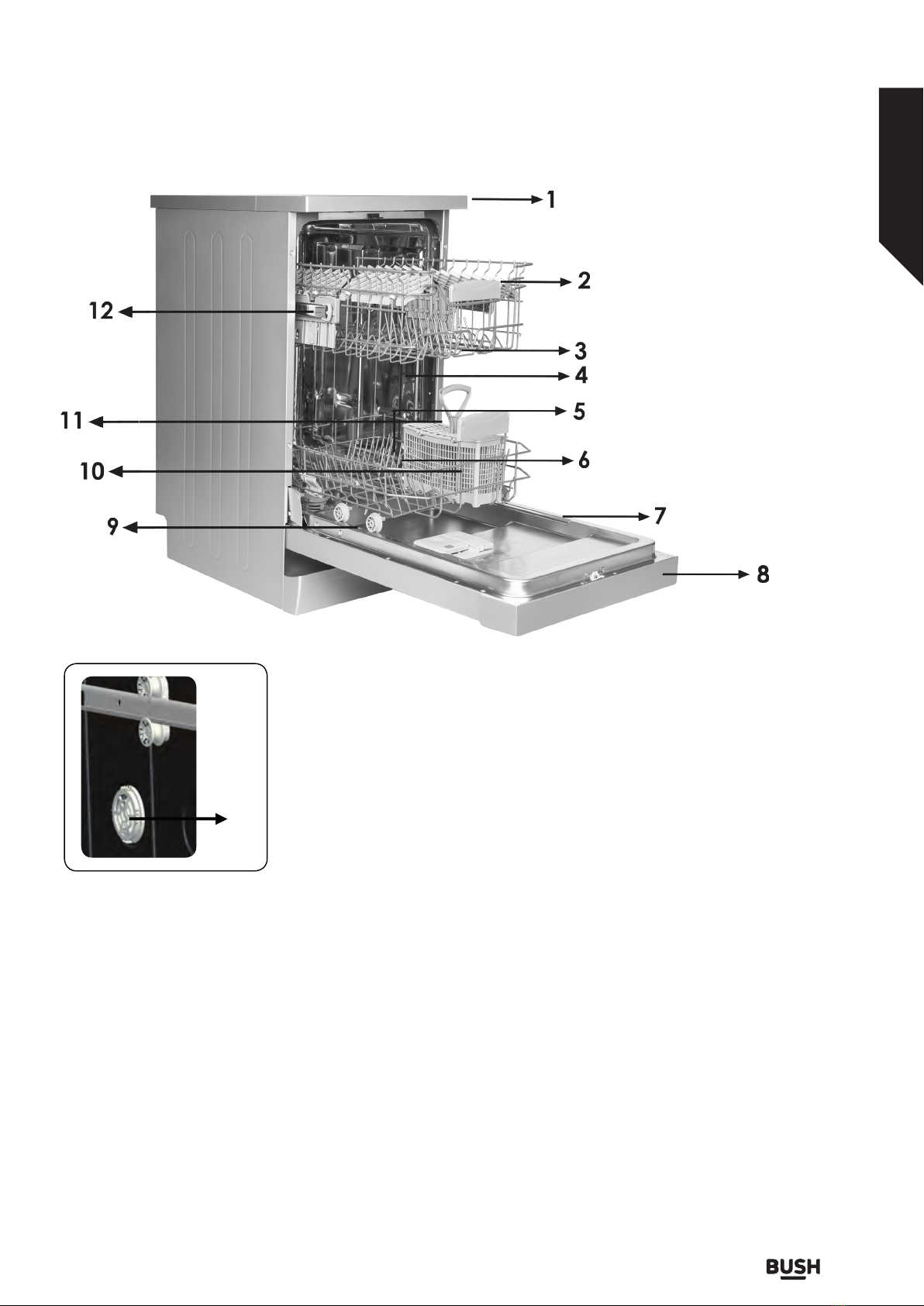

1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
7. Rating plate
8. Control Panel
9. Detergent and rinse-aid dispenser
10. Cutlery basket
11. Salt dispenser
12. Upper basket track latch
13. Mini Active Drying Unit -This system
provides better drying performance for
your dishes.
13

Getting to know your Dishwasher
12
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Getting to know your Dishwasher
You’ll be up and running in no time
Technical Specifications
Capacity 10 place
settings
Dimensions
Height
Width
Depth
850(mm)
450(mm)
598(mm)
Net weight 35,4 (kg)
Operating
voltage /
frequency
220-240V
50 (Hz)
Total current 10(A)
Total power 1900(W)
Water supply
pressure
Maximum:
1 (Mpa)
Minimum:
0.03 (Mpa)

Getting to know your Dishwasher
You’ll be up and running in no time
Getting to know your Dishwasher
13
Capacity Power Energy Class Drying Class
BFSLSAEB9B - BFSLSAE9W 10 Place Settings 1900W A++ A
Accessories
This machine includes the below accessories, please
install these parts before operating.
• Water Inlet Hose x1
• Drain Hose x1

Installing your Dishwasher 3

Installing your Dishwasher
16
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
WARNING: Use the new water inlet hose
supplied with your machine, do not use an old
machine’s hose.
WARNING: Run water through the new hose
before connecting.
WARNING: Connect the hose directly to the
water inlet tap. The pressure supplied by the tap
should be a minimum of 0.03 MPa and a maximum of
1 MPa. If the pressure exceeds 1 MPa, a pressure relief
valve must be fitted between the connection.
WARNING: After the connections are made,
turn the tap on fully and check for water leaks. Always
turn off the water inlet tap after a wash program has
finished.
Installing your Dishwasher
Bringing it all together
3.1 Positioning your Machine
When positioning the machine, place it in an area
where dishes can be easily loaded and unloaded. Do
not put the machine in an area where the ambient
temperature falls below 0°C.
Read all warnings located on the packaging before
removing the packaging and positioning the machine.
Place the machine close to a water tap and drain. Take
into consideration that the connections will not be
altered once the machine is in position.
Do not hold the machine by its door or panel.
Leave an adequate distance around the machine to
allow ease of movement when cleaning.
Ensure the water inlet and outlet hoses are not
squeezed or trapped and that the machine does not
stand on the electrical cable while positioning.
Adjust the feet so the machine is level and balanced.
The machine should be placed on flat ground
otherwise it will be unstable and the door of the
machine will not close properly.
3.2 Water Connection
We recommend fitting a filter to your water inlet supply
in order to prevent damage to your machine due to
contamination (sand, rust, etc.) from indoor plumbing.
This will also help prevent yellowing and deposit
formation after washing.
3.3 Water inlet hose
An Aquastop water spout is available with
some models. Do not damage it or allow it to
become kinked or twisted.
Note printing on the water inlet hose!
If models are marked with 25°, the water temperature
may be max. 25 °C (cold water).
For all other models:
Cold water preferred; hot water max.
temperature 60 °C.

Installing your Dishwasher
Bringing it all together
Installing your Dishwasher
17
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.
3.4 Water drain hose
Connect water drain hose directly to water drain hole
or to the sink outlet spigot. This connection should be
minimum 50 cm and maximum 110 cm from floor
plane.
IMPORTANT: Items will not wash properly if a
drain hose longer than 4 m is used.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
3.5 Electrical Connection
WARNING: Your machine is set to operate
at 220-240 V. If the mains voltage supply to your
machine is 110 V, connect a transformer of 110/220
V and 3000 W between the electrical connection.
e productConnect th to agrounded outlet
protected by a fuse complying with the values in
the "Technical Specifications" table".
The earthed plug of the machine must be
connected to an earthed outlet supplied by
suitable voltage and current.
In the absence of earthing installation, an
authorised electrician should carry out an earthing
installation. In the case of use without earthing
installed, we will not be responsible for any loss of
use that may occur.
The plug on this appliance may
incorporate 13A fuse depending on the target
country. (For Example UK, Saudi Arabia)

Functions 4

Functions
20
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Functions
Simple everyday use
The Control Panel
Operating the Machine
If you have used any extra function in the washing
program that you last used, that function will be active in
the next washing program. If you want to cancel that
function for the newly selected program, press and hold
the button of the relevant function since the
corresponding lights go off, or press the On/Off button
(4) to switch off the machine. If you want to use an extra
function for the newly selected program, select the
desired functions.
NOTE: If you switch off the machine after selecting the
delay time and starting the program, the delay time will
be cancelled.
NOTE: You can press the delay button (2) before the
program starts to delay the program start time for 1 to 19
hours.
If you want to change the delay time, press the Start/
Pause button first, and then press the Delay button to
select the new delay time. Press Start/Pause button to
activate the new delay time. To cancel the delay, press
the Delay button until the delay time is 0h.
NOTE: Salt refill indicator (9) will
become on if salt is missing/insufficient. In this case,
please fill the salt compartment.
NOTE: Rinse aid refill indicator (9) will
become on if rinse aid is missing/insufficient. In this case,
please fill the rinse aid compartment.
You can press the On/Off button (4)
to switch on the product. On/Off lights will be on
so long as the machine is on. Press the program
button (5) to set the suitable program.
Press the Start/Pause button (6) to start the
program. Once the selected program has started,
the Washing light will be on and the program
duration will be displayed. If you open the door of
the machine while the program is continuing,
program number and program duration will be
displayed alternately.
You can follow the program flow with the
Washing, Rinsing, Drying and End lights (7) on the
control panel. Once the drying light has become
on, the machine will remain silent for 40 to 50
minutes.
NOTE: If you press the option (3) button once, half
load option will be activated. This option will
shorten the durations of the selected programs to
reduce power and water consumption. If you are
using combined detergents that contain salt, rinse
aid and extra features, press the option button for
the second time and activate the tablet function.
You can use the Extra button (1) to add the
following functions to the compatible washing
program.
When the hygiene function (8) is active, you can
make the washing process more hygienic by
changing the washing temperature and durations
of the current program.
If you select the extra rinsing (8) function, the extra
rinsing light will become on and thus, washing-
rinsing steps will be added to the selected
program, making your dishes cleaner and shinier. .
If you select the extra drying (8) function, the extra
drying light will become on
and thus, drying duration of the selected program
will extend, making your dishes drier. Additionally,
Hygiene and Drying functions cannot be selected
at the same time since they are incompatible with
each other
9
