Bush Hog Zero Turn Professional Series User manual

©2010 Alamo Group Inc. $0.00
Published 04/11 Part No. 50045565
OPERATOR’S MANUAL
BUSH HOG®
2501 Griffin Ave.
Selma, AL 36703
334-874-2700
www.bushhog.com
Zero Turn Riding Mower
This Operator's Manual is an integral part of the safe operation of this machine and must
be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety
and Operation Instructions contained in this manual before operating the equipment. C01-
Cover
PROFESSIONAL
SERIES

CONGRATULAT ONS!
You have invested in the best mower of its type on the market today.
The care you give your Bush Hog mower will greatly determine your satisfaction
with its performance and its service life. We urge a careful study of this manual to provide
you with a thorough understanding of your new mower before operating, as well as
suggestions for operation and maintenance.
f your manual should become lost or destroyed, Bush Hog will be glad to provide you with
a new copy. Order from Bush Hog, P. O. Box 1039, Selma, Alabama 36702-1039. Most of
our manuals can also be downloaded from our website at www.bushhog.com.
As an authorized Bush Hog dealer, we stock genuine Bush Hog parts which are
manufactured with the same precision and skill as our original equipment. Our trained
service personnel are well informed on methods required to service Bush Hog equipment,
and are ready and able to help you.
Should you require additional information or assistance, please contact us.
YOUR AUTHOR ZED
BUSH HOG DEALER
BECAUSE BUSH HOG MA NTA NS AN ONGO NG
PROGRAM OF PRODUCT MPROVEMENT, WE
RESERVE THE R GHT TO MAKE MPROVEMENTS N
DES GN OR CHANGES N SPEC F CAT ONS W TH-
OUT NCURR NG ANY OBL GAT ON TO NSTALL
THEM ON UN TS PREV OUSLY SOLD.
BECAUSE OF THE POSS B L TY THAT SOME
PHOTOGRAPHS N TH S MANUAL WERE TAKEN OF
PROTOTYPE MODELS, PRODUCT ON MODELS MAY
VARY N SOME DETA L. N ADD T ON, SOME
PHOTOGRAPHS MAY SHOW SH ELDS REMOVED
FOR PURPOSES OF CLAR TY. NEVER OPERATE
TH S MPLEMENT W THOUT ALL SH ELDS N PLACE.

PROFESSIONAL SERIES
ZERO TURN RIDING MOWER
TABLE OF CONTENTS
SECTION PAGE
Warranty..........................2
Dealer Preparation Check List . . . . . . . . . 3
SafetyAlertSymbols................4
SafetyPrecautions..................5
Federal Laws and Regulations. . . . . . . . . 8
NTRODUCT ON AND DESCR PT ON . . 9
ntroduction........................9
Description........................9
Specifications.....................10
OPERATON.....................11
GeneralSafety....................11
Pre-Operation Checklist. . . . . . . . . . . . . 11
Operation........................12
Mowing Recommendations . . . . . . . . . . 14
MANTENANCE...................15
Maintenance Schedule. . . . . . . . . . . . . . 15
Engine..........................16
SECTION PAGE
Battery ..........................16
Tires ............................16
MowerBlades.....................16
Motion Control Adjustment . . . . . . . . . . .17
Drive Adjustments . . . . . . . . . . . . . . . . .17
Test Drive Operations . . . . . . . . . . . . . .17
Leveling The Deck . . . . . . . . . . . . . . . . .18
Counterbalance Spring . . . . . . . . . . . . . .18
Deck Belt Adjustment . . . . . . . . . . . . . .18
Deck Belt Replacement . . . . . . . . . . . . .18
Start Up Maintenance . . . . . . . . . . . . . . .19
Troubleshooting . . . . . . . . . . . . . . . . . . .20
V ASSEMBLY ......................21
Wiring Schematics . . . . . . . . . . . . . . . . .22
SafetyDecals.....................25
Torque Specifications . . . . . . . . . . . . . . .27
Optional Equipment List . . . . . . . . . . . . .28
SlopeAngleGuide .................29
1
RETAIL CUSTOMER’S RESPONSIBILITY
UNDER THE BUSH HOG WARRANTY
t is the Retail Customer and/or Operator’s responsibility to read the Operator’s Manual, to op-
erate, lubricate, maintain and store the product in accordance with all instructions and safety
procedures. Failure of the operator to read the Operator’s Manual is a misuse of this equipment.
t is the Retail Customer and/or Operator’s responsibility to inspect the product and to have any
part(s) repaired or replaced when continuedoperation would cause damage or excessive wear
to other parts or cause a safety hazard.
t is the Retail Customer’s responsibility to deliver the product to the authorized Bush Hog
Dealer, from whom he purchased it, for service or replacement of defective parts which are cov-
ered by warranty. Repairs to be submitted for warranty consideration must be made within
forty-five (45) days of failure.
t is the Retail Customer’s responsibility for any cost incurred by the Dealer for traveling to or
hauling of the product for the purpose of performing a warranty obligation or inspection.

PROFESSIONAL SERIES (PZ) ZERO TURN RIDING MOWER LIMITED WARRANTY
●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●
Bush Hog warrants to the original purchaser of this new Zero Turn Riding Mower, purchased from an authorized Bush Hog
dealer, that the equipment be free from defects in material and workmanship as follows (see dealer for complete details):
•for a period of three (3) years from the date of the retail sale to the original purchaser (the “Three Year Warranty”),
but only as to the drive train, electromagnetic clutch, deck and cutter spindles; and
•for the entire length of ownership by the original purchaser (“Limited Lifetime Warranty”), but only as to the
deck weldment which results in the deck not performing its function, in the sole opinion of Bush Hog. Malfunctions
caused by corrosion are not covered by the Limited Lifetime Warranty.
For the Three Year Warranty and the Limited Lifetime Warranty, the o ligation of Bush Hog to the purchaser is lim-
ited to the repair or replacement of defective parts, at the sole option of Bush Hog. NOTE: The Three Year Warranty
covers parts and la or for the first two years and parts only during the third year.
The Three Year Warranty and the Limited Lifetime Warranty are referred to collectively in this document as the “limited warranty”.
Replacement or repair parts installed in the equipment covered by this limited warranty are warranted for ninety (90) days from
the date of purchase of such part or to the expiration of the applicable new equipment warranty period, whichever occurs later.
Warranted parts shall be provided at no cost to the user at an authorized Bush Hog dealer during regular working hours. Bush
Hog reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workman-
ship.
DISCLAIMER OF IMPLIED WARRANTIES & CONSEQUENTIAL DAMAGES
Bush Hog’s obligation under this limited warranty, to the extent allowed by law, is in lieu of all warranties, implied or
expressed, INCLUDING IM LIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A ARTICULAR UR OSE
and any liability for incidental and consequential damages with respect to the sale or use of the items warranted. Such inci-
dental and consequential damages shall include but not be limited to: transportation charges other than normal freight charges;
cost of installation other than cost approved by Bush Hog; duty; taxes; charges for normal service or adjustment; loss of crops
or any other loss of income; rental of substitute equipment, expenses due to loss, damage, detention or delay in the delivery
of equipment or parts resulting from acts beyond the control of Bush Hog.
THIS LIMITED WARRANTY SHALL NOT APPLY:
1. To transportation to and from dealership or service calls made by dealers, ie, driving time, towing, pickup and delivery.
2. To vendor items which carry their own warranties, such as engines, batteries, tires, and tubes.
3. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident.
4. If parts not made or supplied by Bush Hog have been used in connection with the unit, if, in the sole judgement of Bush
Hog such use affects its performance, stability or reliability.
5. If the unit has been altered or repaired outside of an authorized Bush Hog dealership in a manner which, in the sole
judgement of Bush Hog, affects its performance, stability or reliability.
6. To normal maintenance service and normal replacement items such as gearbox lubricant, hydraulic fluid, worn blades,
or to normal deterioration of such things as belts and exterior finish due to use or exposure.
7. To expendable or wear items such as blades, chains, sprockets, belts, springs and any other items that in the company’s
sole judgement is a wear item.
NO EM LOYEE OR RE RESENTATIVE OF BUSH HOG IS AUTHORIZED TO CHANGE THIS LIMITED WARRANTY IN
ANY WAY OR GRANT ANY OTHER WARRANTY UNLESS SUCH CHANGE IS MADE IN WRITING AND SIGNED BY BUSH
HOG’S SERVICE MANAGER, 2501 GRIFFIN AVE., SELMA, AL. 36703
●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●●
Record the model number, serial number and date
purchased. This information will be helpful to your
dealer if parts or service are required.
MAKE CERTAIN THE WARRANTY REGISTRATION
CARD HAS BEEN FILED WITH BUSH HOG
2501 GRIFFIN AVE., SELMA, AL. 36703
MODEL NUMBER
SER AL NUMBER
DATE OF RETA L SALE
2

DEALER PREPARAT ON CHECK L ST
PROFESSIONAL ZERO TURN RIDING MOWER
BEFORE DEL VER NG MACH NE — The following check list should be completed.
Use the Operator’s Manual as a guide.
r1. Engine has been serviced.
r2. Battery fluid level is checked.
r3. Low oil pressure warning buzzer checked for operation.
r4. Operator interlock switches checked for operation.
r5. Assembly completed.
r6. All fittings lubricated.
r7. Hydraulic Reservoir filled with oil.
r8. All shields in place and in good condition.
r9. Roll-over protective structure is installed and retractable seat belt functions
properly.
r10. All fasteners torqued to specifications given in Torque Chart.
r11. All decals in place and readable. (See decal page.)
r12. Overall condition good. (i.e. paint, welds)
r13. Parking brake checked and adjusted, if necessary.
r14. Steering checked and adjusted, if necessary.
r15. Check tire pressure.
r16. Operators manual has been delivered to owner and he has been instructed
on the safe and proper use of the cutter.
Dealer’s Signature
Purchaser’s Signature
TH S CHECKL ST TO REMA N N OWNER’S MANUAL
t is the responsibility of the dealer to complete the procedures listed
above before delivery of this implement to the customer.
WARRANTY REG STRAT ON AND DEL VERY REPORT
t is the responsibility of the Dealer to do the following:
•Complete the Warranty Registration and Delivery Report Online
3

Safety Alert Symbol
This Safety Alert Symbol means: “ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety
precautions that should be followed by the oper-
ator to avoid accidents. When you see this sym-
bol, carefully read the message that follows and
heed its advice. Failure to comply with safety pre-
cautions could result in death or serious bodily
injury.
Safety Signs Signal Words
The signal words DANGER, WARNING, AND CAUTION are used on the equipment safety signs. These words
are intended to alert the viewer to the existence and the degree of hazard seriousness.
This signal word indicates a potentially hazardous situation which,
if not avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury
t may also be used to alert against unsafe practices.
Black letters on ORANGE
White letters on Red
This signal word indicates a potentially hazardous situation exist
which, if not avoided, may result in minor or moderate injury.
t may also be used to alert against unsafe practices.
Black letters on YELLOW
4

IMPORTANT SAFETY PRECAUTIONS
This symbol is used to call attention to safe-
ty precautions that should be followed by
the operator to avoid accidents. When you
see this symbol, carefully read the message
that follows and heed its advice. Failure to
comply with safety precautions could result
in serious bodily injury.
n addition to the design and configuration of equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence and proper training of personnel in the operation,
transport, maintenance and storage of equipment. Lack of attention to safety can result in accident, person
al injury, reduction of efficiency and worst of all—loss of life. Watch for safety hazards and correct deficien-
cies promptly. Use the following safety precautions as a general guide to safe operations when using this
machine. Additional safety precautions are used throughout this manual for specific operating and mainte
nance procedures. Read this manual and review the safety precautions often until you know the limitations.
ACCIDENT PATTERNS TO AVOID
1. CONTACT W TH THE ROTAT NG BLADE - This accident usually happens when the operator is clear-
ing the discharge chute of grass, (especially when the grass is wet), or when the operator adjusts the
machine without turning it off and waiting for the blades to completely stop.
2. PROPELLED OBJECTS - Sticks, rocks, wires, and other objects can be propelled out through the dis-
charge chute or from under the mower housing. Bystanders are particularly vulnerable.
3. GRASS D SCHARGE CHUTE - The mower shall not be operated without the grass discharge chute
in its lowered position.
4. OVERTURN NG - This happens when riding mowers are used on steep slopes, embankments or hills.
The operator in these cases can come in contact with blades or sustain injuries during a fall.
5. MOWER RUNN NG OVER THE V CT M - This usually happens when a riding mower is driven in
reverse. The accident victims are most often young children whom, unseen by the operator of the
mower, were in the area being mowed.
WE SHARE YOUR DESIRE TO PROTECT YOURSELF, YOUR FAMILY, YOUR FRIENDS AND YOUR
NEIGHBORS FROM ACCIDENTAL INJURY. OBSERVING AND ENFORCING THE FOLLOWING GUIDE
LINES WILL HELP TO INSURE THE SAFETY OF EVERYONE.
SAFETY INSTRUCTIONS AND RECOMMENDATIONS
1. PEOPLE WHO OPERATE, SERV CE, OR ARE OTHERW SE ASSOC ATED with the Zero Turn Riding Mower
should be trained in its proper use and warned of its dangers. Before operating, adjusting,
or servicing the Zero Turn Riding Mower they should read and understand this entire manual and the
engine manual.
2. AVO D CONTACT W TH MOV NG PARTS. Keep hands and feet from under mowing deck and away
from blades at all times. Turn engine (motor) off if you must unclog the discharge chute.
3. AVO D H LLS AND SLOPES. Use EXTREME caution when mowing and/or turning on slopes as loss of traction
and/or tip-over could occur. Drive slower on slopes. DO NOT mow slopes greater than 15 degrees. Watch for
ditches, holes, rocks, dips and rises, which change the operating angle. Keep away from drop-offs and steep
banks. Avoid sudden starts when mowing uphill - mower may tip backwards. Loss of traction may occur going
downhill - weight transfer to the front wheels may cause drive wheels to slip and cause loss of braking. DO NOT
mow slopes when grass is wet - slippery conditions affect steering and reduce traction and braking. The operator
is responsible for safe operation on slopes.
4. D SENGAGE POWER TO MOWER BEFORE BACK NG UP. Do not mow in reverse unless absolutely
necessary and then only after turning around and observing the entire area behind the mower. Go slowly.
Most “running over victim” accidents occur in reverse.
5. BEG NN NG OPERATORS SHOULD LEARN HOW TO STEER the Zero Turn Riding Mower before
attempting to mow. Start with slow engine speed and drive without the blades engaged in open area until
comfortable with the machine.
5

SAFETY CONTINUED
6. KNOW HOW TO STOP QU CKLY. Know the location and operation of every control, especially how to brake and
how to disengage the mower blades.
7. DO NOT MOVE THE CONTROL LEVERS from forward position to reverse position rapidly. The speed
and/or direction of travel is affected instantly by movement of the Control Levers.
8. DO NOT ALLOW CH LDREN TO OPERATE MOWER. Do not allow others who have not had instruc-
tions to operate mower. Do not operate the mower when children or others are in the area.
9. ALWAYS TURN ENG NE OFF AND REMOVE KEY before leaving mower to prevent children and
inexperienced operators from starting the engine. Never leave the mower unattended with engine run-
ning. Always wait for all moving parts and all sounds to stop before leaving operator’s seat. Always set
the parking brake on an unattended mower.
10. WEAR STURDY, ROUGH-SOLED WORK SHOES AND CLOSE-F TT NG TROUSERS AND SH RTS.
Never operate mower in bare feet, sandals or sneakers.
11. WEAR PERSONAL PROTECT VE EQU PMENT such as, but not limitied to, protection for eyes, ears, feet, hands
and head when operating or repairing equipment. Do not wear loose clothing or jewelry that may catch on equip-
ment moving parts.
12. NEVER CARRY PASSENGERS.
13. KNOW THE AREA YOU ARE TO MOW. Watch for hidden dangers such as rocks, roots, sticks, holes,
bumps, and drop-offs, etc. Before mowing, pick up all debris in area to be mowed. Sharp and hard
objects can be propelled at a high speed and can act like shrapnel. Walk through tall grass BEFORE
MOW NG to make sure there are no hidden dangers. Mow higher than desired in tall grass to expose
any hidden objects and/or obstacles, clean the area, and then mow to the desired height.
14. BE SURE THE AREA S CLEAR of other people before mowing. Stop machine if anyone enters the area.
15. NEVER REFUEL A MOWER NDOORS. Allow the engine time to cool before refueling. Unseen vapors may be
ignited by a spark. Always clean up spilled gasoline. Never run the engine indoors in a garage
or any other closed building. Allow engine to cool before storing in any enclosure. The engine exhaust
and gasoline fumes are dangerous.
16. NEVER REMOVE THE FUEL CAP or add gasoline to a running or hot engine or an
engine that has not been allowed to cool for several minutes after running. Always make sure the gas
cap is in place.
17. DO NOT SMOKE AROUND THE MOWER or the gasoline storage container. Gasoline fumes can easi-
ly ignite.
18. KEEP GASOL NE N A WELL-VENT LATED AREA away from your living quarters and in tightly
capped safety cans. Never store mower with gasoline in the tank inside a building where fumes may
reach open flame or spark.
19. D SENGAGE BLADES, STOP ENG NE, ENGAGE PARK NG BRAKE AND REMOVE GN T ON KEY before any
servicing. Be sure all moving parts and all sounds have stopped. Let engine cool and disconnect the spark plugs so
the engine cannot start by accident.
20. KEEP ALL NUTS, BOLTS, AND SCREWS T GHT to be sure equipment is in safe working condition, espe-
cially blade bolts.
21. VEH CLE SHOULD BE STOPPED AND NSPECTED FOR DAMAGE after striking a foreign object and
the damage should be repaired before restarting and operating the equipment. Stop immediately and
check for damage or loose parts if mower should start vibrating.
22. D SENGAGE BLADES BEFORE DR V NG ACROSS WALKS or projecting objects or transporting.
23. KEEP SAFETY DEV CES AND GUARDS N PLACE. f any of the safety switches become inoperable,
have them repaired immediately.
24. DO NOT STEP OR STAND ON THE MOWER HOUS NG. Step or stand only on the tread areas on the deck.
25. WATCH OUT FOR TRAFF C near roadways and when crossing roads.
26. TH S MACH NE S NOT MEANT FOR H GHWAY OR STREET USE. t is not a recreational vehicle and it should not
be operated as such.
27. WHEN FEAS BLE, DO NOT USE MOWER WHEN GRASS S WET OR SL PPERY.
28. MOW ONLY N DAYL GHT OR GOOD ART F C AL L GHT.
6

SAFETY CONTINUED
29. ALWAYS D SENGAGE THE MOWER BLADE CLUTCH when transporting.
30. Do not operate the mower under influence of drugs or alcohol.
31. Do not change the engine governor settings or overspeed the engine. Operating an engine at excessive speed may
increase the hazard of personal injury.
TOWING
1. Use for towing only if equipped with a Bush Hog hitch kit. Do not attach towed equipment except at the hitch point.
2. Never allow children or others in or on towed equipment.
3. On slopes, the weight of the towed equipment may cause loss of traction and loss of control.
4. Travel slowly and allow extra distance to stop.
SLOPE OPERATION
1. Use EXTREME caution when mowing and/or turning on slopes as loss of traction and/or tip-over could occur. The
operator is responsible for safe operation.
2. See inside of the back cover to determine the approximate slope angle of the area to be mowed.
3. Use a walk behind mower and/or a hand trimmer near drop-offs, ditches, steep banks or water. This area can be dangerous.
4. Progressively greater care is needed as the slope increases.
5. Always avoid sudden starting or stopping on a slope. f tires lose traction, disengage the blades and proceed slowly down the
slope.
6. Avoid sudden starts when mowing uphill. Mower may tip backwards.
7. Be aware that loss of traction may occur going downhill. Weight transfer to the front wheels may cause drive wheels to
slip and cause loss of braking and steering.
8. Watch for ditches, holes, rocks, dips, and rises that change the operating angle, as rough terrain could overturn the machine.
Tall grass can hide obstacles.
9. Remove or mark obstacles such as rocks, tree limbs, etc. from the ,mowing area. Tall grass can hide obstacles.
10. Use extreme care with grass catches or attachments. These can change the stability of the machine and cause loss of control.
11. Follow the manufacturer’s recommendations for counterweights to improve stability.
12.. Check carefully for overhead clearances (ie. branches, doorways, and electrical wires) before driving under objects and
do not contact them.
SLOPE ANGLE GUIDE LOCATED INSIDE REAR COVER
DANGER
POTENTIAL HAZARD
Mowing on wet grass or steep slopes can cause slid-
ing and loss of control.
WHAT CAN HAPPEN
Wheels dropping over edges, ditches, steep banks, or
water can cause injury, or death by drowning.
HOW TO AVOID THE HAZARD
Do not mow slopes when grass is wet.
Do not mow near drop-offs or near water.
Do not mow slopes greater than 15 degrees.
Reduce speed and use extreme caution on slopes.
Avoid sudden turns or rapid speed changes.
Do not ride or operate the ZTR if th mower head has
been removed.
Safe
Zone
Water
Danger
Zone
7

IMPORTANT FEDERAL LAWS AND REGULATIONS* CONCERNING
EMPLOYERS, EMPLOYEES AND OPERATIONS.
*(This section is intended to explain in broad terms the concept and effect of the following federal laws and
regulations. t is not intended as a legal interpretation of the laws and should not be considered as such).
U.S. Public Law 91-596 (The Williams-Steiger Occupational and Health Act of 1970) OSHA
This Act Seeks:
“...to assure so far as possible every working man and woman in the nation safe and healthful working
conditions and to preserve our human resources...”
DUT ES
Sec. 5 (a) Each employer—
(1) shall furnish to each of his employees employment and a place of employment
which are free from recognized hazards that are causing or are likely to cause
death or serious physical harm to his employees;
(2) shall comply with occupational safety and health standards promulgated under
this Act.
(b) Each employee shall comply with occupational safety and health standards
and all rules, regulations and orders issued pursuant to this Act which are
applicable to his own actions and conduct.
OSHA Regulations
Current OSHA regulations state in part: “At the time of initial assignment and at least annually thereafter, the
employer shall instruct every employee in the safe operation and servicing of all equipment with which the
employee is, or will be involved.” These will include (but are not limited to) instructions to:
Keep all guards in place when the machine is in operation;
Permit no riders on equipment;
Stop engine, disconnect the power source, and wait for all machine movement to stop before
servicing, adjusting, cleaning or unclogging the equipment, except where the machine must be
running to be properly serviced or maintained, in which case the employer shall instruct employees
as to all steps and procedures which are necessary to safely service or maintain the equipment.
Make sure everyone is clear of machinery before starting the engine, engaging power, or operating
the machine.
Child Labor Under 16 Years Old
Some regulations specify that no one under the age of 16 may operate power machinery. t is your
responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of
Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102.)
8

INTRODUCTION
We are pleased to have you as a Bush Hog customer.
Your Bush Hog Zero Turn Riding Mower has been
carefully designed to give maximum service with min-
imum down time. This manual is provided to give you
the necessary operating and maintenance instruc-
tions for keeping your mower in top operating condi-
tion. Please read this manual thoroughly. Understand
what each control is for and how to use it. Observe all
safety precautions decaled on the machine and noted
throughout the manual for safe operation of the im-
plement. f any assistance or additional information is
needed, contact your authorized Bush Hog dealer.
NOTE:
All references made to right, left, front, rear, top or bot-
tom is as viewed facing the direction of forward travel.
DESCRIPTION
The Zero Turn Riding Mower is intended for use on
lawns and other frequently maintained areas where a
smooth, even cut is desired and superior maneuver-
ability is needed. The tractor unit consists of either a
25 hp Kawasaki, 26 hp Kawasaki, 27 hp Kohler, 28 hp
EF Kohler or 30 hp Kohler twin cylinder engine. The
engine has a pressurized oil lubrication system with
spin-on type filter, fused electronic ignition, electric start
and a 15.5 gallon fuel system with 61” and 73” decks or
a 12.5 gallon fuel system with 55” decks.
Two hydrostatic pumps and two wheel motors are
used for propelling and steering. The pumps are belt
driven by the engine output shaft. One lever for each
drive controls both speed and direction. This inde-
pendent control of each drive wheel coupled with con-
tinuously variable speed selection gives the Zero Turn
mower exceptional maneuverability.
The mower attachment is available in 55”, 61” or 73”
cutting widths. The mower has three cutting blades
driven by an electromagnetic clutch through a single
V-belt
9
SECTION I
INTRODUCTION AND DESCRIPTION

CONTROLS
OPERATOR INTERLOC SYSTEM
Your Bush Hog Zero Turn Riding Mower is equipped
with an Operator nterlock System that is designed to
help prevent possible serious injuries. Understanding
and maintainingthis system is vital for safe operation.
To Start Engine:
1. Blades (PTO) must be disengaged.
2. Control levers in neutral (swung out).
3. Parking brake set.
The Engine Will Stop If:
1. The operator leaves the seat with:
a. The control levers out of neutral (swung
in).
b. The blades are engaged.
c. The parking brake is off.
d. All of the above.
2. The park brake is on before the control levers
are swung in.
DO NOT OPERATE MOWER F SAFETY
SW TCHES ARE NOT OPERAT NG PROPERLY.
OPERATOR CONTROLS
1gnition Key - Starts and stops engine.
2Engine Throttle - Controls engine speed.
3Two Steering/Speed Control Levers - n front of
seat at side. (See page 21)
4PTO Switch - Engages electric clutch which
engages mower blades.
5Parking Brake Lever- Engages parking brake.
(See page 14)
6Cutting Height Adjust Pin - Sets cutting height to
desired position. (See page 12)
7Choke Location- Aids in starting engine.
(Not Used On EF Models)
8Light Switch (Optional)
9Hour Meter / Tachometer (see nstruction,
page16)
10 Warning Lights / Audible Alert for high engine
temperature (Kohler models only) and oil pres-
sure.
11 Deck Lift Switch (Optional) - For raising and low-
ering deck.
12 Fuel Tank Site Lines - Monitor amount of fuel in
tank. (See page 14
13 DC Power Outlet (See page 14)
TRACTOR SPECIFICATIONS
Tread Width - 55” Deck models - Outside Tires. . . . . . 52”
61” Deck models - Outside Tires . . . . . 55”
73” Deck models - Outside Tires . . . . . 59”
Height-Totopof seatback....................51”
Fuel Tank - 61” & 73” Deck models. . . . . . . . 15.5 gallons
- 55” Deck models. . . . . . . . . . . . . 12.5 gallons
Hydrostatic Fluid Reservoir . . . . . . . . . . Approx. 1 gallon
Hydrostatic Pumps- All Models . . (2) Hydro-Gear pumps
Engines - 25 h.p. Kawasaki
26 h.p. Kawasaki
27 h.p. Kohler Command Pro
28 h.p. Kohler Command Pro Fuel njected
30 h.p. Kohler Command Pro
Tires-Front(Allmodels) ................13x6.5-6
Drive - 61” & 73” decks . . . . . . . . . . . 24 x 12.0 -12
55”deck.................24x9.5-12
DEC SPECIFICATIONS
TEM
Cutting width 55” 61” 73”
Cutting Height --------------- 1-1/2” to 5” in 1/4” increments
Blades 19” 21” 25”
Overall width
including chute 67” 73” 85”
Material thickness - Deck -------------7 GA.-----------------
Spindle bearings ----------------------25 mm------------------
10
WARNING
DO NOT OPERATE MACHINE UNLESS IN-
TERLOC SYSTEM FUNCTIONS PROP-
ERLY. FAILURE TO HEED THIS WARNING
MAY RESULT IN SERIOUS INJURY, DEATH
OR EQUIPMENT DAMAGE.
10
9
4
7
2
1
11
8

SECTION II
OPERATION
GENERAL SAFETY
Only qualified people familiar with this operator’s man-
ual should operate this machine. Operator should
wear hard hat, safety glasses, and safety shoes. Avoid
loose fitting clothing or jewelry. The operator should
read, understand and practice all safety messages
shown on the caution, warning and danger decals af-
fixed to the machine to avoid serious injury or death.
Before beginning operation, clear work area of any ob-
jects that may be picked up and thrown by mower.
Check for ditches, stumps, holes or other obstacles
that could upset power unit or damage mower. Tall
grass can hide obstacles. Always push steering levers
apart, set parking brake, disengage PTO, turn off en-
gine, and allow blades to come to a complete stop be-
fore leaving operator’s seat. Do not operate without all
shields in place and in good condition.
PRE-OPERATION CHEC LIST
1. Make sure fuel tank is full. Use regular unleaded
gasoline. See engine manual for more details.
2. Make sure dirt and foreign matter are kept out of
fuel tank. Use a clean funnel and fuel can.
3. Do not mix oil with gasoline.
4. Do not use white, high test or premium gasoline.
Do not use de-icers, carburetor cleaners or other
such additives.
5. Check the crankcase oil level. Make sure the
engine is off. The mower should be parked on a
level area. Do not overfill. (See your engine man-
ual for more detailed instructions.)
6. Check the hydrostatic transmission oil level. (See
“Maintenance” section of this manual.)
7. Check battery fluid level.
AVOID SERIOUS INJURY OR DEATH:
GASOLINE IS EXTREMELY FLAMMABLE AND EX-
PLOSIVE UNDER CERTAIN CONDITIONS.
llREFUEL IN A WELL VENTILATED AREA WITH
ENGINE STOPPED.
llDO NOT SMO E OR ALLOW FLAMES OR
SPAR S IN THE REFUELING AREA OR
WHERE GASOLINE IS BEING STORED.
llDO NOT OVERFILL FUEL TAN . AFTER
REFUELING, MA E CERTAIN THE TAN CAP
IS CLOSED PROPERLY AND SECURELY.
llBE CAREFUL NOT TO SPILL FUEL WHEN
REFUELING. FUEL VAPOR OR SPILLED FUEL
MAY IGNITE. IF ANY FUEL IS SPILLED, MA E
SURE THE AREA IS DRY BEFORE STARTING
THE ENGINE.
llEEP OUT OF REACH OF CHILDREN
11
8. nspect V-belts
9. Check tire pressure (Use low pressure gauge):
Front Tires - 15 psi, Drive Tires - 15 psi
10.Make sure underside of mower deck is free of
grass.
11.Make sure mower blades are sharp and secured
tightly.
12.Clean the air intake screen on the engine if
necessary.
13.Perform any other maintenance as it becomes
necessary. (See “Maintenance” section)
14.Check low oil pressure warning buzzer for opera-
tion. ( t should “sound-off” whenever ignition key
is in the “on” position, but engine is not running.)
15.Check parking brake operation by disengaging
hydrostatic pumps (freewheeling position), and
placing the brake lever in the “on” position.
Attempt to rock tractor by hand. Both drive wheels
should be locked. When the brake handle is in the
“off” position, both drive wheels should turn freely.
f there is a problem in either position, refer to
adjustment procedure in the maintenance section.
16.Seat Adjustments: The high-back full suspension
seat has a variable rate suspension system,
adjustable lumbar support and sliding seat to
accomodate different operators.
Operator Weight Adjustment Knob - Turn the knob
until the indicator position closely matches your
weight to give the most comfortable ride.
Adjustable Lumbar Knob (Under left arm rest) -
Turn knob clockwise or counter-clockwise to
achieve desired support.
Back Angle Adjustment Knob (Under right arm
rest) -Turn knob clockwise or counter-clockwise to
achieve desired support.
Lever Release Seat Slides - Pull the lever outward
to release the latch. Slide the seat forward or rear-
ward to your most comfortable position and release
the lever.
WARNING
ENGINE EXHAUST GASES CONTAIN
POISONOUS CARBON MONOXIDE.
llNEVER RUN ENGINE IN A CLOSED BUILDING
OR CONFINED AREA.
llAVOID INHALING EXHAUST GASES.
WARNING

If the operator is inexperienced with the zero turn
mower lever steering/speed control, he/she
should follow these recommendations: Disengage
the mower blades. Go very slowly until thoroughly
familiar with the machine. Keep away from fences,
buildings, and other obstructions. While becom
ing familiar with the machine, move the Control
Levers smoothly and slowly. Practice until opera
tion is smooth and efficient.
10.A roll-over protection system (ROPS) is installed
on your machine. Operate unit with the ROPS in
the raised and locked position and use seat belt.
There is no roll-over protection when the ROPS
is down. f it is necessary to lower the ROPS, do
not wear seat belt. Raise the ROPS as soon as
clearance permits.
11.TO DR VE: Adjust seat forward or backward for
operator comfort. Move the Control Levers to the
“N” position. Move Control Levers forward to
move forward. Move levers slowly forward to
increase speed. To reverse direction, move the
Control Lever on the side to which you want to
turn slightly rearward of the other Control Lever.
To turn on a zero radius axis, go slowly and pull
one Control Lever back and push the other
Control Lever forward, depending on which
direction you wish to turn.
WARNING
AVOID SERIO S INJ RY OR DEATH:
DO NOT MOVE STEERING LEVERS FROM FOR
WARD TO REVERSE OR REVERSE TO FORWARD
POSITION RAPIDLY. A S DDEN CHANGE IN DIREC
TION MAY CA SE LOSS OF CONTROL AND/OR
DAMAGE TO EQ IPMENT. FOR SMOOTH, SAFE OP
ERATION, MOVE THE CONTROL LEVERS IN A GEN
TLE, SLOW MOTION, ESPECIALLY ON GRADES.
12.BRAK NG: To brake mower, gently move
Control Levers in the direction opposite to travel.
f the parking brake is engaged with the Control
Levers in the “ N” position the engine will stop.
13.CUTT NG HE GHT ADJUSTMENT:
1. Stop engine and move the control levers to
the neutral position and engage the parking brake.
2. Disengage the blades.
3. Depress the deck lift foot pedal raising the
deck to the transport position and place the pedal in
the locked position.
4. nsert height adjustment pin into the hole cor-
responding to the desired cutting height. See
decal on the side of the deck lift plate.
5. Depress the deck lift pedal and lower the deck to
the selected mowing height.
6. To transport, depress the lift foot pedal and lock in
position, then move the height adjustment pin to the 5”
position.
7. The cutting height adjustment is only a recom-
mended guide. During normal mowing cut only 1/3 of the
grass blade. Set cutting height to achieve your desired re-
sults.
CUTTING HEIGHT ADJUSTMENT DECAL
12
MA E SURE SEAT FRAME RETENTION
CLIC -PINS ARE IN PLACE AFTER LIFTING
SEAT PAN FOR SERVICE.
OPERATION
1. OPEN FUEL TANK SELECTOR VALVE left or
right tank.
2. MOVE CONTROL LEVERS TO neutral “OUT”
position by pushing each one straight sideways.
3. SET PARK NG BRAKE. Pull rearward to set.
4. D SENGAGE MOWER BLADE CLUTCH by
moving clutch switch to “OFF” (down) position.
5. SET ENG NE CHOKE CONTROL for cold starts
to full position.
6. SET ENG NE THROTTLE TO 1/2 throttle.
7. TURN GN T ON KEY to “START” position and
release to “RUN” as soon as engine starts.
NOTE: Prolonged cranking will damage starter
motor and shorten the battery life.
8. ADJUST ENG NE THROTTLE AND CHOKE for
desired engine smoothness and speed. NOTE:
When mowing, always run engine at full throttle.
9. RELEASE PARK NG BRAKE. Push brake lever
forward to release.
WARNING
CAUTION

ANT-SCALP ROLLER OR CASTER ADJUSTMENT:
1. Stop engine and move the control levers to the
neutral position and engage the parking brake.
2. Disengage the blades.
3. The Anti-Scalp deck rollers are adjustable up and
down to provide improved deck flotation and scalping pro-
tection at various cutting heights. They are not intended
to ride continously on the ground. Rollers should maintain
.375” minimum clearance to ground. DO NOT adjust rollers
to support deck. (Refer to photographs)
14.ENGAGE MOWER BLADES by pulling
up on the PTO clutch switch. The engine will not
start if the PTO switch is engaged. f the engine
is running while the PTO clutch is engaged and
the operator leaves the seat, the engine will stop.
WARNING
Use EXTREME caution when mowing and/or
turning on slopes as loss of traction and/or
tip-over could occur. Drive slower on slopes.
DO NOT mow slopes greater than 15 degrees.
Watch for ditches, holes, rocks, dips and
rises, which change the operating angle.
eep away from drop-offs and steep banks.
Avoid sudden starts when mowing uphill -
mower may tip backwards. Loss of traction
may occur going downhill - weight transfer to
the front wheels may cause drive wheels to
slip and cause loss of braking. DO NOT mow
slopes when grass is wet - slippery condi-
tions affect steering and reduce traction and
braking. The operator is responsible for safe
OPERATION ON SLOPES.
15. TO STOP:
A. Slow engine speed with throttle to slowest
position
B. Disengage the mower blade clutch by mov-
ing the PTO clutch switch to the “OFF” position.
C. Move Control Levers to neutral position and
then to the “OUT” position.
D. Set the parking brake.
E. Turn ignition key to “OFF” position.
F. Remove the key and wait for all movement
and sound to cease before dismounting.
ANTI-SCALP ROLLER
CASTER ASSEMBLY
(Standard on 73” decks, optional on 61” decks)
Roller Height Adjustment Holes Spacers may be positioned above and/or below the
caster arm to adjust position.
13

16.PUMP BYPASS-TO MOVE THE TRACTOR
W THOUT POWER: The pump bypass valves
are located on the forward sides of each pump.
Turn the control clockwise two complete
turns to release the pump for free wheeling; turn
them counter-clockwise to resume operation.
Pumps as seen from above. Use a rod through the hex
head, or a 5/8” wrench to open or close the valve.
WARNING
AVOID SERIOUS INJURIES TO OTHERS:
ALWAYS REMOVE THE EY FROM THE IGNI-
TION SWITCH WHENEVER THE MOWER IS UN-
ATTENDED TO PREVENT CHILDREN OR
UNAUTHORIZED PERSONS FROM STARTING
THE ENGINE.
NOTE: To move the tractor without power, the pumps
must be unlocked and in the free wheel position. Fail-
ure to do so could possibly damage the hydraulic mo-
tors. Never pull at more than 2 MPH.
17. FUEL TANK SELECTOR VALVE: Located on
the front panel below the operator is the fuel
directional valve. This valve has three positions
for operations and each position is made in 1/4
turn increments. This directional valve has a shut
off position and can be used when the machine
will not be used for a few days or when the unit is
transported to and from a work site.
Fuel Flow Valve Position EF Valve Position
Off Down Right
Right Tank Right Down
Left Tank Left Left
MOWING RECOMMENDATIONS
1. Keep mower blades sharp.
2. Make sure deck and discharge chute are clean.
3. Pivoting Front Axle Settings - The Professional
Series pivoting front axle increases operator
comfort, traction, mower life and improves quality
of cut. n some conditions stopping the front axle
from pivoting will improve the evenness of the
cut. t can also reduce scuffing of the anti-scalp
rollers when mowing on uneven terrain.To set
the front axle in a fixed position, move the lock-
ing pins to the outer positions. (See page 21)
ROTARY MOWERS CAN DISCHARGE OBJECTS
AT HIGH SPEEDS. TO AVOID SERIOUS IN-
JURIES OR DEATH:
llOPERATE ONLY WITH SIDE BANDS IN
GOOD REPAIR AND CHUTE OR GRASS
CATCHER ATTACHMENT INSTALLED.
llEEP CHILDREN, PETS, AND BYSTANDERS
AWAY FROM THE WOR AREA.
llDO NOT OPERATE MOWER IN THE VICIN-
ITY OF OTHER PERSONS.
llDISCHARGE AWAY FROM BUILDINGS,
WALLS OR OTHER STRUCTURES.
TO AVOID SERIOUS INJURY FROM BLADE CON-
TACT, POWER MUST BE OFF TO CLEAN DIS-
CHARGE CHUTE. EEP HANDS AND FEET
AWAY FROM UNDERNEATH MOWER TO AVOID
SERIOUS INJURY OR DEATH.
WARNING
Hydrostatic Fluid
Reservoir
Cutting Height
Adjustment PinFuel Tank
Selector Valve
14
Engine Oil
Filler Cap Electrical
Fuses
Operator Weight
Adjustment Knob
DANGER
Fuel Tank
Site Lines Seat Slide
Release Lever
DC Power Outlet
Parking Brake Lever

SECTION III
MAINTENANCE
BEFORE PERFORMING ANY MAINTENANCE, TURN OFF ENGINE, REMOVE EY AND DISCONNECT SPAR
PLUGS. USE EXTREME CARE WHEN WOR ING ON MACHINERY. DO NOT WEAR WATCH OR JEWELRY. DO
NOT WEAR LOOSE FITTING CLOTHES, AND OBSERVE ALL COMMON SAFETY PRACTICES WITH TOOLS.
CAUTION
MAINTENANCE SCHEDULE
SERVICE WHEN
Check crankcase oil level before each use
Check air intake screen after each use
Clean grass from under deck after each use
Check tire pressure every 10 hours
Sharpen mower blades every 10 hours
Clean air filter element every 8 hours
Check 20W50 motor oil
in hydrostatic system every 10 hours
Check drive belts every 50 hours
(20 hr break-in)
Grease blade spindles every 50 hours
Grease front wheels every 50 hours
Grease caster wheel pivots every 50 hours
Grease pusher bar pivots every 50 hours
Change engine every 50 hours
crankcase oil and filter (5 hrs break-in)
Change hydrostatic oil and filter (See your Bush Hog Dealer)
Important: Substitution of an improper filter will cause every 500 hours
hydrostatic failure which will not be covered under warranty (50 hrs break-in)
Replace air
filter element annually or 500 hours
Check spark plugs annually or 100 hours
Service battery annually or 500 hours
Perform these maintenance procedures more frequently under extremely dusty, dirty conditions.
Replace decals when illegible. Write parts dept. for free replacement.
WARN NG: Make sure seat frame retention click-pins are in place after lifting seat pan for service.
15
IMPORTANT:
BEFORE PERFORMING ANY SERVICE, MAINTENANCE OR REPAIR ON THE ENGINE, REFER TO THE RE-
SPECTIVE ENGINE MANUFACTURERS’ MANUAL FOR SPECIFIC INFORMATION CONCERNING YOUR PAR-
TICULAR BRAND OF ENGINE.

1. ENG NE:
For complete maintenance and operating infor-
mation for your engine, please refer to your
engine operating and maintenance instructions
furnished by the engine manufacturer and
included in your Zero Turn mower information packet.
NOTE
Air intake screen must be kept clean. If
plugged, engine may be seriously dam-
aged by over heating.
2. TACHOMETER / HOURMETER
The tachometer / hourmeter includes a
FlashAlert feature to remind you to change
engine oil and filter at recommended inter-
vals. The tachometer displays engine rpm
when the engine is running and elapsed time
in hours when the engine is turned off.
Oil Change Flash Alert - Break-in interval at 5
hours with 1 hour before and after flash. Normal
interval at 50 hours with 2 hour before and
after flash.
3. BATTERY:
When taking the battery out of the mower for
servicing, make sure to reconnect the cables to
the battery exactly as they were prior to removal.
Keep the battery clean. Remove the corrosion
around the battery terminals by applying a solu-
tion of one part baking soda to four parts water.
Coat all exposed terminal surfaces with a light
layer of grease or petroleum jelly to prevent corrosion.
NOTE
At temperatures below 32 degrees F (0 deg
C) the full charge state must be maintained to
prevent cell electrolyte from freezing and
causing permanent battery damage.
AVOID SERIOUS INJURY OR DEATH:
llTHE BATTERY CONTAINS SULFURIC ACID.
AVOID CONTACT WITH S IN, EYES OR CLOTHING.
EYES - FLUSH WITH WATER AND GET PROMPT MED-
ICAL ATTENTION.
ANTIDOTE: INTERNAL - DRIN LARGE QUANTITIES
OF WATER OR MIL . FOLLOW WITH MIL OF MAG-
NESIA, BEATEN EGG OR VEGETABLE OIL. CALL A
PHYSICIAN IMMEDIATELY.
llBATTERIES PRODUCE EXPLOSIVE GASES.
EEP SPAR S, FLAMES AND SMO ING MATERI-
ALS AWAY. VENTILATE WHEN CHARGING IN AN
ENCLOSED SPACE. WEAR EYE PROTECTION
WHEN WOR ING NEAR BATTERIES.
llEEP OUT OF REACH OF CHILDREN.
5. MOWER BLADES:
Check sharpness of mower blades after every 10
hours of operation. To sharpen blades proceed as
follows:
A. Lift deck and secure in raised position.
B. Remove bolt, cup washer, and blade from shaft.
C Blades should be discarded when worn exces-
sively. See sketch.
D. Sharpen blade with a hand file, electric grinder
or blade sharpener. Wear gloves and eye protection
when sharpening. Grind blade at original bevel.
E. Check balance of blade by positioning the blade
on a nail or blade balance pedestal. Grind the blade on
the end that is heavier until both sides balance.
F. nstall blades with the concave side of the cup
washer against blade. Be sure blades are installed with
uplifts and cutting edges in the proper directions.
Tighten retaining bolt to 76 ft./lbs.
6. CLEAN NG GRASS BU LD UP UNDER DECK
Depress the deck lift foot pedal and lock in position, then
move the height adjustment pin to the 5”
position.
Lift the front of the unit and support unit securely.
Clean out any grass build up from underside of deck and
in deck discharge chute.
16
WHEN IT IS NECESSARY TO RAISE THE DEC
OR MOWER FOR SERVICE OR MAINTENANCE,
TO AVOID SERIOUS INJURY OR DEATH, STOP
ENGINE, SET PAR ING BRA E, REMOVE IGNI-
TION EY AND SPAR PLUG WIRES AND SE-
CURELY SUPPORT THE DEC OR MOWER
BEFORE WOR ING UNDERNEATH.

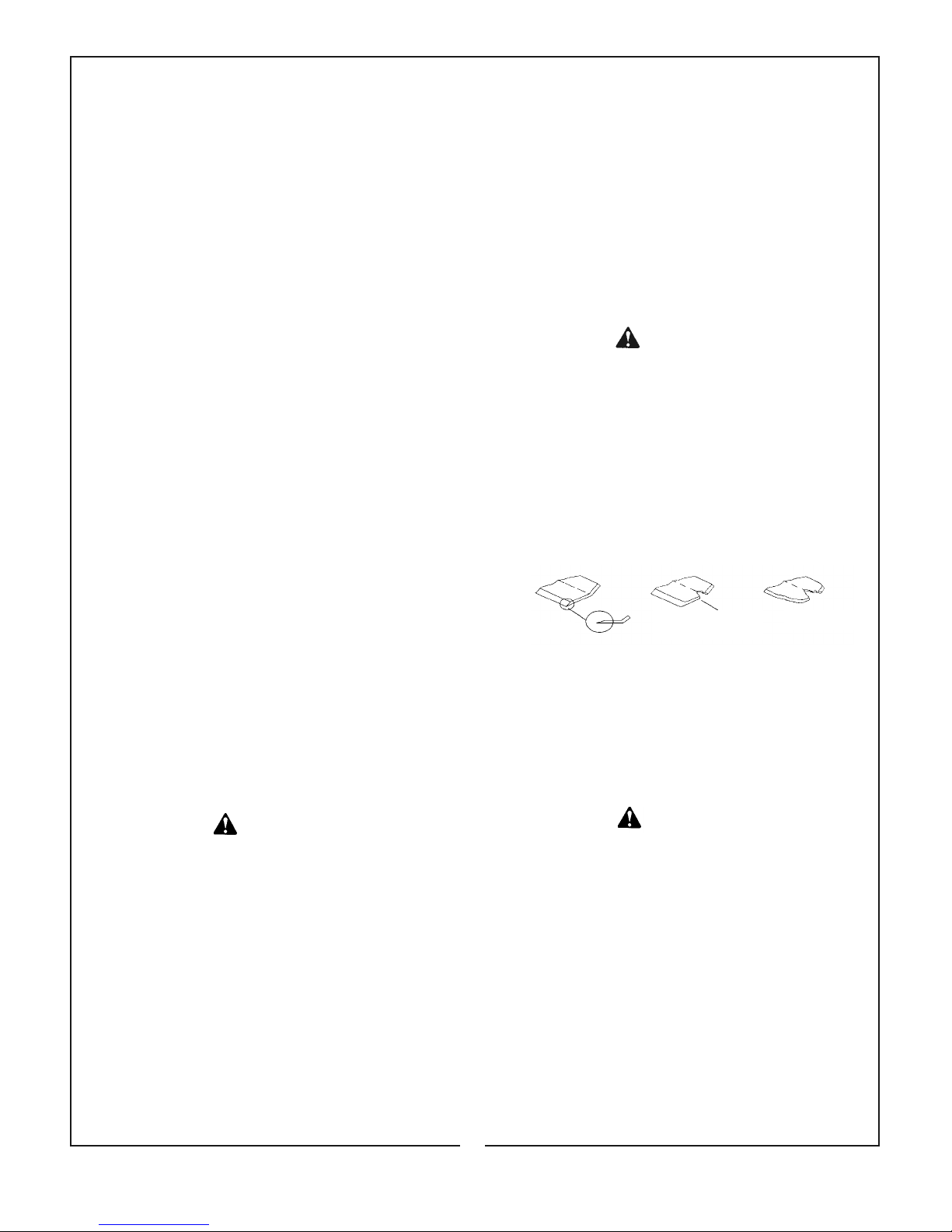

New Blade
Dangerous!
25 Degrees When Notch Starts
Discard Blade
WARNING
Lug bolts should be checked regularly for tight-
ness. Torque lug bolts to 50 ft./lbs. The center hub
nut should be torqued to 175 - 200 ft./lbs. and cot-
ter key installed.
WARNING
WHEN IT IS NECESSARY TO RAISE THE DEC
OR MOWER FOR SERVICE OR MAINTENANCE,
TO AVOID SERIOUS INJURY OR DEATH, STOP
ENGINE, SET PAR ING BRA E, REMOVE IGNI-
TION EY AND SPAR PLUG WIRES AND SE-
CURELY SUPPORT THE DEC OR MOWER
BEFORE WOR ING UNDERNEATH.
WARNING
4. T RES:
Correct tire pressure is essential for efficient
operation of the mower. Check tire air pres-
sure periodically. nflate front and rear tires to 15 psi.

MOTION CONTROL STEERING ADJUSTMENT
1. Raise the drive wheels of the Zero Turn
off of the ground. Safely block the frame
in this position so it is secure. This
adjustment must be made with the drive
wheels turning.
2. Remove the electrical connection from
the seat switch and temporarily install a
jumper wire across the terminals of the
wiring harness.
3. Loosen the jamnuts on the hex turnbuckle,
which connects the lever control arm to
the pump control arm. Note: the nuts to
the front of the hex turnbuckle have left-
handed threads.
4. Start the engine. Run the engine at full
throttle and release brake.
5. Position the control levers in the neutral
position. f the drive wheels creep
(rotate) in the neutral position then
lengthen or shorten the turnbuckle
assembly. Make the adjustment to stop
the wheel from rotating.
6. Re-tighten the nuts at the end of the hex
turnbuckles and repeat the procedure for
the opposite side of the unit.
7. Shut the unit off. Remove the jumper wire from
the wiring harness and replace the connectors
into the seat switch. Never operate the mower
unless all safety switches are operating properly.
DRIVE ADJUSTMENTS
Steering and motion controls should be uniform in all
forward and reverse speeds. From the reverse posi-
tion the levers should automatically return to neutral
when released.
TEST DRIVE OPERATIONS
Check air pressure in tires. Equal tire pressure is crit-
ical for proper drive operation.
1. Raise drive wheels off ground. Safely block
the frame in this position.
2. Put control levers in neutral lock position
(control levers swung outward).
3. Start engine. Wheels should not rotate. f one or
both drive wheels are turning, perform proce-
dures under “Motion Controll Adjustment” for
side(s) that wheel turns.
17
CAUTION
STOP THE ENGINE BEFORE MA ING AD-
JUSTMENTS.
MOTION CONTROL LEVER ADJUSTMENT
1. There are three lever height positions available.
Place the levers in the position that provides the
most confortable operating position for you.
2. Align the levers front/rear position. With the
levers in the neutral position, loosen the hard-
ware and adjust the levers by tilting forward or
backward until properly aligned. tighten hardware.
Lever Position Adjustment Bolts
Pump
Control Arm
Control Arm
Hex Turnbuckle
Jamnut
Control Arm Lever

LEVELING THE DEC
1. Set all tire pressures to the correct specifications.
2. Place machine on a level slab of concrete.
3. Depress the deck lift pedal raising the deck to
the full lift height position and move the height
adjustment pin to the 5” position.
4. Place a level on the deck, from front to rear. f
the level is too short to reach all the way from
front to rear, lay a straight edge on the deck first,
then place the level on the straight edge.
5. Lay a .125” spacer beneath the front of the level.
6. Adjustment may be made by loosening the
upper chain fasteners and moving the fasteners
in the provided slot. Adjust fasteners until the lev-
el’s bubble is centered. Repeat for the other side.
COUNTERBALANCE SPRING
Raise the cutter deck to the transport position. Adjust
the spring length with the nuts on the eye-bolt, located
under the seat, to the following lengths for 3” cutting
Heights:
55” Deck - Spring Length of 10-1/2”
61” Deck - Spring Length of 11”
73” Deck - Spring Length of 11”
For lower cutting height, loosen spring at 1/4” intervals
until stop hits adjusting pin in correct height location. f
deck floats, loosen spring at 1/4” interval until deck
stops floating. (Measure from inside of hook to inside of
hook)
STOP THE ENGINE, SET PAR ING BRA E,
REMOVE IGNITION EY AND SPAR PLUG
WIRES FOR SAFETY.
CAUTION
DEC SPINDLE BELT ROUTING DIAGRAM
Spring Loaded
dler Assembly
Front Of Deck
WARNING
TO AVOID SERIOUS BURN INJURIES:
llALLOW ENGINE, OIL AND HYDRAULIC FLU-
IDS TO COOL BEFORE SERVICING TRANSMIS-
SION OR ENGINE SYSTEM
CAUTION
TO AVOID CLEANING SOLVENT FIRES:
llAVOID USING FLAMMABLE SOLVENTS.
llAVOID AREAS WITH IGNITION SOURCES
WHEN USING FLAMMABLE SOLVENTS.
18
DEC BELT REPLACEMENT
Belt adjustment should be checked every 50 hours to
get maximum life and cutting performance from the
mower. Belt tension is adjusted by increasing or de-
creasing the length of the spring on the movable idler.
For proper belt tension on the 55”, 61” and 73” mow-
ers, the spring length should be set to 7-1/2” inside
hook to inside hook with the deck in 3” cutting height
position. To adjust the spring length, loosen or tighten
the 3/8” hex nuts on the eye bolt until the correct
spring length is reached.
DECK BELT REPLACEMENT
USE ONLY GENUINE BUSH HOG REPLACEMENT PARTS
A. Remove the deck shield assembly.
B. Relieve the spring tension by loosening the two
3/8” hex nuts on the eye bolt.
C. Remove old belt.
D. nstall new belt. Be sure that the belt is properly
positioned in all sheave grooves.
E. Adjust tension on the belt by adjusting the length
of the spring on the moveable idler. The correct
spring length is 7-1/2” for the 55”, 61” and 73”
decks.
F. Replace the deck shield assembly.
Engine/Clutch Pulley
Anti-Scalp
Rollers
Deck Lift Pedal
Height Adjustment Pin
Deck
Upper
Chain Fastener
(Measure from inside of
hook to inside of hook)
7-1/2”
