Bush Hog SBLM66 User manual
© 2020 Alamo Group Inc.
Published 10/20 Part No. 50082055
OPERATOR’S MANUAL
BUSH HOG®
2501 Griffin Ave.
Selma, AL 36703
334-874-2700
www.bushhog.com
This Operator's Manual is an integral part of the safe operation of this machine and must
be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety
and Operation Instructions contained in this manual before operating the equipment. C01-
Cover
SBLM66, SBLM66HD,
SBLM76, SBLM76HD,
SBLM86 & SBLM86HD
LOADER MOUNT SNOW BLOWER
Notes
!
CAUTION
Operational Hazard
Personal Protection Equipment (PPE) is
required when operating or maintaining
this machine.
!
CAUTION
Operational Hazard
Tractor PTO must operate at 540 RPM
only. Exceeding the power unit design
speed of 540 RPM will result in operator
injury or damage to the machine.
2
Rev 231020
Table of Contents
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
DEALER to CUSTOMER Pre-Delivery/ Operation
Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Serial Number Location . . . . . . . . . . . . . . . . . . . .6
General Information . . . . . . . . . . . . . . . . . . . . . . .7
Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operator Orientation . . . . . . . . . . . . . . . . . . . . . . . . . 7
P65 Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Accident Prevention . . . . . . . . . . . . . . . . . . . . . . .9
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . .10
Safety Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Storage Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safe Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . . . 12
Hydraulic Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Bush Hog Loader Blower Decals . . . . . . . . . . . . . . 13

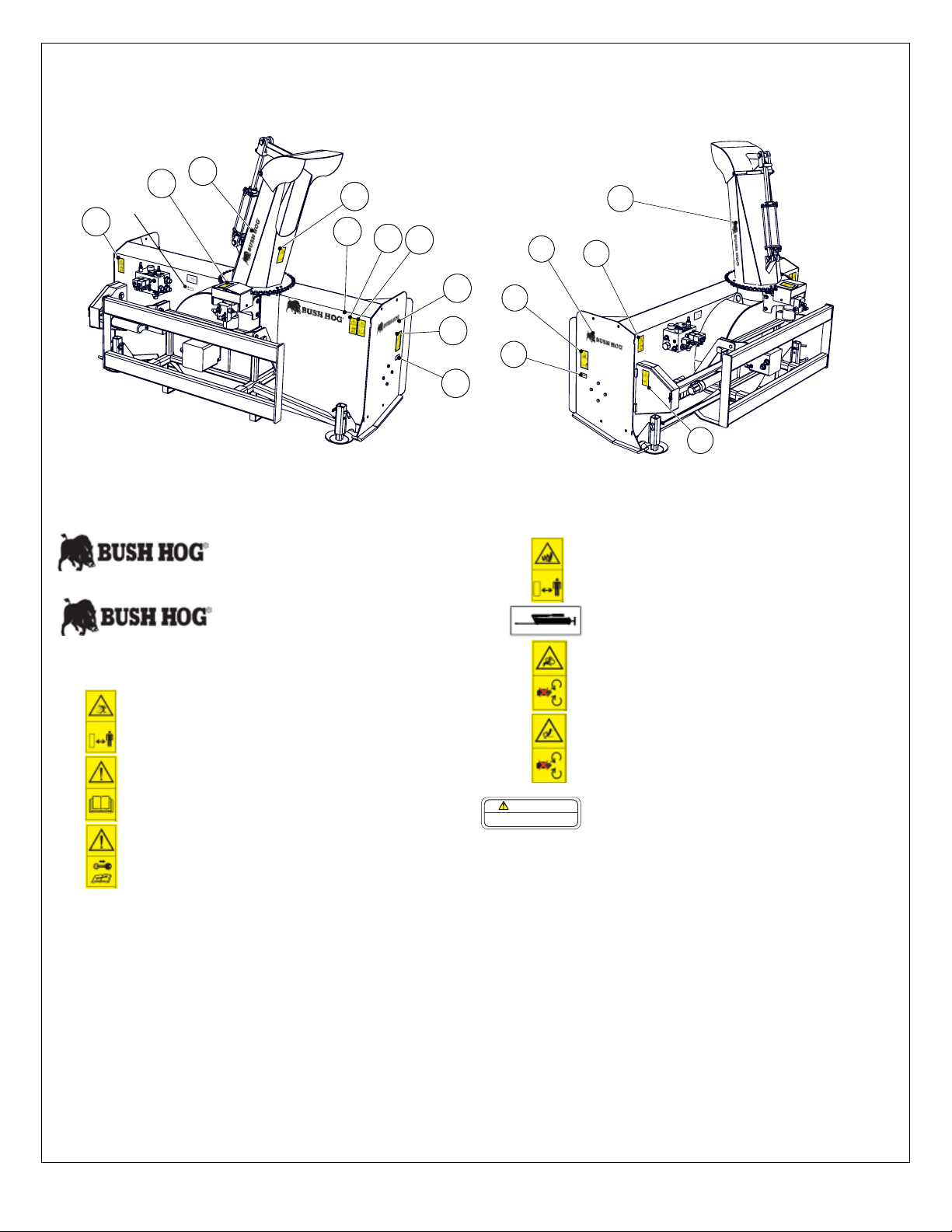

Bush Hog Loader Blower and Power Pack Decal
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Bush Hog Power Pack Decals . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . .15
. . . . . . . . . . . . . . . . . . . . . . . . . . .16
Loader Blower Assembly . . . . . . . . . . . . . . . . . .17
. . . . . . . . . . . . . . . . . . . . . . . .18
Hydraulics: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Blower Control Harness . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . 20
Attach the Blower . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Sizing PTO Drive-line . . . . . . . . . . . . . . . . . . . . . . . 22
Power Pack Setup and Attachment . . . . . . . . . . . . 23
Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Operating the Bush Hog Loader Snowblower . .25
Snow Clearing Tips . . . . . . . . . . . . . . . . . . . . . .27
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . . . 28
General Maintenance . . . . . . . . . . . . . . . . . . . . . . . 28
Hydraulic Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Power Pack Maintenance. . . . . . . . . . . . . . . . . .29
Daily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Annually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Loader Blower Maintenance. . . . . . . . . . . . . . . .30
Daily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Annually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
. . . . . . .31
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Placing in Storage: . . . . . . . . . . . . . . . . . . . . . . . . . 34
Bolt Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
3
Warranty
Two Year Limited Consumer Warranty
Five Year Limited Consumer Warranty on Gearboxes
90 Day Limited Commercial Warranty including Gearboxes
Commercial includes rental and industrial applications.
Warranty begins at the time of customer delivery and is activated upon warranty registration receipt
at Bush Hog Inc.
Warranty coverage is null and void unless the Warranty Registration form has been completed
in full and is on le at
Bush Hog Inc.
Keep your registration copy in a safe place, it is required as proof of warranty activation.
This new and unused product is warranted by
Bush Hog Inc.
to be free from defects inmaterial and workmanship under normal use
and regular service as described in the owner’s manual, for a consumer period of 2 years and 5 years for gearboxes, from the date
of delivery, and commercial period of 90 days, including gearboxes, from the date of delivery. Warranty is limited to the replacement
of parts and / or repair of the product.
If issues develop within the warranty period with the product, contact the local dealer from which you purchased the unit. Only
Bush
Hog Inc.
authorized dealers may make repairs to the product or aect the replacement of defective parts, unless otherwise ap-
proved by
Bush Hog Inc
. Repairs / replacement will be done at no charge within a reasonable time after the receipt of the product.
This warranty does not cover the following items:
1. Normal replacement of service items.
2. Normal maintenance or adjustments.
3. Machines or parts lost or damaged during shipment,
4. Accessory items / parts not supplied by
Bush Hog Inc.
5. Damages resulting from:
misuse, negligence, accident, theft or fire
use of improper or insufficient fuel, fluids or lubricants
use of after market parts or accessories, unless approved by
Bush Hog
modifications, alteration, tampering or improper repair
any device or accessories installed by other than an authorized dealer.
6. Tires are covered by the manufacturer of the tire and the warranty period specified by that
manufacturer. Please contact the tire manufacturer for warranty on these items.
Bush Hog Inc.
shall not, in any event, be liable for any losses, damages or costs; to include prots, travel, transportation, pick up,
delivery, towing cost, tow vehicle, loss of use, whether special, incidental, consequential or otherwise, in any way. Unit or parts are
returned at the customer’s expense.
Include a copy of your completed Warranty Registration form with any claim as proof of warranty activation.
There are no warranties, expressed or implied, other than those specied herein. No agent, employee or other person has any
authority to vary any of the foregoing provisions.
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on le at Bush Hog Inc.. Warranty
begins at the time of customer delivery and is activated upon Warranty Registration receipt at Bush Hog Inc.
Bush Hog Inc. 2501 Grin Ave.Selma, AL 36703 Oce: (334) 874-3159
180118
Dealer: inform the Purchaser of this product of the Warranty terms, provisions, and procedures that are
applicable. Submit warranty information to Bush Hog
Dealer should inform Purchaser to review the contents of this Operator’s Manual including safety equipment, safe
operation, and maintenance, to review the Safety Signs on the blower (and tractor if possible), and of Purchaser’s
responsibility to train his/her operators in safe operating procedures.
repair.
• DRIVE-LINES: make certain that all drive-line, gearbox, and other shields are in good repair and fastened
securely in place to prevent injuries from entanglement or thrown objects.
stopping leaks, damage caused by operating with over-heated oil, caring for hoses, using hoses of proper rating,
while in operation and that operator is responsible to watch out for persons in the area. Explain that the lifted
blower can contact overhead obstructions with damage to cables and telephone lines and result in possible
injury and that the chute can contact power lines resulting with electrocution, injury or death and that operator is
responsible for keeping clear of such hazards.
Dealer: please inspect the machine before delivery to the customer:
• Check fan and auger clearance and they turn freely
•
• All fasteners are tight
• Grease zerks and pivot points lubricated
• Check that lock pins align and move freely
• Operating and safety instructions reviewed
• All safety decals installed
• Guards and shields installed and secured
• SMV sign installed (if required)
• Retainer installed through hitch points
5
Model Number _________________________________________________________
Serial Number _________________________________________________________
Purchase Date _________________________________________________________
Please record your serial number here as a handy reference. In case of warranty issues, your dealer will ask for
the serial to verify your warranty.
Model Number _________________________________________________________
Serial Number _________________________________________________________
Purchase Date _________________________________________________________
The serial number for your power pack is located on the front upper right side of the power pack assembly.
The serial number for your blower is located on the back upper left side of the snowblower
assembly.
6
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Cancer and Reproductive Harm
www.P65 Warnings.ca.gov D960
WARNING
The purpose of this manual is to assist you in operating and maintaining your Snow Blower in a safe
manner. Read this manual carefully to obtain valuable information and instructions that will help you achieve safe and
dependable service. The illustrations and data used in this manual were current at the time of printing, but due to possible
engineering and or production changes, this product may vary slightly in detail. Bush Hog reserves the right to update and
units for the sole purpose of clearing snow.
This manual covers models:
SBLM66 SBLM66HD SBLM76 SBLM76HD SBLM86 SBLM86HD
In this manual the product may be referred to as blower, snow blower, or machine. Power unit is the engine driven ma-
chine that the snow blower is mounted to.
The directions left, right, front and rear, as mentioned throughout this manual, are determined when sitting in the power
units driver’s seat and facing in the direction of travel
7
!
This Safety Alert Symbol means:
ATTENTION!
manual. When you see this symbol, read and understand the message, be alert to the potential
Throughout this manual, the terms are used to indicate the
degree of hazard to personnel if proper safety procedures and guidelines are not followed. The appropriate term
for each message has been selected using the following guide-lines:
DANGER - Indicates an imminently hazardous situation that, if not avoided, will result in death or
serious injury, and includes most extreme situations typically for snow blower compon-
ents which, for functional purposes, cannot be guarded.
WARNING - Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury, and includes hazards that are exposed when guards are removed. It may
also be used to alert against unsafe practices.
CAUTION - Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
- Indicates a situation that could result in damage to the snow blower or other property.
In the owners manual, when a hazard is present you will see a safety message box. The box may contain:
• The safety alert symbol,
• The safety term
• The safety hazard
• The safety hazard explanation
When applicable you may also see the appropriate safety label displayed with the message, as shown below.
!
WARNING
The top rail and beam form a poten-
tial pinch point, be aware of where
hands and feet are while adjusting
the top rail. SL00002
Safety Label
Safety Alert
Safety Hazard
Safety Term
Safety Hazard Explanation
The safety information given in this manual does not replace any safety codes, insurance needs, government and local laws.
8
• Never exceed the limits of the snow blower. Safety of
the operator and safe operation are the main concerns
in designing a safe product, however ignoring snow
accident which could have been prevented.
• Do not allow riders on the snow
blower at any time.
• Do not operate this snow blower
alcohol.
•
MAINTENANCE of YOUR snow blower.
• Wear appropriate personal protective equipment
(PPE). This list includes but is not limited to:
• Hard hat
• Heavy gloves
• Hearing protection
• Protective foot wear
• Protective eye wear
• Safety vest
YOUR HELP!
YOUYOU must ensure that you and
anyone else who is going to use, maintain or work around the snow blower be familiar with the work and maintenance
your working day and alerts you to all good safety practices that should be used.
Remember, YOU are the key to safety. Good safety practices not only protect you but also the people around you. Make
familiar with the recommended maintenance and work procedures and follow all the safety precautions. Most accidents
can be prevented. Do not risk injury or death by ignoring good safety practices.
accident prevention is a careful operator.
YOU
YOU
•
who will operate, maintain, or work
around this product, with the safety
and operation information contained in
this manual.
• Read and understand the safety labeling which
appears on the snow blower.
•
the need arise and know how to use it.
• Pay attention to the job at hand. Do not let your mind
lose concentration on what you are doing. No accident
prevention program can be successful without the
wholehearted cooperation of the person who is
directly responsible for the operation of the snow
blower.
•
the need arise and know how to use it.
• Reduce the risk of injury or death by following all
safety precautions and by using good safety practices.
• Accidents can be prevented: that prevention will
come from equipment operators who accept their
complete responsibility and anticipate the results of
their actions.
9
Safety of the operator and bystanders is one of the chief concerns in developing and designing equipment. However,
every year many accidents occur which could have been avoided by a few seconds of thought and a more cautious
approach to handling equipment.
An operators responsibility is the safe operation of the equipment. You, the operator, can avoid many accidents by
observing the following precautions in this section. To avoid personal injury or death, study the following precautions and
insist those working with you, or for you to follow them.
and accident prevention are dependent upon the awareness, concern, and proper training of personnel involved in
the operation, transport, maintenance, and storage of the snow blower. Refer also to safety messages and operation
instruction in each of the appropriate sections of the power unit and snow blower manuals. Pay close attention to the
1. In order to provide a better view, certain illustrations
in this manual may show an assembly with a safety
device removed. However, equipment should never be
used in this condition. Keep all safety devices in place,
if removal becomes necessary for repairs, replace the
device prior to use.
2. Replace any safety label or instruction sign that is
unreadable or is missing. Location of safety signs is
indicated in this manual.
3. Never use alcoholic beverages or drugs which can
hinder alertness or coordination while using this snow
blower. Consult your doctor about using this snow
blower while taking prescription medications.
4. Under no circumstances should young children be
allowed to work with this snow blower.
5. This snow blower is dangerous to persons unfamiliar
with its operation. Do not allow persons to use or
maintain this unit until they have read this manual
and have developed a thorough understanding of the
safety precautions and of how it works. Review the
safety instructions with all users annually.
6. If the elderly are assisting with work, their physical
limitations need to be recognized and accommodated.
Assistants should be a responsible, properly trained
and physically able person familiar with machinery
and trained in this snow blower’s operations.
7. Never exceed the limits of the snow blower. If its
ability to do a job, or to do so safely, is in question -
DON’T TRY IT.
8. Do not modify the snow blower in any way.
or death and may impair the function and life of the
snow blower.
• Train all new personnel with the instructions
alongside the snow blower. Be certain only a properly
trained and physically able person will use the
machinery.
• Working with unfamiliar equipment can lead to
careless injuries. If this snow blower is used by any
person other than yourself, or is loaned or rented,
it is the snow blower owner’s responsibility to make
certain that the operator, prior to using:
•Reads and understands the operator’s manuals.
•Is instructed in safe and proper use of the snow blower
.
• If the elderly are assisting with the work, their
physical limitations need to be recognized and
accommodated.
the snow blower. An untrained operator exposes himself and bystanders to possible serious injury or death.
• Operators or maintenance personnel who are not
fully able to read and understand this manual should
not operate or work on the snow blower until suitably
trained:
• Make certain that all operators and maintenance
personnel have complete understanding of the full
and exact contents of this manual and safety labeling.
• ALL information contained in this manual and labeling
on the snow blower must be conveyed CLEARLY
knowledgeably.
• Review the snow blower and instructions regularly
with existing workers.
10
1. Inspect snow blower for shipping damage. If damage
does exist, do not use. Notify your dealer immediately
to have damaged parts replaced or repaired.
2. Ensure safety guards, attach points, power unit tires
are not damaged and in good condition.
3. Inspect all fasteners that they are not loose or
missing. Ensure fasteners and wheel bolts are torqued
according to the torque chart at the back of this
manual.
4. If traveling at night, ensure provincial state and local
laws for lighting requirements have been met.
5. Ensure that all applicable safety decals are installed
and legible.
6. Personal protection equipment (PPE) including hard
hat, safety glasses, safety shoes, and gloves are
recommended during assembly, installation, operation,
adjustment, maintaining, repairing, removal, cleaning,
clothing or jewelry to be around equipment.
7. PROLONGED EXPOSURE TO LOUD NOISE MAY
CAUSE PERMANENT HEARING LOSS!
Gas or diesel powered equipment can often be noisy
enough to cause permanent, partial hearing loss. We
recommend that you wear hearing protection on a full-
time basis. Noise over 85dB on a long-term basis can
cause severe hearing loss. Noise over 90db adjacent
to the Operator over a long-term basis may cause
permanent, total hearing loss.
8. When not attached to the power unit, secure the unit
to prevent movement.
9. Check wiring harness connection and test functions if
applicable.
1. NEVER allow helpers or bystanders under or near the
snow blower.
2. Make sure that the snow blower is fastened securely
to the power unit before moving.
3. Inspect all fastening devices, do not use if worn or
damaged.
4. Make sure that everyone is clear before moving the
snow blower. NEVER position yourself between the
powering unit and the snow blower.
5. Do not permit riders while using this snow blower.
6. Where possible, avoid operating near ditches,
embankments and holes.
7. Snow clearing speed is dependent upon many
factors which includes but is not limited to: visibility,
obstructions, surface condition. Never exceed 15 km/h
(10 mph) while clearing snow. Serious personal injury
can result from clearing at excessive speeds if an
obstruction is encountered.
8. Travelling between job sites, do not exceed 40 km/h
(25 mph). Ensure slow-moving-vehicle (SMV) emblem
has been properly installed at rear of power unit or
snow blower.
9. Avoid distractions and pay attention to the job at hand:
wait until it is safe to operate mobile communication
equipment such as cell phones, text messaging
devices, pagers or two-way radios.
10. Always wear the seat belt, if equipped, when clearing
snow. Sudden contact with a hidden object can result
in serious personal injury.
11. Inspect areas to be cleared before snowfall for
potential hazards, and mark obstructions with stakes
that will be seen when snow covers the ground.
12. Always lower the snow blower to the ground when not
in use.
13. When moving in reverse, turn and look behind you
instead of relying on vehicle mirrors.
14. When exiting or entering your power unit, use caution,
the entry area may be slippery from snow and ice
buildup.
1. Store the unit in an area away from human activity.
2. Do not allow children to play on or around the stored
snow blower.
3. Store the unit in a dry, level area. Cover if stored
outside.
4. Guard any sharp corners.
5. Ensure components and safety features are not
damaged and in good condition before storing
the snow blower. Make repairs to be ready for the
following season.
6. Secure the snow blower to prevent unwanted
movement.
11
1. Make sure that all the components in the hydraulic
system are kept in good condition and are clean.
2. Before applying pressure to the system, inspect
for leaks at all components, and that lines, hoses ,
connections and couplings are not damaged and leak
free.
3. Do not attempt any makeshift repairs to the
clamps or cements. The hydraulic system operates
under extremely high pressure. Such repairs will
fail suddenly and create a hazardous and unsafe
condition.
4. Wear proper hand and eye
protection when searching
for a high pressure hydraulic
leak. Use a piece of wood
or cardboard as a backstop
instead of hands to isolate
and identify a leak.
5. If injured by a concentrated
high-pressure stream of
attention immediately.
Serious infection or toxic
reaction can develop from
skin surface.
6. Relieve pressure on hydraulic system before
maintaining or working on system.
7. All hydraulic work must be done by
personnel.
Not all work spaces are the same, but the principles
presented here can be applied to any work space.
Survey the work site, remove debris and make note of
nearby or overhead obstructions, knowing your work area
will make the clearing job easier and safer.
Where possible, avoid operating near ditches,
embankments and holes.
Make a clearing plan to identify hidden obstacles,
structures and piling areas. Sudden impact from obstacles
hidden under the snow may cause injury.
Be aware of:
or any one not directly involved with the
work are only allowed outside of the work area, minimized
hazards.
Workers helping the operator must wear the appropriate
PPE and must always make eye contact with the operator
before entering the work area. Unauthorized Workers or
bystanders are not allowed in the work area. Hazards are
present.
Operator, do not operate the snow blower outside of the
operator area.
1. Good maintenance is your responsibility, follow the
maintenance schedule. Poor maintenance is an
invitation to trouble.
2.
• Keep service area clean and dry.
• Be sure electrical outlets and tools are properly
grounded.
• Use adequate light for the job at hand.
3. Never work under or around the snow blower unless it
is braced securely.
4. Use personal protection equipment (PPE) such as
eye, hand and hearing protectors.
5. Never adjust, service, clean or lubricate the snow
power unit.
6. Ensure hardware is torqued according to the torque
chart at the back of this manual.
7. Disconnect battery ground cable before servicing any
part of the electrical system if applicable.
I
12
)
1 piece
Cancer and Reproductive Harm
www.P65 Warnings.ca.gov D960
WARNING
4
7
6
1
24
8
5
3
1
1- Small Bush Hog Decal 4 Pieces
8- 213 Do not open or remove safety
shields while engine is running. 1 piece
3- 224 Keep safe distance from this
machine. 1 piece
5
key before performing maintenance or
repairwork. 1 piece
4
1 piece
9- 212 Do not open or remove safety
shields while engine is running.
1 piece
7- Grease decal. 3 pieces
6- 236 Stay clear of rotating auger
2 pieces
2- Large Bush Hog Decal
1 Piece
1
7
6
1
9
4
Decal layout similar for all models
)
Cancer and Reproductive Harm
www.P65 Warnings.ca.gov
D960
WARNING
13
8
1 piece
Cancer and Reproductive Harm
www.P65 Warnings.ca.gov D960
WARNING
7
2
Applies to all power pack models
2- Decal SMV, slow moving
vehicle. 1 piece
3
remove key before performing
maintenance work. 1 piece
4
1 piece
5- 207 Stay clear of lower
hitch arms lifting range while
adjusting 3 PH. 1 piece
6- 220 Do not open or remove
safety shields while engine is
running. 1 piece
7
under pressure. Consult manual
for service procedures. 1 piece
5
6
3
4
8
Cancer and Reproductive Harm
www.P65 Warnings.ca.gov
D960
WARNING
14
15
Loader Mount Model SBLM66 SBLM76 SBLM86 SBLM66HD SBLM76HD SBLM86HD
Recommended HP
Max. Operating Weight
Cutting Width 66" 76" 86" 66" 76" 86"
Cutting Edge
Skid Shoes
Auger Tube
Auger Flighting
Auger Diameter
Roller Chain
Mounting+A1
Chute Rotation
Chute Diameter
Main Body Height
Chute Deflector
Fan Diameter
Fan Depth
Auger Drive
Fan Drive
Blower Weight (lb.) 970 1,015 1,065 970 1,015 1,065
Power Pack
Recommended HP
PTO RPM
Hydraulic Reservoir Capacity (gal.)
Flow Rate (psi)
Mount
Height
Width
Depth
Weight (lb.)
Max Ambient Operating Temp. (°c)
Max Operating Time (hours)
Cooling System
3/8" x 3"
3/8" x 1-1/2"
3-1/2" OD
40-60HP
8,000 LBS.
5/16 x 2-1/4
19"
#60
Quick-tach
Hydraulic - remote control
40-60HP
30
12"
31"
Hydraulic - remote control
26"
8"
2 hr Duty Cycle
Hydraulic - pressure relief valve protected
Hydraulic - pressure relief valve protected
Full Duty Cycle
Full Duty Cycle
Radiator with thermostatically controlled 12v powered
cooling fan.
540 RPM Maximum
30"
2° C
2 HR Duty Cycle
n/a
535 lbs. (+ 190 lbs hydrualic fluid)
3PH
30gpm @ 2500psi
575 lbs. (+ 190 lbs hydrualic fluid)
48"
39"
32"
30° C
Bush Hog
and Biological Engineers (ASABE) and the Occupational Health and Safety Administration (OSHA).
Anyone who will be operating and or maintaining the equipment must read and clearly understand
ALL safety operating and maintenance instructions presented in this manual. Do not operate or allow
anyone else to operate this equipment until such information has been reviewed. Annually review this
with the equipment have read and understood the information in the operator’s manual and have
been instructed in the operation of the equipment.
Date
16
After receiving the blower unpack the chute and attach it to the blower as shown below.
THIRD ANGLE PROJECTION
Shield
Anti Friction Ring
Spacer
Lower Retainer
Chute Stop
Front of Chute
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Snowblower\Skid Steer\Blower\SSB 76\76 SS Blower.SLDASM
DWG. NO.
REV
Model
SCALE 1:32
SHEET 5 OF5
DATE DRAWN
MATERIAL
76 SS Blower
August-29-12 4:16:05 PM
DESCRIPTION
76" Skidsteer blower main assy
S:\Solidworks\Solidworks_Elo\Snowblower\Skid Steer\Blower\SSB 76\
Weight(lbs.)
0
Width
Height
Length
0 0
1001.14
0
Blank Size
Unit of Measure
ITEM ID.
10271
Config ID
Hood Ring Assy
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL
1/64
BEND
1.0
TWO PLACE DECIMAL
0.01"
THREE PLACE DECIMAL
0.002"
Notes
DO NOT SCALE DRAWING
the fan outlet.
Next place Chute on top of plastic ring.
!
CAUTION
Prevent potential strain injury, use approved
lifting equipment or ask for help when lifting or
moving heavy, bulky parts.
17
Before using your Bush Hog loader snow blower, the hydraulic, electrical and PTO systems will need
to be set up.
Hydraulic lines are supplied to connect the power pack and the blower together, the lines are 184”
Additionally the power pack is supplied with 32” hydraulic lines and loader blower is supplied with 84”
• Route the connector hoses along the loader arms,
• Carefully position the hoses so they won’t get pinched, kinked, stretched or get caught at any
point during the movement of the loader arms..
• Position the coupler ends at the loader and PTO to ensure hydraulic connections can be easily
made.
• Be sure to leave excess hose at loader arm pivot points to avoid stretching of the hoses.
• Secure the hoses in place with hose clamps.
!
CAUTION
Operational Hazard
Personal Protection Equipment (PPE) is
required when operating or maintaining
this machine.
CAUTION
Operational Hazard
key before performing mainte-
nance or setup or repair work
Suggested routing for hydraulic lines and control harness
!
WARNING
Be aware that hydraulic leaks could
develop with out warning. Do not
check for leaks with your hand or
18
from the battery to a hydraulic diverter valve and used by the operator through a control handle.
The electric control harness consists of:
• battery cable with 10 amp fuse and battery clamps (96”)
• battery cable extension (48”)
• control handle & cable (96”)
• cab to blower extension (120”)
Install the control harness as described below:
• Mount the control handle in a convenient location in the cab.
• Route the cab to blower extension cable along the hydraulic lines on the loader arms. Be aware of
any pinch, stretch or kink points to avoid damaging the cable.
• Position the cable connector ends at the loader and cab to ensure electrical connections can be
easily made.
• Make the connection from the control handle cable to the extension cable.
• If the battery cable is too short, use the battery extension cable to extends its reach.
• Make the connection from the battery cable to the control handle cable.
• Determine where and how you want to make the electric power connection. Connect at the battery
or an available 25 amp 12v power source.
• DO NOT MAKE THE POWER CONNECTION AT THIS POINT.
When hydraulic lines and control harness are positioned and secured on the loader arms, careful-
ly move the loader arms through its entire range of motion, noting any pinch, stretch or kink points,
make adjustments as required.
battery cable with 10 amp fuse and battery clamps
19
The full duty hydraulic power pack uses 12 volt power from the battery to power the electrical cooling
fan.
You need to have on hand:
•
• 20 amp fuse and fuse holder
Install the power harness as described below:
• Route the harness from the power pack into the cab. Ensure the harness cable is secure and pro-
tected from snags or pinching.
• Determine where and how you want to make the electric power connection. Connect directly to
the battery or an available min 20 amp fused 12v power source. It is recommended to wire into a
ignition switched circuit to prevent battery drain when not in use.
• Secure loose wiring to prevent damage caused by snags.
• DO NOT MAKE THE POWER CONNECTION AT THIS POINT.
When hydraulic lines and power harness are positioned and secured, carefully move the three point
hitch through its entire range of motion, noting any pinch, stretch or kink points, make adjustments as
required.
!
CAUTION
Operational Hazard
Personal Protection Equipment (PPE) is
required when operating or maintaining
this machine.
CAUTION
Operational Hazard
key before performing mainte-
nance or setup or repair work
20
This manual suits for next models
5
Table of contents
Other Bush Hog Snow Blower manuals
