Cablesson HDelity User manual

Cablesson HDelity 7.1ch
Audio Extractor & Mixer
User Manual
© All rights reserved - CABLESSON© All rights reserved - CABLESSON

The Cablesson HDelity HDMI 7.1ch Audio Extractor and Mixer has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all electronic equipments,
the HDelity HDMI 7.1ch Audio Extractor and Mixer should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water
● Keep away from sharp objects that might damage the device and place the unit on a stable surface
● Use only Power Adapter, Power Cords and Connection Cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
TABLE OF CONTENT
SAFETY AND NOTICE
!
Introduction 1
2
3
4
5
6
Topic Page No.
Features
Specifications
Panel Description
Connection Diagram
7
Warranty
Hardware Installation

The Cablesson HDelity HDMI 7.1ch Audio Extractor & Mixer
offers the highest compatibility HDMI 1.3 in the market. This
unique device supports the separation of high quality stereo
analog audio and digital S/PDIF audio from the incoming HDMI
signal without losing any active audio channels from audio
bit-stream and makes HDMI audio more friendly to your audio
systems with only stereo sound support, such as TV and stereo
speakers.
The HDelity HDMI 7.1ch Audio Extractor and Mixer is also
designed to co-work with any HDMI Matrix in the market to make
different audio capacity HDMI equipped devices can work with
multi-channel HDMI embedded audio at the same time! With
patented circuit inside the box, this HDelity Audio Extractor and
Mixer can down mix 2/5.1/7.1 PCM audio into stereo without
losing any audio channel and this allows HDMI Matrix can
simultaneously send multi-channel audio to stereo capable only
TV. With this HDelity Audio Extractor and Mixer, the HDMI Matrix
scenario can become more flexible and friendly!
“We believe in creating
thoughtful products for you”
1 | Introduction
● Support HDMI Deep Colour & 3D
● HDCP compliant
● Auto HDMI detection
● Lossless 7.1 channel to stereo conversion
● HDMI video supports up to 2160p@60Hz and 36 bit RGB/YCbCr
● Analog stereo audio support
● Digital S/PDIF audio support
FEATURES - Cablesson HDelity HDMI 7.1CH AUDIO EXTRACTOR & MIXER
● 1x Cablesson HDelity HDMI 7.1ch Audio Extractor & Mixer
● 1x 5V power adapter
● 1x User Manual
PACKAGE CONTENTS
2 | Features
“A product that will
exceed your expectations”
AUDIO SUPPORT
HDMI
Analog audio
Cablesson HDelity HDMI 7.1CH AUDIO EXTRACTOR & MIXER
Bypass
Down-mix version of 7.1/5.1 PCM Stereo
Audio Support

3 | Specications
PANEL DESCRIPTIONTECHNICAL SPECIFICATIONS
4 | Description
MECHANICAL SPECIFICATIONS
Housing
Dimensions
(L x W x H)
Model
Package
Carton
Weight
Fixedness
Power supply
139 x 92 x 26mm [5.5" x 3.6" x 1"]
Metal enclosure
270 x 175 x 80mm [10.6" x 6.9" x 3.1"]
Model
Package
390g [13.7oz]
620g [1.8 lbs]
450 x 370 x 300mm [1'6" x 1'3" x 11.8"]
Wall-mounting case with screws
5V 2A DC
Cablesson HDelity
HDMI compliance
HDCP compliance
Video bandwidth
Maximum resolution
Max. TMDS input clock
Max. output pixel clock
Input TMDS signal
Input DDC signal
Cablesson HDelity HDMI 7.1CH AUDIO EXTRACTOR & MIXER
5 Volts [peak-to-peak, TTL]
HDMI Deep Colour & 3D
Yes
Single-link 225MHz [6.75Gbps]
2160p @60Hz / 1920x1200 @120Hz [36-bit RGB/YCbCr]
225MHz
165MHz
1.2 Volts [peak-to-peak]
Input
Output 1x HDMI [7.1ch or 2ch audio & video] 1x 3.5mm phone jack
[Down-mix 2ch audio] 1x RCA + 1x TOSLINK
1x HDMI [7.1ch audio & video]
HDMI connector Type A [19-pin female]
RCA connector 50Ω female
Technical Cablesson HDelity
Mechanical
Cablesson HDelity HDMI 7.1CH AUDIO EXTRACTOR & MIXER
Power consumption
Storage temperature
Relative humidity
-20~60°C [-4~140°F]
20~90% RH [no condensation]
Operation temperature 0~40°C [32~104°F]
1.5 Watts
Optical audio connector TOSLINK
Front Panel
1. Mini-USB port: For F/W update
2. HDMI IN: Connects to an HDMI source with an HDMI male-male cable
3. LED: Power indicator
4. +5V DC: Connect to 5V DC power supply
2 3 4
1
Rear Panel
5. Push button: 1) Audio down mix mode: Push button is bright
2) Audio bypass mode: Push button is dark
6. Local Stereo: Analog stereo audio loop-out
7. HDMI OUT: Connect to an HDMI display with an HDMI male-male cable.
8. OPTICAL: S/PDIF output (TOSLINK)
9. COAXIAL: S/PDIF output (RCA)
678
9
5

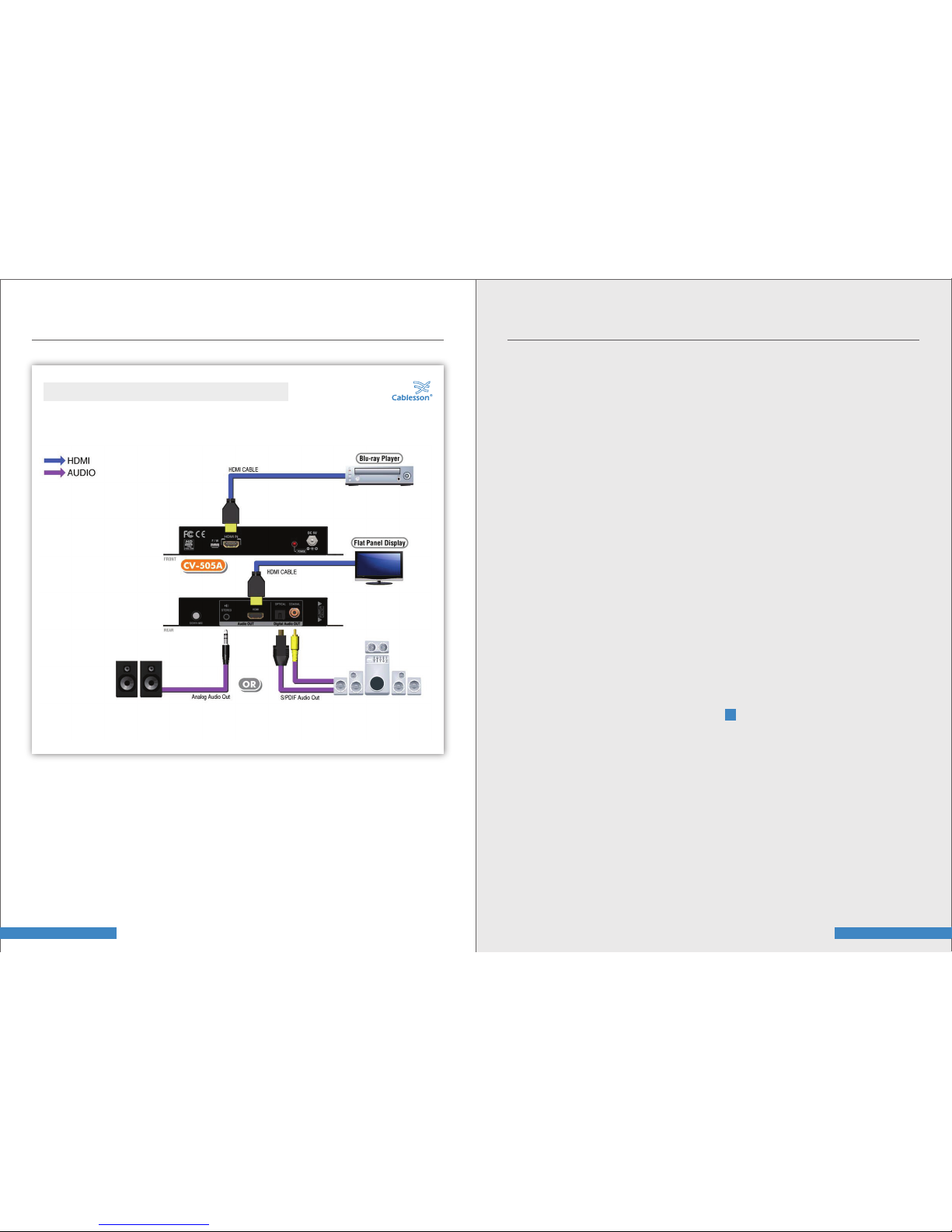

5 | Connection Diagram
CONNECTION DIAGRAM
6 | Hardware Installation
HARDWARE INSTALLATION
Cablesson HDelity HDMI 7.1CH Audio Extractor & Mixer
1. Connect your HDMI sources to HDMI input
2. Connect your HDMI enabled device into the device’s HDMI output port
3. Connect your analog stereo into the device’s 3.5mm phone jack output port
4. Power up the HDelity 7.1ch Audio Extractor and Mixer
HDelity HDMI 7.1ch Audio Extractor and Mixer only supports
2/5.1/7.1 ch PCM or LPCM multi-channel audio down-mix.
Other than these formats, the analog stereo audio may be
either silent or noisy. Please congure the audio packets in
HDMI source carefully!
!

7 | Warranty
LIMITED WARRANTY
The SELLER warrants the Cablesson HDelity HDMI 7.1ch Audio Extractor and Mixer free from defects in the material
and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. If this product fails to
be in good working order within 1 year warranty period, The SELLER, at its option, will either repair or replace the unit,
provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including
static discharge and power surge. This warranty is offered by the SELLER for its BUYER with direct transaction only.
This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect
at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUYER. If the unit is
delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under no
circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other implied
warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Europe are responsible for shipping
charges to and from the SELLER. Cables and power adapters are limited to a 30 days warranty and must be free from
any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER assumes
no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be liable for direct,
indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. Also, the technical information contained herein regarding the HDelity HDMI
7.1ch Audio Extractro and Mixer features and specifications is subject to change without further notice.
