3
This manual (SONAR V-STUDIO 700 Getting Started) provides basic information about how to set up the SONAR V-
STUDIO 700, make initial settings, and set up your system. It also provides troubleshooting information.
● This manual uses the following icons to call your attention to explanations of terms or to important points you should
note. These contain important information, so please be sure to read them.
Explanation of terms, or tips
Points you should be aware of
Related information or detailed explanations
● In order to explain operations as simply as possible, this manual uses the following conventions.
• The steps for selecting a menu item are delineated by “|” (vertical bar) symbols.
For example, File | New means that you are to choose the “ File menu command New .
• Material that is distinct from the main text or operating procedure, such as operating tips or related information,
is enclosed by a heavy border.
• Unless otherwise specified, Windows Vista and Windows XP are referred to simply as Windows .
• Unless otherwise specified, the SONAR 8 software included with this product is referred to simply as SONAR .
● SONAR is designed to be flexibly customized for a wide range of systems in order to be used in a broad range of ways.
Unless otherwise specified, this manual assumes that SONAR is in the state immediately after installation. If you have
customized SONAR, the explanations and operating procedures described in this manual may not produce the
intended result.
● If you have difficulty understanding the explanations of the operations (for example, when you’re using Windows for
the first time), please refer to the documentation for your computer or for Windows.
About This Manual
VS-700_Install_e.book 3 ページ ２００８年１１月２０日 木曜日 午後５時６分

4
Contents
About This Manual......................................................................................................................................... 3
Checking the Contents of the Package...........................6
Installation and Registration...............................................8
Installing the VS-700 Driver........................................................................................................................ 8
To Uninstall the VS-700 Driver....................................................................................... 8
Windows Vista Users.......................................................................................................... 9
Windows XP Users............................................................................................................13
Installing the VS-700 Software ................................................................................................................18
To Install the VS-700 Software .....................................................................................18
Connecting your audio equipment.......................................................................................................19
Register SONAR.............................................................................................................................................20
Installing SONAR ..........................................................................................................................................21
To Install SONAR ...............................................................................................................21
To Uninstall SONAR..........................................................................................................21
SONAR VS-700 software components..................................................................................................22
SONAR VS-700 Control Surface Plug-in....................................................................22
Fantom VS Editor..............................................................................................................22
Rapture.................................................................................................................................22
Rapture Expansion Packs...............................................................................................22
Running SONAR for the First Time.........................................................................................................23
Initial Settings........................................................................ 24
Audio Driver Settings .................................................................................................................................24
Select the Drivers..............................................................................................................24
Other Audio Driver and Audio-Related Settings...................................................26
MIDI Devices Settings.................................................................................................................................28
MIDI Controllers/Surfaces Settings........................................................................................................30
Loading the Controllers/Surfaces Plug-in................................................................30
VST/VSTi Registration and Settings.......................................................................................................31
Playing a Demo Song .................................................................................................................................32
Playing an Audio Demo Song ......................................................................................32
Playing Back the MIDI Demo Songs...........................................................................35
VS-700_Install_e.book 4 ページ ２００８年１１月２０日 木曜日 午後５時６分

5
Contents
Recording Audio...........................................................................................................................................37
1. Connect Instruments and Mics ...............................................................................37
2. Create a New File..........................................................................................................38
3. Select the Input for the Track...................................................................................39
4. Arm the Track for Recording....................................................................................40
5. Enable Input Monitoring for Recording...............................................................41
6. Adjust the Level............................................................................................................42
7. Turn On the Metronome ...........................................................................................43
8. Now Let’s Record!.........................................................................................................44
Troubleshooting................................................................... 45
Problems When Installing VS-700 Driver or Changing Settings .................................................46
Problems When Installing SONAR or Changing Settings..............................................................48
Problems at Startup with SONAR...........................................................................................................49
Problems with Playback ............................................................................................................................50
Problems with Recording..........................................................................................................................52
Eliminating Clicks and Dropouts ............................................................................................................54
Appendix................................................................................. 56
VS-700 Driver settings................................................................................................................................56
Changing or Viewing the Settings .............................................................................56
Controls in the Settings Dialog Box ...........................................................................56
Uninstalling VS-700 Driver........................................................................................................................57
Windows Vista Users........................................................................................................57
Windows XP Users............................................................................................................57
Configuring VS-700 MIDI Ports ...............................................................................................................58
To Enable VS-700 MIDI Ports in SONAR....................................................................58
To Configure SONAR VS-700 Control Surface Plug-in.........................................58
To Configure Fantom VS Editor...................................................................................58
Giving Priority to Background Service (Windows XP).....................................................................59
About Sampling Rates................................................................................................................................60
About Mixing Latency ................................................................................................................................61
Multi-user Use ...............................................................................................................................................62
Uninstalling SONAR and Other Components....................................................................................62
VS-700_Install_e.book 5 ページ ２００８年１１月２０日 木曜日 午後５時６分

6
Checking the Contents of the Package
As soon as you open the package, check that you have all of the included items.
If anything is missing, contact your dealer.
❑ VS-700C Console
fig.pane-vs700c.eps
❑ VS-700R I/O Unit
fig.pane-vs700r.eps
VS-700_Install_e.book 6 ページ ２００８年１１月２０日 木曜日 午後５時６分

7
Checking the Contents of the Package
■ Getting Started
This is the manual you’re reading. It explains how to get SONAR V-STUDIO 700 up and running. It also explains what
you need to know when setting up this product, and what you should know when using it.
❑ VS-700 Owner’s Manual
This explains how to use the VS-700, as well as points of caution that you should remember. Keep this manual at
hand for reference.
❑ SONAR User’s Guide
This explains how to use SONAR 8.
The end of this guide contains the License Agreement . This license agreement is a contract that permits you, the
customer, to use this software. You must read this before you open the DVD-ROM.
❑ Shortcuts and Quick Keys Guide
This is a table of shortcut operations for the VS-700C console.
❑ SONAR 8 DVD-ROM
This DVD-ROM contains SONAR 8.
❑ Beatscape DVD-ROM
This DVD-ROM contains Beatscape.
❑ Dimension Pro DVD-ROM
This DVD-ROM contains Dimension Pro.
❑ SONAR 8 additional content DVD-ROM
This DVD-ROM contains Expansion Pack and other material.
❑ SONAR V-STUDIO 700 CD-ROM
This contains the VS-700 driver and editor software.
* Install the VS-700 driver from this CD-ROM.
❑ Power Cord (two)
The two power cords are for the VS-700R and for the VS-700C.
❑ Dedicated Connection Cable
This is a dedicated connection cable for connecting the VS-700C console and the VS-700R I/O unit.
* Do not use any cable other than the dedicated connection cable to connect the VS-700C console and VS-700R I/O unit.
❑ VS-700R Rackmount Brackets (two)
You can use this hardware to install the VS-700R I/O unit in a 19” rack.
VS-700_Install_e.book 7 ページ ２００８年１１月２０日 木曜日 午後５時６分

8
Installation and Registration
Here’s how to install the VS-700 driver, VS-700 software and SONAR on your computer.
Please note before installing
When installing, you must log on as a user with administrative privileges
In order to install SONAR, you must log on as a user who has administrative privileges. Once installed, the program
can also be used by users who do not have administrative privileges.
Close system monitoring software before installing
If system monitoring software such as anti-virus programs are installed on your computer, you must close them until
you’ve finished installing SONAR. You must also remember to close applications that are not shown in the Windows
taskbar.
Before opening the CD-ROM, be sure to read the “License Agreement” at the end of the SONAR User’s
Guide.
By opening the CD-ROM, you agree to accept the terms of the License Agreement.
What is a Driver?
A driver is software that transfers data between the VS-700 and application software on your computer when your
computer and the VS-700 are connected via a USB cable. You will need to install the driver before connecting the
VS-700 with your computer.
* Log on to Windows as a user whose account type is administrator (such as the Administrator account).
* The driver disk contains the VS-700R driver and the VS-700C driver. Normally, you will install only the VS-700R driver.
Use the VS-700C driver if you’ll be using the VS-700C console by itself.
* The driver(s) you install here also support ASIO (Steinberg Audio Stream I/O Interface).
● Windows Vista Users p. 9
● Windows XP Users p. 13
After installing the VS-700 drivers and SONAR 8, see Running SONAR for the First Time (p. 23) for information
on how to configure the MIDI ports.
Refer to “Uninstalling VS-700 Driver” (p. 57).
Installing the VS-700 Driver
To Uninstall the VS-700 Driver
VS-700_Install_e.book 8 ページ ２００８年１１月２０日 木曜日 午後５時６分

9
Installation and Registration
1.
Disconnect all USB cables (except those for a USB keyboard and/or USB mouse, if used), then start
up Windows.
2.
Close all currently running software (applications).
Also close all windows that are open. If you are using software such as antivirus programs, be sure to close these
programs as well.
3.
Insert the included “SONAR V-STUDIO 700 CD-ROM” into your computer’s CD/DVD-ROM drive.
The “VS-700 Setup” AutoRun appears.
If AutoRun is not enabled, you can start the installer by selecting Start-Run and entering d:\VS-700_Setup.exe
(where d:\ is your disc drive).
4. A user account control screen will appear; click [Continue].
5.
Click [Next].
6.
Select “Install VS-700 Drivers.”
7.
Click [Next].
8.
The screen will indicate “VS-700 Driver will be installed on your computer.” Click [Next].
* If any other message appears, proceed as directed by that message.
9. To begin the installation, click [Next].
10.
If a Windows security dialog box appears, click [Install].
11.
The screen will indicate “VS-700 driver has been installed.”
* If any other message appears, proceed as directed by that message.
Leave the screen open; do not close it at this point.
Windows Vista Users
VS-700_Install_e.book 9 ページ ２００８年１１月２０日 木曜日 午後５時６分

10
Installation and Registration
12.
Perform the following procedure before you connect the VS-700 to your computer.
Due to a circuitry-protection feature, the VS-700R requires a few moments after power-up before it is ready
for normal operation.
Minimize the volume of the connected monitor speakers or external amp, and then connect the VS-700R to
your computer. Even if the volume is minimized, some noise may be audible when you make connections, but
this does not indicate a malfunction.
The system may not be recognized correctly if you connect to a USB hub. If so, connect directly to a USB
port on your computer.
1.

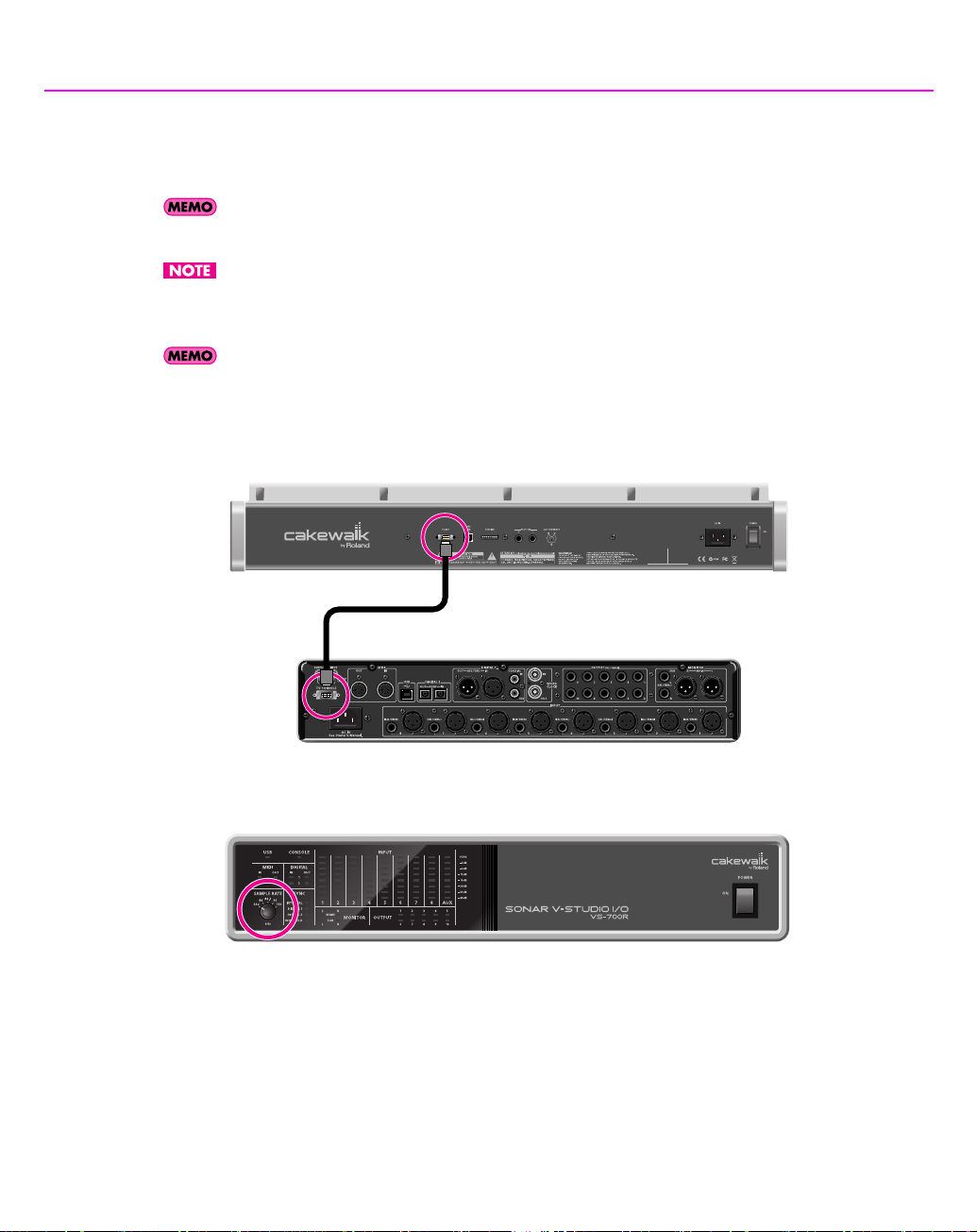

Use the dedicated connection cable (included) to connect the VS-700C and VS-700R.
fig.VS-700-connect01e.eps
2.
Set the VS-700R’s [SAMPLE RATE] knob to 44.1.
fig.VS-700-connect02e.eps
3.

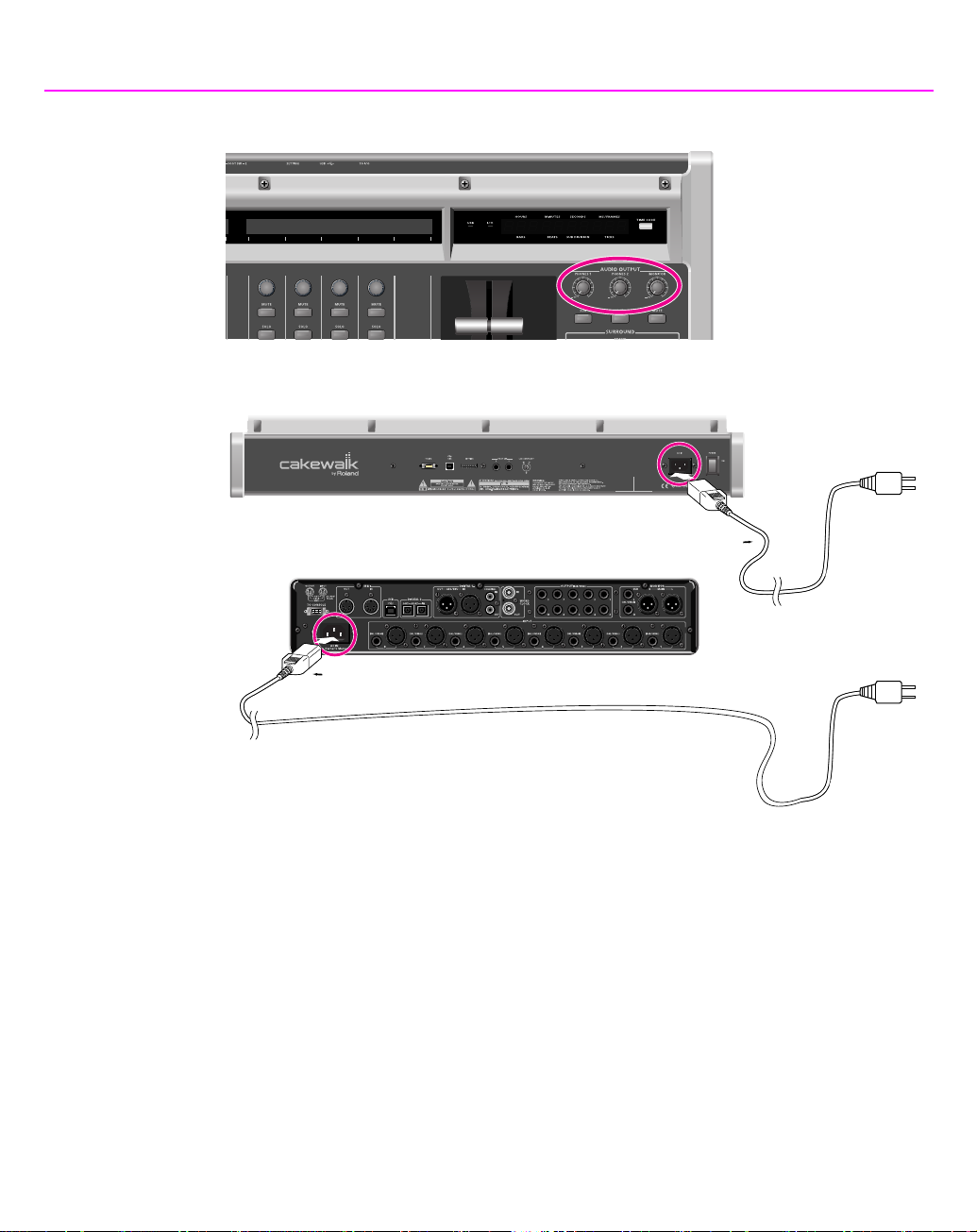

Minimize the VS-700C’s [AUDIO OUTPUT] knobs (three knobs).
fig.VS-700-connect03e.eps
VS-700C Rear Panel
VS-700R Rear Panel
Dedicated connection
cable (included)
VS-700R Front Panel
VS-700_Install_e.book 10 ページ ２００８年１１月２０日 木曜日 午後５時６分

11
Installation and Registration

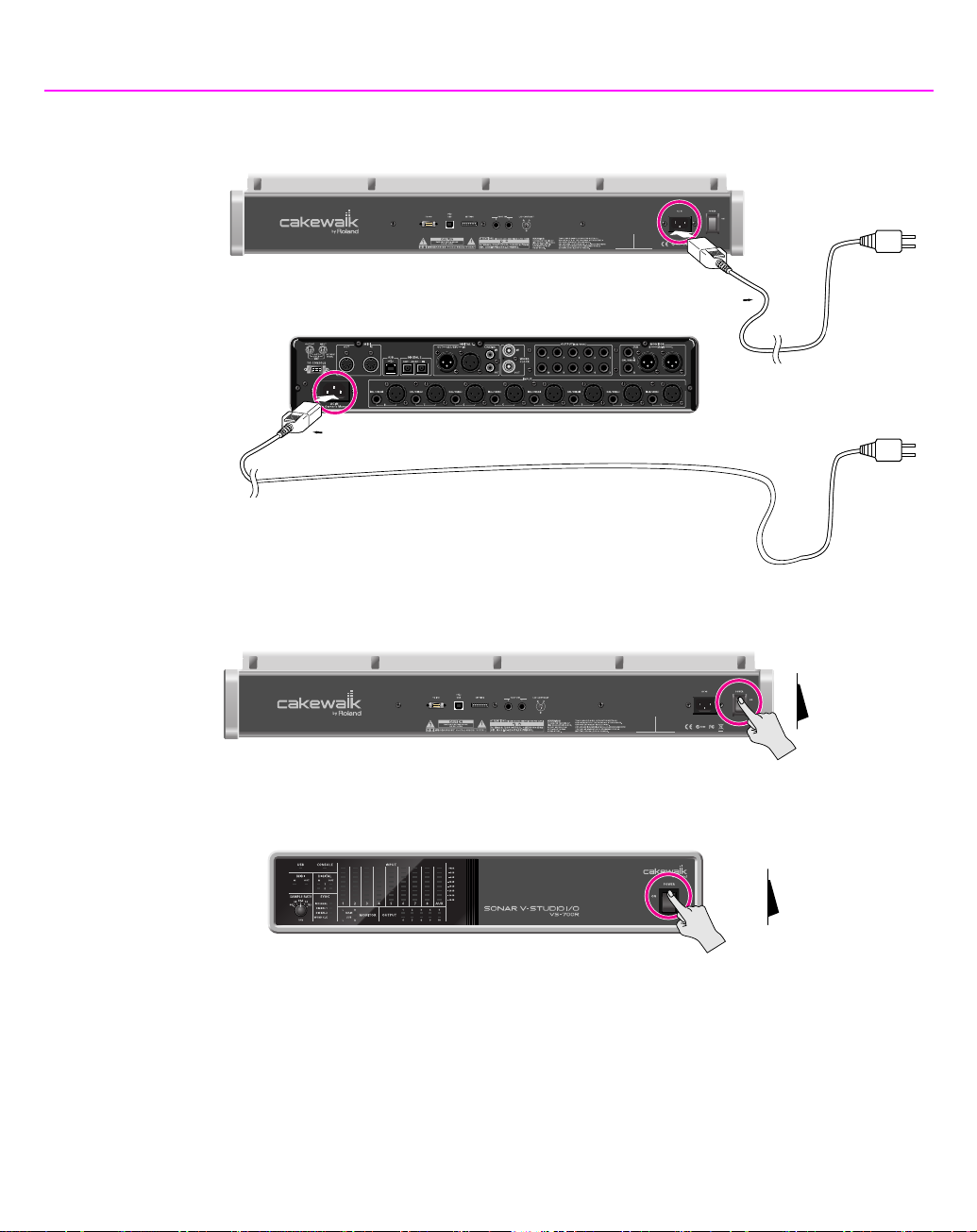

4. Use the included power cords to connect the VS-700C and VS-700R to AC outlets.
fig.VS-700-connect04-e.eps
5.
Turn on the power switch of the VS-700C.
fig.VS-700-connect05-e.eps
6.
Turn on the power switch of the VS-700R.
fig.VS-700-connect05-e.eps
VS-700C Rear Panel
VS-700R Rear Panel
Power Cord
Power Cord
to Power Outlet
to Power Outlet
VS-700C Rear Panel
Power On
VS-700R Front Panel
Power On
VS-700_Install_e.book 11 ページ ２００８年１１月２０日 木曜日 午後５時６分

12
Installation and Registration

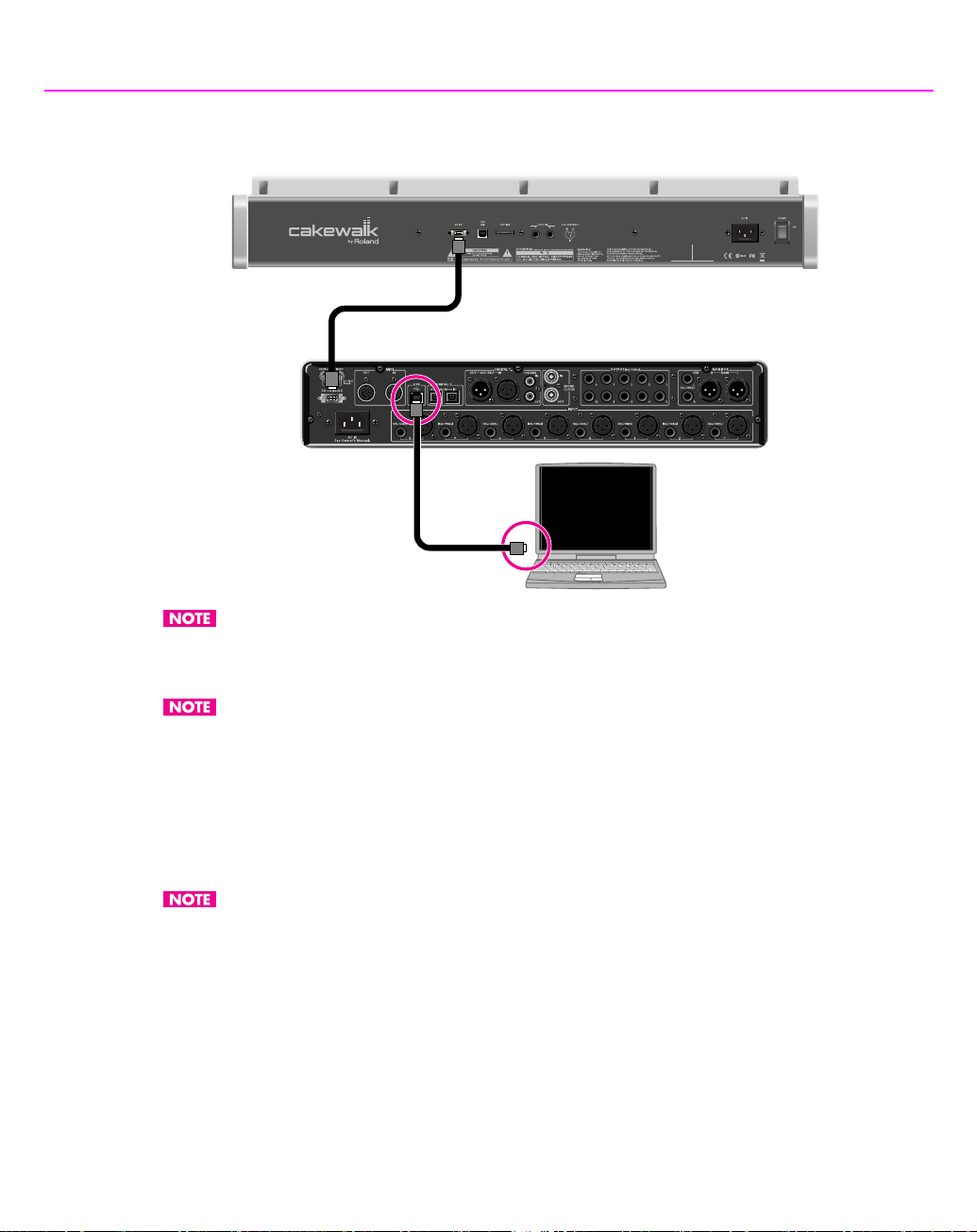

7. Use the included USB cable to connect the VS-700R to your computer.
fig.VS-700-connect06e.eps
Connect the USB cable to the VS-700R. Don’t connect it to the VS-700C console.
The “Installing device driver software” message appears in the lower right corner of the screen, and the driver will
be installed automatically.
If any other message appears, note the content of the message and close the message.
Installation is complete when the “Installation has been completed” message appears in the lower right corner of
the screen.
12.
Click [Close] to close the “Driver Setup” dialog box.
13.
If the “System settings changed” dialog box appears, click [Yes] and restart Windows.
If the installation was not completed successfully, disconnect the USB cable from the VS-700R, and uninstall the
driver by executing “Uninstall” , found in the same folder as the driver setup. Then install the driver once again,
being careful to follow the instructions for the installation procedure.
VS-700C Rear Panel
VS-700R Rear Panel
USB cable (Included)
VS-700_Install_e.book 12 ページ ２００８年１１月２０日 木曜日 午後５時６分

13
Installation and Registration
1.
Disconnect all USB cables (except those for a USB keyboard and/or USB mouse, if used), then start
up Windows.
2.
Close all currently running software (applications).
Also close all windows that are open. If you are using software such as antivirus programs, be sure to close these
programs as well.
3.
Insert the included “SONAR V-STUDIO 700 CD-ROM” into your computer’s CD/DVD-ROM drive.
The “VS-700 Setup” AutoRun appears.
If AutoRun is not enabled, you can start the installer by selecting Start-Run and entering d:\VS-700_Setup.exe
(where d:\ is your disc drive).
4. Click [Next].
5.
Select “Install VS-700 Drivers.”
6.
Click [Next].
7.
To install the driver, click [Next].
If a dialog box regarding Windows logo testing appears, click [Continue Anyway].
This completes preparations for installing the driver.
Leave the screen open; do not close it at this point.
Windows XP Users
If the “Driver Signing Options” setting was not set to “Ignore,” a “Hardware Installation” dialog box
will appear.
A dialog box with a “ ” symbol will appear.
1. Click [Continue Anyway] and continue the installation.
A dialog box with a “x” symbol will appear.
1. Click [OK].
2. When the “Found New Hardware Wizard” appears, click [Finish].
3. Return to step 1 (p. 13) and re-install the driver from the beginning of the
procedure.
VS-700_Install_e.book 13 ページ ２００８年１１月２０日 木曜日 午後５時６分

14
Installation and Registration
8. The message “Ready to install the driver.—” will appear.
9.
Perform the following procedure before you connect the VS-700 to your computer.
Due to a circuitry-protection feature, the VS-700R requires a few moments after power-up before it is ready
for normal operation.
Minimize the volume of the connected monitor speakers or external amp, and then connect the VS-700R to
your computer. Even if the volume is minimized, some noise may be audible when you make connections, but
this does not indicate a malfunction.
The system may not be recognized correctly if you connect to a USB hub. If so, connect directly to a USB
port on your computer.
1.
Use the dedicated connection cable (included) to connect the VS-700C and VS-700R.
fig.VS-700-connect01e.eps
2.
Set the VS-700R’s [SAMPLE RATE] knob to 44.1.
fig.VS-700-connect02e.eps
VS-700C Rear Panel
VS-700R Rear Panel
Dedicated connection
cable (included)
VS-700R Front Panel
VS-700_Install_e.book 14 ページ ２００８年１１月２０日 木曜日 午後５時６分

15
Installation and Registration
3. Minimize the VS-700C’s [AUDIO OUTPUT] knobs (three knobs).
fig.VS-700-connect03e.eps
4.
Use the included power cords to connect the VS-700C and VS-700R to AC outlets.
fig.VS-700-connect04-e.eps
VS-700C Rear Panel
VS-700R Rear Panel
Power Cord
Power Cord
to Power Outlet
to Power Outlet
VS-700_Install_e.book 15 ページ ２００８年１１月２０日 木曜日 午後５時６分

16
Installation and Registration
5. Turn on the power switch of the VS-700C.
fig.VS-700-connect05-e.eps
6.
Turn on the power switch of the VS-700R.
fig.VS-700-connect05-e.eps
7.
Use the included USB cable to connect the VS-700R to your computer.
fig.VS-700-connect06e.eps
Connect the USB cable to the VS-700R. Don’t connect it to the VS-700C console.
Near the task bar, your computer will indicate “Found New Hardware.” Please wait.
The “Found New Hardware Wizard” appears.
VS-700C Rear Panel
Power On
VS-700R Front Panel
Power On
VS-700C Rear Panel
VS-700R Rear Panel
USB cable (Included)
VS-700_Install_e.book 16 ページ ２００８年１１月２０日 木曜日 午後５時６分

17
Installation and Registration
10. Verify that “VS-700” is shown; then choose “Install the software automatically (recommended)”
and click [Next].
If you are asked whether you want to connect to Windows Update, choose “No” and click [Next] .
The system may not be recognized correctly if you connect to a USB hub. If so, connect directly to a USB
port on your computer.
11.
The screen will indicate “Completing the Found New Hardware Wizard.”
Click [Finish] .
12.
The “Found New Hardware Wizard” will appear.
Verify that “VS-700M1” is shown; then choose “Install the software automatically (recommended)” and click
[Next] .
13.
The screen will indicate “Completing the Found New Hardware Wizard.”
Click [Finish] .
14.
The “Found New Hardware Wizard” will appear.
Verify that “VS-700M2” is shown; then choose “Install the software automatically (recommended)” and click
[Next] .
15.
The screen will indicate “Completing the Found New Hardware Wizard.”
Click [Finish] .
16.
When the “Installation has been completed.” message appears, installation has been completed.
Click [Close] to close the “Driver Setup” dialog box.
17.
If the “System Settings Change” dialog box appears, click [Yes] to restart Windows.
If the Driver Signing Options setting was not set to “Ignore,” a “Hardware Installation” dialog box
will appear.
A dialog box with a “ ” symbol will appear.
1. Click [Continue Anyway] and continue the installation.
VS-700_Install_e.book 17 ページ ２００８年１１月２０日 木曜日 午後５時６分

18
Installation and Registration
The VS-700 Software installer includes the following:
• SONAR VS-700 Control Surface Plug-in
• Fantom VS Editor
• Rapture
• Rapture Expansion Packs
For more information, see SONAR VS-700 software components (p. 22).
1.
Insert the included “SONAR V-STUDIO 700 CD-ROM” into your computer’s CD/DVD-ROM drive.
The “VS-700 Setup” AutoRun appears.
If AutoRun is not enabled, you can start the installer by selecting Start-Run and entering d:\VS-700_Setup.exe
(where d:\ is your disc drive).
If the VS-700 CD-ROM is already in you computer’s CD/DVD-ROM drive, eject the CD-ROM and insert it again.
2.
Select “Install VS-700 Software.”
3.
Click [Next].
4.
To begin installation, click “Install.”
If SONAR 8 has already been installed, the VS-700 software will be installed. If SONAR 8 has not been installed
yet, the VS-700 software installer (VStudioSetup.exe) will be copied to your hard drive and installed
automatically by the SONAR 8 installer.
Installing the VS-700 Software
To Install the VS-700 Software
VS-700_Install_e.book 18 ページ ２００８年１１月２０日 木曜日 午後５時６分

19
Installation and Registration
Connect your headphones and/or speakers to the VS-700.
* This package does not include sound reproduction equipment such as headphones or speakers.
If you connect headphones or monitor speakers as shown in the illustration, you’ll be able to monitor the playback
audio.
fig.basic-e.eps
For details on the VS-700 itself, refer to the included VS-700 Owner’s Manual as well.
Connecting your audio equipment
VS-700R Rear Panel
USB cable (included)
Dedicated connection
cable (included)
VS-700C
Stereo
Headphones 2
Stereo
Headphones 1
Monitor (sub)
amplified speakers
Monitor (main)
amplified speakers
VS-700_Install_e.book 19 ページ ２００８年１１月２０日 木曜日 午後５時６分

20
Installation and Registration
Before you install SONAR, take a minute to register the software so we can let you know when updates become
available and provide you with technical support. To register anytime, log onto http://www.cakewalk.com/
register , or call 888-CAKEWALK (U.S.) or [phone] (outside the U.S.) between 9 AM and 8 PM Eastern
Standard Time. If you live outside of North America, please visit our distributor’s page at
http://www.cakewalk.com/ Dealers/International.asp to get the telephone number of your local distributor.
You’ll need to supply your serial number, your name, and a valid email address.
Register SONAR
VS-700_Install_e.book 20 ページ ２００８年１１月２０日 木曜日 午後５時６分
