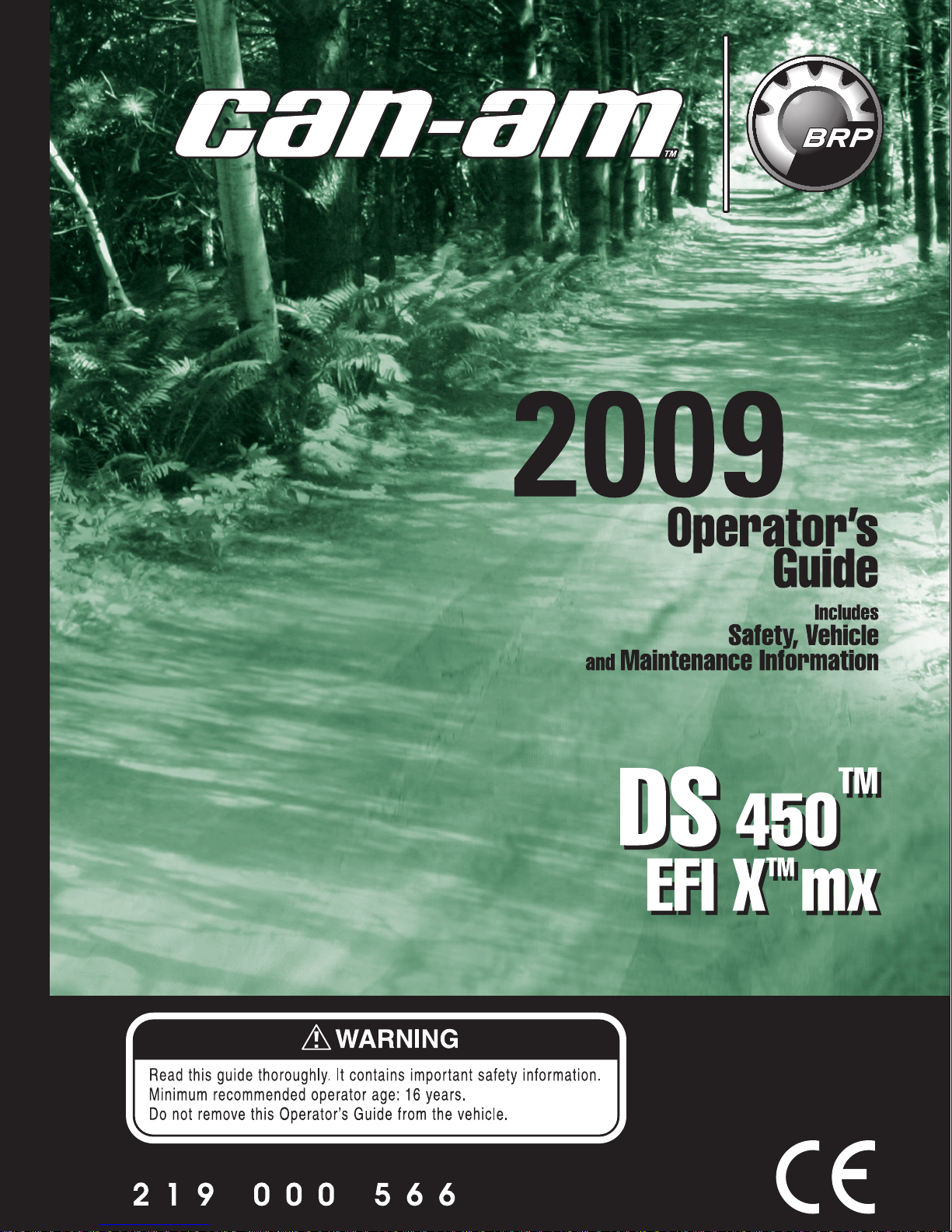

Can-Am DS 450 EFI X mx Manual

WARNING
YOUR VEHICLE CAN BE HAZARDOUS TO OPERATE. A collision or rollover
can occur quickly, even during routine maneuvers such as turning and
driving on hills or over obstacles, if you fail to take proper precautions.
For your safety, understand and follow all the warnings contained in this
Operator's Guide and the labels on your vehicle. Failure to follow these
warnings can result in SEVERE INJURY OR DEATH!
Keep this Operator's Guide with the vehicle at all times.
WARNING
Disregarding any of the safety precautions and instructions contained in
this Operator’s Guide, SAFETY DVD and on-product labels could cause
injury including the possibility of death!
WARNING
This vehicle may exceed the performance of other vehicles you may have
ridden in the past. Take time to familiarize yourself with your new vehicle.
The following trademarks are the property of Bombardier Recreational
Products Inc.:
Can-Am™
DS 450TM
Rotax®
XP-STM
vmo2009-010 en AG
®™ and the BRP logo are trademarks of Bombardier Recreational Products Inc. or its affiliates.
©2008 Bombardier Recreational Products Inc. and BRP US Inc. All rights reserved.

FOREWORD
Congratulations on your purchase of a
new Can-Am™ ATV. It is backed by the
BRP warranty and a network of autho-
rized Can-Am dealers ready to provide
the parts, service or accessories you
may require.
Your dealer is committed to your sat-
isfaction. He has taken training to per-
form the initial setup and inspection of
your vehicle as well as completed the
final adjustment before you took pos-
session. If you need more complete
servicing information, please ask your
dealer.
Atdelivery,youwerealsoinformedof
the warranty coverage and signed the
PREDELIVERY CHECK LIST to ensure
your new vehicle was prepared to your
entire satisfaction.
Know Before you Go
To learn how to reduce the risk for you
or bystanders being hurt or killed, read
the following sections before you oper-
ate the vehicle:
–
SAFETY INFORMATION
– VEHICLE INFORMATION .
We highly recommend that you take
a safety riding course. Please check
your dealer or local authorities for avail-
ability in your area.
Keep this Operator's Guide in the vehi-
cle so that you can refer to it for things
such as maintenance, troubleshooting
and instructing others.
Safety Messages
The types of safety messages, what
they look like and how they are used in
this guide are explained as follows:
WARNING
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
CAUTION Indicates a hazard
situation which, if not avoided,
could result in minor or moderate
injury.
NOTICE Indicates an instruction
which, if not followed, could severe-
ly damage vehicle components or
other property.
About this Operator's
Guide
This Operator's Guide has been pre-
pared to acquaint the owner/operator
of a new vehicle with the various ve-
hicle controls, maintenance and safe
operating instructions. It is indispens-
able for the proper use of the product.
Note that this guide is available in sev-
eral languages. In the event of any dis-
crepancy, the English version shall pre-
vail.
If you want to view and/or print an ex-
tra copy of your Operator's Guide, sim-
ply visit the following website www.
operatorsguide.brp.com.
The informations contained in this doc-
ument are correct at the time of publi-
cation. BRP, however, maintains a pol-
icy of continuous improvement of its
products without imposing upon itself
any obligation to install them on prod-
ucts previously manufactured. Due
to late changes, some differences be-
tween the manufactured product and
the descriptions and/or specifications
in this guide may occur. BRP reserves
the right at any time to discontinue or
_______________ 1

FOREWORD
change specifications, designs, fea-
tures, models or equipment without
incurring any obligation upon itself.
This Operator's Guide and the
SAFETY
DVD
should remain with the vehicle
when it's sold.
While reading this Operator’s Guide, reminder that:
WARNING
Indicates a potential hazard that, if not avoided, could result in serious
injury or death.
2_______________
