C&H CH-S09FHCP User manual

M ODELS :
OWNER’S MANUAL
Designed by Cooper&Hunter International Corporation, Oregon, USA
www.cooperandhunter.com
For proper operation, please read and keep this manual carefully.
CH-S09 FHCP
CH-S12 FHCP
CH-S18 FHCP
CH-S24 FHCP
EN
Split Air Conditioner
TERRA Series

CE
All the products are in conformity with the following
European provision:
- Low Voltage Directive 2006/95/EC
- Electomagnetic Compatibility 2004/108/EC
ROHS
The products are fulfilled with the requirements in the
directive 2011/65/EU of the European parliament and of
council on the Restriction of the use of Certain Hazardous
Substances in Electrical and Electronic Equipment (EU
RoHS Directive)
WEEE
DISPOSAL REQUIREMENTS:
Your air conditioning product is marked with this
symbol.This means that electrical and electronic
products shall not be mixed with unsorted
household waste. Do not try to dismantle the
system yourself : the dismantling of the air
EUROPEAN REGULATIONS
CONFORMITY FOR THE MODELS
1
1+2= kg
R410A
2kg2=
1=
B
C
D
F E
kg
A

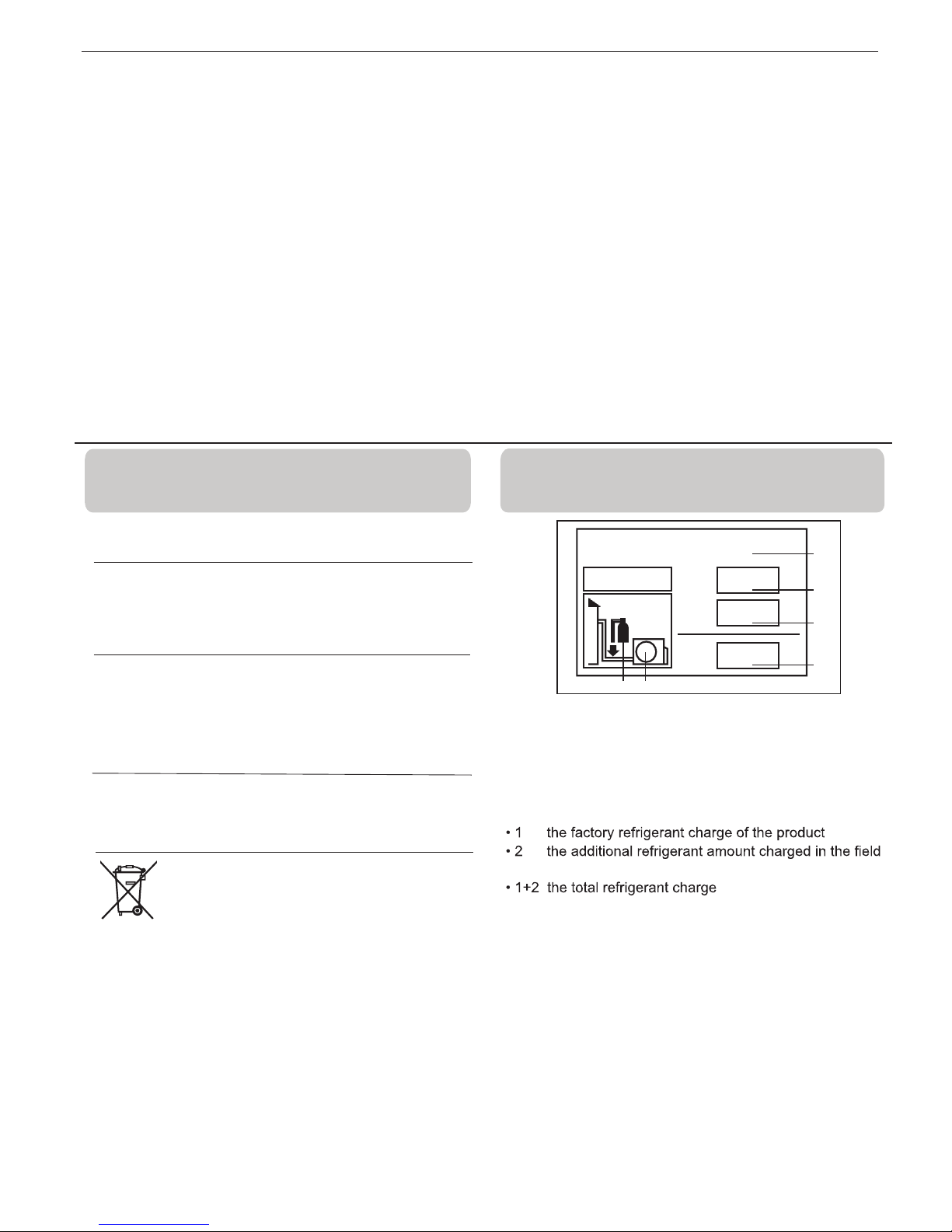

This product contains fluorinated greenhouse gases covered
by the Kyoto Protocol. Do not vent into the atmosphere.
Refrigerant type:R410A
GWP* value:2088
GWP=global warming potential
Please fill in with indelible ink,
and
on the refrigerant charge label supplied with the product.
The filled out label must be adhered in the proximity of the
product charging port (e.g. onto the inside of the stop value
A contains fluorinated greenhouse gases covered by the
Kyoto Protocol
B factory refrigerant charge of the product: see unit name
plate
C additional refrigerant amount charged in the field
D total refrigerant charge
E outdoor unit
F refrigerant cylinder and manifold for charging
IMPORTANT INFORMATION REGA-
RDING THE REFRIGERANT USED
In accordance with the directive 2012/19/EU of the European
parliament, herewith we inform the consumer about the dis-
posal requirements of the electrical and electronic products.
conditioning system,treatment of the refrigerant, of oil and of
other part must be done by a qualified installer in accordance
with relevant local and national legislation. Air conditioners
must be treated at a specialized treatment facility for reuse,
recycling and recovery. By ensuring this product is disposed
of correctly, you will help to prevent potential negative cons-
equences for the environment and humen health. Please
contact the installer or local authority for more information.
Battery must be removed from the remote controller and dis-
posed of separately in accordance with relevant local and
nationl legislation.
Contains fluorinated greenhouse gases
covered by the Kyoto Protocol
cover).
Voltage:230V
Climate:T1
WARNING:
·
If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
·
This appliance can be used by children aged 8 years and above and persons with reduced
physical, sensory or mentao capabilities or lack of experience and knowledge if they have
been given superivision or instruction concering use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and
·
The wiring method should be in line with the local wiring standard.
user maintenance shall not be made by children without supervision.
·
The type of connecting wire is H07RN-F.
All the cables shall have got the European authentication certificate. During installation, when the
·
connecting cables break off, it must be assured that the grouding wire is the last one to be broken off.
The breaker of the air conditioner should be all-pole switch; and the distance between its two contacts
should not be no less than 3mm. Such means for disconnection must be incorporated in the wiring.
·
·
Make sure installation is done according to local wiring regulation by professional persons.
·
·
A leakage breaker must be installed.
Make sure ground connection is correct and reliable.
1





 





 

 




 







  


   




 





              
         
 




 


















   


  


 

 



 




     
 







 









 
   
 


 

 








 
   
    


   
  
  
   
  
   
   

 






 

  

 

   
  









 



 



































 




  



 








 



 
 









 

 

 







 









    



 











 





















  



















Indoor Unit Installation
Driver Torque wrench
(17mm,22mm,26mm)
Nipper
Reamer
Hacksaw Pipe cutter
Gas leakage detector or
soap-and-water solution
Holecore dr ill Flaring t o o l
Spanner(17,19 and 26 mm) Knife
Measuring tape
 
        

       
    
       
    

       
 
         
      
       
    
      
      
     
    

      
       
      
             
   
 
   
   
     


 
 





    
  
    
   
   
   






   




         
       
        
 
         
       
            
           
  
        
         
     
      
       
              
   

     
         
       
        
    
   
          
        
     
       
         

 
  
  
 
           
          
     
    
            
  
            

         
           
  
          
 
        
              
          
          
     
      
    
          
        
      
         
   
        
 
 


 

 

 

 

  
   

    

    

    
    

           
    

 

 














          
       
            

       
           
      
                 
            
   
              

               
 
        
      

               
        
  
              
            
         
          
            
 





         
         
 
         
           
        
  
     
      
    
   
  
      
 

 
 
   
   
   
 
 
   
  
            
       
         
     
          
 
 

 

  


    
    
  
      
       
    
     
     
       
   
    
         
    
       
    
   
    
      
     

     
  
      






 
       
 
    
    


  
  
              
    
                
             
          
       
   
              
 
      
            
         
      
     
     
      











       








  

 
 











    
         
         




       
                   

 







  


 












 






 
 




 

         














 










     
 














 










 
























 


 




























 


 














 




















 














  
 

 



 
 

 
 
  
 











Cooling
Indoor
Maximum:D.B/W.B
Minimum:D.B/W.B
Maximum:D.B/W.B
Minimum:D.B/W.B
Outdoor
Outdoor
Indoor
Heating
32
o
C/23
o
C
24
o
C/18
o
C
o
C/-8
o
C
43
o
C/26
o
C
18
o
C
27
o
C
21
o
C/15
o
C































 









* Cooo ooo per &&&Huuunter is cooonstantlyyy wwwooorkkkinggg tooo immmprooovvve thhheir proooddduuucts, sooo thhhe
infffooormmmatiooon in thhhis mmmanuuual is suuubbbjjject tooo chhhangggewwwithhhooouuut priooor noootice.
Maximum:D.B/W.B
Minimum:D.B/W.B
Maximum:D.B/W.B
Minimum:D.B/W.B














  


 
  
