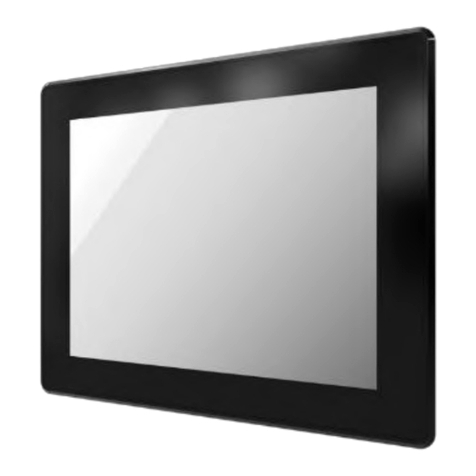

C&T Solution VIO/MX200 Series User manual

VIO/MX200 Series
Industrial Touch Monitors

VIO-200/MX200 lUser’s Manual
Table of Contents
Prefaces …………………………………………………….……………………………………………. 04
Revision …………………………………………………………………………………………..……………….…..….. 04
Disclaimer ………………………………………………………..…….…….………………………….…………..….. 04
Copyright Notice …………………………………….…………………….……………………………………..…… 04
Trademarks Acknowledgment …………..……………………………………………………….................. 04
Environmental Protection Announcement …………………………….………………….……………... 04
Safety Precautions ………………………………………….……………………………….…………….………... 05
Technical Support and Assistance …………………………………….…………….…………….…….……. 06
Conventions Used in this Manual ………………………………………………………………….….….….. 06
Package Contents …………………………………………………………………………………………….….…… 07
Ordering Information …………………………………….……………………………………….……….….…… 08
Optional Accessory …………...…………………………………….................................................... 08
Chapter 1 Product Introductions ………………………………………………………..… 09
1.1 Overview ……………………….………………………………..………….…………………….….. 10
1.1.1 VIO-212/MX200 ………..……..…………….................................................. 11
1.1.2 VIO-215/MX200 …………..…..……………................................................. 12
1.1.3 VIO-W215/MX200 ………………….......................................................... 13
1.1.4 VIO-217/MX200 ……………….……………………………………………………........ 14
1.1.5 VIO-219/MX200 ……..………..……………………………………………….……....... 15
1.1.6 VIO-W221/MX200 ……………………….................................................... 16
1.1.7 VIO-W224/MX200 ………………..…........................................................ 17
1.1.8 VIO-110/MX200 ………………………........................................................ 18
1.2 System I/O ……………………………..……………………..………………………………….…… 19
1.2.1 Rear ………………….…………...............................…………………………….…… 19
1.2.2 Top …………..………….……………….…………………………………………………...... 19
1.3 Mechanical Dimension …………………………..…………………………..…………..……. 20
1.3.1 VIO-212/MX200 ………….………………………………..……..……………............ 20
1.3.2 VIO-215/MX200 ………….……………………………..………..…………..……....... 20
1.3.3 VIO-W215/MX200 …….…………………………………………….……….............. 21
1.3.4 VIO-217/MX200 …………………………………………………..……………............ 21
1.3.5 VIO-219/MX200 ………….……………………………………..…………….............. 22
1.3.6 VIO-W221/MX200 …………………..……………………………………………........ 22
1.3.7 VIO-W224/MX200 ………………..……………………….………………………........ 23
1.3.8 VIO-110/MX200 …………………..……………………….………………………........ 23
2
Chapter 2 Switches and Connectors ………………………………..…………. 24
2.1 Switch and Connector Locations ……………………………………..…….…………….... 25
2.1.1 Top View ………………………………………………………………………..………….… 25
2.1.2 Bottom View ………………………………………………………………………..….….. 25
2.1.3 Rear I/O …………………………………..………………………………………..……….. 25
2.2 Connector / Switch Definition ……………………………….……….…….………........... 26
2.3 I/O Interface Descriptions ………….……………................................................. 27
2.3.1 Power Connector .……………………..………………………………………..……….. 27
2.3.2 DisplayPort Input .……………………..………………………………………..……….. 27
2.3.3 HDMI signal connector ……………..………………………………………..……….. 28
2.3.4 VGA Input ……………..…………………………………………….……………..……….. 29

VIO-200/MX200 lUser’s Manual
3
Chapter 3 Front Panel Controls …………………………………………………. 34
3.1 Users Controls ………………………………………….…..…………………..…….……………....35
3.1.1 Power Button ………………………….……………………………………..………………35
3.1.2 LED ……………………………………………………………..………………………..……….. 35
3.1.3 MENU / Enter Button ……………….………………………………………………..…. 35
3.1.4 Increase Button …………………………..……………………………………………..…. 35
3.1.5 Decrease Button ……………….………………………………………………………..….35
3.1.6 AUTO / Exit Button ……………………………………………………………………..….35
3.2 OSD Operation ……………………………………………….…….……….…….………............. 36
3.2.1 Luminance ……………………………………………………………….………………..…. 36
3.2.2 Picture ……………………………………………………………………..………………..…. 37
3.2.3 Color …………………………………………………………………………..……………..…. 37
3.2.4 OSD Settings …………………………………………………….………………………..…. 37
3.2.5 Setup ……………………………………………………………………..…………………..….38
Chapter 4 System Setup …………………………..……………………………… 39
4.1 Set torque force to 3.5 kgf-cm to execute all the screwing and
unscrewing ..……………………………………………………………………………………….…... 40
4.2 Connecting MX200 monitor module with VIO display module ………………… 40
2.3.5 COM Port Input ……..…………………………………………….……………..……….. 30
2.3.6 USB 2.0 Input Connector .…………………………………….……………..……….. 30
2.3.7 Audio Input …………………..…………………………………….……………..……….. 31
2.3.8 VIO Display Module Connector …………………………….……………..……….. 32

VIO-200/MX200 lUser’s Manual
4
Revision
Disclaimer
All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T
Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading.
The information in this document is subject to change without notice and does not represent a
commitment on the part of C&T Solution Inc.
C&T Solution Inc. disclaims all warranties, express or implied, including, without limitation, those of
merchantability, fitness for a particular purpose with respect to contents of this User’s Manual. Users must
take full responsibility for the application of the product.
Copyright Notice
All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying, recording, or information storage and retrieval systems,
without the prior written permission of C&T Solution Inc. Copyright © C&T Solution Inc.
Trademarks Acknowledgment
Intel®, Celeron® and Pentium® are trademarks of Intel Corporation.
Windows® is registered trademark of Microsoft Corporation.
AMI is trademark of American Megatrend Inc.
IBM, XT, AT, PS/2 and Personal System/2 are trademarks of International Business Machines Corporation
All other products and trademarks mentioned in this manual are trademarks of their respective owners.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. Please recycle to minimize pollution
and ensure environment protection.
Prefaces
Revision
Description
Date
1.0
Manual Released
2021/11/01
Preface

VIO-200/MX200 lUser’s Manual
5
Safety Precautions
Before installing and using the equipment, please read the following precautions:
Put this equipment on a reliable surface during installation. Dropping it or letting it fall could
cause damage.
The power outlet shall be installed near the equipment and shall be easily accessible.
Turn off the system power and disconnect the power cord from its source before making any
installation. Be sure both the system and the external devices are turned OFF. Sudden surge
of power could ruin sensitive components. Make sure the equipment is properly grounded.
When the power is connected, never open the equipment. The equipment should be opened
only by qualified service personnel.
Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
Disconnect this equipment from the power before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
Avoid the dusty, humidity and temperature extremes.
Do not place heavy objects on the equipment.
If the equipment is not used for long time, disconnect it from the power to avoid being
damaged by transient over-voltage.
The storage temperature shall be above -20°C and below 70°C.
The computer is provided with a battery-powered real-time clock circuit. There is a danger of
explosion if incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer.
If one of the following situation arises, get the equipment checked be service personnel:
•The power cord or plug is damaged.
•Liquid has penetrated into the equipment.
•The equipment has been exposed to moisture.
•The equipment does not work well or it cannot work according the user’s manual.
•The equipment has been dropped and damaged.
•The equipment has obvious signs of breakage.
Preface

VIO-200/MX200 lUser’s Manual
6
Technical Support and Assistance
1. Visit the C&T Solution Inc website at https://www.candtsolution.com/ where you can find the latest
information about the product.
2. Contact your distributor, our technical support team or sales representative for technical support if
you need additional assistance. Please have following information ready before you call:
Model name and serial number
Description of your peripheral attachments
Description of your software (operating system, version, application software, etc.)
A complete description of the problem
The exact wording of any error messages
Conventions Used in this Manual
Preface
This indication alerts operators to an operation that, if not strictly observed,
may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly observed,
may result in safety hazards to personnel or damage to equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

VIO-200/MX200 lUser’s Manual
VIO
-W221/MX200
Item Description Q’ty
1
VIO
-W221/MX200 Series Touch
Monitor
1
2
Panel Mount Kit
12
3
USB Cable
1
4
VGA Cable
1
5
Screw Pack
1
7
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.
Preface
VIO
-212/MX200
Item Description Q’ty
1
VIO
-212/MX200 Series Touch
Monitor
1
2
Panel Mount Kit
10
3
USB Cable
1
4
VGA Cable
1
5
Screw Pack
1
VIO
-215/MX200
Item Description Q’ty
1
VIO
-215/MX200 Series Touch
Monitor
1
2
Panel Mount Kit
10
3
USB Cable
1
4
VGA Cable
1
5
Screw Pack
1
VIO
-W215/MX200
Item Description Q’ty
1
VIO
-W215/MX200 Series Touch
Monitor
1
2
Panel Mount Kit
8
3
USB Cable
1
4
VGA Cable
1
5
Screw Pack
1
VIO
-217/MX200
Item Description Q’ty
1
VIO
-217/MX200 Series Touch
Monitor
1
2
Panel Mount Kit
10
3
USB Cable
1
4
VGA Cable
1
5
Screw Pack
1
VIO
-219/MX200
Item Description Q’ty
1
VIO
-219/MX200 Series Touch
Monitor
1
2
Panel Mount Kit
14
3
USB Cable
1
4
VGA Cable
1
5
Screw Pack
1
VIO
-110/MX200
Item Description Q’ty
1
VIO
-110/MX200 Series Touch
Monitor
1
2
Panel Mount Kit
6
3
USB Cable
1
4
VGA Cable
1
5
Screw Pack
1
VIO
-W224/MX200
Item Description Q’ty
1
VIO
-W224/MX200 Series Touch
Monitor
1
2
Panel Mount Kit
12
3
USB Cable
1
4
VGA Cable
1
5
Screw Pack
1

VIO-200/MX200 lUser’s Manual
Model No. Product Description
VIO-212R/MX200 12.1" XGA Resistive Touch Thin Frame Monitor with 2x 5W Speaker
VIO-212C/MX200 12.1" XGA Capacitive Touch Thin Frame Monitor with 2x 5W Speaker
VIO-215R/MX200 15" XGA Resistive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-215C/MX200 15" XGA Capacitive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-W215R/MX200 15.6" 16:9 FHD Resistive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-W215C/MX200 15.6" 16:9 FHD Capacitive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-217R/MX200 17" SXGA Resistive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-217C/MX200 17" SXGA Capacitive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-219R/MX200 19" SXGA Resistive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-219C/MX200 19" SXGA Capacitive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-W221R/MX200 21.5" 16:9 FHD Resistive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-W221C/MX200 21.5 " 16:9 FHD Capacitive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-W224R/MX200 23.8" 16:9 FHD Resistive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-W224C/MX200 23.8 " 16:9 FHD Capacitive Touch Thin Frame Monitor with 2x 10W Speaker
VIO-110R/MX200 10.4" 4:3 SVGA Resistive Touch Monitor with 2x 5W Speaker
VIO-110C/MX200 10.4" 4:3 SVGA Capacitive Touch Monitor with 2x 5W Speaker
8
Preface
Ordering Information
Optional Accessories
Model No. Product Description
1
-E09A06007
Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
SFICBL022
Power Cord, 3
-pin US Type, 180cm
1
-TPCD00002
Power Cord, European Type, 180cm
1
-TPCD00001
Power Cord, 3
-pin UK Type, 180cm

Chapter 1
Product Introductions

VIO-200/MX200 lUser’s Manual
10
1.1 Overview
The VIO-200/MX200 series touch monitor provide a wide selection of display sizes are available from
12.1” to 23.8” with a format aspect of 4:3 and 16:9, and selected touch type. Featuring with flat surface,
IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is
rugged and reliable for industrial environment. It also supports Multi-Mode Display Module (MDM)
technology which allows to configure, upgrade and maintain easily.
The VIO-200/MX200 series supports both digital and analog signal input via three types of display
interface: VGA, HDMI and DisplayPort. Touch screen can be connected with USB or COM port. It also has
multi-language OSD function for adjusting the view options of display. In addition, supporting wide range
power input from 9 to 48VDC and high reliability even operating in temperature extremes.
Featuring with completely cable-less designed and high functional, VIO-200/MX200 series are ruggedized
display systems that can operate in harsh environments and easy to install and maintain. A build in over
voltage protection (OVP), over current protection and reverse protection DC power input makes VIO-
200/MX200 series are safety system for all industrial applications.
Chapter 1: Product Introductions
