Candy CDI 2T1047 User manual

Instruction Manual
DishwasherDishwasher
9 place settings
10 place settings
half-load function
Alt function
CDI 2T1047

To review the section on troubleshooting Tips
will help youto solve somecommon problems
by yourself .
NOTE:
Dear Customer,
Please carefully read this manualbefore using the
dishwasher, itwill help youto use and maintain the
dishwasher properly.
Pass it on to any subsequent ownerof the appliance.
This manual containssections on safetyInstructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer,following a policyof constant
development and updatingof the product,may
make modifications withoutgiving prior notice.
This user manualshall also begot from the
manufacturer or responsible vendor.
Read this Manual
Before Calling for Service
Keep it asa refer inthe later days.
If you can not solve the problems by yourself ,
please ask forthe help ofprofessional technicians.
Dishwasher Features.................................... ...5
4) Prior usingfor the firsttime............................6
A Water Softener...........................................6
5) Loading theDishwasher Basket....................11
Attention before orafter loading theDishwasher
Baskets........................................................ 11
7) Maintenance andcleaning............................15
Filtering System.............................................15
Caring for the Dishwasher...............................16
B Loading the Salt into the Softener.................7

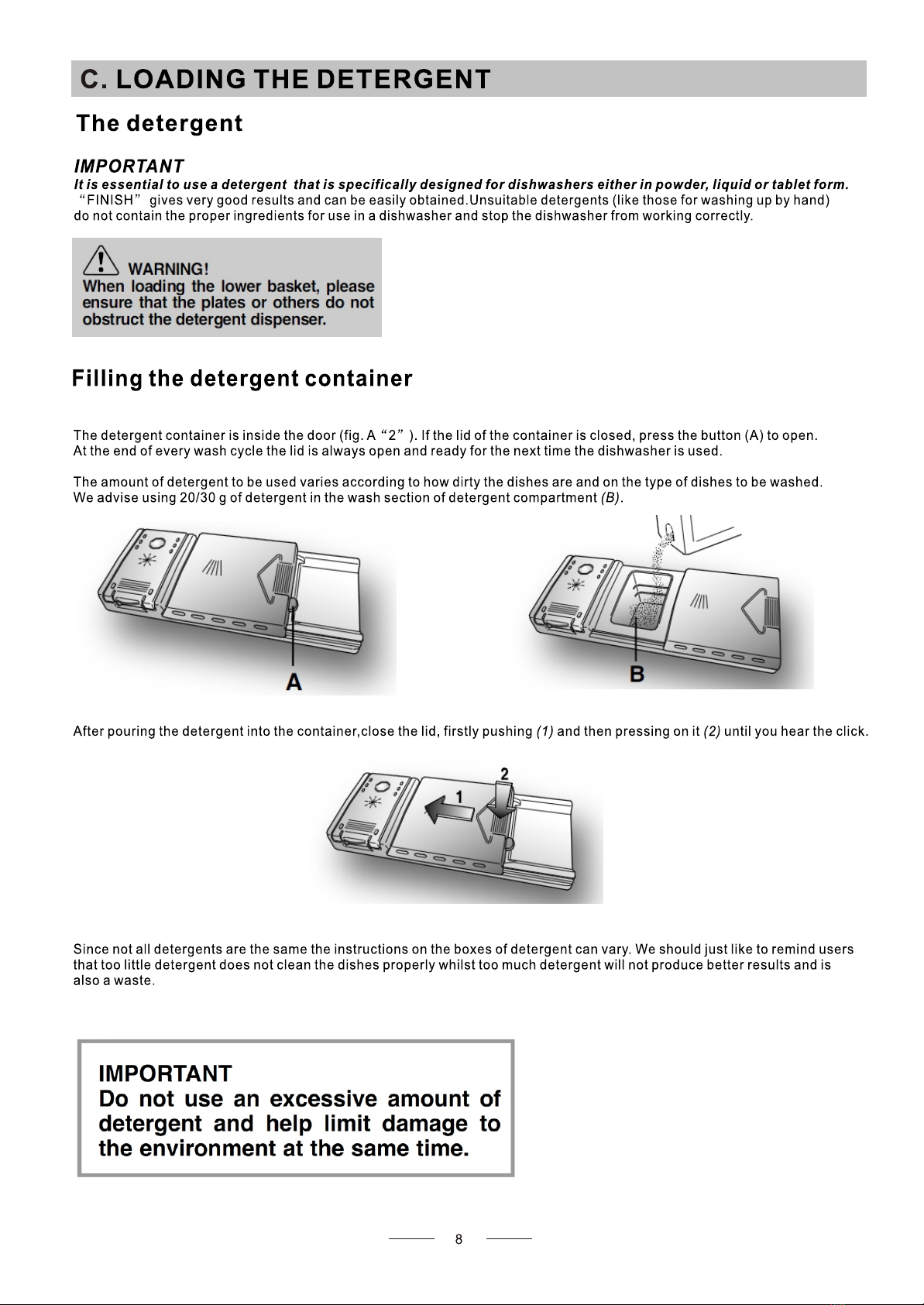

C Loading the Detergent................................7

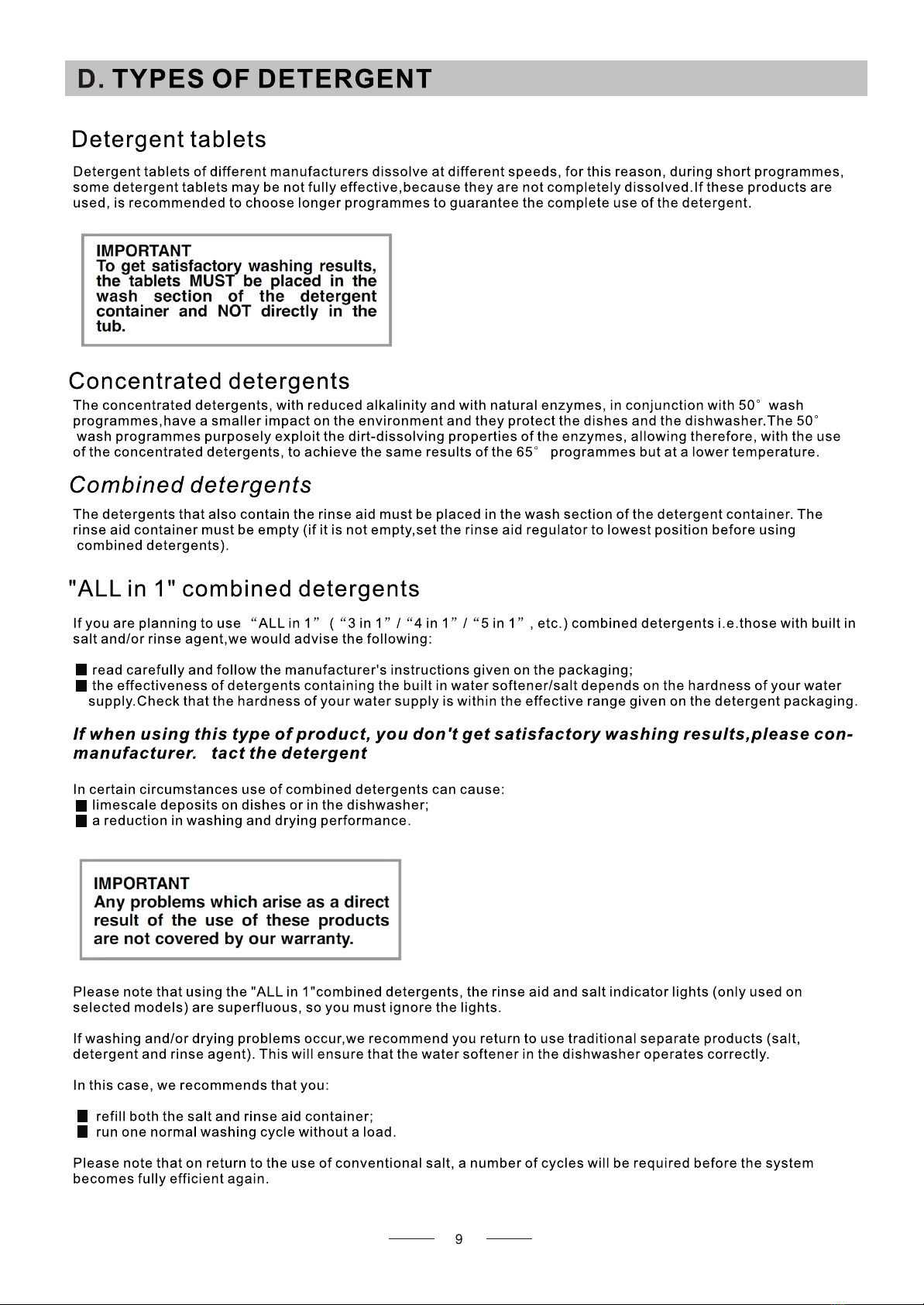

D Types of Detergent ....................................8

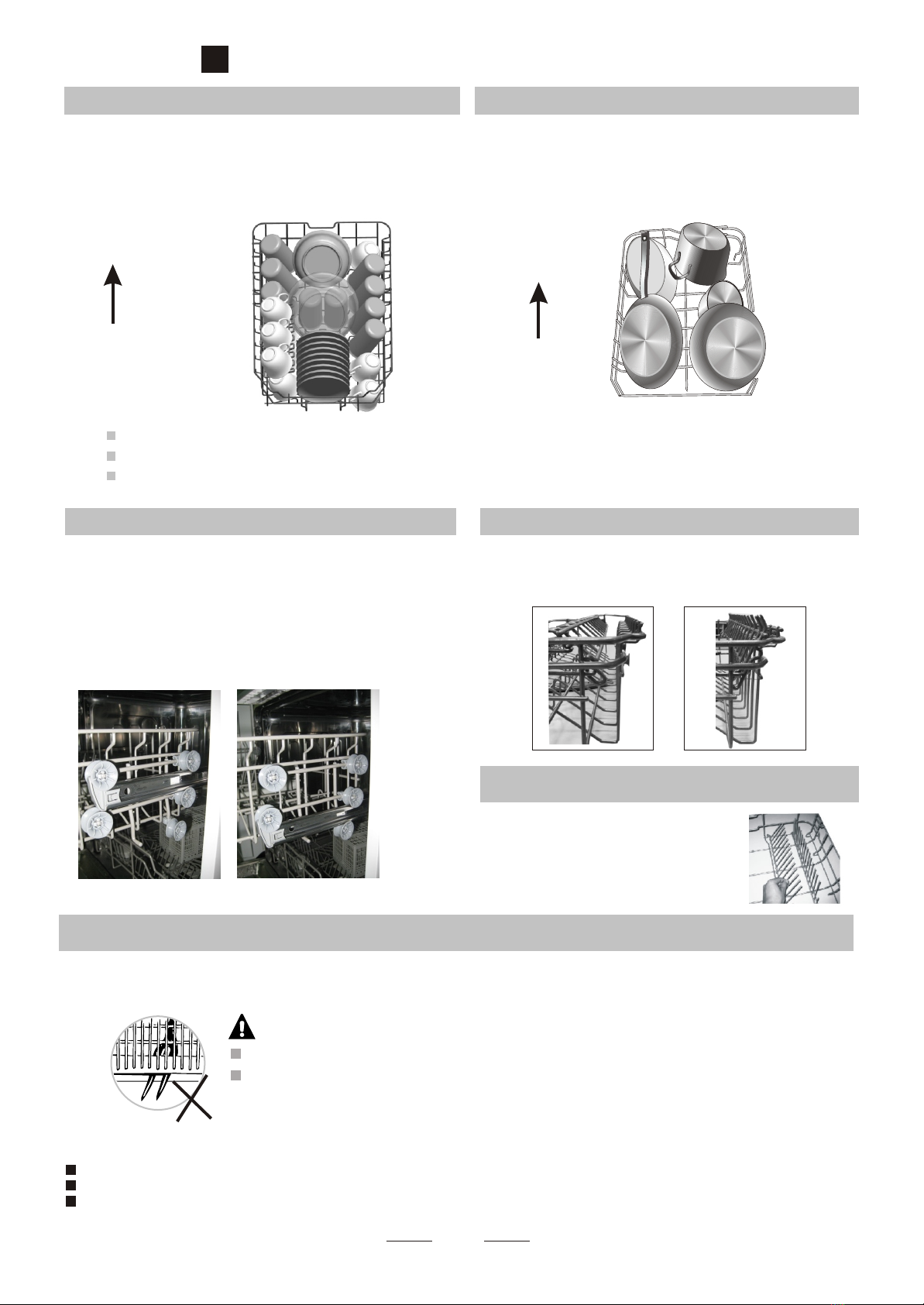

Loading the upperBasket...............................12
Loading the Lower Basket...............................12
6) Starting awashing programme......................13
Wash Cycle Table...........................................13
Turning on the Appliance................................13
Change the Programme..................................14
At the end of the Wash Cycle...........................14
8) Installation instruction.................................17
9) TroubleshootingTips....................................24
Before calling for service.................................24
Error codes...................................................25
Technicalinformation.....................................26
1) Safety Information..........................................1
3) Operation Instructions..................................5
Control Panel...................................................5
.................................. 17Installation preparation
Aesthetic panel's dimensions and installation...18
..............20Tension adjustment of the door spring
.............................. 20Connection of drain hoses
......................... 21Dishwasher installation steps
About Electricity Connecting...........................22
Cold Water Connection.................................. 23
Loading the baskets according to En50242
2) Quick operation guide................................... 4

This appliance is intended to be used in household and similar
applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
For EN60335-1
This appliance is not intended for use by persons(including children )with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
For IEC60335-1
This appliance is for indoor use only, for household use only. To protect
against the risk of electrical shock, do not immerse the unit, cord or plug in
water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft
cloth moisten with mild soap, and then use a dry cloth to wipe it again .
1.IMPORTANT SAFETY INFORMATION
When using your dishwasher,
follow the precautions listed below:
WARNING!
EARTHING INSTRUCTIONS
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of anelectric shock by providing a path of least
resistance of electric current. This appliance is equipped with a cord having
an equipment-earthing conductor and a earthing plug.
The plug must be plugged into an appropriate outlet that is installed and
earthed in accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result
in the risk of an electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
1

Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent. For plastic items n check the manufacturer's
ot so marked,
recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Children should be supervised to ensure that they do not play with the appliance.
The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously
bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets and
that old hose-sets should not be reused.
The maximum number of place settings to be washed is 10.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
2

3
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a
recycling centre. Therefore cut off the power supply cable
and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper
and should be disposed in the waste paper collection for
recycling.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact your local city office and your
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately for
special treatment is necessary.
WARNING!WARNING!

Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
T urn on the water tap ,close the door . The machine will start working after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will also dry better.Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
To load the baskets, refer to the section entitled Loading the Dishwasher Baskets .
Press the Programme Button until the selected programme lights up.
( See the section entitled Operation instruction )
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance is switched
off during a wash cycle.
Open the doorcarefully.
Hot steam mayescape
when the dooris opened!
WARNING!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance
Open the door,press the On/Off button to switch on the appliance .
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
Quick operation guide
For detailed operating method read the corresponding content on the instruction manual.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door.
3. Press the Programme Button for more than 3 seconds to cancel the running programme.
4. Select a new programme.
5. Restart the dishwasher.
4
Fill the detergent dispenser
The detergent containeris inside thedoor.
If the lidof the containeris closed, press
the button (A) to open.
At the endof every washcycle the lid is
always open andready for thenext time
the dishwasher isused.
B.B.
Mechanical indicator B.
It is alwaysadvisable to userinse aid that is specifically designedfor dishwasher.
Check the rinseaid level throughthe indicator eye (B) which is locatedon the dispenser.

3.Operation Instruction3.Operation Instruction
Control PanelControl Panel
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
IMPORTANTIMPORTANT
Back ViewFront view
5
Dishwasher FeaturesDishwasher Features
11
Adjuster
11
1
2
3
4
5
6
7
8
910
Dispenser
Cup Shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Lower Basket
Inner pipe
Upper Basket
1Salt Container
5
6
7
8
9
10
3
2
4
1/2
23456 1

6
The water softener must be set manually, using the water hardness dial.
The water softener is designedto remove mineralsand salts fromthe water,which would have
a detrimental or adverse effect on the operation of the appliance.
The higher thecontent of these minerals andsalts, the harder your wateris.
The softener shouldbe adjusted accordingto the hardnessof the waterin your area.Yourlocal Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of
the water used.This is intended to optimiseand customise the level o f salt consumption.
1. Open the door ,Switch on the appliance;
2. Press theProgram button formore than 5seconds to startthe water softener
set model within 60seconds after the appliance was switched on( The Salt and
Rinse aid warninglightswill be onperiodically when itget in theset model );
3. Press theProgram button toselect the properset according toyour local environment,
the sets will change in the following sequence: H3->H4->H5->H6->H1->H2;
4. Press the Power button to end the set up model.
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
4.Prior using for the first time4.Prior using for the first time
Contact your local water board for information on the hardness of your water supply.
Please follow the steps below for adjustment in salt consumption.
A. Water SoftenerA. Water Softener
NOTE:NOTE:
If your model does not have any water softener, you may skip this section.
Note:2Note:2
The manufactory setting: H3 (EN 50242)
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kgdishwasher salt andthen full fillthe salt containerwith water
C. Fill the rinse aid dispenser
D. Fill in detergent
¡ã
Clark: British degree
¡ã
fH: French degree
¡ã
dH: German degree
Note:1Note:1 dH=1.25 Clarke=1.78 fH=0.178mmol/l
¡ã ¡ã ¡ã
1
dH
mmol/l
0~90~5 0~0.94 H1 Rapid) 0
10-20
6-11 1.0-2.0
H2(90min)
9
21-30
12-17 2.1-3.0
H3(90min+rapid)
12
H4(ECO) 20
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
Selector Position Salt consumption
(gram/cycle)
18-22 31-40 22-28 3.1-4.0
41-60
23-34 4.1-6.0
H5(ECO+rapid)
30
H6(ECO+90min) 60
29-42
35-55 61-98 43-69 6.1-9.8

1. The salt container mustonly be refilled when the salt warning light in the control panel comes on.
Depending on howwell the saltdissolves, the saltwarning light maystill be oneven though the
salt container isfilled.
If there isno salt warninglight in thecontrol panel (forsome Models),you canestimate when tofill
the salt intothe softener bythe cycles thatthe dishwasher hasrun.
2. If thereare spills ofthe salt, asoak or arapid program shouldbe run toremove the excessivesalt.
Always use the salt intended for use with dishwasher.

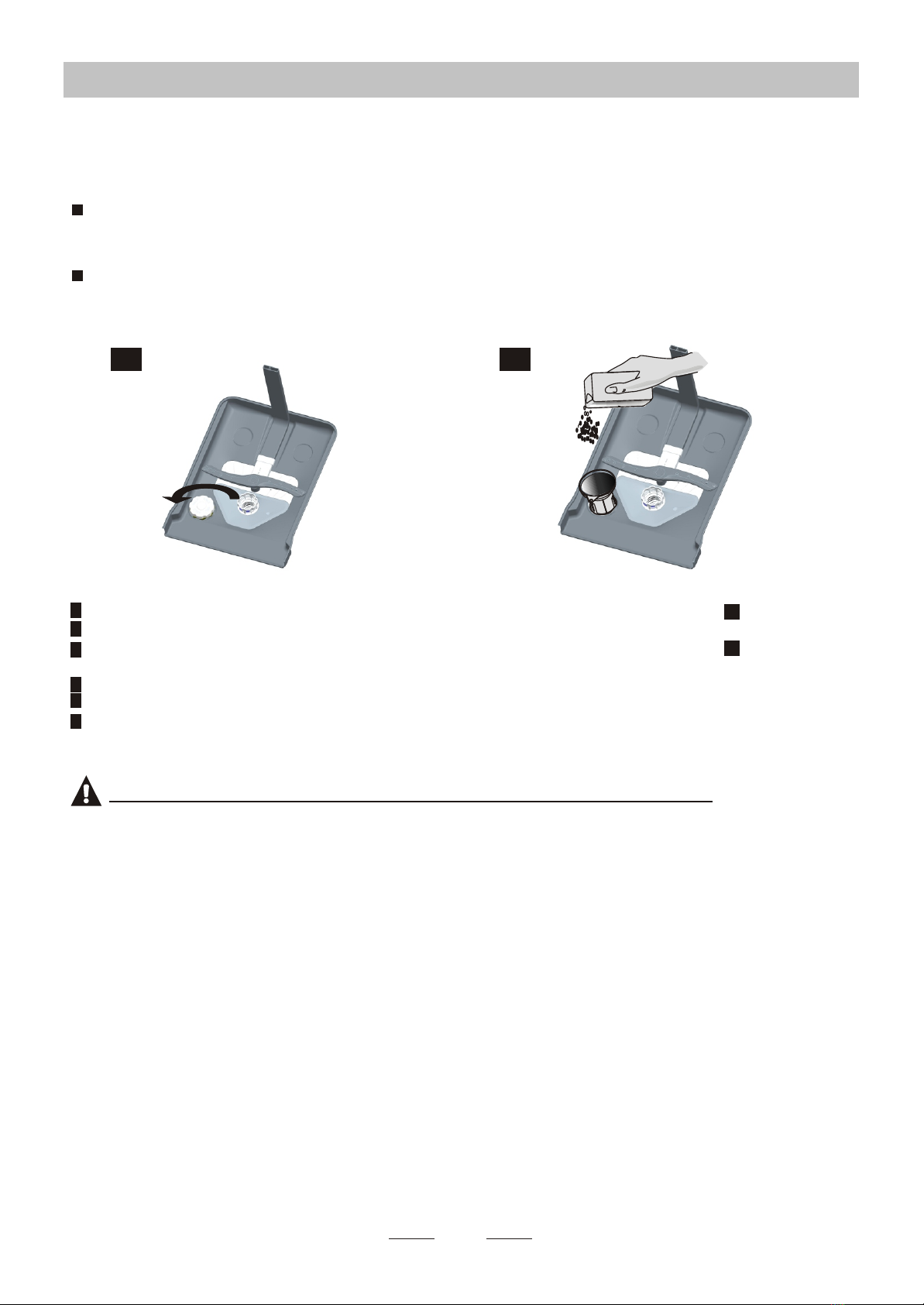

The salt container is located beneath the lower basket and should be filled as explained
in the following:
Attention!
Only use salt specifically designed for the use in dishwashers! Every other type of
salt not specifically designed for the use in a dishwasher, especially table salt, will
damage the water softener. Incase of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill with salt just before starting one of the complete washing programs.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosion.
7
B. Loading the Salt Into the Softener
NOTE:
Full fill the salt container with water,It is normal for a small amount of water to come out of the
salt container.
11
22

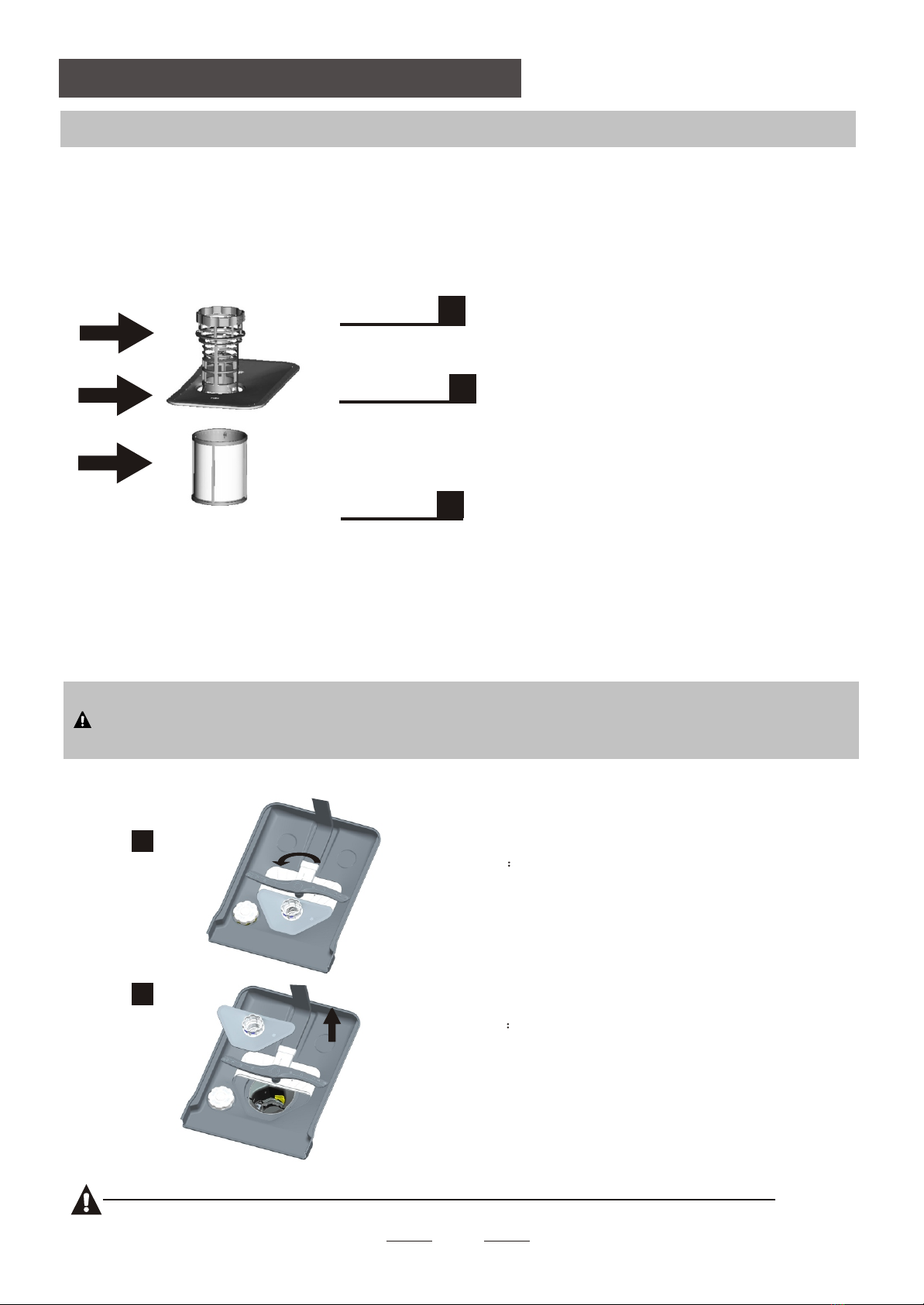

A After the lower basket has been removed, unscrew and remove the cap from the salt container.
BPlace the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C
D After filling the container , screw the cap tightly back clockwise.
E The salt warning light will stop being after the salt container has been filled with salt.
FImmediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short
program). Otherwise the filter system, pump or other important parts of the machine may be damaged
by salty water. This is out of warranty.
1122
OpenOpen

10
LOADING THE RINSE AID
The rinse aid
The rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and
prevents spots and stains forming.
Filling the rinse aid container

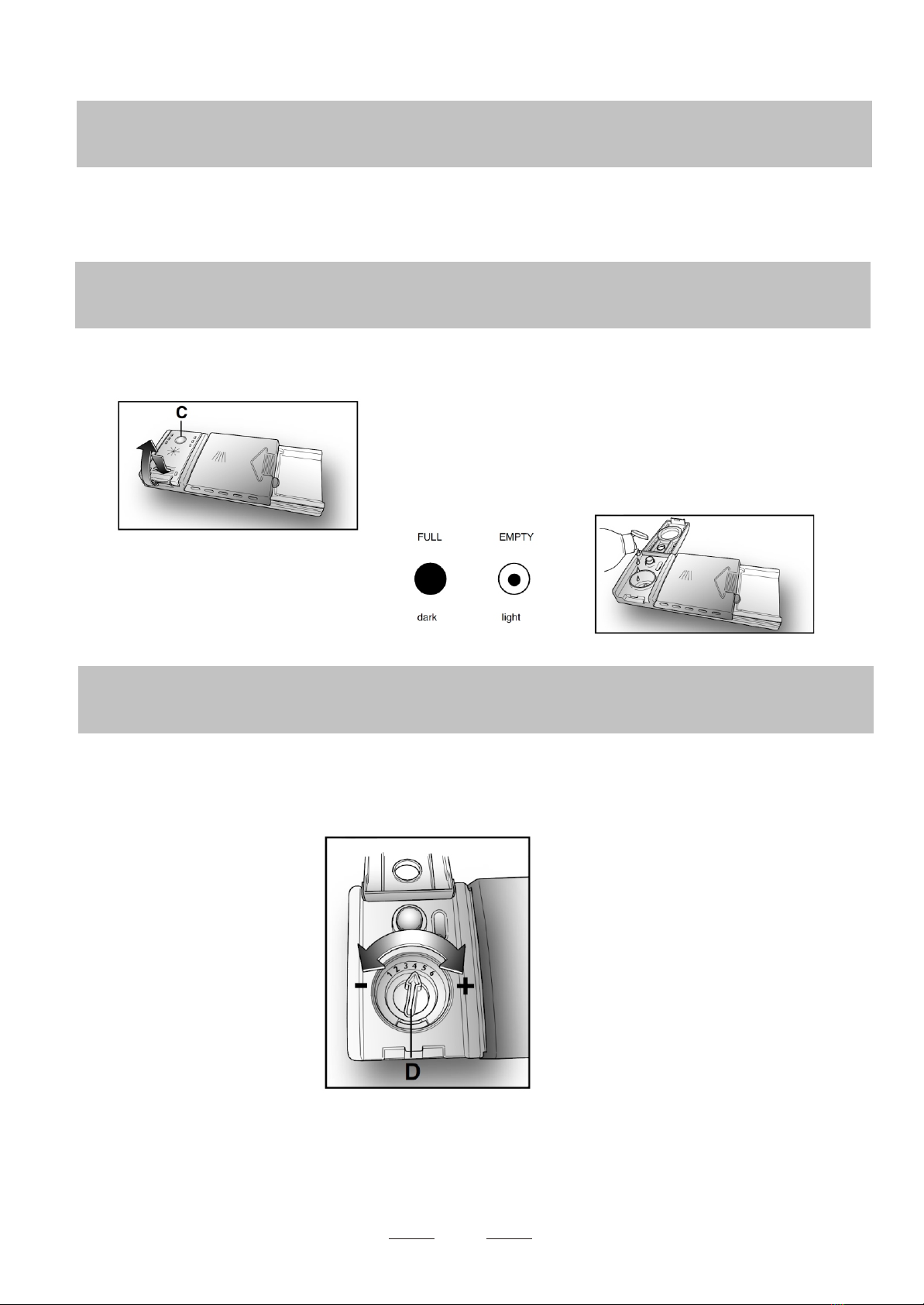

The rinse aidcontainer can be found to the left of the detergent container (fig. A"3").To open the lid, push the
reference mark and,in the same time, pull the tab of opening.It is always advisable to use rinse aid that is specifically
designed for dishwasher.Check the rinse aid level through the indicator eye (C) which is located on the dispenser.
Regulating the rinse aid from 1 to 6
The regulator (D) is placed under the lid and can be turned using a coin.The recommended position is 4.The
limestone content ofthe water considerablyaffects the formation of limescaleand the drying performance.
It is therefore important toregulate the quantityof rinse aidto achieve goodwashing results.If, after the wash,
streaks occur onthe dishes, decreasethe amount byone position. Ifwhitish spots occur, increase theamount
by one position.

5.Loading the Dishwasher Baskets
For washing in the dishwasher the following cutlery/dishes
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooperitems
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types ofglasses can become
dull after a large number of washes
Silver and aluminumparts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are of limited suitability
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not touch.
Load large itemswhich are mostdifficult to clean into thelower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in theupper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Load hollow itemssuch as cups,glasses, pans etc.With the openingfacing downwards sothat
water cannot collect in the container or a deep base.
Recommendation
Consider buying utensilswhich are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from thedetergent manufacturers.
For particular items, select a program with as low a temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of thedishwasher, follow these loading guidelines.
Features and appearanceof baskets and cutlery baskets may vary from your model.)
Scrape off any large amountsof leftover food. Soften remnants of burntfood in pans.
It is not necessary to rinse the dishes under running water.
Place objects inthe dishwasher in following way:
1.Items such as cups,glasses, pots/pans, etc. are faced downwards.
2.Curved items,or ones withrecesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensilsare placed inthe way that the spray arms can rotate freely during washing.
NOTE:
Very smallitems should notbe washed in the dishwasher as they could easily fall out of the basket.
Attention before or after loading the Dishwasher Baskets
Toprevent water drippingfrom the upper basket intothe lower basket,we recommend thatyou
empty the lowerbasket first andthen the upperbasket.
Removing the Dishes
11

12
The upper basketis designed tohold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans(as long asthey are nottoo dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper Basket
We suggest that you place large itemsand the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shownin the figurebelow. Itis preferable to
place serving dishesand lids onthe side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be remindedthat:
The Bottom Basket features folding spikes sothat larger ormore pots andpans can beloaded.
The Method Loading Normal Dishware
Lower position Upper position
Wheels
Cutlery should beplaced in the cutlery basket with the handles at the bottom. If the rack has side baskets, the
spoons should beloaded separately into the appropriate slots, especially long utensils should be placed in the
horizontal position atthe front of the upper basket as shown in the picture.
Cutlery Basket
Do not let any item extend through the bottom.
Always load sharp utensils with
the sharp point down!
WARNING!
For personal safetyand a topquality cleaning, place the silverware in the basket
making sure that:
They do notnest together.
Silverware is placed with the handles-down.
But place knivesand other potentially dangerous utensils areplaced handles-up.
IN
IN
Folding Spikes of Lower Basket
For better stacking of potsand pans,
the spikes can be folded down as
show in thepicture right.
Adjusting the Upper Basket Folding back the cup shelives
The height ofthe upper basketcan be adjusted in order to
create more space for large utensils both for the upper
/lower basket. The height of the upper basket can be
adjusted by placing the wheels on different height of the
rails. Long items, serving cutlery, salad servers and knives
should be placedon the shelf so that they do not obstruct
the rotation ofthe spray arms..
For better stacking of potsand pans,
the spikes can be folded down as
show in thepicture right.

NOTE:NOTE:
*EN 50242 : This programme is thetest cycle. The information for comparability test
in accordance withEN 50242, asfollows:
Capacity: 10 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
Pl:0.45w; Po:0.3w.
Turning On the ApplianceTurning On the Appliance
Starting a cyclewash
Draw out thelower and upperbasket, load thedishes and pushthem back.
It is commended to loadthe lower basketfirst, then the upper one(see the sectionentitled
Loading the Dishwasher ).
Pour in thedetergent (see thesection entitled Salt, Detergent and Rinse Aid ).
Insert the pluginto the socket.The power supply is 220-240VAC /50 HZ, the specification
of the socketis 10A 250VAC. Make sure thatthe water supplyis turned onto full pressure.
Open the door, press theON/OFF Button, andthe ON/OFF lightwill turn on.
Press the program Button ,the wash programwill be changed as follows direction:
Intensive->Normal->ECO->Glass>90Min->Rapid>Soak;
If a programis selected, theresponse light willlight. Then close the door, the dishwasher
begins to start.
1
2
3
4
5
6.Starting a washing program6.Starting a washing program
Wash Cycle TableWash Cycle Table
NOTE:NOTE:
Means: need to fill rinse into the Rinse-Aid Dispenser.
( )
13
Normal
Rapid
Intensive
Soak
(*EN 50242)
165
175
205
125
90
30
15
3g/22g
25g
20g
3g/22g
3g/22g
3g/22g
1.4
1.1
0.74
0.75
1.15
0.7
0.02
16.5
13
9
13.5
11. 5
10
3.5
Rinse

When the workingcycle has finished,the buzzer ofthe dishwasher willsound for 8seconds, then stop.Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Open thedoor.Switch off the dishwasherby pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes aresensitive to knocks. The dishes should therefore beallowed to cooldown around 15minutes
before removing from the appliance.
Open the dishwasher'sdoor, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lowerbasket first andthen the upperone. This will avoid waterdripping from the upper Basket onto
the dishes in the lower one.
Change the Program...
Forgot to Add a Dish?
If you open the door during a wash cycle , the machine will pause. The program light will
stop blinking and the buzzer will mooing every minute unless you close the door . After
you close the door ,the machine will keep on working after 10 seconds.
NOTE:
At the End of the Wash Cycle
Premise:
A cyclethat is underwaycan only bemodified if ithas only beenrunning for ashort time. Otherwise,the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case,the detergent dispensermust be refilled(see the sectionentitled " Loadingthe
Detergent " ).
Open the door,press the Programbutton more than3 seconds ,the machine willbe in standbystate,
then you canchange the programto the desiredcycle setting (seethe section entitled " Starting a
wash cycle. . ." ).
1
2
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5The dishwasher will run after 10 seconds.
WARNING! It is dangerous to open the door when washing,
because the hot water may scald you.
14

The filter preventslarger remnants offood or otherobjects from gettinginside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists ofa coarse filter,a flat (Main filter)
And amicrofilter(Fine filter).
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down to drain.
Larger items, suchas pieces ofbones or glass,that could block
the drain aretrapped in thecoarse filter.To remove theitems
caught by thefilter, gentlysqueeze the tapon the topof this
filter and liftout.
This filter holds soil and food residues in the sump area and
prevents it from being redeposit on the dishes during wash cycle.
Main filter 1
Coarse filter 2
Fine filter 3
2
3
1
Filter assembly
The filter efficiently removes food particles fromthe wash water, allowing it to be recycled during the cycle.
For best performanceand results, thefilter must becleaned regularly. For thisreason, it is a good idea to
remove the largerfood particles trappedin the filterafter each washcycle by rinsingthe semicircular filterand
cup under runningwater. Toremove the filter device, pull the cup handle in the upward direction.
WARNING!
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
nn
nn
Step 1 Turn the filter in anti-clockwise direction,
Step 2 lift the filter assy up
7.Maintenance and Cleaning7.Maintenance and Cleaning
Filtering System
NOTE:
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
15
1
2
Open

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, usea good appliancepolish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect AgainstFreezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain thewater from the inlet pipeand water valve.(Use a panto gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove thefilter at the bottom of the tub and usea sponge tosoak up waterin the sump.
please take frostprotection measures onthe dishwasher inwinter. Everytime after washing cycles,
please operate as follows
Caring for the Dishwasher
Cleaning the Filter
Cleaning The Door
Toclean the coarsefilter and thefine filter,use a cleaningbrush. Reassemble thefilter parts as shown inthe figures
on the lastpage and reinsertthe entire assemblyin the dishwasher, positioning itin its seatand pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of the dishwasher could be decreased.
WARNING!
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
nn
nn
Cleaning the Spray Arms
NOTE:
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessaryto clean thespray arms regularlyfor hard
water chemicals willclog the sprayarm jets andbearings.
- Inspect the filters for blocking after every time the dishwasher has beenused.
- By unscrewing the coarsefilter, youcan remove thefilter system. Removeany food remnantsand
clean the filters under running water.
Remarks:
The entire filter assembly should be cleaned once a week.
NOTE:
To remove the lower spray arm, pull out the spray arm upward.
Toremove the upperspray arm, hold the nut,rotate the arm
clockwise to removeit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
16
Open

It is recommend that you run awash cycle withthe
dishwasher empty andthen remove the plug fromthe
socket, turn off the water supply andleave the door of
the appliance slightlyopen. This will help thedoor
seals to last longer andprevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of thefactors that causeodours to formin the
dishwasher is foodthat remains trappedin the seals.
Periodic cleaning witha damp spongewill prevent this
from occurring.
Before cleaning orperforming maintenance, always
remove the plugfrom the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
Toremove spots orstains from thesurface of the
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specifically for
dishwashers.
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
How to Keep Your Dishwasher in Shape
After every wash,turn off the water supplyto the
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
After Every Wash When not in Use for a LongTime
17
The installation of the pipes
and electrical equipments
should be done by professionals.
Attention:
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side ofthe cabinet sink should bechosen to facilitate the connection of drain hoses of
the dishwasher.
Installation preparation
Note: please checkthe accompanying installationaccessories(hook for aestheticpanel,screw)
8.Installation instruction
Warning
Electrical Shock HazardDisconnect electrical
power beforeinstalling dishwasher.
Failure to do so can result in death or
electrical shock.

18
Please carefully read the installation instruction.
Illustrations of cabinet dimensions andinstallation position of the dishwasher
Preparations should bemade before movingthe dishwasher tothe installation place.
Choose a placenear the sinkto facilitate theinstallation of inletand drain hoses
(see figure 1).
If dishwasher isinstalled at thecorner of thecabinet, there shouldbe some space
(illustrated in figure2) when thedoor is opened.
2
1
Minimum space when
the door is opened
Figure2
Cabinet dimensions
Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1The aesthetic wooden panel could be processed according to the Figure 3.
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
Figure3
Aesthetic panel's dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
90 90
450 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)
720(MAX)
dp8
439
416 0.2
390 0.2
287.5 0.2
286
75 0.2
62
127
474.8
517
38
30
8- 2
dp8
4- 2
dp8
2- 2
20 MAX
5
2- 5.5
2- 11
