Canon CANON EOS 1100D User manual

m mt
mm.1
mau_

_ntroduc_ion
The EOS REBEL T3/1100D is a high-performance, digital single-lens
reflex camera featuring a fine-detail CMOS sensor with approx. 12.2
effective megapixels, DIGIC 4, high-precision and high-speed 9-point
AF, approx. 3 fps continuous shooting, Live View shooting, and High-
Definition (HD) movie shooting.
The camera is highly responsive for shooting at anytime, provides many
functions fitted for advanced shooting, and offers many other features.
Refer to This Manual while Using the Camera to Further
Familiarize Yourself with the Camera
With a digital camera, you can immediately view the image you have
captured. While reading this manual, take a few test shots and see how
they come out. You can then better understand the camera.
To avoid botched pictures and accidents, first read the "Safety

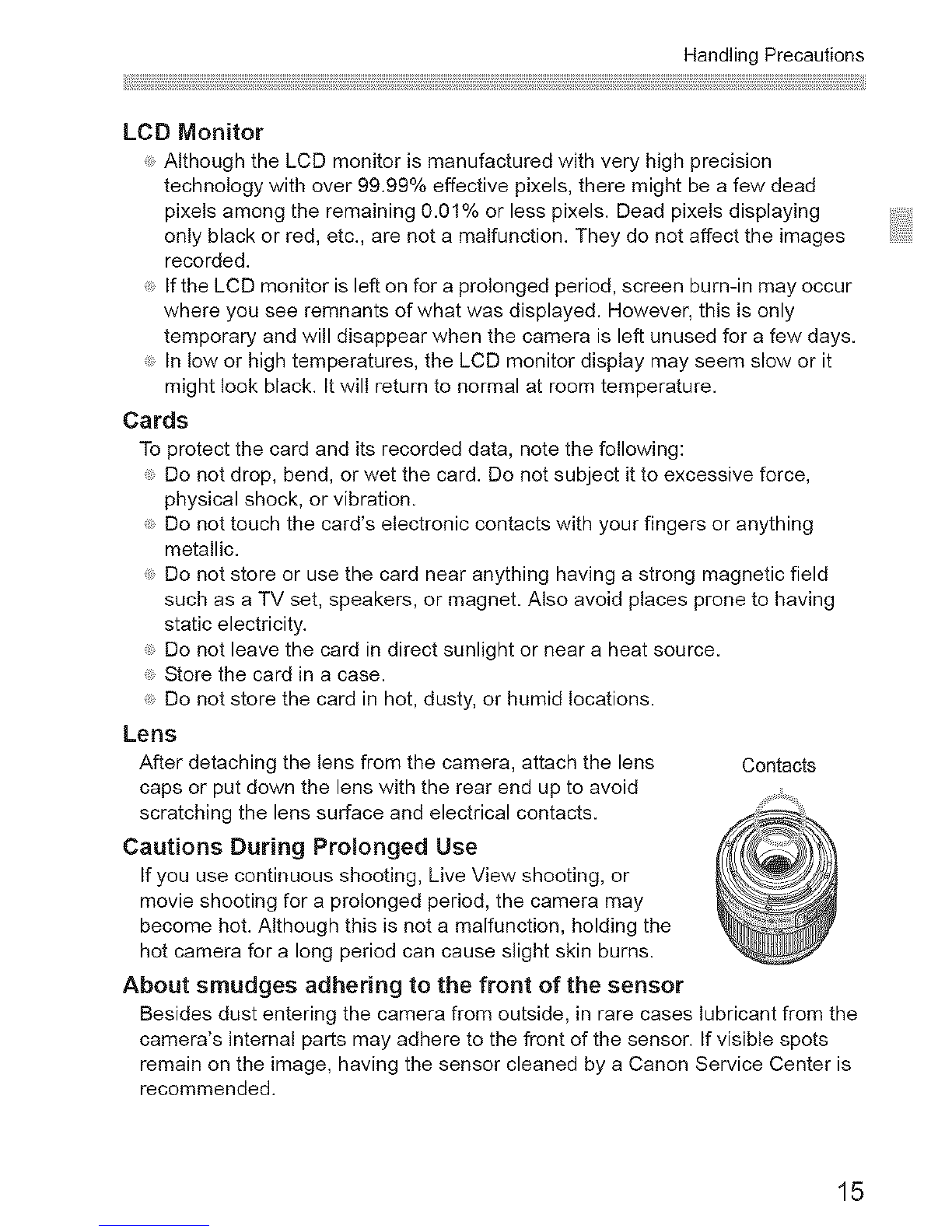

Warnings" (p.259, 260) and "Handling Precautions" (p.14, 15).
Testing the Camera Before Use and Liability
After shooting, playback and check whether the images have been
properly recorded. If the camera or memory card is faulty and the
images cannot be recorded or downloaded to a computer, Canon
cannot be held liable for any loss or inconvenience caused.
Copyrights
Copyright laws in your country may prohibit the use of your recorded
images of people and certain subjects for anything but private
enjoyment. Also be aware that certain public performances, exhibitions,
etc., may prohibit photography even for private enjoyment.
This camera is compatible with SD memory cards, SDHC memory
_" cards, and SDXCmemory cards. This manualwill refer toall these
._CT cards as just "card."
*The camera does not come with a card for recording images.
Please purchase it separately.
2

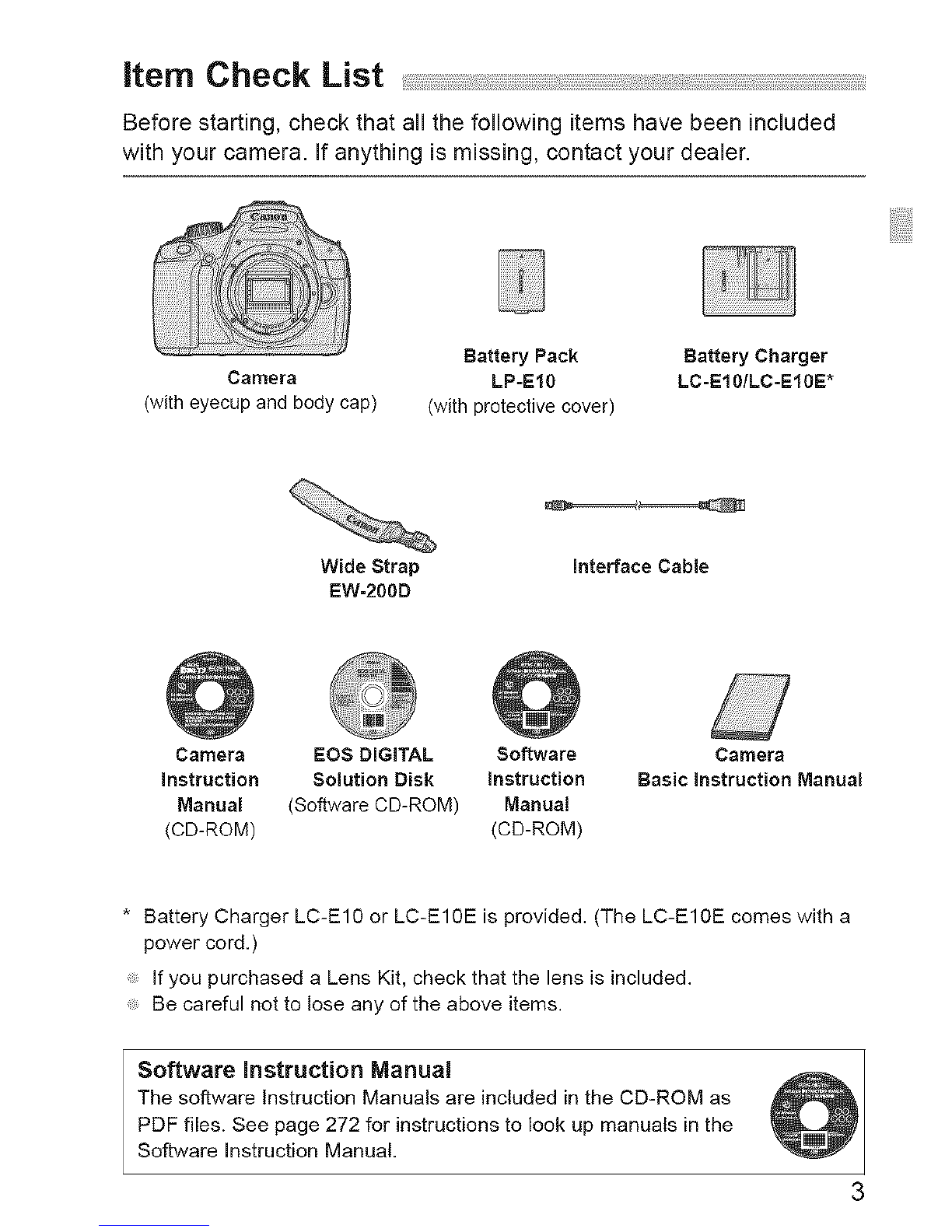

item Check List
Before starting, check that all the following items have been included
with your camera. If anything is missing, contact your dealer.
Battery Pack Battery Charger
Camera LP-E10 LC-E10/LC-E10E*
(with eyecup and body cap) (with protective cover)
Wide Strap
EW-200D interface Cable
Camera EOS DIGITAL Software
instruction Solution Disk instruction
Manual (Software CD-ROM) Manual
(CD-ROM) (CD-ROM)
Camera
Basic instruction Manual
* Battery Charger LC-EIO or LC-EIOE is provided. (The LC-EIOE comes with a
power cord.)
If you purchased a Lens Kit, check that the lens is included.
Be careful not to lose any of the above items.
Software instruction Manual
The software instruction Manuals are included in the CD-ROM as
PDF files. See page 272 for instructions to look up manuals in the
Software Instruction Manual.

Conventions Used in this Manual
<_>
<AT> <4_>
<8>
¢4, _6, ¢10,016
icons in this Manual
indicates the Main Dial.
indicates the <_;, > cross keys.
indicates the setting button.
indicates that the respective function remains
active for 4 sec., 6 sec., 10 sec., or 16 sec.
respectively after you let go of the button.
* Inthis manual, the icons and markings indicatingthe camera's buttons, dials,
andsettings correspond to the icons andmarkings on the camera and onthe
LCD monitor.
(p.**)
?
@
indicates a function which can be changed by pressing the
<MENU> button and changing the setting.
if shown on the upper right of the page, it indicates that the
function is available only in the Creative Zone modes (p.22).
Reference page numbers for more information.
Tip or advice for better shooting.
Problem-solving advice.
Warning to prevent shooting problems.
Supplemental information.
Basic Assumptions
All operations explained in this manual assume that the power switch
has already been set to <ON> (p.31).
® it is assumed that aii the menu settings and Custom Functions are
set to the default.
® For explanatory purposes, the instructions show the camera attached
with an EF-S18-55mm f/3.5-5.6 iS ii lens.
4

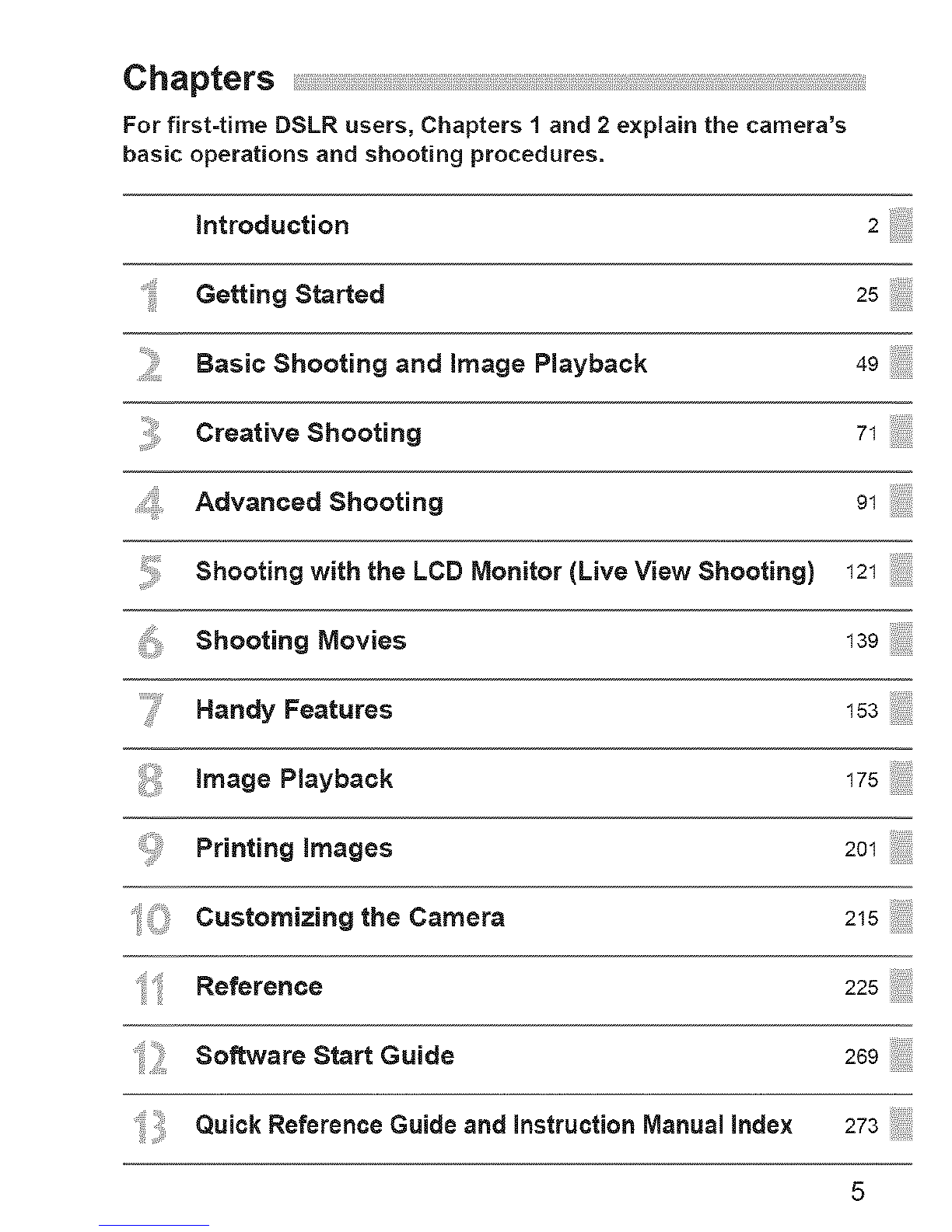

Chapters
For first-time DSLR users, Chapters 1 and 2 explain the camera's
basic operations and shooting procedures.
_.trod.ct_o. 2
Ge_i.gS_ed 2_
BasicShootingand image Playback 49
Creat_veS.oot_.g 71
Adva.cedS.oot_.g 91
S.ooti.gwit. t.eLCDMo.itor(UveViewS.ooti.g) 121
s.oot_.gMovie, I_9
Ha.dyreat_e, I_
_mageP_ayback 175
Printing Images 201
:i'; CustomizingtheCamera 215
.efe_e.ce 225
So.w=eS_G_ide 2_9
QuickReferenceGuideandlnstructionManuallndex 273
5
iiii_`_ii)ii_i_i:iiii_!iii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_ii!_i_:_i!_i!_:_¸;ii!iiiiii;;:;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;ii;;_;i;i_

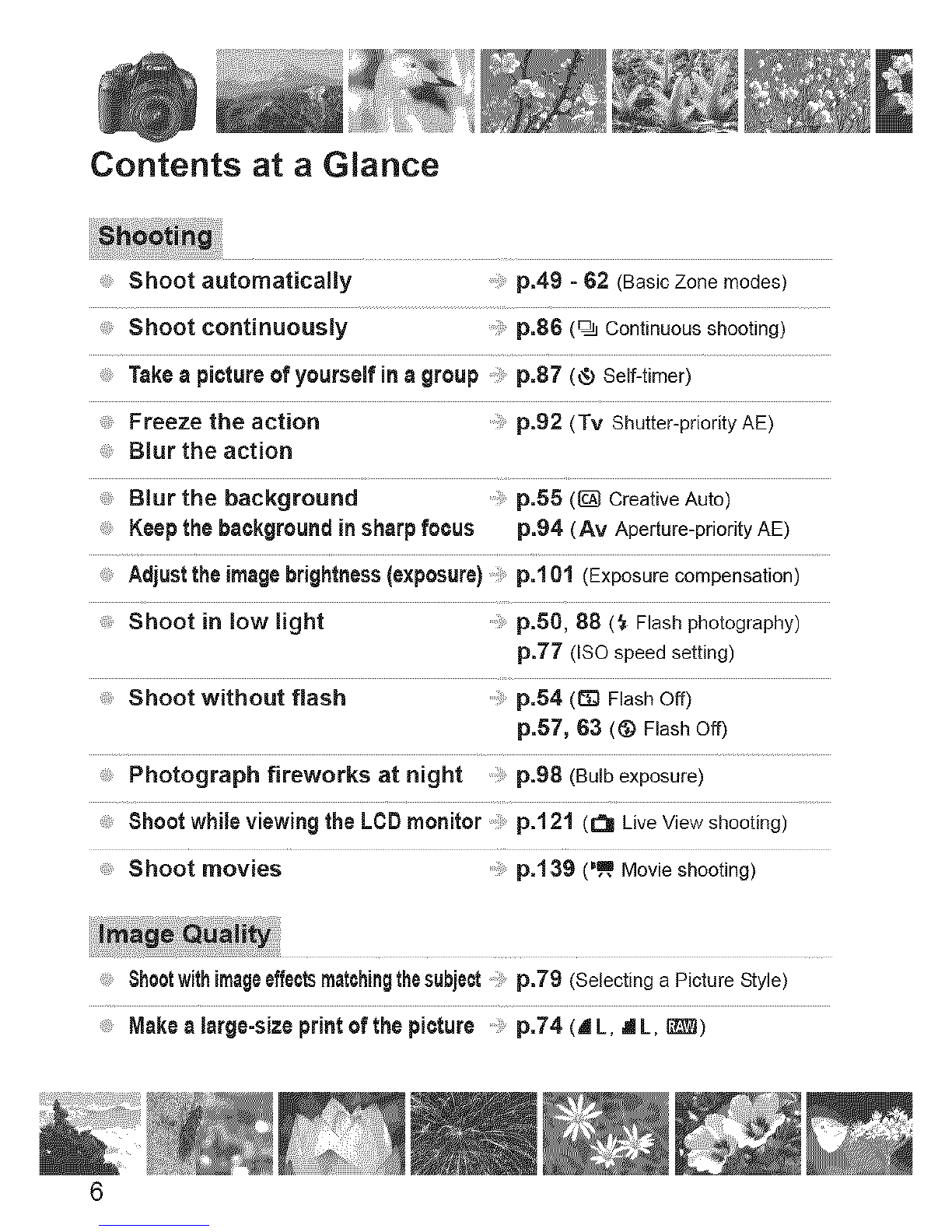

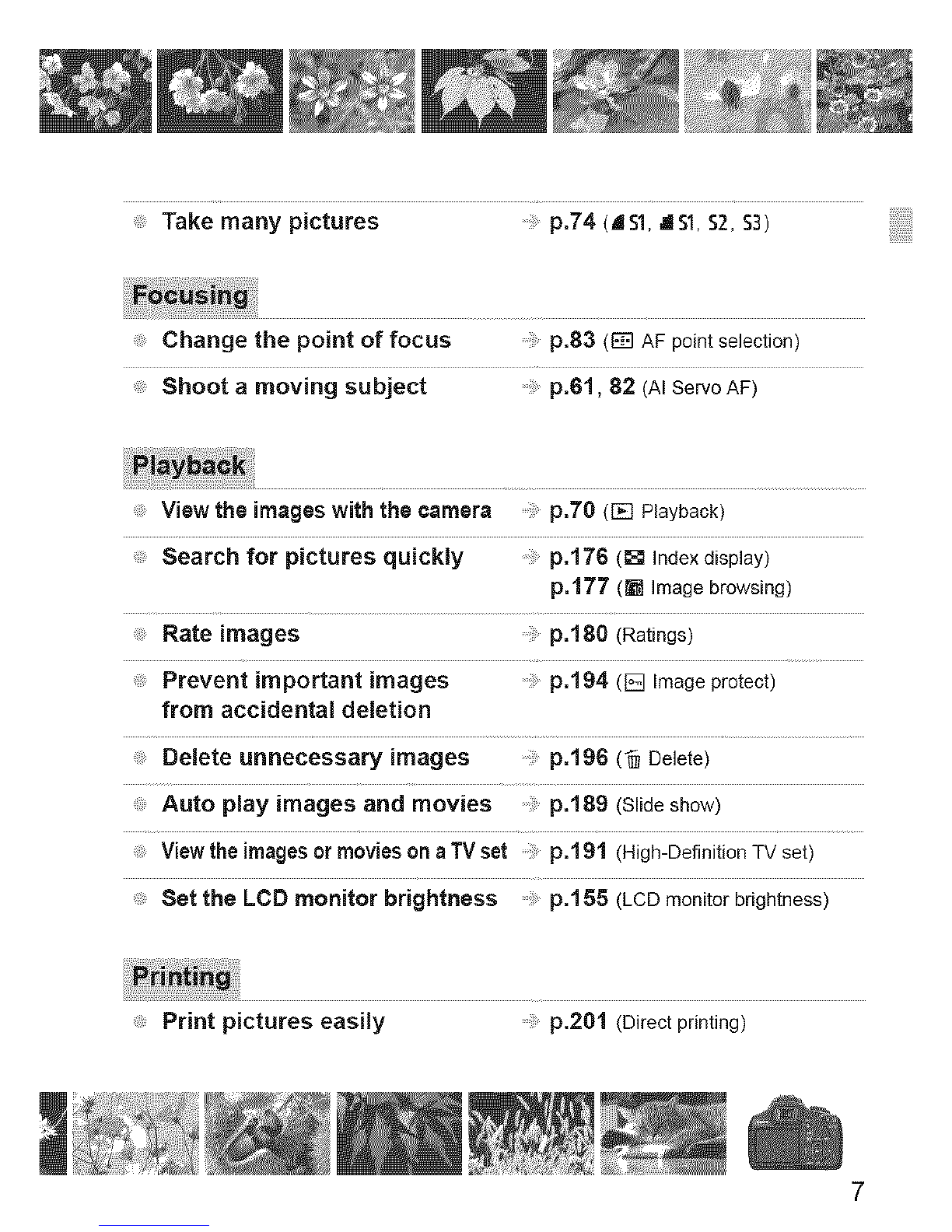

Contents at a Glance
Shoot automatically p.49 - 62 (BasicZonemodes)
Shoot continuously .....p.86 (_ Continuousshooting)
Takeapicture of yourself in agroup p.87 (® Self-timer)
Freeze the action ....p.92 (Tv Shutter-pr{or{tyAE)
Blur the action
Blur the background p.55 ([] CreativeAuto)
Keep the backgroundinsharp focus p.94 (Av Aperture-priorityAE)
Adjustthe imagebrightness(exposure) p.101 (Exposurecompensation)
Shoot in low light ....p.50, 88 (_ Flashphotography)
p.77 ([SOspeedsett{ng)
p.57, 63 (® FlashOff)
Photograph fireworks at night p.98 (Bulbexposure)
Shoot while viewing the LCD monitor p.121 (r_ LiveViewshoot{ng)
Shoot movies ....p.139 (_,=,Movieshooting)
Shootwithimageeffectsmatchingthesubject p.79 (Selectinga PictureStyle)
,: Make a large-sizeprint of the picture p.74 (J L, =1L, _)

Takemanypictures po74(JSl,tlS1,S2,S3)
Changethepoint of focus p.83 ([] AF pointselection)
Shoot amoving subject ....p.61,82 (AtServoAF)
View the images with the camera p,70 (F_q Playback)
Search for pictures quickly p.176 (N IndexdisplaY)
p.177 (_ Imagebrowsing)
Rate images p.180 (Ratings)
Prevent important images ....p.194 (B Imageprotect)
from accidental deletion
Delete unnecessary images p.196 (_ Delete)
Auto play images and movies p.189 (Sfideshow)
View theimages ormovies onaTV set p,19t (High-DefinitionTVset)
Set the LCO monitor brightness p.155 (LCDmonitorbrightness)
;: Print pictures easily p.201 (Direct printing)

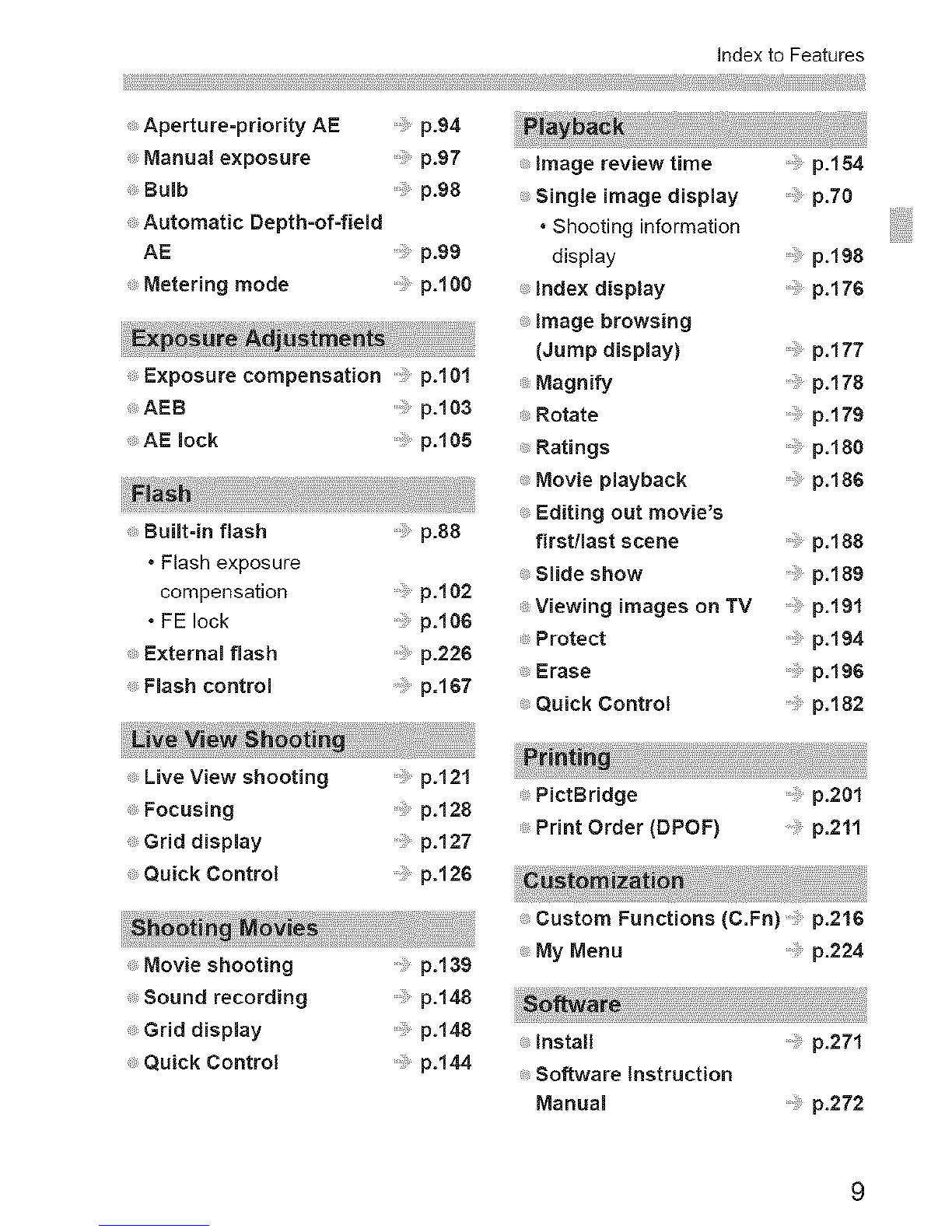

index to Features
Battery Image-recording quality p.74
• Charging p.26 Picture Style p.79
• Installing/Removing p.28 White balance p.115
• Battery check .... p.32 Color space .... p.119
Power outlet .... p.228 image enhancement features
Auto power off p.31 • Auto Lighting Optimizer p.107
• Lens peripheral
illumination correction p.108
Inserting/Removing p.28 • Noise reduction
Format p.44 for long exposures p.219
Remease shutter without •Noise reduction
card p.154 for high ISO speeds p.219
•Highlight tone priority p.220
AttachinglDetaching p.35
Zoom p.36 AF mode p.81
image Stabilizer p.37 AF point selection .... p.83
Manual focusing p.85
Dioptric adjustment p.38
Language p.34
DatelTime p.33
Deeper p.154
LCD OfflOn p.166
LCD brightness
adjustment p.155
Create/semect a fomder p.156
FHe No. p.158
Drive modes p.20
Continuous shooting p.86
Serf-timer p.87
Maximum burst p.75
ISO speed p.77
Feature guide p.47
Quick Control p.40
Creative Auto p.55
Program AE p.72
Shutter-priority AE p.92

IndextoFeatures
Aperture=priorityAE p.94
Manual exposure p.97 image review time p.154
Bulb p.98 Single image display p.70
Automatic Depth-of-field • Shooting information
AE p.99 display p.198
Metering mode p.100 _ndex display p.176
image browsing
(Jump dispmay) p.177
Exposure compensation p.101 Magnify .... p.178
AEB .... p.103 Rotate .... p.179
AE lock .... p.105 .... p.180
Movie pmayback p.186
Editing out movie's
Buimt-in flash .... p.88 firstlmast scene .... p.188
° Flash exposure SHale show .... p.189
compensation p.102 Viewing images on TV p.191
•FE lock p.106 Protect p.194
External flash p.226 Erase p.196
Flash control p.167 Quick Control p.182
Live View shooting p.121 PictBridge p.201
Focusing p.128 Print Order (DPOF) p.21f
Grid display p.127
Quick Control p.126
Movie shooting p.139
Sound recording p.148
Grid dispmay p.148
Quick Control p.144
Custom Functions (C.Fn)p.216
My Menu p.224
install p.27f
Software instruction
Manual p.272

iii_!_i_!!!_i!!_i_!_i_!!!_i!!_i_!_i_!!!_i!!_i_!_i_!!!_i!!_i_!_i_!!!_i!_i!_!_d!_!_!_i!_i_!i¸¸_¸¸_!_!_i_!_!i!_i_!i_i_i_i_i_!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!i!i_i_i_!_!i_i

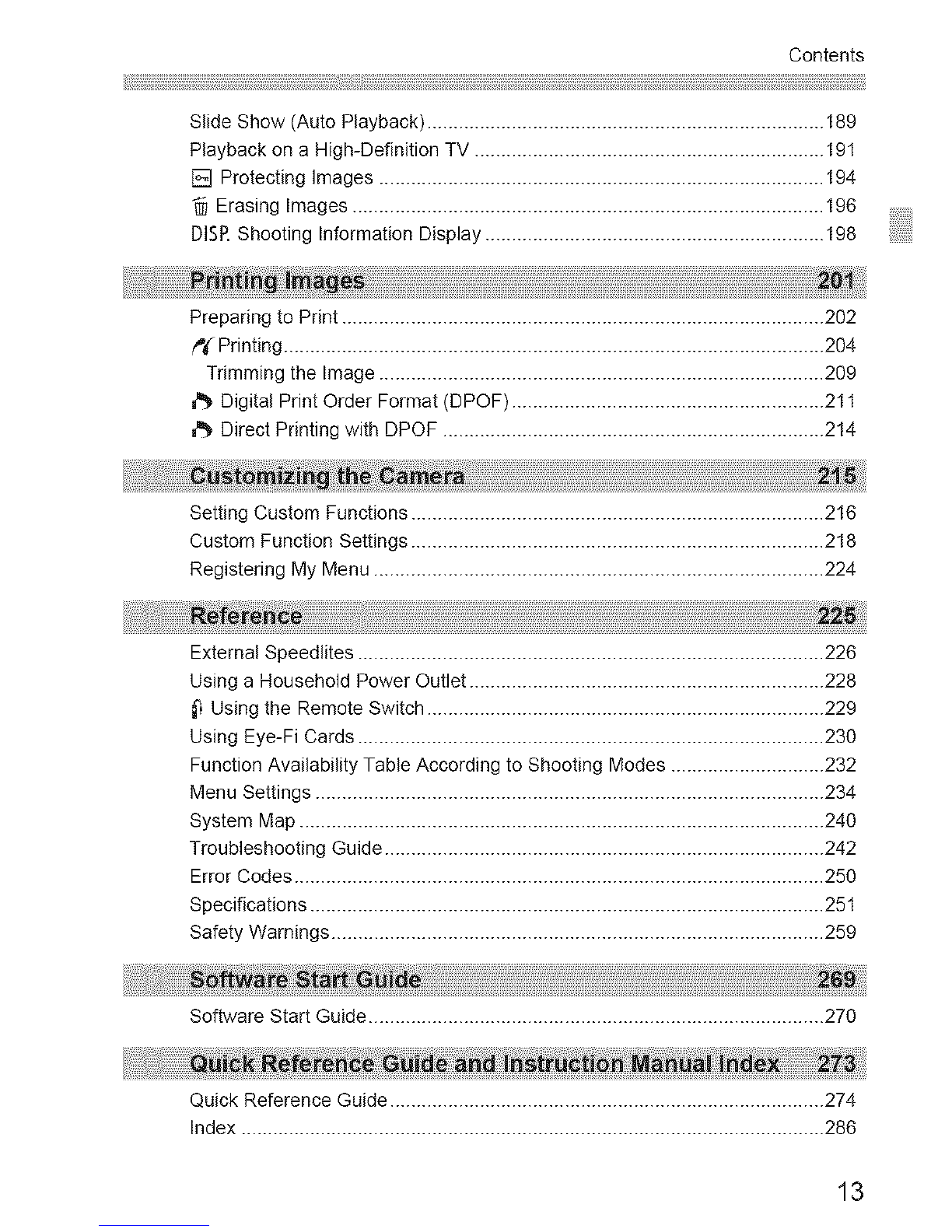

Item Check List .................................................................................................. 3
Conventions Used in this Manual ...................................................................... 4
Chapters ............................................................................................................ 5
Contents at a Glance ......................................................................................... 6
Index to Features .............................................................................................. 8
Handling Precautions ...................................................................................... 14
Quick Start Guide ............................................................................................ 16

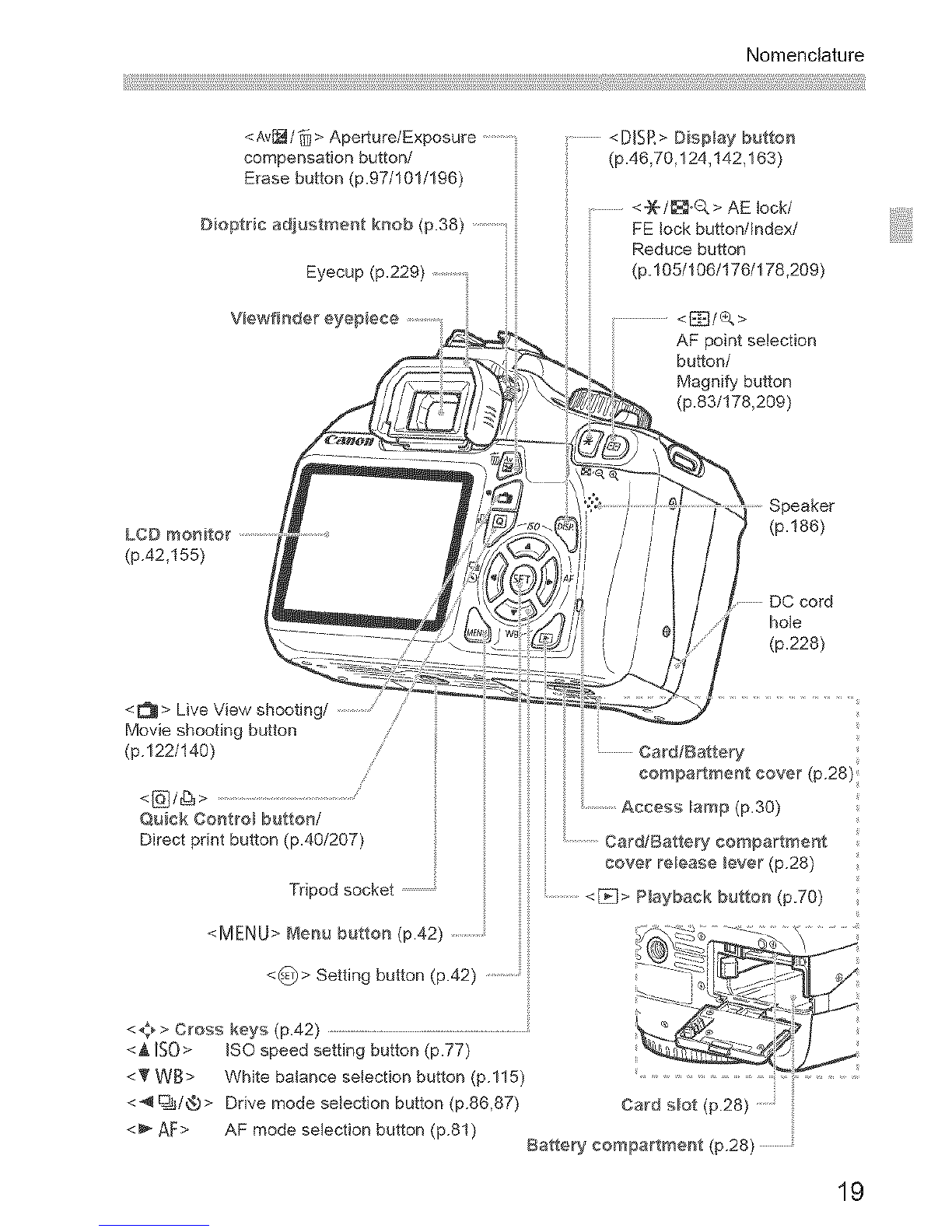

Nomenclature .................................................................................................. 18
i!i_i_!!!_!!!_i_!i!iii!_i_!_J_i_!_i_!_J_i_!_i_!_ii!_!_!i!_!_!_iii_ii_!i_ii!ii!_!_!i_i_!_!ii_i!ill_i!!_i_i_i_i!_:_!_!_!i_!_!_ii¸i:iiii'i_iiiiiii_iiii_i_iiii_iiii'i_iiii_iii__i_iiii_i_i_'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'ii_ii_i_ii'_i_i_:_iii'iiii!_ii_i!i!iiii!iii!i
Charging the Battery ....................................................................................... 26
Installing and Removing the Battery and Card ................................................ 28
Turning on the Power ...................................................................................... 31
Setting the Date and Time ............................................................................... 33
Selecting the Interface Language .................................................................... 34
Attaching and Detaching a Lens ..................................................................... 35
About the Lens Image Stabilizer ...................................................................... 37
Basic Operation ............................................................................................... 38
[] Quick Control for Shooting Functions ........................................................ 40
Menu Operations ................................................................................... 42
Formatting the Card ......................................................................................... 44
Switching the LCD Monitor Display ................................................................. 46
Feature Guide ................................................................................................. 47
[] Fully Automatic Shooting ........................................................................... 50
[] Full Auto Techniques ................................................................................. 52
Disabling Flash .......................................................................................... 54
[] Creative Auto Shooting ............................................................................. 55
_ Shooting Portraits ....................................................................................... 58
t& Shooting Landscapes ................................................................................ 59
_ Shooting Close-ups .................................................................................... 60
Shooting Moving Subjects ......................................................................... 61
Shooting Portraits at Night ......................................................................... 62
[] Quick Control ............................................................................................. 63
10

Contents
Shoot by Ambience Selection .......................................................................... 64
Shoot by Lighting or Scene Type ..................................................................... 67
[] Image Playback .......................................................................................... 70
P: Program AE................................................................................................ 72
Setting the Image-recording Quality ................................................................. 74
IS0: Changing the ISO Speed ......................................................................... 77
_-'= Selecting the Subject's Optimal Image Characteristics (Picture Style)....79
AF: Changing the Autofecus Mode (AF Mode) ................................................ 81
[] Selecting the AF Point .............................................................................. 83
Subjects Difficult to Focus ................................................................................ 85
MF: Manual Focusing ................................................................................... 85
Continuous Shooting .................................................................................. 86
® Using the Self-timer .................................................................................... 87
Using the Built-in Flash ................................................................................ 88
l"v : Action Shots ............................................................................................. 92
Av : Changing the Depth of Field .................................................................... 94
Depth of Field Preview .................................................................................. 96
IV[: Manual Exposure ....................................................................................... 97
A-DEP: Automatic Depth-of-Field AE................................................................ 99
E_ Changing the Metering Mode .................................................................. 100
Av_l _ Setting Exposure Compensation ..................................................... 101
Auto Exposure Bracketing (AEB) ................................................................... 103
-'X-Locking the Exposure (AE Lock) .............................................................. 105
-X- Locking the Flash Exposure (FE Lock) ..................................................... 106
Correctingthe Brightnessand ContrastAutomatically (AutoLightingOptimizer)....... 107
Correcting the Image's Dark Corners ............................................................. 108
_[,= Customizing Image Characteristics (Picture Style) ................................ 110
_[,= Registering Preferred Image Characteristics (Picture Style).................. 113
WB: Matching the Light Source (White Balance) .......................................... 115
_B Adjusting the Color Tone for the Light Source .......................................... 117
Setting the Color Reproduction Range (Color Space) ................................... 119
Shooting with the LCD Monitor ................................................................ 122
11

Contents
Shooting Function Settings ........................................................................... 126
131iMenu Function Settings ........................................................................... 127
Changing the Autofocus Mode ...................................................................... 128
MF: Focusing Manually ................................................................................. 135
J,_, Shooting Movies ...................................................................................... 140
Shooting Function Settings ........................................................................... 144
Menu Function Settings ................................................................................. 145
Handy Features ............................................................................................. 154
Silencing the Beeper .................................................................................. 154
Card Reminder ........................................................................................... 154
Setting the Image Review Time ................................................................. 154
Setting the Auto Power-off Time ................................................................. 155
Adjusting the LCD Monitor Brightness ....................................................... 155
Creating and Selecting a Folder ................................................................. 156
File Numbering Methods ............................................................................ 158
Setting Copyright Information ..................................................................... 160
Auto Rotation of Vertical Images ................................................................ 162
DISR Checking Camera Settings ................................................................ 163
Reverting the Camera to the Default Settings ............................................ 164
Turning the LCD monitor Off/On ................................................................. 166
Changing the Shooting Settings Screen Color ........................................... 166
Setting the Flash ........................................................................................... 167
Appending Dust Delete Data ......................................................................... 171
Manual Sensor Cleaning ............................................................................... 173
12
[] [] Searching for Images Quickly ............................................................. 176
¢,/% Magnified View .................................................................................... 178
_[_Rotating the Image ................................................................................... 179
Setting Ratings .............................................................................................. 180
[] Quick Control During Playback ................................................................ 182
_ Enjoying Movies ...................................................................................... 184
_ Playing Movies ........................................................................................ 186
_: Editing a Movie's First and Last Scenes .................................................. 188

Contents
SlideShow(AutoPlayback)...........................................................................189
PlaybackonaHigh-DefinitionTV..................................................................191
[] ProtectingImages....................................................................................194
ErasingImages.........................................................................................196
DISRShootingInformationDisplay................................................................198
PreparingtoPrint...........................................................................................202
f'_ Printing ...................................................................................................... 204
Trimming the Image .................................................................................... 209
Digital Print Order Format (DPOF) ........................................................... 211
Direct Printing with DPOF ........................................................................ 214
Setting Custom Functions .............................................................................. 216
Custom Function Settings .............................................................................. 218
Registering My Menu ..................................................................................... 224
External Speedlites ........................................................................................ 226
Using a Household Power Outlet ................................................................... 228
Using the Remote Switch ........................................................................... 229
Using Eye-Fi Cards ........................................................................................ 230
Function Availability Table According to Shooting Modes ............................. 232
Menu Settings ................................................................................................ 234
System Map ................................................................................................... 240
Troubleshooting Guide ................................................................................... 242
Error Codes .................................................................................................... 250
Specifications ................................................................................................. 251
Safety Warnings ............................................................................................. 259
Software Start Guide ...................................................................................... 270
Quick Reference Guide .................................................................................. 274
Index .............................................................................................................. 286
13

Handling Precautions
Camera Care
This camera is a precision instrument. Do not drop it or subject it to physical
shock.
The camera is not waterproof and cannot be used underwater. If you
accidentally drop the camera into water, promptly consult your nearest
Canon Service Center. Wipe off any water droplets with a dry cloth. If the
camera has been exposed to salty air, wipe it with a well-wrung wet cloth.
Never leave the camera near anything having a strong magnetic field such
as a magnet or electric motor. Also avoid using or leaving the camera near
anything emitting strong radio waves such as a large antenna. Strong
magnetic fields can cause camera misoperation or destroy image data.
Do not leave the camera in excessive heat such as in a car in direct sunlight.
High temperatures can cause the camera to malfunction.
The camera contains precision electronic circuitry. Never attempt to
disassemble the camera yourself.
Use a blower to blow away dust on the lens, viewfinder, reflex mirror, and
focusing screen. Do not use cleaners that contain organic solvents to clean
the camera body or lens. For stubborn dirt, take the camera to the nearest
Canon Service Center.
Do not touch the camera's electrical contacts with your fingers. This is to
prevent the contacts from corroding. Corroded contacts can cause camera
misoperation.
If the camera is suddenly brought in from the cold into a warm room,
condensation may form on the camera and internal parts. To prevent
condensation, first put the camera in a sealed plastic bag and let it adjust to
the warmer temperature before taking it out of the bag.
If condensation forms on the camera, do not use the camera. This is to avoid
damaging the camera. If there is condensation, remove the lens, card and
battery from the camera, and wait until the condensation has evaporated
before using the camera.
If the camera will not be used for an extended period, remove the battery
and store the camera in a cool, dry, well-ventilated location. Even while the
camera is in storage, press the shutter button a few times once in a while to
check that the camera is still working.
Avoid storing the camera where there are corrosive chemicals such as a
darkroom or chemical lab.
If the camera has not been used for an extended period, test all its functions
before using it. If you have not used the camera for some time or if there is
an important shoot coming up, have the camera checked by your Canon
dealer or check the camera yourself and make sure it is working properly.
14

Handling Precautions
LCD Monitor
Although the LCD monitor is manufactured with very high precision
technology with over 99.99% effective pixels, there might be a few dead
pixels among the remaining 0.01% or less pixels. Dead pixels displaying
only black or red, etc., are not a malfunction. They do not affect the images
recorded.
If the LCD monitor is left on for a prolonged period, screen burn-in may occur
where you see remnants of what was displayed. However, this is only
temporary and will disappear when the camera is left unused for a few days.
In low or high temperatures, the LCD monitor display may seem slow or it
might look black. It will return to normal at room temperature.
Cards
To protect the card and its recorded data, note the following:
Do not drop, bend, or wet the card. Do not subject it to excessive force,
physical shock, or vibration.
Do not touch the card's electronic contacts with your fingers or anything
metallic.
Do not store or use the card near anything having a strong magnetic field
such as a TV set, speakers, or magnet. Also avoid places prone to having
static electricity.
Do not leave the card in direct sunlight or near a heat source.
Store the card in a case.
Do not store the card in hot, dusty, or humid locations.
Lens
After detaching the lens from the camera, attach the lens Contacts
caps or put down the lens with the rear end up to avoid
scratching the lens surface and electrical contacts.
Cautions During Prolonged Use
If you use continuous shooting, Live View shooting, or
movie shooting for a prolonged period, the camera may
become hot. Although this is not a malfunction, holding the
hot camera for a long period can cause slight skin burns.
About smudges adhering to the front of the sensor
Besides dust entering the camera from outside, in rare cases lubricant from the
camera's internal parts may adhere to the front of the sensor. If visible spots
remain on the image, having the sensor cleaned by a Canon Service Center is
recommended.
15

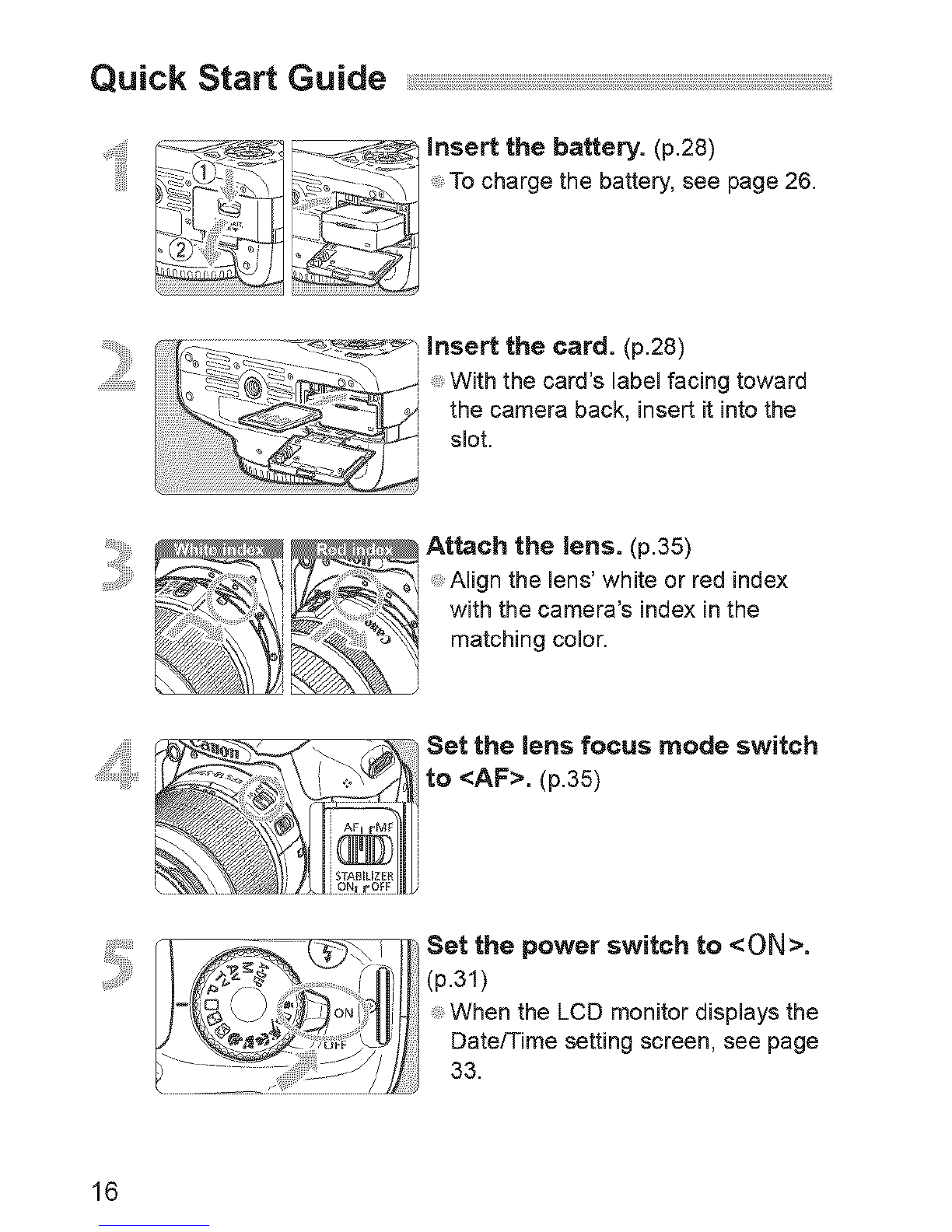

Quick Start Guide
insert the battery. (p.28)
To charge the battery, see page 26.
Attach the lens. (p.35)
Align the lens' white or red index
with the camera's index in the
matching color.
Set the lens focus mode switch
to <AF>. (p.35)
Set the power switch to <ON>.
(p.31)
-', When the LCD monitor displays the
Date/Time setting screen, see page
_ 33.
16

QuickStartGuide
I

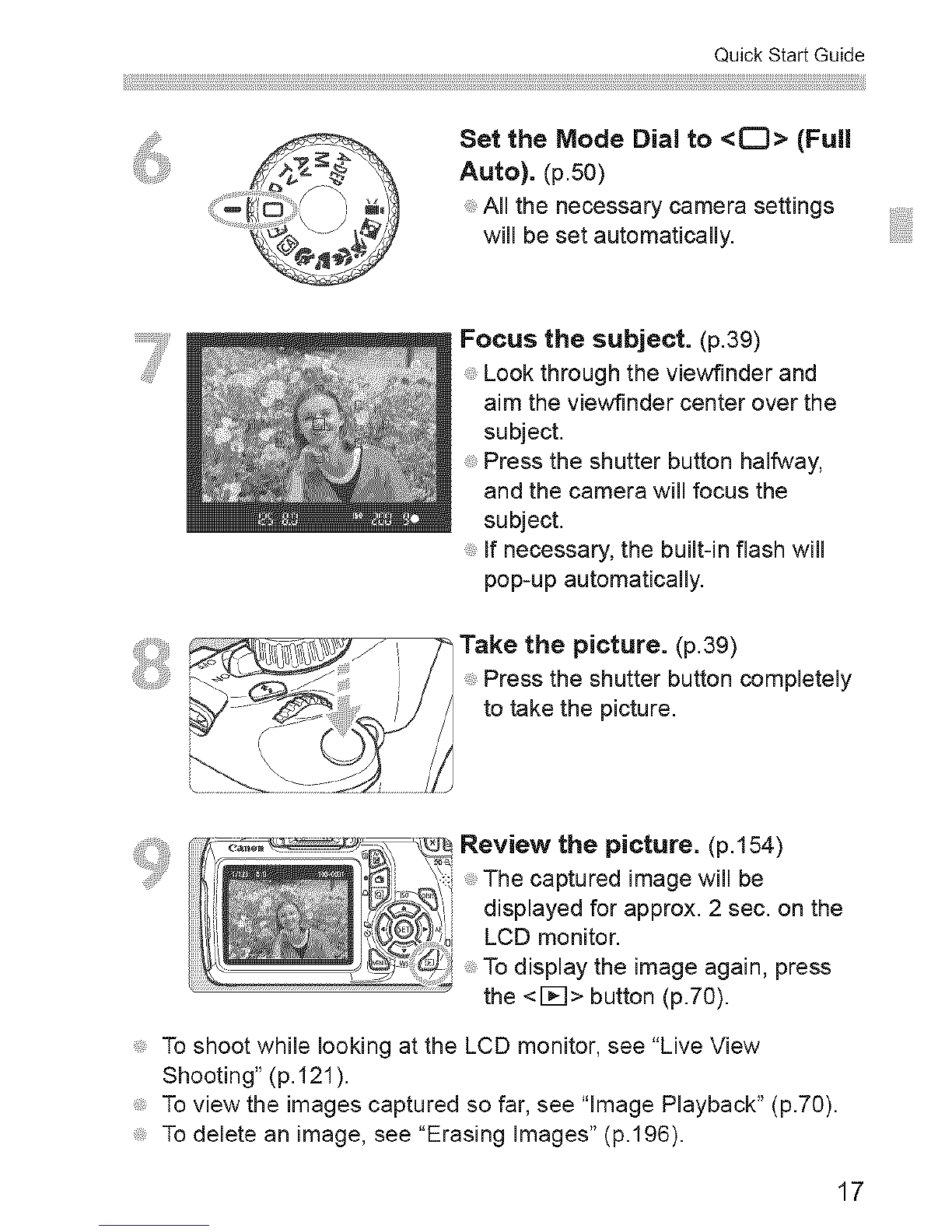

Set the Mode Dial to <0> (Full
Auto). (p.50)
All the necessary camera settings
will be set automatically.
Focus the subject. (p.39)
Look through the viewfinder and
aim the viewfinder center over the
subject.
Press the shutter button halfway,
and the camera will focus the
subject.
ff necessary, the bui_t-in flash wil_
pop-up automatically.
Take the picture. (p39)
Press the shutter button completely
to take the picture.
Review the picture. (p.154)
The captured image will be
displayed for approx. 2 sec. on the
LCD monitor.
To display the image again, press
the <l_q> button (p.70).
To shoot while looking at the LCD monitor, see "Live View
Shooting" (p.121).
To view the images captured so far, see "Image Playback" (p.70).
To delete an image, see "Erasing Images" (p.196).
17

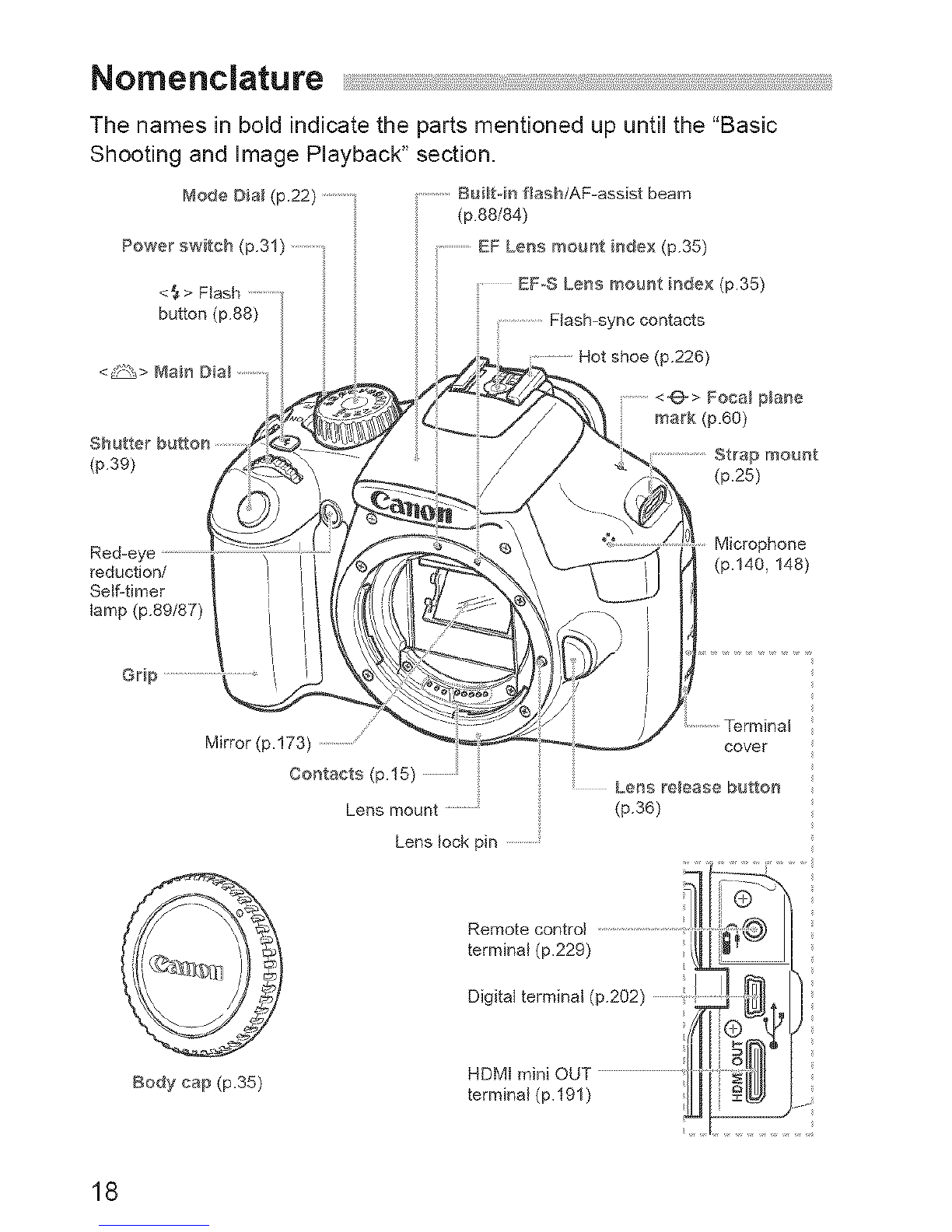

The names in bold indicate the parts mentioned up until the "Basic
Shooting and Image Playback" section.
Mode Dial (p.22) ..............
Power switch (p.31) .............
<_> Flash
button (p.88)
<_> Mai_ Dial
i...............Blilt-in flaah/AF-assist beam
(p.88/84)
....................EF Ler_s mount inde× (p.35)
EF-S Lens mount index (p.35)
................F=sh-sy.....tac °
......... Hot shoe (p.226)
plane
(p.3e)
Red-eye
reduction/
Self-timer
tamp (p.89/87)
Grip
Microphone
(p.140, 148)
Mirror (p.!73) ..............
Contact_ (p.I5)
Lens re_ea_e b_on
Lens mount ........ (p.36)
Lens lock pin ...............
Body cap (p.35)
18

Nomerlctature
iii!if!ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!iii[iii!ii_i_i_i!iii!;i_iil¸;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸III;I¸I¸
< AvJ_J/"_> Aperture/Exposure ............
compensation button/
Erase button (p.97/101/196)
Dioptric adjustment knob (p.38) ..............
Eyecup (p.229) ............
Viewfinder eyepiece ..............
< 9(_/_°C\ > AE lock/
FE lock button/Index/
: Reduce button
(pA 05/106/t76/178,209)
<_/_>
AF point selection
button/
Magnify button
(p.83/t78 209)
LCD monitor
(p.42,I55)
Speaker
(p.186)
DC cord
ho_e
(p.228)
<_ > Live View shooting/ .............. /
Movie shooting button
(p.122/t40) /
/
<[6]/_> ................................................................
Quick Contro_ button/
Direct print button (p.40/207)
Tripod socket
<MENU> _,_enu button (p.42) .............
< _ > Setting button (p.42)
........ i
Card/Battery
; eom_a_mentcover_p.gS)
:..............Access lamp (p.30) !
...............Card/Battery compartment
cover release lever (p.28) :
...............<[E]> Playback button (p.70)
<<_> Cross keys (pA2) ..........................................
<A ISO> ISO speed setting button (p.77)
<_' WE}> White balance selection button (p.115) .................... : ........
<._ .F_Jj/®> Drive mode selection button (p.86 87) Card slot (p.28)
<_ AF> AF mode selection button (p.8t) Battery compartrner_t (p.28)
19

Nomenclature
Shooting Settings Display (in Creative Zone modes, p.22)
_"_ Main Diat pointer (p.91) .....
ShootiHg mode ..............
indicatorExposureExposure tevet ...............
compensation
amount (p. 101 )
AEB range (p.103)
AFmode(p.St),
ONE SHOT
One-Shot AF
AI FOCUS
AI Focus AF
Al SERVO
AI Servo AF
MF
Manual Focusing
Quick Control icon ..........................
(p.40,63)
White balance (p.115)
Auto
?_ Daylight
#_. Shade
Ctoudy
_#-'-Tungsten light
White fluorescent light
Flash
_ Custom
..................Shutter speed
.................Ape_ure
HigNight tone priority (p.220)
Flash exposure
compensation (p.t02)
_% External flash
exposure compensation
buittdn flash (p.41)
(p.74)
J L Large;Fine
L Large/Normal
M Medium/Fine
M Medium/Normal
S1 Small l/Fine
$1 Small t/Normat
$2 Small 2 (Fine)
$3 Smatl 3 (Fine)
[_ RAW
E_ + J [ RAW+Large/Fine
...............Number of possible shots
..............Number of possible shots
during WB bracketing
...............Self4imer ¢our_tdown
:...........#B White balance correction (p.1t7)
Battery check (p.32) .............. :i _&lWhite balance bracketing (p.118)
...............Metering mode (p.t00)
Drive mode (p.86,87) ........................................................; [_ Evaluative metering
E_ Sblg_e shooting Eel Partial metering
CoHtinuous shooting [] Center-weighted average metering
® Se_f4imer:lO sec ...........................Eye-Fi transmission status (p.230)
_2 Self-timer:2 sec (Displayed if an Eye-Fi card is used.)
®c Se_f-timer:Co_}tir_uous
The display will show only the settings currently applied.
2O
