Cansec Dallas DS2490 User manual

Dallas DS2490 USB Adapter
INSTALLATION INSTRUCTIONS
Cutting edge simplicity
June 2011

Dallas DS2490 USB Adapter Page 2of 12
Installation Guide June 2011 • Rev. 2.2
Table of Contents
INTRODUCTION ...........................................................................................................................................3
SOFTWARE INSTALLATION.......................................................................................................................4
DRIVER INSTALLATION..............................................................................................................................4
Windows 98 / WINDOWS ME..............................................................................................................4
Windows®2000.................................................................................................................................... 5
Windows®XP.......................................................................................................................................7
Windows®Vista, 7 and 2008................................................................................................................9
Special Consideration for USB Installation...........................................................................................9
DRIVER FILES AND LOCATIONS .............................................................................................................10
UNINSTALLING THE DS2490.................................................................................................................... 11
Uninstalling under Windows 2000 and Windows XP.......................................................................... 11
Uninstalling under Windows®Vista, Windows®7 and Windows®2008.............................................. 12
Uninstalling under Windows®98 and Windows ME ...........................................................................12
© Cansec Systems Ltd., 2008
All rights reserved

Dallas DS2490 USB Adapter Page 3of 12
Installation Guide June 2011 • Rev. 2.2
Introduction
Welcome to the Dallas DS2490 USB Adapter installation guide. The DS2490 USB Adapter allows you
connect the iButton®Enrollment Reader to your computer through your computer's USB port.
NOTE: SmartLock®Connect and SmartLock®Ultralite’s stand-alone controllers/readers can only be
programmed using the iButton programming key and enrollment reader that is part of the Stand-Alone
Programming Kit (below). This also applies to Cansec TruckStop Express controller.
iButton Programming Key Dallas DS2490 USB Adapter
(Snaps into enrollment reader receptacle) (Connects to PC’s USB port)
iButton Enrollment Reader
(Transports data to/from the
programming modules,
positioned at controllers)
All Cansec products that support the Dallas DS2490 USB Adapter load the required drivers for operation. This
document provides detailed instruction for completing the installation phase of this USB device.
The iButton Enrollment Reader has a
phone-style jack that plugs in to both the
iButton USB adapter and the stand-alone
programming module near the controller.
With the programming key snapped
into the enrollment reader receptacle,
data can be transported to and from
controllers and the PC.

Dallas DS2490 USB Adapter Page 4of 12
Installation Guide June 2011 • Rev. 2.2
Software Installation
NOTE: Never attempt to plug the USB adapter into an available USB port until the associated
access-control software has been installed.
Driver Installation
Once software installation is completed, plug the Dallas DS2490 USB Adapter into a free USB socket. Do
not attempt to use a USB hub interface. Driver installation occurs when the device is first detected by the
system and not all USB hubs work reliably with the DS2490. For this reason, it is important to connect
directly to a motherboard USB socket to ensure that the driver installation completes properly. If you
mistakenly plugged the adapter in prior to software installation, see the section Uninstalling the DS2490
before proceeding.
The driver installation process is determined by the version of Windows®. Sample installation scenarios
are presented below for Windows 98, Windows 2000, Windows XP and Windows 7. For Windows Vista
and Windows 2008 the steps are similar to that of Windows 7.
WINDOWS 98 / WINDOWS ME
When the DS2490 is inserted for the very first time, the Found New Hardware popup window will appear.
After a brief interval correct identification of the USB device should take place.
Once identified, the driver will load automatically and the adapter should be ready for use.

Dallas DS2490 USB Adapter Page 5of 12
Installation Guide June 2011 • Rev. 2.2
WINDOWS®2000
When the DS2490 is inserted for the very first time, the Found New Hardware popup window will appear.
After a brief interval correct identification of the USB device should take place.
If Windows is unable to locate the driver, it will prompt for the driver location.
Click Browse

Dallas DS2490 USB Adapter Page 6of 12
Installation Guide June 2011 • Rev. 2.2

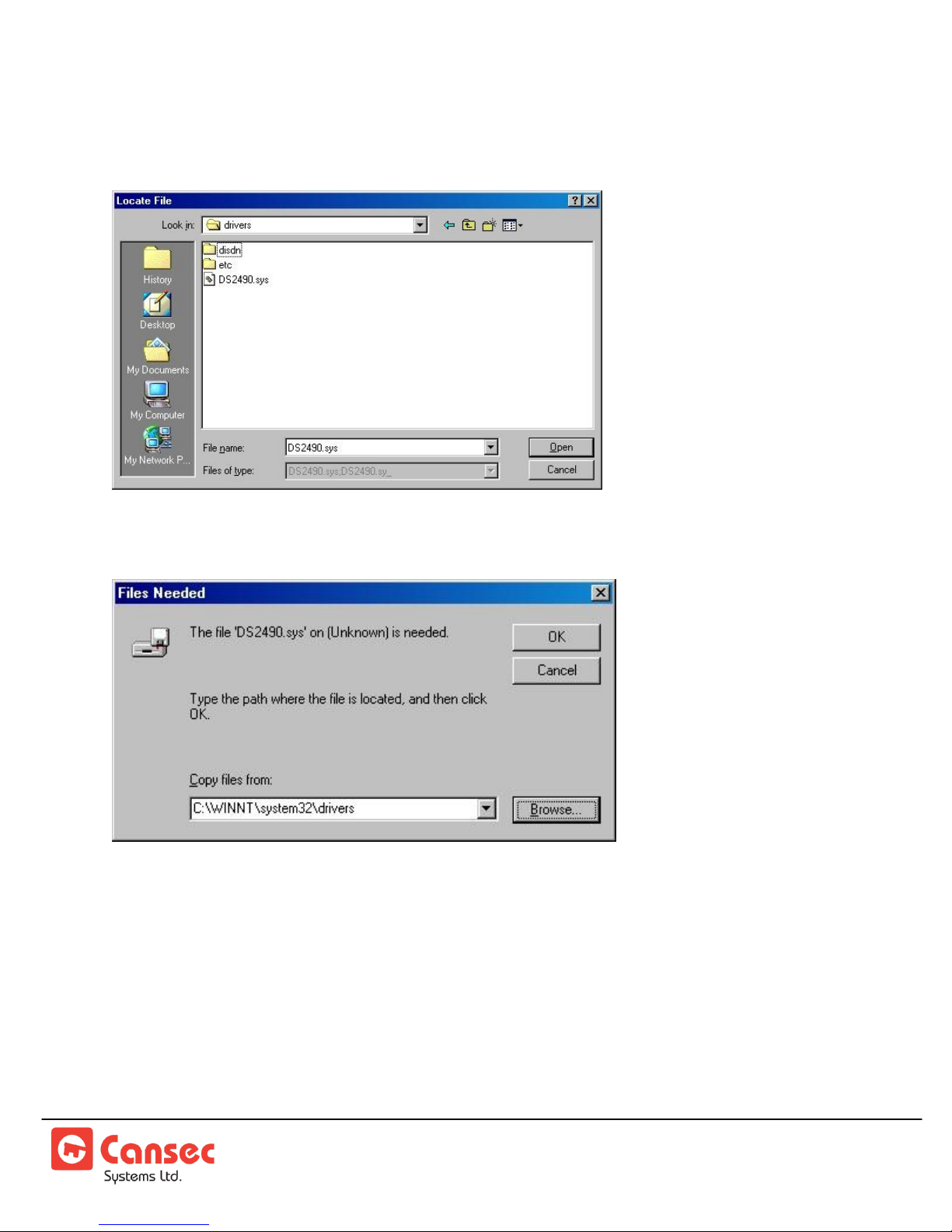

Browse to C:\WINNT\system32\drivers\DS2490.sys
Click Open
Click OK to complete driver installation.

Dallas DS2490 USB Adapter Page 7of 12
Installation Guide June 2011 • Rev. 2.2
WINDOWS®XP

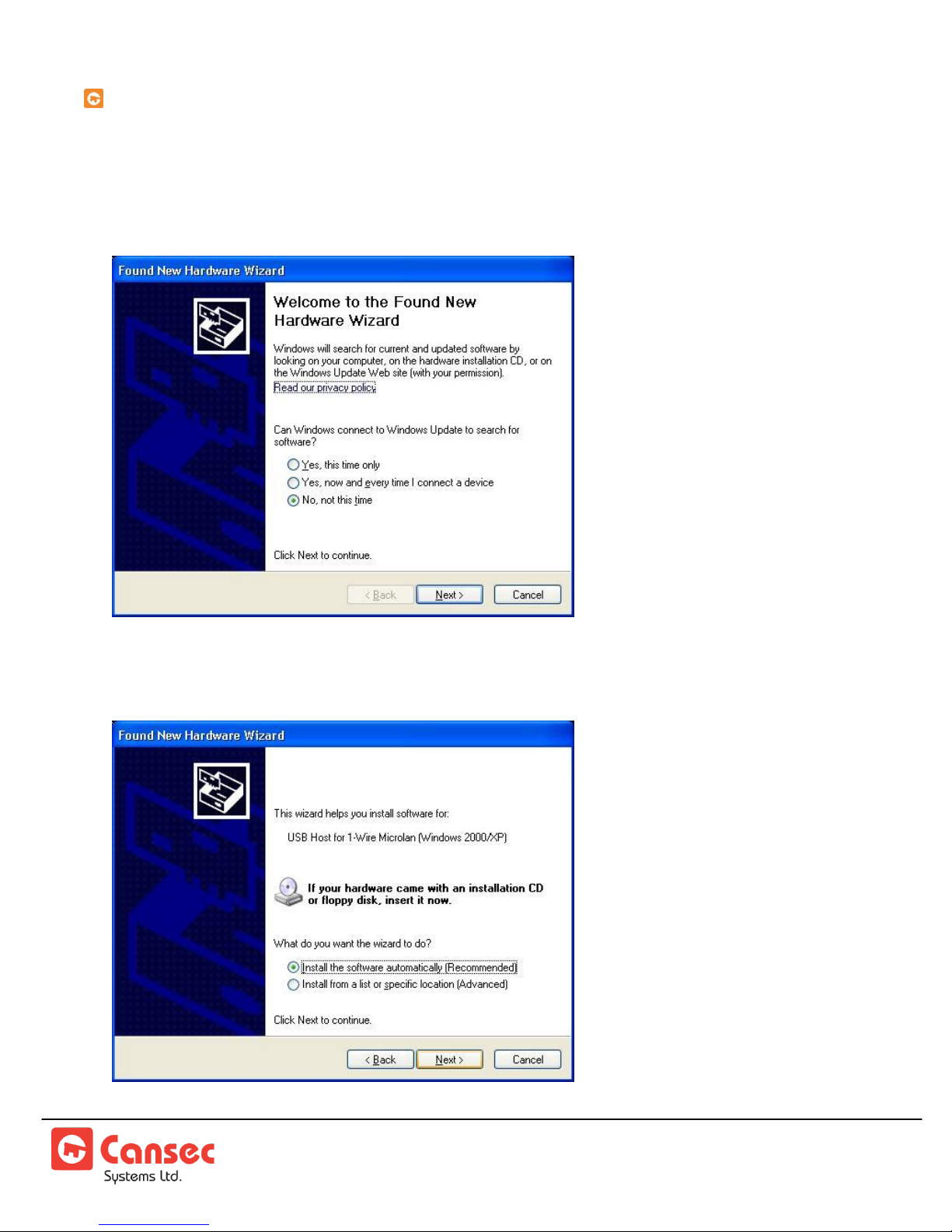

When the DS2490 is inserted for the very first time, the New Hardware Wizard setup screen will appear.
Windows Update does not support 1-wire devices at this time and also requires an active Internet
connection to function. For this reason:
Choose No, not this time
Click Next
The Driver Installation window is then displayed.
Select Install the software automatically (Recommended)
Click Next

Dallas DS2490 USB Adapter Page 8of 12
Installation Guide June 2011 • Rev. 2.2

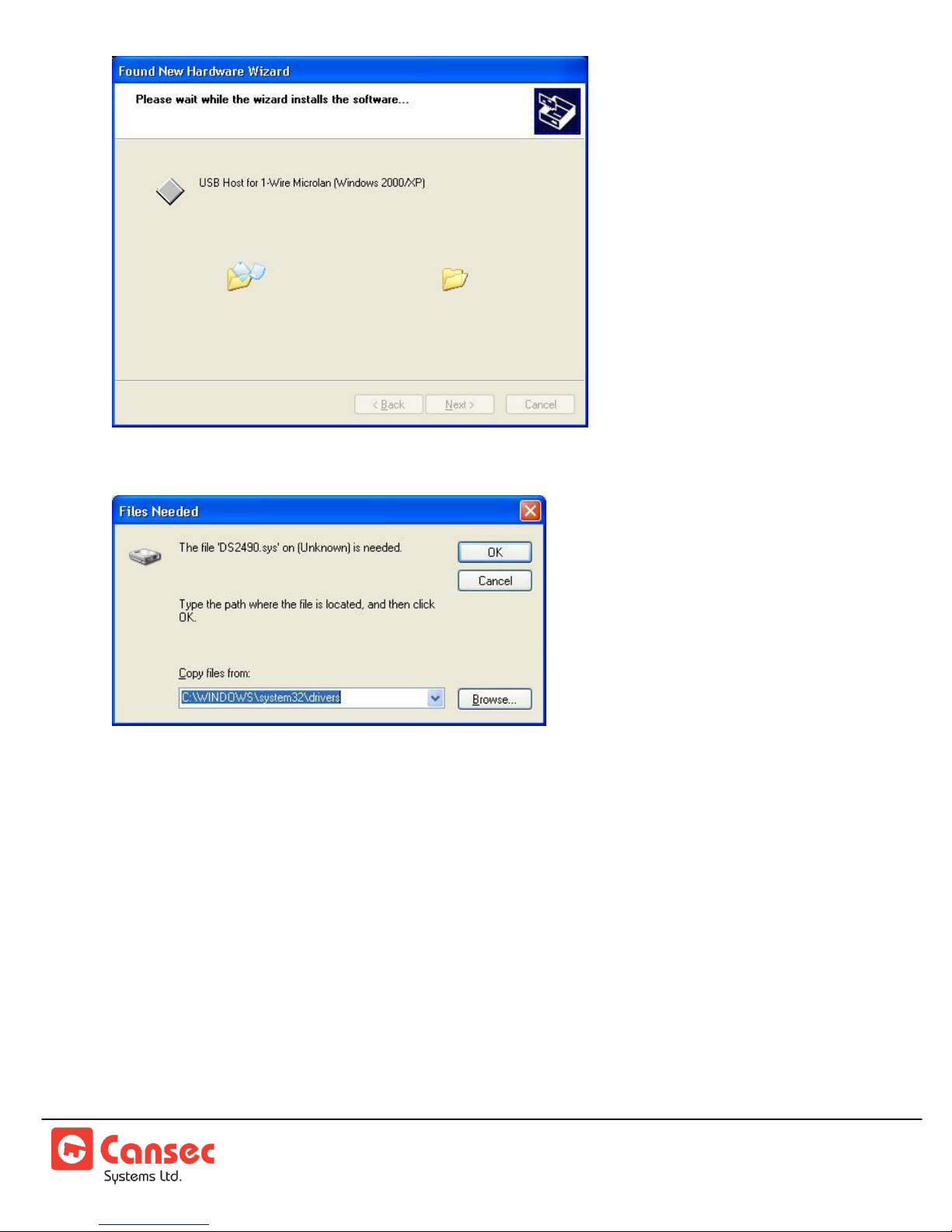

Typically, Windows®XP will be unable to locate the driver and the Files Needed window will be displayed.
Choose C:\WINDOWS\system32\drivers from the drop list box
Or click Browse and locate the driver C:\WINDOWS\system32\drivers\DS2490.sys manually

Dallas DS2490 USB Adapter Page 9of 12
Installation Guide June 2011 • Rev. 2.2

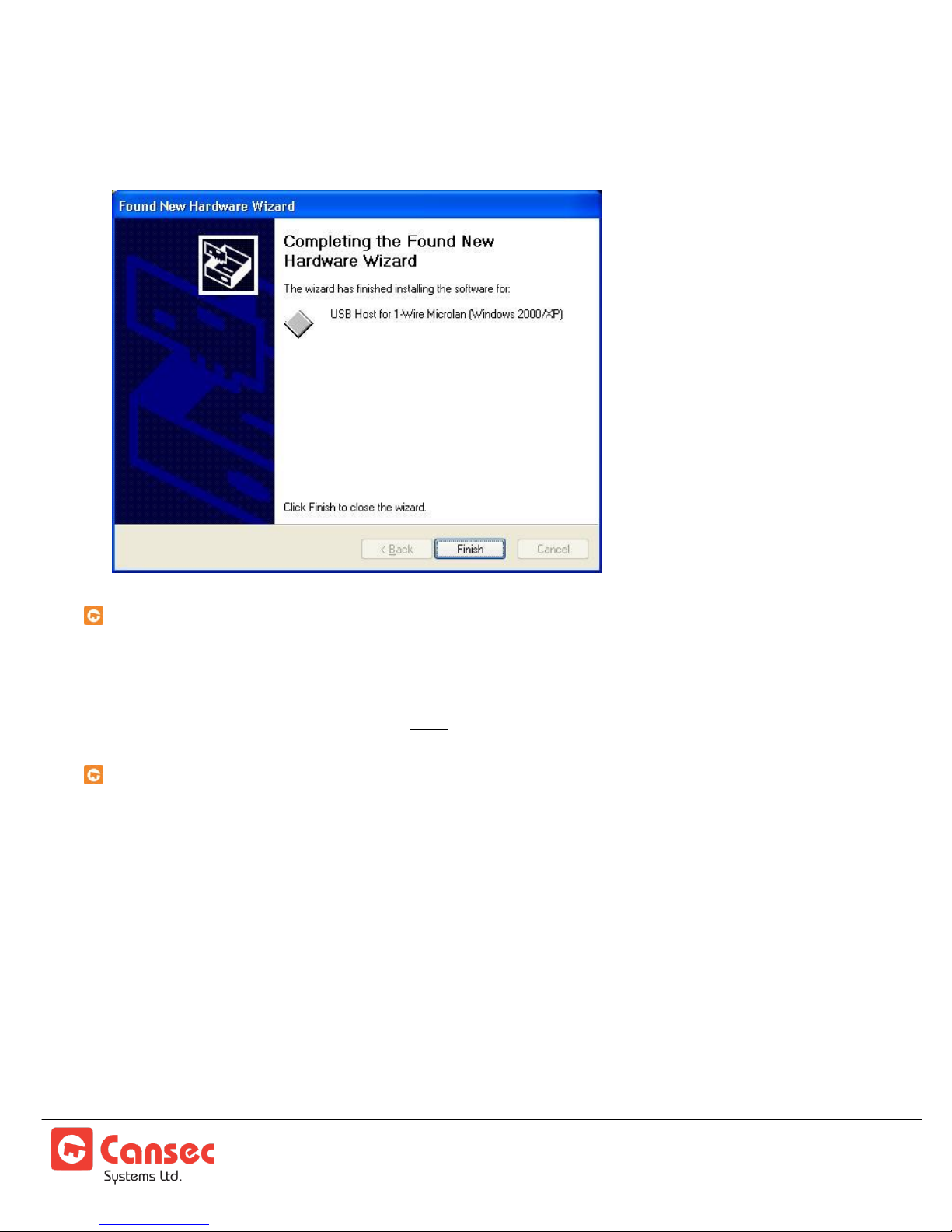

The driver should be successfully located and installed.
Press Finish to complete the process.
WINDOWS®VISTA, 7 AND 2008
During the access control software installation, there will be a prompt to install the driver for the USB
adapter. Follow the prompt to complete the driver installation. Once the driver and the access controls
software are installed, plug the USB adapter into a USB port on the computer and it will automatically
find and load the driver for the adapter. Note: A USB hub is NOT recommended.
SPECIAL CONSIDERATION FOR USB INSTALLATION
The following additional points are noted in the Dallas Semiconductor device driver documentation and
maybe applicable in some cases.
Unplug any 1-wire USB devices during installation to allow the device driver to be updated.
If a 1-wire USB device has previously been used on the PC, the computer must be restarted after
installation to recognize the new device driver.
If the PC has never had a 1-wire USB device on it, plug it in right after installation to complete the USB
install. If it is not recognized, then restart the computer and try again.
If auto-detect cannot locate the USB device driver (DS2490.SYS), browse to it in
C:\WINDOWS\system32\drivers or C:\WINNT\system32\drivers.

Dallas DS2490 USB Adapter Page 10 of 12
Installation Guide June 2011 • Rev. 2.2
Driver Files and Locations
The following driver and support files are loaded during installation of one of the above-mentioned products.
Windows®98, Windows ME, Windows XP, Windows Vista, Windows 7 and Windows 2008
Location
Files
C:\Windows\Inf
DS2490.inf
C:\Windows\system32
ib90usb.dll
C:\Windows\system32
ibfs32.dll
C:\Windows\system32\drivers
DS2490.sys
Windows 2000
Location
Files
C:\WINNT\Inf
DS2490.inf
C:\WINNT\system32
ib90usb.dll
C:\WINNT\system32
ibfs32.dll
C:\WINNT\system32\drivers
DS2490.sys

Dallas DS2490 USB Adapter Page 11 of 12
Installation Guide June 2011 • Rev. 2.2
Uninstalling the DS2490
Use Add/Remove Program in Windows’Control Panel to remove the driver whenever possible. However,
uninstalling the Dallas DS2490 USB Adapter may also be performed via the Windows®Device Manager.
Removal requires that the device be plugged in first so that it is accessible from Device Manager’s list.

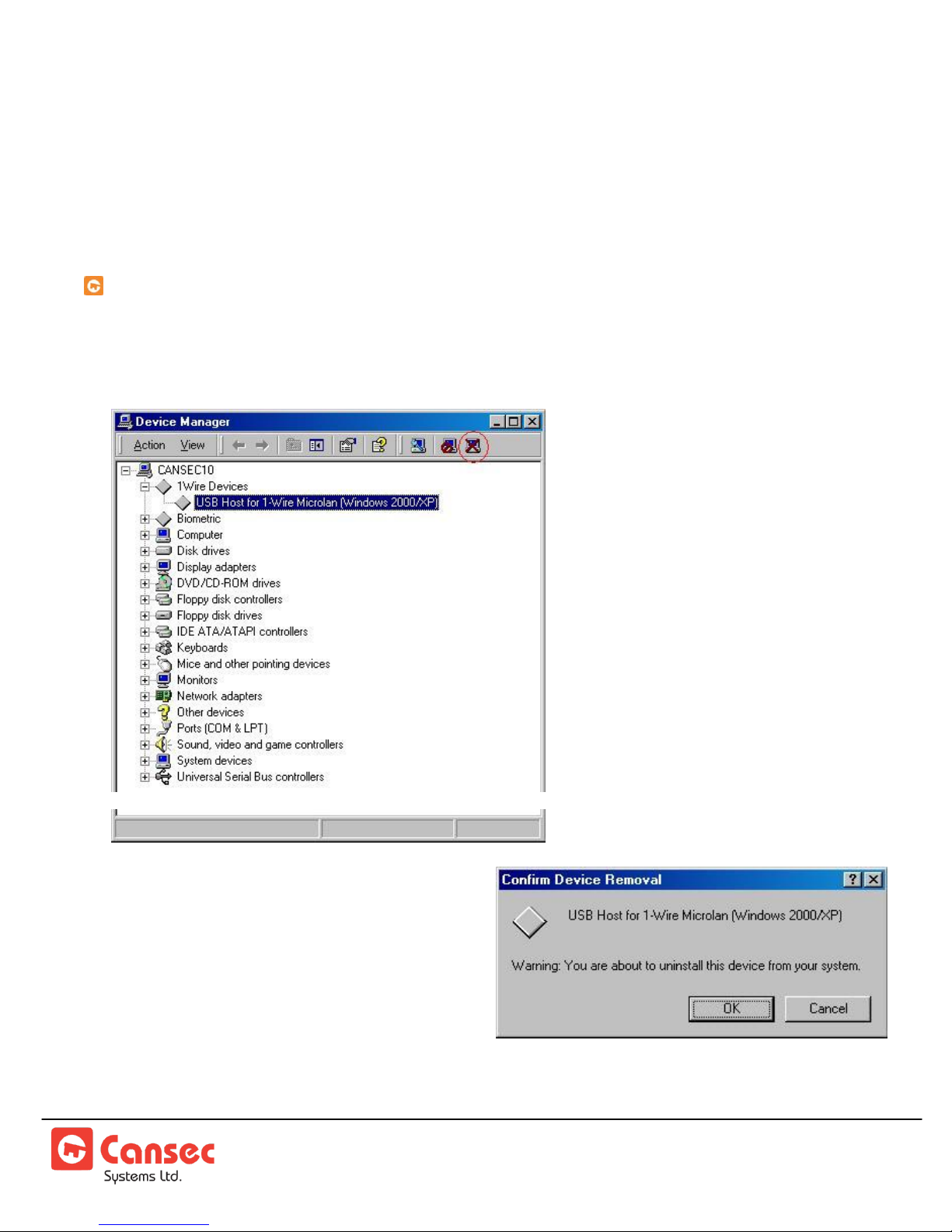

UNINSTALLING UNDER WINDOWS 2000 AND WINDOWS XP
In both Windows 2000 and Windows XP, the DS2490 is displayed as shown below.
Highlight the device
Press Remove (circled in red)
The Confirm Device Removal dialog box will appear.
Click OK
Restart your computer if necessary

Dallas DS2490 USB Adapter Page 12 of 12
Installation Guide June 2011 • Rev. 2.2

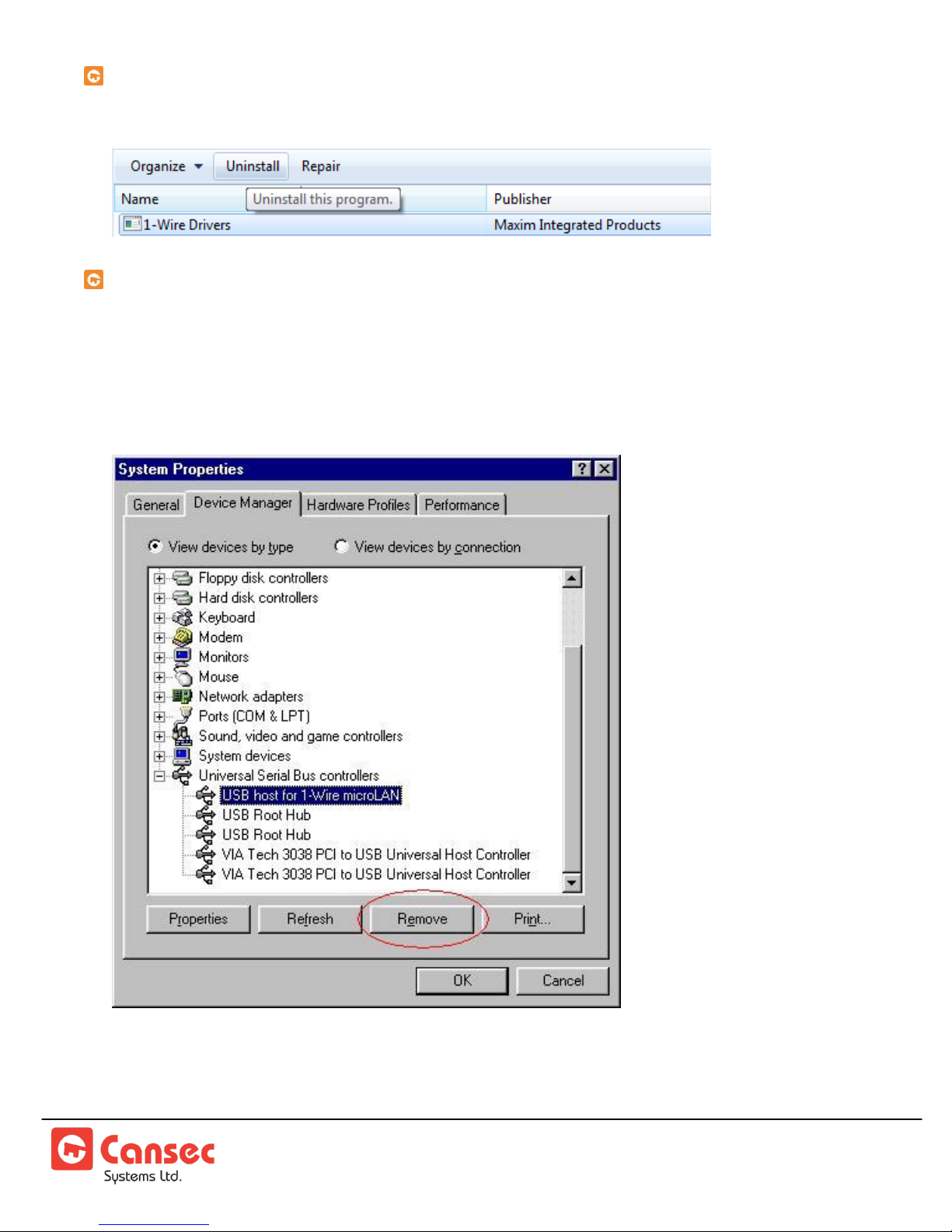

UNINSTALLING UNDER WINDOWS®VISTA, WINDOWS®7 AND WINDOWS®2008
Use the Program and Features in the Control Panel to remove the driver
UNINSTALLING UNDER WINDOWS®98 AND WINDOWS ME
In Windows 98 and Windows ME, locate the device under the Universal Serial Bus controllers collection.
Highlight the device
Click Remove
